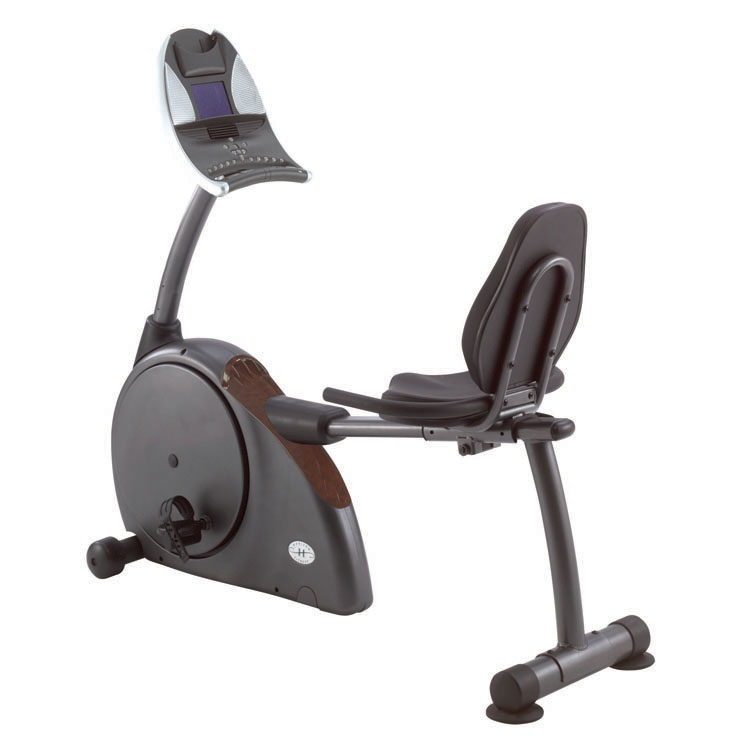

Horizon Fitness - R30 - 2004

Repair Parts for Horizon Fitness R30 RB61B

Brand: Horizon Fitness

Category: Recumbent

Type: Stationary Bikes

Model Name: R30

Version: 2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - N/A Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
L 700009 000014-00 L01 Transport Wheel Yes Model Compatibility List $9.57 / Each

8
B 700132 000485-00 B22 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
B 700135 000491-B B23 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
F 700252 000782-B F11 Pad;Stopper No Model Compatibility List $1.79 / Each

12,13,14
N 700263 000815-A N/A Water Bottle No Model Compatibility List $3.82 / Each

1
G 700299 000893-B G06 End Cap;Handlebar No Model Compatibility List $1.90 / Each

9,11
Q 700376 001161-C Q09 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
Q 700455 001412-A Q11 End Cap;Crank Cover No Model Compatibility List $1.77 / Each
Out Of Stock 		8,9
P 700724 002032-E P02 Console Cable - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $57.49 / Each

7,4,5,6
N 700893 002671-A N20 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

7,4,5,6,12,13,14
P 700901 002703-A P06 Zero Switch Cable; 100 OMRON + 2.5-2P No Model Compatibility List $9.57 / Each

4,5,6
N 701008 003307-00 N/A Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

1
T 701042 003413-00 T06 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701051 003486-A2 P05 Power Adapter;14.5Volts;2M 120V/60Hz 14.5V/1A No Model Compatibility List $76.65 / Each

4,5,6
R 701154 004072-A2 R08 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
T 701159 004077-A2 T12 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
R 701170 004090-00 R07 Bearing;One-way; HFL2026 No Model Compatibility List $27.82 / Each

8
R 701229 004203-A R03 Drive Belt;Poly-V;410-J5 Yes Model Compatibility List $57.49 / Each

15,10
U 701300 004364-00 U07 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
N 701308 004369-00 N62 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
L 701591 004620-00 L05 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
701699 004724-00 G05 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
D 701710 004728-00 D22 Screw;Oval Hex Socket;M8x1.25Px40L No Model Compatibility List $2.00 / Each

2
F 701781 004796-00 F05 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
T 701848 004865-00 T20 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
P 701858 004880-00 P08 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
T 701927 004964-00 T09 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
B 701934 004972-00 B29 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
F 701939 004975-00 F07 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
D 702025 005058-00 D18 Washer;Flat;12x26x2.0T No Model Compatibility List $2.00 / Each

2
L 702040 005070-00 L04 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
D 702135 005163-00 D23 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
T 702193 005239-00 T19 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
D 702234 005359-00 D19 C-Clip;External;S-12 No Model Compatibility List $2.00 / Each

2
T 702240 005365-00 T13 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
702260 005400-Z N/A Wrench;Multi-Hole;13,14,15mm - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $4.00 / Each

2
N 702264 005412-00 N/A Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

2,10
Q 702483 007964-00 Q16 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
P 702511 008393-00 P04 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
T 702601 008914-B T11 Nut;Fixing;S46C;AN04 M20x1.0Px6t;BED; No Model Compatibility List $4.00 / Each

2
D 702747 009486-00 D16 Bushing;Seat Slide Bar No Model Compatibility List $1.90 / Each

8,12,13,14
D 702748 009491-E D17 Cam No Model Compatibility List $9.75 / Each

1
A 702849 012674-00 AU1 Tension Wheel Set; No Model Compatibility List $77.32 / Each

8
A 702869 012962-Z AS2 DC Motor Set w/Zero Switch Cable; No Model Compatibility List $172.46 / Each

4,5,6,10
T 703447 014708-A T02 T03 T04 T08 Pedal Set;With Strap No Model Compatibility List $31.85 / Each

8,9
A 703559 015383-AA AT1 Crank;Right No Model Compatibility List $52.05 / Each

8
P 705700 055204-A P03 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
D 706895 066767-C D20 Set Screw;M8x1.25Px8L No Model Compatibility List $2.00 / Each

2
View Drawing
