Horizon Fitness - RE1 - 2004

Repair Parts for Horizon Fitness RE1 EP29C

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

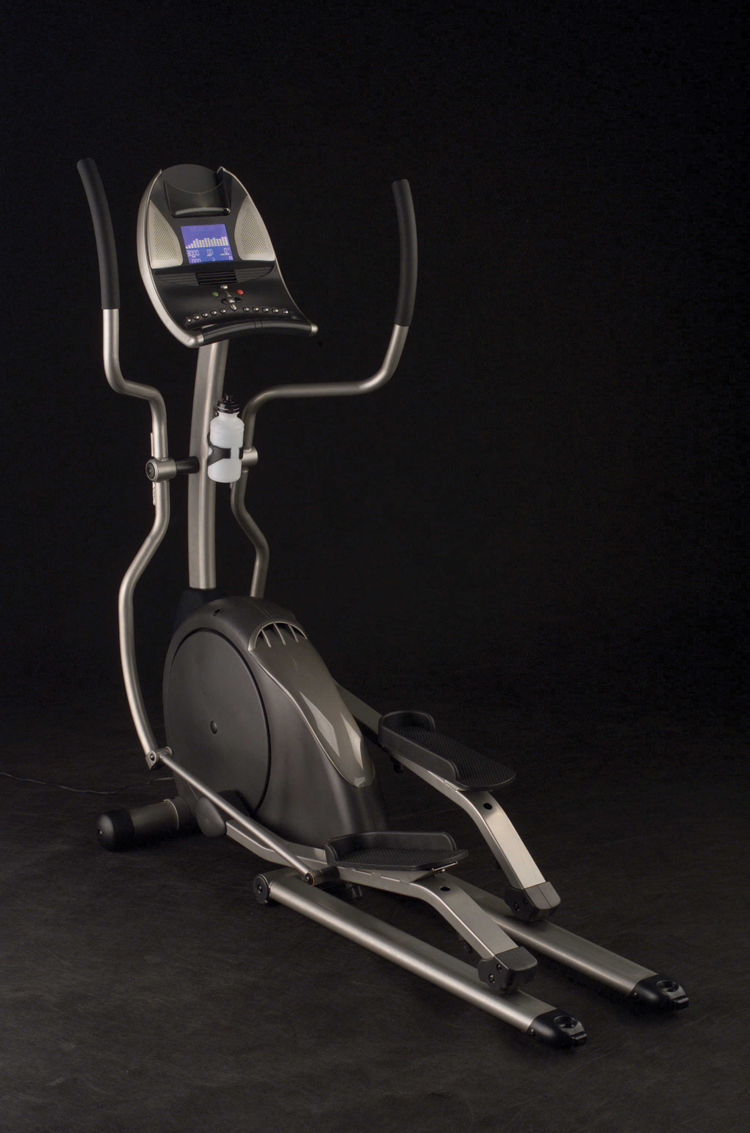

Model Name: RE1

Version: 2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700009 000014-00 L05 Transport Wheel Yes Model Compatibility List $9.57 / Each

8

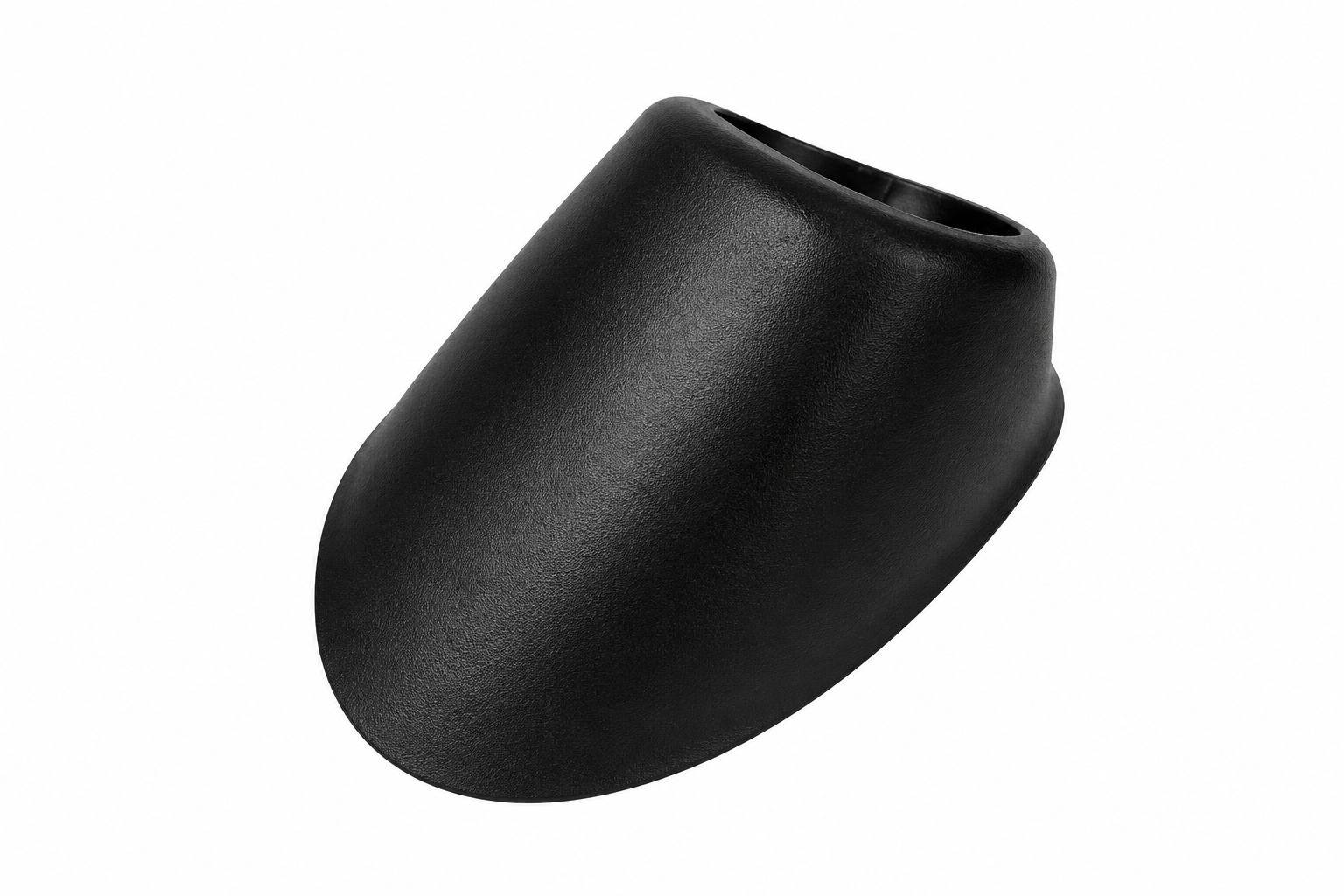

Q 700051 000203-C Q15 Boot;Console Mast No Model Compatibility List $3.54 / Each

7
F 700132 000485-00 F09 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
F 700135 000491-B F08 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700191 000609-A G21 Foam Grip;Handlebar;31.8x28x3.0tx500L No Model Compatibility List $9.57 / Each

11
E 700366 001138-B E56 Cover;Pedal Arm;Right Yes Model Compatibility List $3.82 / Each

8,9,3
E 700368 001139-B E57 Cover;Pedal Arm;Left D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $7.72 / Each

3,8,9
Q 700376 001161-C Q19 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
Q 700385 001188-B Q06 Cover;Roller Wheel Yes Model Compatibility List $12.77 / Each

8,9
L 700432 001360-00 L02 Sleeve;Mobile Wheel Yes Model Compatibility List $3.82 / Each

8,3
Q 700455 001412-A Q17 End Cap;Crank Cover No Model Compatibility List $1.77 / Each
Out Of Stock 		8,9
Q 700532 001544-BB Q03 Crank Cover;Round Disk No Model Compatibility List $29.67 / Each

8,9
P 700722 002028-D P02 Console Cable Yes Model Compatibility List $57.49 / Each

7,4,5,6
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
K 700893 002671-A KIT Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

7,4,5,6,12,13,14
P 700901 002703-A P07 Zero Switch Cable; 100 OMRON + 2.5-2P No Model Compatibility List $9.57 / Each

4,5,6
R 701042 003413-00 R37 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701051 003486-A2 P09 Power Adapter;14.5Volts;2M 120V/60Hz 14.5V/1A No Model Compatibility List $76.65 / Each

4,5,6
R 701154 004072-A2 R09 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
R 701165 004081-A2 R08 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
E 701176 004102-00 E18 Needle Bearing; HK1616 No Model Compatibility List $9.57 / Each

8
R 701221 004189-A R10 Drive Belt;Poly-V;410-J8 Yes Model Compatibility List $57.49 / Each

15,10
L 701270 004331-AB L08 Screw,oval head; M6x1.0Px25L No Model Compatibility List $2.00 / Each

2
Q 701294 004359-00 Q42 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

2
S 701300 004364-00 S20 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
N 701308 004369-00 N69 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
Q 701328 004381-00 Q46 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

2
Q 701358 004409-00 Q32 Screw;Phillip;BH;M5x0.8Px20L No Model Compatibility List $2.00 / Each

2
S 701577 004612-00 S55 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

2
Q 701586 004617-00 Q30 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
Q 701588 004618-00 Q33 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
F 701621 004640-A F29 Screw;Umbrella Cross Tapped;4X35L No Model Compatibility List $2.00 / Each

2
Q 701633 004654-00 Q35 SCREW;RND;Diam.4X15L;SM;PH;;BZN;;POT No Model Compatibility List $3.69 / Each

2
S 701642 004676-00 S05 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
C 701690 004719-00 C07 Bolt;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
701699 004724-00 F10 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
H 701713 004730-00 H10 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

2

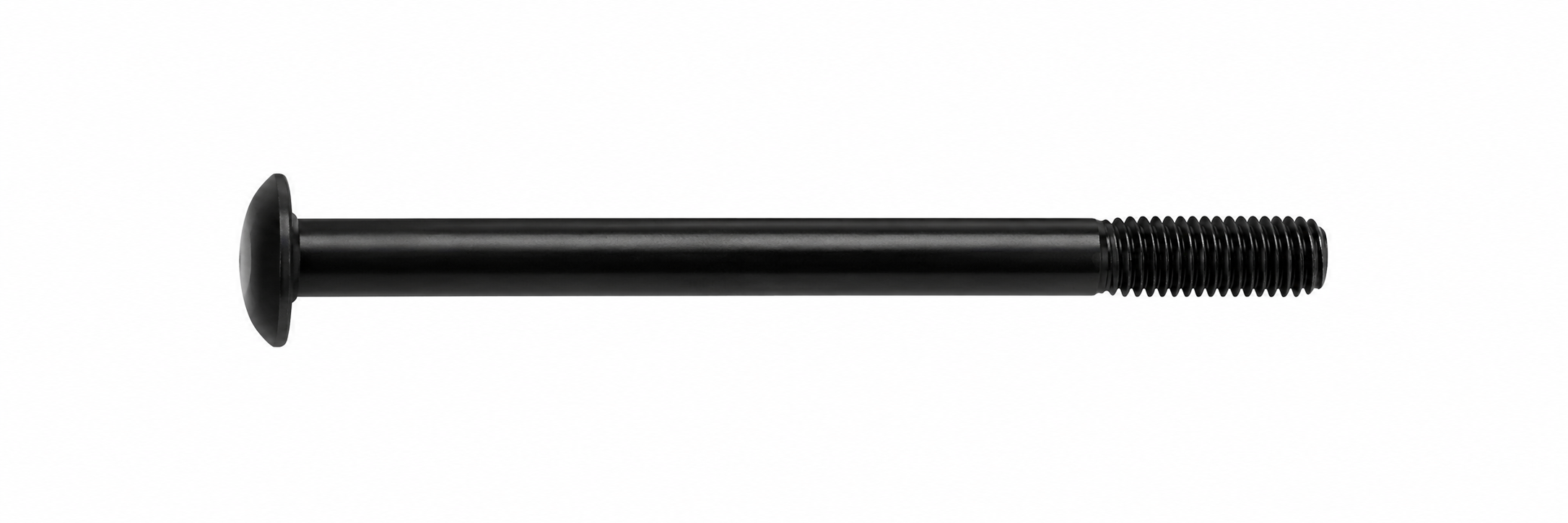

E 701714 004731-00 E21 SCREW;BH;M8X1.25PX95L;;HS;;;; No Model Compatibility List $3.33 / Each

2
G 701731 004757-00 G10 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
C 701737 004762-00 C04 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.00 / Each

2
L 701781 004796-00 L04 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
G 701830 004849-00 G14 Set Screw;M8x1.25Px10L No Model Compatibility List $2.00 / Each

2
J 701848 004865-00 J06 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
P 701858 004880-00 P51 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701869 004891-00 R16 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

2
R 701870 004892-00 R18 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
S 701893 004925-00 S16 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
H 701897 004926-00 H08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
R 701904 004931-00 R15 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
C 701906 004932-Z C05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
E 701912 004941-00 E16 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
R 701927 004964-00 R11 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
F 701937 004973-00 F07 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
L 701939 004975-00 L03 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
G 701964 005005-00 G43 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2

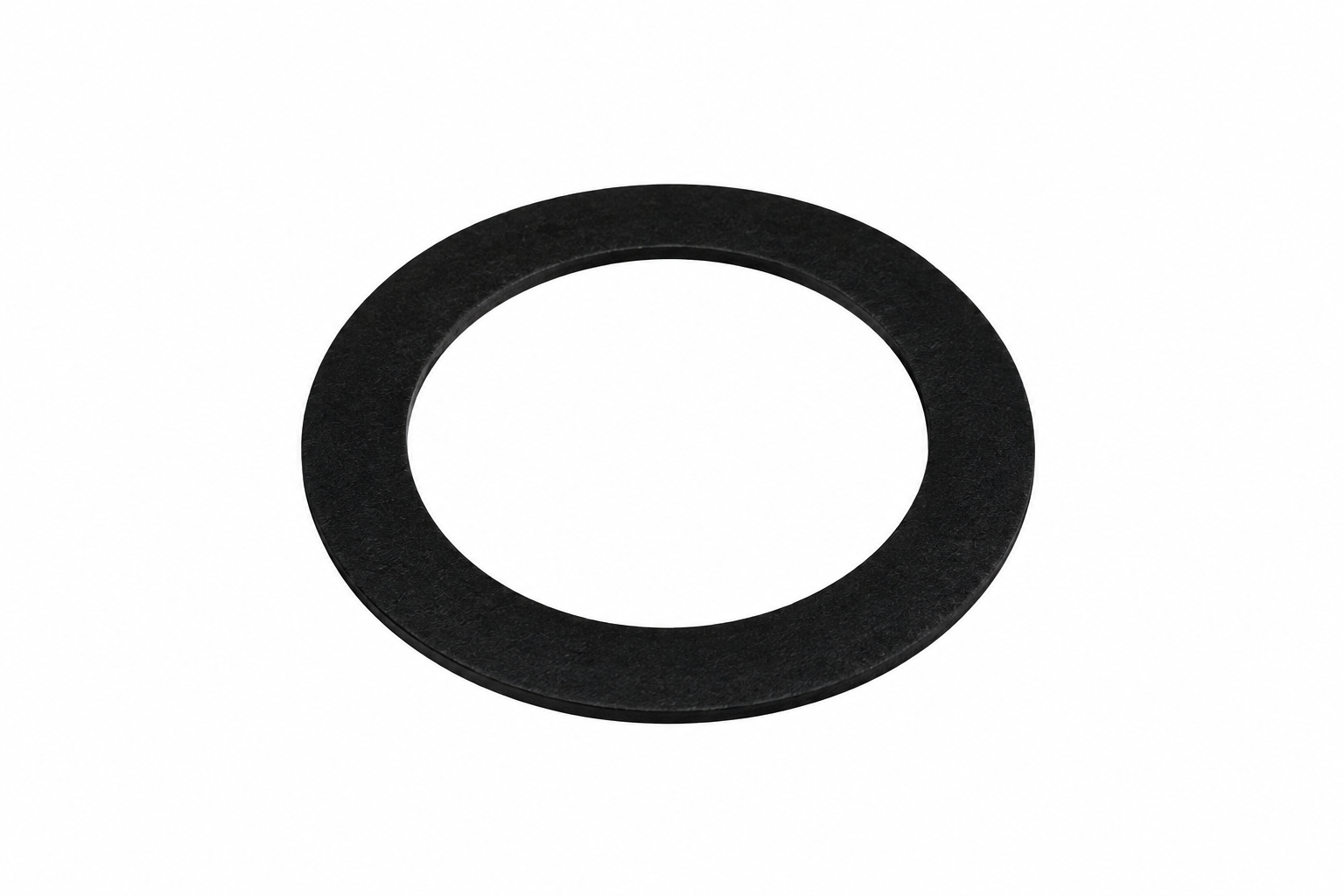

G 701988 005026-00 G20 Washer;Flat;25.5x35.0x1.0T No Model Compatibility List $2.00 / Each

2
G 702018 005053-00 G22 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
J 702020 005055-00 J08 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
S 702040 005070-00 S17 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Q 702063 005091-00 Q43 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $2.00 / Each

2
S 702066 005094-00 S54 Washer;Flat;3.2x8.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
G 702078 005110-00 G12 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
E 702109 005138-A E15 Washer;Flat;10.2x25x1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 702135 005163-00 C06 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2

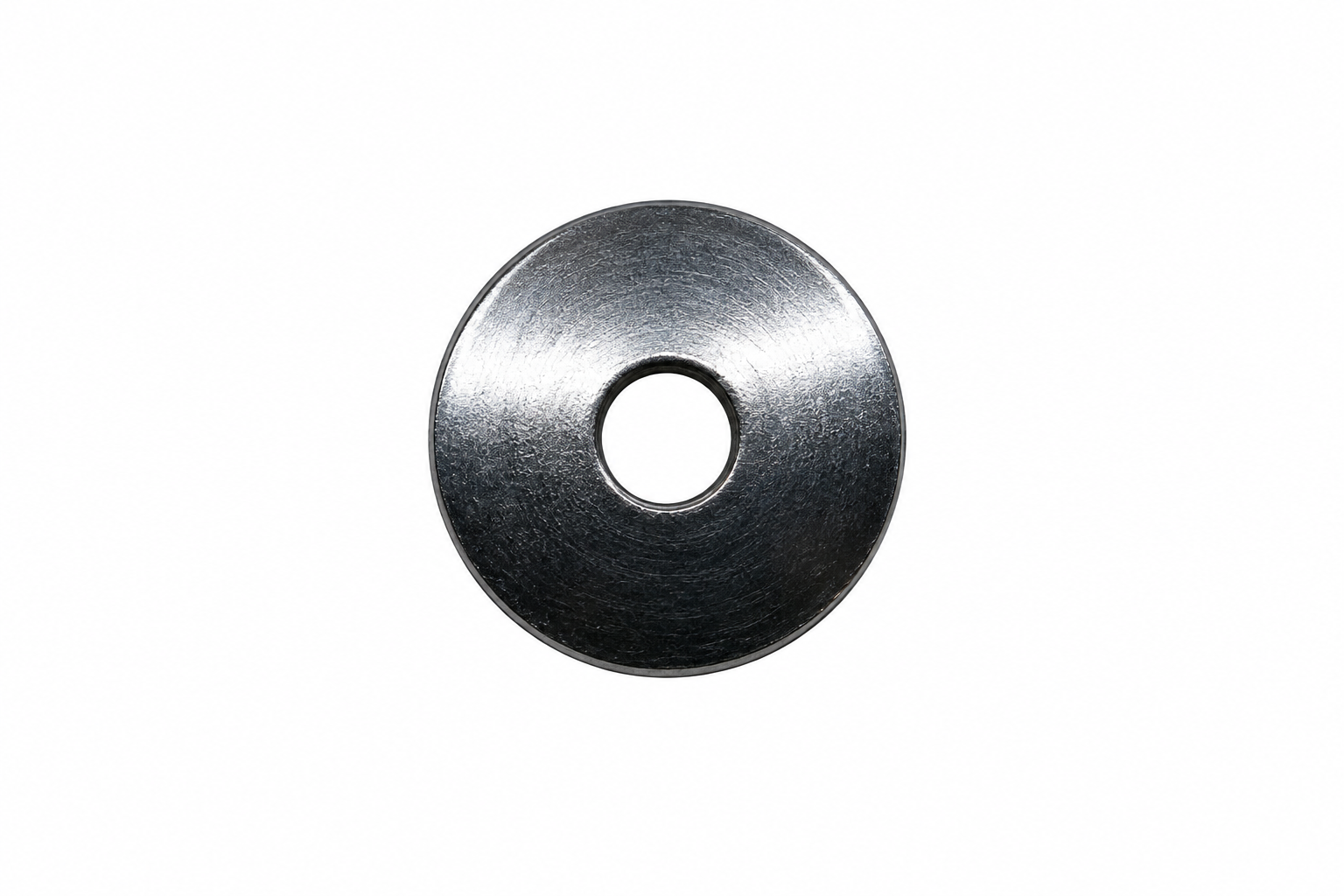

Q 702141 005171-A Q45 Washer;Arc;4.2x15x1.0T No Model Compatibility List $1.85 / Each

2
G 702163 005200-A G23 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

2

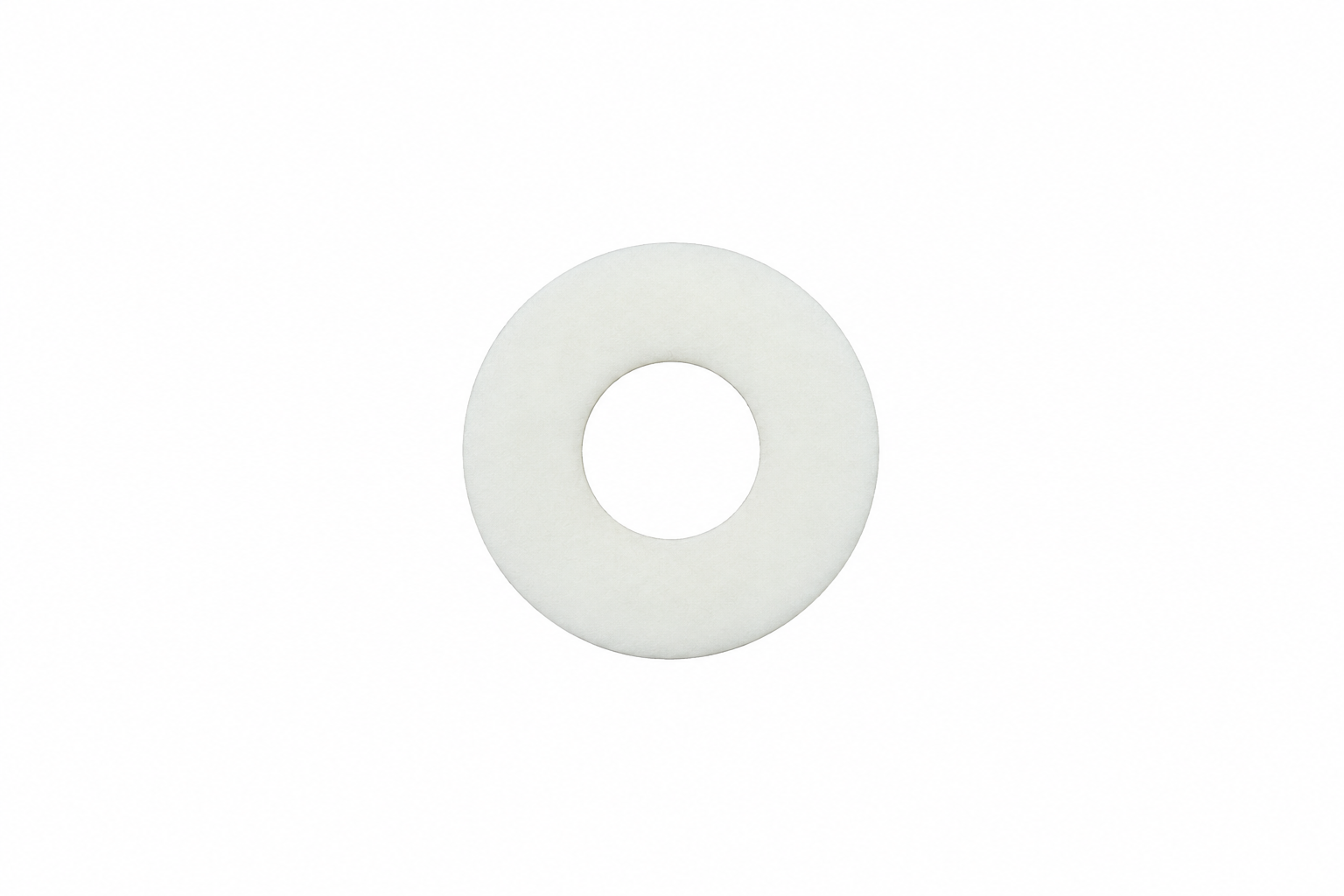

E 702166 005206-BB E14 Washer;Teflon;10.4x24.75x1.5T No Model Compatibility List $4.00 / Each

2
E 702180 005222-00 E13 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
G 702184 005227-Z G19 Washer;Wavy;26x34x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
R 702193 005239-00 R51 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
E 702236 005361-00 E54 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
J 702237 005362-00 J09 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

2
R 702240 005365-00 R34 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
G 702241 005366-00 G15 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
K 702253 005382-00 KIT Wrench;Open;13x15 No Model Compatibility List $5.90 / Each

2
K 702254 005386-00 KIT Wrench;Open;17mm No Model Compatibility List $4.00 / Each

2
K 702263 005411-Z KIT Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

2
K 702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

2,10
Q 702483 007964-00 Q25 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
P 702511 008393-00 P04 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3

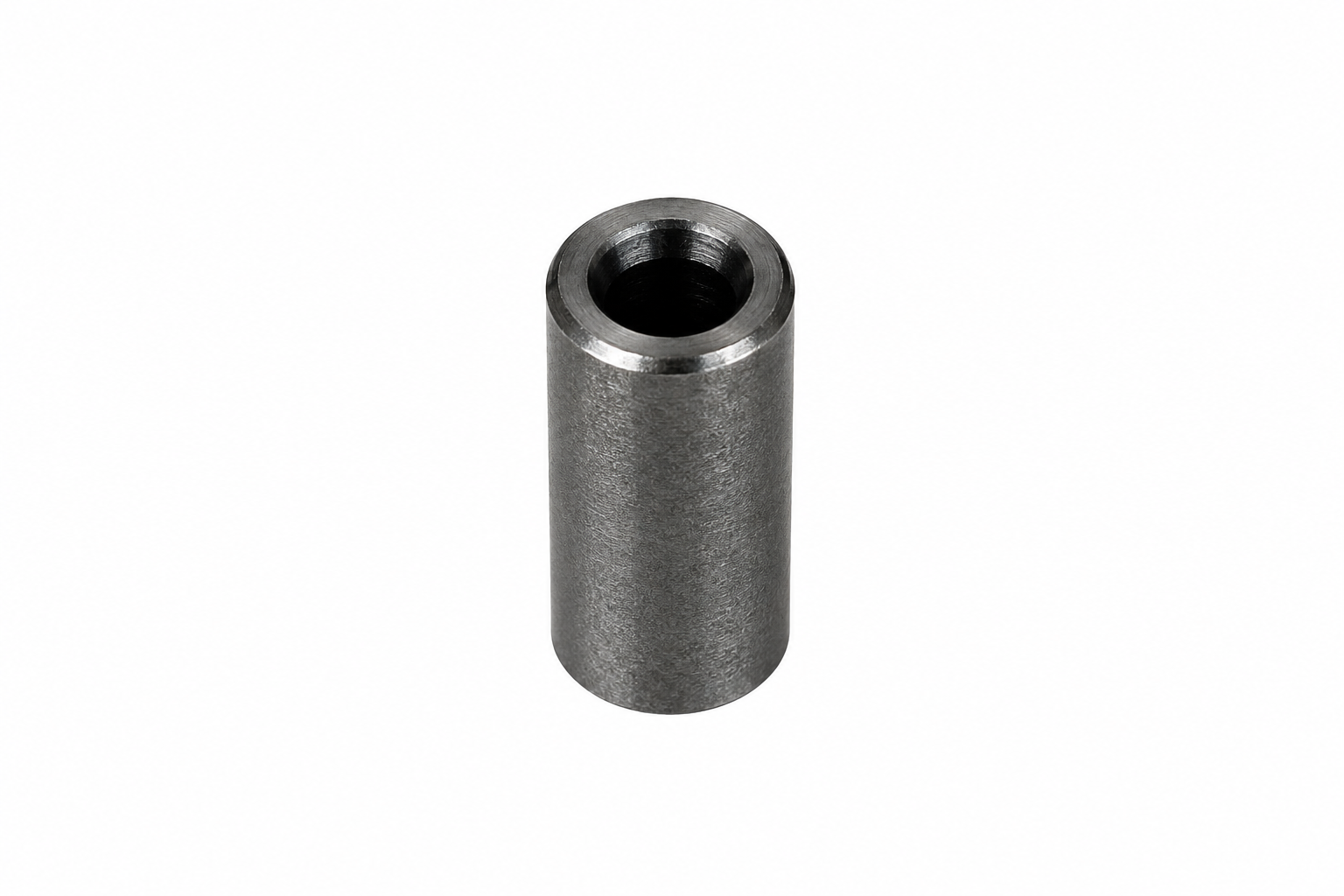

G 702571 008692-D G09 Inner Bushing;Lower Link Arm No Model Compatibility List $1.90 / Each

8,3
R 702601 008914-B R12 Nut;Fixing;S46C;AN04 M20x1.0Px6t;BED; No Model Compatibility List $4.00 / Each

2
A 702907 013194-Z AE3 Pivot Tube Set No Model Compatibility List $57.49 / Each

8,3
R 702908 013196-Z R06 Drive Axle Set;Flywheel Yes Model Compatibility List $228.83 / Each

8,10
R 702910 013208-Z R02 Pedal Axle Set No Model Compatibility List $136.03 / Each

8,9

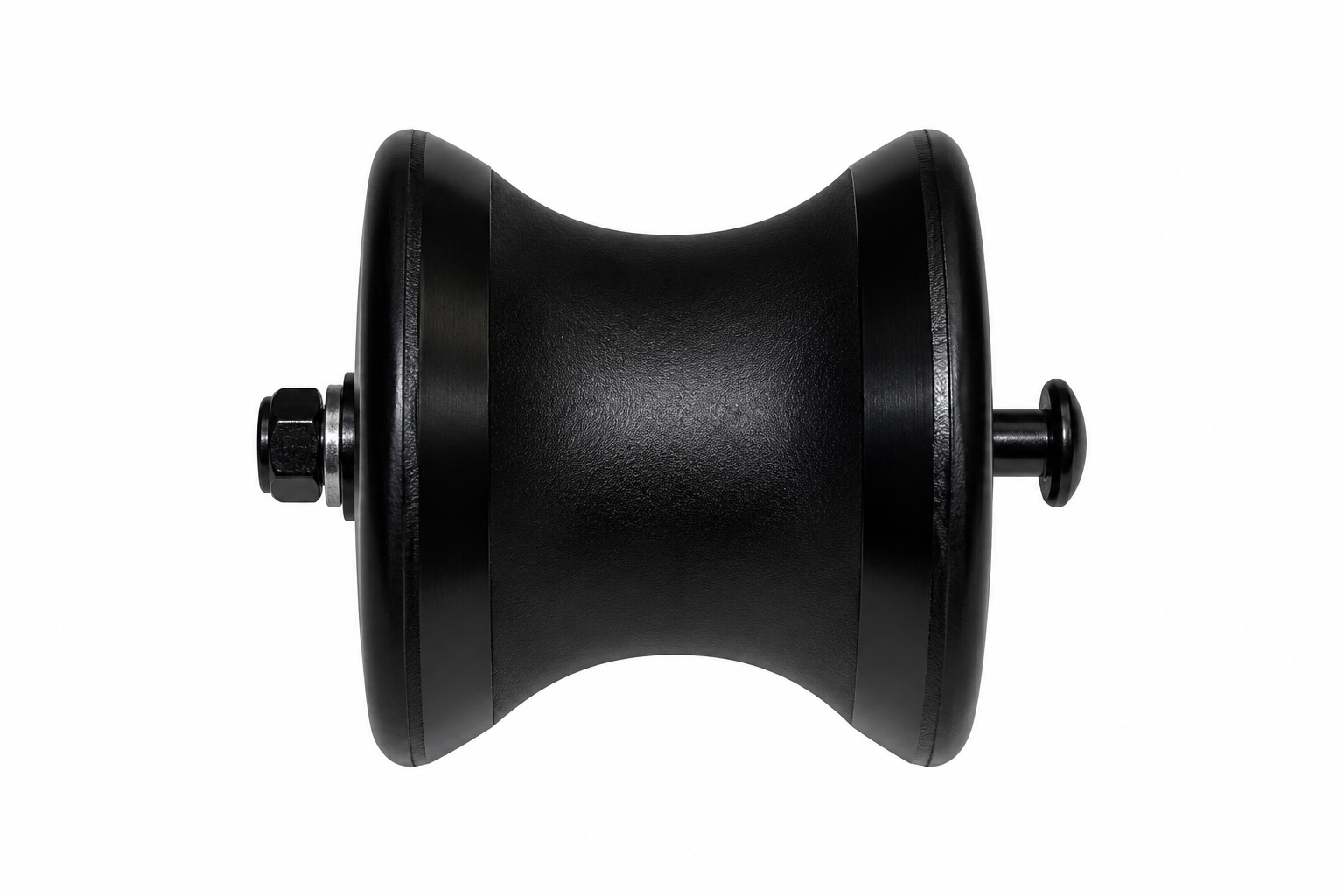

E 702911 013209-Z E03 Roller Wheel Set Yes Model Compatibility List $57.49 / Each

8

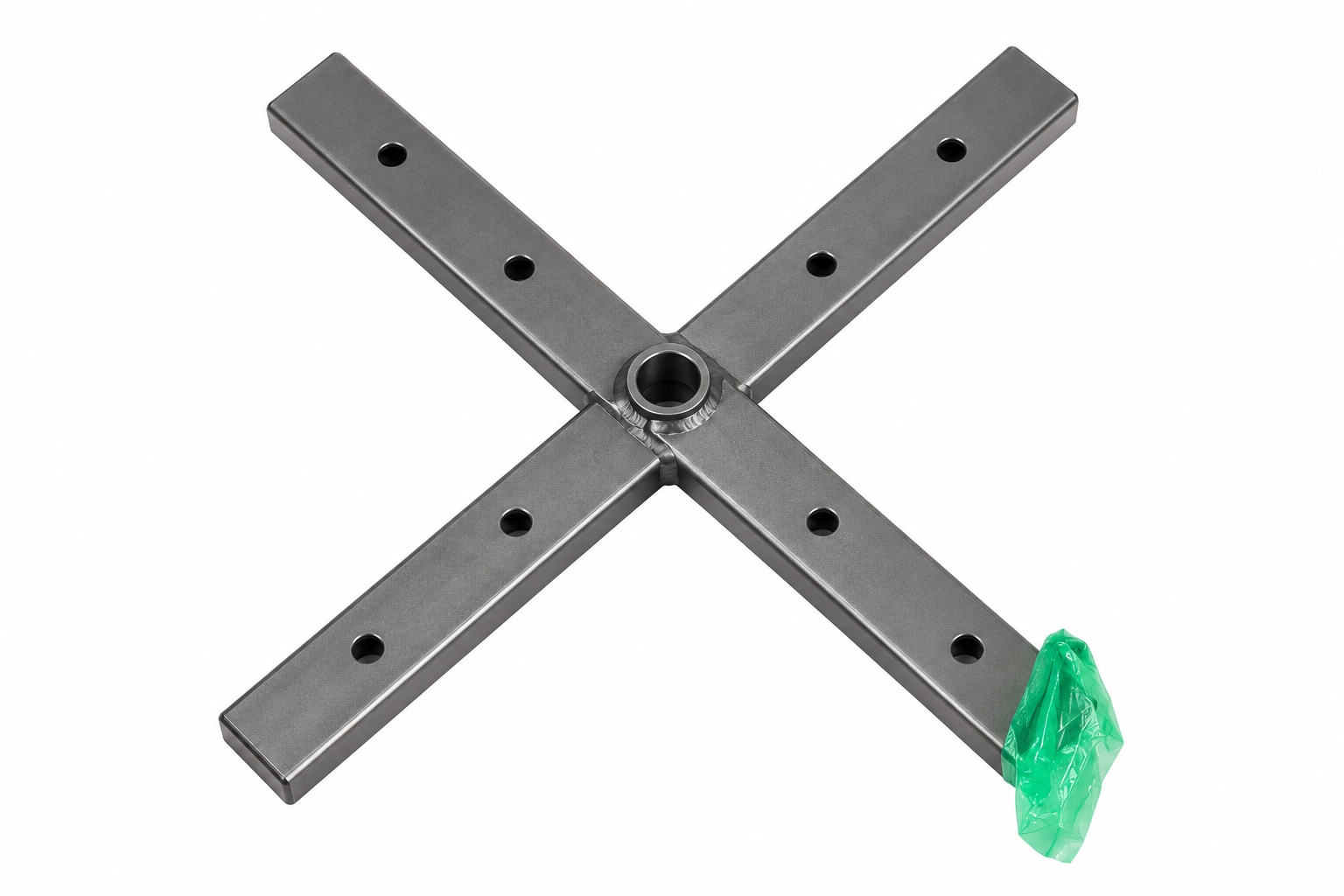

A 703570 015523-BE AJ1 Crank Set;Left/Right Yes Model Compatibility List $57.49 / Each

8
L 705700 055204-A L06 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
G 725256 103296 G11 Bushing No Model Compatibility List $9.57 / Each

8
H 725259 103299 H04 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Resistance Motor, Servo, Assembly - Used 1019633 013148-Z S25 1 Resistance Motor, Servo, Assembly - Used Yes Model Compatibility List $103.99 / Each

10
A 1026562 013194-Z AE3 1 Pivot Tube (Used) No Model Compatibility List $11.58 / Each
Out Of Stock 		1
