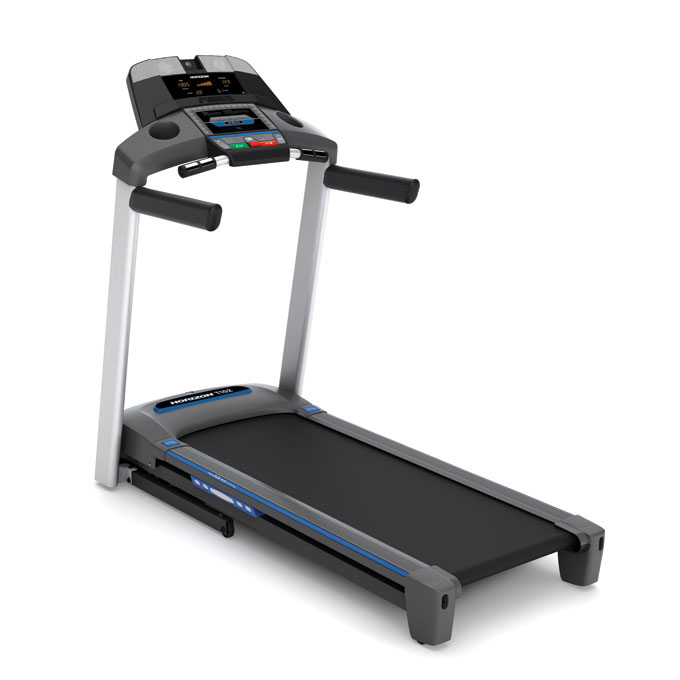

Horizon Fitness - T102 - 2010

Repair Parts for Horizon Fitness T102 TM622

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: T102

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Roller
  • Motor
  • Fasteners and Brackets
  • Sensors
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700245 000767-D B46 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

1
B 700246 000768-D B47 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

1
N 700318 000940-A N06 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
H 700327 000977-00 H14 Sleeve;Outer No Model Compatibility List $3.82 / Each

3
B 700402 001251-F B35 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

2,9
P 700570 001679-00 P25 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
P 700746 002124-B P09 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

4,5,6
N 700893 002671-A N73 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

7,4,5,6,12,13,14
701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

4,5,6
N 701094 003721-00 N22 Screw;Phillip;BH;Tapped;3x6L;Zn+3(White No Model Compatibility List $2.00 / Each

2
P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

2
B 701375 004425-B B31 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

2
M 701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

2
R 701476 004523-00 R05 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

2
M 701478 004525-00 M11 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $7.20 / Each

2
B 701544 004571-00 B28 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

2
M 701562 004595-00 M14 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
B 701583 004615-00 B32 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

2
N 701590 004619-AB N37 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

2
N 701599 004623-00 N32 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $2.00 / Each

2
B 701600 004624-00 B38 Screw;Umbrella Cross Tapped;4x20L;Gap; No Model Compatibility List $2.00 / Each

2
N 701606 004627-AB N21 Screw;Phillip;BH;Tapped;5x12L;BED;Gap; No Model Compatibility List $2.00 / Each

2
Q 701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

2
Z 701729 004754-00 Z03 Screw;Hex Socket;BH;M8x1.25Px20L;BED No Model Compatibility List $1.79 / Each

2
Q 701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $2.00 / Each

2
Q 701849 004867-A Q33 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
P 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
R 701897 004926-00 R06 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
M 701908 004934-00 M17 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
K 701912 004941-00 K12 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
Z 701964 005005-00 Z04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
M 702030 005062-00 M33 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
M 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

2
M 702118 005145-A M38 Washer;Flat;8.2x19.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
M 702136 005165-00 M18 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

2
P 702145 005177-00 P18 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $2.00 / Each

2
H 702160 005196-00 H07 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
703438 014669-B AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
B 703881 018951-A B48 Elastomer;Front/Rear;Black Yes Model Compatibility List $13.91 / Each

4,5,6
Z 704114 020266-00 Z06 Screw;Hex Socket;BH;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
Q 704155 020352-A Q34 Screw;Phillip;Sink;Tapped;4x34L; No Model Compatibility List $2.00 / Each

2
Z 704175 020425-00 Z05 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $2.00 / Each

2
N 705018 029437-00 N36 Screw;Phillip;BH;Tapped;3x10L;Zn+3(Whit No Model Compatibility List $2.00 / Each

2
705040 032669-IF M03 Motor Control Board;Digital;2.25/2.5HP Yes Model Compatibility List $499.00 / Each

7,10
M 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $331.29 / Each

10,12,13,14
K 705259 039400-BA K10 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

8
P 705308 040695-A P02 Power Switch Yes Model Compatibility List $28.73 / Each

4,5,6
H 705323 040839-00 H25 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.59 / Each

2
K 705382 049024-BA K09 Flat;;;50C;TM196-K12B Yes Model Compatibility List $6.42 / Each

1
M 705469 049262-00 M15 Screw;Hex;3/8-16UNCX55L-14L;;HE;;;;P-T No Model Compatibility List $4.00 / Each

2
Q 705470 049263-A Q31 Screw;Phillip;BH;Tapped;4x20L; No Model Compatibility List $2.00 / Each

2
H 705480 049279-C H06 Screw;Special;M8X1.25PX9L-D10X9.5L;;HE;45#;BOX; No Model Compatibility List $4.00 / Each

2
K 705484 049286-A K07 Nut;Hex;Flange;M8x1.25P; No Model Compatibility List $1.85 / Each

2
H 705488 049292-A H17 Washer;Flat;Teflon;8.1x20x1.0t; No Model Compatibility List $2.00 / Each

2
K 705698 055202-A K11 Screw;Umbrella Hex Socket;M10x1.5Px40L-20L No Model Compatibility List $4.00 / Each

2
V 705707 055269-AX V22 Decal;Faceplate No Model Compatibility List $3.82 / Each

7,3,4,5,6
M 705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
N 705893 056437-00 N90 Absorptive Plate;Zinc;15x25 No Model Compatibility List $1.90 / Each

3
K 706219 060295-DA KIT Digital Speed Sensor No Model Compatibility List $35.52 / Each

1
M 706492 062769-00 M12 Screw;Hex Socket;Round;M8x1.25Px15L;BED; No Model Compatibility List $1.79 / Each

2
K 707367 1000092332 K13 End Cap;Elevation Frame No Model Compatibility List $3.82 / Each

9,3,10
N 707457 1000092805 Not shown Silicon Oil;40ml No Model Compatibility List $32.49 / Each

1
A 707492 1000092985 AH2 Elevation Staff Set;zincification;TM616 No Model Compatibility List $19.89 / Each

10
Q 707537 1000093286 Q35 Screw;Phillip;BH;Tapped;4x7L No Model Compatibility List $1.85 / Each

2
P 707652 1000094015 P06 Speed Sensor Wire;1000mm;Analog Yes Model Compatibility List $10.82 / Each

4,5,6
B 707666 1000094117 B41 Air Shock;50KG(680L)Damping ;TM616 Yes Model Compatibility List $55.41 / Each

4,5,6,12,13,14
B 707756 1000094861 B25 Rear Leveler;Foot Frame Yes Model Compatibility List $1.90 / Each

9,3
H 707758 1000094874 H19 Connecting Axle;Elevation Shock No Model Compatibility List $3.82 / Each

8,10
H 707759 1000094875 H20 Spring No Model Compatibility List $4.00 / Each

2
K 707760 1000094876 K50 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $6.42 / Each

3,4,5,6,9
P 707762 1000094883 P11 Power Cord;16AWG;2M;TM616-P05A Yes Model Compatibility List $57.49 / Each

4,5,6
A 707768 1000094931 AH4 Lock Latch Set;Galvanization;TM616 No Model Compatibility List $10.01 / Each

1
H 707769 1000094932 H21 C Clip;Combined With 6mm Axle No Model Compatibility List $1.90 / Each

2,8
N 707811 1000095749 N95 IPOD Anti-Vibration Decal B;TM616 No Model Compatibility List $1.90 / Each

7,3
R 707840 1000096199 R04 Screw;Hex Socket;Round;M8x1.25Px75L(All) No Model Compatibility List $2.00 / Each

2
N 707862 1000096516 N85 Speaker;3W8;XHS-2Y;250MM No Model Compatibility List $17.24 / Each

1
N 707863 1000096517 N83 Speaker;3W8;XHS-2Y;400MM Yes Model Compatibility List $25.04 / Each

1
K 707945 1000097203 K14 Nut;Hex;Flange;3/8-16UNC No Model Compatibility List $1.85 / Each

2
H 707990 1000097464 H24 Single Foam;One-Sided;27x20x1.5t;Black No Model Compatibility List $1.90 / Each

4,5,6
H 708088 1000099273 H23 Decal;Insert Tube;protected piece No Model Compatibility List $1.90 / Each

7,3
B 708210 1000101235 B16 Elastomer;Decorative;Small;PVC;422C;TM626 Yes Model Compatibility List $17.91 / Each

1
B 708212 1000101237 B21 Elastomer;Decorative;Front;TPR;Blue/301C Yes Model Compatibility List $20.51 / Each

1
C 708214 1000101246 C13 Foam;Handlebar;40.0x80.0;Black;TM626 No Model Compatibility List $10.32 / Each

4,5,6,11
C 708215 1000101247 C14 End Cap;Handlebar;Black Yes Model Compatibility List $11.62 / Each

4,5,6,9,11
B 708228 1000101310 B22 Elastomer;Decorative;Long; Inside;422C;;TM622 No Model Compatibility List $1.90 / Each

1
V 708233 1000101361 V01 Sticker;Motor Up Cover;TM622 No Model Compatibility List $8.87 / Each

9,10
N 708242 1000101455 N60 Upper Control Board;UCB;T102;HDS101PD; No Model Compatibility List $632.42 / Each

7
N 708294 1000101856 N91 Wind Shield;Left;ABS;Black Yes Model Compatibility List $1.90 / Each

9
N 708295 1000101857 N92 Wind Shield;Right;ABS;Black Yes Model Compatibility List $7.10 / Each

3,9
Q 708334 1000102124 Q01 Motor Cover;Upper Yes Model Compatibility List $48.93 / Each

9,10
A 708341 1000102168 AC1 Console Mast Set;Left;Semi-Assy;TM622-1US No Model Compatibility List $144.66 / Each

7
708342 1000102170 AC2 Console Mast Set;Right;Semi-Assy;TM622-1US No Model Compatibility List $144.66 / Each

7
N 708344 1000102179 N01 Console Base Plastic;ABS;75140;TM622 No Model Compatibility List $75.76 / Each

7,9,3
N 708345 1000102180 N02 Console Overlay;ABS;Blacke;TM622 No Model Compatibility List $57.49 / Each

7,4,5,6
N 708346 1000102181 N03 Console Back Cover;ABS;BLACK;TM622 No Model Compatibility List $37.88 / Each

7,9,4,5,6
N 708347 1000102182 N07 Speaker;Cover;Left;Metal Net;MM314;TM622 No Model Compatibility List $12.38 / Each

9,3
N 708348 1000102183 N08 Speaker;Cover;Right;Metal Net;MM314;TM622 No Model Compatibility List $12.38 / Each

9,3
Q 708349 1000102187 Q09 Ornament;Motor Up Cover;301C;TM622 No Model Compatibility List $11.34 / Each

9,10
708350 1000102189 Q06 Front Cover;Side Rail; Left;75140;L;TM622 No Model Compatibility List $3.54 / Each

9
Q 708351 1000102190 Q07 Front Cover;Side Rail; Right75140;R;TM622 No Model Compatibility List $3.54 / Each

9
R 708397 1000102642 R02 Running Belt;Black;508x2930x1.4t No Model Compatibility List $249.13 / Each

15,4,5,6
A 708532 1000103182 AN4 Reed Switch No Model Compatibility List $40.14 / Each

4,5,6
N 708538 1000103263 N61 Overlay;TM622;English No Model Compatibility List $38.32 / Each

1
N 708539 1000103264 N62 Overlay+Keypad;TM622;English No Model Compatibility List $38.32 / Each

9,12,13,14
C 708563 1000103438 C17 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.57 / Each

2
N 708571 1000103575 N93 IPOD skidproof Decal;TM623 No Model Compatibility List $1.90 / Each

7,3
Q 708573 1000103577 Q02 Motor Cover;Bottom No Model Compatibility List $29.51 / Each

9,10
Z 708576 1000103585 Z10 Hardware Kit Set;Semi-Assy;TM623 No Model Compatibility List $31.07 / Each

1
N 708583 1000103660 N94 Cover;Safety Key;TM622 No Model Compatibility List $3.54 / Each

9
B 708615 1000104173 B27 Running Deck;675x1220x18T Yes Model Compatibility List $260.99 / Each

3
Q 708632 1000104507 Q04 Rear Roller Cover;Left Yes Model Compatibility List $15.55 / Each

8,9
Q 708633 1000104508 Q05 Rear Roller Cover;Right Yes Model Compatibility List $10.35 / Each

8,9
P 708636 1000104598 P07 Line;control board electrical source;TM6 No Model Compatibility List $8.87 / Each

7
N 708725 1000105093 N54 IPOD Seat;ABS;Black;EP218 No Model Compatibility List $1.90 / Each

4,5,6,12,13,14
708726 1000105094 N43 Safety Key Set Yes Model Compatibility List $40.14 / Each

9
V 708750 1000105315 V02 Sticker;Poly;Side Rail Cover;TM622 No Model Compatibility List $1.90 / Each

9
V 708896 1000107022 V24 Sticker;POP;Motor Cover;TM621 No Model Compatibility List $18.41 / Each

9,10,12,13,14
V 708931 1000107359 V06 POP Sticker;Console overlay;L;TM622 No Model Compatibility List $1.77 / Each

7,12,13,14
V 708932 1000107360 V26 POP Sticker;Console overlay;R;TM622 No Model Compatibility List $1.77 / Each

7,12,13,14
P 708937 1000107402 P30 Console Cable;Lower;1800L+250L(XHS12P+HX Yes Model Compatibility List $57.49 / Each

7,4,5,6
N 708959 1000107812 N86 Ground Wire;300L+350L+200L16AWG No Model Compatibility List $3.82 / Each

4,5,6
M 708986 1000108033 M05 Motor Fixing Set;Painting;TM622(service) No Model Compatibility List $33.31 / Each

10
A 708987 1000108034 AH1 Elevation Rack Set;Painting;TM622(servic No Model Compatibility List $62.24 / Each

4,5,6,10
A 708988 1000108035 AH3 Sleeve;Insert Tube Yes Model Compatibility List $31.69 / Each

3
A 708989 1000108038 AN1 Console Base Set;TM622(service) No Model Compatibility List $150.90 / Each

7,3
709100 1000109550 R03 Drive Belt;Poly-V;190-J8 Yes Model Compatibility List $60.22 / Each

15,10
M 709140 1000110344 M01 Drive Motor Set;Digital Yes Model Compatibility List $574.91 / Each

10
V 709448 1000114499 V33 Owners Manual No Model Compatibility List $7.15 / Each

1
P 711070 1000216278 P10 Static/Ground Wire;Deck;;;TM639-1US; No Model Compatibility List $3.82 / Each

3,4,5,6
Q 712962 1000231814 Q03 SIDE RAIL ;LEFT;75140;TM622;TOOLING SHAR Yes Model Compatibility List $76.65 / Each

9
Q 712963 1000231815 Q08 SIDE RAIL ;RIGHT;TM622;TOOLING SHARING W Yes Model Compatibility List $76.65 / Each

9
V 721965 1000386873 V46 Manual;TM safety direction;;EN/FR/ES;MAT No Model Compatibility List $7.64 / Each

9
Speaker Board; Adaptor;AC100-240V;12V/1. 725367 070670 P11 Speaker Board; Adaptor;AC100-240V;12V/1. Yes Model Compatibility List $64.04 / Each

4,5,6
Console Fan 725571 073303 N68 Console Fan Yes Model Compatibility List $38.12 / Each

8
Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L 726042 079425 D45 Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L Yes Model Compatibility List $2.00 / Each

2
Screw;Phillip;Big Umbrella;Tapped;;4x10 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $2.00 / Each

2
Audio Board;14.0AT 727762 090831 N71 Audio Board;14.0AT Yes Model Compatibility List $16.07 / Each

1
Board;Audio Input/Output 727763 090832 N74 Board;Audio Input/Output Yes Model Compatibility List $12.17 / Each

1
Cap;Support Base;Rear;TM367 728326 094040 H13 Cap;Support Base;Rear;TM367 No Model Compatibility List $2.47 / Each

9,3
Console Cable;Upper 728752 096733 Not shown Console Cable;Upper No Model Compatibility List $28.73 / Each

7,4,5,6
Amp Control Board;VFD 3W H101 728753 096744 N67 Amp Control Board;VFD 3W H101 Yes Model Compatibility List $55.20 / Each

4,5,6,7
Earphone Jack;ABS;PA757S 728770 097076 N10 Earphone Jack;ABS;PA757S No Model Compatibility List $1.90 / Each

4,5,6
Pulse Sensor Set;800mm;31.8+2.5-2P JIND 728889 098282 N39 Pulse Sensor Set;800mm;31.8+2.5-2P JIND Yes Model Compatibility List $31.33 / Each

12,13,14
Wire;Headphone Jack;500mm 728898 098561 N69 Wire;Headphone Jack;500mm No Model Compatibility List $3.82 / Each

4,5,6
Connected Wire; Earphone; PCB 728899 098562 N70 Connected Wire; Earphone; PCB Yes Model Compatibility List $6.42 / Each

4,5,6
Roller Set;Rear;TM603-1US 728961 099695 AR2 Roller Set;Rear;TM603-1US Yes Model Compatibility List $191.62 / Each

8
Display Console - Used Only 1000245 1000108037 Display Console - Used Only No Model Compatibility List $323.70 / Each
Out Of Stock 		7
K 000089 1000094876 K50 1 Leveling Foot Leveler Yes Model Compatibility List $19.99 / Each

1
M 039043-00 039043-00 M02 1 Incline Elevation Motor Yes Model Compatibility List $336.70 / Each

1
P 040695-A 040695-A P02 1 Power Switch on Off Yes Model Compatibility List $41.59 / Each

1
M 1000110344 1000110344 M01 1 DC Drive Motor Yes Model Compatibility List $778.70 / Each

1
B 1026014 018951-A B48 1 Spring Deck (Used) Yes Model Compatibility List $7.40 / Each

2,41
P 1000730 040695-A P02 1 Power Switch Yes Model Compatibility List $31.99 / Each

1
Screw 3/8-16-1.65 (Used) 1026732 004595-B 0 1 Screw 3/8-16-1.65 (Used) No Model Compatibility List $5.99 / Each

1
sCREW 3/8-16-1.60 1026937 ME0106026B 0 1 sCREW 3/8-16-1.60" (Used) No Model Compatibility List $3.99 / Each

1
Roller Rear 1002632 099695 0 1 Roller Rear Yes Model Compatibility List $167.99 / Each

26
R 1002831 1000109550 R03 1 Belt Drive Yes Model Compatibility List $34.99 / Each

23
Sensor RPM 1002861 002248-D 0 1 Sensor RPM Yes Model Compatibility List $25.99 / Each

47
M 1002968 039043-00 M02 1 Motor Incline Yes Model Compatibility List $189.99 / Each

28
M 1003624 032669-IF M03 1 Control Board Motor Controller Yes Model Compatibility List $499.00 / Each

48
P 1006085 1000094883 P11 1 Power Supply Cord Yes Model Compatibility List $47.99 / Each

6
K 1009207 060295-DA KIT 1 Digital Speed Sensor No Model Compatibility List $31.99 / Each

47
M 1003520 032669-IF M03 Lower Controller Board Yes Model Compatibility List $169.00 / Each
48
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
