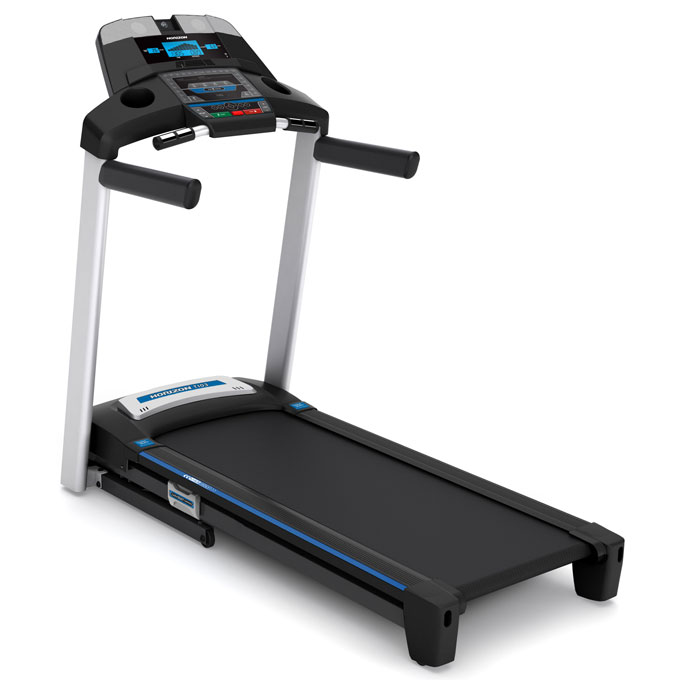

Horizon Fitness - T103 - 2010

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000767-D 700245 000767-D B46 Elastomer;Orange;20x44L Yes Model Compatibility List $14.78 / Each

1
000768-D 700246 000768-D B47 Elastomer;Blue;20x44L Yes Model Compatibility List $14.34 / Each

1
000940-A 700318 000940-A N06 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $5.46 / Each

9,11,12,13,14
000977-00 700327 000977-00 H14 Sleeve;Outer No Model Compatibility List $2.94 / Each

3
001251-F 700402 001251-F B35 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $6.08 / Each

2,9
001679-00 700570 001679-00 P25 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $1.90 / Each

2
002124-B 700746 002124-B P09 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $2.94 / Each

4,5,6
002671-A 700893 002671-A N73 Audio Wire;Three-D Earphone Yes Model Compatibility List $7.36 / Each

7,4,5,6,12,13,14
003346-00 701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $23.16 / Each

4,5,6
003721-00 701094 003721-00 N22 Screw;Phillip;BH;Tapped;3x6L;Zn+3(White No Model Compatibility List $1.54 / Each

2
004378-00 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $1.54 / Each

2
004425-B 701375 004425-B B31 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $1.54 / Each

2
004502-00 701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $1.54 / Each

2
004523-00 701476 004523-00 R05 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $1.54 / Each

2
004525-00 701478 004525-00 M11 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $5.54 / Each

2
004571-00 701544 004571-00 B28 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $1.54 / Each

2
004595-00 701562 004595-00 M14 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $1.54 / Each

2
004619-AB 701590 004619-AB N37 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $1.54 / Each

2
004622-00 701598 004622-00 Q35 Screw;Phillip;BH;Tapped;4x8L;Gap;;Zn-BL No Model Compatibility List $1.54 / Each

2
004623-00 701599 004623-00 N32 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $1.54 / Each

2
004624-00 701600 004624-00 B38 Screw;Umbrella Cross Tapped;4x20L;Gap; No Model Compatibility List $1.54 / Each

2
004627-AB 701606 004627-AB N21 Screw;Phillip;BH;Tapped;5x12L;BED;Gap; No Model Compatibility List $1.54 / Each

2
004631-00 701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $1.54 / Each

2
004754-00 701729 004754-00 Z03 Screw;Hex Socket;BH;M8x1.25Px20L;BED No Model Compatibility List $1.38 / Each

2
004864-00 701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $1.54 / Each

2
004867-A 701849 004867-A Q33 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $1.54 / Each

2
004889-00 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
004926-00 701897 004926-00 M40 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004934-00 701908 004934-00 M17 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.22 / Each

2
004941-00 701912 004941-00 K12 Nut;Nylon;M10x1.5P No Model Compatibility List $1.54 / Each

2
004975-00 701939 004975-00 B39 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005005-00 701964 005005-00 Z04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.22 / Each

2
005062-00 702030 005062-00 M33 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.22 / Each

7,2,12,13,14
005104-00 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $1.54 / Each

2
005145-A 702118 005145-A M38 Washer;Flat;8.2x19.0x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005165-00 702136 005165-00 M16 Washer;Arc;8.2x18x1.5T No Model Compatibility List $1.54 / Each

2
005177-00 702145 005177-00 P18 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $1.54 / Each

2
005196-00 702160 005196-00 H07 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.22 / Each

2
005811-00 702299 005811-00 P08 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.16 / Each

2,4,5,6
010866-00 702806 010866-00 P26 Bushing;Strain Relief;Nylon66;SR-7R3;BL; Yes Model Compatibility List $3.36 / Each

8
014669-B 703438 014669-B AR1 Front Roller Set Yes Model Compatibility List $147.40 / Each

8
018951-A 703881 018951-A B48 Elastomer;Front/Rear;Black Yes Model Compatibility List $10.70 / Each

4,5,6
020266-00 704114 020266-00 Z06 Screw;Hex Socket;BH;M8x1.25Px45L No Model Compatibility List $1.54 / Each

2
020352-A 704155 020352-A Q34 Screw;Phillip;Sink;Tapped;4x34L; No Model Compatibility List $1.54 / Each

2
020425-00 704175 020425-00 Z05 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $1.54 / Each

2
029435-00 705017 029435-00 B54 Screw;BH;M4x0.7Px8L;PH;WZN;ROHS;SP No Model Compatibility List $1.42 / Each

2
029437-00 705018 029437-00 N36 Screw;Phillip;BH;Tapped;3x10L;Zn+3(Whit No Model Compatibility List $1.54 / Each

2
032669-IF 705040 032669-IF M03 Motor Control Board;Digital;2.25/2.5HP Yes Model Compatibility List $308.86 / Each

7,10
039043-00 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $254.84 / Each

10,12,13,14
039400-BA 705259 039400-BA K10 Transport Wheel;Nylon Yes Model Compatibility List $7.36 / Each

8
040695-A 705308 040695-A P02 Power Switch Yes Model Compatibility List $22.10 / Each

4,5,6
040839-00 705323 040839-00 H25 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.22 / Each

2
049024-BA 705382 049024-BA K09 Flat;;;50C;TM196-K12B Yes Model Compatibility List $4.94 / Each

1
049262-00 705469 049262-00 M15 Screw;Hex;3/8-16UNCX55L-14L;;HE;;;;P-T No Model Compatibility List $3.08 / Each

2
049263-A 705470 049263-A Q31 Screw;Phillip;BH;Tapped;4x20L; No Model Compatibility List $1.54 / Each

2
049279-C 705480 049279-C H06 Screw;Special;M8X1.25PX9L-D10X9.5L;;HE;45#;BOX; No Model Compatibility List $3.08 / Each

2
049292-A 705488 049292-A H17 Washer;Flat;Teflon;8.1x20x1.0t; No Model Compatibility List $1.54 / Each

2
055202-A 705698 055202-A K11 Screw;Umbrella Hex Socket;M10x1.5Px40L-20L No Model Compatibility List $3.08 / Each

2
055204-A 705700 055204-A B32 Screw;SelfTapping;4x10L No Model Compatibility List $1.54 / Each

2,12,13,14
055269-AX 705707 055269-AX V22 Decal;Faceplate No Model Compatibility List $2.94 / Each

7,3,4,5,6
056374-AA 705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $7.36 / Each

10,12,13,14
056437-00 705893 056437-00 N90 Absorptive Plate;Zinc;15x25 No Model Compatibility List $1.46 / Each

3
060295-DA 706219 060295-DA KIT Digital Speed Sensor No Model Compatibility List $27.32 / Each

1
062769-00 706492 062769-00 M12 Screw;Hex Socket;Round;M8x1.25Px15L;BED; No Model Compatibility List $1.38 / Each

2
1000092332 707367 1000092332 K13 End Cap;Elevation Frame No Model Compatibility List $2.94 / Each

9,3,10
1000092805 707457 1000092805 Not shown Silicon Oil;40ml No Model Compatibility List $24.99 / Each

1
1000092985 707492 1000092985 AH2 Elevation Staff Set;zincification;TM616 No Model Compatibility List $15.30 / Each

10
1000094015 707652 1000094015 P06 Speed Sensor Wire;1000mm;Analog Yes Model Compatibility List $8.32 / Each

4,5,6
1000094117 707666 1000094117 B41 Air Shock;50KG(680L)Damping ;TM616 Yes Model Compatibility List $42.62 / Each

4,5,6,12,13,14
1000094861 707756 1000094861 B25 Rear Leveler;Foot Frame Yes Model Compatibility List $1.46 / Each

9,3
1000094874 707758 1000094874 H19 Connecting Axle;Elevation Shock No Model Compatibility List $2.94 / Each

8,10
1000094875 707759 1000094875 H20 Spring No Model Compatibility List $3.08 / Each

2
1000094876 707760 1000094876 K50 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $4.94 / Each

3,4,5,6,9
1000094883 707762 1000094883 P11 Power Cord;16AWG;2M;TM616-P05A Yes Model Compatibility List $44.22 / Each

4,5,6
1000094931 707768 1000094931 AH4 Lock Latch Set;Galvanization;TM616 No Model Compatibility List $7.70 / Each

1
1000094932 707769 1000094932 H21 C Clip;Combined With 6mm Axle No Model Compatibility List $1.46 / Each

2,8
1000096199 707840 1000096199 R04 Screw;Hex Socket;Round;M8x1.25Px75L(All) No Model Compatibility List $1.54 / Each

2
1000096516 707862 1000096516 N70 Speaker;3W8;XHS-2Y;250MM No Model Compatibility List $13.26 / Each

1
1000096517 707863 1000096517 N85 Speaker;3W8;XHS-2Y;400MM Yes Model Compatibility List $19.26 / Each

1
1000097464 707990 1000097464 H24 Single Foam;One-Sided;27x20x1.5t;Black No Model Compatibility List $1.46 / Each

4,5,6
1000099273 708088 1000099273 H23 Decal;Insert Tube;protected piece No Model Compatibility List $1.46 / Each

7,3
1000101247 708215 1000101247 C14 End Cap;Handlebar;Black Yes Model Compatibility List $8.94 / Each

4,5,6,9,11
1000101281 708224 1000101281 Q08 Cover;Side Rail;Left Yes Model Compatibility List $8.94 / Each

9
1000101282 708225 1000101282 Q09 Cover;Side Rail;Right Yes Model Compatibility List $9.94 / Each

9
1000101338 708231 1000101338 N01 Console Plastic;ABS;light black/DM363;TM62 No Model Compatibility List $36.54 / Each

7,9,4,5,6
1000101340 708232 1000101340 N03 Console Back Cover;ABS;light black/DM363;T No Model Compatibility List $19.50 / Each

7,9,4,5,6
1000101488 708246 1000101488 B27 Running Deck;675x1220x18t;Silicon No Model Compatibility List $191.64 / Each

3
1000101499 708247 1000101499 B65 Elastomer Set;T103;TM623 No Model Compatibility List $10.90 / Each

1
1000101511 708248 1000101511 N02 Console Overlay;Main;ABS;light black/DM363;TM No Model Compatibility List $27.28 / Each

7,4,5,6
1000101519 708249 1000101519 V01 POP Sticker;TM623 No Model Compatibility List $7.36 / Each

12,13,14
1000101524 708250 1000101524 B52 Sticker;Logo;TM623 No Model Compatibility List $2.72 / Each

1
1000101856 708294 1000101856 N91 Wind Shield;Left;ABS;Black Yes Model Compatibility List $1.46 / Each

9
1000101857 708295 1000101857 N92 Wind Shield;Right;ABS;Black Yes Model Compatibility List $5.46 / Each

3,9
1000101979 708308 1000101979 N61 Overlay;Manipulate 1;English;TM623 No Model Compatibility List $27.28 / Each

1
1000101980 708309 1000101980 N62 Overlay+keypad;English;TM623 No Model Compatibility List $73.70 / Each

9,12,13,14
1000101990 708316 1000101990 AN4 Reed Switch No Model Compatibility List $2.94 / Each

4,5,6
1000102141 708339 1000102141 N60 UCB;T103;HES101PD;noRoHs No Model Compatibility List $337.50 / Each

1
1000102168 708341 1000102168 AC1 Console Mast Set;Left;Semi-Assy;TM622-1US No Model Compatibility List $111.28 / Each

7
708342 1000102170 AC2 Console Mast Set;Right;Semi-Assy;TM622-1US No Model Compatibility List $111.28 / Each

7
1000102182 708347 1000102182 N07 Speaker;Cover;Left;Metal Net;MM314;TM622 No Model Compatibility List $9.52 / Each

9,3
1000102183 708348 1000102183 N08 Speaker;Cover;Right;Metal Net;MM314;TM622 No Model Compatibility List $9.52 / Each

9,3
1000102629 708391 1000102629 B51 Roller;Rubber;PA6+30% No Model Compatibility List $1.46 / Each

8
1000102630 708392 1000102630 B50 Grip;Elastomer;sliver/MM314;ABS;TM623 No Model Compatibility List $7.36 / Each

11
1000102636 708393 1000102636 Q07 Motor Cover Decorative Model Plate No Model Compatibility List $8.54 / Each

9,3,10
1000102637 708394 1000102637 Q05 Siderail;Right;Silk Printing;black;TM623 No Model Compatibility List $24.30 / Each

9,4,5,6
1000102639 708395 1000102639 Q03 Siderail;Left;Silk Printing;black;TM623 No Model Compatibility List $24.30 / Each

9,4,5,6
1000102641 708396 1000102641 Q15 Side Rail Rubber Pad;latex;Black;TM623 No Model Compatibility List $14.78 / Each

9,4,5,6,12,13,14
1000102642 708397 1000102642 R02 Running Belt;Black;508x2930x1.4t No Model Compatibility List $191.64 / Each

15,4,5,6
1000102732 708413 1000102732 AH1 Elevation Rack Set;Semi-Assy;TM623-1US No Model Compatibility List $54.44 / Each

4,5,6,10
1000103438 708563 1000103438 C17 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.44 / Each

2
1000103475 708569 1000103475 N63 Overlay+keypad2;English;TM623 No Model Compatibility List $29.48 / Each

9,12,13,14
1000103575 708571 1000103575 N93 IPOD skidproof Decal;TM623 No Model Compatibility List $1.46 / Each

7,3
1000103576 708572 1000103576 Q01 Motor Cover No Model Compatibility List $37.64 / Each

9,10
1000103577 708573 1000103577 Q02 Motor Cover;Bottom No Model Compatibility List $22.70 / Each

9,10
1000103580 708574 1000103580 Q04 Rear Roller Cover;Left;light black/DM363;ABS No Model Compatibility List $7.64 / Each

8,9,4,5,6
1000103581 708575 1000103581 Q10 Rear Roller Cover;Right;light black/DM363;ABS No Model Compatibility List $7.08 / Each

8,9,4,5,6
1000103585 708576 1000103585 Z10 Hardware Kit Set;Semi-Assy;TM623 No Model Compatibility List $23.90 / Each

1
1000103660 708583 1000103660 N94 Cover;Safety Key;TM622 No Model Compatibility List $2.72 / Each

9
1000104598 708636 1000104598 P07 Line;control board electrical source;TM6 No Model Compatibility List $6.82 / Each

7
1000105093 708725 1000105093 N54 IPOD Seat;ABS;Black;EP218 No Model Compatibility List $1.46 / Each

4,5,6,12,13,14
1000105094 708726 1000105094 N43 Safety Key Set Yes Model Compatibility List $30.88 / Each

9
1000105096 708727 1000105096 V02 Poly Decal;Side Rail;Cover;TM623B No Model Compatibility List $1.46 / Each

7,9,3
1000106044 708788 1000106044 M05 Motor Fixing Set;light black;TM623-1US(se No Model Compatibility List $25.24 / Each

4,5,6,10
1000106045 708789 1000106045 AH3 Sleeve Set;light black;TM623-1U(service) No Model Compatibility List $23.64 / Each

3,4,5,6
1000106048 708790 1000106048 AN2 Console Set;TM623-1US(service) No Model Compatibility List $791.06 / Each

7
1000106049 708791 1000106049 AN1 Console Base Frame Set;TM623-1US(service No Model Compatibility List $132.80 / Each

7,3
1000106110 708807 1000106110 B34 Stopper;Outside Frame;light black No Model Compatibility List $6.82 / Each

3,4,5,6
1000106112 708808 1000106112 AB2 Elastomer Frame;Painting;Light Black No Model Compatibility List $10.90 / Each

3,4,5,6
1000107354 708927 1000107354 V06 POP Sticker;Console overlay;L;TM623 No Model Compatibility List $1.36 / Each

7,12,13,14
1000107355 708928 1000107355 V07 POP Sticker;Console overlay;R;TM623 No Model Compatibility List $1.36 / Each

7,12,13,14
1000107357 708929 1000107357 V24 POP Sticker;Motor Up Cover;TM623 No Model Compatibility List $1.46 / Each

9,10,12,13,14
1000107402 708937 1000107402 P30 Console Cable;Lower;1800L+250L(XHS12P+HX Yes Model Compatibility List $44.22 / Each

7,4,5,6
1000107812 708959 1000107812 N86 Ground Wire;300L+350L+200L16AWG No Model Compatibility List $2.94 / Each

4,5,6
1000109550 709100 1000109550 R03 Drive Belt;Poly-V;190-J8 Yes Model Compatibility List $46.32 / Each

15,10
1000113141 709331 1000113141 M01 Drive Motor Set;Digital;2.75HP Yes Model Compatibility List $442.24 / Each

10
1000114499 709448 1000114499 KIT Owners Manual No Model Compatibility List $5.50 / Each

1
1000216278 711070 1000216278 P10 Static/Ground Wire;Deck;;;TM639-1US; No Model Compatibility List $2.94 / Each

3,4,5,6
1000386873 721965 1000386873 V46 Manual;TM safety direction;;EN/FR/ES;MAT No Model Compatibility List $5.88 / Each

9
070670 725367 070670 P11 Speaker Board; Adaptor;AC100-240V;12V/1. Yes Model Compatibility List $49.26 / Each

4,5,6
073164 725568 073164 N39 Ipod spacer No Model Compatibility List $1.46 / Each

2,3,4,5,6
073303 725571 073303 N68 Console Fan Yes Model Compatibility List $29.32 / Each

8
074681 725675 074681 N40 Foam Holder; Ipod Nano No Model Compatibility List $2.94 / Each

1
078843 725978 078843 N40 Foam Holder;Ipod Mini No Model Compatibility List $2.94 / Each

1
078844 725979 078844 N40 Foam Holder;IPOD;20/30/60/80gb No Model Compatibility List $2.94 / Each

1
079425 726042 079425 D45 Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L No Model Compatibility List $1.54 / Each

2
080875 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $1.54 / Each

2
081448 726374 081448 N40 Foam Holder;MP3 Player;Universal Yes Model Compatibility List $12.84 / Each

1
090831 727762 090831 N71 Audio Board;14.0AT Yes Model Compatibility List $12.36 / Each

1
094040 728326 094040 H13 Cap;Support Base;Rear;TM367 No Model Compatibility List $1.90 / Each

9,3
094989 728467 094989 N79 Connect Wire;IPOD-PCB;250(XHS-6Yx2) No Model Compatibility List $2.94 / Each

4,5,6
096733 728752 096733 Not shown Console Cable;Upper No Model Compatibility List $22.10 / Each

7,4,5,6
096744 728753 096744 N67 Amp Control Board;VFD 3W H101 Yes Model Compatibility List $42.46 / Each

4,5,6,7
097076 728770 097076 N10 Earphone Jack;ABS;PA757S No Model Compatibility List $1.46 / Each

4,5,6
097357 728782 097357 KIT Control Board;IPOD;H103;SOO-C135B Yes Model Compatibility List $49.54 / Each

7
098282 728889 098282 N39 Pulse Sensor Set;800mm;31.8+2.5-2P JIND Yes Model Compatibility List $24.10 / Each

12,13,14
098561 728898 098561 N69 Wire;Headphone Jack;500mm No Model Compatibility List $2.94 / Each

4,5,6
098562 728899 098562 N70 Connected Wire; Earphone; PCB Yes Model Compatibility List $4.94 / Each

4,5,6
098653 728903 098653 N67 Connected Wire;IPOD-PCB;TM608 No Model Compatibility List $6.82 / Each

4,5,6
099695 728961 099695 AR2 Roller Set;Rear;TM603-1US Yes Model Compatibility List $147.40 / Each

8
729104 Part of Frame K08 No Model Compatibility List $0.00 / Each
Out Of Stock
1
View Drawing
