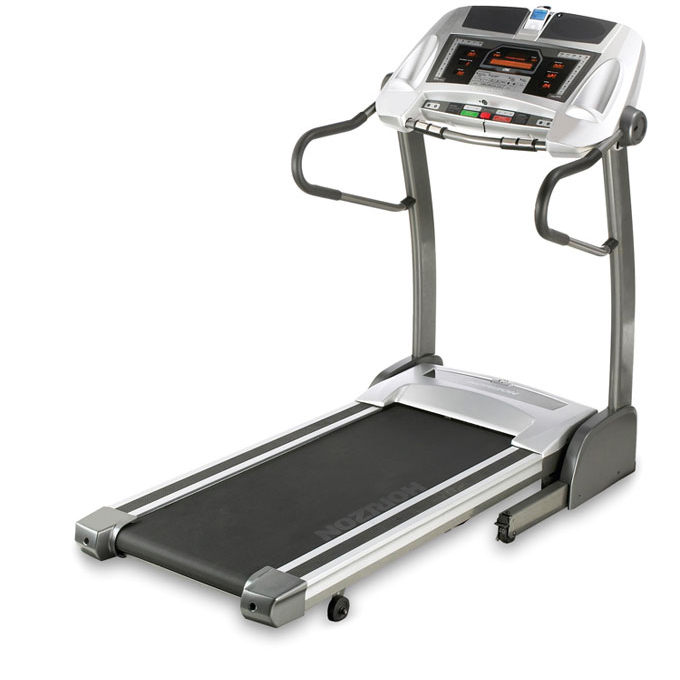

Horizon Fitness - T1200 - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000011-EA 700008 000011-EA L01 Transport Wheel;Base Frame Yes Model Compatibility List $9.36 / Each

3,8
000021-B 700014 000021-B L05 Mobile Wheel;Rear Deck Yes Model Compatibility List $8.94 / Each

3,8
000038-C 700023 000038-C L02 Wheel;Base Frame Stabilizer No Model Compatibility List $2.94 / Each

8,3
000522-D 700152 000522-D K28 Leveler Yes Model Compatibility List $8.92 / Each

3
000682-A 700211 000682-A M21 Foam Tape;Double Sided;150x30x3t No Model Compatibility List $1.46 / Each

1
000760-E 700239 000760-E B29 Elastomer;White Yes Model Compatibility List $13.34 / Each

1
000762-G 700241 000762-G B33 Elastomer;Blue No Model Compatibility List $11.78 / Each

1
000874-A2 700288 000874-A2 H37 Rubber Stopper;AC003->TS;TM16 Yes Model Compatibility List $5.38 / Each

4,5,6
001251-F 700402 001251-F Q21 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $6.08 / Each

2,9
001552-AC 700533 001552-AC G06 Cover;Handlebar No Model Compatibility List $1.46 / Each

9,11
001952-00 700700 001952-00 N76 Fixing Plate;Reed Switch No Model Compatibility List $1.46 / Each

3,4,5,6
002021-A 700717 002021-A KIT ESD Board Yes Model Compatibility List $38.38 / Each

1
002248-D 700773 002248-D P10 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $13.96 / Each

4,5,6
002671-A 700893 002671-A KIT Audio Wire;Three-D Earphone Yes Model Compatibility List $7.36 / Each

7,4,5,6,12,13,14
003326-00 701013 003326-00 P04 Power Switch;Large;RF-1004 Yes Model Compatibility List $25.16 / Each

4,5,6
003347-00 701021 003347-00 P05 Circuit Breaker;Current;ZE-700 20A/250V; Yes Model Compatibility List $22.10 / Each

4,5,6
003386-A 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $10.20 / Each

1
004356-00 701288 004356-00 Z10 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $1.54 / Each

2
004364-00 701300 004364-00 P29 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $1.54 / Each

2
004378-00 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $1.54 / Each

2
004415-Z 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.38 / Each

2,4,5,6
004439-A 701384 004439-A K23 Screw;Phillip;Sink;M4x0.7Px40L No Model Compatibility List $1.54 / Each

2
004462-00 701408 004462-00 Z23 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004483-00 701440 004483-00 R08 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.38 / Each

2
004488-00 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $1.54 / Each

2
004496-00 701451 004496-00 R04 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $9.08 / Each

2
004502-00 701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $1.54 / Each

2
004584-A 701556 004584-A L03 Screw;Hex Socket;Sink;M8x1.25Px45L Yes Model Compatibility List $1.54 / Each

2
004589-00 701558 004589-00 M10 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $1.68 / Each

2
004590-Z 701559 004590-Z M14 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.38 / Each

2,10
004612-00 701577 004612-00 P15 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $1.54 / Each

2
004618-00 701588 004618-00 Z09 Screw;Oval Tapping;4x20L No Model Compatibility List $1.54 / Each

2,12,13,14
004620-00 701591 004620-00 N17 Screw;Self Tapping;4x12L No Model Compatibility List $1.54 / Each

2,12,13,14
004622-00 701598 004622-00 M24 Screw;Phillip;BH;Tapped;4x8L;Gap;;Zn-BL No Model Compatibility List $1.54 / Each

2
004631-00 701612 004631-00 N22 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $1.54 / Each

2
004632-00 701613 004632-00 Q22 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $1.54 / Each

2
004724-00 701699 004724-00 K10 Bolt;M8x1.25Px15L Yes Model Compatibility List $1.54 / Each

2
004727-AC 701708 004727-AC B41 Screw;Umbrella Hex Scoket;M8x1.25Px30L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004743-00 701723 004743-00 Z20 Screw;Hex Socket;BH;M8x1.25Px60L(Tooth20) No Model Compatibility List $1.28 / Each

2
004774-00 701750 004774-00 Z06 Long Handrail Button HeadScrew;Umbrella Hex Socket;M8X135L(20L) Yes Model Compatibility List $4.54 / Each

2
004796-00 701781 004796-00 Z07 Bol;M8x1.25Px20L Yes Model Compatibility List $1.54 / Each

1
004870-00 701851 004870-00 Q20 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.22 / Each

2,9,12,13,14
004883-00 701861 004883-00 M23 Nut;Hex;M6x1.0P No Model Compatibility List $1.54 / Each

2
004884-00 701862 004884-00 B22 Nut;Hex;M8X1.25P No Model Compatibility List $1.38 / Each

2
004889-00 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
004926-00 701897 004926-00 Z21 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004934-00 701908 004934-00 M12 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.22 / Each

2
004949-00 701918 004949-00 L09 Nut;Mobile Wheel;Nylon;3/8'-16UNC;BED; No Model Compatibility List $1.54 / Each

2,8
004972-00 701934 004972-00 K27 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.46 / Each

2
005005-00 701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.22 / Each

2
005044-00 702007 005044-00 R07 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005048-00 702013 005048-00 Z08 Washer;Flat;8.2x15.0x1.2T No Model Compatibility List $1.54 / Each

2
005094-00 702066 005094-00 N21 Washer;Flat;3.2x8.0x1.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005106-00 702074 005106-00 R06 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.22 / Each

2,4,5,6
005146-A 702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005163-00 702135 005163-00 Z22 Washer;Arc;8.4x17x1.0T No Model Compatibility List $1.98 / Each

2
005196-00 702160 005196-00 H31 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.22 / Each

2
005330-00 702217 005330-00 Q13 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005394-00 702258 005394-00 Z25 Wrench;T-Type;8mm No Model Compatibility List $7.70 / Each

2
005395-00 702259 005395-00 Z24 Wrench;T-Type;5mm No Model Compatibility List $7.70 / Each

2
005438-00 702275 005438-00 L15 Spring;Foot Lock Latch;16x2.0x50Lx12N No Model Compatibility List $1.54 / Each

2,9,3
007387-E 702447 007387-E B08 Fixing Plate;Motor Control Board No Model Compatibility List $10.80 / Each

7,3,10
007490-C 702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.46 / Each

3
008641-C 702561 008641-C L14 Bolt;M5x1.25Px12L-6L No Model Compatibility List $1.54 / Each

2
009717-B 702787 009717-B B66 Sleeve;;;;22.2x1.0tx22L;;;;TM27 No Model Compatibility List $2.94 / Each

3
702810 010941-00 P16 Cable Tie;;1400mm; No Model Compatibility List $106.46 / Each

2,4,5,6
013701-AA 703355 013701-AA M03 Motor Control Board;2.75HP;Digital Yes Model Compatibility List $308.86 / Each

7,10
014122-AA 703397 014122-AA AR1 Front Roller Set Yes Model Compatibility List $147.40 / Each

8
014682-B 703441 014682-B AR2 Rear Roller Set Yes Model Compatibility List $147.40 / Each

8
015046-AC 703502 015046-AC P21 Fix Plate;Power Socket Yes Model Compatibility List $9.60 / Each

3,4,5,6
015053-AJ 703505 015053-AJ B38 Side Rail Fixing Board No Model Compatibility List $1.36 / Each

9
016990-A 703800 016990-A AK2 Wheel Lock - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $17.88 / Each

8
019316-A 703916 019316-A N70 Safety Key Reed Switch Yes Model Compatibility List $7.36 / Each

4,5,6
019354-A 703919 019354-A P08 Connecting Cable;Breaker/Switch;Black;120mm No Model Compatibility List $7.36 / Each

4,5,6
019370-A 703920 019370-A P11 Power Cord;14 Guage/15 Amp Yes Model Compatibility List $44.22 / Each

4,5,6
019749-A 703938 019749-A P09 Power Socket;100,600,60(14AWG) Yes Model Compatibility List $7.36 / Each

4,5,6
019968-A 703952 019968-A R03 Drive Belt;Poly-V;210-J8 Yes Model Compatibility List $46.32 / Each

15,10
020085-00 703999 020085-00 M26 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.38 / Each

2
020179-00 704068 020179-00 M19 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.22 / Each

2,9
020487-ZA 704215 020487-ZA H10 Washer;Flat;10.5x18x2.5T No Model Compatibility List $1.54 / Each

2
035692-00 705076 035692-00 M28 Screw;Hex;M6x1.0Px30L No Model Compatibility List $3.08 / Each

2
039043-00 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $254.84 / Each

10,12,13,14
040689-B 705306 040689-B N32 Pulse Sensor Set;Single No Model Compatibility List $29.48 / Each

12,13,14
040826-AD 705317 040826-AD K24 Screw;Hex Socket;BH;M10x1.5Px40L;Adhere; No Model Compatibility List $1.54 / Each

2
055204-A 705700 055204-A Q23 Screw;SelfTapping;4x10L No Model Compatibility List $1.54 / Each

2,12,13,14
055269-AX 705707 055269-AX V03 Decal;Faceplate No Model Compatibility List $2.94 / Each

7,3,4,5,6
056048-AA 705759 056048-AA H32 Screw;Phillip;Umbrella;Big;;M5x0.8Px12L; No Model Compatibility List $1.28 / Each

2
056374-AA 705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $7.36 / Each

10,12,13,14
056440-A 705895 056440-A P06 Console Cable;Upper;720 Yes Model Compatibility List $22.10 / Each

4,5,6,7
056998-B 705957 056998-B H30 Screw;Special;M8x1.25Px26L-10L No Model Compatibility List $7.70 / Each

2
058895-CA 706074 058895-CA Q05 Grip;Side Rail No Model Compatibility List $18.22 / Each

9,11
060295-DA 706219 060295-DA M15 Digital Speed Sensor No Model Compatibility List $27.32 / Each

1
1000112728 709300 1000112728 M01 Drive Motor Set;Digital;3.0HP Yes Model Compatibility List $442.24 / Each

10
1000230001 712638 1000230001 H36 Snap Ring;External;S-10; No Model Compatibility List $1.38 / Each

2
069977 725328 069977 N78 Audio Input or Output Board Yes Model Compatibility List $23.76 / Each

7
070667 725364 070667 KIT Wire, Audio Out Board to Speaker No Model Compatibility List $7.94 / Each

4,5,6
070668 725365 070668 N74 Power Wire;Speaker;T900;TM308 No Model Compatibility List $7.88 / Each

4,5,6
070670 725367 070670 P11 Speaker Board; Adaptor;AC100-240V;12V/1. Yes Model Compatibility List $49.26 / Each

4,5,6
070671 725368 070671 P09 Wire; Speaker; Lower Board to Upper Speaker Board No Model Compatibility List $10.20 / Each

4,5,6
070673 725369 070673 N62 Keypad; Lower No Model Compatibility List $103.18 / Each

9,12,13,14
070674 725370 070674 N71 Wire; Ground; 300mm; IPOD Control board to Audio IN board No Model Compatibility List $6.82 / Each

7,4,5,6
070701 725375 070701 N07 E-trak button No Model Compatibility List $6.82 / Each

1
070706 725376 070706 N05 Cover,Speaker,Right-T1200,T900 No Model Compatibility List $9.90 / Each

9
070707 725377 070707 N04 Cover,Speaker,Left-T1200,T900 No Model Compatibility List $9.90 / Each

9
725378 070709 N03 Cover,Console,Rear-T1200,T900 No Model Compatibility List $98.60 / Each

7,9
070713 725380 070713 R02 Running Belt; Black; 495X2797X1.6T Yes Model Compatibility List $191.64 / Each

15,4,5,6
070732 725381 070732 Q08 Cover,Handlebar,Left-T1200,T900 Yes Model Compatibility List $6.82 / Each

9,11
070733 725382 070733 Q09 Cover,Handlebar,Right-T1200,T900 Yes Model Compatibility List $6.82 / Each

9,11
070736 725383 070736 Q04 Cover,Base Frame,Left,Inside-T1200,T900 No Model Compatibility List $17.78 / Each

9,3
070737 725384 070737 Q03 Cover,Base Frame,Left,Outside-T1200,T900 No Model Compatibility List $21.70 / Each

9,3
070751 725385 070751 Q07 End Cap,Right-T1200,T900 No Model Compatibility List $9.90 / Each

9
070754 725386 070754 Q01 Cover; Motor; Upper No Model Compatibility List $49.38 / Each

9,10
725387 070771 B29 Air Shock;(300+ /-5KG#llX;TM308 Yes Model Compatibility List $41.92 / Each

1
070772 725388 070772 B07 Running Deck; Silicon; 608X1216X18T No Model Compatibility List $191.64 / Each

3
070906 725403 070906 K19 Folding Bracket No Model Compatibility List $16.54 / Each

2,3,4,5,6
070910 725404 070910 L17 Foot Lock Latch No Model Compatibility List $15.72 / Each

9,3
071101 725427 071101 N60 Upper Control Board (UCB) No Model Compatibility List $553.62 / Each

7
071484 725459 071484 Q10 Decal; Motor Cover No Model Compatibility List $31.54 / Each

7,9,3,10
071485 725460 071485 N16 Texture Strip; MP3 Holder No Model Compatibility List $10.90 / Each

1
725470 071743 AC1 Console Mast Set; Left No Model Compatibility List $187.96 / Each

7
071941 725497 071941 Q12 Cover; Right Outside Base Frame No Model Compatibility List $21.70 / Each

9,3
072017 725498 072017 N75 Speaker; Left No Model Compatibility List $43.40 / Each

1
072018 725499 072018 N76 Speaker; Right No Model Compatibility List $43.40 / Each

1
072163 725503 072163 B43 End board;Painting;KD-A732B(NO ROHS);TM3; Yes Model Compatibility List $10.82 / Each

9
072423 725516 072423 N01 Faceplate No Model Compatibility List $29.56 / Each

3,4,5,6
073164 725568 073164 N39 Ipod spacer No Model Compatibility List $1.46 / Each

2,3,4,5,6
074262 725624 074262 N40 Insert Boot; IPOD No Model Compatibility List $2.94 / Each

1
074679 725674 074679 G04 Foam;Arm Rest;510Lx3.0t,31.8;TM318-1US; No Model Compatibility List $7.04 / Each

3
074681 725675 074681 N40 Foam Holder; Ipod Nano No Model Compatibility List $2.94 / Each

1
075208 725732 075208 M05 Motor FIX plate;;Painting;;TM284; No Model Compatibility List $17.44 / Each

3,10
075999 725757 075999 P06 Power Wire;Control Board;;;500;14AWG+150 No Model Compatibility List $8.92 / Each
Out Of Stock
7,4,5,6
076471 725778 076471 N77 Control Board;MP3 Player No Model Compatibility List $49.38 / Each

7
076802 725824 076802 Z13 Bolt (M6x1.0Px40L) No Model Compatibility List $1.42 / Each

2
076803 725825 076803 Z14 Washer (6.2x18x1.5T) No Model Compatibility List $1.42 / Each

2
077114 725856 077114 V04 Sticker;Audio In No Model Compatibility List $1.36 / Each

1
077115 725857 077115 V05 Sticker;Audio Out No Model Compatibility List $1.46 / Each

1
077126 725859 077126 V33 Owner's Manual-T1200; No Model Compatibility List $7.36 / Each

1
077693 725889 077693 KIT Hardware Pack; D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $23.44 / Each

4,5,6
078499 725941 078499 P07 Console Cable No Model Compatibility List $44.22 / Each

7,4,5,6
078500 725942 078500 N68 Grounding Wire;Pulse;;150L; No Model Compatibility List $1.46 / Each

4,5,6,12,13,14
078501 725943 078501 KIT Cable between Ipod input board and upper board No Model Compatibility List $6.82 / Each

4,5,6
078554 725958 078554 V08 Sticker;POP;30mmX40mm;BL;TM318-1US; No Model Compatibility List $1.36 / Each

12,13,14
078555 725959 078555 V09 Sticker;POP;L;TM318-1US; No Model Compatibility List $2.72 / Each

12,13,14
078557 725960 078557 V11 Decal,Console,MP3; No Model Compatibility List $1.36 / Each

7,3
078843 725978 078843 N40 Foam Holder;Ipod Mini No Model Compatibility List $2.94 / Each

1
078844 725979 078844 N40 Foam Holder;IPOD;20/30/60/80gb No Model Compatibility List $2.94 / Each

1
079233 726001 079233 KIT Wire,Left-ESD Board to Upper board; No Model Compatibility List $1.36 / Each

4,5,6
079234 726002 079234 KIT Wire,Right-ESD Board to Upper board; No Model Compatibility List $1.46 / Each

4,5,6
079242 726003 079242 AG1 Handlebar Set; Left; No Model Compatibility List $61.02 / Each

11
079243 726004 079243 AG2 Handlebar Set;Right; No Model Compatibility List $62.40 / Each

11
079349 726025 079349 AN2 Console Frame Set No Model Compatibility List $168.46 / Each

7,3
079410 726037 079410 AN2 Console Frame Set No Model Compatibility List $166.84 / Each

7,3
081448 726374 081448 N40 Foam Holder;MP3 Player;Universal Yes Model Compatibility List $12.84 / Each

1
081586 726393 081586 N06 Plastic Holder:MP3 Player Yes Model Compatibility List $6.99 / Each

9
081588 726394 081588 N14 Cover;IPOD Yes Model Compatibility List $6.00 / Each

9
082397 726500 082397 AN3 Safety Key Set Yes Model Compatibility List $32.88 / Each

9
083118 726585 083118 V01 Decal for Handlebar Covers No Model Compatibility List $1.36 / Each

7,9,3,11
088882 727369 088882 KIT Wire;Connecting;Speakers No Model Compatibility List $6.82 / Each

4,5,6
098561 728898 098561 N69 Wire;Headphone Jack;500mm No Model Compatibility List $2.94 / Each

4,5,6
728977 N/A N61 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock
7
070752 1017933 070752 # 1 Left Rear Endcap (Used Only) Yes Model Compatibility List $14.99 / Each

9
000760-E-Red 1021191 000760-E-Red B30 2 Red Deck Cushion Isolator (Used) Yes Model Compatibility List $9.99 / Each

3
079156 1023652 079156 0 1 Side Rail Set-T900 Includes 058895-CA Grip (Used) No Model Compatibility List $39.99 / Each

1
View Drawing
