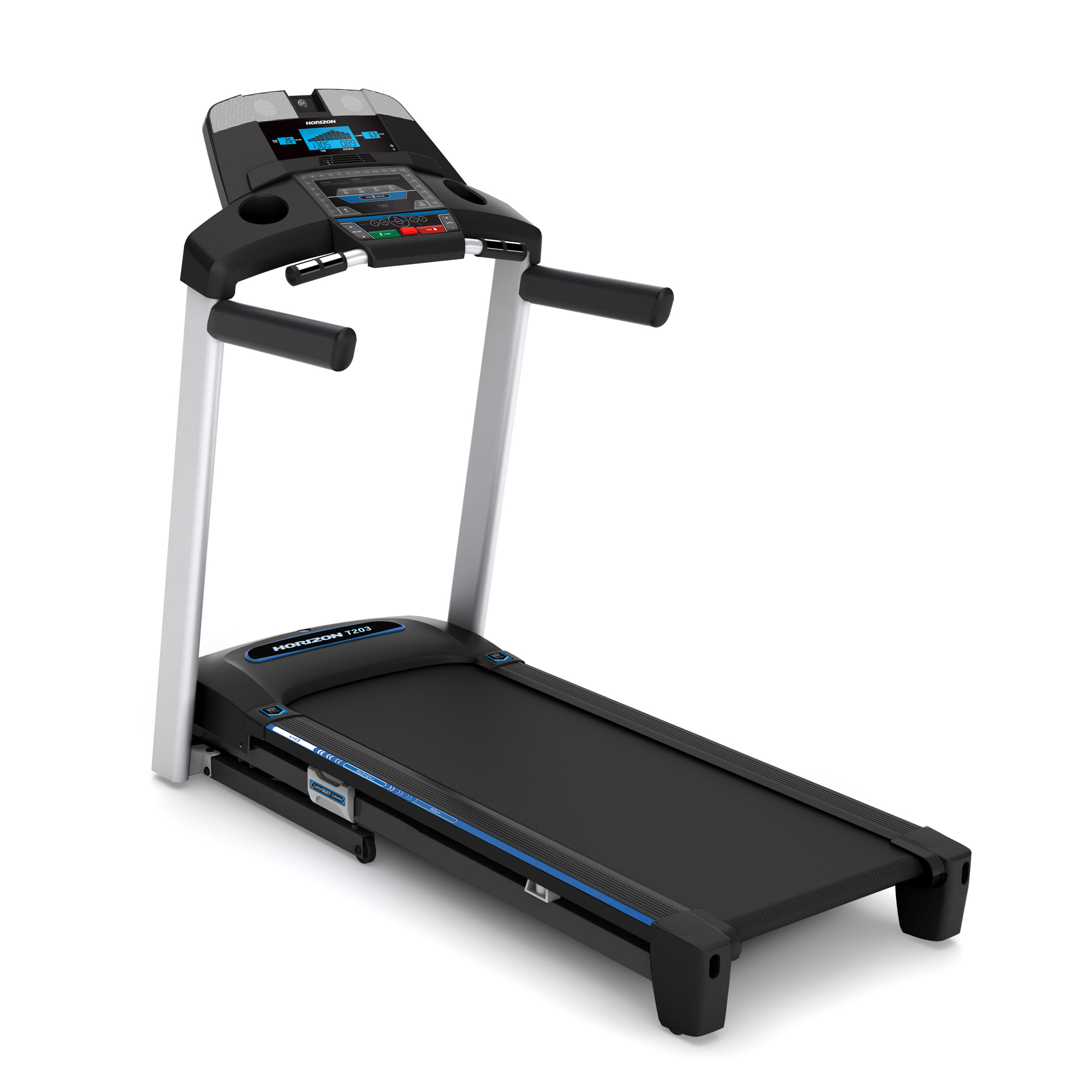

Horizon Fitness - T203 - 2011

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000768-D 700246 000768-D B47 Elastomer;Blue;20x44L Yes Model Compatibility List $14.34 / Each

1
000940-A 700318 000940-A N06 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $5.46 / Each

9,11,12,13,14
000977-00 700327 000977-00 H14 Sleeve;Outer No Model Compatibility List $2.94 / Each

3
001251-F 700402 001251-F B35 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $6.08 / Each

2,9
002124-B 700746 002124-B P09 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $2.94 / Each

4,5,6
003337-00 701016 003337-00 P04 Circuit Breaker;15A/125V Yes Model Compatibility List $22.10 / Each

4,5,6
003721-00 701094 003721-00 N22 Screw;Phillip;BH;Tapped;3x6L;Zn+3(White No Model Compatibility List $1.54 / Each

2
004378-00 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $1.54 / Each

2
004425-B 701375 004425-B B31 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $1.54 / Each

2
004502-00 701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $1.54 / Each

2
004525-00 701478 004525-00 M11 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $5.54 / Each

2
004571-00 701544 004571-00 B28 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $1.54 / Each

2
004592-00 701561 004592-00 M14 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $1.54 / Each

2
004619-AB 701590 004619-AB N37 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $1.54 / Each

2
004622-00 701598 004622-00 Q35 Screw;Phillip;BH;Tapped;4x8L;Gap;;Zn-BL No Model Compatibility List $1.54 / Each

2
004623-00 701599 004623-00 N32 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $1.54 / Each

2
004626-AB 701603 004626-AB B53 Screw;BH;4X10L;TC;PH;;BAN;;POT No Model Compatibility List $1.42 / Each

2
004627-AB 701606 004627-AB N21 Screw;Phillip;BH;Tapped;5x12L;BED;Gap; No Model Compatibility List $1.54 / Each

2
004631-00 701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $1.54 / Each

2
004727-00 701706 004727-00 B42 Screw;Hex Socket;BH;M8x1.25Px30L No Model Compatibility List $1.22 / Each

2
004754-00 701729 004754-00 Z02 Screw;Hex Socket;BH;M8x1.25Px20L;BED No Model Compatibility List $1.38 / Each

2
004759-00 701735 004759-00 K11 Screw;Hex Socket;BH;M10x1.5Px45L(Tooth15 No Model Compatibility List $1.54 / Each

2
004864-00 701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $1.54 / Each

2
004867-A 701849 004867-A Q33 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $1.54 / Each

2
004889-00 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
004926-00 701897 004926-00 R06 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004934-00 701908 004934-00 M17 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.22 / Each

2
004941-00 701912 004941-00 K12 Nut;Nylon;M10x1.5P No Model Compatibility List $1.54 / Each

2
004975-00 701939 004975-00 B39 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005005-00 701964 005005-00 Z03 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.22 / Each

2
005062-00 702030 005062-00 M33 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.22 / Each

7,2,12,13,14
005104-00 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $1.54 / Each

2
005125-00 702092 005125-00 H09 Washer;Flat;10.2x20x1.0T No Model Compatibility List $1.54 / Each

2
005145-A 702118 005145-A M38 Washer;Flat;8.2x19.0x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005165-00 702136 005165-00 M16 Washer;Arc;8.2x18x1.5T No Model Compatibility List $1.54 / Each

2
005177-00 702145 005177-00 P18 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $1.54 / Each

2
005196-00 702160 005196-00 H07 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.22 / Each

2
005811-00 702299 005811-00 P08 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.16 / Each

2,4,5,6
006078-00 702325 006078-00 V18 Decal;Grounding;TM08 No Model Compatibility List $1.46 / Each

7,3
010866-00 702806 010866-00 P26 Bushing;Strain Relief;Nylon66;SR-7R3;BL; Yes Model Compatibility List $3.36 / Each

8
014669-B 703438 014669-B AR1 Front Roller Set Yes Model Compatibility List $147.40 / Each

8

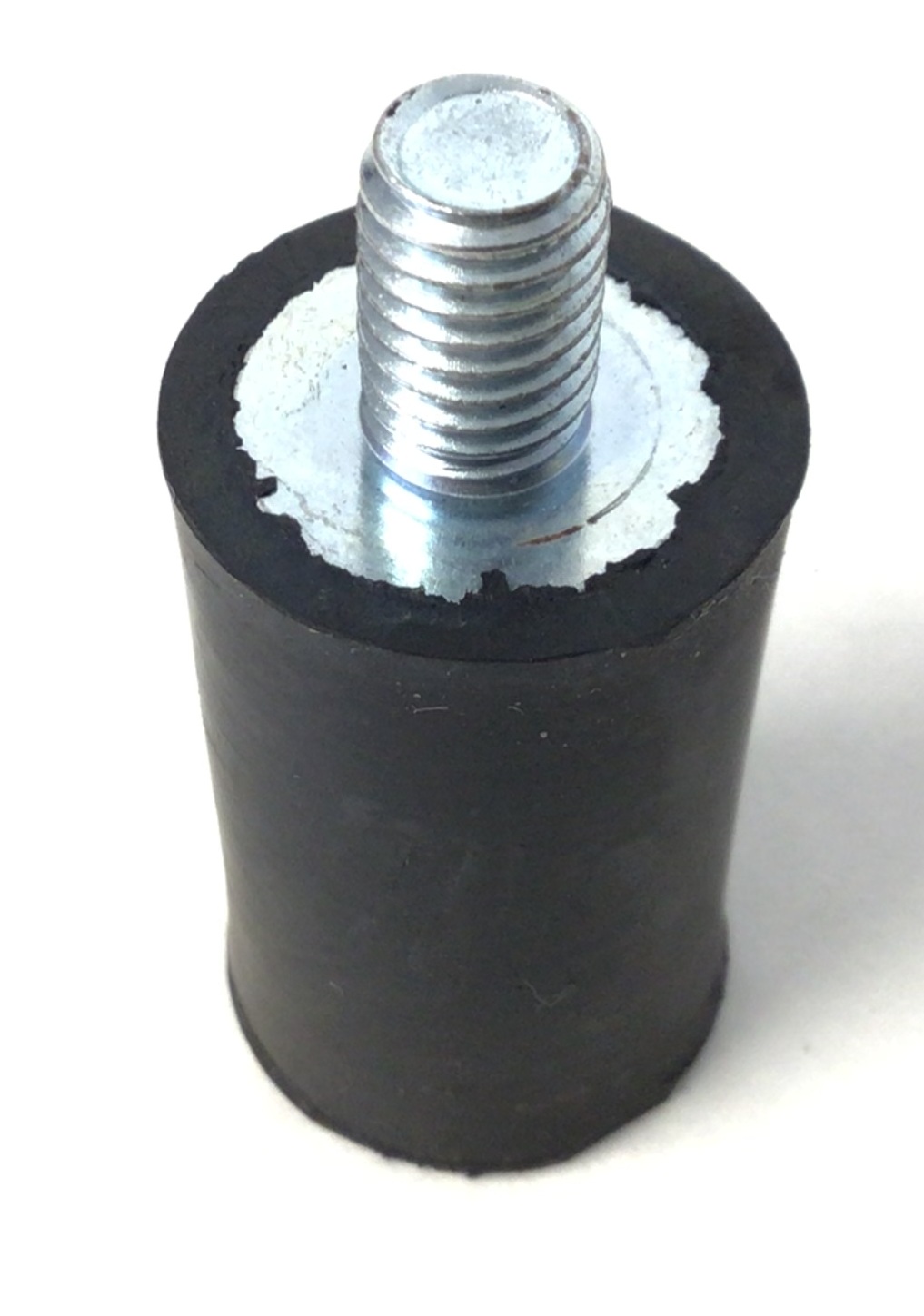

018951-A 703881 018951-A B48 Elastomer;Front/Rear;Black Yes Model Compatibility List $10.70 / Each

4,5,6
020042-00 703976 020042-00 B54 Screw;Phillip;BH;M4x0.7Px8L No Model Compatibility List $1.54 / Each

2
020101-00 704011 020101-00 R05 Screw;Hex Socket;Round;M8x1.25Px55L;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
020210-00 704087 020210-00 N17 Screw;Phillip;Round;3x20L No Model Compatibility List $1.54 / Each

2
020352-A 704155 020352-A Q34 Screw;Phillip;Sink;Tapped;4x34L; No Model Compatibility List $1.54 / Each

2
020425-00 704175 020425-00 Z04 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $1.54 / Each

2
029437-00 705018 029437-00 N36 Screw;Phillip;BH;Tapped;3x10L;Zn+3(Whit No Model Compatibility List $1.54 / Each

2
039400-BA 705259 039400-BA B25 Transport Wheel;Nylon Yes Model Compatibility List $7.36 / Each

8
040695-A 705308 040695-A P02 Power Switch Yes Model Compatibility List $22.10 / Each

4,5,6
049024-BA 705382 049024-BA K09 Flat;;;50C;TM196-K12B Yes Model Compatibility List $4.94 / Each

1
049262-00 705469 049262-00 M15 Screw;Hex;3/8-16UNCX55L-14L;;HE;;;;P-T No Model Compatibility List $3.08 / Each

2
049263-A 705470 049263-A Q31 Screw;Phillip;BH;Tapped;4x20L; No Model Compatibility List $1.54 / Each

2
049292-A 705488 049292-A H17 Washer;Flat;Teflon;8.1x20x1.0t; No Model Compatibility List $1.54 / Each

2
055204-A 705700 055204-A B32 Screw;SelfTapping;4x10L No Model Compatibility List $1.54 / Each

2,12,13,14
055269-AX 705707 055269-AX V22 Decal;Faceplate No Model Compatibility List $2.94 / Each

7,3,4,5,6
056374-AA 705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $7.36 / Each

10,12,13,14
056437-00 705893 056437-00 N90 Absorptive Plate;Zinc;15x25 No Model Compatibility List $1.46 / Each

3
059929-B 706178 059929-B H06 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $1.54 / Each

2
1000092678 707443 1000092678 Q04 Rear Roller Cover;Left;ABS;TM616 Yes Model Compatibility List $14.16 / Each

8,9
1000092679 707444 1000092679 Q10 Rear Roller Cover;Right;ABS;TM616 Yes Model Compatibility List $14.16 / Each

8,9
1000092805 707457 1000092805 Not shown Silicon Oil;40ml No Model Compatibility List $24.99 / Each

1
1000094874 707758 1000094874 H19 Connecting Axle;Elevation Shock No Model Compatibility List $2.94 / Each

8,10
1000094875 707759 1000094875 H20 Spring No Model Compatibility List $3.08 / Each

2
1000094876 707760 1000094876 K50 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $4.94 / Each

3,4,5,6,9
1000094883 707762 1000094883 P11 Power Cord;16AWG;2M;TM616-P05A Yes Model Compatibility List $44.22 / Each

4,5,6
1000094931 707768 1000094931 AH4 Lock Latch Set;Galvanization;TM616 No Model Compatibility List $7.70 / Each

1
1000094932 707769 1000094932 H21 C Clip;Combined With 6mm Axle No Model Compatibility List $1.46 / Each

2,8
1000096516 707862 1000096516 N70 Speaker;3W8;XHS-2Y;250MM No Model Compatibility List $13.26 / Each

1
1000096517 707863 1000096517 N85 Speaker;3W8;XHS-2Y;400MM Yes Model Compatibility List $19.26 / Each

1
1000097464 707990 1000097464 H24 Single Foam;One-Sided;27x20x1.5t;Black No Model Compatibility List $1.46 / Each

4,5,6
1000097465 707991 1000097465 R04 Screw;SH;M8X1.25PX80L;;HS;;BZN;;F-T Yes Model Compatibility List $6.08 / Each

2
1000099273 708088 1000099273 H23 Decal;Insert Tube;protected piece No Model Compatibility List $1.46 / Each

7,3
1000101247 708215 1000101247 C14 End Cap;Handlebar;Black Yes Model Compatibility List $8.94 / Each

4,5,6,9,11
1000101277 708221 1000101277 Q01 Motor Cover;Upper Yes Model Compatibility List $39.58 / Each

9,10
1000101281 708224 1000101281 Q08 Cover;Side Rail;Left Yes Model Compatibility List $8.94 / Each

9
1000101282 708225 1000101282 Q09 Cover;Side Rail;Right Yes Model Compatibility List $9.94 / Each

9
1000101409 708240 1000101409 N76 CTL Board;Earphone;SOO0806A No Model Compatibility List $7.36 / Each

1
1000101465 708243 1000101465 M02 Incline Motor;AC Elevation;110V;80mm;225;JM14 Yes Model Compatibility List $191.64 / Each

4,5,6,10
1000101856 708294 1000101856 N91 Wind Shield;Left;ABS;Black Yes Model Compatibility List $1.46 / Each

9
1000101857 708295 1000101857 N92 Wind Shield;Right;ABS;Black Yes Model Compatibility List $5.46 / Each

3,9
1000101981 708310 1000101981 P30 Wire;PCB connection;1800L(CKM254301-8P+S Yes Model Compatibility List $32.48 / Each

4,5,6
1000101990 708316 1000101990 N72 Reed Switch No Model Compatibility List $2.94 / Each

4,5,6
1000102181 708346 1000102181 N03 Console Back Cover;ABS;BLACK;TM622 No Model Compatibility List $29.14 / Each

7,9,4,5,6
1000102182 708347 1000102182 N07 Speaker;Cover;Left;Metal Net;MM314;TM622 No Model Compatibility List $9.52 / Each

9,3
1000102183 708348 1000102183 N08 Speaker;Cover;Right;Metal Net;MM314;TM622 No Model Compatibility List $9.52 / Each

9,3
1000102187 708349 1000102187 Q07 Ornament;Motor Up Cover;301C;TM622 No Model Compatibility List $8.72 / Each

9,10
1000102629 708391 1000102629 B51 Roller;Rubber;PA6+30% No Model Compatibility List $1.46 / Each

8
1000102630 708392 1000102630 B50 Grip;Elastomer;sliver/MM314;ABS;TM623 No Model Compatibility List $7.36 / Each

11
1000103438 708563 1000103438 C17 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.44 / Each

2
1000103575 708571 1000103575 N93 IPOD skidproof Decal;TM623 No Model Compatibility List $1.46 / Each

7,3
1000105093 708725 1000105093 N54 IPOD Seat;ABS;Black;EP218 No Model Compatibility List $1.46 / Each

4,5,6,12,13,14
1000105094 708726 1000105094 N43 Safety Key Set Yes Model Compatibility List $30.88 / Each

9
1000106110 708807 1000106110 B34 Stopper;Outside Frame;light black No Model Compatibility List $6.82 / Each

3,4,5,6
1000106112 708808 1000106112 AB2 Elastomer Frame;Painting;Light Black No Model Compatibility List $10.90 / Each

3,4,5,6
1000107358 708930 1000107358 V25 Warning Sticker;Console Overlay No Model Compatibility List $1.46 / Each

7
1000108054 708991 1000108054 V20 Sticker;Warning;One No Model Compatibility List $1.36 / Each

1
1000108203 709009 1000108203 P05 Wire;Console connection;450L(CKM254301-8 No Model Compatibility List $29.48 / Each

7,4,5,6
1000109292 709083 1000109292 AH2 Insert Tube Set;zincification;TM622 Yes Model Compatibility List $13.12 / Each

3
1000109550 709100 1000109550 R03 Drive Belt;Poly-V;190-J8 Yes Model Compatibility List $46.32 / Each

15,10
1000109614 709104 1000109614 N75 CTL Board;5W VFD;SOO0819;HAPD No Model Compatibility List $44.26 / Each

1
1000111476 709254 1000111476 M03 Motor Control Board;110V Yes Model Compatibility List $499.00 / Each

7,10
1000113141 709331 1000113141 8 Drive Motor Set;Digital;2.75HP Yes Model Compatibility List $442.24 / Each

10
1000113898 709381 1000113898 N60 Upper Control Board;T203;HDS601PD No Model Compatibility List $382.98 / Each

7
1000114138 709409 1000114138 K13 Cap;Oblique;TM639-1US No Model Compatibility List $1.36 / Each

9
1000114475 709438 1000114475 B27 Running Deck;675x1352x18T;TM644 No Model Compatibility List $191.64 / Each

3
1000114477 709439 1000114477 2 Console Mast Set;Left;Semi-Assy;TM644-1US No Model Compatibility List $209.90 / Each

7
1000114478 709440 1000114478 3 Console Mast Set;Right;Semi-Assy;TM644-1US No Model Compatibility List $212.00 / Each

7
1000114479 709441 1000114479 4 Elevation Rack Set;TM644-1US No Model Compatibility List $134.54 / Each

4,5,6,10
709442 1000114481 7 Base Set;Semi-Assy;TM644-1US No Model Compatibility List $185.58 / Each

3
709443 1000114485 M05 Motor fix Set;Panting;DM363;TM644 No Model Compatibility List $0.00 / Each
Out Of Stock
10
1000114487 709444 1000114487 9 Console Set;Semi-Assy;TM644 No Model Compatibility List $1.00 / Each

7
1000114490 709445 1000114490 12 Console Base Set;Semi-Assy;TM644 No Model Compatibility List $136.66 / Each

7,3
1000114494 709446 1000114494 15 Siderail Set;Left;Semi-Assy;TM644 No Model Compatibility List $67.26 / Each

9
1000114495 709447 1000114495 16 Siderail Set;Right;;Semi-Assy;TM644 No Model Compatibility List $67.26 / Each

9
1000200132 709452 1000200132 6 Lock Latch Chrome Set;SEMI-ASSY;TM644 No Model Compatibility List $54.04 / Each

7,12,13,14
1000200201 709455 1000200201 R02 Running Belt;D;CO;RO;508X3190X1.4T;TM6 No Model Compatibility List $177.44 / Each

15
1000200650 709487 1000200650 N61 Overlay;Upper;ENGLISH;T203;; No Model Compatibility List $29.48 / Each

1
1000200651 709488 1000200651 N62 Overlay;Middle;ENGLISH;T203;; No Model Compatibility List $73.70 / Each

1
1000200652 709489 1000200652 N63 Overlay;Bottom;ENGLISH;T203;; No Model Compatibility List $29.48 / Each

1
1000201012 709524 1000201012 C13 Foam;Console Mast;40.0X80.0;TM640-1US;ARM No Model Compatibility List $8.66 / Each

7,3
1000201120 709539 1000201120 KIT Manual;Assembly Guide No Model Compatibility List $9.64 / Each

3
1000201488 709588 1000201488 B41 Air Shock;TWO SECTION;60KG;235L;TM644-1U No Model Compatibility List $32.14 / Each

1
1000202510 709740 1000202510 B52 Logo;Label;ADJUST CUSHIONING;;;;TM644; No Model Compatibility List $6.82 / Each

3
1000202511 709741 1000202511 V06 Spec Label;POP;OVERLAY;;L;TM644; No Model Compatibility List $1.46 / Each

12,13,14
1000202512 709742 1000202512 V07 Spec Label;POP;OVERLAY;;RIGHT;TM644; No Model Compatibility List $1.36 / Each

12,13,14
1000202514 709743 1000202514 V24 Spec Label;POP;;;MOTOR COVER;TM644; No Model Compatibility List $1.36 / Each

9,10,12,13,14
1000202515 709744 1000202515 V01 Spec Label;POP;;;MOTOR COVER;TM644; No Model Compatibility List $6.82 / Each

9,10,12,13,14
1000202516 709745 1000202516 V02 Decorated Label;Accent Piece;;DRIPPING P No Model Compatibility List $2.94 / Each

4,5,6,12,13,14
1000202517 709746 1000202517 V23 Spec Label;Cap;Left No Model Compatibility List $1.46 / Each

9
1000202518 709747 1000202518 N02 Faceplate No Model Compatibility List $28.82 / Each

3,4,5,6
1000202519 709748 1000202519 N01 Console Shell;ABS;BLACK;TM644 No Model Compatibility List $40.12 / Each

7,4,5,6
1000202758 709764 1000202758 Z01 Screw;FH;M6X1.0PX10L;MT;HS;G8.8;BAN; No Model Compatibility List $1.54 / Each

2
1000203234 709793 1000203234 Q02 Cover;Motor;DOWN;BLACK;TM640 No Model Compatibility List $21.88 / Each

9,4,5,6,10
1000203370 709803 1000203370 KIT Hardware Pack No Model Compatibility List $43.38 / Each

4,5,6
1000204184 709874 1000204184 B38 Screw;HH;M10X1.5PX45L-15L; No Model Compatibility List $3.08 / Each

2
1000206090 710033 1000206090 N69 Control Board;Third IPOD;SOO0802B No Model Compatibility List $48.94 / Each

7
1000209336 710322 1000209336 C20 Fixing Plate;Console Mast;Left No Model Compatibility List $31.32 / Each

7,3
1000209337 710323 1000209337 C21 Fixing Plate;Console Mast;Right No Model Compatibility List $31.32 / Each

7,3
1000216278 711070 1000216278 P10 Static/Ground Wire;Deck;;;TM639-1US; No Model Compatibility List $2.94 / Each

3,4,5,6
1000386873 721965 1000386873 KIT Manual;TM safety direction;;EN/FR/ES;MAT No Model Compatibility List $5.88 / Each

9
102531 725190 102531 N34 Cooling Fan;TM604-N33 Yes Model Compatibility List $20.62 / Each

8
072210 725507 072210 E10 Screw; Hex Socket; BH; M8x1.25Px15L No Model Compatibility List $1.22 / Each

2
073164 725568 073164 N39 Ipod spacer No Model Compatibility List $1.46 / Each

2,3,4,5,6
073633 725586 073633 K15 Transport Wheel No Model Compatibility List $2.94 / Each

8
079425 726042 079425 D45 Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L No Model Compatibility List $1.54 / Each

2
080869 726233 080869 Not Shown Speed feedback system;Motor controller2. No Model Compatibility List $22.30 / Each

7,8,4,5,6,10
080875 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $1.54 / Each

2
082406 726503 082406 M38 Speed Sensor Yes Model Compatibility List $23.92 / Each

1
094040 728326 094040 H13 Cap;Support Base;Rear;TM367 No Model Compatibility List $1.90 / Each

9,3
097076 728770 097076 N10 Earphone Jack;ABS;PA757S No Model Compatibility List $1.46 / Each

4,5,6
098282 728889 098282 N39 Pulse Sensor Set;800mm;31.8+2.5-2P JIND Yes Model Compatibility List $24.10 / Each

12,13,14
099695 728961 099695 AR2 Roller Set;Rear;TM603-1US Yes Model Compatibility List $147.40 / Each

8
728977 N/A 5 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock
7
729124 Part of Kit 12 AN1 Lower Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729129 Part of Kit 15 Q03 Link Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729130 Part of Kit 15 or 16 Q15 Siderail;Accoutrement;TM644;PLASTIC;BLAC No Model Compatibility List $0.00 / Each
Out Of Stock
9,4,5,6
729133 Part of Kit 16 Q05 Stabilizer;Front;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
1
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
7
729152 Part of Kit 3 AC2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
729165 Part of Kit 4 AH1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
729191 Part of Kit 6 AH3 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729194 Part of Kit 7 AK1 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3,10
729197 Part of Kit 8 M04 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3,10
View Drawing
