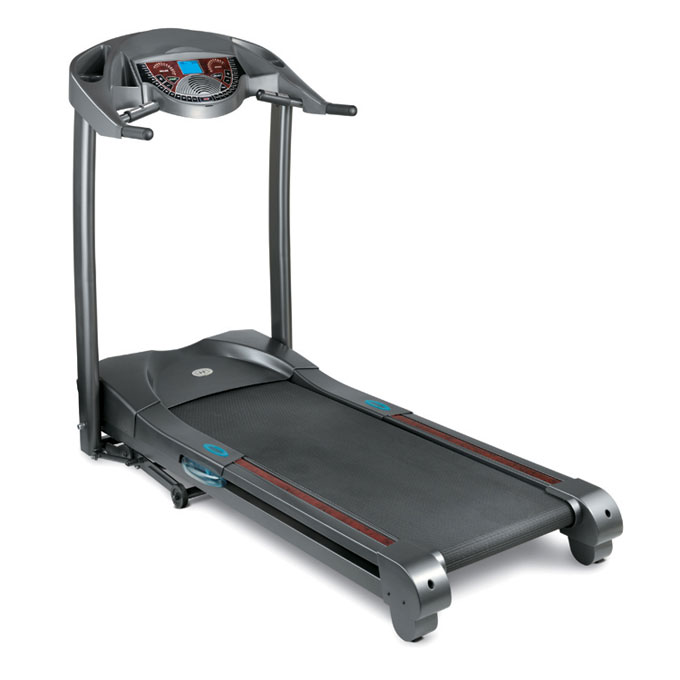

Repair Parts for Horizon Fitness T53 TM114
| Brand | Horizon Fitness |
|---|---|
| Type | Folding Treadmill |
| Category | Folding |
| Model Number | TM114 |
| Model Name | T53 |
| Version | 2005 |
Model Numbers: TM114
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
700002 | 621050 | - | Screw Set, Two, CB133, US | No |
Compatibility List |
Out Of Stock |
|
|
1020937 | 002124-B | 0 | 1 | Power Entry Socket Input Module | Yes |
Compatibility List |
$25.99 / Each
|
|
014683-B | 014683-B | 0 | 1 | Rear Idler Roller | No |
Compatibility List |
$189.00 / Each
|
|
1000336 | 012804-00 | 0 | 1 | Incline Lift Elevation Motor Actuator (Used) | No |
Compatibility List |
$32.99 / Each
|
|
1001381 | 003326-00 | 0 | 1 | Power Switch | No |
Compatibility List |
$20.00 / Each
|
|
1001764 | 002169-A | 0 | 1 | Power Cord | No |
Compatibility List |
$39.99 / Each
|
|
1002002 | 002169-A | 0 | 1 | Cord Power | No |
Compatibility List |
$34.99 / Each
|
|
1002834 | 014683-B | 0 | 1 | Roller Rear | No |
Compatibility List |
$189.00 / Each
|
|
1002861 | 002248-D | 0 | 1 | Sensor RPM | No |
Compatibility List |
$25.99 / Each
|
|
1002970 | 012804-00 | 0 | 1 | Motor Incline | No |
Compatibility List |
$349.00 / Each
|
|
1003620 | 004264-A | 0 | 1 | Treadbelt | No |
Compatibility List |
$179.00 / Each
|
|
1003624 | 032669-IF | 0 | 1 | Control Board Motor Controller | No |
Compatibility List |
$499.00 / Each
|
|
1009207 | 060295-DA | 0 | 1 | Digital Speed Sensor | No |
Compatibility List |
$31.99 / Each
Out Of Stock |
|
703485 | 014949-BA | AH1 | Elevation Frame Set | No |
Compatibility List |
$131.66 / Each
|
|
|
703438 | 014669-B | AR1 | Front Roller Set | Yes |
Compatibility List |
$191.62 / Each
|
|
|
703442 | 014683-B | AR2 | Rear Roller Set | Yes |
Compatibility List |
$189.00 / Each
|
|
|
702160 | 005196-00 | B12 | Washer, Teflon, 10.5x20.0x1.0T | Yes |
Compatibility List |
$3.88 / Each
|
|
|
725935 | 078439 | B18 | Cushion, Air D/C, NO REPL Part will show as orderable until stock is depleted | No |
Compatibility List |
$17.71 / Each
|
|
|
701562 | 004595-00 | B20 | Screw, Hex, 3/8 16UNC 42L/Tooth14L | No |
Compatibility List |
$2.00 / Each
|
|
|
702030 | 005062-00 | B21 | Washer, Flat, 10.2x19x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
702446 | 007384-E | B25 | Fixing Plate, Motor Control Board | No |
Compatibility List |
$9.59 / Each
|
|
|
701254 | 004310-C | B27 | Running Deck, 682X1220X18T | No |
Compatibility List |
$249.13 / Each
|
|
|
701530 | 004562-00 | B36 | Bolt, Deck, M8x1.25Px35L | Yes |
Compatibility List |
$12.99 / Each
|
|
|
734267 | 1000444959 | B39 | RVN, A2 M8 BF | No |
Compatibility List |
$1.09 / Each
|
|
|
702450 | 007490-C | B52 | Fix Plate, Speed Sensor | No |
Compatibility List |
$1.90 / Each
|
|
|
702761 | 009561-AX | B56 | Air Shock, 100KG(125L) | No |
Compatibility List |
$35.98 / Each
|
|
|
700245 | 000767-D | B57 | Elastomer, Orange, 20x44L | Yes |
Compatibility List |
$19.21 / Each
|
|
|
700246 | 000768-D | B58 | Elastomer, Blue, 20x44L | Yes |
Compatibility List |
$18.64 / Each
|
|
|
704087 | 020210-00 | C05x | Screw, Phillip, Round, 3x20L | No |
Compatibility List |
$2.00 / Each
|
|
|
700318 | 000940-A | C06 | End Cap, Pulse Grip Handlebar | Yes |
Compatibility List |
$12.99 / Each
|
|
|
701916 | 004945-00 | C23 | Nut, Nylon, M12x1.75P, Chromed | No |
Compatibility List |
$1.60 / Each
|
|
|
702021 | 005056-00 | C25 | Washer, Flat, 13.2X26.0X2.0T, Black Zinc | No |
Compatibility List |
$1.54 / Each
|
|
|
700416 | 001294-B | C27 | End Cap, Support Tube Base, AF002(1/2) 19 D/C, NO REPL Part will show as orderable until stock is depleted | Yes |
Compatibility List |
$12.99 / Each
|
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
701401 | 004454-00 | D23 | Screw, Round, Hex Socket, M5X0.8PX15L | No |
Compatibility List |
$3.88 / Each
|
|
|
702180 | 005222-00 | D30 | Washer, Wavy, 16.7x22.5x0.3T | No |
Compatibility List |
$2.00 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
701621 | 004640-A | E66 | Screw, Umbrella Cross Tapped, 4X35L | No |
Compatibility List |
$2.00 / Each
|
|
|
701939 | 004975-00 | F03 | Insert Nut, Brass, ALS7 8125 3.8(0.5 3.8) | No |
Compatibility List |
$1.90 / Each
|
|
|
702169 | 005210-A | F20 | Washer, Teflon, 20.3x25x1.0T | No |
Compatibility List |
$2.00 / Each
|
|
|
701047 | 003432-B | G34 | Pulse Sensor Set, Single, 750 | Yes |
Compatibility List |
$21.27 / Each
|
|
|
700418 | 001299-B | H05 | Cover, Elevation Frame, PVC | No |
Compatibility List |
$9.57 / Each
|
|
|
702558 | 008628-B | H14 | Bolt, Special, Support Tube Base, M8x1.25Px54L | No |
Compatibility List |
$4.00 / Each
|
|
|
702556 | 008625-C | H19 | Bolt, Incline Support, M8x1.25Px32L | No |
Compatibility List |
$2.00 / Each
|
|
|
702171 | 005212-A | H28 | Washer, Teflon, 12.2x18x1.0T | No |
Compatibility List |
$2.00 / Each
|
|
|
702283 | 005475-D | H30 | Spring, Foot Lock Latch, SUS304 | No |
Compatibility List |
$4.00 / Each
|
|
|
701534 | 004565-00 | H50 | Screw, Hex Socket, Sink, M8x1.25Px12L | No |
Compatibility List |
$2.00 / Each
|
|
|
700741 | 002108-C | KIT | Console Cable, Mast, 1500L(5557 SERIES 2.5 12P) | Yes |
Compatibility List |
$40.92 / Each
|
|
|
700755 | 002169-A | KIT | Power Cord, 16AWG | Yes |
Compatibility List |
$60.22 / Each
|
|
|
700773 | 002248-D | KIT | Speed Sensor Wire, 1000mm(Reed Switch 2.5 2P) | Yes |
Compatibility List |
$18.15 / Each
|
|
|
702257 | 005393-00 | KIT | Wrench, T Type, 6mm | No |
Compatibility List |
$10.24 / Each
|
|
|
707457 | 1000092805 | KIT | Silicon Oil, 40ml | No |
Compatibility List |
$16.88 / Each
|
|
|
725951 | 078539 | KIT | Console Cable, Upper, 450L(2.5 12P 5557 SERIES) | Yes |
Compatibility List |
$28.73 / Each
|
|
|
700021 | 000037-CA | L05 | Transport Wheel, Frame | Yes |
Compatibility List |
$6.42 / Each
|
|
|
701912 | 004941-00 | L08 | Nut, Nylon, M10x1.5P | Yes |
Compatibility List |
$3.88 / Each
|
|
|
700402 | 001251-F | L10 | Rail Lock, Fixing Washer, Side Rail | Yes |
Compatibility List |
$3.88 / Each
|
|
|
709140 | 1000110344 | M01 | Drive Motor Set, Digital | No |
Compatibility List |
$778.00 / Each
|
|
|
1002830 | 1000110344 | M01 | DC Drive Motor | Yes |
Compatibility List |
$199.00 / Each
|
|
|
702854 | 012804-00 | M02 | Elevation Motor, 110V | No |
Compatibility List |
$349.00 / Each
|
|
|
705040 | 032669-IF | M03 | Motor Control Board, Digital, 2.25/2.5HP | No |
Compatibility List |
$499.00 / Each
|
|
|
701454 | 004502-00 | M06 | Screw, Hex Socket, Round, 5/16 18UNCx16L, Ad | No |
Compatibility List |
$2.00 / Each
|
|
|
701908 | 004934-00 | M06 | Nut, Nylon, 3/8 | Yes |
Compatibility List |
$0.62 / Each
|
|
|
702121 | 005146-A | M07 | Washer, Flat, 10.5x20x2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
705857 | 056374-AA | M07 | Rubber Pad, Drive Motor, Shockproof | No |
Compatibility List |
$9.57 / Each
|
|
|
701590 | 004619-AB | M08 | Screw, Phillip, BH, Oval Tapped, 4x8L | No |
Compatibility List |
$2.00 / Each
|
|
|
702007 | 005044-00 | M09 | Washer, Flat8.3x16x1.3T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701033 | 003386-A | M17 | Ferrite Core, T31x16x19 C | No |
Compatibility List |
$13.26 / Each
|
|
|
706219 | 060295-DA | M17 | Digital Speed Sensor | No |
Compatibility List |
$35.52 / Each
Out Of Stock |
|
|
701559 | 004590-Z | M20 | Bolt, Incline Motor Bottom, W3/8X57L(WHORL:14L) | Yes |
Compatibility List |
$1.79 / Each
|
|
|
701432 | 004480-Z | M45 | Screw, Hex Socket, Round, M8x1.25Px30L | Yes |
Compatibility List |
$2.00 / Each
|
|
|
700343 | 001055-DA | N01 | Console Shell, Charcoal Gray | No |
Compatibility List |
$84.86 / Each
|
|
|
700419 | 001314-DA | N02 | Faceplate Only, ABS(75140) | No |
Compatibility List |
$38.32 / Each
|
|
|
700990 | 003181-C | N06 | Membrane Key, Speed/Elevation, 32 Key | No |
Compatibility List |
$38.32 / Each
|
|
|
703336 | 013601-BA | N07 | Upper Control Board | No |
Compatibility List |
$275.39 / Each
|
|
|
701074 | 003582-A | N11 | EL Paper,Right,Speed, 81.95MMX62MMX0.6MM | No |
Compatibility List |
$13.83 / Each
|
|
|
701300 | 004364-00 | N11 | Screw, Oval Head, M5x0.8Px12L | No |
Compatibility List |
$0.96 / Each
|
|
|
701075 | 003583-A | N12 | EL Paper,Left,Elevation, 81.95MMX62MMX0.6MM | No |
Compatibility List |
$13.83 / Each
|
|
|
700704 | 001963-A | N13 | Console Safety Key Reed Switch, 250L(2.5 2P) E192542 | No |
Compatibility List |
$14.22 / Each
|
|
|
700204 | 000636-A | N16 | Foam Grip, Handlebar, 31.8x3tx140L | No |
Compatibility List |
$1.90 / Each
|
|
|
703770 | 016167-Z | N24 | Safety Key Set | Yes |
Compatibility List |
$40.14 / Each
|
|
|
701615 | 004635-A | N38 | Screw, Oval Tapping, 3x7L | No |
Compatibility List |
$0.38 / Each
|
|
|
705141 | 038132-BBX | N83 | Heart Rate Receiver | Yes |
Compatibility List |
$54.39 / Each
|
|
|
1000573 | 003326-00 | P01 | Power Entry Switch On/Off | No |
Compatibility List |
$8.99 / Each
|
|
|
1034434 | 003326-00 | P01 | Power Entry On Off Switch EP212 | No |
Compatibility List |
$10.19 / Each
|
|
|
4K-UYTS-4IA5 | 003326-00 | P01 | Power Switch on Off (New) | Yes |
Compatibility List |
$29.99 / Each
|
|
|
701013 | 003326-00 | P03 | Power Switch, Large, RF 1004 | Yes |
Compatibility List |
$13.99 / Each
|
|
|
701020 | 003346-00 | P04 | Circuit Breaker, 12A, 125V/250V | Yes |
Compatibility List |
$20.00 / Each
|
|
|
703919 | 019354-A | P05 | Connecting Cable, Breaker/Switch, Black, 120mm | No |
Compatibility List |
$13.00 / Each
|
|
|
1036808 | 019354-A | P07 | Power harness wire | Yes |
Compatibility List |
$13.00 / Each
|
|
|
700746 | 002124-B | P08 | Connecting Cable, Socket/Breaker, 60, 16AWG Black | No |
Compatibility List |
$3.82 / Each
|
|
|
700850 | 002513-B | P09 | Power Cable, Control Board, 1000L, 16AWG, Black | No |
Compatibility List |
$0.03 / Each
|
|
|
1001433 | 002248-D | P09 | RPM Speed Sensor Reed Switch | No |
Compatibility List |
$9.99 / Each
|
|
|
700851 | 002514-B | P10 | Power Cable, Control Board, 1000L, 16AWG, White | No |
Compatibility List |
$1.90 / Each
|
|
|
701026 | 003363-00 | P11 | Power Socket, 100 600 60(O TYPE END), 16AWG | Yes |
Compatibility List |
$9.57 / Each
|
|
|
701364 | 004415-Z | P13 | Screw, M3x0.5Px10L, Power Socket | No |
Compatibility List |
$1.79 / Each
|
|
|
701866 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701867 | 004889-Z | P19 | Nut, hex head, M5x0.8P | No |
Compatibility List |
Out Of Stock |
|
|
701858 | 004880-00 | P20 | Nut, Zero Switch Cable, M3x0.5Px3H | No |
Compatibility List |
$2.00 / Each
|
|
|
1027016 | 000355-CA | Q01 | 1 | Motor Cover (Used) | No |
Compatibility List |
$29.99 / Each
Out Of Stock |
|
700424 | 001339-DA | Q07 | End Cap, Foot Rail, Left | No |
Compatibility List |
$13.44 / Each
|
|
|
700429 | 001356-DA | Q08 | End Cap, Foot Rail, Right | No |
Compatibility List |
$13.44 / Each
|
|
|
701612 | 004631-00 | Q08 | Screw, Phillip, BH, Tapped, 4x25L | No |
Compatibility List |
$2.00 / Each
|
|
|
701586 | 004617-00 | Q11 | Screw, Console Case, Oval Tapping, 4x15L | No |
Compatibility List |
$1.54 / Each
|
|
|
1029909 | 004480-Z | Q26 | Round Head Socket Screw M8X1.25PX30L (Used) | No |
Compatibility List |
$3.59 / Each
|
|
|
701847 | 004864-00 | Q30 | Screw, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
701244 | 004264-A | R02 | Running Belt, 508X2840X1.6T, Black | No |
Compatibility List |
$179.00 / Each
|
|
|
709100 | 1000109550 | R03 | Drive Belt, Poly V, 190 J8 | Yes |
Compatibility List |
$26.00 / Each
|
|
|
1002831 | 1000109550 | R03 | 1 | Belt Drive | No |
Compatibility List |
$34.99 / Each
|
|
1002833 | 1000109550 | R03 | Motor Drive Belt | No |
Compatibility List |
$9.99 / Each
|
|
|
1002332 | 1000109550 | R03 | Flexonic Pulley Drive Belt | Yes |
Compatibility List |
$26.00 / Each
|
|
|
701444 | 004486-00 | R04 | Screw, Round, Hex Socket, M8X1.25PX85L | Yes |
Compatibility List |
$9.80 / Each
|
|
|
701445 | 004488-00 | R09 | Screw, Hex Socket, Round, M8x1.25Px55L, BED | Yes |
Compatibility List |
$2.00 / Each
|
|
|
702327 | 006089-A | V03 | Decal, Console Logo | No |
Compatibility List |
$3.82 / Each
|
|
|
702380 | 006584-A | V05 | Decal, Air Cell Technology, Foot Rail | No |
Compatibility List |
$3.82 / Each
|
|
|
702360 | 006469-B | V23 | Decal, Instructions/Getting Started | No |
Compatibility List |
$1.77 / Each
|
|
|
701970 | 005009-AB | Z03 | Washer, Spring, SW8 8.2x15.4x2T, Zinc Plating | No |
Compatibility List |
$0.48 / Each
|
|
|
702798 | 010680-00 | Z03 | Washer, Spring, Support Tube, M8X1.25PX16L | No |
Compatibility List |
$2.00 / Each
|
|
|
701375 | 004425-B | Z06 | Screw, Phillip, Sink, Tapped, 5x15L | No |
Compatibility List |
$3.88 / Each
|
|
|
702135 | 005163-00 | Z07 | Washer, Arc, 8.4x17x1.0T | No |
Compatibility List |
$2.57 / Each
|
|
|
734306 | 1000463258 | Z08 | WRENCH, Hex T Type, 6mmx130L | No |
Compatibility List |
$14.99 / Each
|
|
|
702170 | 005211-A | Z10 | WASHER, FLT, Diam.12.1XDiam.20.0X1.0T | No |
Compatibility List |
$1.85 / Each
|
|
|
701997 | 005035-00 | Z29 | Washer, Flat, 8.2x18x1.4T | No |
Compatibility List |
$2.00 / Each
|
|
|
701591 | 004620-00 | Z31 | Screw, Self Tapping, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
1000932 | 014669-B | Front Drive Roller | No |
Compatibility List |
$60.99 / Each
|
||
|
1002652 | 003346-00 | Power 12a Circuit Breaker | No |
Compatibility List |
$8.99 / Each
|
||
|
1002658 | 003363-00 | Power Entry Module | No |
Compatibility List |
$5.99 / Each
|
||
|
1003520 | 032669-IF | Lower Controller Board | No |
Compatibility List |
$499.00 / Each
|
||
|
1002835 | 014683-B | Rear Idler Roller | No |
Compatibility List |
$39.99 / Each
|
||
|
1002483 | 002169-A | Power Supply Cord | No |
Compatibility List |
$24.99 / Each
|
||
|
1002538 | 016167-Z | Safety Key Set | No |
Compatibility List |
$26.99 / Each
|
||
|
1001765 | 002169-A | Replacement AC Power Cord | No |
Compatibility List |
$27.99 / Each
|
||
|
1009798 | 003346-00 | Power Circuit Breaker 12AMP (New) | No |
Compatibility List |
$20.00 / Each
|
||
|
912107 | 1000465333 | Nut Locking Nylon 3/8 | No |
Compatibility List |
$11.99 / Each
|
||
|
911968 | 004620-00 | Self Tapping Screw 4X12L (New) | No |
Compatibility List |
$12.99 / Each
|
||
|
1005346 | 53-46-100 | Base Frame End Cap (Used) | No |
Compatibility List |
$10.19 / Each
Out Of Stock |
Catalog #: 725935
MPN: 078439
Cushion, Air D/C, NO REPL Part will show as orderable until stock is depleted
$17.71 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
