Horizon Fitness - T70 - 2006

Repair Parts for Horizon Fitness T70 TM177

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: T70

Version: 2006

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Cover/trim
  • Belt
  • Switch
  • Sensors
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - Q10 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
L 700014 000021-B L06 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

3,8
Q 700096 000350-DA Q01 Motor Cover;Upper D/C, NO REPL: Part will show as orderable until stock is depleted Yes Model Compatibility List $76.70 / Each

9,10
Q 700103 000387-EB Q06 End Cap;Side Rail;Left Yes Model Compatibility List $17.24 / Each

9
Q 700104 000388-DB Q07 End Cap;Side Rail;Right Yes Model Compatibility List $13.34 / Each

9
N 700129 000481-BA N09 Access Panel;Back of console; ABS 75140 HUE No Model Compatibility List $8.87 / Each

7,4,5,6
M 700211 000682-A M21 Foam Tape;Double Sided;150x30x3t No Model Compatibility List $1.90 / Each

1
B 700269 000825-AA B55 Deck Extension No Model Compatibility List $1.90 / Each

3
N 700318 000940-A N43 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
N 700349 001091-CA N07 Console Cover;Bottom No Model Compatibility List $56.97 / Each

7,9
L 700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

2,9
C 700416 001294-B C27 End Cap;Support Tube Base;AF002(1/2) 19 - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $2.00 / Each

9,3
C 700518 001522-B C28 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
Q 700555 001599-CB Q24 Safety Sleeve No Model Compatibility List $1.77 / Each

9,3
N 700700 001952-00 N10 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
N 700702 001956-C N11 Reed Switch Yes Model Compatibility List $21.27 / Each

4,5,6
P 700733 002073-B P01 Console Cable;Upper;500(2.5-12P+2.5-12P)BLACK Yes Model Compatibility List $28.73 / Each

7,4,5,6
P 700742 002118-B P12 Console Cable;Mast; 1500(2.5-12P+2.5-12P)BLACK No Model Compatibility List $38.32 / Each

7,4,5,6
P 700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

4,5,6
700755 002169-A P07 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

4,5,6
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

4,5,6
P 700847 002508-A P09 Power Wire;Control Board;550;16AWG;Black No Model Compatibility List $1.90 / Each

7,4,5,6
P 700848 002509-A P10 Power Wire;Control Board;550;16AWG;White Yes Model Compatibility List $1.90 / Each

7,4,5,6
N 700985 003163-D N02 Membrane Key;7 Key No Model Compatibility List $19.14 / Each

9
N 700986 003164-B N04 Membrane Key;Left;Elevation;14 KEY No Model Compatibility List $19.14 / Each

9,10
N 700987 003165-B N03 Membrane Key;Right;Speed;14 KEY No Model Compatibility List $19.14 / Each

9
701013 003326-00 P03 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

4,5,6
701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
R 701044 003415-00 R10 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
N 701048 003442-C N15 Pulse Sensor Set;Single Yes Model Compatibility List $17.58 / Each

12,13,14
N 701080 003590-A N62 EL Paper; 104*107 No Model Compatibility List $23.69 / Each

1
C 701185 004123-A C11 Bearing;Dry;Sleeve;Support Tube; LFB 1625 No Model Compatibility List $3.82 / Each

8,3
R 701238 004249-DB R02 Running Belt;495x2785x1.6t;Black Yes Model Compatibility List $260.99 / Each

15,4,5,6
B 701250 004294-FA B31 Running Deck;608x1220Lx18t No Model Compatibility List $249.13 / Each

3
P 701300 004364-00 P29 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
P 701328 004381-00 P17 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

2
M 701434 004481-Z M46 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
R 701440 004483-00 R08 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

2
R 701444 004486-00 R04 Screw;Round;Hex Socket;M8X1.25PX85L Yes Model Compatibility List $9.80 / Each

2
R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
M 701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

2
B 701530 004562-00 B37 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
H 701533 004564-Z H32 Screw; M8X1.25PX15L No Model Compatibility List $1.85 / Each

2
B 701540 004568-Z B36 Screw;Hex Socket;Sink;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
M 701558 004589-00 M10 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $2.18 / Each

2
M 701559 004590-Z M14 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
N 701577 004612-00 N12 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

2
M 701586 004617-00 M24 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
N 701590 004619-AB N40 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

2
Q 701591 004620-00 Q12 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
N 701598 004622-00 N22 Screw;Phillip;BH;Tapped;4x8L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

2
701699 004724-00 C30 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
H 701716 004735-00 H44 Screw;Oval Hex Socket;M8x1.25Px45L-15L No Model Compatibility List $2.00 / Each

2
C 701721 004741-00 C26 Screw;Oval Hex Socket;M8x1.25Px60L No Model Compatibility List $2.00 / Each

2
H 701742 004764-00 H42 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere No Model Compatibility List $2.00 / Each

2
N 701747 004769-ZA N58 Screw;Hex Socket;BH;M8x1.25Px35L(Tooth15) No Model Compatibility List $1.85 / Each

2
C 701802 004816-ZA C30 Bolt; M8x1.25Px42L No Model Compatibility List $1.85 / Each

2
Q 701847 004864-00 Q09 Screw;4x12L No Model Compatibility List $2.00 / Each

2
L 701851 004870-00 L11 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
M 701862 004884-00 M47 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

2
P 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
N 701897 004926-00 N56 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
M 701908 004934-00 M12 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
C 701916 004945-00 C23 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
M 701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
R 702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
C 702021 005056-00 C24 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
L 702030 005062-00 L07 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
M 702121 005146-A M20 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
C 702138 005169-00 C18 Washer;Arc;8.4x20.0x1.5T No Model Compatibility List $2.00 / Each

2
H 702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
B 702192 005238-00 B29 Washer;Lock;8.2x16x1.25T No Model Compatibility List $1.66 / Each

2
B 702197 005249-A B57 Elastomer;Front;Blue(80) Yes Model Compatibility List $15.31 / Each

1
B 702198 005250-A B58 Elastomer;Middle;Red(55) Yes Model Compatibility List $15.31 / Each

1
N 702217 005330-00 N45 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
H 702235 005360-00 H24 C-Clip;External;S-14 No Model Compatibility List $3.82 / Each

2
K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

2
H 702283 005475-D H30 Spring;Foot Lock Latch;SUS304 No Model Compatibility List $4.00 / Each

2,9,3
V 702355 006405-AX V03 Decal, Console HZ Adv - Left; No Model Compatibility List $1.77 / Each

7,3
B 702447 007387-E B08 Fixing Plate;Motor Control Board No Model Compatibility List $14.04 / Each

7,3,10
B 702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
H 702460 007584-D H33 Elevation Frame;Left Yes Model Compatibility List $15.37 / Each

3,10
H 702461 007585-D H34 Elevation Frame;Right Yes Model Compatibility List $8.87 / Each

3,10
H 702550 008599-F H39 Sleeve;Connecting Rod;SS41;12x8x29.6L No Model Compatibility List $3.54 / Each

3
B 702552 008609-00 B41 Bolt;Air Shock;M8X1.25P S45C No Model Compatibility List $10.01 / Each

2
A 703469 014823-A AC12 Support Tube;Crossbar No Model Compatibility List $69.63 / Each

3
M 703494 015014-AD M05 Motor Bracket No Model Compatibility List $14.90 / Each

2,3,4,5,6,10
P 703503 015046-AD P21 Fix Plate;Power Socket No Model Compatibility List $9.88 / Each

3,4,5,6
N 703889 019028-CA N08 Console Case Only - Front; No Model Compatibility List $49.43 / Each

7
P 703979 020048-00 P13 Screw;FH;M3X0.5PX10L;CT;PH;;;; No Model Compatibility List $2.00 / Each

2
N 704077 020192-A N18 Screw;Umbrella Cross Tapped;4X10L;Flat No Model Compatibility List $2.00 / Each

2
K 704087 020210-00 KIT Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
V 704240 021526-AX V13 Decal,Console-Instructions/Programs; No Model Compatibility List $1.90 / Each

7,3

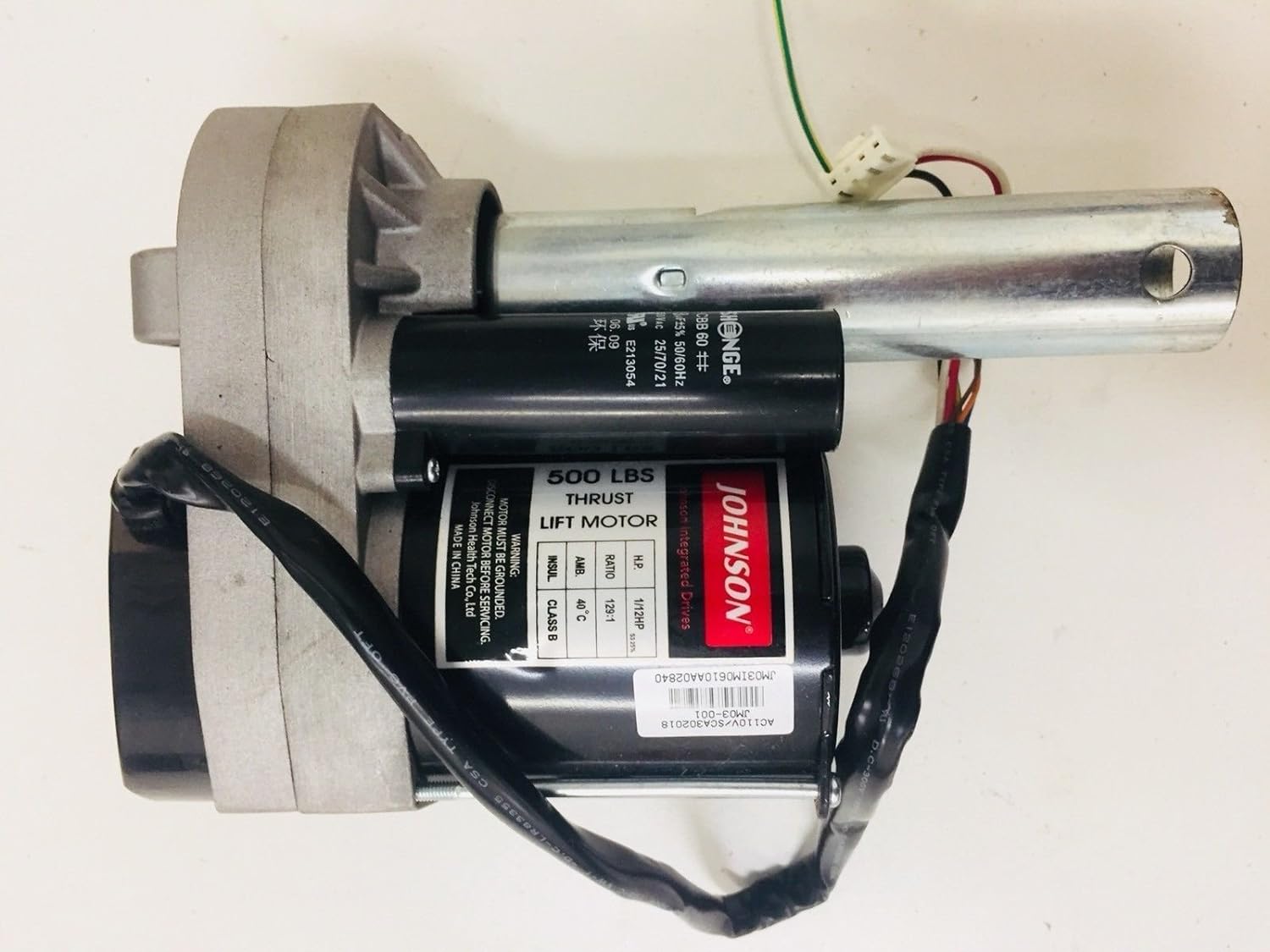

704336 023017-00 M02 Elevation Motor;110V/58mm Yes Model Compatibility List $249.13 / Each

10
705041 032671-HF M03 Motor Control Board;Digital Drive;1.75/2.0HP Yes Model Compatibility List $453.52 / Each

7,10
A 705566 051345-A AN3 Safety Key Set Yes Model Compatibility List $37.91 / Each

9
M 705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
K 706218 060295-CA KIT Digital Speed Sensor Yes Model Compatibility List $42.02 / Each

1
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

1
709034 1000108449 AR2 Roller Set;Rear;TM59 Yes Model Compatibility List $191.62 / Each

8
R 709101 1000109551 R03 Drive Belt;Poly-V;180-J8 Yes Model Compatibility List $60.22 / Each

15,10
709278 1000111822 M01 Motor set;Semi-Assy;;BLACK C;2.25HP/90V; Yes Model Compatibility List $648.70 / Each

4,5,6,10
Front Drive Roller - Used 1014565 016110-Z # 1 Front Drive Roller - Used Yes Model Compatibility List $115.70 / Each

8
Shock Cylinder (Used Only 1014561 009555-A B28 1 Shock Cylinder (Used Only Yes Model Compatibility List $37.70 / Each

3
Frame Plug Cap (Used) 1016694 000779-C # 2 Frame Plug Cap (Used) Yes Model Compatibility List $12.99 / Each

9
Upper Console Board With Display SUH-T081 (Used) 1017517 013633-ABX # 1 Upper Console Board With Display SUH-T081 (Used) Yes Model Compatibility List $232.70 / Each

7
Grip Pulse Wires-from Grip Pulse to HR Receiver (Used) 1017638 002342-B # 1 Grip Pulse Wires-from Grip Pulse to HR Receiver (Used) Yes Model Compatibility List $12.99 / Each

4
Magnetic Safety Key (Used) 1017639 013871-A # 1 Magnetic Safety Key (Used) Yes Model Compatibility List $38.99 / Each

1
Console Crossbar Frame (Used Only) 1017516 034571-AA AN2 1 Console Crossbar Frame (Used Only) Yes Model Compatibility List $76.70 / Each

3
R 004249-DB 004249-DB R02 1 Walking Running Belt OEM Yes Model Compatibility List $245.70 / Each

1
Cover Bottom Motor (Used) 1024720 000339-GB Q04 1 Cover Bottom Motor (Used) No Model Compatibility List $38.99 / Each

1
Magnetic Safety Key Lanyard (Used) 013699 013871-A 0 1 Magnetic Safety Key Lanyard (Used) No Model Compatibility List $35.09 / Each
Out Of Stock 		1
DC Drive Motor Johnson 1000111822 JM05-015 0 1 DC Drive Motor Johnson Yes Model Compatibility List $674.57 / Each

1
A 1000631 051345-A AN3 1 Safety Key Set Yes Model Compatibility List $34.99 / Each

1
Rear Idler Roller 1001049 1000108449 0 1 Rear Idler Roller No Model Compatibility List $144.99 / Each

1
P 1001381 003326-00 P03 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
R 1001622 004249-DB R02 1 Treadbelt Yes Model Compatibility List $189.00 / Each

15
P 1001764 002169-A P07 1 Power Cord Yes Model Compatibility List $39.99 / Each

6
P 1002002 002169-A P07 1 Cord Power Yes Model Compatibility List $34.99 / Each

6
R 1002356 1000109551 R03 1 Belt Drive Yes Model Compatibility List $31.99 / Each

23
P 1002861 002248-D P14 1 Sensor RPM Yes Model Compatibility List $25.99 / Each

47
R 1003170 004249-DB R02 1 Treadbelt Yes Model Compatibility List $209.00 / Each

15
M 1003509 032671-HF M03 1 Controller Yes Model Compatibility List $265.00 / Each

48
Motor Cover Only Order V02 separately (Used) 1028796 MB0236030CA Q01 Motor Cover Only Order V02 separately (Used) No Model Compatibility List $39.00 / Each

18
Crossbar (Used) 1028772 SP0003029A AC12 Crossbar (Used) No Model Compatibility List $39.00 / Each

1
P 1002658 003363-00 P11 Power Entry Module Yes Model Compatibility List $19.99 / Each

6
R 1020604 004483-00 R08 Front Roller Screw M8-1.25"x25mm (New) No Model Compatibility List $11.99 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
