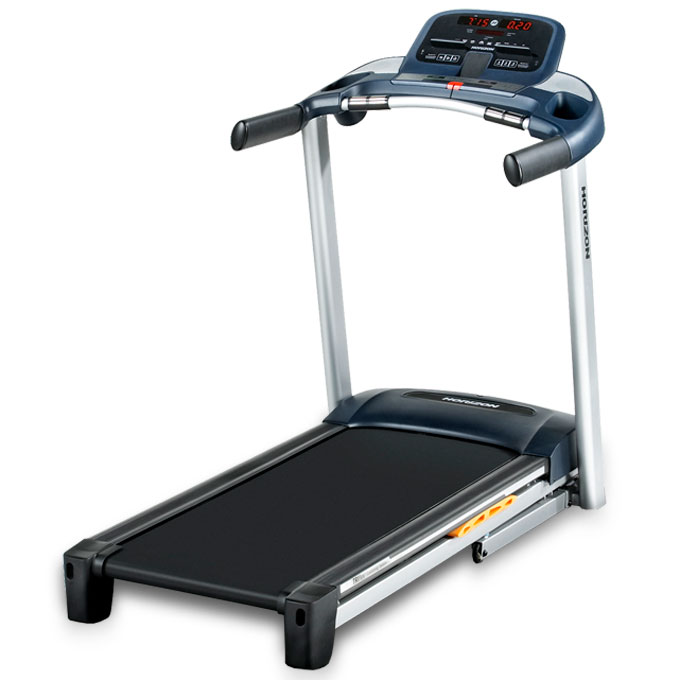

Horizon Fitness - T701 - 2009

Repair Parts for Horizon Fitness T701 TM616

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: T701

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Roller
  • Motor
  • Fasteners and Brackets
  • Sensors
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700245 000767-D B46 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

1
B 700246 000768-D B47 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

1
B 700269 000825-AA B40 Deck Extension No Model Compatibility List $1.90 / Each

3
H 700327 000977-00 H14 Sleeve;Outer No Model Compatibility List $3.82 / Each

3
B 700402 001251-F B35 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

2,9
700570 001679-00 P25 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
P 700746 002124-B P09 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

4,5,6
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

4,5,6
N 700893 002671-A N73 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

7,4,5,6,12,13,14
701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

4,5,6
P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

2
B 701375 004425-B B31 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

2
M 701434 004481-Z M11 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
M 701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

2
R 701476 004523-00 R05 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

2
B 701544 004571-00 B28 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

2
M 701562 004595-00 M14 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
N 701579 004613-00 N36 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

2
N 701588 004618-00 N37 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
N 701591 004620-00 N34 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
B 701600 004624-00 B38 Screw;Umbrella Cross Tapped;4x20L;Gap; No Model Compatibility List $2.00 / Each

2
Q 701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

2
Z 701683 004714-AD Z13 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $2.00 / Each

2
Z 701742 004764-00 Z07 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere No Model Compatibility List $2.00 / Each

2
Z 701841 004859-00 Z04 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Q 701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $2.00 / Each

2
Q 701849 004867-A Q33 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
Z 701851 004870-00 Z10 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
R 701897 004926-00 R06 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
M 701908 004934-00 M17 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
K 701912 004941-00 K12 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
K 701934 004972-00 K08 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
B 701939 004975-00 B39 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Z 701964 005005-00 Z06 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
M 702030 005062-00 M33 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
M 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

2
Z 702087 005119-00 Z08 Washer;Flat;8.2x16.0x1.5T No Model Compatibility List $2.00 / Each

2
M 702118 005145-A M38 Washer;Flat;8.2x19.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
M 702136 005165-00 M16 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

2
H 702160 005196-00 H07 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
Z 702257 005393-00 Z01 Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

2
Z 702262 005408-A Z03 Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

2,10
Z 702266 005421-00 Z02 Wrench;L-Type;5mm No Model Compatibility List $9.28 / Each

2
P 702806 010866-00 P26 Bushing;Strain Relief;Nylon66;SR-7R3;BL; Yes Model Compatibility List $4.37 / Each

8
B 703881 018951-A B48 Elastomer;Front/Rear;Black Yes Model Compatibility List $13.91 / Each

4,5,6
N 704087 020210-00 N16 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
Z 704175 020425-00 Z05 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $2.00 / Each

2
705041 032671-HF M03 Motor Control Board;Digital Drive;1.75/2.0HP Yes Model Compatibility List $453.52 / Each

7,10
N 705176 039032-A N79 Ground Wire;Heart Rate Board;200 No Model Compatibility List $1.90 / Each

4,5,6,12,13,14
M 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $331.29 / Each

10,12,13,14
K 705259 039400-BA K10 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

8
P 705308 040695-A P02 Power Switch Yes Model Compatibility List $28.73 / Each

4,5,6
N 705313 040816-A N33 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

2
N 705329 048036-A N35 Screw;Phillip;BH;Tapped;4x12L;Color Zin No Model Compatibility List $2.00 / Each

2
K 705382 049024-BA K09 Flat;;;50C;TM196-K12B Yes Model Compatibility List $6.42 / Each

1
M 705469 049262-00 M15 Screw;Hex;3/8-16UNCX55L-14L;;HE;;;;P-T No Model Compatibility List $4.00 / Each

2
Q 705470 049263-A Q31 Screw;Phillip;BH;Tapped;4x20L; No Model Compatibility List $2.00 / Each

2
H 705480 049279-C H06 Screw;Special;M8X1.25PX9L-D10X9.5L;;HE;45#;BOX; No Model Compatibility List $4.00 / Each

2
H 705488 049292-A H17 Washer;Flat;Teflon;8.1x20x1.0t; No Model Compatibility List $2.00 / Each

2

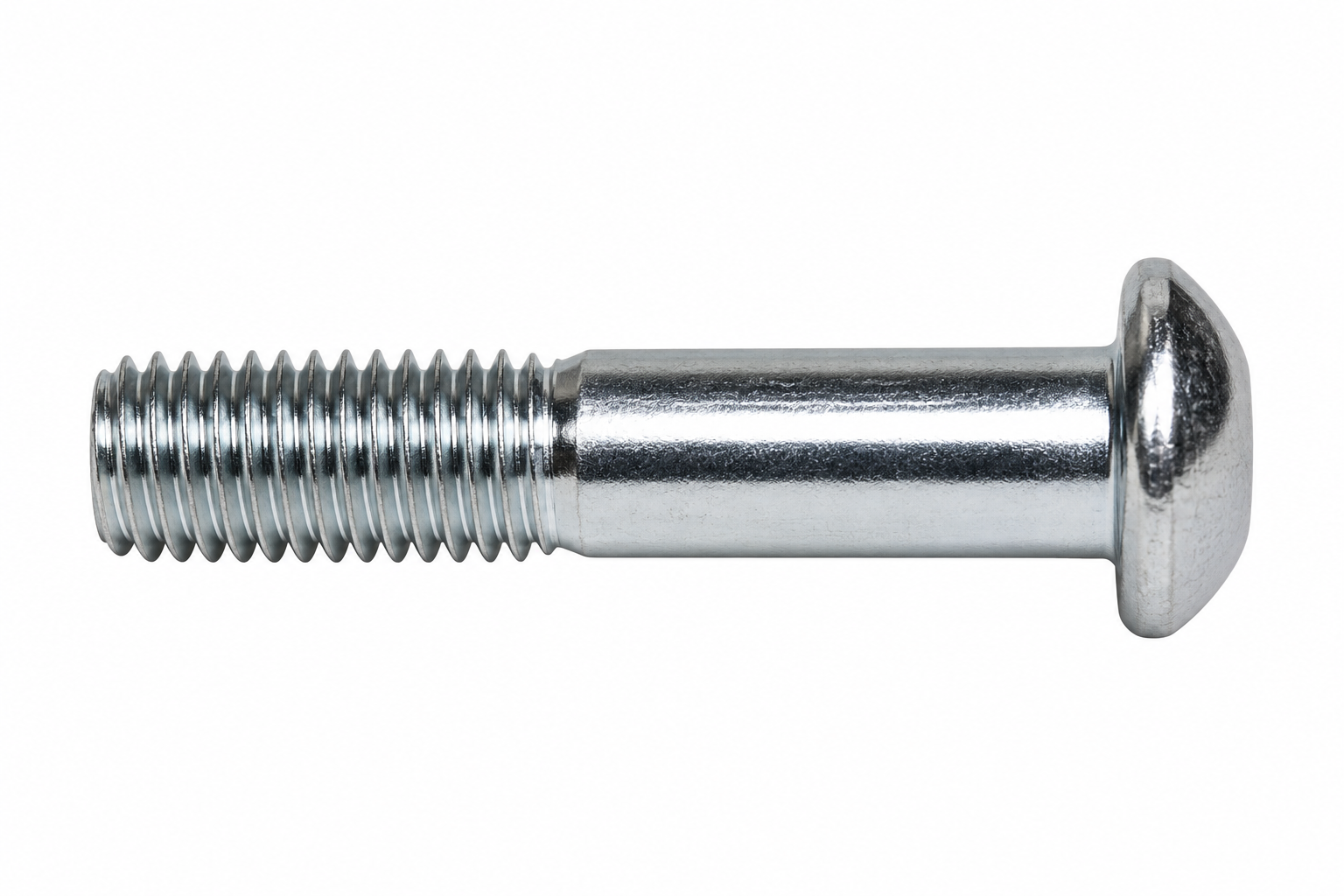

K 705698 055202-A K11 Screw;Umbrella Hex Socket;M10x1.5Px40L-20L No Model Compatibility List $4.00 / Each

2
B 705700 055204-A B32 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
M 705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
M 706218 060295-CA M47 Digital Speed Sensor Yes Model Compatibility List $42.02 / Each

1
M 706492 062769-00 M12 Screw;Hex Socket;Round;M8x1.25Px15L;BED; No Model Compatibility List $1.79 / Each

2
K 707367 1000092332 K13 End Cap;Elevation Frame No Model Compatibility List $3.82 / Each

9,3,10
N 707370 1000092335 N03 Console back-lay;ABS;TM616 No Model Compatibility List $26.57 / Each

7,4,5,6
N 707371 1000092336 N04 Handlebar cover;;ABS left;TM616 No Model Compatibility List $3.82 / Each

9,11
N 707372 1000092337 N05 Handlebar cover;;ABS right;TM616 No Model Compatibility List $3.82 / Each

9,11
N 707373 1000092338 N06 Cap;PVC;handlebar;TM616 No Model Compatibility List $3.82 / Each

9,11
N 707377 1000092355 N60 UCB;T701; H101S201 No Model Compatibility List $548.96 / Each

1
Q 707441 1000092675 Q01 Motor Cover;Upper No Model Compatibility List $82.11 / Each

9,10
Q 707442 1000092676 Q02 Motor Cover;Down No Model Compatibility List $64.17 / Each

9,10
Q 707443 1000092678 Q04 Rear Roller Cover;Left;ABS;TM616 Yes Model Compatibility List $18.41 / Each

8,9
Q 707444 1000092679 Q05 Rear Roller Cover;Right;ABS;TM616 Yes Model Compatibility List $18.41 / Each

8,9
A 707490 1000092968 AC1 Console Mast Set;Left;Semi-Assy;TM616-1U No Model Compatibility List $267.57 / Each

7
A 707491 1000092973 AC2 Console Mast Set;Right;Semi-Assy;TM616-1 No Model Compatibility List $267.57 / Each

7
A 707492 1000092985 AH2 Elevation Staff Set;zincification;TM616 No Model Compatibility List $19.89 / Each

10
V 707493 1000093012 V07 Sticker;Console;Right;TM616-1US No Model Compatibility List $1.77 / Each

7
V 707494 1000093017 V01 Sticker;Motor Up Cover;TM616 No Model Compatibility List $8.87 / Each

9,10
A 707495 1000093022 AR1 Roller Set;Front Yes Model Compatibility List $191.62 / Each

8
V 707496 1000093027 V33 Manual;Manipulate;TM616 No Model Compatibility List $9.05 / Each

1
A 707497 1000093036 AZ1 Hardware Kit Set;Semi-Assy;TM616-1US No Model Compatibility List $46.38 / Each

1
N 707634 1000093796 N61 Keypad No Model Compatibility List $38.32 / Each

9,12,13,14
N 707635 1000093797 N63 Keypad No Model Compatibility List $19.14 / Each

9,12,13,14
N 707636 1000093798 N62 Overlay with cutout No Model Compatibility List $51.06 / Each

1
R 707638 1000093924 R02 Running Belt;Black;508x2910x1.4t;TM616 No Model Compatibility List $271.70 / Each

4,5,6,15
B 707666 1000094117 B41 Air Shock;50KG(680L)Damping ;TM616 Yes Model Compatibility List $55.41 / Each

4,5,6,12,13,14
N 707667 1000094153 N09 books and newspapers rack;ABS;TM616 No Model Compatibility List $1.77 / Each

4,5,6
P 707737 1000094740 P01 Console Cable;Upper;600L(XHS2.5-12P+HX3002-12P) Yes Model Compatibility List $32.63 / Each

4,5,6
P 707738 1000094741 P30 Console Cable;Lower;1700L;HX3002+2.5-12P;TM616 Yes Model Compatibility List $57.49 / Each

7,4,5,6
B 707754 1000094857 B27 Running Deck;675x1220x18t;TM616 No Model Compatibility List $249.13 / Each

3
B 707755 1000094860 B21 Elastomer;Decorative;PVC;TM616 No Model Compatibility List $15.31 / Each

1
B 707756 1000094861 B25 Rear Leveler;Foot Frame Yes Model Compatibility List $1.90 / Each

9,3
H 707758 1000094874 H19 Connecting Axle;Elevation Shock No Model Compatibility List $3.82 / Each

8,10
H 707759 1000094875 H20 Spring No Model Compatibility List $4.00 / Each

2
K 707760 1000094876 K50 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $6.42 / Each

3,4,5,6,9
N 707761 1000094877 N45 SAFETY KEY SET;TM616 No Model Compatibility List $40.14 / Each

9
P 707762 1000094883 P11 Power Cord;16AWG;2M;TM616-P05A Yes Model Compatibility List $57.49 / Each

4,5,6
A 707768 1000094931 AH4 Lock Latch Set;Galvanization;TM616 No Model Compatibility List $10.01 / Each

1
H 707769 1000094932 H21 C Clip;Combined With 6mm Axle No Model Compatibility List $1.90 / Each

2,8
N 707770 1000094933 N07 Speaker;Cover;L;Painting sliver;TM616 No Model Compatibility List $3.54 / Each

9
N 707771 1000094934 N08 Speaker;Cover;R;Painting sliver;TM616 No Model Compatibility List $3.54 / Each

9
V 707813 1000095774 V08 Poly Decal;TM616 No Model Compatibility List $3.54 / Each

7,3
R 707840 1000096199 R04 Screw;Hex Socket;Round;M8x1.25Px75L(All) No Model Compatibility List $2.00 / Each

2
Q 707857 1000096499 Q03 Siderail;Left;TM616;Silk Printing No Model Compatibility List $36.95 / Each

9
Q 707858 1000096500 Q06 Siderail;Right;TM616;Silk Printing No Model Compatibility List $36.95 / Each

9
A 707951 1000097228 AN1 Console Base Set No Model Compatibility List $226.04 / Each

7,3
M 707952 1000097231 M05 Motor Fixing Set;Painting;LM445;TM616 No Model Compatibility List $51.40 / Each

10
707953 1000097232 AH1 Elevation Rack Set;Elevation;Painting;TM No Model Compatibility List $276.54 / Each

4,5,6,10
A 707954 1000097233 AH3 Sleeve Set;Painting;LM445;TM616 No Model Compatibility List $72.31 / Each

3
A 708001 1000097501 AC3 Crossbar No Model Compatibility List $120.85 / Each

1
N 708615 1000104173 Not Shown Running Deck;675x1220x18T Yes Model Compatibility List $260.99 / Each

3
R 709101 1000109551 R03 Drive Belt;Poly-V;180-J8 Yes Model Compatibility List $60.22 / Each

15,10
709278 1000111822 M01 Motor set;Semi-Assy;;BLACK C;2.25HP/90V; Yes Model Compatibility List $648.70 / Each

4,5,6,10
Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L 726042 079425 D45 Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L Yes Model Compatibility List $2.00 / Each

2

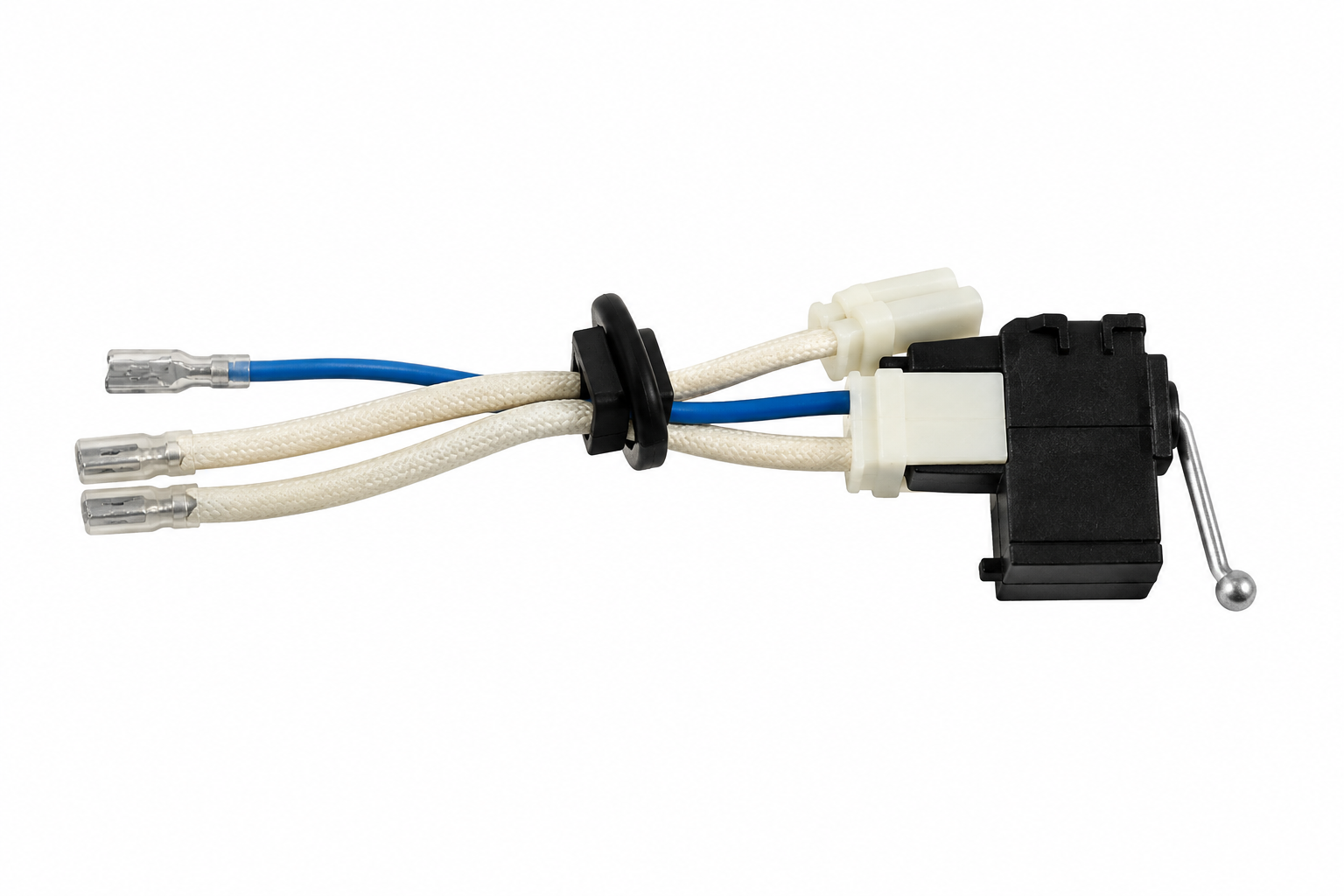

Wire;Safety Switch;9216+2.5-2P;400L 727123 087242 N66 Wire;Safety Switch;9216+2.5-2P;400L Yes Model Compatibility List $14.99 / Each

9,4,5,6
Cap;Support Base;Rear;TM367 728326 094040 H13 Cap;Support Base;Rear;TM367 No Model Compatibility List $2.47 / Each

9,3
Amp Control Board;VFD 3W H101 728753 096744 N67 Amp Control Board;VFD 3W H101 Yes Model Compatibility List $55.20 / Each

4,5,6,7
Speaker;3W;XHS-2Y;400mm 728757 096831 N73 Speaker;3W;XHS-2Y;400mm No Model Compatibility List $11.08 / Each

1
Pulse Sensor Set;800mm;31.8+2.5-2P JIND 728889 098282 N39 Pulse Sensor Set;800mm;31.8+2.5-2P JIND Yes Model Compatibility List $31.33 / Each

12,13,14
Wire;Headphone Jack;500mm 728898 098561 N69 Wire;Headphone Jack;500mm No Model Compatibility List $3.82 / Each

4,5,6
Connected Wire; Earphone; PCB 728899 098562 N70 Connected Wire; Earphone; PCB Yes Model Compatibility List $6.42 / Each

4,5,6
Audio In Set 728946 099121 N67 Audio In Set Yes Model Compatibility List $6.42 / Each

1
Audio Out Set 728947 099122 N68 Audio Out Set No Model Compatibility List $3.82 / Each

1
Roller Set;Rear;TM603-1US 728961 099695 AR2 Roller Set;Rear;TM603-1US Yes Model Compatibility List $191.62 / Each

8
728983 old console shell not available-see note at top of list N01 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
N 729480 ZMS4000295 N02 Faceplate-T701 No Model Compatibility List $37.70 / Each

3,4,5,6
K 000089 1000094876 K50 1 Leveling Foot Leveler Yes Model Compatibility List $19.99 / Each

1
M 039043-00 039043-00 M02 1 Incline Elevation Motor Yes Model Compatibility List $336.70 / Each

1
P 040695-A 040695-A P02 1 Power Switch on Off Yes Model Compatibility List $41.59 / Each

1
DC Drive Motor Johnson 1000111822 JM05-015 0 1 DC Drive Motor Johnson Yes Model Compatibility List $674.57 / Each

1
B 1026014 018951-A B48 1 Spring Deck (Used) Yes Model Compatibility List $7.40 / Each

2,41
P 1000730 040695-A P02 1 Power Switch Yes Model Compatibility List $31.99 / Each

1
Screw 3/8-16-1.65 (Used) 1026732 004595-B 0 1 Screw 3/8-16-1.65 (Used) No Model Compatibility List $5.99 / Each

1
sCREW 3/8-16-1.60 1026937 ME0106026B 0 1 sCREW 3/8-16-1.60" (Used) No Model Compatibility List $3.99 / Each

1
R 1002356 1000109551 R03 1 Belt Drive Yes Model Compatibility List $31.99 / Each

23
Roller Rear 1002632 099695 0 1 Roller Rear Yes Model Compatibility List $167.99 / Each

26
P 1002861 002248-D P14 1 Sensor RPM Yes Model Compatibility List $25.99 / Each

47
M 1002968 039043-00 M02 1 Motor Incline Yes Model Compatibility List $189.99 / Each

28
M 1003509 032671-HF M03 1 Controller Yes Model Compatibility List $265.00 / Each

48
P 1006085 1000094883 P11 1 Power Supply Cord Yes Model Compatibility List $47.99 / Each

6
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
