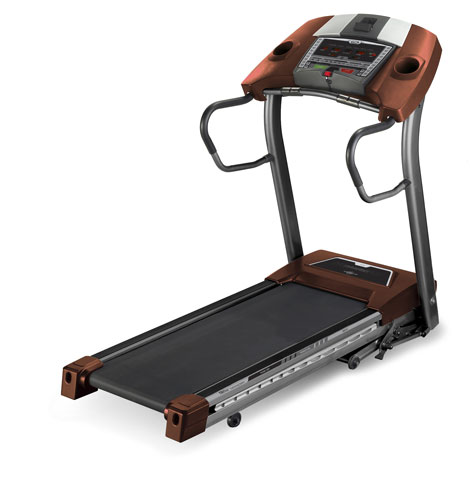

Horizon Fitness - T800 - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000037-CC 700022 000037-CC L06 Wheel;Nylon No Model Compatibility List $2.94 / Each

8
000357-CA 700097 000357-CA Q02 Motor Cover;Bottom No Model Compatibility List $38.74 / Each

9,10
000767-D 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $14.78 / Each

1
000768-D 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $14.34 / Each

1
000955-BC 700321 000955-BC Q09 End Cap;Base Frame;Front No Model Compatibility List $2.94 / Each

9,3
001251-F 700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $6.08 / Each

2,9
001299-B 700418 001299-B H05 Cover;Elevation Frame;PVC No Model Compatibility List $7.36 / Each

9,3,10
001552-AC 700533 001552-AC G03 Cover;Handlebar No Model Compatibility List $1.46 / Each

9,11
001952-00 700700 001952-00 N74 Fixing Plate;Reed Switch No Model Compatibility List $1.46 / Each

3,4,5,6
002108-C 700741 002108-C P30 Console Cable;Mast;1500L(5557 SERIES+2.5-12P) No Model Compatibility List $31.48 / Each

4,5,6,7
002124-B 700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $2.94 / Each

4,5,6
002169-A 700755 002169-A P07 Power Cord;16AWG Yes Model Compatibility List $46.32 / Each

4,5,6
002248-D 700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $13.96 / Each

4,5,6
002671-A 700893 002671-A N72 Audio Wire;Three-D Earphone Yes Model Compatibility List $7.36 / Each

7,4,5,6,12,13,14
003326-00 701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $25.16 / Each

4,5,6
003346-00 701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $23.16 / Each

4,5,6
003363-00 701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG No Model Compatibility List $7.36 / Each

9,4,5,6
003378-00 701031 003378-00 M17 Ferrite Core No Model Compatibility List $10.08 / Each

1
004072-A2 701154 004072-A2 R32 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $8.92 / Each

8
004081-A2 701165 004081-A2 R11 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $12.22 / Each

8
004158-00 701203 004158-00 R03 Drive Belt;Poly-V;200-J8 Yes Model Compatibility List $44.22 / Each

15,10
004189-A 701221 004189-A R12 Drive Belt;Poly-V;410-J8 Yes Model Compatibility List $44.22 / Each

15,10
004359-00 701294 004359-00 Z11 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.38 / Each

2
004378-00 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $1.54 / Each

2
004415-Z 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.38 / Each

2,4,5,6
004425-B 701375 004425-B L11 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $1.54 / Each

2
004454-00 701401 004454-00 R08 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.38 / Each

2
004462-00 701408 004462-00 B62 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004480-Z 701432 004480-Z M46 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $5.54 / Each

2
004486-00 701444 004486-00 R04 Screw;Round;Hex Socket;M8X1.25PX85L Yes Model Compatibility List $7.54 / Each

2
004502-00 701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $1.54 / Each

2
004523-00 701476 004523-00 M45 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $1.54 / Each

2
004525-00 701478 004525-00 R09 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $5.54 / Each

2
004562-00 701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $4.50 / Each

2
004565-00 701534 004565-00 H50 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $1.54 / Each

2
004590-Z 701559 004590-Z M14 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.38 / Each

2,10
004595-00 701562 004595-00 M10 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $1.54 / Each

2
004612-00 701577 004612-00 N59 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $1.54 / Each

2
004617-00 701586 004617-00 Q34 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $1.54 / Each

7,2,12,13,14
004620-00 701591 004620-00 N19 Screw;Self Tapping;4x12L No Model Compatibility List $1.54 / Each

2,12,13,14
004631-00 701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $1.54 / Each

2
004714-AD 701683 004714-AD Z14 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $1.54 / Each

2
004724-00 701699 004724-00 H25 Bolt;M8x1.25Px15L Yes Model Compatibility List $1.54 / Each

2
004725-AB 701703 004725-AB B20 Screw;Hex Socket;M8x1.25x45L No Model Compatibility List $1.54 / Each

2
004859-00 701841 004859-00 Z09 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $1.54 / Each

2
004864-00 701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $1.54 / Each

2
004867-A 701849 004867-A Q31 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $1.54 / Each

2
004880-00 701858 004880-00 P16 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $1.54 / Each

2,4,5,6
004889-00 701866 004889-00 Q33 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
004903-Z 701876 004903-Z R10 Nut;Hex;M5x0.8Px4H No Model Compatibility List $1.54 / Each

2
004926-00 701897 004926-00 M08 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004934-00 701908 004934-00 M12 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.22 / Each

2
004941-00 701912 004941-00 L08 Nut;Nylon;M10x1.5P No Model Compatibility List $1.54 / Each

2
004964-00 701927 004964-00 R15 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
004975-00 701939 004975-00 B59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005005-00 701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.22 / Each

2
005013-00 701975 005013-00 B63 Washer;Spring;6.0x10.0x1.5t No Model Compatibility List $1.54 / Each

2
005044-00 702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005047-00 702011 005047-00 Z07 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005051-00 702016 005051-00 M30 Washer;Flat;8x16x1.4T No Model Compatibility List $1.54 / Each

2
005062-00 702030 005062-00 L07 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.22 / Each

7,2,12,13,14
005104-00 702073 005104-00 M09 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $1.54 / Each

2
005117-00 702084 005117-00 M38 Washer;Flat;8.2x16.0x2.0T No Model Compatibility List $1.54 / Each

2
005146-A 702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005157-00 702130 005157-00 H22 WASHER;FLT;Diam.8.2XDiam.20.0X1.4T;;BAN; No Model Compatibility List $1.42 / Each

2
005163-00 702135 005163-00 Z12 Washer;Arc;8.4x17x1.0T No Model Compatibility List $1.98 / Each

2
005196-00 702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.22 / Each

2
005198-00 702161 005198-00 H29 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $1.54 / Each

2
005212-A 702171 005212-A Z06 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $1.54 / Each

2
005229-00 702186 005229-00 Z20 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $1.54 / Each

2,4,5,6
005239-00 702193 005239-00 R17 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $1.54 / Each

2
005330-00 702217 005330-00 Q17 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005361-00 702236 005361-00 R33 C-Clip;External;S-15 No Model Compatibility List $1.54 / Each

2
005365-00 702240 005365-00 R19 C-Clip;External;S-20 No Model Compatibility List $1.38 / Each

2
005386-00 702254 005386-00 Z06 Wrench;Open;17mm No Model Compatibility List $3.08 / Each

2
005393-00 702257 005393-00 Z02 Wrench;T-Type;6mm No Model Compatibility List $7.88 / Each

2
005408-A 702262 005408-A Z05 Screwdriver;Phillips;5x75 No Model Compatibility List $7.36 / Each

2,10
005411-Z 702263 005411-Z Z01 Wrench;L-Type;4mm No Model Compatibility List $3.08 / Each

2
007490-C 702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.46 / Each

3
008625-C 702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $1.54 / Each

2,3,10
008628-B 702558 008628-B H14 Bolt;Special;Support Tube Base;M8x1.25Px54L No Model Compatibility List $3.08 / Each

2,3
009561-AX 702761 009561-AX B56 Air Shock;100KG(125L) Yes Model Compatibility List $27.68 / Each

1
010680-00 702798 010680-00 Z08 Washer;Spring;Support Tube;M8X1.25PX16L No Model Compatibility List $1.54 / Each

2,3
013036-Z 702874 013036-Z R31 Roller Wheel Set No Model Compatibility List $44.22 / Each

8
014669-B 703438 014669-B AR1 Front Roller Set Yes Model Compatibility List $147.40 / Each

8
014683-B 703442 014683-B AR2 Rear Roller Set Yes Model Compatibility List $147.40 / Each

8
019304-A 703915 019304-A N67 Amp Control Board No Model Compatibility List $42.72 / Each

7,4,5,6
019316-A 703916 019316-A N64 Safety Key Reed Switch Yes Model Compatibility List $7.36 / Each

4,5,6
020162-A 704064 020162-A H10 Screw;Hex Head;M10X1.5PX40L-15L No Model Compatibility List $3.08 / Each

2
020179-00 704068 020179-00 M60 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.22 / Each

2,9
020210-00 704087 020210-00 N58 Screw;Phillip;Round;3x20L No Model Compatibility List $1.54 / Each

2
020456-00 704188 020456-00 R28 Washer;Flat;13.2x26x1.0T No Model Compatibility List $1.42 / Each

2
020487-ZA 704215 020487-ZA H21 Washer;Flat;10.5x18x2.5T No Model Compatibility List $1.54 / Each

2
020668-00 704229 020668-00 Z04 Wrench;Hex;L-Type;#10mmx170L; No Model Compatibility List $3.08 / Each

2
032669-IF 705040 032669-IF M03 Motor Control Board;Digital;2.25/2.5HP Yes Model Compatibility List $308.86 / Each

7,10
039042-A 705181 039042-A N65 Pulse Sensor Set Yes Model Compatibility List $14.06 / Each

12,13,14
039043-00 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $254.84 / Each

10,12,13,14
039180-AA 705229 039180-AA G02 Foam Grip;Handlebar;31.8x3tx560L(BLACK) No Model Compatibility List $7.36 / Each

4,5,6,11
040613-B 705285 040613-B N66 Ground Wire;250 No Model Compatibility List $1.46 / Each

4,5,6
055269-AX 705707 055269-AX V03 Decal;Faceplate No Model Compatibility List $2.94 / Each

7,3,4,5,6
056374-AA 705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $7.36 / Each

10,12,13,14
060295-DA 706219 060295-DA KIT Digital Speed Sensor No Model Compatibility List $27.32 / Each

1
061300-A 706349 061300-A P06 Console Cable;Upper;550L Yes Model Compatibility List $24.10 / Each

4,5,6,7
706631 063958-AX V04 Sticker ;Warning :**DISCON. NOT STOCKIN No Model Compatibility List $0.40 / Each

1
066044-A 706838 066044-A Z21 Washer;Flat;20.2x27.0x2.5T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
1000110344 709140 1000110344 M01 Drive Motor Set;Digital Yes Model Compatibility List $442.24 / Each

10
069977 725328 069977 N78 Audio Input or Output Board Yes Model Compatibility List $23.76 / Each

7
070422 725355 070422 F05 End Cap, Support Tube No Model Compatibility List $2.94 / Each

9,3
070669 725366 070669 P15 Wire,Speaker Board to Power Switch & MCB No Model Compatibility List $11.50 / Each

4,5,6
070670 725367 070670 P11 Speaker Board; Adaptor;AC100-240V;12V/1. Yes Model Compatibility List $49.26 / Each

4,5,6
070674 725370 070674 N71 Wire; Ground; 300mm; IPOD Control board to Audio IN board No Model Compatibility List $6.82 / Each

7,4,5,6
070675 725371 070675 N71 Cable, IPOD No Model Compatibility List $7.28 / Each

4,5,6
071757 725471 071757 B30 Fix Axle; Console Mast No Model Compatibility List $14.86 / Each

7,8
071830 725481 071830 H18 Swivel Axle No Model Compatibility List $12.12 / Each

8
071888 725492 071888 R02 Running Belt; 505x2850x1.6t; Horizon Logo No Model Compatibility List $221.12 / Each

15
072019 725500 072019 H30 Spring; Foot Lock Latch No Model Compatibility List $3.08 / Each

2,9,3
074260 725623 074260 N06 Cover; IPOD No Model Compatibility List $2.72 / Each

9
075201 725730 075201 N05 Speaker Cover; Right Yes Model Compatibility List $12.90 / Each

9
075250 725734 075250 P10 Connect Wire;Speaker;;;1600L;HX4500+3.96 No Model Compatibility List $15.72 / Each

4,5,6
075737 725749 075737 AZ1 Hardware Pack No Model Compatibility List $24.56 / Each

4,5,6
077114 725856 077114 V04 Sticker;Audio In No Model Compatibility List $1.36 / Each

1
077115 725857 077115 V05 Sticker;Audio Out No Model Compatibility List $1.46 / Each

1
077678 725882 077678 KIT Owners Manual No Model Compatibility List $6.82 / Each

1
078534 725949 078534 B27 Running Deck;682x1220x18t;Silicon No Model Compatibility List $191.64 / Each

3
078561 725961 078561 Q22 Tape;Foam;One Sided;8x16x50;Black No Model Compatibility List $2.72 / Each

4,5,6
079382 726029 079382 M05 Motor Bracket No Model Compatibility List $17.04 / Each

2,3,4,5,6,10
080143 726123 080143 AC3 Crossbar-T800 No Model Compatibility List $29.64 / Each

1
726124 080147 AH1 Elevation Frame-T800 No Model Compatibility List $83.46 / Each

3,10
080149 726125 080149 H31 Hook;Painting;;T800;DM507 No Model Compatibility List $14.00 / Each

1
080150 726126 080150 AH3 Connecting Tube,Left-T800 No Model Compatibility List $22.20 / Each

3
080151 726127 080151 AH4 Link Arm; Right No Model Compatibility List $22.20 / Each

3
080158 726128 080158 N02 Faceplate No Model Compatibility List $31.92 / Each

3,4,5,6
080167 726129 080167 Q01 Motor Cover-T800 No Model Compatibility List $78.86 / Each

9,10
080169 726131 080169 Q03 Gel Cell-T800 No Model Compatibility List $59.14 / Each

1
080171 726133 080171 Q06 End Cap,Left-T800 No Model Compatibility List $15.72 / Each

9
080172 726134 080172 Q07 End Cap,Right-T800 No Model Compatibility List $15.72 / Each

9
080175 726136 080175 V22 Decal,FORM Instruction-T800 No Model Compatibility List $2.72 / Each

7,3
080176 726137 080176 V23 Decal.Overlay Instruction-T800 No Model Compatibility List $2.72 / Each

7,3
080179 726139 080179 V06 Decal,Motor Cover-T800 No Model Compatibility List $7.94 / Each

7,9,3,10
080186 726143 080186 Z10 Screw;M8x120L;;Adhere;; No Model Compatibility List $3.08 / Each

2
080796 726225 080796 N61 Overlay-T800 - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $147.40 / Each

1
726496 082355 AG1 Handlebar Set-T800 No Model Compatibility List $99.76 / Each

11
082397 726500 082397 AN3 Safety Key Set Yes Model Compatibility List $32.88 / Each

9
083068 726580 083068 V34 Side Rail Set-T800 No Model Compatibility List $65.12 / Each

9
083374 726604 083374 AH2 TSupt Plate;Folding;Painting;;T800;DM507 No Model Compatibility List $102.54 / Each

3
085785 726886 085785 N50 Board;Audio Input/Output No Model Compatibility List $9.56 / Each

1
727567 089960 AN2 Console Frame Set-T800 No Model Compatibility List $289.28 / Each

7,3
090453 727692 090453 N03 Cover,IPOD Base-T800 No Model Compatibility List $6.82 / Each

9,3
090460 727693 090460 Q07 End Cap,Right-T800 No Model Compatibility List $12.54 / Each

9
090472 727695 090472 N03 Cover,IPOD Base-T800 No Model Compatibility List $6.82 / Each

9,3
090479 727696 090479 Q07 End Cap,Right-T800 No Model Compatibility List $12.54 / Each

9
090485 727697 090485 N01 Console Shell only-T800 No Model Compatibility List $185.42 / Each

7
090492 727699 090492 Q06 End Cap,Left-T800 No Model Compatibility List $12.54 / Each

9
090494 727700 090494 Q07 End Cap,Right-T800 No Model Compatibility List $12.54 / Each

9
090502 727704 090502 N03 Cover,IPOD Base-T800 No Model Compatibility List $6.82 / Each

9,3
090505 727705 090505 Q01 Motor Cover-T800 No Model Compatibility List $66.66 / Each

9,10
090509 727706 090509 Q07 End Cap,Right-T800 No Model Compatibility List $12.54 / Each

9
728756 096830 N62 Speaker;3W;XHS-2Y;680mm Yes Model Compatibility List $11.62 / Each

1
098561 728898 098561 N69 Wire;Headphone Jack;500mm No Model Compatibility List $2.94 / Each

4,5,6
075200 1013550 075200 N04 1 Left Speaker Cover(Used) Yes Model Compatibility List $12.99 / Each

9
View Drawing
