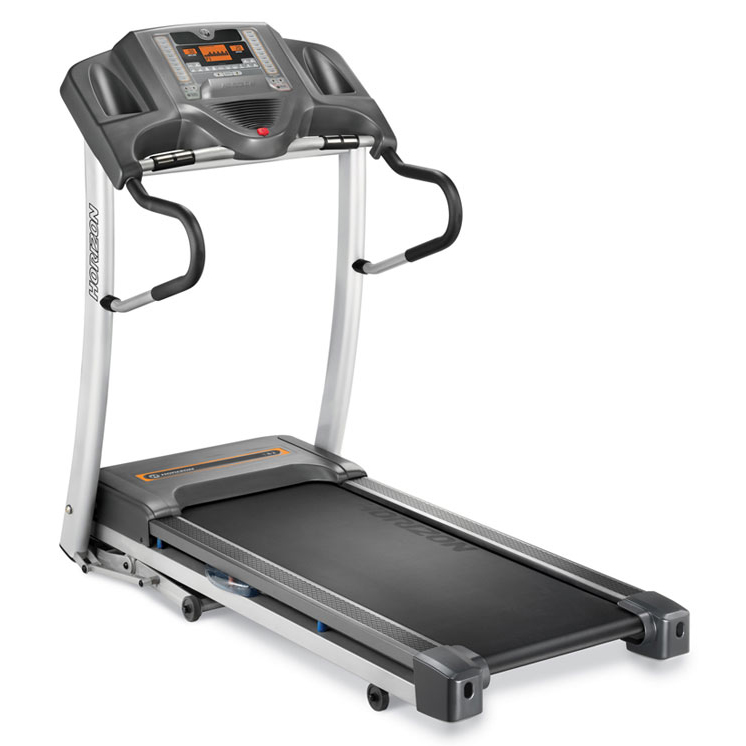

Horizon Fitness - T82 - 2008

Repair Parts for Horizon Fitness T82 TM300

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: T82

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Switch
  • Roller
  • Motor
  • Sensors
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700022 000037-CC L06 Wheel;Nylon No Model Compatibility List $3.82 / Each

8
B 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

1
B 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

1
G 700304 000920-00 G36 End Cap;Handlebar Yes Model Compatibility List $4.50 / Each

9,11
Q 700321 000955-BC Q09 End Cap;Base Frame;Front Yes Model Compatibility List $3.82 / Each

9,3
L 700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

2,9
H 700418 001299-B H05 Cover;Elevation Frame;PVC No Model Compatibility List $9.57 / Each

9,3,10
G 700533 001552-AC G03 Cover;Handlebar No Model Compatibility List $1.90 / Each

9,11
K 700700 001952-00 KIT Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
P 700741 002108-C P30 Console Cable;Mast;1500L(5557 SERIES+2.5-12P) Yes Model Compatibility List $40.92 / Each

4,5,6,7
P 700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

4,5,6
700755 002169-A P07 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

4,5,6
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

4,5,6
N 700893 002671-A N72 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

7,4,5,6,12,13,14
N 701011 003322-B N67 Speaker,Left-T82 No Model Compatibility List $8.87 / Each

1
N 701012 003323-A N68 Speaker,Right-T82 No Model Compatibility List $8.87 / Each

1
701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

4,5,6
701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M28 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
R 701044 003415-00 R05 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
R 701203 004158-00 R03 Drive Belt;Poly-V;200-J8 Yes Model Compatibility List $57.49 / Each

15,10
P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

2
P 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
L 701375 004425-B L11 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

2
R 701401 004454-00 R08 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

2
M 701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

2
N 701476 004523-00 N25 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

2
R 701478 004525-00 R09 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $7.20 / Each

2
H 701534 004565-00 H50 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
B 701544 004571-00 B36 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

2
M 701559 004590-Z M20 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
M 701562 004595-00 M16 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
N 701581 004614-AB N59 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
Q 701586 004617-00 Q31 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
N 701589 004619-00 N73 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

2
N 701591 004620-00 N19 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
B 701613 004632-00 B15 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
Q 701621 004640-A Q32 Screw;Umbrella Cross Tapped;4X35L No Model Compatibility List $2.00 / Each

2
Z 701683 004714-AD Z14 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $2.00 / Each

2
701699 004724-00 H25 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
Z 701827 004847-AB Z05 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
Z 701841 004859-00 Z09 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Q 701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $2.00 / Each

2
N 701851 004870-00 N16 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
P 701858 004880-00 P16 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
P 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
R 701876 004903-Z R10 Nut;Hex;M5x0.8Px4H No Model Compatibility List $2.00 / Each

2
M 701897 004926-00 M40 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
M 701908 004934-00 M22 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
L 701912 004941-00 L08 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
B 701939 004975-00 B59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
M 701964 005005-00 M09 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
R 702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702011 005047-00 Z07 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
L 702030 005062-00 L07 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
M 702040 005070-00 M10 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
B 702063 005091-00 B40 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $2.00 / Each

2
M 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

2
M 702121 005146-A M18 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702135 005163-00 Z12 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
H 702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
H 702161 005198-00 H29 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
H 702171 005212-A H28 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $2.00 / Each

2
H 702180 005222-00 H33 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
H 702186 005229-00 H20 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

2,4,5,6
Q 702217 005330-00 Q17 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
702446 007384-E B25 Fixing Plate;Motor Control Board No Model Compatibility List $9.59 / Each

7,3,10
B 702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
H 702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

2,3,10
H 702558 008628-B H14 Bolt;Special;Support Tube Base;M8x1.25Px54L No Model Compatibility List $4.00 / Each

2,3
B 702761 009561-AX B56 Air Shock;100KG(125L) Yes Model Compatibility List $35.98 / Each

1
Z 702798 010680-00 Z08 Washer;Spring;Support Tube;M8X1.25PX16L No Model Compatibility List $2.00 / Each

2,3
703438 014669-B AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
703442 014683-B AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

8
N 703915 019304-A N66 Amp Control Board No Model Compatibility List $55.54 / Each

7,4,5,6
N 703916 019316-A N13 Safety Key Reed Switch Yes Model Compatibility List $9.57 / Each

4,5,6
R 704033 020121-A R04 Bolt;Rear Roller;Hex Socket;M8x1.25Px70L;Chromed Yes Model Compatibility List $4.00 / Each

7,2,8,12,13,14
M 704068 020179-00 M60 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.59 / Each

2,9
N 704087 020210-00 N34 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
H 704215 020487-ZA H21 Washer;Flat;10.5x18x2.5T No Model Compatibility List $2.00 / Each

2
705040 032669-IF M03 Motor Control Board;Digital;2.25/2.5HP Yes Model Compatibility List $499.00 / Each

7,10
M 705182 039043-00 M11 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $331.29 / Each

10,12,13,14
V 705707 055269-AX V03 Decal;Faceplate No Model Compatibility List $3.82 / Each

7,3,4,5,6
M 705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
N 705918 056532-A N71 Pulse Sensor Set;600 Yes Model Compatibility List $38.32 / Each

12,13,14
K 706219 060295-DA KIT Digital Speed Sensor No Model Compatibility List $35.52 / Each

1
P 706349 061300-A P06 Console Cable;Upper;550L Yes Model Compatibility List $31.33 / Each

4,5,6,7
Z 706838 066044-A Z21 Washer;Flat;20.2x27.0x2.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
B 706891 066650-A B35 Screw;Phillip;Round;M3x0.5Px8L;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
A 707196 1000091161 AC3 Crossbar No Model Compatibility List $78.99 / Each

1
A 707197 1000091162 AH1 Elevation Frame Set No Model Compatibility List $126.18 / Each

3,10
M 709140 1000110344 M01 Drive Motor Set;Digital Yes Model Compatibility List $574.91 / Each

10
End Cap, Support Tube 725355 070422 F05 End Cap, Support Tube No Model Compatibility List $3.82 / Each

9,3
Wire,Speaker Board to Power Switch & MCB 725366 070669 P15 Wire,Speaker Board to Power Switch & MCB No Model Compatibility List $14.95 / Each

4,5,6
Speaker Board; Adaptor;AC100-240V;12V/1. 725367 070670 P11 Speaker Board; Adaptor;AC100-240V;12V/1. Yes Model Compatibility List $64.04 / Each

4,5,6
Cable, IPOD 725371 070675 N71 Cable, IPOD No Model Compatibility List $9.46 / Each

4,5,6
Fix Axle; Console Mast 725471 071757 B30 Fix Axle; Console Mast No Model Compatibility List $19.32 / Each

7,8
Swivel Axle 725481 071830 H18 Swivel Axle No Model Compatibility List $15.76 / Each

8
Running Belt; 505x2850x1.6t; Horizon Logo 725492 071888 R02 Running Belt; 505x2850x1.6t; Horizon Logo Yes Model Compatibility List $287.46 / Each

15
Spring; Foot Lock Latch 725500 072019 H30 Spring; Foot Lock Latch No Model Compatibility List $4.00 / Each

2,9,3
Console Fan 725571 073303 N68 Console Fan Yes Model Compatibility List $38.12 / Each

8
Keypad D/C, NO REPL: Part will show as orderable until stock is depleted. 725722 075177 N61 Keypad D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $134.13 / Each

9,12,13,14
Connect Wire;Speaker;;;1600L;HX4500+3.96 725734 075250 P10 Connect Wire;Speaker;;;1600L;HX4500+3.96 No Model Compatibility List $20.44 / Each

4,5,6
Connect Wire;Power Amplifier 725735 075251 N65 Connect Wire;Power Amplifier No Model Compatibility List $3.54 / Each

4,5,6
Cover;Fan;Front 725763 076092 N40 Cover;Fan;Front No Model Compatibility List $10.32 / Each

8,9
Cover;Fan;Rear 725764 076093 N41 Cover;Fan;Rear Yes Model Compatibility List $10.32 / Each

8,9
Cover,Speaker-T82 725772 076222 N03 Cover,Speaker-T82 No Model Compatibility List $12.87 / Each

9
Bracket, Drive Motor 725792 076618 M05 Bracket, Drive Motor No Model Compatibility List $20.33 / Each

2,3,4,5,6,10
Bottom Motor Cover-T82 725807 076723 Q02 Bottom Motor Cover-T82 No Model Compatibility List $64.19 / Each

9,10
Audio Input or Output board (order 2 if need both) 725834 076882 N78 Audio Input or Output board (order 2 if need both) No Model Compatibility List $13.81 / Each

1
Owner's Manual-T82 725838 076917 V43 Owner's Manual-T82 No Model Compatibility List $8.94 / Each

1
Support Tube,Left-T82 725839 076924 AC1 Support Tube,Left-T82 No Model Compatibility List $212.26 / Each

3
Cushion;Air - D/C, NO REPL Part will show as orderable until stock is depleted 725935 078439 B18 Cushion;Air - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $17.71 / Each
Out Of Stock 		3
Running Deck;682x1220x18t;Silicon 725949 078534 B27 Running Deck;682x1220x18t;Silicon No Model Compatibility List $249.13 / Each

3
Tape;Foam;One Sided;8x16x50;Black 725961 078561 Q22 Tape;Foam;One Sided;8x16x50;Black No Model Compatibility List $3.54 / Each

4,5,6
Decal,Motor Cover-T82 726017 079326 V02 Decal,Motor Cover-T82 No Model Compatibility List $11.15 / Each

7,9,3,10
Decal,Warranty,Motor Cover-T82 726018 079327 V50 Decal,Warranty,Motor Cover-T82 No Model Compatibility List $3.54 / Each

7,9,3,10
Label;Cap;L;; 726019 079328 V10 Label;Cap;L;; No Model Compatibility List $3.54 / Each

9
Sticker;Console ;L 726020 079330 V06 Sticker;Console ;L No Model Compatibility List $3.54 / Each

7
Sticker;Console ;R 726021 079331 V07 Sticker;Console ;R No Model Compatibility List $3.54 / Each

7
Fold Frame 726033 079405 AH2 Fold Frame No Model Compatibility List $120.64 / Each

3
Latch; Foot lock 726034 079406 H31 Latch; Foot lock No Model Compatibility List $18.54 / Each

9,3
Link Arm Set; Left 726035 079407 AH3 Link Arm Set; Left No Model Compatibility List $31.15 / Each

3
Link Arm Set; Right 726036 079408 AH4 Link Arm Set; Right No Model Compatibility List $40.01 / Each

3
Screw;M8x120L;;Adhere;; 726143 080186 Z10 Screw;M8x120L;;Adhere;; No Model Compatibility List $4.00 / Each

2
Hardware Kit-T82 726164 080459 AZ1 Hardware Kit-T82 No Model Compatibility List $43.47 / Each

1
Side Rail Accent Piece;TM298 726392 081585 B14 Side Rail Accent Piece;TM298 No Model Compatibility List $1.77 / Each

9,4,5,6
Accent Plate;Motor Cover 726408 081676 V50 Accent Plate;Motor Cover No Model Compatibility List $9.57 / Each

9,3,4,5,6,10
Side Rail Set,L/R-T82(w/ Q08 & Q22) 726487 082323 Q05 Side Rail Set,L/R-T82(w/ Q08 & Q22) No Model Compatibility List $71.97 / Each

9
Console Frame Set-T82 726488 082326 AN2 Console Frame Set-T82 No Model Compatibility List $264.26 / Each

7,3
Safety Key Set 726500 082397 AN3 Safety Key Set Yes Model Compatibility List $42.74 / Each

9
Motor Cover;Upper;Gray 726507 082459 Q01 Motor Cover;Upper;Gray Yes Model Compatibility List $86.14 / Each

9,10
End Cap;Right Rear 726512 082495 Q07 End Cap;Right Rear No Model Compatibility List $17.58 / Each
Out Of Stock 		9
Console Shell 726513 082498 N01 Console Shell No Model Compatibility List $43.91 / Each

7
Ground Wire;Pulse;250-6;350 726683 084100 N67 Ground Wire;Pulse;250-6;350 No Model Compatibility List $3.54 / Each

4,5,6,12,13,14
G 700287 000920-00 G36 1 End Cap Yes Model Compatibility List $2.98 / Each

1
A 014683-B 014683-B AR2 1 Rear Idler Roller Yes Model Compatibility List $207.99 / Each

1
M 039043-00 039043-00 M11 1 Incline Elevation Motor Yes Model Compatibility List $336.70 / Each

1
M 1000110344 1000110344 M01 1 DC Drive Motor Yes Model Compatibility List $778.70 / Each

1
Screw 3/8-16-1.65 (Used) 1026732 004595-B 0 1 Screw 3/8-16-1.65 (Used) No Model Compatibility List $5.99 / Each

1
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
P 1001764 002169-A P07 1 Power Cord Yes Model Compatibility List $39.99 / Each

6
sCREW 3/8-16-1.60 1026937 ME0106026B 0 1 sCREW 3/8-16-1.60" (Used) No Model Compatibility List $3.99 / Each

1
P 1002002 002169-A P07 1 Cord Power Yes Model Compatibility List $34.99 / Each

6
R 1002359 004158-00 R03 1 Belt Drive 20" Yes Model Compatibility List $31.99 / Each

23
A 1002834 014683-B AR2 1 Roller Rear Yes Model Compatibility List $159.99 / Each

26
P 1002861 002248-D P14 1 Sensor RPM Yes Model Compatibility List $25.99 / Each

47
M 1002968 039043-00 M11 1 Motor Incline Yes Model Compatibility List $189.99 / Each

28
Treadbelt 1003173 071888 0 1 Treadbelt Yes Model Compatibility List $209.00 / Each

15
M 1003624 032669-IF M03 1 Control Board Motor Controller Yes Model Compatibility List $499.00 / Each

48
K 1009207 060295-DA KIT 1 Digital Speed Sensor No Model Compatibility List $31.99 / Each

47
P 1002658 003363-00 P11 Power Entry Module Yes Model Compatibility List $19.99 / Each

6
M 1003520 032669-IF M03 Lower Controller Board Yes Model Compatibility List $169.00 / Each
48
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
