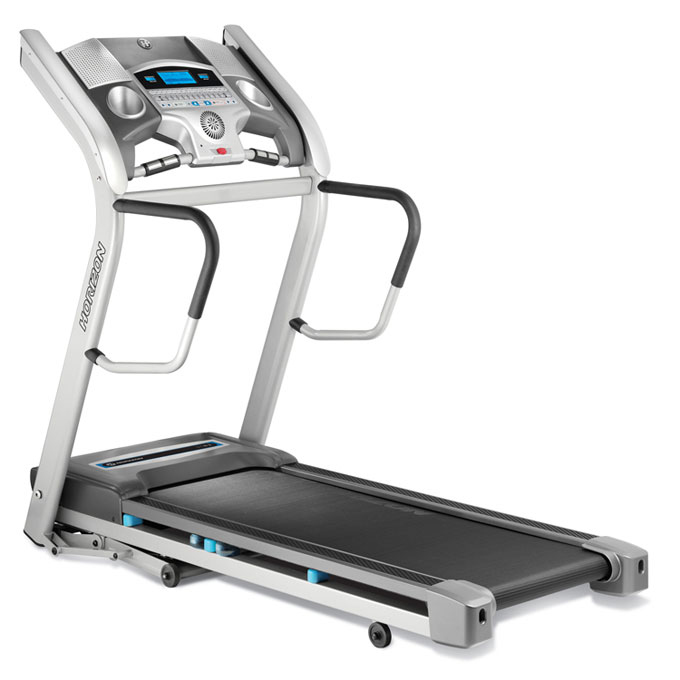

Horizon Fitness - T83 - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000037-CC 700022 000037-CC L06 Wheel;Nylon No Model Compatibility List $2.94 / Each

8
000767-D 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $14.78 / Each

1
000768-D 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $14.34 / Each

1
000955-BC 700321 000955-BC Q09 End Cap;Base Frame;Front No Model Compatibility List $2.94 / Each

9,3
001251-F 700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $6.08 / Each

2,9
001299-B 700418 001299-B H05 Cover;Elevation Frame;PVC No Model Compatibility List $7.36 / Each

9,3,10
001552-AC 700533 001552-AC G03 Cover;Handlebar No Model Compatibility List $1.46 / Each

9,11
001679-00 700570 001679-00 N29 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $1.90 / Each

2
001952-00 700700 001952-00 N76 Fixing Plate;Reed Switch No Model Compatibility List $1.46 / Each

3,4,5,6
002021-A 700717 002021-A KIT ESD Board Yes Model Compatibility List $38.38 / Each

1
002124-B 700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $2.94 / Each

4,5,6
002169-A 700755 002169-A P07 Power Cord;16AWG Yes Model Compatibility List $46.32 / Each

4,5,6
002248-D 700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $13.96 / Each

4,5,6
002671-A 700893 002671-A N69 Audio Wire;Three-D Earphone Yes Model Compatibility List $7.36 / Each

7,4,5,6,12,13,14
003326-00 701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $25.16 / Each

4,5,6
003346-00 701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $23.16 / Each

4,5,6
003363-00 701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG No Model Compatibility List $7.36 / Each

9,4,5,6
003386-A 701033 003386-A M28 Ferrite Core;T31x16x19-C No Model Compatibility List $10.20 / Each

1
004158-00 701203 004158-00 R03 Drive Belt;Poly-V;200-J8 Yes Model Compatibility List $44.22 / Each

15,10
004378-00 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $1.54 / Each

2
004415-Z 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.38 / Each

2,4,5,6
004425-B 701375 004425-B L11 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $1.54 / Each

2
004454-00 701401 004454-00 R08 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.38 / Each

2
004480-Z 701432 004480-Z M45 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $5.54 / Each

2
004486-00 701444 004486-00 R04 Screw;Round;Hex Socket;M8X1.25PX85L Yes Model Compatibility List $7.54 / Each

2
004502-00 701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $1.54 / Each

2
004523-00 701476 004523-00 M46 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $1.54 / Each

2
004525-00 701478 004525-00 R09 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $5.54 / Each

2
004565-00 701534 004565-00 H50 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $1.54 / Each

2
004571-00 701544 004571-00 B36 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $1.54 / Each

2
004590-Z 701559 004590-Z M20 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.38 / Each

2,10
004595-00 701562 004595-00 M16 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $1.54 / Each

2
004614-AB 701581 004614-AB N59 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $1.54 / Each

2,4,5,6
004617-00 701586 004617-00 B15 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $1.54 / Each

7,2,12,13,14
004620-00 701591 004620-00 N34 Screw;Self Tapping;4x12L No Model Compatibility List $1.54 / Each

2,12,13,14
004631-00 701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $1.54 / Each

2
004714-AD 701683 004714-AD Z13 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $1.54 / Each

2
004724-00 701699 004724-00 H25 Bolt;M8x1.25Px15L Yes Model Compatibility List $1.54 / Each

2
004724-AC 701700 004724-AC Z09 Screw;Hex Socket;BH;M8x1.25Px15L;Cr No Model Compatibility List $1.54 / Each

2
004864-00 701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $1.54 / Each

2
004865-00 701848 004865-00 N37 Screw;Self Tapping;4x10L No Model Compatibility List $1.54 / Each

2,12,13,14
004867-A 701849 004867-A Q31 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $1.54 / Each

2
004880-00 701858 004880-00 P16 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $1.54 / Each

2,4,5,6
004889-00 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
004903-Z 701876 004903-Z R10 Nut;Hex;M5x0.8Px4H No Model Compatibility List $1.54 / Each

2
004926-00 701897 004926-00 M40 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004934-00 701908 004934-00 M22 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.22 / Each

2
004941-00 701912 004941-00 L08 Nut;Nylon;M10x1.5P No Model Compatibility List $1.54 / Each

2
004975-00 701939 004975-00 B59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005005-00 701964 005005-00 M09 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.22 / Each

2
005009-AB 701970 005009-AB Z08 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $1.54 / Each

2
005044-00 702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005047-00 702011 005047-00 Z07 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005062-00 702030 005062-00 L07 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.22 / Each

7,2,12,13,14
005091-00 702063 005091-00 B40 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $1.54 / Each

2
005104-00 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $1.54 / Each

2
005117-00 702084 005117-00 M38 Washer;Flat;8.2x16.0x2.0T No Model Compatibility List $1.54 / Each

2
005145-AC 702119 005145-AC Z22 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005146-A 702121 005146-A M18 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005196-00 702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.22 / Each

2
005198-00 702161 005198-00 H29 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $1.54 / Each

2
005212-A 702171 005212-A H28 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $1.54 / Each

2
005222-00 702180 005222-00 H33 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005229-00 702186 005229-00 H20 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $1.54 / Each

2,4,5,6
005330-00 702217 005330-00 Q17 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005386-00 702254 005386-00 Z06 Wrench;Open;17mm No Model Compatibility List $3.08 / Each

2
005393-00 702257 005393-00 Z01 Wrench;T-Type;6mm No Model Compatibility List $7.88 / Each

2
005395-00 702259 005395-00 Z02 Wrench;T-Type;5mm No Model Compatibility List $7.70 / Each

2
702446 007384-E B25 Fixing Plate;Motor Control Board No Model Compatibility List $7.38 / Each

7,3,10
007490-C 702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.46 / Each

3
008625-C 702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $1.54 / Each

2,3,10
008628-B 702558 008628-B H14 Bolt;Special;Support Tube Base;M8x1.25Px54L No Model Compatibility List $3.08 / Each

2,3
009561-AX 702761 009561-AX B56 Air Shock;100KG(125L) Yes Model Compatibility List $27.68 / Each

1
012324-00 702846 012324-00 J2 Audio Input Board-T83,84 No Model Compatibility List $2.72 / Each

1
014669-B 703438 014669-B AR1 Front Roller Set Yes Model Compatibility List $147.40 / Each

8
014683-B 703442 014683-B AR2 Rear Roller Set Yes Model Compatibility List $147.40 / Each

8
019304-A 703915 019304-A N63 Amp Control Board No Model Compatibility List $42.72 / Each

7,4,5,6
019316-A 703916 019316-A N70 Safety Key Reed Switch Yes Model Compatibility List $7.36 / Each

4,5,6
020162-A 704064 020162-A H10 Screw;Hex Head;M10X1.5PX40L-15L No Model Compatibility List $3.08 / Each

2
020179-00 704068 020179-00 M60 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.22 / Each

2,9
020487-ZA 704215 020487-ZA H21 Washer;Flat;10.5x18x2.5T No Model Compatibility List $1.54 / Each

2
020668-00 704229 020668-00 Z04 Wrench;Hex;L-Type;#10mmx170L; No Model Compatibility List $3.08 / Each

2
032669-IF 705040 032669-IF M03 Motor Control Board;Digital;2.25/2.5HP Yes Model Compatibility List $308.86 / Each

7,10
039042-A 705181 039042-A N66 Pulse Sensor Set Yes Model Compatibility List $14.06 / Each

12,13,14
039043-00 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $254.84 / Each

10,12,13,14
039664-00 705271 039664-00 B35 Screw;Phillip;Round;3x8L;Zn+3(White); No Model Compatibility List $1.42 / Each

2
040613-B 705285 040613-B KIT Ground Wire;250 No Model Compatibility List $1.46 / Each

4,5,6
056374-AA 705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $7.36 / Each

10,12,13,14
059814-AX 706171 059814-AX V03 Decal;Console;Horizon Logo No Model Compatibility List $6.82 / Each

7,3
060295-DA 706219 060295-DA KIT Digital Speed Sensor No Model Compatibility List $27.32 / Each

1
062625-A 706479 062625-A P05 Console Cable;Mast;1500L;2.5-12P+JST-12P;Black Yes Model Compatibility List $44.22 / Each

7,4,5,6
066044-A 706838 066044-A Z21 Washer;Flat;20.2x27.0x2.5T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
1000091161 707196 1000091161 AC3 Crossbar No Model Compatibility List $60.76 / Each

1
1000096169 707834 1000096169 AH1 Elevation Frame No Model Compatibility List $133.46 / Each

3,10
1000104244 708619 1000104244 H31 Foot Lock Latch No Model Compatibility List $18.94 / Each

9,3
1000113141 709331 1000113141 M01 Drive Motor Set;Digital;2.75HP Yes Model Compatibility List $442.24 / Each

10
070422 725355 070422 F05 End Cap, Support Tube No Model Compatibility List $2.94 / Each

9,3
070669 725366 070669 P15 Wire,Speaker Board to Power Switch & MCB No Model Compatibility List $11.50 / Each

4,5,6
070670 725367 070670 P11 Speaker Board; Adaptor;AC100-240V;12V/1. Yes Model Compatibility List $49.26 / Each

4,5,6
070675 725371 070675 N71 Cable, IPOD No Model Compatibility List $7.28 / Each

4,5,6
071830 725481 071830 H18 Swivel Axle No Model Compatibility List $12.12 / Each

8
072019 725500 072019 H30 Spring; Foot Lock Latch No Model Compatibility List $3.08 / Each

2,9,3
073403 725572 073403 KIT Power Wire;Control Board;T84;TM299 No Model Compatibility List $11.46 / Each

7,4,5,6
073735 725589 073735 AH2 Fold Frame No Model Compatibility List $90.26 / Each

3
074787 725690 074787 N11 Screw;Phillip;Round;M3x8L;Zn+3(White); No Model Compatibility List $1.42 / Each

2
075178 725723 075178 N61 Keypad No Model Compatibility List $103.18 / Each

9,12,13,14
075250 725734 075250 P10 Connect Wire;Speaker;;;1600L;HX4500+3.96 No Model Compatibility List $15.72 / Each

4,5,6
076593 725789 076593 B31 Air Cell No Model Compatibility List $10.90 / Each

1
076594 725790 076594 B29 Shim;;Front;;; No Model Compatibility List $2.72 / Each

1
076595 725791 076595 B32 Fix Axle;Console No Model Compatibility List $2.72 / Each

7,8
076618 725792 076618 M05 Bracket, Drive Motor No Model Compatibility List $15.64 / Each

2,3,4,5,6,10
076621 725793 076621 N01 Cover;Console;Front No Model Compatibility List $49.38 / Each

7,9
076623 725794 076623 N02 Cover;Console;Rear No Model Compatibility List $59.14 / Each

7,9
076626 725795 076626 N04 Cover;Speaker;Left No Model Compatibility List $6.82 / Each

9
076628 725796 076628 N05 Cover;Speaker;Right No Model Compatibility List $6.82 / Each

9
725797 076633 N08 Cover;Console Frame;Right No Model Compatibility List $11.88 / Each

7,9,3
076635 725798 076635 N14 BottleHolder;L;Painting; No Model Compatibility List $7.94 / Each

1
076636 725799 076636 N15 BottleHolder;R;Painting; No Model Compatibility List $7.94 / Each

1
725800 076647 R02 Running Belt;2850Lx505Wx2.2T No Model Compatibility List $191.64 / Each

15
076650 725801 076650 V43 Manual;Manipulate; No Model Compatibility List $6.82 / Each

1
076795 725820 076795 Q01 Cover;Motor;Upper No Model Compatibility List $49.38 / Each

9,10
076797 725821 076797 Q06 End Cap;Left No Model Compatibility List $12.84 / Each

9
076798 725822 076798 Q07 End Cap;Right. D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $12.84 / Each

9
077117 725858 077117 J3 Audio Output Board-T83,84 No Model Compatibility List $2.72 / Each

1
077449 725870 077449 Q02 Motor Cover; Bottom No Model Compatibility List $21.22 / Each

9,10
077734 725892 077734 P06 Connector Wire;650L 2.5-12P;SM-12Y No Model Compatibility List $25.56 / Each

4,5,6
078561 725961 078561 Q22 Tape;Foam;One Sided;8x16x50;Black No Model Compatibility List $2.72 / Each

4,5,6
079287 726007 079287 V01 Label;Console Cover; No Model Compatibility List $1.96 / Each

7,9
079288 726008 079288 V02 Label;Console Cover; No Model Compatibility List $2.72 / Each

7,9
079295 726009 079295 B30 Fix Axle;Console;;S20C;;;;;TM298-B33D No Model Compatibility List $16.78 / Each

7,8
079300 726010 079300 Z10 Screw;Hex Socket;Umbrella;;;M8x1.25Px120 No Model Compatibility List $3.08 / Each

2
079301 726011 079301 Z12 Washer;Arc;8.4x17.0x1.0t;Cr; No Model Compatibility List $1.54 / Each

2
079407 726035 079407 AH3 Link Arm Set; Left No Model Compatibility List $23.96 / Each

3
079408 726036 079408 AH4 Link Arm Set; Right No Model Compatibility List $30.78 / Each

3
079444 726043 079444 AZ1 Hardware Pack No Model Compatibility List $26.86 / Each

4,5,6
080875 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $1.54 / Each

2
081585 726392 081585 B14 Side Rail Accent Piece;TM298 No Model Compatibility List $1.36 / Each

9,4,5,6
726402 081639 Q20 Tape;Foam;single;2.5tx20x70;black Yes Model Compatibility List $1.46 / Each

4,5,6
081640 726403 081640 B27 Running Deck;;1220X682X18;;;TM298 No Model Compatibility List $191.64 / Each

3
082291 726484 082291 Q05 Side Rail Set No Model Compatibility List $48.32 / Each

9
082397 726500 082397 AN3 Safety Key Set Yes Model Compatibility List $32.88 / Each

9
728756 096830 N62 Speaker;3W;XHS-2Y;680mm Yes Model Compatibility List $11.62 / Each

1
098561 728898 098561 N69 Wire;Headphone Jack;500mm No Model Compatibility List $2.94 / Each

4,5,6
098562 728899 098562 N70 Connected Wire; Earphone; PCB Yes Model Compatibility List $4.94 / Each

4,5,6
View Drawing
