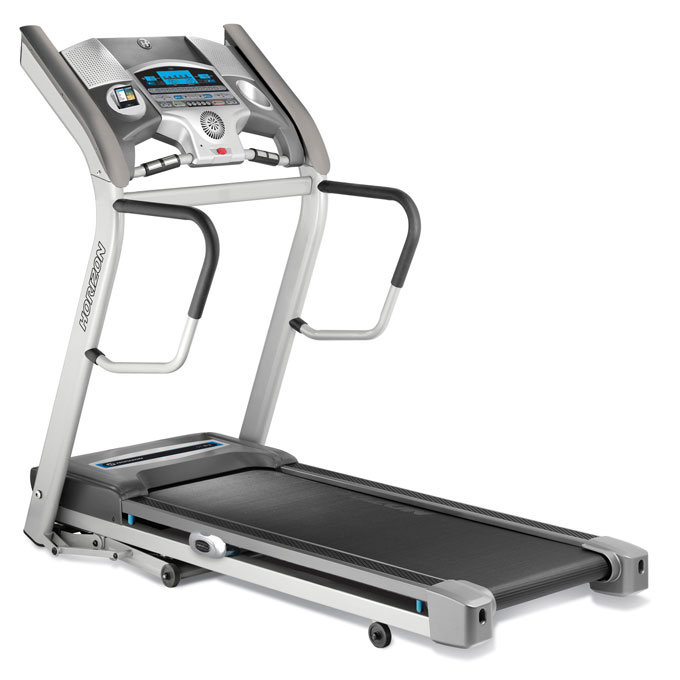

Horizon Fitness - T93 - 2009

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000767-D 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $14.78 / Each

1
000768-D 700246 000768-D B46 Elastomer;Blue;20x44L Yes Model Compatibility List $14.34 / Each

1
000955-BC 700321 000955-BC Q09 End Cap;Base Frame;Front No Model Compatibility List $2.94 / Each

9,3
001251-F 700402 001251-F B28 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $6.08 / Each

2,9
001278-B 700410 001278-B H62 Spacer Ring Yes Model Compatibility List $1.54 / Each

2,3,4,5,6
001299-B 700418 001299-B H08 Cover;Elevation Frame;PVC No Model Compatibility List $7.36 / Each

9,3,10
001552-AC 700533 001552-AC G03 Cover;Handlebar No Model Compatibility List $1.46 / Each

9,11
001952-00 700700 001952-00 N76 Fixing Plate;Reed Switch No Model Compatibility List $1.46 / Each

3,4,5,6
002124-B 700746 002124-B P05 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $2.94 / Each

4,5,6
002169-A 700755 002169-A P02 Power Cord;16AWG Yes Model Compatibility List $46.32 / Each

4,5,6
002248-D 700773 002248-D P06 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $13.96 / Each

4,5,6
002671-A 700893 002671-A N69 Audio Wire;Three-D Earphone Yes Model Compatibility List $7.36 / Each

7,4,5,6,12,13,14
003326-00 701013 003326-00 P07 Power Switch;Large;RF-1004 Yes Model Compatibility List $25.16 / Each

4,5,6
003346-00 701020 003346-00 P08 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $23.16 / Each

4,5,6
003363-00 701026 003363-00 P04 Power Socket;100-600-60(O TYPE END);16AWG No Model Compatibility List $7.36 / Each

9,4,5,6
003386-A 701033 003386-A M26 Ferrite Core;T31x16x19-C No Model Compatibility List $10.20 / Each

1
004158-00 701203 004158-00 R03 Drive Belt;Poly-V;200-J8 Yes Model Compatibility List $44.22 / Each

15,10
004378-00 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $1.54 / Each

2
004415-Z 701364 004415-Z P14 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.38 / Each

2,4,5,6
004425-B 701375 004425-B B31 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $1.54 / Each

2
004480-Z 701432 004480-Z M45 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $5.54 / Each

2
004502-00 701454 004502-00 M41 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $1.54 / Each

2
004523-00 701476 004523-00 M46 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $1.54 / Each

2
004525-00 701478 004525-00 R09 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $5.54 / Each

2
004565-00 701534 004565-00 H06 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $1.54 / Each

2
004571-00 701544 004571-00 B26 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $1.54 / Each

2
004590-Z 701559 004590-Z M20 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.38 / Each

2,10
004595-00 701562 004595-00 M16 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $1.54 / Each

2
004614-AB 701581 004614-AB N59 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $1.54 / Each

2,4,5,6
004619-AB 701590 004619-AB N17 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $1.54 / Each

2
004620-00 701591 004620-00 N34 Screw;Self Tapping;4x12L No Model Compatibility List $1.54 / Each

2,12,13,14
004631-00 701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $1.54 / Each

2
004632-00 701613 004632-00 B23 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $1.54 / Each

2
004714-AD 701683 004714-AD Z13 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $1.54 / Each

2
004724-00 701699 004724-00 H25 Bolt;M8x1.25Px15L Yes Model Compatibility List $1.54 / Each

2
004724-AC 701700 004724-AC Z09 Screw;Hex Socket;BH;M8x1.25Px15L;Cr No Model Compatibility List $1.54 / Each

2
004864-00 701847 004864-00 Q31 Screw;4x12L No Model Compatibility List $1.54 / Each

2
004867-A 701849 004867-A Q30 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $1.54 / Each

2
004880-00 701858 004880-00 P15 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $1.54 / Each

2,4,5,6
004884-00 701862 004884-00 H38 Nut;Hex;M8X1.25P No Model Compatibility List $1.38 / Each

2
004889-00 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
004926-00 701897 004926-00 M40 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004934-00 701908 004934-00 M22 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.22 / Each

2
004941-00 701912 004941-00 B63 Nut;Nylon;M10x1.5P No Model Compatibility List $1.54 / Each

2
005005-00 701964 005005-00 M09 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.22 / Each

2
005009-AB 701970 005009-AB Z08 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $1.54 / Each

2
005044-00 702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005047-00 702011 005047-00 Z07 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005062-00 702030 005062-00 H24 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.22 / Each

7,2,12,13,14
005104-00 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $1.54 / Each

2
005117-00 702084 005117-00 M38 Washer;Flat;8.2x16.0x2.0T No Model Compatibility List $1.54 / Each

2
005145-AC 702119 005145-AC Z22 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005146-A 702121 005146-A M18 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005196-00 702160 005196-00 H23 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.22 / Each

2
005212-A 702171 005212-A H28 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $1.54 / Each

2
005229-00 702186 005229-00 H20 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $1.54 / Each

2,4,5,6
005330-00 702217 005330-00 Q17 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005393-00 702257 005393-00 Z01 Wrench;T-Type;6mm No Model Compatibility List $7.88 / Each

2
005493-A 702292 005493-A H30 Spring;Ext;60MN;Zinc No Model Compatibility List $1.54 / Each

2
007490-C 702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.46 / Each

3
008625-C 702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $1.54 / Each

2,3,10
014669-B 703438 014669-B AR1 Front Roller Set Yes Model Compatibility List $147.40 / Each

8
020121-A 704033 020121-A R04 Bolt;Rear Roller;Hex Socket;M8x1.25Px70L;Chromed No Model Compatibility List $3.08 / Each

7,2,8,12,13,14
020179-00 704068 020179-00 M60 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.22 / Each

2,9
020210-00 704087 020210-00 N18 Screw;Phillip;Round;3x20L No Model Compatibility List $1.54 / Each

2
020487-ZA 704215 020487-ZA B62 Washer;Flat;10.5x18x2.5T No Model Compatibility List $1.54 / Each

2
020668-00 704229 020668-00 Z04 Wrench;Hex;L-Type;#10mmx170L; No Model Compatibility List $3.08 / Each

2
032669-IF 705040 032669-IF M03 Motor Control Board;Digital;2.25/2.5HP Yes Model Compatibility List $308.86 / Each

7,10
039043-00 705182 039043-00 M11 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $254.84 / Each

10,12,13,14
039400-BA 705259 039400-BA B35 Transport Wheel;Nylon Yes Model Compatibility List $7.36 / Each

8
040613-B 705285 040613-B N78 Ground Wire;250 No Model Compatibility List $1.46 / Each

4,5,6
049263-A 705470 049263-A B66 Screw;Phillip;BH;Tapped;4x20L; No Model Compatibility List $1.54 / Each

2
056374-AA 705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $7.36 / Each

10,12,13,14
056905-A 705954 056905-A B22 Stopper;Side Rail No Model Compatibility List $1.38 / Each

9
059814-AX 706171 059814-AX V03 Decal;Console;Horizon Logo No Model Compatibility List $6.82 / Each

7,3
059929-B 706178 059929-B H18 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $1.54 / Each

2
060295-DA 706219 060295-DA KIT Digital Speed Sensor No Model Compatibility List $27.32 / Each

1
1000090017 707070 1000090017 B30 Fix Axle;Console;S20C;Cr Plat;TM608 No Model Compatibility List $16.22 / Each

7,8
1000091161 707196 1000091161 AC3 Crossbar No Model Compatibility List $60.76 / Each

1
1000092479 707390 1000092479 M05 immobility shelf;Motor;Painting;KD-A578- No Model Compatibility List $31.94 / Each

10
707391 1000092480 AC1 Support Tube;Console;L;Extrawork;TM608-1 No Model Compatibility List $292.06 / Each

7,3
1000092481 707392 1000092481 AC2 Support Tube;Console;R;Extrawork;TM608-1 No Model Compatibility List $292.72 / Each

7,3
1000092483 707393 1000092483 AG2 HANDLEBAR SET-L/R No Model Compatibility List $168.30 / Each

11
1000092485 707394 1000092485 AH1 Elevation Rack Set;Painting;TM608-1US No Model Compatibility List $114.64 / Each

4,5,6,10
1000092486 707395 1000092486 AH2 Tube Support Set;Painting;TM608-1US No Model Compatibility List $93.04 / Each

3
1000092487 707396 1000092487 H26 Hook;Painting;KD-A578-A;TM608-1US No Model Compatibility List $23.76 / Each

1
1000092488 707397 1000092488 H16 CON Plate;Console Mast;Painting;KD-A578- No Model Compatibility List $25.56 / Each

7,3
707398 1000092490 AN2 CONSOLE FRAME SET No Model Compatibility List $381.82 / Each

7,3
1000092492 707399 1000092492 Q05 SIDERAIL SET No Model Compatibility List $67.90 / Each

9
1000108437 709031 1000108437 AR2 Roller Set;Rear;TM116 Yes Model Compatibility List $147.40 / Each

8
1000113141 709331 1000113141 M01 Drive Motor Set;Digital;2.75HP Yes Model Compatibility List $442.24 / Each

10
100274 724964 100274 R02 Running Belt;Black;495x2820x1.6t;TM607-1US No Model Compatibility List $221.12 / Each

15,4,5,6
100471 724975 100471 B41 Air Shock;90KG(125L);;TM604-1US No Model Compatibility List $31.40 / Each

1
100631 724985 100631 N07 Console ;Side Rail;L;75140; No Model Compatibility List $12.54 / Each

7,9
100632 724986 100632 N08 Console ;Side Rail;R;75140 No Model Compatibility List $12.54 / Each

7,9
101671 725083 101671 V43 Manual;Manipulate;TM608-1US No Model Compatibility List $6.82 / Each

1
101973 725134 101973 V20 Foam;Hook;20x50x1.3T;TM604 No Model Compatibility List $1.36 / Each

1
103005 725220 103005 AZ1 Hardware Kit Set;Semi-Assy;TM608 No Model Compatibility List $61.06 / Each

1
103206 725230 103206 V09 Sticker;Speaker Cover;L;TM608 No Model Compatibility List $1.36 / Each

9
103207 725231 103207 V12 Sticker; Console;TM608 No Model Compatibility List $2.72 / Each

7
103210 725232 103210 V02 Decal, Motor Cover No Model Compatibility List $1.36 / Each

7,9,3,10
103265 725249 103265 B48 Elastomer Set;TM608 No Model Compatibility List $11.78 / Each

1
103272 725250 103272 V64 Decal;Adjustable Cushion No Model Compatibility List $6.82 / Each

7,3
103405 725264 103405 Z21 Washer;Flat;20.2x27.0x2.5t;Cr Plat; No Model Compatibility List $1.42 / Each

2
070422 725355 070422 F05 End Cap, Support Tube No Model Compatibility List $2.94 / Each

9,3
070670 725367 070670 P11 Speaker Board; Adaptor;AC100-240V;12V/1. Yes Model Compatibility List $49.26 / Each

4,5,6
073164 725568 073164 N39 Ipod spacer No Model Compatibility List $1.46 / Each

2,3,4,5,6
074787 725690 074787 N11 Screw;Phillip;Round;M3x8L;Zn+3(White); No Model Compatibility List $1.42 / Each

2
074975 725706 074975 P03 Console Cable No Model Compatibility List $44.22 / Each

7,4,5,6
075998 725756 075998 P01 Power Wire;Control Board;;;500;16AWG+150 No Model Compatibility List $8.24 / Each

7,4,5,6
077114 725856 077114 V04 Sticker;Audio In No Model Compatibility List $1.36 / Each

1
077115 725857 077115 V05 Sticker;Audio Out No Model Compatibility List $1.46 / Each

1
077449 725870 077449 Q02 Motor Cover; Bottom No Model Compatibility List $21.22 / Each

9,10
078561 725961 078561 Q22 Tape;Foam;One Sided;8x16x50;Black No Model Compatibility List $2.72 / Each

4,5,6
079300 726010 079300 Z10 Screw;Hex Socket;Umbrella;;;M8x1.25Px120 No Model Compatibility List $3.08 / Each

2
079301 726011 079301 Z12 Washer;Arc;8.4x17.0x1.0t;Cr; No Model Compatibility List $1.54 / Each

2
080875 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $1.54 / Each

2
726402 081639 Q20 Tape;Foam;single;2.5tx20x70;black Yes Model Compatibility List $1.46 / Each

4,5,6
082397 726500 082397 AN3 Safety Key Set Yes Model Compatibility List $32.88 / Each

9
082459 726507 082459 Q01 Motor Cover;Upper;Gray Yes Model Compatibility List $66.26 / Each

9,10
082495 726512 082495 Q07 End Cap;Right Rear No Model Compatibility List $13.52 / Each

9
095572 728599 095572 B27 Running Deck;;1220x682x18t;TM604 No Model Compatibility List $191.64 / Each

3
095610 728606 095610 H21 Screw;Special;M8X1.25PX33L-8L; No Model Compatibility List $3.08 / Each

2
095611 728607 095611 H22 Screw;Special;Fixing;12x34L No Model Compatibility List $3.08 / Each

2
096744 728753 096744 N67 Amp Control Board;VFD 3W H101 Yes Model Compatibility List $42.46 / Each

4,5,6,7
097357 728782 097357 KIT Control Board;IPOD;H103;SOO-C135B Yes Model Compatibility List $49.54 / Each

7
097409 728790 097409 N68 Speaker;300MM No Model Compatibility List $9.90 / Each

1
097413 728791 097413 N66 Sensor Set;Pulse;1000mm31.8+2.5-2P No Model Compatibility List $13.00 / Each

12,13,14
097922 728838 097922 N70 Sensor Wire;Safety Switch;300L(9216+2.5- No Model Compatibility List $7.36 / Each

9,4,5,6
097923 728839 097923 N09 Fan;83.5 DC12V 0.41A10%;TM608-1US No Model Compatibility List $14.00 / Each

8,4,5,6
098078 728858 098078 N16 IPOD ELASTOMER No Model Compatibility List $1.36 / Each

1
098093 728859 098093 N01 Console;U;TM608-1US No Model Compatibility List $38.42 / Each

7
098094 728860 098094 N02 Console;D;TM608-1US No Model Compatibility List $52.08 / Each

7
098095 728861 098095 N14 IPOD SEAT;Painting;TM608-1US No Model Compatibility List $2.94 / Each

12,13,14
098227 728878 098227 N03 Faceplate;Console;Painting;TM608-1US No Model Compatibility List $27.28 / Each

7,3,4,5,6
098228 728879 098228 N04 Cover;Speaker;L;Painting;TM608-1US No Model Compatibility List $8.52 / Each

9
098229 728880 098229 N05 Cover;Speaker;R;Painting;TM608-1US No Model Compatibility List $8.52 / Each

9
098230 728881 098230 N15 Kettle Rack;R;Painting;TM608-1US No Model Compatibility List $10.16 / Each

4,5,6
098561 728898 098561 N69 Wire;Headphone Jack;500mm No Model Compatibility List $2.94 / Each

4,5,6
098562 728899 098562 N70 Connected Wire; Earphone; PCB Yes Model Compatibility List $4.94 / Each

4,5,6
098563 728900 098563 N74 Connected Wire;Console No Model Compatibility List $16.70 / Each

7,4,5,6
098653 728903 098653 N67 Connected Wire;IPOD-PCB;TM608 No Model Compatibility List $6.82 / Each

4,5,6
098803 728909 098803 N57 Connected Wire;IPOD-PCB;180mm(XHS-6Y)x2 No Model Compatibility List $7.36 / Each

4,5,6
099122 728947 099122 N68 Audio Out Set No Model Compatibility List $2.94 / Each

1
View Drawing
