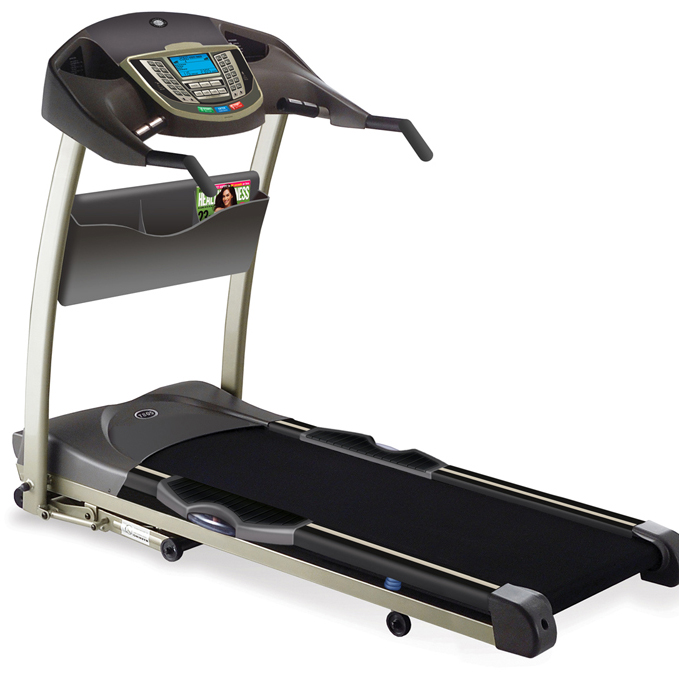

Horizon Fitness - WT950 - 2006

Repair Parts for Horizon Fitness WT950 TM153

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: WT950

Version: 2006

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Switch
  • Roller
  • Motor
  • Sensors
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700021 000037-CA L06 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
Q 700216 000696-AA Q20 Foam Tape,Double Sided;320x40x2.0T No Model Compatibility List $1.77 / Each

1
B 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

1
B 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

1
B 700247 000772-A B62 Elastomer;Blue;35x47x44L D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $14.17 / Each

1
Q 700279 000853-BA Q16 Bushing;Support Tube No Model Compatibility List $1.77 / Each

8,3
N 700318 000940-A N30 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
L 700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

2,9
C 700416 001294-B C24 End Cap;Support Tube Base;AF002(1/2) 19 - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $2.00 / Each

9,3
H 700418 001299-B H05 Cover;Elevation Frame;PVC No Model Compatibility List $9.57 / Each

9,3,10
N 700688 001798-AA N21 LCD Screen;PC No Model Compatibility List $3.54 / Each

1
N 700704 001963-A N13 Console Safety Key Reed Switch;250L(2.5-2P) E192542 Yes Model Compatibility List $14.22 / Each

4,5,6
P 700741 002108-C P30 Console Cable;Mast;1500L(5557 SERIES+2.5-12P) Yes Model Compatibility List $40.92 / Each

4,5,6,7
P 700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

4,5,6
700755 002169-A P07 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

4,5,6
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

4,5,6
P 700850 002513-B P09 Power Cable;Control Board;1000L;16AWG;Black No Model Compatibility List $0.03 / Each

7,4,5,6
P 700851 002514-B P10 Power Cable;Control Board;1000L;16AWG;White No Model Compatibility List $1.90 / Each

7,4,5,6
N 700974 003057-C N61 Overlay;0.25MM PC HALFTONE PRINTING No Model Compatibility List $35.46 / Each

1
701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

4,5,6
701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG Yes Model Compatibility List $9.57 / Each

9,4,5,6
M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
N 701047 003432-B N26 Pulse Sensor Set;Single;750 Yes Model Compatibility List $21.27 / Each

12,13,14
R 701244 004264-A R02 Running Belt;508X2840X1.6T;Black No Model Compatibility List $260.99 / Each

4,5,6,15
Z 701294 004359-00 Z17 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

2
P 701328 004381-00 P17 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

2
P 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
L 701375 004425-B L11 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

2
R 701401 004454-00 R08 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

2
Z 701408 004462-00 Z12 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
M 701432 004480-Z M45 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $7.20 / Each

2
R 701444 004486-00 R04 Screw;Round;Hex Socket;M8X1.25PX85L Yes Model Compatibility List $9.80 / Each

2
R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
M 701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

2
M 701476 004523-00 M46 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

2
B 701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
H 701534 004565-00 H50 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
M 701559 004590-Z M14 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.79 / Each

2,10
M 701562 004595-00 M10 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
M 701586 004617-00 M24 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
N 701590 004619-AB N19 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

2
Z 701591 004620-00 Z18 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
Q 701612 004631-00 Q13 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

2
N 701615 004635-A N59 Screw;Oval Tapping;3x7L No Model Compatibility List $2.00 / Each

2,12,13,14
N 701621 004640-A N58 Screw;Umbrella Cross Tapped;4X35L No Model Compatibility List $2.00 / Each

2
701699 004724-00 N55 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
Z 701810 004827-A Z20 Screw;4x0.7Px38L No Model Compatibility List $2.00 / Each

2
Q 701847 004864-00 Q11 Screw;4x12L No Model Compatibility List $2.00 / Each

2
B 701848 004865-00 B39 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
Q 701849 004867-A Q12 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
P 701858 004880-00 P16 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
P 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
R 701876 004903-Z R10 Nut;Hex;M5x0.8Px4H No Model Compatibility List $2.00 / Each

2
M 701897 004926-00 M08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
M 701908 004934-00 M12 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
L 701912 004941-00 L08 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
C 701916 004945-00 C23 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 701939 004975-00 B59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
M 701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Z 701983 005019-00 Z14 Washer;Lock;SW6 6.1X10.0X1.2T No Model Compatibility List $2.00 / Each

2
H 701997 005035-00 H20 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

2
R 702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
C 702021 005056-00 C25 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
L 702030 005062-00 L07 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
Z 702049 005077-00 Z13 Washer;Flat;6.2X12X1.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
H 702114 005141-A H25 Washer;Flat;12.5x19x1.5T No Model Compatibility List $1.85 / Each

2
M 702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702135 005163-00 Z01 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
H 702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
C 702169 005210-A C26 Washer;Teflon;20.3x25x1.0T No Model Compatibility List $2.00 / Each

2
H 702171 005212-A H24 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $2.00 / Each

2
H 702189 005232-A H22 Washer;Wavy;12.7x18x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
Q 702217 005330-00 Q15 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

2
K 702262 005408-A KIT Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

2,10
Q 702263 005411-Z Q10 Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

2
K 702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

2,10
H 702283 005475-D H30 Spring;Foot Lock Latch;SUS304 No Model Compatibility List $4.00 / Each

2,9,3
V 702327 006089-A V03 Decal;Console Logo No Model Compatibility List $3.82 / Each

7,3
702446 007384-E B25 Fixing Plate;Motor Control Board No Model Compatibility List $9.59 / Each

7,3,10
B 702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
H 702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

2,3,10
H 702558 008628-B H14 Bolt;Special;Support Tube Base;M8x1.25Px54L No Model Compatibility List $4.00 / Each

2,3
B 702761 009561-AX B56 Air Shock;100KG(125L) Yes Model Compatibility List $35.98 / Each

1
Z 702798 010680-00 Z03 Washer;Spring;Support Tube;M8X1.25PX16L No Model Compatibility List $2.00 / Each

2,3
M 702854 012804-00 M02 Elevation Motor;110V No Model Compatibility List $249.13 / Each

10
N 703379 013935-A N63 Receiver;Pedometer;RF 315MHZ RXLC-A315M No Model Compatibility List $14.38 / Each

1
703438 014669-B AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
703442 014683-B AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

8
703770 016167-Z N33 Safety Key Set Yes Model Compatibility List $40.14 / Each

9
Q 703871 018875-BA Q06 Foot Pad;Rubber No Model Compatibility List $16.56 / Each

9,3,12,13,14
B 703958 019997-A B27 Running Deck;680X1220X18T;Silicon No Model Compatibility List $249.13 / Each

3
K 704087 020210-00 KIT Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
H 704215 020487-ZA H21 Washer;Flat;10.5x18x2.5T No Model Compatibility List $2.00 / Each

2
Z 704216 020488-A Z19 Washer;Arc;4.2x12x1.0T No Model Compatibility List $2.00 / Each

2
Z 704610 024326-A Z21 Pedometer No Model Compatibility List $129.82 / Each

1
705040 032669-IF M03 Motor Control Board;Digital;2.25/2.5HP Yes Model Compatibility List $499.00 / Each

7,10
N 705141 038132-BBX N37 Heart Rate Receiver Yes Model Compatibility List $54.39 / Each

12,13,14
M 705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
K 706219 060295-DA KIT Digital Speed Sensor No Model Compatibility List $35.52 / Each

1
V 706698 064647-AX V23 Decal, Console - Instructions No Model Compatibility List $1.77 / Each

7,3
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

1
709100 1000109550 R03 Drive Belt;Poly-V;190-J8 Yes Model Compatibility List $60.22 / Each

15,10
M 709140 1000110344 M01 Drive Motor Set;Digital Yes Model Compatibility List $574.91 / Each

10
Cushion;Air - D/C, NO REPL Part will show as orderable until stock is depleted 725935 078439 B18 Cushion;Air - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $17.71 / Each
Out Of Stock 		3
Console Cable; Upper; 450L(2.5-12P+5557 SERIES) 725951 078539 KIT Console Cable; Upper; 450L(2.5-12P+5557 SERIES) Yes Model Compatibility List $28.73 / Each

4,5,6,7
M 012804-00 012804-00 M02 1 Smooth AFG Treadmill Incline Elevation Motor No Model Compatibility List $246.99 / Each

1
A 014683-B 014683-B AR2 1 Rear Idler Roller Yes Model Compatibility List $207.99 / Each

1
M 1000110344 1000110344 M01 1 DC Drive Motor Yes Model Compatibility List $778.70 / Each

1
N 1000690 016167-Z N33 1 Safety Key Set Yes Model Compatibility List $33.99 / Each

1
Screw 3/8-16-1.65 (Used) 1026732 004595-B 0 1 Screw 3/8-16-1.65 (Used) No Model Compatibility List $5.99 / Each

1
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
P 1001764 002169-A P07 1 Power Cord Yes Model Compatibility List $39.99 / Each

6
Endcap Rail Left (Used) 1026971 001339-DB Q07 1 Endcap Rail Left (Used) No Model Compatibility List $6.82 / Each

1
End Cap - Base Frame (Used) 1026973 MB0609124BB Q09 1 End Cap - Base Frame (Used) No Model Compatibility List $2.39 / Each

1
sCREW 3/8-16-1.60 1026937 ME0106026B 0 1 sCREW 3/8-16-1.60" (Used) No Model Compatibility List $3.99 / Each

1
P 1002002 002169-A P07 1 Cord Power Yes Model Compatibility List $34.99 / Each

6
R 1002831 1000109550 R03 1 Belt Drive Yes Model Compatibility List $34.99 / Each

23
A 1002834 014683-B AR2 1 Roller Rear Yes Model Compatibility List $159.99 / Each

26
P 1002861 002248-D P14 1 Sensor RPM Yes Model Compatibility List $25.99 / Each

47
M 1002970 012804-00 M02 1 Motor Incline No Model Compatibility List $189.99 / Each

28
R 1003620 004264-A R02 1 Treadbelt No Model Compatibility List $209.00 / Each

15
M 1003624 032669-IF M03 1 Control Board Motor Controller Yes Model Compatibility List $499.00 / Each

48
M 1029909 004480-Z M45 Screw (Used) Yes Model Compatibility List $5.00 / Each

1
K 1009207 060295-DA KIT 1 Digital Speed Sensor No Model Compatibility List $31.99 / Each

47
P 1002658 003363-00 P11 Power Entry Module Yes Model Compatibility List $19.99 / Each

6
M 1003520 032669-IF M03 Lower Controller Board Yes Model Compatibility List $169.00 / Each
48
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
