IMAGE - 10.6

Repair Parts for IMAGE 10.6 831.297563

Brand: IMAGE

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: 10.6

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Switch
  • Frame Related
  • Rollers and Rotating Parts
  • Other
    Views
  • list view
  • grid view
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
8 118360 102246 # 8" WHITE WIRE, 2F Yes Model Compatibility List $5.99 / Each

4,5,6
8 100111 102634 # 8" GRN WIRE F/R, POWER Yes Model Compatibility List $4.75 / Each

4,5,6
INCLINE SENSOR SWITCH 104351 102955 63 INCLINE SENSOR SWITCH No Model Compatibility List $16.73 / Each

4,5,6,10
SMALL BOLT 104355 102959 62 SMALL BOLT No Model Compatibility List $1.28 / Each

2,40
14 101456 103823 # 14" WHITE WIRE, M/F Yes Model Compatibility List $4.22 / Each

4,5,6
101674 103825 # BLACK JUMPER WIRE 20" No Model Compatibility List $4.74 / Each

4,5,6
104208 105477 99 MOTOR NUT No Model Compatibility List $0.31 / Each

2
MOTOR BOLT 3/8-16X5 117640 107503 35 MOTOR BOLT 3/8-16X5" Yes Model Compatibility List $6.51 / Each

2
123759 108080 32 SCREW No Model Compatibility List $0.26 / Each

2
INCLINE DISK 104346 109370 65 INCLINE DISK Yes Model Compatibility List $5.31 / Each

10
CIRCUIT BREAKER 103130 109382 17 CIRCUIT BREAKER Yes Model Compatibility List $11.52 / Each

4,5,6
4 100115 109407 # 4" BLK WIRE F/F, POWER No Model Compatibility List $2.93 / Each

4,5,6
111410 109520 30 6" CABLE LOOM No Model Compatibility List $3.71 / Each

4,5,6
CAGE NUT 102934 111869 5 CAGE NUT No Model Compatibility List $4.20 / Each

2,3
8 100300 112083 # 8" BLUE WIRE, 2F Yes Model Compatibility List $5.46 / Each

4,5,6
121908 112609 22 FRONT ROLLER ADJ BOLT No Model Compatibility List $0.43 / Each

2,8
123765 115872 102 STRAIN RELIEF No Model Compatibility List $0.24 / Each

1
TIE CLAMP HOLDER - SCREW MOUNT 100262 116927 111 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

2,4,5,6
WHEEL BOLT 118348 117806 31 WHEEL BOLT Yes Model Compatibility List $5.86 / Each
2,8
102820 118204 # 8" BLUE WIRE,M/F No Model Compatibility List $3.30 / Each

4,5,6
KEY/CLIP 104349 119038 . KEY/CLIP Yes Model Compatibility List $9.89 / Each

2,9
123762 119375 67 INCLINE MOTOR BOLT No Model Compatibility List $0.92 / Each

2,10
122824 119779 85 REAR PLATFORM SCREW No Model Compatibility List $0.26 / Each

2
123760 120243 33 RT REAR ROLLER ADJ BOLT No Model Compatibility List $1.84 / Each
Out Of Stock 		2,8
5/16 101661 012056 37 5/16" NYLON LOCKNUT No Model Compatibility List $0.48 / Each

2
CONSOLE GROUND SCREW 103901 120630 108 CONSOLE GROUND SCREW No Model Compatibility List $1.19 / Each

2,7
123763 120866 87 ELECTRONICS SCREW No Model Compatibility List $0.13 / Each

2
SEAT RAIL FLANGE NUT 104004 120867 90 SEAT RAIL FLANGE NUT No Model Compatibility List $3.75 / Each

2,9,12,13,14
123771 120873 # 14" BLACK WIRE,M/F No Model Compatibility List $4.15 / Each

4,5,6
105280 012096 60 ADJUSTMENT BLOCK NUT No Model Compatibility List $0.26 / Each

2
3/8 100136 012149 42 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
MOTOR WASHER 113293 122812 56 MOTOR WASHER No Model Compatibility List $1.53 / Each

2
3/8 106105 123494 . 3/8" X 3 1/2" BUTTON HEAD SCREW BOLT Yes Model Compatibility List $9.33 / Each

2
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
120161 124009 106 NYLON WASHER No Model Compatibility List $0.67 / Each

2
LARGE STANDOFF 101014 125819 81 LARGE STANDOFF Yes Model Compatibility List $0.34 / Each

2,1
FASTENER 118677 127860 # FASTENER No Model Compatibility List $1.28 / Each

1
1 100265 013028 59 1" SCREW No Model Compatibility List $1.40 / Each

2,4,5,6
116234 013141 8 M5 X 16MM SCREW No Model Compatibility List $0.13 / Each

2
M4 X 13MM SCREW 101030 013162 48 M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

2
REAR ROLLER BOLT 1/4 100358 013206 78 REAR ROLLER BOLT 1/4"-20X3" Yes Model Compatibility List $4.51 / Each

2,8
118932 013445 92 MOTOR BOLT No Model Compatibility List $0.41 / Each

2
124634 134807 . USER'S MANUAL No Model Compatibility List $10.67 / Each

1
IDLER ARM BOLT 100450 013547 41 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

2,3,8
102276 014041 91 IDLER ARM WASHER No Model Compatibility List $0.12 / Each

2,8,3
1/4 100042 014063 112 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
3/8 102446 014117 . 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

2
1/4 104040 014127 23 1/4" WASHER Yes Model Compatibility List $1.20 / Each

2,3
IDLER WHEEL WASHER 100263 014132 . IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

2,8
#8 STAR WASHER 100141 014157 55 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

2
WALKING BELT 118612 156437 54 WALKING BELT No Model Compatibility List $298.40 / Each

15
8 100063 016057 77 8" CABLE TIE No Model Compatibility List $1.30 / Each

2,1,4
MOTOR BELT 24 100342 170288 96 MOTOR BELT 24" Yes Model Compatibility List $21.99 / Each
15
3 TUBE LUBE KIT 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $30.38 / Each

1,3,15
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6,1
103158 045017 . 7/32" ALLEN WRENCH No Model Compatibility List $2.20 / Each

2,1
031229 Power Cord KV5-DWY-57F 031229a 031229 Power Cord Yes Model Compatibility List $32.99 / Each

5,6
Treadmill optical RPM pickup wire harness 1014502 102633 # 1 Treadmill optical RPM pickup wire harness Yes Model Compatibility List $13.19 / Each

4
Incline Stop Bracket (used) 1014517 141970 # 1 Incline Stop Bracket (used) Yes Model Compatibility List $5.49 / Each

10
TRANSPORT WHEEL,.38X2.97 (Used) 1014640 052014 # 2 TRANSPORT WHEEL,.38X2.97 (Used) Yes Model Compatibility List $6.59 / Each

8,9
Power Power Cord Entry Strain Relief Grommet (Incline) 1015857 019084 # 2 Power Power Cord Entry Strain Relief Grommet (Incline) Yes Model Compatibility List $3.29 / Each

4,6
Wireless Pulse Heart Rate Receiver Board + Wire (Used) 1015858 171905 # 1 Wireless Pulse Heart Rate Receiver Board + Wire (Used) Yes Model Compatibility List $49.50 / Each

7
1 1002402 113961 # 1 1" Safety Key Yes Model Compatibility List $10.99 / Each

9
24 1000267 101004 # 1 24" Drive Belt Yes Model Compatibility List $27.49 / Each

15
Hardwired Power Cord (Used 1000884 124669 # 1 Hardwired Power Cord (Used Yes Model Compatibility List $16.49 / Each

6
Spacer Sleeve 1018168 123470 7 2 Spacer Sleeve Yes Model Compatibility List $5.49 / Each

2
On Off Rocker Switch 1019077 144244 # 1 On Off Rocker Switch Yes Model Compatibility List $7.69 / Each

6

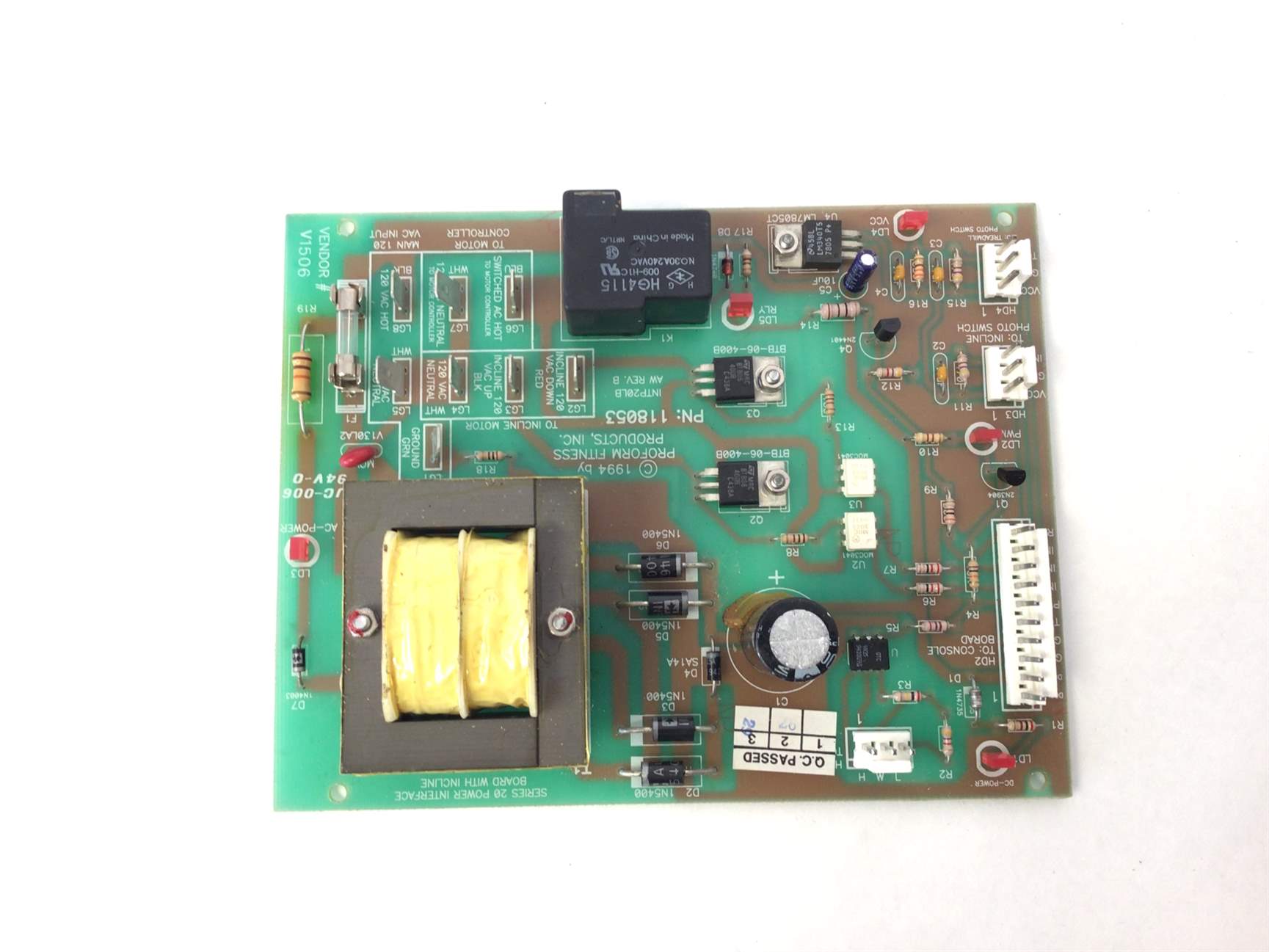

Power Supply Board (Used) 1022890 122215 36 Power Supply Board (Used) No Model Compatibility List $69.00 / Each

1
Locknut 5/16 1011501 012082 0 1 Locknut 5/16" Yes Model Compatibility List $11.99 / Each

1
M4 Locknut 1011776 012152 0 1 M4 Locknut Yes Model Compatibility List $11.99 / Each

1
