IMAGE - EXECUTIVE 2002

Brand: IMAGE

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: EXECUTIVE 2002

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Frame Related
  • Covers and Plastics
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
101448 100244 115 #6 X 9.5MM SCREW No Model Compatibility List $0.08 / Each

2
100427 100139 100427 . 5/16" NUT Yes Model Compatibility List $1.56 / Each

2,40
101897 101675 101897 # WHITE JUMPER WIRE 14" No Model Compatibility List $7.19 / Each

4,5,6
102634 100111 102634 # 8" GRN WIRE F/R, POWER No Model Compatibility List $4.75 / Each

4,5,6
101849 104794 # CARRIAGE CAP No Model Compatibility List $1.25 / Each

9,46
105444 104339 105444 100 REAR ROLLER ADJ BOLT Yes Model Compatibility List $2.95 / Each

2,8
107771 102884 107771 # 8 No Model Compatibility List $4.41 / Each

4,5,6
109231 100651 109231 84 POWER RECEPTICLE Yes Model Compatibility List $13.59 / Each

4,5,6
109407 100115 109407 # 4" BLK WIRE F/F, POWER No Model Compatibility List $2.93 / Each

4,5,6
111869 102934 111869 13 CAGE NUT No Model Compatibility List $4.20 / Each

2,3
113842 100081 113842 9 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8,1
114011 102281 114011 # 4 Yes Model Compatibility List $4.87 / Each

4,5,6
114012 102280 114012 # 4 No Model Compatibility List $2.74 / Each

4,5,6
113328 114953 # 14" BLUE WIRE F/F No Model Compatibility List $4.17 / Each

4,5,6
116926 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
112273 118201 # 8" RED WIRE JUMPER, M/F No Model Compatibility List $3.41 / Each

4,5,6
102820 118204 # 8" BLUE WIRE,M/F No Model Compatibility List $3.30 / Each

4,5,6
119038 104349 119038 . KEY/CLIP Yes Model Compatibility List $9.89 / Each

2,9
119425 100031 119425 . 3/8" HEX JAM NUT Yes Model Compatibility List $1.65 / Each

2
119445 104342 119445 # 1.25" TEK SCREW No Model Compatibility List $1.46 / Each

2
101661 012056 10 5/16" NYLON LOCKNUT No Model Compatibility List $0.48 / Each

2
012090 102840 012090 39 1/4" NUT No Model Compatibility List $1.54 / Each

2
012149 100136 012149 . 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
012179 100462 012179 83 U-NUT No Model Compatibility List $4.42 / Each

2
119248 122412 114 12" GROUND WIRE No Model Compatibility List $2.88 / Each

4,5,6
122794 100428 122794 28 SPRING BOLT No Model Compatibility List $2.13 / Each

2
102372 123325 8 #8 BELT GUIDE SCREW No Model Compatibility List $0.30 / Each

2,15
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
124280 102837 124280 25 5/16" X 4 1/2" BOLT No Model Compatibility List $3.88 / Each

2
125803 102882 125803 113 #8 X 1" SCREW No Model Compatibility List $2.54 / Each

2
126146 100112 126146 # 4" BLU WIRE F/F, DR MOTOR No Model Compatibility List $2.43 / Each

4,5,6
122690 128005 119 SPRING WASHER No Model Compatibility List $0.69 / Each

2
128457 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $9.99 / Each

2,1
128742 100440 128742 48 LIFT FRAME NUT No Model Compatibility List $0.95 / Each

2,3,10
129004 101035 129004 54 ROUND GROMMET No Model Compatibility List $3.64 / Each

2
100073 132315 75 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
013250 106114 013250 7 5/16" X 1.75" BUTTON HEAD SCREW No Model Compatibility List $4.27 / Each

2
013300 100149 013300 . #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
133333 100032 133333 2 #8 HOOD CLIP No Model Compatibility List $0.65 / Each

2,9,1,46
013438 102932 013438 21 UPRIGHT BOLT Yes Model Compatibility List $2.11 / Each

2,3
102838 013444 27 1/4" X 1 1/4" BOLT No Model Compatibility List $0.54 / Each

2
013484 101724 013484 80 5/16" X 1/2" BUTTON SCREW Yes Model Compatibility List $1.26 / Each

2
013500 100138 013500 117 5/16" X 1 1/2" SCREW No Model Compatibility List $3.92 / Each

2
013501 104188 013501 . WHEEL BOLT No Model Compatibility List $3.67 / Each

2,8
100326 013540 18 HANDLE SCREW No Model Compatibility List $0.12 / Each

2,11
013544 100017 013544 18 3/8" BOLT No Model Compatibility List $2.87 / Each

2
100466 135622 98 FRONT WHEEL BOLT No Model Compatibility List $4.19 / Each

2,8
136012 100252 136012 61 PLATFORM NUT No Model Compatibility List $1.47 / Each

2
136121 100359 136121 101 REAR ROLLER STAR WASHER No Model Compatibility List $2.33 / Each

2,8
119247 137393 78 LONG BELLY PAN SCREW No Model Compatibility List $0.43 / Each

2
104232 137824 # 10" WHITE WIRE, 2F No Model Compatibility List $3.37 / Each

4,5,6
014063 100042 014063 81 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
014073 100472 014073 6 5/16" WASHER Yes Model Compatibility List $1.25 / Each

2
100142 014088 23 #10 STAR WASHER No Model Compatibility List $0.07 / Each

2
014117 102446 014117 4 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

2
014126 100283 014126 99 REAR ROLLER WASHER No Model Compatibility List $1.10 / Each

2,8
014132 100263 014132 14 IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

2,8
014149 100449 014149 67 5/16" STAR WASHER No Model Compatibility List $0.20 / Each

2
142622 100255 142622 15 HANDRAIL BOLT No Model Compatibility List $3.28 / Each

2,3,9
142686 102839 142686 36 1/4" FLANGE NUT No Model Compatibility List $2.34 / Each

2
144985 100668 144985 89 M4 X 16MM SCREW No Model Compatibility List $1.32 / Each

2
100264 146427 82 1" TEK SCREW No Model Compatibility List $0.28 / Each

2
149442 118396 149442 98 4" BOLT No Model Compatibility List $6.96 / Each

2
118523 150102 125 WARNING DECAL No Model Compatibility List $2.10 / Each

7,3
150148 100266 150148 85 WHEEL BOLT No Model Compatibility List $4.19 / Each

2,8
015044 100432 015044 37 COTTER PIN No Model Compatibility List $1.98 / Each

12,13,14
152661 113158 152661 # 12" GREEN WIRE,F/R No Model Compatibility List $3.21 / Each

4,5,6
102395 153210 12 #8 X 3/4" FLAT HEAD SCREW No Model Compatibility List $0.21 / Each

2
102848 155433 53 DRIVE ROLLER GROUND WIRE No Model Compatibility List $1.89 / Each

8,4,5,6,10
155623 102243 155623 51 CONSOLE GROUND WIRE Yes Model Compatibility List $4.94 / Each

4,5,6,7
156429 102331 156429 124 Console Wire Harness Yes Model Compatibility List $24.06 / Each

4
157223 100453 157223 71 ROUND UPRIGHT ENDCAP Yes Model Compatibility List $5.51 / Each

3,4,5,6,9
157600 100076 157600 . BASE PAD Yes Model Compatibility List $6.83 / Each

3,12,13,14,46,1
157646 100352 157646 . 12" IFIT AUDIO JACK WIRE Yes Model Compatibility List $16.74 / Each

4,5,6
100301 158013 . FELT PAD No Model Compatibility List $0.75 / Each

12,13,14,1
102240 158157 113 STATIC DECAL No Model Compatibility List $1.84 / Each
Out Of Stock 		7,3
158332 100386 158332 . JACK Yes Model Compatibility List $7.66 / Each

4,5,6
016057 100063 016057 76 8" CABLE TIE No Model Compatibility List $1.30 / Each

2,1,4
161411 100247 161411 # PAD SPACER Yes Model Compatibility List $3.72 / Each

3,9
161943 122275 161943 108 HANDRAIL CAP Yes Model Compatibility List $3.51 / Each

3,9
165220 100433 165220 29 FRONT ROLLER ADJ BOLT No Model Compatibility List $2.79 / Each

2,8
118208 165224 50 12" GREEN WIRE, 2RING No Model Compatibility List $2.73 / Each

4,5,6
165798 102795 165798 73 REED SWITCH Yes Model Compatibility List $14.41 / Each

4,5,6
167079 100385 167079 . AUDIO CABLE Yes Model Compatibility List $17.61 / Each

4,5,6
168267 101004 168267 24 M4 X 12MM SCREW Yes Model Compatibility List $0.22 / Each

2,1
111528 169660 23 1/4" X 1 1/4" SCREW No Model Compatibility List $1.38 / Each

2
172822 100351 172822 82 AUDIO WIRE NUT No Model Compatibility List $1.32 / Each

2,4,5,6
173169 100061 173169 63 GROMMET Yes Model Compatibility List $0.94 / Each

2,1
102836 174782 11 #10 X 1/2" BOLT No Model Compatibility List $0.25 / Each

2
135669 176832 # 12" AUDIO WIRE No Model Compatibility List $13.59 / Each

4,5,6
177910 104348 177910 22 MOTOR TENSION WASHER No Model Compatibility List $3.71 / Each

2
179481 100641 179481 123 POWER CORD 80" No Model Compatibility List $60.40 / Each

4,5,6

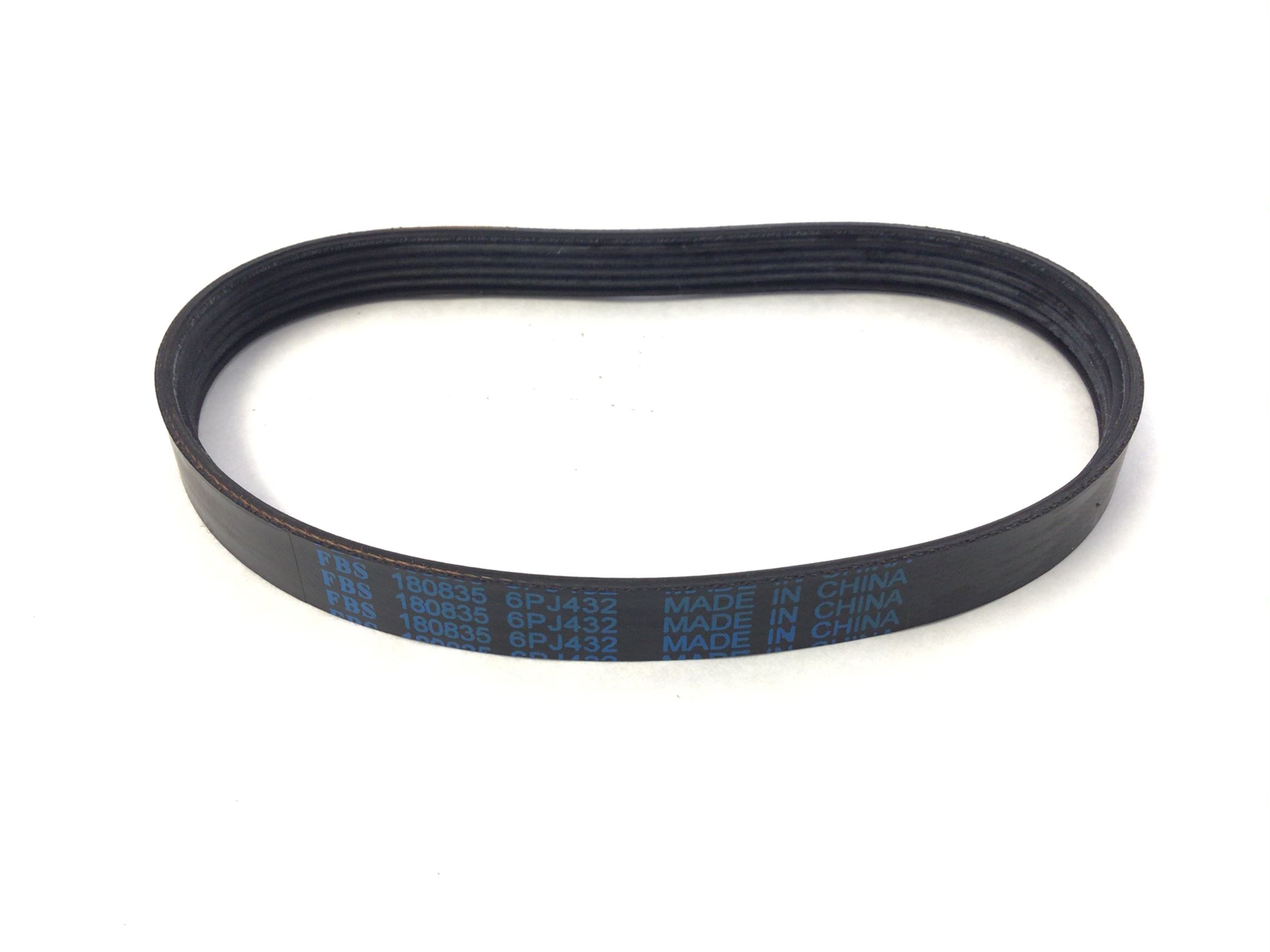

180835 119240 180835 . Motor Drive Belt 17 Inch 6PJ432 Yes Model Compatibility List $17.58 / Each
15
109927 181979 115 3/8" X 1 1/4" SCREW No Model Compatibility List $2.37 / Each

2
181980 106813 181980 72 3/8" X 1 1/2" BOLT Yes Model Compatibility List $4.59 / Each

2
119245 182914 39 HANDRAIL No Model Compatibility List $131.84 / Each

9,3
119249 182958 # TECH SHEET No Model Compatibility List $0.54 / Each

1
122822 182960 . USER'S MANUAL No Model Compatibility List $6.45 / Each

1
119243 183024 32 HANDRAIL PIVOT BOLT No Model Compatibility List $24.45 / Each

2,8,9,3
183246 102957 183246 116 1/4" x .5" Button Head Screw No Model Compatibility List $1.14 / Each

2
103169 183824 41 ELECTRONICS SCREW No Model Compatibility List $0.19 / Each

2
185162 M4-0.7X14MM 119244 185162 M4-0.7X14MM 38 SCREW No Model Compatibility List $2.08 / Each

2
119242 185790 27 PLASTIC STAND-OFF No Model Compatibility List $1.76 / Each

9
186726 100201 186726 62 POWER SWITCH Yes Model Compatibility List $20.45 / Each

4,5,6,1
186819 100120 186819 1A #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
194020 100497 194020 # PULSE RECIEVER SCREW No Model Compatibility List $0.32 / Each

2,12,13,14
194343 100435 194343 41 LOWER PIN Yes Model Compatibility List $5.31 / Each

12,13,14
198639 100147 198639 30 BELT GUIDE Yes Model Compatibility List $10.99 / Each

15,40
198640 100040 198640 4 BELT GUIDE No Model Compatibility List $16.59 / Each

15,40
100344 200747 46 GROUND WIRE No Model Compatibility List $2.56 / Each

4,5,6
201563 102808 201563 93 INCLINE WIRE No Model Compatibility List $13.42 / Each

4,5,6,10
203283 101667 203283 100 5/16"X 2" BTN SCRW, NOTE: No Model Compatibility List $4.27 / Each

1
204429 100461 204429 80 LIFT FRAME BOLT No Model Compatibility List $2.22 / Each

2,3,10
207753 104354 207753 30 3.5" BOLT Yes Model Compatibility List $6.38 / Each

2
119246 211448 44 CONSOLE INSERT No Model Compatibility List $475.92 / Each

7
214851 100421 214851 19 FRAME SPACER No Model Compatibility List $2.90 / Each
Out Of Stock 		2,3,4,5,6
215822 100187 215822 # 4 No Model Compatibility List $5.39 / Each

4,5,6,7
215823 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
215942 100431 215942 36 UPPER CLEVIS PIN Yes Model Compatibility List $5.72 / Each

12,13,14
216626 100422 216626 21 REED SWITCH CLIP No Model Compatibility List $1.85 / Each

2,4,5,6
219168 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $6.81 / Each

1,3,15
219170 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $30.38 / Each

1,3,15
100420 222902 18 MAGNET No Model Compatibility List $13.18 / Each

8
100460 234482 79 SQUARE UPRIGHT ENDCAP No Model Compatibility List $2.81 / Each

9,3,4,5,6
237858 100316 237858 # CHEST PULSE KIT No Model Compatibility List $166.63 / Each

12,13,14
102857 239835 72 BELLY PAN No Model Compatibility List $75.33 / Each
Out Of Stock 		1
100185 240351 # ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6,1
117456 241539 # SPEAKER, 4 OHM,W/WIRES No Model Compatibility List $19.67 / Each

4,5,6
244582 102881 244582 112 CUSHION STOP No Model Compatibility List $1.58 / Each

3
249516 102810 249516 97 INCLINE MOTOR Yes Model Compatibility List $143.85 / Each

10
103085 251497 120 CONSOLE CLAMP No Model Compatibility List $0.22 / Each

7,4,5,6
251607 102772 251607 30 #12 X 1 1/4" No Model Compatibility List $1.67 / Each

2
100178 252433 69 WARNING DECAL No Model Compatibility List $0.47 / Each

7,3,1
254345 102852 254345 58 IDLER ROLLER Yes Model Compatibility List $106.39 / Each

8
100280 256836 95 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
259500 102291 259500 24 MOTOR BOLT No Model Compatibility List $3.22 / Each

2
398063 102829 398063 72 CONTROLLER MC1618DLS Yes Model Compatibility List $199.95 / Each

7,8
102843 260254 47 ISOLATOR No Model Compatibility List $19.94 / Each

3
117517 260487 47 DRIVE ROLLER/PULLEY No Model Compatibility List $132.31 / Each

8,10
260972 102369 260972 28 MOTOR BELT Yes Model Compatibility List $39.75 / Each

15
262405 135677 262405 55 WALKING BELT No Model Compatibility List $123.47 / Each

15
263628 102402 263628 48 CUSHION TRACK Yes Model Compatibility List $17.96 / Each

3,4,5,6,15
268436 102869 268436 93 LEFT ACCESSORY TRAY Yes Model Compatibility List $13.61 / Each

4,5,6
268437 102870 268437 94 RIGHT ACCESSORY TRAY Yes Model Compatibility List $13.61 / Each

4,5,6
102871 268445 96 SPEAKER COVER No Model Compatibility List $11.79 / Each

9
268449 102879 268449 109 KEY/CLIP No Model Compatibility List $10.08 / Each

2,9
125219 268450 # SPEAKER GRILL No Model Compatibility List $12.73 / Each

9
268525 102853 268525 59 LEFT FOOT Yes Model Compatibility List $19.92 / Each

9
268526 102851 268526 57 RIGHT FOOT 227257 Yes Model Compatibility List $19.92 / Each

9
117532 268534 91 WHEEL No Model Compatibility List $2.61 / Each

8
135657 268535 77 HANDRAIL SPACER No Model Compatibility List $6.37 / Each

2,9,3,4,5,6
102867 268539 89 LATCH BRACKET No Model Compatibility List $7.02 / Each

2,3,4,5,6
135672 268882 # TECH SHEET No Model Compatibility List $0.86 / Each

1
135670 269016 # 6" GREEN WIRE 2F No Model Compatibility List $2.27 / Each

4,5,6
135660 269465 85 BASE No Model Compatibility List $235.54 / Each

3
269470 102850 269470 56 ROLLER BRACKET Yes Model Compatibility List $24.06 / Each

2,8,3,4,5,6
135659 269471 83 LEFT FOOT RAIL No Model Compatibility List $77.73 / Each

9
135655 269472 52 RIGHT FOOT RAIL No Model Compatibility List $75.60 / Each

9
135656 269473 63 MOTOR HOOD No Model Compatibility List $113.44 / Each
Out Of Stock 		9
135653 269474 42 PLATFORM CUSHION No Model Compatibility List $57.75 / Each

3
135654 269475 50 WALKING PLATFORM No Model Compatibility List $147.99 / Each

15
111926 273382 78 IFIT SD CARD KIT No Model Compatibility List $75.82 / Each
Out Of Stock 		1
122272 274112 105 PULSE CROSSBAR No Model Compatibility List $118.22 / Each

12,13,14
135665 274113 111 LEFT UPRIGHT No Model Compatibility List $144.31 / Each

3
135666 274114 112 RIGHT UPRIGHT No Model Compatibility List $144.31 / Each

3
135661 274115 90 EXTENSION LEG No Model Compatibility List $68.87 / Each

1
274688 102872 274688 97 CONSOLE BACK Yes Model Compatibility List $46.85 / Each

7,4,5,6
102864 274758 84 6" CONSOLE GROUND WIRE No Model Compatibility List $3.56 / Each

7,4,5,6
135714 274815 # USER'S MANUAL No Model Compatibility List $8.84 / Each

1
101471 274913 # IFIT CARD,CIRCUIT TRNG,L1 No Model Compatibility List $63.16 / Each

4,5,6
101472 274914 # IFIT CARD,CIRCUIT TRNG,L2 No Model Compatibility List $63.16 / Each

4,5,6
101473 274915 # IFIT CARD,CIRCUIT TRNG,L3 No Model Compatibility List $63.16 / Each

4,5,6
135692 275235 # HARDWARE KIT NOTE: No Model Compatibility List $57.66 / Each

1
275254 125211 275254 107 RIGHT HANDRAIL Yes Model Compatibility List $62.88 / Each

9,3
275255 125210 275255 106 LEFT HANDRAIL Yes Model Compatibility List $62.88 / Each

9,3
102761 276769 # IFIT SD, JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101474 276770 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101475 276771 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101476 276772 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101477 276773 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101478 276774 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
101479 276775 # IFIT SD,JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
102762 276776 # IFIT SD, JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
102763 276777 # IFIT SD, JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
102764 276778 # IFIT SD, JILLIAN MICHAELS No Model Compatibility List $27.49 / Each

1
279746 122269 279746 79 UPRIGHT WIRE Yes Model Compatibility List $71.70 / Each

3,4,5,6
286633 102313 286633 41 DRIVE MOTOR Yes Model Compatibility List $358.30 / Each

10
101465 290905 # IFIT CARD, WELLNESS, L1 No Model Compatibility List $21.99 / Each

1
101466 290906 # IFIT CARD, WELLNESS, L2 No Model Compatibility List $21.99 / Each

1
101467 290907 # IFIT CARD, WELLNESS, L3 No Model Compatibility List $21.99 / Each

1
101468 290908 # IFIT CARD, WEIGHT LOSS,L1 No Model Compatibility List $21.99 / Each

3
101469 290909 # IFIT CARD, WEIGHT LOSS,L2 No Model Compatibility List $21.99 / Each

3
101470 290910 # IFIT CARD, WEIGHT LOSS,L3 No Model Compatibility List $21.99 / Each

3
102760 290931 # IFIT CARD, PERFORMANCE No Model Compatibility List $0.00 / Each
Out Of Stock 		1
305744 100250 305744 56 REAR ROLLER ADJ. BOLT Yes Model Compatibility List $10.92 / Each

2,8
328547 102782 328547 51 STORAGE LATCH Yes Model Compatibility List $86.10 / Each
1
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6,1
101453 359077 CN, TURN OFF DEMO MODE No Model Compatibility List $0.00 / Each
Out Of Stock 		1
102842 045010 45 3/16" HEX KEY No Model Compatibility List $0.85 / Each

9,1
045023 100191 045023 # 1 5/32" ALLEN WRENCH No Model Compatibility List $4.62 / Each

2,1
052012 115252 052012 73 WHEEL Yes Model Compatibility List $4.49 / Each

8
180893 1020249 180893 0 1 5/16 inch -18 Button Head Shoulder Wheel Screw (Used) No Model Compatibility List $9.99 / Each

1
180852 1020266 180852 59 2 Wheel Cover (Used) No Model Compatibility List $9.99 / Each

9
182321 1020254 182321 89 1 Circuit Breaker 15A 125VAC 50-60Hz 50VDC (Used) No Model Compatibility List $16.99 / Each

6
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2022. All Rights Reserved.
