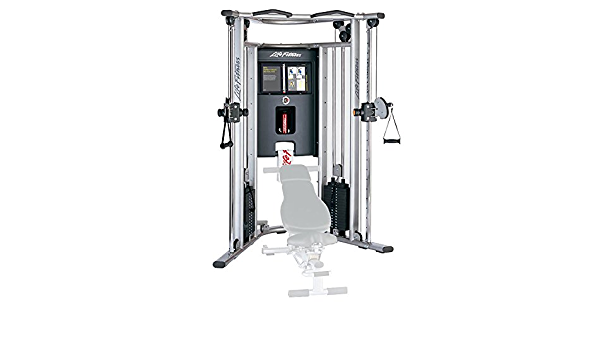

Life Fitness - G7-002

Repair Parts for Life Fitness G7-002

Brand: Life Fitness

Category: Functional Trainer

Type: Strength Systems

Model Name: G7-002

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Cables
  • Plastic Parts
  • Grips & Handles
  • Posts
  • Pins
  • Base
  • Roller
  • Pulley
  • Covers
  • Rollers and Rotating Parts
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
CUSHION, WEIGHT STACK 20000000 8264301 24 1 CUSHION, WEIGHT STACK Yes Model Compatibility List $19.99 / Each

1
2 20000007 LEA3249901 2 1 SPRING, COMPRESSION Yes Model Compatibility List $14.99 / Each

1
M5 X 0.8 HXS SOC CS ST BZ X 8 20000008 LEA3250002 5-pg14 1 M5 X 0.8 HXS SOC CS ST BZ X 8 Yes Model Compatibility List $8.99 / Each

2
SLEEVE, QUICK CONNECT 20000023 LEA7726301 14-pg14 1 SLEEVE, QUICK CONNECT Yes Model Compatibility List $19.32 / Each

1
20000087 LEA7351501 6-pg9 1 SPRING; PULL PIN LARGE No Model Compatibility List $3.22 / Each

1
20000114 8172901 1-pg4 1 WLDMT, TOWER, LEF No Model Compatibility List $611.39 / Each

3,44
20000115 8172001 2-pg4 1 WLDMT, TOWER, RIGHT No Model Compatibility List $611.39 / Each

3,44
20000116 8178003 3-pg4 1 BTUBE, REAR TOP No Model Compatibility List $202.54 / Each

3,44
20000117 8178002 4-pg4 1 BTUBE, REAR MIDDLE No Model Compatibility List $200.98 / Each

3
20000118 8178004 5-pg4 1 BTUBE, REAR BOTTOM No Model Compatibility List $231.41 / Each

3
20000119 8176701 6-pg4 1 WLDMNT, CHIN-UP No Model Compatibility List $324.18 / Each

3
20000120 8312601 7-pg4 1 FOOT, EXTENSION, FLOV No Model Compatibility List $107.09 / Each

25
20000121 8275801 8-pg4 1 ASSY, KIOSK No Model Compatibility List $548.35 / Each

3,25
20000122 8162201 9-pg4 1 TUBE, NUMBERED SLIDE No Model Compatibility List $406.73 / Each

3,25
20000123 8613201 10-pg4 1 ASSY, ROLLER CARRIAGE LEFT No Model Compatibility List $335.81 / Each

26
20000124 8151301 11-pg4 1 WLDMT, SWIVEL PULLEY LEFT No Model Compatibility List $76.82 / Each

3
20000125 8316401 12-pg4 1 WLDMT, SWIVEL PULLEY RIGHT No Model Compatibility List $69.84 / Each

37
20000126 8256901 13-pg4 1 WLDMT, BRKT, U, LEF No Model Compatibility List $44.52 / Each

2,3
20000127 8257401 14-pg4 1 WLDMT, BRKT, U, RIGHT No Model Compatibility List $44.52 / Each

2,3
20000128 8244301 15-pg4 6 BRKT, KIOSK No Model Compatibility List $11.05 / Each

2
20000129 8315601 16-pg4 2 WLDMT, HEAD PLATE PULLEY No Model Compatibility List $22.25 / Each

37
20000130 8167301 17-pg4 2 SHIELD, REAR SHROUD No Model Compatibility List $440.06 / Each

1,44
20000131 8264701 18-pg4 4 ASSY, GUIDE ROD No Model Compatibility List $150.16 / Each

1,13
20000132 8262501 19-pg4 2 ASSY, TOP PLATE 15, CASTEEL, SPCL Yes Model Compatibility List $240.17 / Each

1
20000133 7935301 20-pg4 30 WEIGHT PLATE, 10LB, CASTEEL No Model Compatibility List $240.17 / Each

1
20000134 7936701 21-pg4 2 ASSY, SELECTOR PIN, 80/20 No Model Compatibility List $39.48 / Each

14
20000135 8264301 22-pg4 4 CUSHION, WEIGHT STACK, 65MM Yes Model Compatibility List $13.28 / Each

1
20000136 8265601 23-pg4 2 CABLE, BE, BE 293" No Model Compatibility List $112.28 / Each

5
20000137 7634401 9 4 RETAINER, CM/MJ, GUIDE ROD No Model Compatibility List $29.80 / Each

3,13
20000138 3232421 1 4 RING:BRE .940 5100-100 ST PP B No Model Compatibility List $3.22 / Each

1,2
20000139 3240502 6 4 M10 X 1.5 X 50 HXS NO CUP ST BO No Model Compatibility List $2.84 / Each

2
20000140 8211301 27-pg4 1 GRIP, CHIN UP, LEFT No Model Compatibility List $25.97 / Each

11
20000141 8211401 28-pg4 1 GRIP, CHIN UP, RIGHT No Model Compatibility List $25.97 / Each

11
20000142 7662801 3 2 RING, GRIP 1.25 OD No Model Compatibility List $11.83 / Each

11
20000143 7662901 2 2 CAP; GRIP 1.25 OD No Model Compatibility List $18.50 / Each

11
20000144 3247701 31-pg4 8 M4 X 0.7 X 3 HZS NO CUP ST BO No Model Compatibility List $3.00 / Each

2
20000145 8167401 32-pg4 4 END CAP, 50 X 100 X 2.5 No Model Compatibility List $25.61 / Each

9
20000146 7642301 1 2 BUMPER, CM/MJ, PLUG No Model Compatibility List $7.03 / Each

1
20000147 8229001 34-pg4 4 COVER, PULLEY, FULL No Model Compatibility List $6.59 / Each

37
20000148 8228901 35-pg4 4 COVER, PULLEY, PARTIAL No Model Compatibility List $6.59 / Each

37
20000149 3256211 1 7 SCREW, M10 X 1.5 70MM ZN No Model Compatibility List $14.12 / Each

2
20000150 3264201 37-pg4 94 WASHER, M10 No Model Compatibility List $2.84 / Each

2
20000151 3242002 38-pg4 25 NUT, M10 X 1.5 HEX NYLOCK No Model Compatibility List $2.84 / Each

2
20000152 3256215 1 2 SCREW, M10 X 1.5 90MM ZN No Model Compatibility List $8.82 / Each

2
BEARING, FLANGED BALL, 10IDX19OD 20000153 3261501 40-pg4 4 BEARING, FLANGED BALL, 10IDX19OD No Model Compatibility List $13.28 / Each

1
20000154 3256206 5 12 SCREW, M10 X 1.5 45MM ZN No Model Compatibility List $14.80 / Each

2
20000155 8317101 42-pg4 2 PLUG, HEX, .500-13 No Model Compatibility List $11.93 / Each

2
20000156 3102702 43-pg4 4 NUT, HEX 1/2-13 No Model Compatibility List $5.05 / Each

2

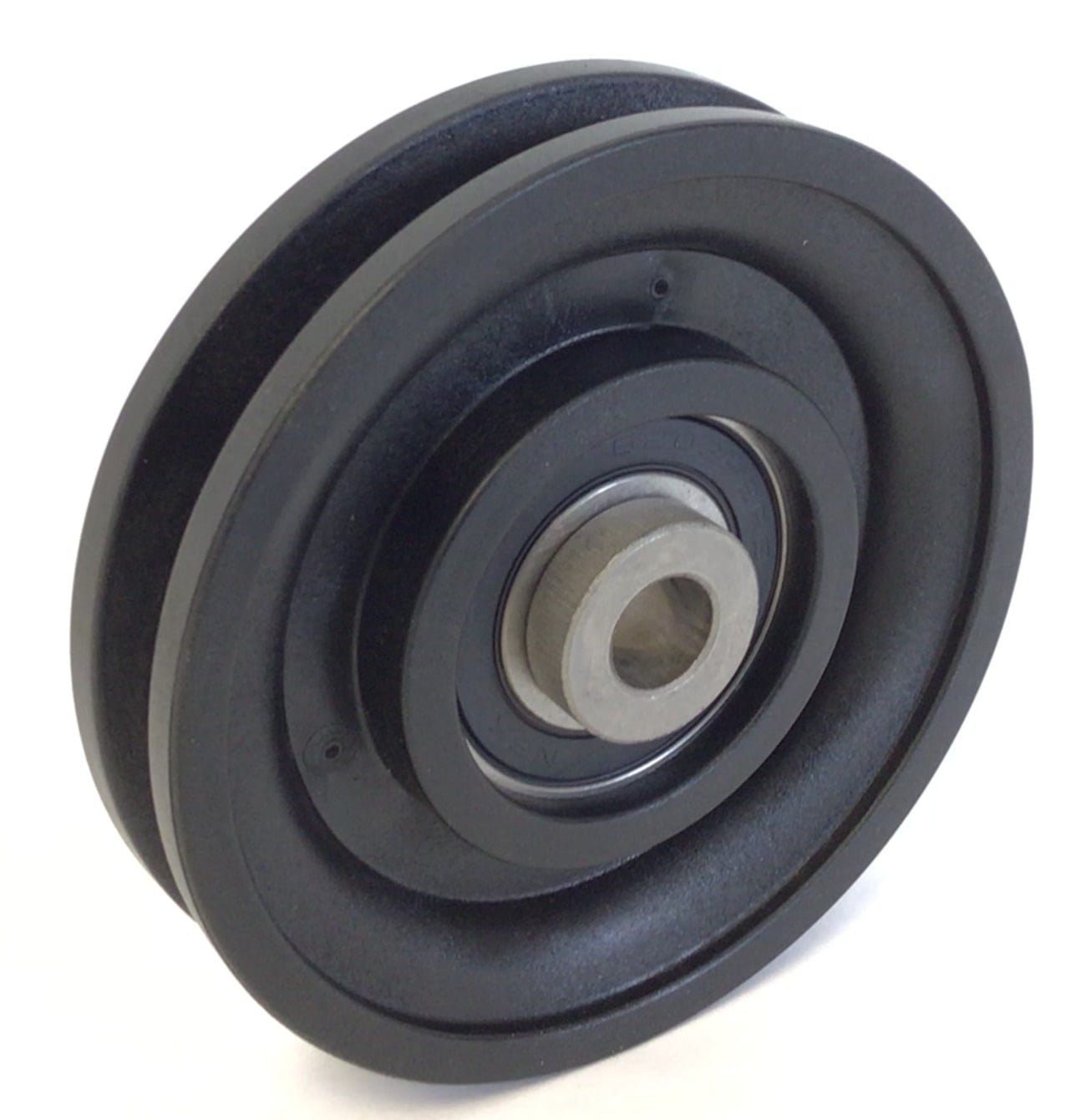

20000157 3258301 44-pg4 16 PULLEY, 88.9 OD X 10 X 25.4 No Model Compatibility List $27.94 / Each

37
20000158 7810801 9 7 PAD, RUBBER FOOT, 10-0101-006, BNR No Model Compatibility List $15.72 / Each

1
20000159 3239102 46-pg4 28 SCREW, M5 X .8 X 12 PHL PAN TT ST BZ No Model Compatibility List $3.00 / Each

2
20000160 3256201 5 44 SCREW, M10 X 1.5 X 1.5 20MM ZN No Model Compatibility List $8.18 / Each

2
20000161 3265001 1 12 WASHER, 10.5MM X 25MM No Model Compatibility List $7.33 / Each

2
20000162 3264901 49-pg4 12 SCREW, M10 X 1.5, SH BO No Model Compatibility List $5.80 / Each

2
20000163 3242201 5 22 M5-.8 X 16MM HXS SOC CS ST PH No Model Compatibility List $2.84 / Each

2
20000164 3264101 3 22 WASHER, M6 No Model Compatibility List $2.84 / Each

2
20000165 3262501 52-pg4 32 SCREW, SHOULDER, M5 X 6 X 14 No Model Compatibility List $27.74 / Each

2
20000166 3262701 53-pg4 32 GROMMET, 17/64 X 3/8 No Model Compatibility List $6.59 / Each

1
20000167 3256208 54-pg4 2 SCREW, M10 X 1.5 55MM ZN No Model Compatibility List $6.59 / Each

2
20000168 3256207 55-pg4 8 SCREW, M10 X 1.5 50MM ZN No Model Compatibility List $6.59 / Each

2
20000169 3264601 56-pg4 8 NUT, M10 X 1.5 SCK HD, SPL No Model Compatibility List $14.80 / Each

2
20000170 3264501 57-pg4 8 RETAINER, PULLEY No Model Compatibility List $8.82 / Each

37
20000171 8326901 58-pg4 2 LABEL, WARNING, LOCKOUT No Model Compatibility List $6.59 / Each

1
20000172 8327001 59-pg4 2 LABEL, WEIGHT STACK STRIP No Model Compatibility List $15.52 / Each

1
20000173 8039501 1 4 LABEL, WARNING, TRIANGLE, BNR No Model Compatibility List $2.75 / Each

1
20000174 8257501 61-pg4 2 PIN, DETENT, 5MM LOCK OUT No Model Compatibility List $27.94 / Each

14
20000175 8613101 62-pg4 1 ASSY, ROLLER CARRIAGE RIGHT No Model Compatibility List $316.80 / Each

45
20000176 8317001 2 1 LABEL, LIFE FI T 63.5MM X 381MM No Model Compatibility List $27.65 / Each

1
20000177 8220001 1 1 LABEL, ASTM WARNING SELECT-ENG No Model Compatibility List $8.82 / Each

1
20000178 8106801 4-pg5 1 LABEL, SERIAL NUMBER, LARGE, 10-0123-001, BNR No Model Compatibility List $7.00 / Each

1
20000179 8616001 1-pg6 1 WLDMT, CARRIAGE, LEFT No Model Compatibility List $74.57 / Each

3
20000180 8182501 2-pg6 1 ROLLER, FLOV, 30 X 70 No Model Compatibility List $13.28 / Each

45
20000182 8222201 4-pg6 1 COVER, BACK, ROLLER CARRIAGE No Model Compatibility List $16.46 / Each

44
20000183 8222101 5-pg6 1 COVER, FRONT, ROLLER CARRIAGE No Model Compatibility List $15.68 / Each

44
20000184 3264302 6-pg6 2 SCREW, CAP, M6 X 1.0, 25MM No Model Compatibility List $2.84 / Each

2
20000185 3263501 7-pg6 2 SPRING, COMPRESSION No Model Compatibility List $8.87 / Each

1
20000186 8293701 8-pg6 2 INSERT, CARRIAGE BEARING No Model Compatibility List $6.59 / Each

1
20000187 3263801 9-pg6 6 BRG, NEEDLE No Model Compatibility List $18.91 / Each

1
20000188 3264801 10-pg6 2 TAPE, VHB No Model Compatibility List $6.52 / Each

1
20000189 8294101 11-pg6 2 ROLLER, FLOV 30 X 70, LONG No Model Compatibility List $18.53 / Each

45
20000190 3221704 12-pg6 8 E-RING, EXTERNAL, .250 No Model Compatibility List $18.53 / Each

2
20000191 3236501 2 10 M4 X 0.7 PHIL PAN MS ST ZN No Model Compatibility List $18.53 / Each

2
20000192 8294001 14-pg6 2 SHAFT, ROLLER, 8MM No Model Compatibility List $9.36 / Each

45
20000193 8344401 15-pg6 1 LABEL, WARNING, PULL PIN No Model Compatibility List $5.80 / Each

1
20000194 8294002 16-pg6 1 SHAFT, ROLLER, 10MM No Model Compatibility List $6.59 / Each

45
20000195 8396301 4 1 ASSY, OVERMOLD GRIP No Model Compatibility List $36.08 / Each

11
20000196 8615601 18-pg6 1 PIN, PULL No Model Compatibility List $21.83 / Each

14
20000197 8615701 19-pg6 1 ROLL PIN, 5MM X 12MM No Model Compatibility List $4.93 / Each

14
20000198 8235401 1-pg7 1 KIOSK, G7 No Model Compatibility List $387.56 / Each

3
20000199 8327101 2-pg7 1 LABEL, LIFE FIT 63.5MM X 381MM No Model Compatibility List $22.25 / Each

1
20000200 8344801 3-pg7 1 LABEL, LIFE FIT 63.5MM X 381MM No Model Compatibility List $43.12 / Each

1
20000201 8275701 4-pg7 1 BINDER, 3 RING, KIOSK No Model Compatibility List $24.35 / Each

2
20000202 8265801 5-pg7 1 PAPER, BINDER, G7 (WORKOUT BOOK) No Model Compatibility List $132.70 / Each

1
20000203 3236502 6-pg7 2 M4 X 0.7 PHL PAN MS ST ZN No Model Compatibility List $6.31 / Each

2
20000204 8289301 7-pg7 1 ASSY, BUG, G7 No Model Compatibility List $24.44 / Each

1
20000205 8344701 8-pg7 1 LABEL, LEFT BACK, KIOSK No Model Compatibility List $43.12 / Each

1
20000206 3265301 1 1 WASHER, M4 No Model Compatibility List $2.84 / Each

2
20000207 3265201 10-pg7 2 NUT, M4 X 0.7 HEX NYLOCK No Model Compatibility List $6.31 / Each

2
20000208 8615901 1-pg9 1 WLDMT, CARRIAGE, RIGHT No Model Compatibility List $111.16 / Each

3
20000209 8166901 1-pg10 1 GUIDE ROD, 19MM X 1762MM No Model Compatibility List $154.62 / Each

3
20000210 8264601 2-pg10 1 PLUG, GUIDE ROD No Model Compatibility List $6.59 / Each

1
20000211 7726201 1 1 COUPLER, QUICK CONNECT No Model Compatibility List $61.69 / Each

2
20000212 7726401 4 1 HSNG, QUICK CONNECT No Model Compatibility List $6.14 / Each

9,44
20000213 7726301 3 1 SLEEVE, QUICK CONNECT No Model Compatibility List $18.74 / Each

9
20000214 3250002 1 2 M5 X 0.8 HXS SOC CS ST BZ X 8 No Model Compatibility List $6.66 / Each

2
20000218 8348101 4-pg13 1 MARKER, DRY ERASE No Model Compatibility List $0.00 / Each
Out Of Stock 		1
20000224 8352101 11-pg13 1 MANUAL, G7 No Model Compatibility List $17.10 / Each

1
20000227 8644901 1-pg14 1 TUBE, LONG BAR, CONSUMER No Model Compatibility List $67.86 / Each

3
20000228 8645001 2-pg14 2 WLDMT, LONG BAR SWIVEL, CONSUMER No Model Compatibility List $0.00 / Each
Out Of Stock 		3
20000229 7435301 2 4 COLLAR, SHAFT 1.020 ID No Model Compatibility List $6.14 / Each

1
20000230 8645201 4-pg14 2 GRIP, LONG BAR, CONSUMER No Model Compatibility List $17.16 / Each

11
20000231 3119304 3 2 CAP, END 1 DIA RD 10-12GA No Model Compatibility List $2.84 / Each

9
20000232 3104906 7-pg14 4 1.00" ID 1.25" OD BRONZ BUSHING No Model Compatibility List $20.05 / Each

2
