Life Fitness - C15

Repair Parts for Life Fitness C15 C15-0000-01

Brand: Life Fitness

Category: Consumer Upright Lifecycle Bike

Type: Stationary Bikes

Model Name: C15

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Brake
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
- 518019 REX015D - Grommet, Upright Oval No Model Compatibility List $1.57 / Each

2,3
- 518020 REX019S - Spacer, Tensioner Yes Model Compatibility List $3.81 / Each

2,3,4,5,6
- 518022 REX01A8 - Plastic Cap. Crank Yes Model Compatibility List $7.17 / Each

8,9
- 518023 REX01AK - Wheel, Assembly No Model Compatibility List $9.99 / Each

8
- 518027 REX01H5 - Magnet Rexon No Model Compatibility List $3.81 / Each

8
- 518028 REX01HL - Drive Motor, Pesistande DC Yes Model Compatibility List $70.77 / Each

4,5,6,10
- 518031 REX01LH - Spring, Tensioner No Model Compatibility List $5.44 / Each

2
- 518039 REX0HVP - Bearing Ball 6004ZZ No Model Compatibility List $11.45 / Each

1
- 518042 REX0J4E - Hardware: Washer, Flat 6MM*13-1 No Model Compatibility List $1.57 / Each

2
- 518047 REX0J5G - Hardware: Washer, 8MM ID X 18MM OD X 1.5MM Yes Model Compatibility List $2.69 / Each

2
- 518048 REX0J5H - Hardware: Washer, 6MM ID X 12MM OD Yes Model Compatibility List $1.57 / Each

2
- 518051 REX0J6C - Hardware: Flat Washer No Model Compatibility List $1.57 / Each

2
- 518055 REX0J93 - Hardware: Washer, Lock Spring 1.0 Yes Model Compatibility List $2.69 / Each

2
- 518068 REX0JEG - Ring: C-Ring, A-20 No Model Compatibility List $1.57 / Each

1
- 518069 REX0JEJ - Ring, Retaining, 63/64, Snap Ring Yes Model Compatibility List $4.93 / Each

1
- 518073 REX0JGM - Key, Crank Feather Type No Model Compatibility List $3.81 / Each

8,9
- 518075 REX0JL9 - Belt, Poly-V No Model Compatibility List $36.84 / Each

15
- 518076 REX0JPT - Hardware: Bolt, 8MM X 60MM Yes Model Compatibility List $3.81 / Each

2
- 518077 REX0JQB - Hardware: Bolt, HEX HD M6*1.0-110 No Model Compatibility List $1.57 / Each

2
- 518081 REX0JZM - Hardware: 8-18 Screw, HEX Washer Type 25 Yes Model Compatibility List $3.81 / Each

2
- 518082 REX0JZU - Hardware: Screw, SHCS Brake MTG Yes Model Compatibility List $3.81 / Each

2
- 518083 REX0K01 - Hardware: Screw, SHCS 5MM X 15MM Yes Model Compatibility List $2.69 / Each

2
- 518085 REX0K05 - Hardware: Screw, SHCS 8MM X 20MM No Model Compatibility List $1.57 / Each

2
- 518090 REX0K2B - Hardware: Screw, SHCS Brake MTG No Model Compatibility List $1.57 / Each

2
- 518099 REX0K4A - Hardware: Screw, M5*0.8-20 PHl PAN HD No Model Compatibility List $1.57 / Each

2
- 518100 REX0K4R - Hardware: Screw, PHl 5MM X 12MM Yes Model Compatibility List $2.69 / Each

2
- 518101 REX0K4S - Hardware: Screw, PHl 5MM X 12MM Yes Model Compatibility List $2.69 / Each

2
- 518107 REX0K71 - Hardware: Screw, 8MM Seat Post No Model Compatibility List $1.57 / Each

2,12,13,14
- 518111 REX0KA6 - CR.RE. PAN HD. Tapping Screw No Model Compatibility List $1.57 / Each

2,12,13,14
- 518122 REX0KD5 - Hardware: Screw, Pad HD M4 X .7-6MM No Model Compatibility List $2.71 / Each

2,12,13,14
- 518124 REX0KDG - CR. RE. PAN HD. SCREW No Model Compatibility List $1.57 / Each

2
- 518126 REX0KDJ - Hardware: Screw, PHl 5MM*.8 X 12MM Yes Model Compatibility List $2.42 / Each

2
- 518135 REX0KMS - Hardware: Nut, HEX M6*1.0 T=5 No Model Compatibility List $1.57 / Each

2
- 518137 REX0KN5 - Hardware: Nut, M19 Low Prof No Model Compatibility List $5.44 / Each

2
- 518146 REX0KRR - Serrated Toothed Hexagon Flang No Model Compatibility List $1.57 / Each

1
- 518151 REX0WRG - Hardware: Bolt, 8MM X 100MM Yes Model Compatibility List $4.93 / Each

2
- 518153 REX20EK - Magnetic Brake Assembly No Model Compatibility List $240.51 / Each

8
- 518159 REX20F9 - Cover, Crank No Model Compatibility List $3.20 / Each

8,9
- 518161 REX20FD - Cap, Upright Seat Assembly No Model Compatibility List $1.57 / Each

9,3,12,13,14
- 518165 REX20FY - Spacer, Seat Post No Model Compatibility List $1.57 / Each

2,3,4,5,6,12,13,14
- 518166 REX20KZ - Bracket, Brake MTG Left No Model Compatibility List $18.04 / Each

2,3,4,5,6
- 518167 REX20L2 - Flywheel - Pulley No Model Compatibility List $62.20 / Each

8
- 518169 REX20LB - Crank Shaft No Model Compatibility List $47.36 / Each

8
- 518171 REX20LL - Bracket, Brake MTG Right No Model Compatibility List $18.04 / Each

2,3,4,5,6
- 518183 REX20MX - Handle Bar Assembly No Model Compatibility List $82.32 / Each

11
- 518184 REX20N7 - Cap, 1.5 X 4.0 Tube Yes Model Compatibility List $4.93 / Each

3,9
- 518185 REX20N8 - Knob, Seat Adjuster Yes Model Compatibility List $14.75 / Each

12,13,14
- 518186 REX20N9 - Seat Post No Model Compatibility List $75.72 / Each

12,13,14
- 518190 REX20NU - Idier Wheel Bracket Assembly No Model Compatibility List $13.10 / Each

2,8,3,4,5,6
- 518200 REX20QB - Cable, Resistance Brake No Model Compatibility List $12.00 / Each

4,5,6,10
- 518219 REX20UK - Cap, Handlebar No Model Compatibility List $1.57 / Each

9,11
- 518224 REX20VX - Wire Harness Main No Model Compatibility List $14.75 / Each

4,5,6
- 518225 REX20VY - Harness, Console Mast No Model Compatibility List $11.45 / Each

7,4,5,6
- 518230 REX20W4 - Hardware: Nut, HEX M10 X 1.5-6 No Model Compatibility List $1.57 / Each

2
- 518234 REX20YL - Hardware: Screw, CR RE PAN HD Tap M3*24-8 No Model Compatibility List $3.20 / Each

2
- 518243 REX2109 - Sensor, RPM No Model Compatibility List $4.86 / Each

1
- 518244 REX210A - Cable, Rear Xformer Conn No Model Compatibility List $6.51 / Each

4,5,6
- 518252 REX2121 - Grommet, Seat Position No Model Compatibility List $3.20 / Each

2,12,13,14
- 518292 REX21CV - Holder, Water Bottle Yes Model Compatibility List $10.39 / Each

1
- 518311 REX21PX - Plate, Set No Model Compatibility List $1.57 / Each

1
- 518312 REX21QX - Inserts-Nut No Model Compatibility List $1.57 / Each

2
- 518315 REX21RE - Hardware: Screw, SHCS 8MM X 50MM Yes Model Compatibility List $3.81 / Each

2
- 518339 REX228A - Hardware: Screw, PHl 5MM X 40MM No Model Compatibility List $1.57 / Each

2
- 518374 REX24ZJ - Transformer, 120/60 Domestic No Model Compatibility List $0.00 / Each
Out Of Stock 		1

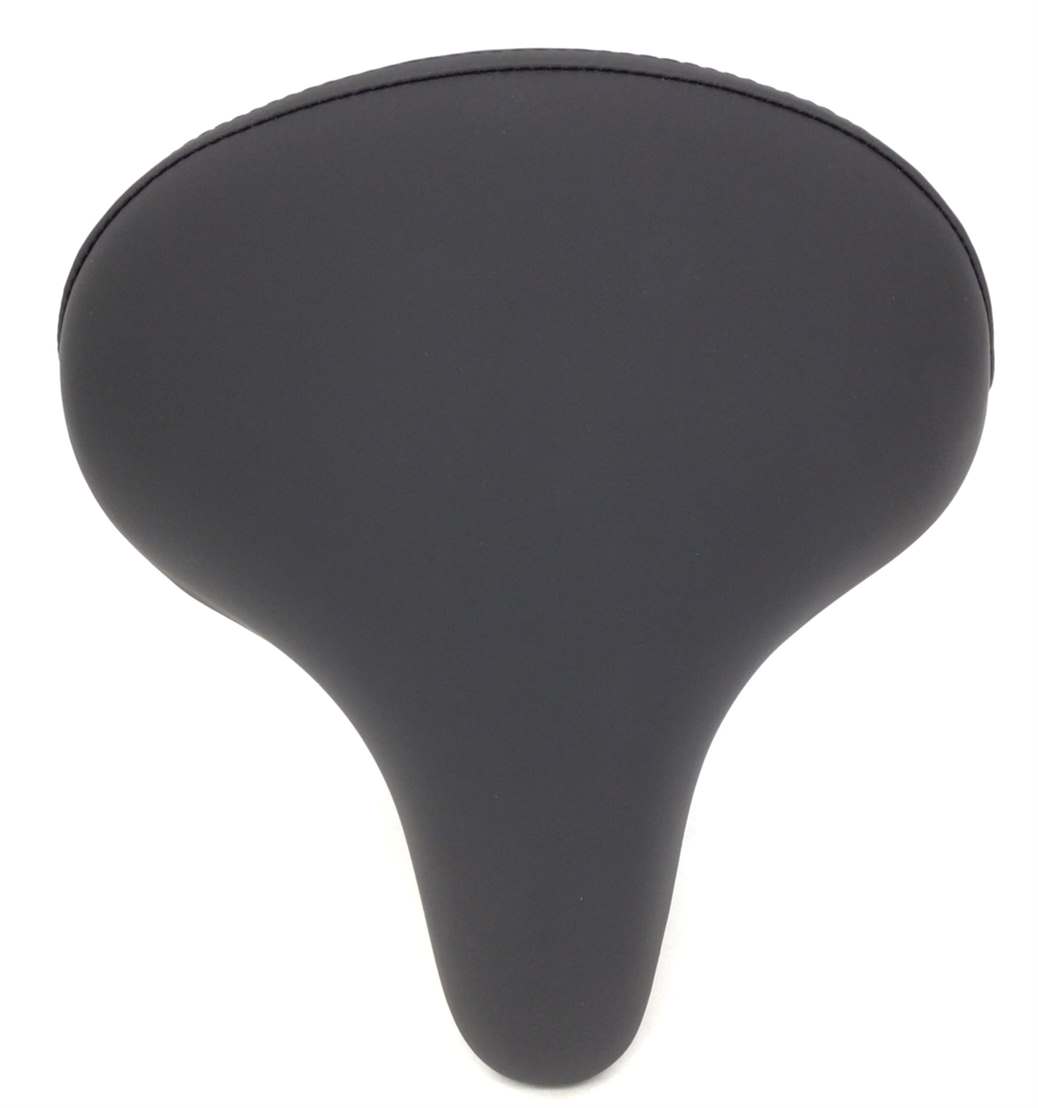

- 518384 REX2ADH - Seat with Vendor Label No Model Compatibility List $57.81 / Each

12,13,14
- 518399 REX2ARH - Decal: Label, LifeFitness Logo No Model Compatibility List $9.80 / Each

7,3
- 518402 REX2AS2 - Shroud, Main Left No Model Compatibility List $79.02 / Each

12,13,14
- 518403 REX2AS3 - Shroud, Main Right Yes Model Compatibility List $100.30 / Each

12,13,14
- 518405 REX2AS8 - Shroud, Access Cover No Model Compatibility List $11.45 / Each

9,4,5,6,12,13,14
- 518416 REX2AT8 - Console Mast Assembly No Model Compatibility List $139.99 / Each

7
- 518417 REX2ATC - Overlay, C1-5 & R1-5 No Model Compatibility List $29.59 / Each

1
- 518418 REX2ATD - Overlay, KeyPad No Model Compatibility List $0.00 / Each
Out Of Stock 		9,12,13,14
- 518423 REX2AU0 - CONSOLE, FRONT C1-5/R1-5 No Model Compatibility List $11.45 / Each

7
- 518424 REX2AU1 - Console, Rear C1-5/R1-5 No Model Compatibility List $14.75 / Each

7
- 518433 REX2AV9 - Label, Life Fitness Back No Model Compatibility List $6.51 / Each

4,5,6
- 518437 REX2AVP - BADGE, C1-5 No Model Compatibility List $11.45 / Each

1
- 518454 REX2AY0 - Circuit Board C15 & R15 No Model Compatibility List $406.95 / Each

7,4,5,6
- 518455 REX2AY1 - Assembly, Standard Console English C15 R15 Yes Model Compatibility List $495.95 / Each

7
- 518462 REX2AZD - Shroud, Upright Left No Model Compatibility List $8.15 / Each

3,12,13,14
- 518463 REX2AZE - Shroud Or Seat Track Cover, Right No Model Compatibility List $9.80 / Each

9,15,3,4,5,6,12,13,14
- 518469 REX2B11 - Grip, Handle No Model Compatibility List $41.12 / Each

11
- 518471 REX2B19 - Assembly, Rear Foot Stabilizer Yes Model Compatibility List $73.14 / Each

9
- 518474 REX2B72 - Grommet, Upright Post No Model Compatibility List $3.20 / Each

2,3,12,13,14
- 518475 REX2B7R - Decal: Label, Seat Post No Model Compatibility List $3.20 / Each

7,3,12,13,14
- 518479 REX2B82 - Cap, Handle Bar End No Model Compatibility List $1.57 / Each

9,11
- 518488 REX2B90 - Cable, Heart Rate Conn No Model Compatibility List $4.86 / Each

4,5,6,12,13,14
- 518492 REX2B96 - Accessory: Water Bottle No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
- 518497 REX2BB9 - Label, Life Fitness Front No Model Compatibility List $4.86 / Each

1
- 518499 REX2BF3 - Cover, Extra Crank Hole Yes Model Compatibility List $5.44 / Each

8,9
- 518500 REX2BF5 - Pedal, Left No Model Compatibility List $14.75 / Each

8,9
- 518501 REX2BF6 - Pedal, Right No Model Compatibility List $14.75 / Each

8,9
- 518510 REX2BQM - Assembly Pedals No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
- 518665 REX2NFK - Leveler, Leg Yes Model Compatibility List $9.92 / Each

1
- 518818 REX3GJ3 - CRANK, LEFT Yes Model Compatibility List $31.32 / Each

8
- 518819 REX3GJ4 - CRANK, R No Model Compatibility List $35.80 / Each

8
- 1001130 REX01HL - Resistance Gear Servo Motor Brake Yes Model Compatibility List $79.00 / Each

36
View Drawing
