Life Fitness - Club Series Pec Fly

Repair Parts for Life Fitness Club Series Pec Fly CSFLY

Brand: Life Fitness

Category: Commercial Strength Equipment

Type: Strength Systems

Model Name: Club Series Pec Fly

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
1 506172 3102514 1 Hardware: Flat Washer 3/8" ID No Model Compatibility List $1.57 / Each

2
1 506179 3102807 1 Hardware: Nut 3/8" ID No Model Compatibility List $1.57 / Each

2
1 506181 3102901 1 3/8-16X1-1/4" UNS HEX FHB G2 ZN No Model Compatibility List $1.57 / Each

1
1 506183 3102903 1 3/8-16 X 2-1/2 UNS HEX FHB G2 ZN No Model Compatibility List $1.57 / Each

1
1 506184 3102905 1 3/8-16 X 3-3/4 UNS HEX FHB G2 ZN No Model Compatibility List $1.57 / Each

1
1 506185 3102906 1 3/8-16X4 UNS HEX FHB G2 ZN No Model Compatibility List $9.77 / Each

1
1 506187 3102922 1 3/8-16X2-3/4 UNS HEX FHB G2 ZN No Model Compatibility List $4.74 / Each

1
1 506188 3102933 1 3/8-16X2 UNS HEX FHB G2 ZN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
3 506200 3104903 3 Bearing 1" ID 1.25'" OD No Model Compatibility List $4.26 / Each

1
3 506205 3106301 3 No Model Compatibility List $4.86 / Each

1

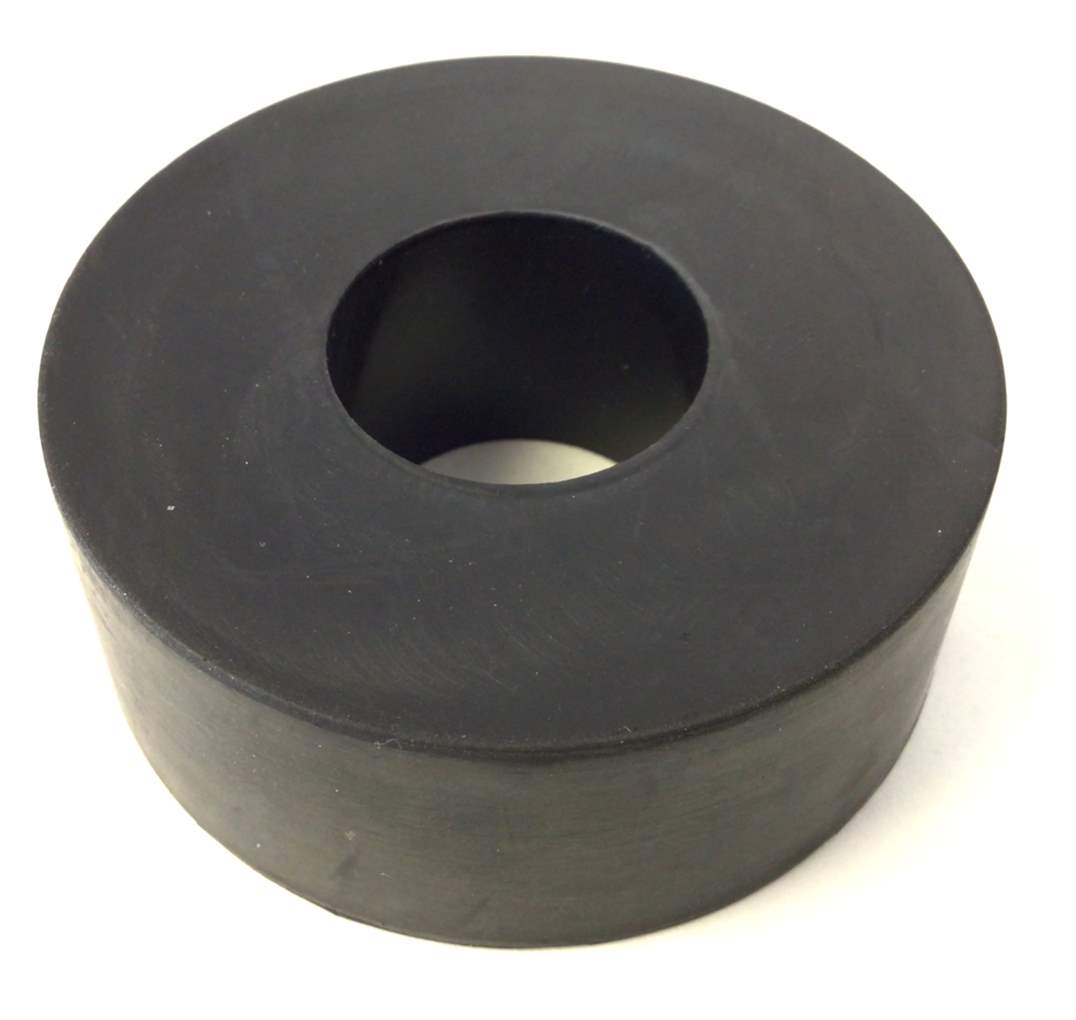

2 506206 3108001 2 Cushion Weight Stack No Model Compatibility List $3.20 / Each

3,4,5,6
3 506211 3108409 3 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
2 506224 3114705 2 Nut, Nylock 5/16-18 BZ No Model Compatibility List $0.00 / Each
Out Of Stock 		2
1 506241 3202404 1 3/8-16 X 3 HXS BUT CS G8 BO No Model Compatibility List $0.00 / Each
Out Of Stock 		1
2 506251 3203501 2 Assembly, Pillow Block 5.125 X2.75 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
2 506277 3221701 2 E-Ring, External 3/8 No Model Compatibility List $1.57 / Each

1
3 506280 3222001 3 Collar, Shaft 1 ID Black Plastic No Model Compatibility List $30.82 / Each

9,4,5,6
2 506281 3222101 2 SPRING, .480 DIA X .081 X1-7/8 No Model Compatibility List $6.44 / Each

2
2 506283 3222801 2 Pulley, 4-1/2 OD X 1/4" ID X 1 No Model Compatibility List $0.00 / Each
Out Of Stock 		8
4 506326 3230701 4 Washer .391-.683-036 EX-D ST BZ No Model Compatibility List $1.57 / Each

2
2 506342 3233401 2 No Model Compatibility List $8.93 / Each

1
2 506345 3234301 2 5/16-18 X 1/2 HXS FL SC ST BZ No Model Compatibility List $2.15 / Each

1
3 507074 6714901 3 Bushing Guide Rod No Model Compatibility List $1.57 / Each

8,3
2 507076 6793001 2 Label, Product Warning 2" No Model Compatibility List $22.77 / Each

3
4 507109 6861902 4 NLA: SHROUD, TOP 18-1/2 BLK No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
4 507110 6862007 4 SHROUD, FRONT 10" PLATINUM No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
4 507111 6862102 4 NLA: SHROUD, SIDE 10" BLK No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
3 507112 6866601 3 Cap, RH-20 Black No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
3 507113 6866602 3 Cap, RH-20 White No Model Compatibility List $1.57 / Each

9
2 507115 6866701 2 Washer, Right 3/8 ID No Model Compatibility List $1.57 / Each

2
2 507118 6876999 2 Custom No Model Compatibility List $0.00 / Each
Out Of Stock 		1
3 507126 6888402 3 ORDER CSWGT-4100-101 FROM FINISHED GOODS No Model Compatibility List $74.08 / Each
Out Of Stock 		1
3 507133 6895701 3 NLA: PLATE, 1/2 X 3 X 5-1/2 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
2 507134 6896901 2 Pin, Hinge 3/8 Diameter X 2-13/16 No Model Compatibility List $8.15 / Each

12,13,14
2 507135 6897001 2 Plate, Adjustment 15 Positions No Model Compatibility List $0.00 / Each
Out Of Stock 		1
2 507136 6897101 2 Plate, Adjustment 10.594 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
2 507157 6912202 2 Weldment, Hinge Black No Model Compatibility List $74.08 / Each

3,4,5,6
2 507166 6913199 2 *SEAT PAD No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
- 507182 6921602 - PTD ASSY,FRNT SHRD 64(FULL)BLK No Model Compatibility List $548.68 / Each

12,13,14
4 507193 6925202 4 NLA: PTD ASSY,REAR SHRD 64(FULL)BLK No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
1 507194 6925502 1 Painted Assembly, Head Plate 20" Black No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
3 507198 6926601 3 NLA: GUIDE ROD,PLTD 1" OD 11GA X 60 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
2 507206 6930099 2 Pad, 14 X 6 Rld Edge Custom No Model Compatibility List $224.29 / Each

12,13,14
2 507281 6967402 2 Painted Assembly, Seat Adjust Black No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
2 507284 6971601 2 Label, Stack Standard 15 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
3 507366 7053601 3 NLA: LABEL, PLACARD CSFLY No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
7 507371 7056799 7 ASSY PIVOT ARM No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
3 507372 7057799 3 ASSY RIGHT CAM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
4 507373 7057999 4 ASSY LEFT CAM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
8 507374 7058199 8 ASSY BOTTOM FRAME No Model Compatibility List $0.00 / Each
Out Of Stock 		3
3 507375 7058301 3 NLA: LABEL, PLACARD LNG ADNDM CSFLY No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
9 507383 7061199 9 ASSY 3? X 2? TUBE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
1 507398 7085799 1 GUIDE ROD SUPPORT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
1 507456 7146499 1 TOWER No Model Compatibility List $0.00 / Each
Out Of Stock 		1
1 507457 7146701 1 Cable Assembly, BE-BE 157-3/8 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
5 507458 7146899 5 ASSY RIGHT TOP FRAME No Model Compatibility List $0.00 / Each
Out Of Stock 		3
6 507459 7147199 6 ASSY LEFT TOP FRAME No Model Compatibility List $0.00 / Each
Out Of Stock 		3
2 507460 7147599 2 WLDMT, SEAT FRAME No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
3 512116 ACU06-0357PLAT 3 Cap - Right Plate No Model Compatibility List $1.57 / Each

9
3 515389 CSWGT-4000-101 3 Standard Weight Plate Option No Model Compatibility List $0.00 / Each
Out Of Stock 		3
1 517126 LEA3102904 1 375 - 16 X 3.00 HEX Head Bolt No Model Compatibility List $3.20 / Each

2
3 517127 LEA3102924 3 .375-16 X 1.75 HEX Head Bolt No Model Compatibility List $1.57 / Each

2
2 517128 LEA3104301 2 Bumper; Rubber 3/4 SQ No Model Compatibility List $1.57 / Each

1
1 517156 LEA6480301 1 Spacer; FLNG 3/8LD X5/8OD X9/16 No Model Compatibility List $1.57 / Each

2,3,4,5,6
1 517157 LEA6692601 1 Cap; End 3 X 2 10-14GA No Model Compatibility List $1.57 / Each

9
