Life Fitness - E3-XXXX-0105

Brand: Life Fitness

Category: Consumer Equipment

Type: Elliptical

Model Name: E3-XXXX-0105

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
3225301 506310 3225301 CR-006 Bearing, 12MM Ball No Model Compatibility List $9.87 / Each

1
8974001 510980 8974001 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, DOM Yes Model Compatibility List $88.12 / Each

6
8974101 510981 8974101 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, UK No Model Compatibility List $98.15 / Each

1
8974201 510982 8974201 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, CONT No Model Compatibility List $88.12 / Each

1
8974301 510983 8974301 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, AUST No Model Compatibility List $88.12 / Each

1
8974401 510984 8974401 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, BR No Model Compatibility List $96.32 / Each

1
9001101 511032 9001101 BT-001 SERVICE ASSY EDDY BRAKE No Model Compatibility List $318.54 / Each

8
REX01H5 518027 REX01H5 CR-010 Magnet Rexon No Model Compatibility List $3.81 / Each

8
REX01HL 518028 REX01HL MR-005 Drive Motor, Pesistande DC Yes Model Compatibility List $70.77 / Each

4,5,6,10
REX01J8 518030 REX01J8 MR-002 Switch, Reed, RPM Sensor Yes Model Compatibility List $6.76 / Each

4,5,6
REX01QH 518032 REX01QH MR-010 Cable, Brake Harness No Model Compatibility List $17.05 / Each

5
REX0HVP 518039 REX0HVP ID-011 Bearing Ball 6004ZZ No Model Compatibility List $11.45 / Each

1
REX0HVY 518040 REX0HVY BT-011 Bearing, Ball 6204ZZ Yes Model Compatibility List $13.69 / Each

1
REX0J4R 518044 REX0J4R IA-003 Hardware: Washer, 20MM OD X 10MM ID X 3MM Thick No Model Compatibility List $1.57 / Each

2
REX0J69 518050 REX0J69 CD-002 Hardware: Washer, Flat .6 X 13-1 No Model Compatibility List $1.57 / Each

2
REX0J93 518055 REX0J93 BR-008 Hardware: Washer, Lock Spring 1.0 Yes Model Compatibility List $2.69 / Each

2
REX0JAF 518059 REX0JAF CS-011 Hardware: Star Washer No Model Compatibility List $1.57 / Each

2
REX0JB7 518061 REX0JB7 ID-002 Hardware: Wave Washer; 20.5MM X 26.7MM T = 0.25MM Yes Model Compatibility List $9.63 / Each

2,4,5,6
REX0JBD 518062 REX0JBD UA-004 Hardware: Wave Washer; 25MM X 35MM No Model Compatibility List $3.81 / Each

2
REX0JDZ 518064 REX0JDZ IA-002 Ring, Retaining B-35 No Model Compatibility List $1.51 / Each

1
REX0JE0 518065 REX0JE0 PL-005 Ring, Retaining B-40 Yes Model Compatibility List $6.32 / Each

1
REX0JEE 518067 REX0JEE PL-015 Ring, Retaining A-17 Yes Model Compatibility List $3.81 / Each

1
REX0JEG 518068 REX0JEG BR-005 Ring: C-Ring, A-20 No Model Compatibility List $1.57 / Each

1
REX0JEJ 518069 REX0JEJ CR-002 Ring, Retaining, 63/64, Snap Ring Yes Model Compatibility List $4.93 / Each

1
REX0JGQ 518074 REX0JGQ CC-003 Crank Key No Model Compatibility List $1.57 / Each

8,9
REX0K0A 518087 REX0K0A CS-004 Hardware: Cap Screw, M8 X 1.25-16 No Model Compatibility List $1.57 / Each

2,9
REX0K28 518089 REX0K28 MR-003 Hardware: Cap Screw, M5 X 0.8-16 No Model Compatibility List $1.57 / Each

2,9
REX0K2W 518092 REX0K2W BR-001 Hardware: Screw, SHCS Brake Mounting No Model Compatibility List $3.81 / Each

2
REX0K5T 518106 REX0K5T CC-008 Hardware: Screw, PHl M5 X 0.8-10 No Model Compatibility List $1.57 / Each

2
REX0KEH 518130 REX0KEH MR-006 Hardware: Screw, Pan HD with Patch M5 X .8-16 No Model Compatibility List $1.57 / Each

2
REX0KMR 518134 REX0KMR MR-011 Hardware: Nut, M5 X 0.8, 4MM Thick No Model Compatibility List $1.57 / Each

2
REX0KR0 518142 REX0KR0 BT-017 Hardware: Nut, Lock M12 X 1.75-12 No Model Compatibility List $1.57 / Each

2
REX0KR3 518143 REX0KR3 CR-005 Hardware: Nut, Lock M6 X 1, 6MM Thick No Model Compatibility List $1.57 / Each

2
REX0KR5 518145 REX0KR5 BR-016 Hardware: Nut, Nylock M10 X 1.5, 10M Thick No Model Compatibility List $3.81 / Each

2
REX20W4 518230 REX20W4 BR-006 Hardware: Nut, HEX M10 X 1.5-6 No Model Compatibility List $1.57 / Each

2
REX218N 518270 REX218N CR-003 Pulley, Crank Yes Model Compatibility List $77.60 / Each

8
REX21A6 518283 REX21A6 BR-014 Hardware: Bolt, Hook Clamp Yes Model Compatibility List $8.22 / Each

2
REX21A7 518284 REX21A7 BR-015 Hardware: Stud, Swivel No Model Compatibility List $3.20 / Each

1
REX21BJ 518291 REX21BJ BR-009 Brake, Assembly Eddy Current Yes Model Compatibility List $267.68 / Each

8
REX21LF 518295 REX21LF BT-018 Bracket, Brake MTG Yes Model Compatibility List $42.20 / Each

3
REX21LG 518296 REX21LG BT-002 Spacer, Collar Yes Model Compatibility List $9.34 / Each

2
REX21NN 518302 REX21NN UP-002 Hardware: Nut, Insert M10 X 1.5 No Model Compatibility List $1.57 / Each

2
REX21NP 518303 REX21NP BT-003 Hardware: Bolt, HEX HD M12 X 1.75-110mm Yes Model Compatibility List $7.71 / Each

2
REX21NS 518306 REX21NS CR-001 Hardware: Bolt, HEX HD. M8 X 1.25-60MM No Model Compatibility List $4.93 / Each

2
REX21NT 518307 REX21NT CR-012 Hardware: Bolt, HEX HD M6 X 1-20 No Model Compatibility List $1.57 / Each

2
REX21X8 518337 REX21X8 BR-002 Spacer, Tensioner No Model Compatibility List $1.57 / Each

2,3,4,5,6
REX22B3 518342 REX22B3 UA-003 Hardware: Washer, .26 X 35-.8 No Model Compatibility List $3.81 / Each

2
REX22LR 518363 REX22LR BR-017 Ring: C-Ring, A-16 No Model Compatibility List $3.20 / Each

1
REX22RP 518368 REX22RP CC-002 Hardware: Nut, Nylock M8 X 1.25 X 6MM Thick Yes Model Compatibility List $3.81 / Each

2
REX25ZJ 518377 REX25ZJ BT-014 Hardware: Cap Screw, M8 X 1.25-20 No Model Compatibility List $1.81 / Each

2,9
REX2BAD 518496 REX2BAD PL-002 Shaft, Coupler Pedal Conn Yes Model Compatibility List $17.71 / Each

8,9
REX2BKB 518503 REX2BKB PL-003 Bearing, Self-Align, 2203 Yes Model Compatibility List $20.35 / Each

1
REX2D1X 518520 REX2D1X CS-010 Hardware: Screw, PHl PAN M5 X 0.8-6 No Model Compatibility List $1.57 / Each

2
REX2DVG 518522 REX2DVG ID-007 Hardware: Bolt, HEX M10 X 1.5-20 No Model Compatibility List $1.57 / Each

2
REX2GHY 518549 REX2GHY CBL-002 Cable, Cross-Trainer Base Yes Model Compatibility List $28.00 / Each

4,5
REX2K86 518561 REX2K86 CBL-001 Power Entry Inlet Cable, Cross-Trainer Motor-Transformer Yes Model Compatibility List $21.30 / Each

4,5,6
REX2LJZ 518595 REX2LJZ PL-014 Axle, Adj Link No Model Compatibility List $4.86 / Each

8
REX2LL1 518599 REX2LL1 CD-003 Weldment, Axle Crank No Model Compatibility List $47.36 / Each

3,8
REX2LL2 518600 REX2LL2 CC-001 Weldment, Crank Arm Yes Model Compatibility List $65.78 / Each

8
REX2LQJ 518621 REX2LQJ CBL-012 Cable, Grip, HR Sensor To Console No Model Compatibility List $4.86 / Each

7,4,5,6,12,13,14,11
REX2LRT 518628 REX2LRT CC-005 Plate; Crank No Model Compatibility List $13.10 / Each

8
REX2LUH 518630 REX2LUH SC-004 Grommet, 38MM X 25MM No Model Compatibility List $1.57 / Each

2
REX2MJK 518640 REX2MJK CO-004 Bolt, HEX Head M10 X 1.5-85 Yes Model Compatibility List $7.20 / Each

2
REX2MJM 518641 REX2MJM CS-010 Hardware: Screw, PHl Pan M3.5 X 18-12 No Model Compatibility List $1.51 / Each

2
REX2MPQ 518648 REX2MPQ UA-005 Hardware: Washer, 35MM OD X 10MM OD X 3MM Thick No Model Compatibility List $1.57 / Each

2
REX2NAD 518655 REX2NAD UA-009 Hardware: Screw, PHl HD M4 X 18-28 No Model Compatibility List $1.57 / Each

2
REX2NAH 518657 REX2NAH CS-011 Hardware: Screw, PHl PAN M4 X 0.7-8 No Model Compatibility List $1.57 / Each

2
REX2NDD 518661 REX2NDD PL-011 Hardware: Washer, Spacer No Model Compatibility List $1.57 / Each

2,3,4,5,6
REX2NFK 518665 REX2NFK ST-008 Leveler, Leg Yes Model Compatibility List $9.92 / Each

1
REX2PJ0 518675 REX2PJ0 UP-019 Hardware: Bolt HEX M10 X 1.5-70 No Model Compatibility List $4.61 / Each

2
REX2R27 518679 REX2R27 CBL-004 WIRE GROUND HR Yes Model Compatibility List $11.00 / Each

4,5,6
REX2S4K 518721 REX2S4K US-004 Grommet Upright X1 No Model Compatibility List $1.51 / Each

2,3
REX2S4Q 518722 REX2S4Q SC-009 Axle Wheel Transport No Model Compatibility List $2.73 / Each

8
REX2S4R 518723 REX2S4R SC-010 Wheel Transport No Model Compatibility List $2.39 / Each

8
REX2S61 518725 REX2S61 - Wire Harness User Pod, User Pod Side No Model Compatibility List $10.95 / Each

4,5,6
REX2T6K 518737 REX2T6K SC-002 Grommet 30MM X 70MM No Model Compatibility List $1.51 / Each

2
REX2T9D 518739 REX2T9D ST-009 Hardware: Nut HEX M10X1.5 Black Zinc No Model Compatibility List $1.51 / Each

2,4,5,6
REX2T9E 518740 REX2T9E UA-011 Hardware: Bolt HEX M10X1.5-74 Black Zinc No Model Compatibility List $1.88 / Each

2,4,5,6
REX2T9F 518741 REX2T9F MR-001 Belt Poly V J510 51" or 1294J Yes Model Compatibility List $39.27 / Each

15
REX2T9W 518743 REX2T9W PL-007 Hardware: Screw, PHl TRUSS M5X.8-8 No Model Compatibility List $1.51 / Each

2
REX2T9X 518744 REX2T9X MS-001 Hardware: Screw, PHl PAN M5X.8-12 Clear Zinc No Model Compatibility List $0.68 / Each

2
REX2ZXH 518758 REX2ZXH UA-016 BOLT: M8X1.25-20 HEX. SOC. HD. CAP No Model Compatibility List $1.46 / Each

2,9
REX309G 518760 REX309G CBL-003 WIRE HARNESS MAIN Yes Model Compatibility List $33.30 / Each

4
REX3535 518783 REX3535 BT-010 BRKT, BELT TENSOR Yes Model Compatibility List $27.83 / Each

15
REX35JK 518790 REX35JK ST010 STABILIZER ENDCAP Yes Model Compatibility List $4.20 / Each

9
REX3E98 518800 REX3E98 CO-008 END CAP No Model Compatibility List $1.46 / Each

9
REX3E9C 518801 REX3E9C IA-005 END CAP, IDLER No Model Compatibility List $4.82 / Each

8,9
REX3E9M 518802 REX3E9M CC-006 CRANK COVER; TITANIUM Yes Model Compatibility List $26.88 / Each

8,9
REX3EA5 518806 REX3EA5 PL-001 RIGHT PEDAL LEVER ASSY,E1 E3 No Model Compatibility List $249.59 / Each

8,9,3
REX3EA6 518807 REX3EA6 PL-016 LEFT PEDAL LEVER ASSY,E1 E3 No Model Compatibility List $249.59 / Each

8,9,3
REX3EA7 518808 REX3EA7 CO-009 COUPLER ASSY E1 LEFT, E3 RIGHT No Model Compatibility List $164.09 / Each

1
REX3EA8 518809 REX3EA8 CO-001 COUPLER ASSY E1 RIGHT, E3 LEFT No Model Compatibility List $164.09 / Each

1
REX3EA9 518810 REX3EA9 IA-001 IDLER ASSEMBLY,E1 E3 No Model Compatibility List $75.39 / Each

8
REX3EVT 518817 REX3EVT CS-013 SCREW, PHL PAN M5X16-12; BLACK No Model Compatibility List $1.46 / Each

2,4,5,6
REX3HLX 518826 REX3HLX PL-014 PEDAL, INSERT Yes Model Compatibility List $72.63 / Each

8,9
REX3HP1 518828 REX3HP1 PC-004 DEAD SHAFT COVER; FRONT Yes Model Compatibility List $11.09 / Each

9
REX3HP3 518830 REX3HP3 PC-005 DEAD SHAFT COVER; REAR Yes Model Compatibility List $11.09 / Each

9
REX3HR4 518836 REX3HR4 CS-006 TOP HEART RATE SENSOR Yes Model Compatibility List $13.65 / Each

11
REX3HR5 518837 REX3HR5 CS-019 BOTTOM HEART RATE SENSOR Yes Model Compatibility List $13.65 / Each

11
REX3HS9 518841 REX3HS9 CBL-018 HR BOARD ASSEMBLY No Model Compatibility List $230.26 / Each

12,13,14
REX3HSA 518842 REX3HSA CBL-012 WIRE ASSEMBLY+M72 Yes Model Compatibility List $13.85 / Each

4,5,6
REX3HSB 518843 REX3HSB CBL-013 WIRE ASSEMBLY Yes Model Compatibility List $23.96 / Each

4,5,6
REX3HSC 518844 REX3HSC CBL-015 HAND PULSE HARNESS Yes Model Compatibility List $13.33 / Each

4,11
REX3HSE 518845 REX3HSE CBL-019 HAND PULSE HARNESS Yes Model Compatibility List $29.56 / Each

4
REX3HSF 518846 REX3HSF CBL-021 HAND PULSE HARNESS Yes Model Compatibility List $17.52 / Each

4,5,6,12,13,14
REX3HU3 518848 REX3HU3 US-003 CONSOLE MAST ASSEM No Model Compatibility List $228.51 / Each

7
REX3HU7 518849 REX3HU7 CS-015 COVER CONSOLE MTG BOTTOM FRONT No Model Compatibility List $23.89 / Each

7,9
REX3HU8 518850 REX3HU8 CS-017 COVER CONSOLE MTG BOTTOM REAR Yes Model Compatibility List $15.58 / Each

9

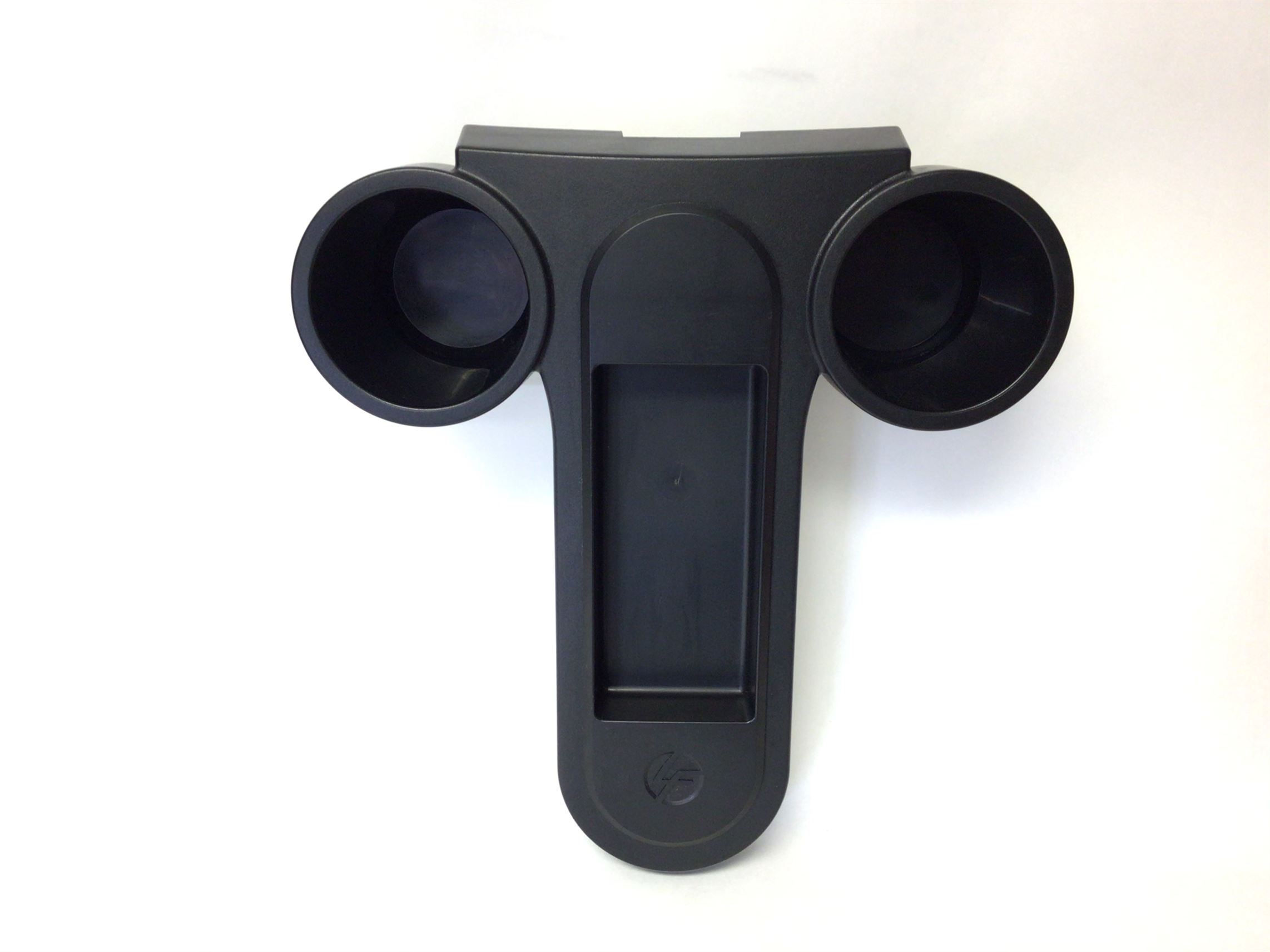

REX3HU9 518851 REX3HU9 CS-009 CUPHOLDER Yes Model Compatibility List $52.00 / Each

9
REX3HUF 518852 REX3HUF PC-001 FRONT BRACKET COVER (REAR) Yes Model Compatibility List $10.89 / Each

9
REX3HUG 518853 REX3HUG PC-002 FRONT BRACKET COVER (FRONT) Yes Model Compatibility List $12.60 / Each

9
REX3HUH 518854 REX3HUH PL-010 PEDAL, RIGHT Yes Model Compatibility List $32.56 / Each

8,9
REX3HUJ 518855 REX3HUJ PL-017 PEDAL, LT Yes Model Compatibility List $32.48 / Each

8,9
REX3HUR 518860 REX3HUR SC-001 E3 FRONT STABILIZER ASSY No Model Compatibility List $131.30 / Each

1
REX3HV0 518861 REX3HV0 CS-010 WELDMENT CONSOLE BRKT Yes Model Compatibility List $39.80 / Each

3
REX3HWV 518880 REX3HWV CS-004 ASSY STATIONARY HANDLEBAR LT No Model Compatibility List $41.81 / Each

11
REX3HWW 518881 REX3HWW CS-001 ASSY STATIONARY HANDLEBAR RT No Model Compatibility List $41.81 / Each

11
REX3HWX 518882 REX3HWX CS-002 END CAP Yes Model Compatibility List $3.70 / Each

9
REX3HYU 518891 REX3HYU CS-006 USER POD ASSY - ACTIVITY ZONE X3/X5/E3 Yes Model Compatibility List $146.05 / Each

1
REX3JMU 518892 REX3JMU CS-005 HANDLEBAR ASSEMBLY W/ HAND PLUSE ASSEM No Model Compatibility List $21.25 / Each

11
REX3JNL 518893 REX3JNL PC-002 SCREW: M3.5X18-12 TRUSS HD. TAPPING No Model Compatibility List $1.46 / Each

2,12,13,14
REX3JNN 518894 REX3JNN UP-018 BOLT, HEX M10X1.5-16 ; BLACK ZINC No Model Compatibility List $1.48 / Each

2,4,5,6
REX3JNZ 518895 REX3JNZ CC-007 SCREW, PHL PAN M5X.8-8; BLACK ZINC No Model Compatibility List $1.46 / Each

2,4,5,6
REX3JPY 518897 REX3JPY CS-008 SCREW: M3.5X20-8 PHL PAN HD No Model Compatibility List $1.46 / Each

2
REX3K52 518898 REX3K52 PL-019 VELCRO PAD No Model Compatibility List $1.46 / Each

12,13,14
REX3K5K 518899 REX3K5K MS-003 REAR LEFT SHROUD ASSEMBLY E1, E3 No Model Compatibility List $128.27 / Each

12,13,14
REX3K62 518900 REX3K62 MS-002 REAR RIGHT SHROUD ASSEMBLY E1, E3 No Model Compatibility List $128.27 / Each

12,13,14
REX3K64 518901 REX3K64 US-007 LEFT FRONT LOWER COVER W/BADGE E3 No Model Compatibility List $46.72 / Each

9
REX3K66 518902 REX3K66 US-001 RIGHT FRONT LOWER COVER W/BADGE E3 No Model Compatibility List $46.72 / Each

9
REX3K67 518903 REX3K67 UA-024 LEFT ROCKER ARM W/BEARINGS ASSEM No Model Compatibility List $181.62 / Each

3
REX3K68 518904 REX3K68 UA-023 RIGHT ROCKER ARM W/BEARINGS ASSEM No Model Compatibility List $181.62 / Each

3
REX3K6B 518905 REX3K6B UA-022 NLA: LEFT HANDLEBAR ASSEM No Model Compatibility List $0.00 / Each
Out Of Stock 		11
REX3KL6 518915 REX3KL6 UA-014 RESISTANCE BUTTON ASSEMBLY Yes Model Compatibility List $49.85 / Each

11
REX3PA8 518916 REX3PA8 UA-005 ASSEMBLY: HANDLEBAR, RIGHT W/SWITCH Yes Model Compatibility List $195.37 / Each

4,5,6,11
E3-Screw 1019218 E3-Screw 0 1 Life Fitness E3 E3-XX00-0105 Elliptical Screw (Used) No Model Compatibility List $10.79 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2023. All Rights Reserved.
