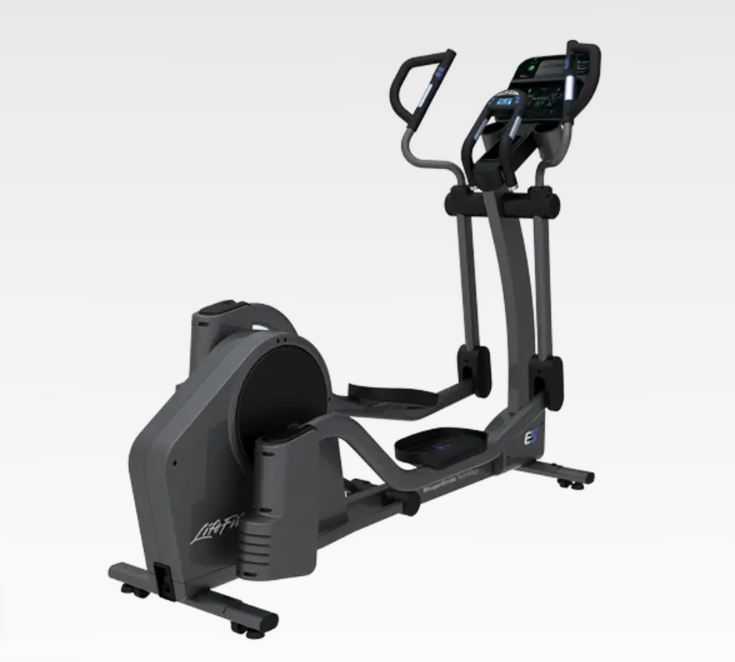

Life Fitness - E5-XXXX-0105

Brand: Life Fitness

Category: Consumer Equipment

Type: Elliptical

Model Name: E5-XXXX-0105

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
0017-00008-0231 500113 0017-00008-0231 MISC-019 CHARCOAL GRAY AEROSOL No Model Compatibility List $97.08 / Each

1
0017-00008-0232 500114 0017-00008-0232 MISC-020 CHARCOAL GRAY TOUCH UP No Model Compatibility List $23.52 / Each

1
3225301 506310 3225301 CR-006 Bearing, 12MM Ball No Model Compatibility List $9.87 / Each

1
8762101 510261 8762101 - Service Assembly, Limit Switch Right No Model Compatibility List $19.64 / Each

4,5,6
8762201 510262 8762201 - Service Assembly, Limit Switch Left No Model Compatibility List $19.64 / Each

4,5,6
8762301 510263 8762301 - Service Assembly, Upper Coupler No Model Compatibility List $93.20 / Each

1
8974001 510980 8974001 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, DOM Yes Model Compatibility List $88.12 / Each

6
8974101 510981 8974101 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, UK No Model Compatibility List $98.15 / Each

1
8974201 510982 8974201 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, CONT No Model Compatibility List $88.12 / Each

1
8974301 510983 8974301 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, AUST No Model Compatibility List $88.12 / Each

1
8974401 510984 8974401 TR-001 ASSY, TRANSFORMER, 100-240V, 9V, 4A, BR No Model Compatibility List $96.32 / Each

1
9001101 511032 9001101 BT-001 SERVICE ASSY EDDY BRAKE No Model Compatibility List $318.54 / Each

8
REX01H5 518027 REX01H5 CR-010 Magnet Rexon No Model Compatibility List $3.81 / Each

8
REX01QH 518032 REX01QH MR-010 Cable, Brake Harness No Model Compatibility List $17.05 / Each

5
REX0HVP 518039 REX0HVP ID-011 Bearing Ball 6004ZZ No Model Compatibility List $11.45 / Each

1
REX0HVY 518040 REX0HVY BT-011 Bearing, Ball 6204ZZ Yes Model Compatibility List $13.69 / Each

1
REX0J4R 518044 REX0J4R IA-003 Hardware: Washer, 20MM OD X 10MM ID X 3MM Thick No Model Compatibility List $1.57 / Each

2
REX0J69 518050 REX0J69 CD-002 Hardware: Washer, Flat .6 X 13-1 No Model Compatibility List $1.57 / Each

2
REX0J93 518055 REX0J93 BR-008 Hardware: Washer, Lock Spring 1.0 Yes Model Compatibility List $2.69 / Each

2
REX0JAF 518059 REX0JAF CS-011 Hardware: Star Washer No Model Compatibility List $1.57 / Each

2
REX0JB7 518061 REX0JB7 ID-002 Hardware: Wave Washer; 20.5MM X 26.7MM T = 0.25MM Yes Model Compatibility List $9.63 / Each

2,4,5,6
REX0JBD 518062 REX0JBD UA-004 Hardware: Wave Washer; 25MM X 35MM No Model Compatibility List $3.81 / Each

2
REX0JDZ 518064 REX0JDZ IA-002 Ring, Retaining B-35 No Model Compatibility List $1.51 / Each

1
REX0JE0 518065 REX0JE0 PL-005 Ring, Retaining B-40 Yes Model Compatibility List $6.32 / Each

1
REX0JEE 518067 REX0JEE PL-015 Ring, Retaining A-17 Yes Model Compatibility List $3.81 / Each

1
REX0JEG 518068 REX0JEG BR-005 Ring: C-Ring, A-20 No Model Compatibility List $1.57 / Each

1
REX0JEJ 518069 REX0JEJ CR-002 Ring, Retaining, 63/64, Snap Ring Yes Model Compatibility List $4.93 / Each

1
REX0JGQ 518074 REX0JGQ CC-003 Crank Key No Model Compatibility List $1.57 / Each

8,9
REX0JZB 518080 REX0JZB UA-002 Hardware: M4 X .7 HXS NO CUP ST BO No Model Compatibility List $1.57 / Each

1
REX0K0A 518087 REX0K0A CS-004 Hardware: Cap Screw, M8 X 1.25-16 No Model Compatibility List $1.57 / Each

2,9
REX0K28 518089 REX0K28 MR-003 Hardware: Cap Screw, M5 X 0.8-16 No Model Compatibility List $1.57 / Each

2,9
REX0K2W 518092 REX0K2W BR-001 Hardware: Screw, SHCS Brake Mounting No Model Compatibility List $3.81 / Each

2
REX0K5T 518106 REX0K5T CC-008 Hardware: Screw, PHl M5 X 0.8-10 No Model Compatibility List $1.57 / Each

2
REX0KEH 518130 REX0KEH MR-006 Hardware: Screw, Pan HD with Patch M5 X .8-16 No Model Compatibility List $1.57 / Each

2
REX0KEQ 518132 REX0KEQ MS-016 Hardware: Screw, PHl PAN M5 X 0.8-12 No Model Compatibility List $1.57 / Each

2
REX0KMR 518134 REX0KMR MR-011 Hardware: Nut, M5 X 0.8, 4MM Thick No Model Compatibility List $1.57 / Each

2
REX0KR0 518142 REX0KR0 BT-017 Hardware: Nut, Lock M12 X 1.75-12 No Model Compatibility List $1.57 / Each

2
REX0KR3 518143 REX0KR3 CR-005 Hardware: Nut, Lock M6 X 1, 6MM Thick No Model Compatibility List $1.57 / Each

2
REX0KR5 518145 REX0KR5 BR-016 Hardware: Nut, Nylock M10 X 1.5, 10M Thick No Model Compatibility List $3.81 / Each

2
REX0LS1 518147 REX0LS1 MR-007 SWITCH, ROCKER, ROCKER No Model Compatibility List $5.41 / Each

4,5,6
REX20W4 518230 REX20W4 BR-006 Hardware: Nut, HEX M10 X 1.5-6 No Model Compatibility List $1.57 / Each

2
REX218N 518270 REX218N CR-003 Pulley, Crank Yes Model Compatibility List $77.60 / Each

8
REX21A6 518283 REX21A6 BR-014 Hardware: Bolt, Hook Clamp Yes Model Compatibility List $8.22 / Each

2
REX21A7 518284 REX21A7 BR-015 Hardware: Stud, Swivel No Model Compatibility List $3.20 / Each

1
REX21BJ 518291 REX21BJ BR-009 Brake, Assembly Eddy Current Yes Model Compatibility List $267.68 / Each

8
REX21LF 518295 REX21LF BT-018 Bracket, Brake MTG Yes Model Compatibility List $42.20 / Each

3
REX21LG 518296 REX21LG BT-002 Spacer, Collar Yes Model Compatibility List $9.34 / Each

2
REX21NN 518302 REX21NN UP-002 Hardware: Nut, Insert M10 X 1.5 No Model Compatibility List $1.57 / Each

2
REX21NP 518303 REX21NP BT-003 Hardware: Bolt, HEX HD M12 X 1.75-110mm Yes Model Compatibility List $7.71 / Each

2
REX21NS 518306 REX21NS CR-001 Hardware: Bolt, HEX HD. M8 X 1.25-60MM No Model Compatibility List $4.93 / Each

2
REX21NT 518307 REX21NT CR-012 Hardware: Bolt, HEX HD M6 X 1-20 No Model Compatibility List $1.57 / Each

2
REX21X8 518337 REX21X8 BR-002 Spacer, Tensioner No Model Compatibility List $1.57 / Each

2,3,4,5,6
REX22B3 518342 REX22B3 UA-003 Hardware: Washer, .26 X 35-.8 No Model Compatibility List $3.81 / Each

2
REX22B7 518344 REX22B7 - Hardware: Cap Screw, M8 X 1.25-40 No Model Compatibility List $3.81 / Each

2,9
REX22LR 518363 REX22LR BR-017 Ring: C-Ring, A-16 No Model Compatibility List $3.20 / Each

1
REX22RP 518368 REX22RP CC-002 Hardware: Nut, Nylock M8 X 1.25 X 6MM Thick Yes Model Compatibility List $3.81 / Each

2
REX22RR 518369 REX22RR PL-007 Hardware: Nut, Nylock M10 X 1.5-8 Yes Model Compatibility List $3.81 / Each

2
REX25ZJ 518377 REX25ZJ BT-014 Hardware: Cap Screw, M8 X 1.25-20 No Model Compatibility List $1.81 / Each

2,9
REX2AC8 518383 REX2AC8 - Clamp: Snap Standoff No Model Compatibility List $1.57 / Each

2,4,5,6
REX2AX2 518445 REX2AX2 SC-002 Wheel-Floor Roller No Model Compatibility List $3.20 / Each

8
REX2AX3 518446 REX2AX3 SC-009 Shaft, Wheel Mounting No Model Compatibility List $3.20 / Each

2,8
REX2BAD 518496 REX2BAD PL-002 Shaft, Coupler Pedal Conn Yes Model Compatibility List $17.71 / Each

8,9
REX2BKA 518502 REX2BKA IA-003 Bearing, Self-Align, 2202 No Model Compatibility List $14.75 / Each

1
REX2BKB 518503 REX2BKB PL-003 Bearing, Self-Align, 2203 Yes Model Compatibility List $20.35 / Each

1
REX2BKD 518505 REX2BKD US-002 Hardware: Bolt, HEX HD M10 X 1.5-74 Yes Model Compatibility List $3.81 / Each

2
REX2D1X 518520 REX2D1X CS-010 Hardware: Screw, PHl PAN M5 X 0.8-6 No Model Compatibility List $1.57 / Each

2
REX2DVG 518522 REX2DVG ID-007 Hardware: Bolt, HEX M10 X 1.5-20 No Model Compatibility List $1.57 / Each

2
REX2HWH 518558 REX2HWH CBL-006 Drive Motor, Resistance Stepper No Model Compatibility List $86.25 / Each

10
REX2LJZ 518595 REX2LJZ PL-014 Axle, Adj Link No Model Compatibility List $4.86 / Each

8
REX2LL1 518599 REX2LL1 CD-003 Weldment, Axle Crank No Model Compatibility List $47.36 / Each

3,8
REX2LL2 518600 REX2LL2 CC-001 Weldment, Crank Arm Yes Model Compatibility List $65.78 / Each

8
REX2LME 518605 REX2LME - Belt, Drive, Poly V, 520J No Model Compatibility List $36.47 / Each

15,10
REX2LPA 518612 REX2LPA - Bracket, Power Switch No Model Compatibility List $3.20 / Each

2,3,4,5,6
REX2LQC 518615 REX2LQC - Cable, Grip, User Pod To MCB No Model Compatibility List $16.40 / Each

4,5,6,11
REX2LQD 518616 REX2LQD - Cable, Upright, User Pod To MCB No Model Compatibility List $21.35 / Each

3,4,5,6
REX2LQE 518617 REX2LQE - Cable, Base, User Pod To MCB No Model Compatibility List $24.64 / Each

3,4,5,6
REX2LQJ 518621 REX2LQJ CBL-012 Cable, Grip, HR Sensor To Console No Model Compatibility List $4.86 / Each

7,4,5,6,12,13,14,11
REX2LQK 518622 REX2LQK CBL-005 Speed Sensor No Model Compatibility List $6.51 / Each

1
REX2LQL 518623 REX2LQL - Electrical:Inlet, AC No Model Compatibility List $4.86 / Each

4,5,6
REX2LQS 518626 REX2LQS CBL-001 Switch, Actuator Link, Motor Control No Model Compatibility List $16.65 / Each

7,4,5,6
REX2LRT 518628 REX2LRT CC-005 Plate; Crank No Model Compatibility List $13.10 / Each

8
REX2LUH 518630 REX2LUH SC-004 Grommet, 38MM X 25MM No Model Compatibility List $1.57 / Each

2
REX2LUJ 518631 REX2LUJ SC-002 Grommet, 50MM X 75MM No Model Compatibility List $1.57 / Each

2
REX2ML3 518645 REX2ML3 - Grommet, Idler Front No Model Compatibility List $1.57 / Each

2,8
REX2MP4 518647 REX2MP4 MS-015 Felt Disc No Model Compatibility List $1.57 / Each

1
REX2MPQ 518648 REX2MPQ UA-005 Hardware: Washer, 35MM OD X 10MM OD X 3MM Thick No Model Compatibility List $1.57 / Each

2
REX2NAC 518654 REX2NAC M R-015 Hardware: Screw, CSL PAN M5 X 0.8-12 No Model Compatibility List $1.57 / Each

2
REX2NAD 518655 REX2NAD UA-009 Hardware: Screw, PHl HD M4 X 18-28 No Model Compatibility List $1.57 / Each

2
REX2NAG 518656 REX2NAG IA-002 Hardware: Screw, PHl PAN M3.5 X 18-12 No Model Compatibility List $2.08 / Each

2
REX2NAK 518658 REX2NAK MS-010 Hardware: Screw, CSL PAN M5 X 0.8-8 No Model Compatibility List $4.44 / Each

2
REX2NAM 518659 REX2NAM - Hardware: Screw, PHl PAN M4 X 0.7-12 No Model Compatibility List $1.57 / Each

2
REX2NAP 518660 REX2NAP - Hardware: Screw, PHl Pan M3 X 0.5-8 No Model Compatibility List $1.57 / Each

2
REX2NDD 518661 REX2NDD PL-011 Hardware: Washer, Spacer No Model Compatibility List $1.57 / Each

2,3,4,5,6
REX2NEK 518663 REX2NEK US-006 Grommet, 38MM X 25MM No Model Compatibility List $1.57 / Each

2
REX2NFK 518665 REX2NFK ST-008 Leveler, Leg Yes Model Compatibility List $9.92 / Each

1
REX2NG7 518667 REX2NG7 - Hardware: Screw, PHl PAN M3 X 0.5-10 No Model Compatibility List $1.57 / Each

2
REX2P4Q 518673 REX2P4Q UP-015 Hardware: Bolt, HEX M10 X 1.5-16 No Model Compatibility List $1.51 / Each

2
REX2QB4 518677 REX2QB4 CO-012 MOTOR ASSEMBLY LEFT No Model Compatibility List $324.91 / Each

1
REX2QBA 518678 REX2QBA CO-011 MOTOR ASSEMBLY RIGHT No Model Compatibility List $324.91 / Each

1
REX2R27 518679 REX2R27 CBL-004 WIRE GROUND HR Yes Model Compatibility List $11.00 / Each

4,5,6
REX2T9D 518739 REX2T9D ST-009 Hardware: Nut HEX M10X1.5 Black Zinc No Model Compatibility List $1.51 / Each

2,4,5,6
REX2T9W 518743 REX2T9W PL-007 Hardware: Screw, PHl TRUSS M5X.8-8 No Model Compatibility List $1.51 / Each

2
REX2VYD 518751 REX2VYD - Cable, Internal Brake Magnet No Model Compatibility List $10.91 / Each

4,5,6,8
REX2WYC 518753 REX2WYC - Electrical:Fuse Metric 5X20 S-B 3.15A 250V No Model Compatibility List $13.37 / Each

1
REX2XST 518755 REX2XST CBL-002 Cable Idler Left No Model Compatibility List $53.89 / Each

8,4,5,6
REX2XSU 518756 REX2XSU CBL-015 Cable Idler Right No Model Compatibility List $53.89 / Each

8,4,5,6
REX2ZXH 518758 REX2ZXH UA-016 BOLT: M8X1.25-20 HEX. SOC. HD. CAP No Model Compatibility List $1.46 / Each

2,9
REX30YR 518764 REX30YR MS-011 SCREW, PHL PAN M3.5 X 18-10 No Model Compatibility List $1.46 / Each

2
REX33N0 518766 REX33N0 MR-005 SCREW, PHL 5MM*.8 X 12MM No Model Compatibility List $1.46 / Each

2
REX33ZD 518767 REX33ZD CBL-008 CABLE, UPPER CONSOLE TO MCB 10D933ZD No Model Compatibility List $31.76 / Each

7,4,5,6
REX33ZE 518768 REX33ZE CBL-007 CABLE, BASE, MCB TO CONSOLE 10D933ZE No Model Compatibility List $34.08 / Each

7,3,4,5,6
REX3535 518783 REX3535 BT-010 BRKT, BELT TENSOR Yes Model Compatibility List $27.83 / Each

15
REX35JK 518790 REX35JK ST010 STABILIZER ENDCAP Yes Model Compatibility List $4.20 / Each

9
REX35UH 518793 REX35UH CBL-003 CABLE, BASE, POWER No Model Compatibility List $14.95 / Each

3,4,5,6
REX35VJ 518794 REX35VJ CBL-004 CONTROLLER, MOTOR, X8 No Model Compatibility List $507.84 / Each

7,8
REX35VM 518795 REX35VM CBL-010 CABLE, UPPER, USER POD TO CONSOLE No Model Compatibility List $20.09 / Each

7,4,5,6
REX35VN 518796 REX35VN CBL-009 CABLE, GRIP, USER POD TO CONSOLE No Model Compatibility List $19.63 / Each

7,4,5,6,11
REX3E9M 518802 REX3E9M CC-006 CRANK COVER; TITANIUM Yes Model Compatibility List $26.88 / Each

8,9
REX3HL5 518822 REX3HL5 MS-005 SHROUD, ACTUATOR; INNER RIGHT No Model Compatibility List $40.13 / Each

4,5,6,12,13,14
REX3HL6 518823 REX3HL6 MS-012 SHROUD, ACTUATOR; OUTER RIGHT No Model Compatibility List $41.10 / Each

4,5,6,12,13,14
REX3HL7 518824 REX3HL7 MS-004 SHROUD, ACTUATOR; INNER LEFT No Model Compatibility List $40.13 / Each

4,5,6,12,13,14
REX3HL8 518825 REX3HL8 MS-013 SHROUD, ACTUATOR; OUTER LEFT No Model Compatibility List $41.16 / Each

4,5,6,12,13,14
REX3HLX 518826 REX3HLX PL-014 PEDAL, INSERT Yes Model Compatibility List $72.63 / Each

8,9
REX3HP0 518827 REX3HP0 PC-005 DEAD SHAFT COVER; FRONT No Model Compatibility List $7.73 / Each

9
REX3HP2 518829 REX3HP2 PC-006 DEAD SHAFT COVER; REAR No Model Compatibility List $7.73 / Each

9
REX3HP5 518831 REX3HP5 IA-001 PIVOT COVER; UPPER RIGHT No Model Compatibility List $3.74 / Each

8,9
REX3HP6 518832 REX3HP6 IA-007 PIVOT COVER; LOWER RIGHT No Model Compatibility List $3.61 / Each

8,9
REX3HP7 518833 REX3HP7 IA-011 PIVOT COVER; UPPER LEFT No Model Compatibility List $3.74 / Each

8,9
REX3HP8 518834 REX3HP8 IA-012 PIVOT COVER; LOWER LEFT No Model Compatibility List $3.61 / Each

8,9
REX3HP9 518835 REX3HP9 SC-007 GASKET; STRAIN RELIEF No Model Compatibility List $2.45 / Each

1
REX3HR4 518836 REX3HR4 CS-006 TOP HEART RATE SENSOR Yes Model Compatibility List $13.65 / Each

11
REX3HR5 518837 REX3HR5 CS-019 BOTTOM HEART RATE SENSOR Yes Model Compatibility List $13.65 / Each

11
REX3HRH 518838 REX3HRH US-005 CONSOLE MAST ASSEMBLY No Model Compatibility List $297.40 / Each

7
REX3HS8 518840 REX3HS8 CBL-023 QUICK KEY BOARD No Model Compatibility List $0.00 / Each
Out Of Stock 		9
REX3HS9 518841 REX3HS9 CBL-018 HR BOARD ASSEMBLY No Model Compatibility List $230.26 / Each

12,13,14
REX3HSA 518842 REX3HSA CBL-012 WIRE ASSEMBLY+M72 Yes Model Compatibility List $13.85 / Each

4,5,6
REX3HSC 518844 REX3HSC CBL-015 HAND PULSE HARNESS Yes Model Compatibility List $13.33 / Each

4,11
REX3HSE 518845 REX3HSE CBL-019 HAND PULSE HARNESS Yes Model Compatibility List $29.56 / Each

4
REX3HSF 518846 REX3HSF CBL-021 HAND PULSE HARNESS Yes Model Compatibility List $17.52 / Each

4,5,6,12,13,14
REX3HSU 518847 REX3HSU UA-013 SCREW: M4X16-30 PHL PAN HD No Model Compatibility List $1.46 / Each

2
REX3HUH 518854 REX3HUH PL-010 PEDAL, RIGHT Yes Model Compatibility List $32.56 / Each

8,9
REX3HV0 518861 REX3HV0 CS-010 WELDMENT CONSOLE BRKT Yes Model Compatibility List $39.80 / Each

3
REX3HVE 518862 REX3HVE MS-008 REAR SHROUD LT FRT No Model Compatibility List $87.30 / Each

12,13,14
REX3HVG 518863 REX3HVG MS-009 REAR SHROUD RT FRONT No Model Compatibility List $88.19 / Each

12,13,14
REX3HVH 518864 REX3HVH MS-006 ADJ SLIDE COVER LT No Model Compatibility List $14.36 / Each

9
REX3HVJ 518865 REX3HVJ MS-007 ADJ SLIDE COVER RT No Model Compatibility List $14.36 / Each

9
REX3HVK 518866 REX3HVK PL-008 PIVOT GUARD No Model Compatibility List $1.80 / Each

8,9,3
REX3HVM 518867 REX3HVM MR-006 COVER, POWER BRKT No Model Compatibility List $2.32 / Each

9,4,5,6
REX3HVQ 518868 REX3HVQ PC-001 KNUCKLE REAR No Model Compatibility List $7.28 / Each

1
REX3HVR 518869 REX3HVR PC-008 KNUCKLE FRONT No Model Compatibility List $7.92 / Each

1
REX3HVS 518870 REX3HVS CS-009 CUPHOLDER No Model Compatibility List $37.36 / Each

1
REX3HVT 518871 REX3HVT CS-018 COVER CONSOLE MTG BOTTOM REAR No Model Compatibility List $13.59 / Each

7,9
REX3HVU 518872 REX3HVU PC-003 ACCESSORY TRAY No Model Compatibility List $10.63 / Each

4,5,6
REX3HVV 518873 REX3HVV CS-017 COVER CONSOLE MTG BOTTOM FRONT No Model Compatibility List $31.68 / Each

7,9
REX3HVW 518874 REX3HVW PC-004 INSERT CUP HOLDER No Model Compatibility List $10.82 / Each

1
REX3HW3 518875 REX3HW3 CS-005 STATIONARY HANDLEBAR ASSEM LT No Model Compatibility List $42.13 / Each

11
REX3HW4 518876 REX3HW4 CS-001 STATIONARY HANDLEBAR ASSEM RT No Model Compatibility List $42.13 / Each

11
REX3HW5 518877 REX3HW5 CS-003 END CAP No Model Compatibility List $13.98 / Each

9
REX3HW6 518878 REX3HW6 US-003 WELDMENT CUPHOLDER No Model Compatibility List $61.32 / Each

3
REX3HW9 518879 REX3HW9 SC-009 STABILIZER WELDMENT No Model Compatibility List $84.27 / Each

3
REX3HX1 518883 REX3HX1 CBL-016 WIRE ASSSEMBLY No Model Compatibility List $7.84 / Each

4,5,6
REX3HX2 518884 REX3HX2 CBL-017 WIRE ASSSEMBLY No Model Compatibility List $8.31 / Each

4,5,6
REX3HX5 518885 REX3HX5 CO-001 INCLINE MOTOR ASSEMBLY No Model Compatibility List $489.68 / Each

10
REX3HX6 518886 REX3HX6 CO-006 INCLINE MOTOR ASSEMBLY No Model Compatibility List $489.68 / Each

10
REX3HX7 518887 REX3HX7 SC-001 STABILIZER ASSEMBLY No Model Compatibility List $118.01 / Each

1
REX3HX8 518888 REX3HX8 IA-010 LEFT OUTER ARM ASSEMBLY No Model Compatibility List $149.80 / Each

3
REX3HX9 518889 REX3HX9 IA-009 RIGHT OUTER ARM ASSEMBLY No Model Compatibility List $149.80 / Each

3
REX3HXA 518890 REX3HXA CS-007 CONTROL ASSEMBLY No Model Compatibility List $353.65 / Each

7
REX3JNL 518893 REX3JNL PC-002 SCREW: M3.5X18-12 TRUSS HD. TAPPING No Model Compatibility List $1.46 / Each

2,12,13,14
REX3JNN 518894 REX3JNN UP-018 BOLT, HEX M10X1.5-16 ; BLACK ZINC No Model Compatibility List $1.48 / Each

2,4,5,6
REX3JNZ 518895 REX3JNZ CC-007 SCREW, PHL PAN M5X.8-8; BLACK ZINC No Model Compatibility List $1.46 / Each

2,4,5,6
REX3JPU 518896 REX3JPU US-010 SCREW, PHL M5 X.8X12 PAN HD. TAPPING No Model Compatibility List $1.46 / Each

2,12,13,14
REX3JPY 518897 REX3JPY CS-008 SCREW: M3.5X20-8 PHL PAN HD No Model Compatibility List $1.46 / Each

2
REX3K52 518898 REX3K52 PL-019 VELCRO PAD No Model Compatibility List $1.46 / Each

12,13,14
REX3K6F 518906 REX3K6F MS-003 REAR LEFT SHROUD WITH LABEL No Model Compatibility List $94.77 / Each

12,13,14
REX3K6G 518907 REX3K6G MS-002 REAR RIGHT SHROUD WITH LABEL No Model Compatibility List $94.77 / Each

12,13,14
REX3K6H 518908 REX3K6H US-009 LEFT FRONT LOWER COVER W/BADGE No Model Compatibility List $57.09 / Each

9
REX3K6K 518909 REX3K6K US-001 RIGHT FRONT LOWER COVER W/BADGE No Model Compatibility List $57.09 / Each

9
REX3K6L 518910 REX3K6L UA-011 LEFT ROCKER ARM W/BEARINGS No Model Compatibility List $200.44 / Each

3
REX3K6M 518911 REX3K6M UA-012 RIGHT ROCKER ARM W/BEARINGS No Model Compatibility List $200.44 / Each

3
REX3K6N 518912 REX3K6N UA-001 NLA: LEFT HANDLEBAR ASSEM No Model Compatibility List $0.00 / Each
Out Of Stock 		11
REX3K6W 518913 REX3K6W PL-013 LEFT PEDAL LEVER W/BEARINGS No Model Compatibility List $292.51 / Each

8,9,3
REX3K6Z 518914 REX3K6Z PL-012 RIGHT PEDAL LEVER W/BEARINGS No Model Compatibility List $292.51 / Each

8,9,3
REX3KL6 518915 REX3KL6 UA-014 RESISTANCE BUTTON ASSEMBLY Yes Model Compatibility List $49.85 / Each

11
REX3PA8 518916 REX3PA8 UA-005 ASSEMBLY: HANDLEBAR, RIGHT W/SWITCH Yes Model Compatibility List $195.37 / Each

4,5,6,11
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2023. All Rights Reserved.
