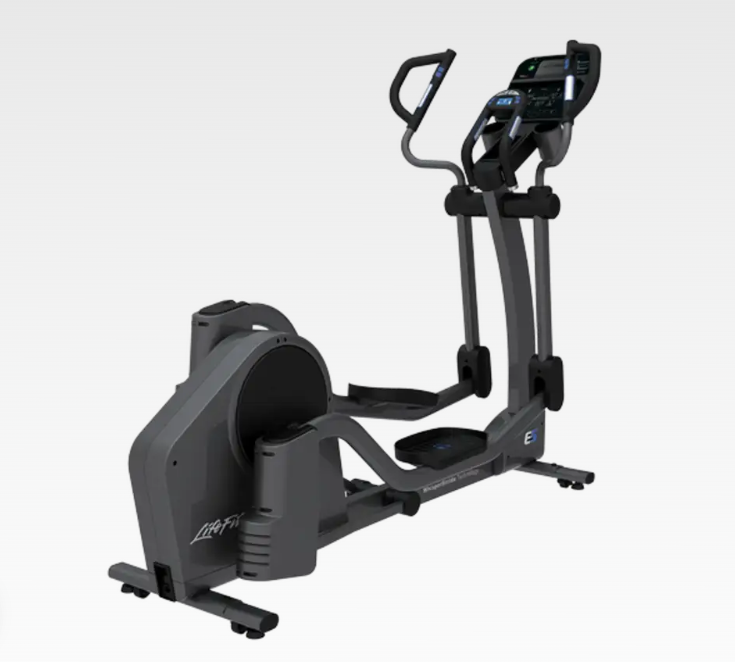

Life Fitness - E5-XXXX-0105

Repair Parts for Life Fitness E5-XXXX-0105 E5-XX13-0105

Brand: Life Fitness

Category: Consumer Equipment

Type: Elliptical

Model Name: E5-XXXX-0105

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Brake
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
M 500113 0017-00008-0231 M CHARCOAL GRAY AEROSOL No Model Compatibility List $97.08 / Each

1
M 500114 0017-00008-0232 M CHARCOAL GRAY TOUCH UP No Model Compatibility List $23.52 / Each

1
U 506310 3225301 U Bearing, 12MM Ball No Model Compatibility List $9.87 / Each

1
M 509589 8174701 M Line Cord, U.S. - HEAO005096 Yes Model Compatibility List $39.19 / Each

4,5,6
C 510261 8762101 C Service Assembly, Limit Switch Right No Model Compatibility List $19.64 / Each

4,5,6
C 510262 8762201 C Service Assembly, Limit Switch Left No Model Compatibility List $19.64 / Each

4,5,6
C 510263 8762301 C Service Assembly, Upper Coupler No Model Compatibility List $93.20 / Each

1
B 511032 9001101 B SERVICE ASSY EDDY BRAKE No Model Compatibility List $318.54 / Each

8
C 518027 REX01H5 C Magnet Rexon No Model Compatibility List $3.81 / Each

8
M 518032 REX01QH M Cable, Brake Harness No Model Compatibility List $17.05 / Each

5
P 518039 REX0HVP P Bearing Ball 6004ZZ No Model Compatibility List $11.45 / Each

1
B 518040 REX0HVY B Bearing, Ball 6204ZZ Yes Model Compatibility List $13.69 / Each

1
I 518044 REX0J4R I Hardware: Washer, 20MM OD X 10MM ID X 3MM Thick No Model Compatibility List $1.57 / Each

2
C 518050 REX0J69 C Hardware: Washer, Flat .6 X 13-1 No Model Compatibility List $1.57 / Each

2
B 518055 REX0J93 B Hardware: Washer, Lock Spring 1.0 Yes Model Compatibility List $2.69 / Each

2
M 518059 REX0JAF M Hardware: Star Washer No Model Compatibility List $1.57 / Each

2
P 518061 REX0JB7 P Hardware: Wave Washer; 20.5MM X 26.7MM T = 0.25MM Yes Model Compatibility List $9.63 / Each

2,4,5,6
U 518062 REX0JBD U Hardware: Wave Washer; 25MM X 35MM No Model Compatibility List $3.81 / Each

2
I 518064 REX0JDZ I Ring, Retaining B-35 No Model Compatibility List $1.51 / Each

1
P 518065 REX0JE0 P Ring, Retaining B-40 Yes Model Compatibility List $6.32 / Each

1
P 518067 REX0JEE P Ring, Retaining A-17 Yes Model Compatibility List $3.81 / Each

1
P 518068 REX0JEG P Ring: C-Ring, A-20 No Model Compatibility List $1.57 / Each

1
U 518069 REX0JEJ U Ring, Retaining, 63/64, Snap Ring Yes Model Compatibility List $4.93 / Each

1
C 518074 REX0JGQ C Crank Key No Model Compatibility List $1.57 / Each

8,9
C 518080 REX0JZB C Hardware: M4 X .7 HXS NO CUP ST BO No Model Compatibility List $1.57 / Each

1
C 518087 REX0K0A C Hardware: Cap Screw, M8 X 1.25-16 No Model Compatibility List $1.57 / Each

2,9
M 518089 REX0K28 M Hardware: Cap Screw, M5 X 0.8-16 No Model Compatibility List $1.57 / Each

2,9
B 518092 REX0K2W B Hardware: Screw, SHCS Brake Mounting No Model Compatibility List $3.81 / Each

2
C 518106 REX0K5T C Hardware: Screw, PHl M5 X 0.8-10 No Model Compatibility List $1.57 / Each

2
M 518130 REX0KEH M Hardware: Screw, Pan HD with Patch M5 X .8-16 No Model Compatibility List $1.57 / Each

2
M 518132 REX0KEQ M Hardware: Screw, PHl PAN M5 X 0.8-12 No Model Compatibility List $1.57 / Each

2
M 518134 REX0KMR M Hardware: Nut, M5 X 0.8, 4MM Thick No Model Compatibility List $1.57 / Each

2
B 518142 REX0KR0 B Hardware: Nut, Lock M12 X 1.75-12 No Model Compatibility List $1.57 / Each

2
C 518143 REX0KR3 C Hardware: Nut, Lock M6 X 1, 6MM Thick No Model Compatibility List $1.57 / Each

2
B 518145 REX0KR5 B Hardware: Nut, Nylock M10 X 1.5, 10M Thick No Model Compatibility List $3.81 / Each

2
M 518147 REX0LS1 M SWITCH, ROCKER, ROCKER No Model Compatibility List $5.41 / Each

4,5,6
B 518230 REX20W4 B Hardware: Nut, HEX M10 X 1.5-6 No Model Compatibility List $1.57 / Each

2
C 518270 REX218N C Pulley, Crank Yes Model Compatibility List $77.60 / Each

8
B 518283 REX21A6 B Hardware: Bolt, Hook Clamp Yes Model Compatibility List $8.22 / Each

2
B 518284 REX21A7 B Hardware: Stud, Swivel No Model Compatibility List $3.20 / Each

1
B 518291 REX21BJ B Brake, Assembly Eddy Current Yes Model Compatibility List $267.68 / Each

8
B 518295 REX21LF B Bracket, Brake MTG Yes Model Compatibility List $42.20 / Each

3
B 518296 REX21LG B Spacer, Collar Yes Model Compatibility List $9.34 / Each

2
U 518302 REX21NN U Hardware: Nut, Insert M10 X 1.5 No Model Compatibility List $1.57 / Each

2
B 518303 REX21NP B Hardware: Bolt, HEX HD M12 X 1.75-110mm Yes Model Compatibility List $7.71 / Each

2
C 518306 REX21NS C Hardware: Bolt, HEX HD. M8 X 1.25-60MM Yes Model Compatibility List $4.93 / Each

2
C 518307 REX21NT C Hardware: Bolt, HEX HD M6 X 1-20 No Model Compatibility List $1.57 / Each

2
B 518337 REX21X8 B Spacer, Tensioner No Model Compatibility List $1.57 / Each

2,3,4,5,6
U 518342 REX22B3 U Hardware: Washer, .26 X 35-.8 No Model Compatibility List $3.81 / Each

2
U 518344 REX22B7 U Hardware: Cap Screw, M8 X 1.25-40 No Model Compatibility List $3.81 / Each

2,9
B 518363 REX22LR B Ring: C-Ring, A-16 No Model Compatibility List $3.20 / Each

1
C 518368 REX22RP C Hardware: Nut, Nylock M8 X 1.25 X 6MM Thick Yes Model Compatibility List $3.81 / Each

2
U 518369 REX22RR U Hardware: Nut, Nylock M10 X 1.5-8 Yes Model Compatibility List $3.81 / Each

2
B 518377 REX25ZJ B Hardware: Cap Screw, M8 X 1.25-20 No Model Compatibility List $1.81 / Each

2,9
M 518383 REX2AC8 M Clamp: Snap Standoff No Model Compatibility List $1.57 / Each

2,4,5,6
S 518445 REX2AX2 S Wheel-Floor Roller Yes Model Compatibility List $9.99 / Each

8
S 518446 REX2AX3 S Shaft, Wheel Mounting Yes Model Compatibility List $9.99 / Each

2,8
P 518496 REX2BAD P Shaft, Coupler Pedal Conn Yes Model Compatibility List $17.71 / Each

8,9
I 518502 REX2BKA I Bearing, Self-Align, 2202 No Model Compatibility List $14.75 / Each

1
P 518503 REX2BKB P Bearing, Self-Align, 2203 Yes Model Compatibility List $20.35 / Each

1
U 518505 REX2BKD U Hardware: Bolt, HEX HD M10 X 1.5-74 Yes Model Compatibility List $3.81 / Each

2
C 518520 REX2D1X C Hardware: Screw, PHl PAN M5 X 0.8-6 No Model Compatibility List $1.57 / Each

2
U 518522 REX2DVG U Hardware: Bolt, HEX M10 X 1.5-20 No Model Compatibility List $1.57 / Each

2
C 518558 REX2HWH C Drive Motor, Resistance Stepper No Model Compatibility List $86.25 / Each

10
P 518595 REX2LJZ P Axle, Adj Link No Model Compatibility List $4.86 / Each

8
C 518599 REX2LL1 C Weldment, Axle Crank No Model Compatibility List $47.36 / Each

3,8
C 518600 REX2LL2 C Weldment, Crank Arm Yes Model Compatibility List $65.78 / Each

8
C 518605 REX2LME C Belt, Drive, Poly V, 520J No Model Compatibility List $36.47 / Each

15,10
M 518612 REX2LPA M Bracket, Power Switch No Model Compatibility List $3.20 / Each

2,3,4,5,6
C 518615 REX2LQC C Cable, Grip, User Pod To MCB No Model Compatibility List $16.40 / Each

4,5,6,11
C 518616 REX2LQD C Cable, Upright, User Pod To MCB Yes Model Compatibility List $29.99 / Each

3,4,5,6
C 518617 REX2LQE C Cable, Base, User Pod To MCB Yes Model Compatibility List $29.99 / Each

3,4,5,6
C 518621 REX2LQJ C Cable, Grip, HR Sensor To Console No Model Compatibility List $4.86 / Each

7,4,5,6,12,13,14,11
C 518622 REX2LQK C Speed Sensor No Model Compatibility List $6.51 / Each

1
M 518623 REX2LQL M Electrical:Inlet, AC Yes Model Compatibility List $9.99 / Each

4,5,6
C 518626 REX2LQS C Switch, Actuator Link, Motor Control No Model Compatibility List $16.65 / Each

7,4,5,6
C 518628 REX2LRT C Plate; Crank Yes Model Compatibility List $19.99 / Each

8
S 518630 REX2LUH S Grommet, 38MM X 25MM No Model Compatibility List $1.57 / Each

2
S 518631 REX2LUJ S Grommet, 50MM X 75MM No Model Compatibility List $1.57 / Each

2
I 518645 REX2ML3 I Grommet, Idler Front No Model Compatibility List $1.57 / Each

2,8
U 518647 REX2MP4 U Felt Disc No Model Compatibility List $1.57 / Each

1
U 518648 REX2MPQ U Hardware: Washer, 35MM OD X 10MM OD X 3MM Thick No Model Compatibility List $1.57 / Each

2
M 518654 REX2NAC M Hardware: Screw, CSL PAN M5 X 0.8-12 No Model Compatibility List $1.57 / Each

2
U 518655 REX2NAD U Hardware: Screw, PHl HD M4 X 18-28 No Model Compatibility List $1.57 / Each

2
I 518656 REX2NAG I Hardware: Screw, PHl PAN M3.5 X 18-12 No Model Compatibility List $2.08 / Each

2
M 518658 REX2NAK M Hardware: Screw, CSL PAN M5 X 0.8-8 No Model Compatibility List $4.44 / Each

2
P 518659 REX2NAM P Hardware: Screw, PHl PAN M4 X 0.7-12 No Model Compatibility List $1.57 / Each

2
M 518660 REX2NAP M Hardware: Screw, PHl Pan M3 X 0.5-8 No Model Compatibility List $1.57 / Each

2
P 518661 REX2NDD P Hardware: Washer, Spacer No Model Compatibility List $1.57 / Each

2,3,4,5,6
U 518663 REX2NEK U Grommet, 38MM X 25MM Yes Model Compatibility List $4.57 / Each

2
S 518665 REX2NFK S Leveler, Leg Yes Model Compatibility List $9.92 / Each

1
C 518667 REX2NG7 C Hardware: Screw, PHl PAN M3 X 0.5-10 No Model Compatibility List $1.57 / Each

2
C 518673 REX2P4Q C Hardware: Bolt, HEX M10 X 1.5-16 No Model Compatibility List $1.51 / Each

2
C 518677 REX2QB4 C MOTOR ASSEMBLY LEFT No Model Compatibility List $324.91 / Each

1
C 518678 REX2QBA C MOTOR ASSEMBLY RIGHT No Model Compatibility List $324.91 / Each

1
C 518679 REX2R27 C WIRE GROUND HR Yes Model Compatibility List $11.00 / Each

4,5,6
S 518739 REX2T9D S Hardware: Nut HEX M10X1.5 Black Zinc No Model Compatibility List $1.51 / Each

2,4,5,6
P 518743 REX2T9W P Hardware: Screw, PHl TRUSS M5X.8-8 No Model Compatibility List $1.51 / Each

2
B 518751 REX2VYD B Cable, Internal Brake Magnet No Model Compatibility List $10.91 / Each

4,5,6,8
M 518753 REX2WYC M Electrical:Fuse Metric 5X20 S-B 3.15A 250V No Model Compatibility List $13.37 / Each

1
C 518755 REX2XST C Cable Idler Left No Model Compatibility List $53.89 / Each

8,4,5,6
C 518756 REX2XSU C Cable Idler Right No Model Compatibility List $53.89 / Each

8,4,5,6
U 518758 REX2ZXH U BOLT: M8X1.25-20 HEX. SOC. HD. CAP No Model Compatibility List $1.46 / Each

2,9
M 518764 REX30YR M SCREW, PHL PAN M3.5 X 18-10 No Model Compatibility List $1.46 / Each

2
M 518766 REX33N0 M SCREW, PHL 5MM*.8 X 12MM No Model Compatibility List $1.46 / Each

2
C 518767 REX33ZD C CABLE, UPPER CONSOLE TO MCB 10D933ZD No Model Compatibility List $31.76 / Each

7,4,5,6
C 518768 REX33ZE C CABLE, BASE, MCB TO CONSOLE 10D933ZE No Model Compatibility List $34.08 / Each

7,3,4,5,6
B 518783 REX3535 B BRKT, BELT TENSOR Yes Model Compatibility List $27.83 / Each

15
S 518790 REX35JK S STABILIZER ENDCAP Yes Model Compatibility List $4.20 / Each

9
C 518793 REX35UH C CABLE, BASE, POWER No Model Compatibility List $14.95 / Each

3,4,5,6
C 518794 REX35VJ C CONTROLLER, MOTOR, X8 No Model Compatibility List $599.00 / Each

7,8
C 518795 REX35VM C CABLE, UPPER, USER POD TO CONSOLE No Model Compatibility List $20.09 / Each

7,4,5,6
C 518796 REX35VN C CABLE, GRIP, USER POD TO CONSOLE No Model Compatibility List $19.63 / Each

7,4,5,6,11
C 518802 REX3E9M C CRANK COVER; TITANIUM Yes Model Compatibility List $26.88 / Each

8,9
M 518822 REX3HL5 M SHROUD, ACTUATOR; INNER RIGHT No Model Compatibility List $40.13 / Each

4,5,6,12,13,14
M 518823 REX3HL6 M SHROUD, ACTUATOR; OUTER RIGHT No Model Compatibility List $41.10 / Each

4,5,6,12,13,14
M 518824 REX3HL7 M SHROUD, ACTUATOR; INNER LEFT No Model Compatibility List $40.13 / Each

4,5,6,12,13,14
M 518825 REX3HL8 M SHROUD, ACTUATOR; OUTER LEFT No Model Compatibility List $41.16 / Each

4,5,6,12,13,14
P 518826 REX3HLX P PEDAL, INSERT Yes Model Compatibility List $72.63 / Each

8,9
P 518827 REX3HP0 P DEAD SHAFT COVER; FRONT No Model Compatibility List $7.73 / Each

9
P 518829 REX3HP2 P DEAD SHAFT COVER; REAR No Model Compatibility List $7.73 / Each

9
I 518831 REX3HP5 I PIVOT COVER; UPPER RIGHT No Model Compatibility List $3.74 / Each

8,9
I 518832 REX3HP6 I PIVOT COVER; LOWER RIGHT No Model Compatibility List $3.61 / Each

8,9
I 518833 REX3HP7 I PIVOT COVER; UPPER LEFT No Model Compatibility List $3.74 / Each

8,9
I 518834 REX3HP8 I PIVOT COVER; LOWER LEFT No Model Compatibility List $3.61 / Each

8,9
S 518835 REX3HP9 S GASKET; STRAIN RELIEF No Model Compatibility List $2.45 / Each

1
U 518836 REX3HR4 U TOP HEART RATE SENSOR Yes Model Compatibility List $13.65 / Each

11
U 518837 REX3HR5 U BOTTOM HEART RATE SENSOR Yes Model Compatibility List $13.65 / Each

11
U 518838 REX3HRH U CONSOLE MAST ASSEMBLY No Model Compatibility List $297.40 / Each

7
C 518840 REX3HS8 C QUICK KEY BOARD No Model Compatibility List $0.00 / Each
Out Of Stock 		9
C 518841 REX3HS9 C HR BOARD ASSEMBLY No Model Compatibility List $230.26 / Each

12,13,14
C 518842 REX3HSA C WIRE ASSEMBLY+M72 Yes Model Compatibility List $13.85 / Each

4,5,6
C 518844 REX3HSC C HAND PULSE HARNESS Yes Model Compatibility List $13.33 / Each

4,11
C 518845 REX3HSE C HAND PULSE HARNESS Yes Model Compatibility List $29.56 / Each

4
C 518846 REX3HSF C HAND PULSE HARNESS Yes Model Compatibility List $17.52 / Each

4,5,6,12,13,14
U 518847 REX3HSU U SCREW: M4X16-30 PHL PAN HD No Model Compatibility List $1.46 / Each

2
P 518854 REX3HUH P PEDAL, RIGHT Yes Model Compatibility List $32.56 / Each

8,9
C 518861 REX3HV0 C WELDMENT CONSOLE BRKT Yes Model Compatibility List $39.80 / Each

3
M 518862 REX3HVE M REAR SHROUD LT FRT No Model Compatibility List $87.30 / Each

12,13,14
M 518863 REX3HVG M REAR SHROUD RT FRONT No Model Compatibility List $88.19 / Each

12,13,14
M 518864 REX3HVH M ADJ SLIDE COVER LT No Model Compatibility List $14.36 / Each

9
M 518865 REX3HVJ M ADJ SLIDE COVER RT No Model Compatibility List $14.36 / Each

9
P 518866 REX3HVK P PIVOT GUARD No Model Compatibility List $1.80 / Each

8,9,3
M 518867 REX3HVM M COVER, POWER BRKT No Model Compatibility List $2.32 / Each

9,4,5,6
P 518868 REX3HVQ P KNUCKLE REAR No Model Compatibility List $7.28 / Each

1
P 518869 REX3HVR P KNUCKLE FRONT No Model Compatibility List $7.92 / Each

1
C 518870 REX3HVS C CUPHOLDER No Model Compatibility List $37.36 / Each

1
C 518871 REX3HVT C COVER CONSOLE MTG BOTTOM REAR No Model Compatibility List $13.59 / Each

7,9
P 518872 REX3HVU P ACCESSORY TRAY No Model Compatibility List $10.63 / Each

4,5,6
C 518873 REX3HVV C COVER CONSOLE MTG BOTTOM FRONT No Model Compatibility List $31.68 / Each

7,9
P 518874 REX3HVW P INSERT CUP HOLDER No Model Compatibility List $10.82 / Each

1
C 518875 REX3HW3 C STATIONARY HANDLEBAR ASSEM LT No Model Compatibility List $42.13 / Each

11
C 518876 REX3HW4 C STATIONARY HANDLEBAR ASSEM RT No Model Compatibility List $42.13 / Each

11
C 518877 REX3HW5 C END CAP No Model Compatibility List $13.98 / Each

9
U 518878 REX3HW6 U WELDMENT CUPHOLDER No Model Compatibility List $61.32 / Each

3
S 518879 REX3HW9 S STABILIZER WELDMENT No Model Compatibility List $84.27 / Each

3
C 518883 REX3HX1 C WIRE ASSSEMBLY No Model Compatibility List $7.84 / Each

4,5,6
C 518884 REX3HX2 C WIRE ASSSEMBLY No Model Compatibility List $8.31 / Each

4,5,6
C 518885 REX3HX5 C INCLINE MOTOR ASSEMBLY No Model Compatibility List $489.68 / Each

10
C 518886 REX3HX6 C INCLINE MOTOR ASSEMBLY No Model Compatibility List $489.68 / Each

10
S 518887 REX3HX7 S STABILIZER ASSEMBLY No Model Compatibility List $118.01 / Each

1
I 518888 REX3HX8 I LEFT OUTER ARM ASSEMBLY No Model Compatibility List $149.80 / Each

3
I 518889 REX3HX9 I RIGHT OUTER ARM ASSEMBLY No Model Compatibility List $149.80 / Each

3
C 518890 REX3HXA C CONTROL ASSEMBLY No Model Compatibility List $353.65 / Each

7
M 518893 REX3JNL M SCREW: M3.5X18-12 TRUSS HD. TAPPING No Model Compatibility List $1.46 / Each

2,12,13,14
S 518894 REX3JNN S BOLT, HEX M10X1.5-16 ; BLACK ZINC No Model Compatibility List $1.48 / Each

2,4,5,6
C 518895 REX3JNZ C SCREW, PHL PAN M5X.8-8; BLACK ZINC No Model Compatibility List $1.46 / Each

2,4,5,6
U 518896 REX3JPU U SCREW, PHL M5 X.8X12 PAN HD. TAPPING No Model Compatibility List $1.46 / Each

2,12,13,14
C 518897 REX3JPY C SCREW: M3.5X20-8 PHL PAN HD No Model Compatibility List $1.46 / Each

2
P 518898 REX3K52 P VELCRO PAD No Model Compatibility List $1.46 / Each

12,13,14
M 518906 REX3K6F M REAR LEFT SHROUD WITH LABEL No Model Compatibility List $94.77 / Each

12,13,14
M 518907 REX3K6G M REAR RIGHT SHROUD WITH LABEL No Model Compatibility List $94.77 / Each

12,13,14
U 518908 REX3K6H U LEFT FRONT LOWER COVER W/BADGE No Model Compatibility List $57.09 / Each

9
U 518909 REX3K6K U RIGHT FRONT LOWER COVER W/BADGE No Model Compatibility List $57.09 / Each

9
U 518910 REX3K6L U LEFT ROCKER ARM W/BEARINGS No Model Compatibility List $200.44 / Each

3
U 518911 REX3K6M U RIGHT ROCKER ARM W/BEARINGS No Model Compatibility List $200.44 / Each

3
U 518912 REX3K6N U NLA: LEFT HANDLEBAR ASSEM No Model Compatibility List $0.00 / Each
Out Of Stock 		11
P 518913 REX3K6W P LEFT PEDAL LEVER W/BEARINGS No Model Compatibility List $292.51 / Each

8,9,3
P 518914 REX3K6Z P RIGHT PEDAL LEVER W/BEARINGS No Model Compatibility List $292.51 / Each

8,9,3
U 518915 REX3KL6 U RESISTANCE BUTTON ASSEMBLY Yes Model Compatibility List $49.85 / Each

11
U 518916 REX3PA8 U ASSEMBLY: HANDLEBAR, RIGHT W/SWITCH Yes Model Compatibility List $195.37 / Each

4,5,6,11
Eddy ECB Magnetic Brake Chi Hua 1000702 7459501 Eddy ECB Magnetic Brake Chi Hua Yes Model Compatibility List $109.00 / Each
Out Of Stock 		36
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
