Life Fitness - Fit Lat Row

Repair Parts for Life Fitness Fit Lat Row FSLR

Brand: Life Fitness

Category: Commercial Strength Equipment

Type: Strength Systems

Model Name: Fit Lat Row

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
1 511952 ACU01-2375 1 ACU01:Guide Rod No Model Compatibility List $42.25 / Each
Out Of Stock 		3,4,5,6
1 511963 ACU02-1296PLAT 1 Dual Pulley Plate - Platinum No Model Compatibility List $26.54 / Each

8
1 511964 ACU02-1296WHT 1 PLATE - DUAL PULLEY - WHT No Model Compatibility List $13.10 / Each

8
1 511966 ACU02-1304BLK 1 Clip, Cable 2-7/8 X 2-1/4" X 1, Black No Model Compatibility List $3.20 / Each

2,4,5,6
9 511967 ACU02-1320 9 Adjust: Plate - Knee Hold Down Adjust No Model Compatibility List $63.15 / Each

1
8 511968 ACU02-1321BLK 8 Plate - 1/4" X 1-1/2 X 15-1/2 ; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
5 511984 ACU04-0622 5 Lower Bar No Model Compatibility List $70.00 / Each

1
6 512018 ACU04-1363PLAT 6 Lat/Low Frame - Plate No Model Compatibility List $276.76 / Each

3
6 512019 ACU04-1363WHT 6 Lat/Low Frame - White No Model Compatibility List $263.59 / Each

3
4 512020 ACU04-1364PLAT 4 Knee Hold Down - Plat No Model Compatibility List $100.44 / Each

1
4 512021 ACU04-1364WHT 4 Knee Hold Down - White No Model Compatibility List $98.80 / Each

1
7 512022 ACU04-1366PLAT 7 Swivel Pulley - Platinum No Model Compatibility List $55.96 / Each

8
7 512023 ACU04-1366WHT 7 SWIVEL PULLEY WHT No Model Compatibility List $53.08 / Each

8
5 512024 ACU04-1368BLK 5 Lat/Low Seat; Black No Model Compatibility List $70.56 / Each

4,5,6,12,13,14
5 512043 ACU04-1386 5 Lat Bar No Model Compatibility List $106.67 / Each

1
3 512071 ACU04-1652PLT 3 Lat/Low Boom Plate No Model Compatibility List $140.83 / Each

1
3 512072 ACU04-1652WHT 3 LAT/LOW BOOM WHT No Model Compatibility List $140.83 / Each

1
1 512073 ACU04-1653PLT 1 Guide Rod Support Plate No Model Compatibility List $0.00 / Each
Out Of Stock 		3
1 512074 ACU04-1653WHT 1 GUIDE ROD SUPPORT WHT No Model Compatibility List $35.68 / Each

3
2 512075 ACU04-1654PLAT 2 ACU04: Foot Plate Assembly No Model Compatibility List $231.82 / Each

9,4,5,6
2 512076 ACU04-1654WHT 2 FOOT PLATE ASSY WHT No Model Compatibility List $178.94 / Each

9
1 512077 ACU04-1655PLT 1 LAT/LOW BASE PLT No Model Compatibility List $85.92 / Each

3
1 512078 ACU04-1655WHT 1 LAT/LOW BASE WHT No Model Compatibility List $55.62 / Each

3
1 512079 ACU04-1656PLT 1 Tower Frame Plate No Model Compatibility List $275.53 / Each

3
1 512080 ACU04-1656WHT 1 TOWER FRAME WHT No Model Compatibility List $258.35 / Each

3

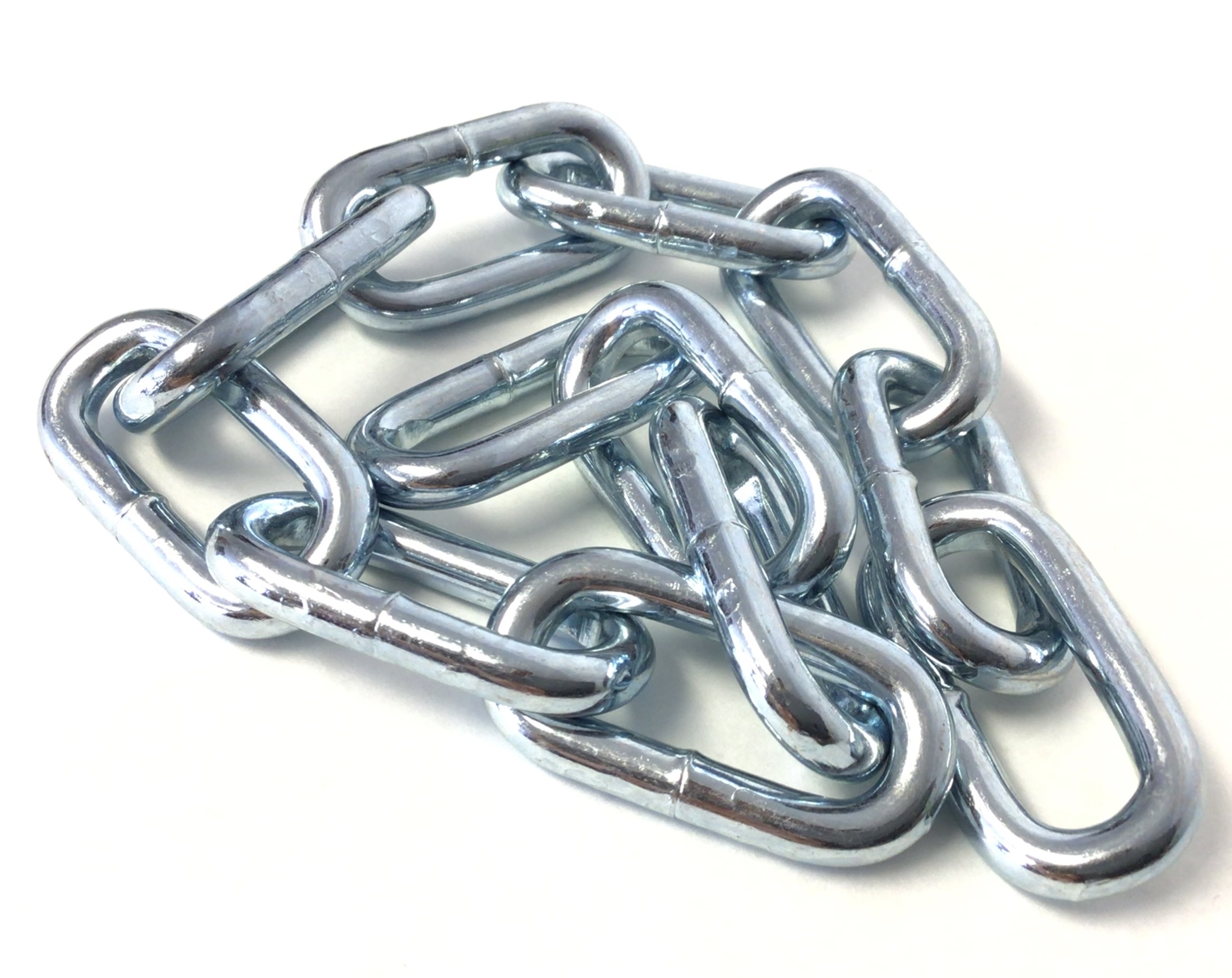

5 512092 ACU05-0193 5 Chain - 12 Link No Model Compatibility List $27.26 / Each

1
2 512093 ACU05-0212 2 Shaft Collar No Model Compatibility List $8.36 / Each

1
4 512094 ACU05-0310 4 Shim Washer - 27.6 X 10.3 X0.6 No Model Compatibility List $1.57 / Each

2
4 512096 ACU05-0313 4 Cap Head Allen Screw - 12.7 X No Model Compatibility List $14.75 / Each

2,9
2 512097 ACU05-0348 2 5-1/2 Pivot Shaft No Model Compatibility List $6.51 / Each

8
1 512098 ACU05-0349 1 Cable Adjustment Sleeve No Model Compatibility List $4.74 / Each

3,4,5,6
3 512099 ACU05-0350 3 Shaft Pivot - 16 X 10 X 14.5L No Model Compatibility List $1.57 / Each

8
1 512107 ACU06-0024 1 3 1/2 Pulley No Model Compatibility List $11.45 / Each

8
1 512108 ACU06-0025 1 Pulley 4 1/2 No Model Compatibility List $19.99 / Each

8
1 512113 ACU06-0304 1 Cushion; Weight Stack 3/4 ID No Model Compatibility List $11.45 / Each

3,4,5,6
4 512115 ACU06-0357BLK 4 Cap - Right Black No Model Compatibility List $1.57 / Each

9,4,5,6
4 512116 ACU06-0357PLAT 4 Cap - Right Plate No Model Compatibility List $1.57 / Each

9
4 512117 ACU06-0357WHT 4 Cap - Right White No Model Compatibility List $1.57 / Each

9
2 512119 ACU06-0382 2 Plastic Washer No Model Compatibility List $6.05 / Each

2,9

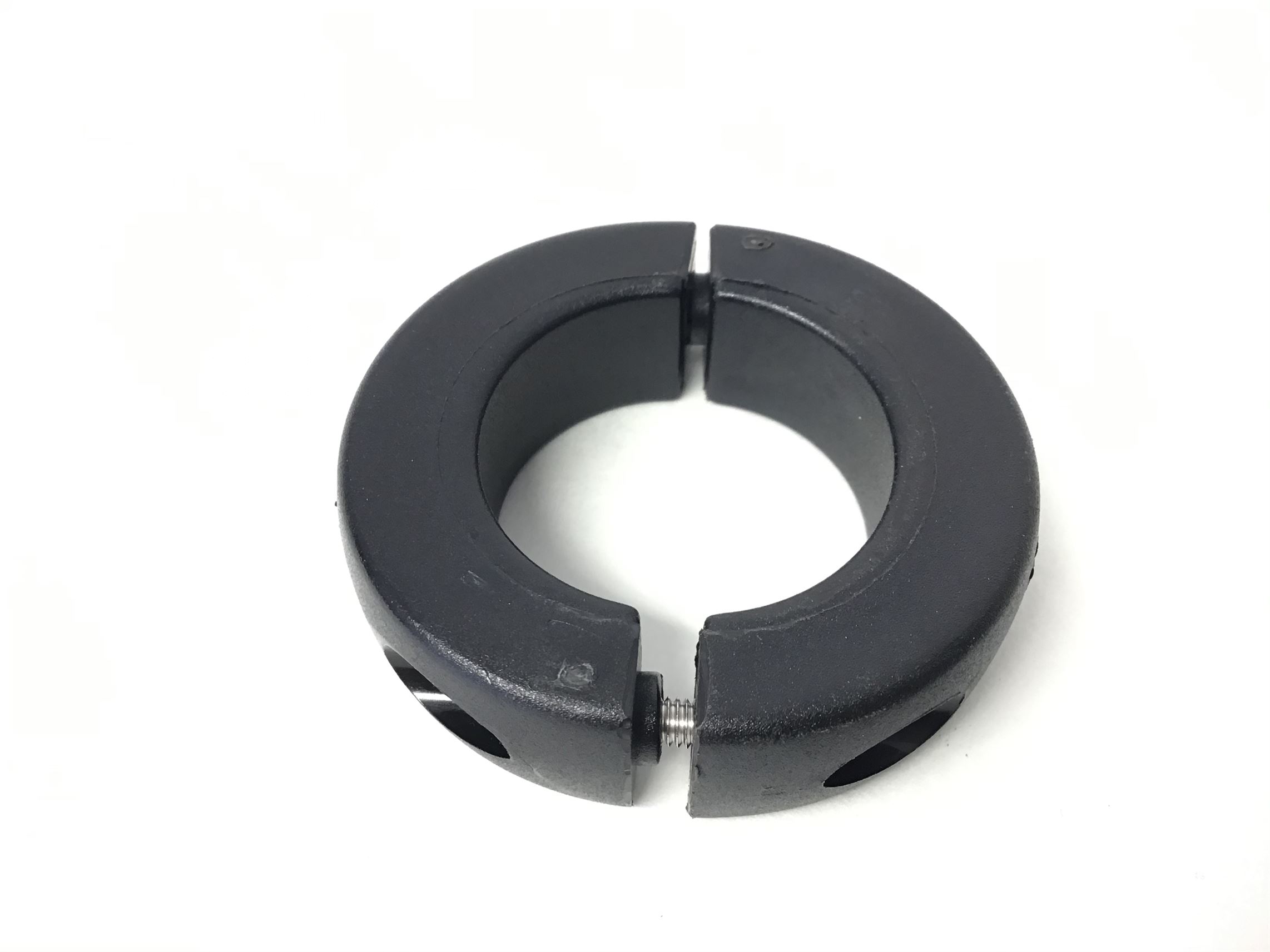

2 512121 ACU06-0388 2 Shaft Collar No Model Compatibility List $10.46 / Each

1
2 512124 ACU07-0157 2 Seat Pad No Model Compatibility List $69.13 / Each

12,13,14
2 512134 ACU08-0085 2 3/8 X 1/2 Flange Spacer No Model Compatibility List $1.57 / Each

2,3,4,5,6
2 512138 ACU10-0204ASY 2 Head Plate + 20 Plate Stem No Model Compatibility List $144.24 / Each

1
2 512139 ACU10-0215 2 Roller Pad No Model Compatibility List $50.67 / Each

8,12,13,14
5 512141 ACU10-0228 5 Rear Shroud (FSLR) No Model Compatibility List $369.05 / Each

12,13,14
5 512142 ACU10-0231 5 Front Shroud No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
2 512144 ACU11-0048 2 Selector Pin No Model Compatibility List $26.01 / Each

12,13,14
4 512149 ACU13-0123 4 Fit 3 Row Cable No Model Compatibility List $93.18 / Each

4,5,6
4 512150 ACU13-0166 4 Lat Cable FSLR No Model Compatibility List $85.00 / Each

4,5,6
2 512153 ACU7292501 2 Weight Plate No Model Compatibility List $0.00 / Each
Out Of Stock 		3
5 512231 ACUAP06-0333 5 Assembly, Fit Series, Tower Cap No Model Compatibility List $80.66 / Each

9
3 512239 ACUDA1C03804316 NU 3 HEX Bolt - 3/8 X 43L No Model Compatibility List $0.00 / Each
Out Of Stock 		2
3 512244 ACUDA1C03805016 NU 3 HEX Bolt - 3/8 X 50L No Model Compatibility List $0.00 / Each
Out Of Stock 		2
3 512249 ACUDA1C03806716 NU 3 3/8 X 67MM Bolt No Model Compatibility List $0.00 / Each
Out Of Stock 		2
3 512251 ACUDA1C03807016 NU 3 HEX Bolt - 3/8 X 70L No Model Compatibility List $0.00 / Each
Out Of Stock 		2
3 512252 ACUDA1C03807316 NU 3 3/8 X 73MM Bolt No Model Compatibility List $0.00 / Each
Out Of Stock 		2
3 512259 ACUDA1C03809016 NU 3 HEX Bolt - 3/8 X 90L No Model Compatibility List $0.00 / Each
Out Of Stock 		2
3 512263 ACUDA1C03809716 NU 3 HEX Bolt - 3/8 X 97L No Model Compatibility List $0.00 / Each
Out Of Stock 		2
3 512269 ACUDA1C03816416 NU 3 3/8 X 164MM Bolt No Model Compatibility List $0.00 / Each
Out Of Stock 		2
4 512277 ACUDAEC03802516 YB 4 Button Allen Screw -3/8X25L No Model Compatibility List $0.00 / Each
Out Of Stock 		2
1 512280 ACUDAEC03809016 NB 1 Button HD Alle Screw-3/8X90L No Model Compatibility List $0.00 / Each
Out Of Stock 		2
4 512284 ACUDB2E03807200 U 4 Hardware: Nylon Nut - 3/8 X 7.2T No Model Compatibility List $0.00 / Each
Out Of Stock 		2
5 512285 ACUDB9E03813016 B 5 Acorn Nut 3/8 No Model Compatibility List $0.00 / Each
Out Of Stock 		2,4,5,6
4 512288 ACUDC1250100020 B 4 Hardware: Washer - 3/8 X 2.0T Black No Model Compatibility List $0.00 / Each
Out Of Stock 		2,4,5,6
5 512293 ACUDI1080080U 5 Snap Link No Model Compatibility List $3.20 / Each

1
5 512313 ACUMD000132 5 Label, Weight Stack 1-21 No Model Compatibility List $9.80 / Each

3,4,5,6
