Life Fitness - MTS Bicep Curl

Repair Parts for Life Fitness MTS Bicep Curl MTSBC

Brand: Life Fitness

Category: Commercial Strength Equipment

Type: Strength Systems

Model Name: MTS Bicep Curl

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
3 500136 0017-00009-0925 3 Spacer: Flange:1" Strength; Bushing N/D No Model Compatibility List $14.75 / Each

2,8,3,4,5,6
1 500272 0017-00042-1045 1 2.0X9 Hammer Strength Frame Guard No Model Compatibility List $16.40 / Each

9,3
2 500472 0017-00101-1587 2 Hardware: RVT 201X0413X.354 T NY NO No Model Compatibility List $1.57 / Each

1
8 506170 3102507 8 Hardware: Flat Washer 1/2" ID No Model Compatibility List $1.57 / Each

2
1 506175 3102801 1 Hardware: Nut 1/2" ID No Model Compatibility List $1.52 / Each

2
9 506177 3102804 9 Hardware: Nut 1/2" ID No Model Compatibility List $1.57 / Each

2
4 506178 3102806 4 Hardware: Nut 1/4" ID No Model Compatibility List $1.57 / Each

2
2 506179 3102807 2 Hardware: Nut 3/8" ID No Model Compatibility List $1.57 / Each

2
1 506197 3103301 1 Shaft Collar 3/4" ID Zinc No Model Compatibility List $14.75 / Each

1
2 506285 3223302 2 Hardware: Bolt 3/8" D No Model Compatibility List $1.57 / Each

2
4 506296 3223809 4 Hardware: Bolt 2.5" L No Model Compatibility List $1.57 / Each

2
4 506352 3235802 4 Grip 1.5" OD No Model Compatibility List $43.12 / Each

11
3 506357 3236001 3 SpringPin Bushing No Model Compatibility List $15.00 / Each

2,8,12,13,14
2 506362 3236204 2 Hardware: Screw 35MM No Model Compatibility List $3.20 / Each

2
5 506368 3236210 5 Hardware: Screw 65MM No Model Compatibility List $4.86 / Each

2
3 506375 3236217 3 Hardware: Screw 100MM No Model Compatibility List $6.51 / Each

2
4 506385 3236801 4 Hardware: Nut 10 MM ID No Model Compatibility List $1.57 / Each

2
1 506404 3238312 1 Hardware: Screw 75mm No Model Compatibility List $16.40 / Each

2
9 506408 3238502 9 Cap No Model Compatibility List $1.57 / Each

9
2 506413 3239303 2 Hardware: Bolt .75" L No Model Compatibility List $1.57 / Each

2
3 506414 3239305 3 Hardware: Bolt 1.25" L No Model Compatibility List $1.57 / Each

2
1 506415 3239306 1 Hardware: Bolt 1.50" L No Model Compatibility List $1.57 / Each

2
1 506417 3239310 1 Hardware: Bolt .50 " L No Model Compatibility List $1.57 / Each

2
1 506418 3239311 1 Hardware: Bolt 2.75" L No Model Compatibility List $1.57 / Each

2
1 506420 3239313 1 Hardware: Bolt 3.25" L No Model Compatibility List $3.20 / Each

2
3 506423 3239316 3 Hardware: Bolt 4.00" L No Model Compatibility List $3.20 / Each

2
7 506424 3239317 7 Hardware: Bolt 4.25" L No Model Compatibility List $4.86 / Each

2
2 506428 3239503 2 Harware: Washer 0.375" D No Model Compatibility List $1.57 / Each

2
1 506429 3239505 1 Harware: Washer 0.5 No Model Compatibility List $4.93 / Each

2
3 506432 3239803 3 Hardware: Bolt 3/8" D No Model Compatibility List $4.56 / Each

2
3 506433 3239901 3 Flange Bearing No Model Compatibility List $32.87 / Each

1
4 506455 3242601 4 End Cap No Model Compatibility List $1.57 / Each

9
1 506456 3242701 1 End Cap No Model Compatibility List $1.57 / Each

9
4 506470 3244901 4 End Cap No Model Compatibility List $8.15 / Each

9

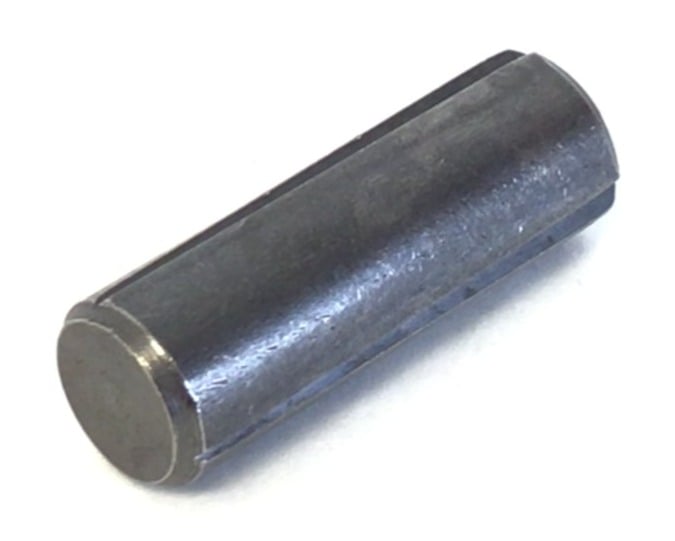

3 506505 3251901 3 Groove Pin - 1/2" D No Model Compatibility List $9.77 / Each

12,13,14
5 506580 3273303 5 Hardware: WasherR, 3/8, THRU-HARDENED No Model Compatibility List $1.52 / Each

2,12,13,14
3 507161 6912804 3 Sleeve Accordion 1.0 ID X 2.00 No Model Compatibility List $2.33 / Each

3,4,5,6
2 507579 7328608 2 Guide Rod .75 OD Solid X 31.75 No Model Compatibility List $37.81 / Each

3
7 507623 7338001 7 Bushing Headplate No Model Compatibility List $41.12 / Each

8
2 507644 7351401 2 Knob Tulip Style No Model Compatibility List $8.15 / Each

1
7 507649 7352001 7 Bumper No Model Compatibility List $9.80 / Each

1
3 507650 7352101 3 Cushion Weight Stack No Model Compatibility List $3.20 / Each

3,4,5,6
5 507656 7353001 5 Hardware: Assembly Selector Pin No Model Compatibility List $12.07 / Each

12,13,14
1 507661 7353701 1 Weight Plate 10 LB No Model Compatibility List $34.52 / Each

3
4 507670 7356501 4 Plug Lanyard Attachment No Model Compatibility List $1.57 / Each

4,5,6
1 507738 7388201 1 Footpad PS Rubber No Model Compatibility List $4.86 / Each

9,12,13,14
1 507771 7398999 1 PAD, SEAT 13-1/4" X 8-1/4" Custom No Model Compatibility List $124.94 / Each

12,13,14
8 507864 7422001 8 Label Seat Inst No Model Compatibility List $31.08 / Each

12,13,14
7 507865 7422002 7 Label Seat Adjust No Model Compatibility List $1.57 / Each

12,13,14
1 507932 7429901 1 Weldment MTBC Front Frame No Model Compatibility List $82.32 / Each

3
- 507933 7430001 - 100lb Weight Stack Assembly No Model Compatibility List $418.49 / Each

3,4,5,6
1 507934 7430401 1 Weldment MTBC R Side Frame No Model Compatibility List $439.91 / Each

3
1 507935 7431801 1 Weldment MTBC L Side Frame No Model Compatibility List $439.91 / Each

3
2 507936 7431901 2 Weldment MTBC R Move Arm No Model Compatibility List $80.66 / Each

3
1 507937 7432301 1 Weldment MTBC R Handlebar No Model Compatibility List $93.84 / Each

3,11
2 507938 7432601 2 Weldment MTBC L Move Arm No Model Compatibility List $80.66 / Each

3
1 507939 7432701 1 Weldment MTBC L Handlebar No Model Compatibility List $93.84 / Each

3,11
3 507940 7432801 3 Weldment MTBC Cam Left No Model Compatibility List $115.28 / Each

3
2 507941 7433201 2 Weldment MTBC Cam Right No Model Compatibility List $115.28 / Each

3
5 507942 7433301 5 Weldment MTBC Base Frame No Model Compatibility List $128.45 / Each

3
1 507943 7433701 1 Weldment MTBC Seat Frame No Model Compatibility List $105.38 / Each

3,12,13,14
1 507944 7434001 1 Washer MTS Hammer Head No Model Compatibility List $11.58 / Each

2
2 507945 7434301 2 BAYONET MTS 10 HOLE No Model Compatibility List $19.69 / Each

1
6 507946 7434401 6 Head Plate MTS No Model Compatibility List $44.41 / Each

1
2 507947 7434895 2 Weldment MTS Belt Attach SG No Model Compatibility List $26.29 / Each

15,3,4,5,6
2 507948 7435101 2 Shaft 3/8 Diameter SS Belt Wrap No Model Compatibility List $14.75 / Each

15
2 507949 7435295 2 Plate MTS Belt Clamp SG No Model Compatibility List $11.45 / Each

15,4,5,6
3 507950 7435301 3 Collar Shaft 1.020 ID No Model Compatibility List $3.20 / Each

1
4 507951 7435701 4 Belt Spooled W 15/16 T .09 No Model Compatibility List $1.57 / Each

15
3 507952 7435901 3 Assembly MTBC Right Handlebar No Model Compatibility List $32.87 / Each

11
- 507953 7436001 - Assembly MTBC Left Handlebar No Model Compatibility List $32.87 / Each

11
1 507954 7436201 1 Weldment MTS 97 Seat No Model Compatibility List $107.04 / Each

3,12,13,14
- 507955 7436401 - Assembly MTS 97 Seat No Model Compatibility List $172.95 / Each

12,13,14
1 507956 7436595 1 Weldment MTS Belt Attach Lh No Model Compatibility List $51.62 / Each

15,3,4,5,6
3 507957 7436695 3 PLATE MTS BELT CAM ATTACH No Model Compatibility List $18.04 / Each

15,4,5,6
- 507967 7439001 - Assembly - PSSP Side Frame No Model Compatibility List $1.12 / Each

3
9 507980 7442601 9 Spring PRO2 Roller Seat No Model Compatibility List $13.10 / Each

2,8,12,13,14
8 507981 7442701 8 Spring PRO2 Handle Torsion No Model Compatibility List $3.20 / Each

2,11
5 507995 7446901 5 Hardware: Pin Retaining No Model Compatibility List $33.71 / Each

12,13,14
4 507996 7447001 4 Compression Spring No Model Compatibility List $14.99 / Each

2
1 508044 7465101 1 Shroud MTS Side 31.25" SG No Model Compatibility List $139.99 / Each

12,13,14
7 508084 7477401 7 End Cap No Model Compatibility List $3.20 / Each

9
8 508400 7523601 8 Crimp Cable No Model Compatibility List $1.57 / Each

4,5,6
3 508503 7560001 3 Bushing MTS Increment Weight No Model Compatibility List $3.20 / Each

8,3
4 508518 7564101 4 Lable MTS No Model Compatibility List $1.57 / Each

1
6 508519 7564201 6 Assembly Seat Roller No Model Compatibility List $24.64 / Each

8,12,13,14
4 508520 7564401 4 Seatrack Flat No Model Compatibility List $9.80 / Each

15,3,4,5,6,12,13,14
1 508529 7570601 1 Stop Roller Seat No Model Compatibility List $8.15 / Each

8,12,13,14
5 508577 7594601 5 Pulley Mts 3 IN Belt No Model Compatibility List $36.16 / Each

8,15
2 508762 7662902 2 Grip Cap No Model Compatibility List $14.75 / Each

9,11
2 509038 7763299 2 Wear Cover, Pad 9-1/2 X 6-1/2 X 1-3/4 Custom No Model Compatibility List $33.16 / Each

9,12,13,14
1 509051 7765899 1 Pad, 9-1/2 X 6-1/2 X 1-3/4 No Model Compatibility List $116.16 / Each

12,13,14
9 509056 7767601 9 Bumper PS Increment No Model Compatibility List $12.11 / Each

1
3 509150 7802101 3 Counter Weight MTS Dipped No Model Compatibility List $29.59 / Each

3
1 509331 8039501 1 Label Warning Triangle 10-0099-067 BNR No Model Compatibility List $1.52 / Each

1
- 509346 8046901 - Assembly MTS Increments Weight No Model Compatibility List $57.60 / Each

3
- 509358 8072101 - Label MTS Weight Stack 80 KG No Model Compatibility List $19.69 / Each

3,4,5,6
- 509359 8072201 - Label MTS Weight Stack 150 LBS No Model Compatibility List $13.10 / Each

3,4,5,6
1 509802 8353501 1 Shroud, MTS 31.25 X 12.25 No Model Compatibility List $72.42 / Each

12,13,14
3 509835 8416801 3 Track Seat - Serrated (20 Slots) No Model Compatibility List $15.47 / Each

15,3,4,5,6,12,13,14
2 509837 8417295 2 Weldment MTS Handle 97 Seat SG No Model Compatibility List $66.01 / Each

3,12,13,14,11
6 511252 9217401 6 CAP, 1.5IN X 2IN -10-14GA, END No Model Compatibility List $1.48 / Each

9
4 516130 H-NAMEPLATE 4 Decal: Name Plate No Model Compatibility List $11.45 / Each

7,3
5 517139 LEA3247701 5 Hardware: Screw No Model Compatibility List $1.57 / Each

2
4 517307 M051-00297-A000 4 Decal Incrememt Weight Left No Model Compatibility List $3.15 / Each

7,3
4 517308 M051-00298-A000 4 Decal Increment Weight Right No Model Compatibility List $3.20 / Each

7,3
1 517309 M051-00299-A000 1 Hammer Patent Decal No Model Compatibility List $27.38 / Each

7,3
4 517319 M051-00443-A000 4 Decal: Weight Stack Number Strip; 100 LB. No Model Compatibility List $88.60 / Each

7,3,4,5,6
4 517320 M051-00444-A000 4 MTBC English Instruction Decal No Model Compatibility List $62.53 / Each

7,3
