Life Fitness - Optima Single Station Chest Press

Repair Parts for Life Fitness Optima Single Station Chest Press OSCP

Brand: Life Fitness

Category: Commercial Strength Equipment

Type: Strength Systems

Model Name: Optima Single Station Chest Press

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
1 506172 3102514 1 Hardware: Flat Washer 3/8" ID No Model Compatibility List $1.57 / Each

2
1 506337 3232421 1 Reatining Ring 0.940" D No Model Compatibility List $1.57 / Each

1
Ball Bearing 506348 3235601 10 Ball Bearing No Model Compatibility List $8.15 / Each

1
2 506352 3235802 2 Grip 1.5" OD No Model Compatibility List $43.12 / Each

11

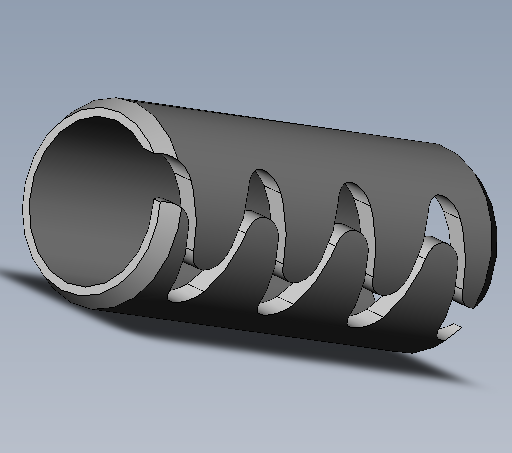

3 506357 3236001 3 SpringPin Bushing No Model Compatibility List $15.00 / Each

2,8,12,13,14
3 506389 3236901 3 Hardware: Nut Hex Jam 10 MM No Model Compatibility List $6.00 / Each

2
4 506390 3236902 4 Hardware: Nut 16 MM ID No Model Compatibility List $1.57 / Each

2
5 506392 3237402 5 Plug 1/2" Hole No Model Compatibility List $1.57 / Each

1
6 506393 3237403 6 Plug 1" Hole No Model Compatibility List $1.57 / Each

1
3 506397 3237801 3 Pulley 4.5" OD No Model Compatibility List $29.59 / Each

8
7 506399 3237901 7 Rod End Metric Female No Model Compatibility List $29.59 / Each

3
1 506411 3239101 1 Hardware: Phillips Pan Screw No Model Compatibility List $1.57 / Each

2
6 506412 3239103 6 Screw, M5X.8 X 16 PHl PAN TT ST BZ No Model Compatibility List $1.57 / Each

2
2 506430 3239601 2 Pulley - 6" No Model Compatibility List $19.69 / Each

8
8 506434 3240501 8 Set Screw No Model Compatibility List $1.57 / Each

2
1 506491 3251703 1 Hardware: Screw 30MM No Model Compatibility List $5.21 / Each

2
6 506494 3251707 6 Hardware: Screw 50MM No Model Compatibility List $1.57 / Each

2
7 506496 3251709 7 Hardware: Screw 60MM No Model Compatibility List $1.57 / Each

2
1 506501 3251715 1 Hardware: Screw 90MM No Model Compatibility List $3.20 / Each

2
1 506503 3251718 1 M10 X 1.5 X 110 HXS SOC CS ST ZN No Model Compatibility List $9.13 / Each

1
1 506504 3251719 1 Hardware: Screw 120MM No Model Compatibility List $3.20 / Each

2
9 506507 3252803 9 M6-1.0 X 12 HXS BUT CS ST ZN No Model Compatibility List $1.51 / Each

1
7 506554 3264101 7 Hardware: Washer No Model Compatibility List $1.57 / Each

2
1 507075 6757701 1 Cable Clip No Model Compatibility List $4.86 / Each

2,4,5,6
Shaft 25MM X 13.740 507528 7316508 16 Shaft 25MM X 13.740 No Model Compatibility List $37.81 / Each

1
1 507590 7328621 1 Guide Rod, .75 OD Solid X 48.60 No Model Compatibility List $86.45 / Each

3
1 507600 7330001 1 Spacer Internal X .403 No Model Compatibility List $8.15 / Each

2,3,4,5,6
Spacer Internal X 11.765 507606 7330007 22 Spacer Internal X 11.765 No Model Compatibility List $37.81 / Each

2,3,4,5,6
1 507650 7352101 1 Cushion Weight Stack No Model Compatibility List $3.20 / Each

3,4,5,6
2 507784 7402301 2 Retainer Guide Rod No Model Compatibility List $13.10 / Each

3
5 507995 7446901 5 Hardware: Pin Retaining No Model Compatibility List $33.71 / Each

12,13,14
4 507996 7447001 4 Compression Spring No Model Compatibility List $14.99 / Each

2
1 508109 7489402 1 Bushing No Model Compatibility List $3.20 / Each

8
2 508110 7489403 2 Bushing, .500 OD X .402 ID X .272 No Model Compatibility List $3.28 / Each

8
7 508534 7571301 7 Label Serial Number No Model Compatibility List $1.57 / Each

1
8 508762 7662902 8 Grip Cap No Model Compatibility List $14.75 / Each

9,11
4 509056 7767601 4 Bumper PS Increment No Model Compatibility List $12.11 / Each

1
9 509147 7800501 9 Small Cap No Model Compatibility List $16.17 / Each

9
1 509164 7810801 1 Rubber Foot Pad No Model Compatibility List $9.80 / Each

9,12,13,14
2 509301 8012901 2 End Cap FLOV No Model Compatibility List $8.15 / Each

9
1 509331 8039501 1 Label Warning Triangle 10-0099-067 BNR No Model Compatibility List $1.52 / Each

1
3 509342 8045001 3 BEARING Increment Weight No Model Compatibility List $3.86 / Each

3
2 509350 8048001 2 Knob Tulip Style No Model Compatibility List $2.61 / Each

1
1 509757 8331401 1 ASSY, 15LB PLATE, 80/20 CAST No Model Compatibility List $0.00 / Each
Out Of Stock 		1
2 509758 8331701 2 Bayonet, OS, 12 Plate No Model Compatibility List $61.34 / Each

1
8 509761 8332101 8 Bracket, OS Tower, Increment Weight Striker No Model Compatibility List $69.03 / Each

2,3,4,5,6
3 509773 8343101 3 Tag - Bolt To Floor No Model Compatibility List $1.87 / Each

2
1 509810 8370701 1 Cover, OS Tower, Top No Model Compatibility List $37.64 / Each

9
1 509812 8370801 1 Shroud, OS Tower No Model Compatibility List $99.70 / Each

12,13,14
1 509817 8370901 1 Shroud, OS Tower, Center, Standard No Model Compatibility List $29.98 / Each

12,13,14
1 509820 8371001 1 Cap, OS Tower, Top No Model Compatibility List $2.80 / Each

9
9 509821 8371201 9 Clip, OS Tower No Model Compatibility List $4.19 / Each

2
1 509822 8371301 1 Cover, OS Tower, Bottom No Model Compatibility List $19.96 / Each

9
2 509832 8403902 2 ASSY, OSTWR, FINAL-PLT No Model Compatibility List $0.00 / Each
Out Of Stock 		1
1 509833 8404002 1 Weldment, OS Tower Plate No Model Compatibility List $517.33 / Each

3
1 509840 8423801 1 Foot, OS Tower No Model Compatibility List $4.88 / Each

9
Pad, Large Back, Flat Black 509874 8465001 Pad, Large Back, Flat Black No Model Compatibility List $196.64 / Each

4,5,6,12,13,14
2 509875 8465099 2 Pad, Large Back, Flat Custom No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
Pad, Saddle, Flat Black 509890 8472201 - Pad, Saddle, Flat Black No Model Compatibility List $143.16 / Each

4,5,6,12,13,14
2 509891 8472299 2 Pad, Saddle, Flat Custom No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
4 509895 8474501 4 Foot, Optima No Model Compatibility List $16.73 / Each

9
Cable, OSCP, Tower 509911 8491005 22 Cable, OSCP, Tower No Model Compatibility List $77.38 / Each

4,5,6
1 509926 8504201 1 BODY, INCREMENT WEIGHT, 7 LB No Model Compatibility List $77.94 / Each

3
1 509927 8504301 1 Assembly, Increment Weight, 7 LB No Model Compatibility List $105.97 / Each

3
Assembly, OS Head Plate, 12 Plate 509928 8505601 23 Assembly, OS Head Plate, 12 Plate No Model Compatibility List $207.08 / Each

1
Assembly, Selector Pin 509930 8506101 7 Assembly, Selector Pin No Model Compatibility List $20.23 / Each

12,13,14
5 509944 8514602 5 Weldment, OS Pulley Cover Platinum No Model Compatibility List $40.44 / Each

8,9,3
5 509976 8544201 5 Assembly, OS, Spring Pin No Model Compatibility List $40.44 / Each

2,12,13,14
Assembly, OSCP Front Shroud 509990 8548606 25 Assembly, OSCP Front Shroud No Model Compatibility List $225.89 / Each

12,13,14
6 509999 8552702 6 Weldment, Main Frame, OSCP- Plate No Model Compatibility List $481.07 / Each

3
2 510000 8553001 2 Weldment, Seat Post No Model Compatibility List $106.67 / Each

3,12,13,14
1 510001 8553702 1 Weldment, Workarm, OSCP - Plate No Model Compatibility List $603.78 / Each

3
2 510002 8554102 2 Weldment, Cross Member - Plate No Model Compatibility List $80.18 / Each

3
6 510003 8554602 6 Weldment, Pulley Tree, OSCP - Plate No Model Compatibility List $172.91 / Each

8,3
2 510004 8554802 2 Weldment, Cross Member, Upper - Plate No Model Compatibility List $105.28 / Each

3
2 510005 8554902 2 Painted Assembly, Workarm, OSCP - Plate No Model Compatibility List $798.99 / Each

3
2 510006 8555002 2 Painted Assembly, Main Frame, OSCP - Plate No Model Compatibility List $591.93 / Each

3
Assembly, Seatpost, OSCP 510007 8555201 30 Assembly, Seatpost, OSCP No Model Compatibility List $128.28 / Each

12,13,14
3 510008 8555302 3 Painted Assembly, Pulley Tree, OSCP - Plate No Model Compatibility List $252.38 / Each

8
3 510009 8555402 3 PTD ASSY, OSCP, FRAME BOX - PLT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
5 510011 8556102 5 Weldment, Pulley Bracket - Plate No Model Compatibility List $67.64 / Each

2,8,3,4,5,6
3 510012 8556702 3 Painted Assembly, Pulley Bracket - Plate No Model Compatibility List $100.40 / Each

2,8,3,4,5,6
3 510071 8624101 3 Bushing, Seat Glide Ext. No Model Compatibility List $7.66 / Each

8,12,13,14
4 510072 8624201 4 Bushing, Seat Glide INT. No Model Compatibility List $7.66 / Each

8,12,13,14
MANUAL, OSCP, ASSY INST 510077 8626201 MANUAL, OSCP, ASSY INST No Model Compatibility List $0.00 / Each
Out Of Stock 		1
1 510083 8630801 1 Label, ASTM, Select Vertical-Sheet No Model Compatibility List $72.52 / Each

1
1 510106 8664101 1 Assembly, OS, Head Plate No Model Compatibility List $132.66 / Each

1
NLA: MANUAL, OS, OWNERS 510120 8670001 - NLA: MANUAL, OS, OWNERS No Model Compatibility List $0.00 / Each
Out Of Stock 		1
2 510123 8674402 2 Assembly, OSTWR-Plate No Model Compatibility List $633.75 / Each

1
1 510134 8682601 1 Tape, Non-Skid, Clear No Model Compatibility List $1.49 / Each

1
2 510275 8766203 2 Label, OSCP, Placard No Model Compatibility List $32.77 / Each

4,5,6
Label, OSCP, Multi Lang Sheet 510291 8766303 5 Label, OSCP, Multi Lang Sheet No Model Compatibility List $14.65 / Each

1
Label, Weight Stack, 13 Plate 510309 8769601 5 Label, Weight Stack, 13 Plate No Model Compatibility List $23.00 / Each

3,4,5,6
4 517135 LEA3239102 4 Hardware: Screw No Model Compatibility List $1.52 / Each

2
5 517136 LEA3242002 5 Hardware: Hex Nut 10MM D No Model Compatibility List $1.57 / Each

2
6 517145 LEA3251702 6 Screw; M10 X1.5 25MM No Model Compatibility List $3.20 / Each

2
Assembly, OSCP, Hardware Bag 517513 OSCP-HDWR Assembly, OSCP, Hardware Bag No Model Compatibility List $153.38 / Each

1
Hardware: Assembly, OSCP, Component Kit 517514 OSCP-KIT Hardware: Assembly, OSCP, Component Kit No Model Compatibility List $0.00 / Each
Out Of Stock 		1
ASSY, OSTWR, BLISTER PACK 517543 OSTWR-HDWR-G - ASSY, OSTWR, BLISTER PACK No Model Compatibility List $25.79 / Each

4,5,6
Hardware: Assembly, OSTWR, Component Kit 517544 OSTWR-KIT - Hardware: Assembly, OSTWR, Component Kit No Model Compatibility List $742.83 / Each

1
