Life Fitness - Optima Single Station Pull Down

Repair Parts for Life Fitness Optima Single Station Pull Down OSPD

Brand: Life Fitness

Category: Commercial Strength Equipment

Type: Strength Systems

Model Name: Optima Single Station Pull Down

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
2 506172 3102514 2 Hardware: Flat Washer 3/8" ID No Model Compatibility List $1.57 / Each

2
1 506337 3232421 1 Reatining Ring 0.940" D No Model Compatibility List $1.57 / Each

1
- 506348 3235601 - Ball Bearing No Model Compatibility List $8.15 / Each

1
5 506351 3235801 5 Grip - 1.25" OD No Model Compatibility List $29.86 / Each

11
3 506357 3236001 3 SpringPin Bushing No Model Compatibility List $15.00 / Each

2,8,12,13,14
1 506389 3236901 1 Hardware: Nut Hex Jam 10 MM No Model Compatibility List $6.00 / Each

2
1 506390 3236902 1 Hardware: Nut 16 MM ID No Model Compatibility List $1.57 / Each

2
2 506392 3237402 2 Plug 1/2" Hole No Model Compatibility List $1.57 / Each

1
3 506393 3237403 3 Plug 1" Hole No Model Compatibility List $1.57 / Each

1
6 506397 3237801 6 Pulley 4.5" OD No Model Compatibility List $29.59 / Each

8
2 506399 3237901 2 Rod End Metric Female No Model Compatibility List $29.59 / Each

3
2 506411 3239101 2 Hardware: Phillips Pan Screw No Model Compatibility List $1.57 / Each

2
6 506412 3239103 6 Screw, M5X.8 X 16 PHl PAN TT ST BZ No Model Compatibility List $1.57 / Each

2
5 506430 3239601 5 Pulley - 6" No Model Compatibility List $19.69 / Each

8
8 506434 3240501 8 Set Screw No Model Compatibility List $1.57 / Each

2
1 506491 3251703 1 Hardware: Screw 30MM No Model Compatibility List $5.21 / Each

2
4 506494 3251707 4 Hardware: Screw 50MM No Model Compatibility List $1.57 / Each

2
4 506495 3251708 4 Hardware: Screw 55MM No Model Compatibility List $1.57 / Each

2
7 506496 3251709 7 Hardware: Screw 60MM No Model Compatibility List $1.57 / Each

2
1 506503 3251718 1 M10 X 1.5 X 110 HXS SOC CS ST ZN No Model Compatibility List $9.13 / Each

1
2 506504 3251719 2 Hardware: Screw 120MM No Model Compatibility List $3.20 / Each

2
9 506507 3252803 9 M6-1.0 X 12 HXS BUT CS ST ZN No Model Compatibility List $1.51 / Each

1
3 506554 3264101 3 Hardware: Washer No Model Compatibility List $1.57 / Each

2
1 507075 6757701 1 Cable Clip No Model Compatibility List $4.86 / Each

2,4,5,6
3 507519 7308701 3 Cap Bearing Housing No Model Compatibility List $3.20 / Each

9
- 507525 7316504 - Shaft 25MM D 8.25" L No Model Compatibility List $111.98 / Each

1
1 507543 7322301 1 Plate 1.97 OD X .447 ID 10 GA No Model Compatibility List $3.20 / Each

1
1 507590 7328621 1 Guide Rod, .75 OD Solid X 48.60 No Model Compatibility List $86.45 / Each

3
- 507604 7330005 - Spacer Internal X 6.265 No Model Compatibility List $22.99 / Each

2,3,4,5,6
2 507609 7330011 2 Spacer, Internal X .425 No Model Compatibility List $12.11 / Each

2,3,4,5,6
2 507632 7347301 2 Hardware: Nut 10 MM ID No Model Compatibility List $8.15 / Each

2
1 507650 7352101 1 Cushion Weight Stack No Model Compatibility List $3.20 / Each

3,4,5,6
3 507663 7353801 3 Weight Plate 15 LB No Model Compatibility List $46.05 / Each

3
3 507673 7357901 3 Shaft Collar No Model Compatibility List $37.81 / Each

1
2 507784 7402301 2 Retainer Guide Rod No Model Compatibility List $13.10 / Each

3
- 507917 7424701 - ASSY, ROLLER PAD SHORT BLACK No Model Compatibility List $76.66 / Each

8,4,5,6,12,13,14
2 507918 7424799 2 ASSY, ROLLER PAD SHORT Custom No Model Compatibility List $122.08 / Each

8,12,13,14
5 507995 7446901 5 Hardware: Pin Retaining No Model Compatibility List $33.71 / Each

12,13,14
4 507996 7447001 4 Compression Spring No Model Compatibility List $14.99 / Each

2
2 508109 7489402 2 Bushing No Model Compatibility List $3.20 / Each

8
2 508110 7489403 2 Bushing, .500 OD X .402 ID X .272 No Model Compatibility List $3.28 / Each

8
7 508534 7571301 7 Label Serial Number No Model Compatibility List $1.57 / Each

1
7 508761 7662901 7 Grip Cap No Model Compatibility List $14.75 / Each

9,11
4 509056 7767601 4 Bumper PS Increment No Model Compatibility List $12.11 / Each

1
8 509147 7800501 8 Small Cap No Model Compatibility List $16.17 / Each

9
- 509148 7801901 - Small Counter Weight-Coated No Model Compatibility List $80.81 / Each

3
1 509331 8039501 1 Label Warning Triangle 10-0099-067 BNR No Model Compatibility List $1.52 / Each

1
3 509342 8045001 3 BEARING Increment Weight No Model Compatibility List $3.86 / Each

3
2 509350 8048001 2 Knob Tulip Style No Model Compatibility List $2.61 / Each

1
2 509758 8331701 2 Bayonet, OS, 12 Plate No Model Compatibility List $61.34 / Each

1
8 509761 8332101 8 Bracket, OS Tower, Increment Weight Striker No Model Compatibility List $69.03 / Each

2,3,4,5,6
1 509773 8343101 1 Tag - Bolt To Floor No Model Compatibility List $1.87 / Each

2
1 509810 8370701 1 Cover, OS Tower, Top No Model Compatibility List $37.64 / Each

9
1 509812 8370801 1 Shroud, OS Tower No Model Compatibility List $99.70 / Each

12,13,14
1 509817 8370901 1 Shroud, OS Tower, Center, Standard No Model Compatibility List $29.98 / Each

12,13,14
1 509820 8371001 1 Cap, OS Tower, Top No Model Compatibility List $2.80 / Each

9
9 509821 8371201 9 Clip, OS Tower No Model Compatibility List $4.19 / Each

2
1 509822 8371301 1 Cover, OS Tower, Bottom No Model Compatibility List $19.96 / Each

9
2 509832 8403902 2 ASSY, OSTWR, FINAL-PLT No Model Compatibility List $0.00 / Each
Out Of Stock 		1
1 509834 8404099 1 WLDMT, OS TOWER -CUS No Model Compatibility List $0.00 / Each
Out Of Stock 		1
1 509840 8423801 1 Foot, OS Tower No Model Compatibility List $4.88 / Each

9
1 509882 8470602 1 Weldment, OSPD, Seat Frame Plate No Model Compatibility List $827.58 / Each

3,12,13,14
1 509883 8470702 1 Weldment, OSPD, Workarm Plate No Model Compatibility List $472.70 / Each

3
2 509884 8470802 2 Assembly, OSPD, Workarm Plate No Model Compatibility List $430.43 / Each

3
8 509885 8470902 8 Weldment, OSPD, Back X-Mem Plate No Model Compatibility List $113.64 / Each

3,4,5,6
9 509886 8471002 9 Weldment, OSPD, Bottom X-Mem Plate No Model Compatibility List $0.00 / Each
Out Of Stock 		3
1 509887 8471202 1 Weldment, OSPD, Roller Pad Plate No Model Compatibility List $106.67 / Each

8,3,12,13,14
1 509888 8471702 1 Assembly, OSPD, Seat Frame Plate No Model Compatibility List $1033.24 / Each

3,12,13,14
3 509889 8472002 3 Assembly, OSPD, Roller Pad Plate No Model Compatibility List $149.21 / Each

8,12,13,14
- 509890 8472201 - Pad, Saddle, Flat Black No Model Compatibility List $143.16 / Each

4,5,6,12,13,14
2 509891 8472299 2 Pad, Saddle, Flat Custom No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
1 509892 8472902 1 Weldment, OS, 15 Deg Pulley Plate No Model Compatibility List $70.41 / Each

8,3
4 509893 8473099 4 ASSY, OS, 15 DEG. PULLEY Custom No Model Compatibility List $101.77 / Each

8
9 509895 8474501 9 Foot, Optima No Model Compatibility List $16.73 / Each

9

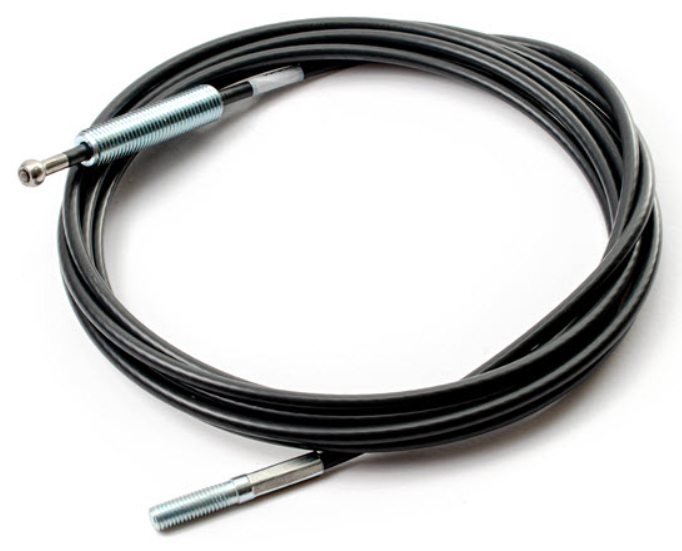

- 509908 8491001 - Cable, OSPD, Tower No Model Compatibility List $82.26 / Each

4,5,6
1 509926 8504201 1 BODY, INCREMENT WEIGHT, 7 LB No Model Compatibility List $77.94 / Each

3
1 509927 8504301 1 Assembly, Increment Weight, 7 LB No Model Compatibility List $105.97 / Each

3
- 509928 8505601 - Assembly, OS Head Plate, 12 Plate No Model Compatibility List $207.08 / Each

1
- 509930 8506101 - Assembly, Selector Pin No Model Compatibility List $20.23 / Each

12,13,14
2 509944 8514602 2 Weldment, OS Pulley Cover Platinum No Model Compatibility List $40.44 / Each

8,9,3
- 509975 8543801 - Assembly, OS, Seat No Model Compatibility List $131.06 / Each

12,13,14
3 509976 8544201 3 Assembly, OS, Spring Pin No Model Compatibility List $40.44 / Each

2,12,13,14
1 509977 8545301 1 Weldment, OS, Seat No Model Compatibility List $108.76 / Each

3,12,13,14
1 509978 8546602 1 ASSY, OSPD, FRAME PLT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
- 509986 8548602 - Assembly, OSPD Front Shroud No Model Compatibility List $225.89 / Each

12,13,14
3 510071 8624101 3 Bushing, Seat Glide Ext. No Model Compatibility List $7.66 / Each

8,12,13,14
4 510072 8624201 4 Bushing, Seat Glide INT. No Model Compatibility List $7.66 / Each

8,12,13,14
1 510083 8630801 1 Label, ASTM, Select Vertical-Sheet No Model Compatibility List $72.52 / Each

1
1 510106 8664101 1 Assembly, OS, Head Plate No Model Compatibility List $132.66 / Each

1
2 510123 8674402 2 Assembly, OSTWR-Plate No Model Compatibility List $633.75 / Each

1
1 510134 8682601 1 Tape, Non-Skid, Clear No Model Compatibility List $1.49 / Each

1
2 510283 8766211 2 Label, OSPD, Placard No Model Compatibility List $32.77 / Each

4,5,6
- 510297 8766311 - Label, OSPD, Multi Lang Sheet No Model Compatibility List $14.65 / Each

1
- 510309 8769601 - Label, Weight Stack, 13 Plate No Model Compatibility List $23.00 / Each

3,4,5,6
5 517135 LEA3239102 5 Hardware: Screw No Model Compatibility List $1.52 / Each

2
3 517136 LEA3242002 3 Hardware: Hex Nut 10MM D No Model Compatibility List $1.57 / Each

2
6 517145 LEA3251702 6 Screw; M10 X1.5 25MM No Model Compatibility List $3.20 / Each

2
- 517534 OSPD-HDWR - Assembly, OSPD, Hardware Bag No Model Compatibility List $206.62 / Each

1
- 517535 OSPD-KIT - Hardware: Assembly, OSPD, Component Kit No Model Compatibility List $0.00 / Each
Out Of Stock 		1
- 517543 OSTWR-HDWR-G - ASSY, OSTWR, BLISTER PACK No Model Compatibility List $25.79 / Each

4,5,6
- 517544 OSTWR-KIT - Hardware: Assembly, OSTWR, Component Kit No Model Compatibility List $742.83 / Each

1
View Drawing
