Life Fitness - Optima Single Station Step

Repair Parts for Life Fitness Optima Single Station Step OSSTP-PF

Brand: Life Fitness

Category: Commercial Strength Equipment

Type: Strength Systems

Model Name: Optima Single Station Step

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
1 503949 1009769-0001 1 KIT: SERVICE, NON-SKID, OPTIMA No Model Compatibility List $173.66 / Each

1
4 506172 3102514 4 Hardware: Flat Washer 3/8" ID No Model Compatibility List $1.57 / Each

2
6 506220 3114407 6 Hardware: Flat Washer No Model Compatibility List $1.57 / Each

2
5 506389 3236901 5 Hardware: Nut Hex Jam 10 MM No Model Compatibility List $6.00 / Each

2
7 506571 3270601 7 Harware: Screw 3/8" No Model Compatibility List $1.52 / Each

2
5 510172 8708901 5 Rubber Foot Pad No Model Compatibility List $5.08 / Each

9,12,13,14
3 511268 9245501 3 DECAL; PF STEP; LF LOGO No Model Compatibility List $1.48 / Each

7,3
2 511269 9245601 2 DECAL; PF STEP LOGO No Model Compatibility List $8.14 / Each

7,3
8 511390 9298701 8 RING, RUBBER No Model Compatibility List $5.58 / Each

1
3 511391 9298901 3 THREADED ROD, OSSTP HANDLE No Model Compatibility List $59.15 / Each

3,12,13,14,11

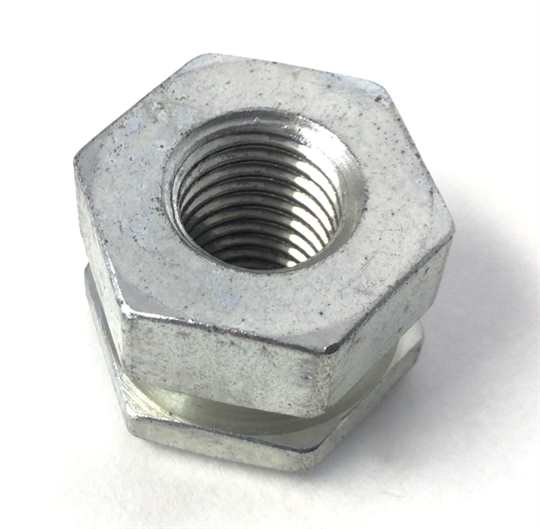

6 511392 9299001 6 NUT, OSSTP, CLAMPING No Model Compatibility List $13.14 / Each

2,4,5,6,12,13,14
4 511393 9299101 4 LABEL, PF STEP -ALL No Model Compatibility List $2.71 / Each

1
7 511394 9306601 7 ANCHOR, HST M12 STUD No Model Compatibility List $19.72 / Each

1
2 511418 9315999 2 ASSY, OSSTP, HANDLE PF No Model Compatibility List $53.89 / Each

11
1 511420 9316693 1 ASSY, OSSTP, HANDLE No Model Compatibility List $88.07 / Each

11
View Drawing
