Repair Parts for Life Fitness Planet Fitness - Integrity INCS-ALLXX-01PF
| Brand | Life Fitness |
|---|---|
| Type | Stationary Bikes |
| Category | Commercial Upright Lifecycle Bike |
| Model Number | INCS-ALLXX-01PF |
| Model Name | Planet Fitness - Integrity |
Model Numbers: INCS-ALLXX-01PF
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
500514 | 0017-00101-1720 | - | Hardware: Mounting Screw 1" | No |
Compatibility List |
$5.71 / Each
|
|
|
502301 | 0K63-01114-0000 | - | Cap | Yes |
Compatibility List |
$8.20 / Each
|
|
|
000275 | RP060062-A1 | 0 | 1 | Heart Rate Pulse Sensor Grip Assembly | No |
Compatibility List |
$45.00 / Each
|
|
500297 | 0017-00042-1147 | A31 | Hardware: Nylon Grommet | No |
Compatibility List |
$5.93 / Each
|
|
|
500893 | 0017-00104-0469 | BE-007 | Hardware: Flat Washer 16MM OD | No |
Compatibility List |
$5.71 / Each
|
|
|
514427 | AK69-00106-0000 | BE-030 | Battery cable | No |
Compatibility List |
$16.60 / Each
|
|
|
514134 | AK65-00062-0000 | BE-033 | Cable: Coax RG6 Base | Yes |
Compatibility List |
$30.60 / Each
|
|
|
|
502538 | 0K66-01237-0000 | BE-115 | Hardware: Shaft Washer Large | No |
Compatibility List |
$5.59 / Each
|
|
|
|
500902 | 0017-00104-0498 | BE-116 | Hardware: Shaft Washer Small .734 OD | No |
Compatibility List |
$1.88 / Each
|
|
|
|
500340 | 0017-00100-0257 | BE-117 | Retaining Ring | No |
Compatibility List |
$5.71 / Each
|
|
|
500655 | 0017-00101-2002 | BE-121 | Hardware: Tension Bolt 60MM | No |
Compatibility List |
$7.49 / Each
|
|
|
|
500316 | 0017-00081-0346 | BH-005 | TAPE: ADHESIVE, DOUBLE SIDED | No |
Compatibility List |
$6.80 / Each
|
|
|
503052 | 1001619-0001 | BP-007 | ASSEMBLY: IDLER | Yes |
Compatibility List |
$59.02 / Each
|
|
|
500734 | 0017-00101-2138 | BS-006 | SCREW: M6 X 1.0 X 16, DIN, PHL, PAN, MS, ST, ZB | No |
Compatibility List |
$5.47 / Each
|
|
|
500740 | 0017-00101-2150 | BS-009 | SCREW: M8 X 1.25 6G6H X 20, UHS, HXW, CS, ST, ZB | Yes |
Compatibility List |
$5.61 / Each
|
|
|
503001 | 1001034-2400 | CH-003 | CUPHOLDER: LOCKING, CHARCOAL GRAY | Yes |
Compatibility List |
$13.80 / Each
|
|
|
503226 | 1003117-0011 | CP-004 | PCB ASSEMBLY: RESISTANCE CONTROL | No |
Compatibility List |
$557.00 / Each
|
|
|
|
503489 | 1005393-0700 | CP-006 | PLUG: HDMI, BLACK | No |
Compatibility List |
$5.47 / Each
|
|
|
|
503500 | 1005470-0700 | CP-008 | PLUG: IR PORT, BLACK | No |
Compatibility List |
$5.47 / Each
|
|
|
|
502753 | 0K76-01054-0000 | DM-001 | Right Crank Arm Chrome | No |
Compatibility List |
$179.00 / Each
|
|
|
502747 | 0K76-01053-0000 | DM-002 | Left Crank Arm Chrome | No |
Compatibility List |
$167.10 / Each
|
|
|
|
502518 | 0K66-01121-2400 | DM-005 | CAP: CRANK, CHARCOAL GRAY | No |
Compatibility List |
$6.80 / Each
|
|
|
|
500698 | 0017-00101-2077 | DM-009 | Hardware: Screw 30MM | No |
Compatibility List |
$6.80 / Each
|
|
|
502763 | 0K76-01068-0000 | DM-029 | Pulley | Yes |
Compatibility List |
$25.00 / Each
|
|
|
514274 | AK66-00151-0000 | DM-031 | HUB ASSY: CRANKSHAFT, UNIPLATE | No |
Compatibility List |
$255.30 / Each
|
|
|
|
502968 | 1000711-0001 | DT-001 | WELDMENT: DRIVETRAIN PLATE | No |
Compatibility List |
$109.84 / Each
|
|
|
502970 | 1000716-0001 | DT-004 | BELT: POLY V, 430 J8 | No |
Compatibility List |
$33.60 / Each
|
|
|
|
502969 | 1000714-0001 | DT-007 | WELDMENT: ADAPTER, HUB | No |
Compatibility List |
$20.10 / Each
|
|
|
503251 | 1003381-0001 | DT-012 | GENERATOR: BRAKE W/EXT. CLUTCH | No |
Compatibility List |
$588.08 / Each
|
|
|
|
503004 | 1001040-0001 | FR-005 | BLOCK: LEVELER | No |
Compatibility List |
$9.84 / Each
|
|
|
|
503053 | 1001628-0001 | FR-006 | NUT: SHAFT, BARREL, 8MM DIA, 30MM LONG | No |
Compatibility List |
$16.39 / Each
|
|
|
|
503492 | 1005421-0000 | FR-007 | ASSEMBLY: FRONT ROLLER | No |
Compatibility List |
$9.74 / Each
|
|
|
|
503003 | 1001038-0001 | FR-008 | SCREW: M6 X 1.0, SHOULDER | No |
Compatibility List |
$14.52 / Each
|
|
|
|
503044 | 1001595-0700 | FS-001 | SHROUD: TOP COVER, BLACK | No |
Compatibility List |
$16.60 / Each
|
|
|
|
503041 | 1001592-2400 | FS-003 | SHROUD ASSEMBLY: MAIN, LEFT, CHARCOAL GREY | No |
Compatibility List |
$97.40 / Each
|
|
|
|
503040 | 1001591-2400 | FS-004 | SHROUD ASSEMBLY: MAIN, RIGHT, CHARCOAL GREY | No |
Compatibility List |
$90.82 / Each
|
|
|
|
503033 | 1001547-0001 | FS-007 | SHEET METAL: HUB SUPPORT | No |
Compatibility List |
$32.04 / Each
|
|
|
|
503039 | 1001562-0700 | HA-001 | HANDLEBAR: UPRIGHT, SIMPLE, BLACK | No |
Compatibility List |
$317.68 / Each
|
|
|
|
503056 | 1001631-2400 | HA-003 | SHROUD: ACTIVITY ZONE, BOTTOM FRONT, CHARCOAL GREY | No |
Compatibility List |
$8.20 / Each
|
|
|
|
503055 | 1001630-2400 | HA-004 | SHROUD: ACTIVITY ZONE, BOTTOM REAR, CHARCOAL GREY | No |
Compatibility List |
$8.20 / Each
|
|
|
503054 | 1001629-2400 | HA-008 | SHROUD: ACTIVITY ZONE, TOP FEATURED, CHARCOAL GREY | Yes |
Compatibility List |
$11.35 / Each
|
|
|
503057 | 1001632-0700 | HA-009 | SHROUD: ACTIVITY ZONE, SIMPLE FILLER, BLACK | No |
Compatibility List |
$13.80 / Each
|
|
|
513896 | AK63-00014-2404 | HB-004 | ELECTRODE: INSERT MOLDED, CHGR | Yes |
Compatibility List |
$13.80 / Each
|
|
|
|
502521 | 0K66-01141-0001 | HR-008 | PLUG: INSULATOR, BLACK | No |
Compatibility List |
$8.20 / Each
|
|
|
|
500741 | 0017-00101-2151 | LA-004 | SCREW: M5 X 0.8 6G6G X 12, FLANGE, HEAD, CS, G5 | No |
Compatibility List |
$5.74 / Each
|
|
|
500003 | 0017-00003-0685 | LF-008 | 6V Battery Cyclon | Yes |
Compatibility List |
$81.00 / Each
|
|
|
513801 | AK62-00124-0000 | LF-014 | Leg Leveler | Yes |
Compatibility List |
$26.19 / Each
|
|
|
|
500707 | 0017-00101-2087 | LL-007 | SCREW: M8 X 1.25 6G6G X 10, HXS, BUT, CS, ST, ZB | No |
Compatibility List |
$5.43 / Each
|
|
|
|
500652 | 0017-00101-1989 | LL-012 | Hardware: M4 6G6G X 10 DIN PHl PAN ZN | No |
Compatibility List |
$7.49 / Each
|
|
|
503733 | 1006920-0001 | MC-003 | ASSEMBLY: PEDAL, LIFECYCLE, LEFT | No |
Compatibility List |
$47.40 / Each
|
|
|
|
503212 | 1002971-0001 | MC-005 | BRACKET: SHROUD CLIP | No |
Compatibility List |
$7.57 / Each
|
|
|
|
503734 | 1006921-0001 | MC-010 | ASSEMBLY: PEDAL, LIFECYCLE, RIGHT | No |
Compatibility List |
$47.40 / Each
|
|
|
|
500200 | 0017-00021-2846 | MISC-009 | F Type Panel Connector | No |
Compatibility List |
$20.03 / Each
|
|
|
|
503234 | 1003232-0700 | MN-003 | GASKET: MONOCOLUMN, BLACK | No |
Compatibility List |
$6.34 / Each
|
|
|
|
503049 | 1001609-2400 | MN-013 | SHROUD: REAR, FILLER, CHARCOAL GRAY | No |
Compatibility List |
$8.20 / Each
|
|
|
500502 | 0017-00101-1650 | MS-002 | Hardware: Phillips Pan Screw 0.375" | No |
Compatibility List |
$5.71 / Each
|
|
|
|
503032 | 1001537-0001 | PB-003 | SHEET METAL: BRACKET, COM PORT | No |
Compatibility List |
$17.08 / Each
|
|
|
|
500637 | 0017-00101-1968 | PB-026 | Hardware: Ground Screws 10MM | No |
Compatibility List |
$5.71 / Each
|
|
|
|
503042 | 1001593-2400 | PC-012 | SHROUD ASSEMBLY: MONOCOLUMN, RIGHT, CHARCOAL GREY | No |
Compatibility List |
$11.57 / Each
|
|
|
|
503043 | 1001594-2400 | PC-013 | SHROUD: MONOCOLUMN, LEFT, CHARCOAL GREY | No |
Compatibility List |
$12.82 / Each
|
|
|
|
503755 | 1007086-0001 | PC-015 | DECAL: JFZ TAGLINE, MEDIUM SIZE | No |
Compatibility List |
$17.69 / Each
|
|
|
|
503691 | 1006636-0001 | PC-016 | LABEL: PF, UPRIGHT BIKE, PURPLE DECAL, RIGHT | No |
Compatibility List |
$14.20 / Each
|
|
|
|
503692 | 1006637-0001 | PC-017 | LABEL: PF, UPRIGHT BIKE, PURPLE DECAL, LEFT | No |
Compatibility List |
$14.20 / Each
|
|
|
|
503693 | 1006638-0001 | PC-018 | LABEL: PF, UPRIGHT BIKE, LOGO, RIGHT | No |
Compatibility List |
$14.20 / Each
|
|
|
|
503694 | 1006639-0001 | PC-019 | LABEL: PF, UPRIGHT BIKE, LOGO, LEFT | No |
Compatibility List |
$14.20 / Each
|
|
|
|
503110 | 1002166-0700 | PD-010 | ENDCAP: LARGE FLOV, BLACK | No |
Compatibility List |
$9.99 / Each
|
|
|
500203 | 0017-00021-3195 | PW-016 | COUPLER: CAT5E, SHIELDED, RJ45 | Yes |
Compatibility List |
$26.40 / Each
|
|
|
|
503254 | 1003388-0001 | RR-004 | NUT: M8 X 1.25 6H, DIN, UNF, HEX, LOCKNUT | No |
Compatibility List |
$4.70 / Each
|
|
|
|
500337 | 0017-00100-0250 | SA-045 | E Ring | No |
Compatibility List |
$5.71 / Each
|
|
|
|
502797 | 0K77-01033-0700 | SM-002 | Latch Rack | No |
Compatibility List |
$46.00 / Each
|
|
|
502803 | 0K77-01066-0000 | SM-013 | BUMPER: EPDM | No |
Compatibility List |
$6.80 / Each
|
|
|
|
502791 | 0K77-01027-0000 | SM-024 | Adjustment Rod | No |
Compatibility List |
$11.00 / Each
|
|
|
|
502792 | 0K77-01028-0000 | SM-025 | Hardware: Pivot Pin | No |
Compatibility List |
$6.80 / Each
|
|
|
|
502795 | 0K77-01031-0000 | SM-027 | Latch | No |
Compatibility List |
$19.40 / Each
|
|
|
502796 | 0K77-01032-0000 | SM-028 | Latch Spring | No |
Compatibility List |
$6.80 / Each
|
|
|
|
503034 | 1001553-0001 | SP-001 | WELDMENT: SEAT POST, BLACK | No |
Compatibility List |
$254.39 / Each
|
|
|
|
503051 | 1001615-0500 | SP-002 | HANDLE: SEAT ADJUSTMENT, UPRIGHT, RED | No |
Compatibility List |
$9.88 / Each
|
|
|
|
503037 | 1001557-0001 | SP-003 | PIN: PIVOT, HANDLE | No |
Compatibility List |
$11.00 / Each
|
|
|
|
503038 | 1001558-0001 | SP-005 | PIN: PIVOT, LATCH | No |
Compatibility List |
$11.00 / Each
|
|
|
503035 | 1001555-0001 | SP-006 | BUSHING: SEAT POST, UPPER | No |
Compatibility List |
$8.90 / Each
|
|
|

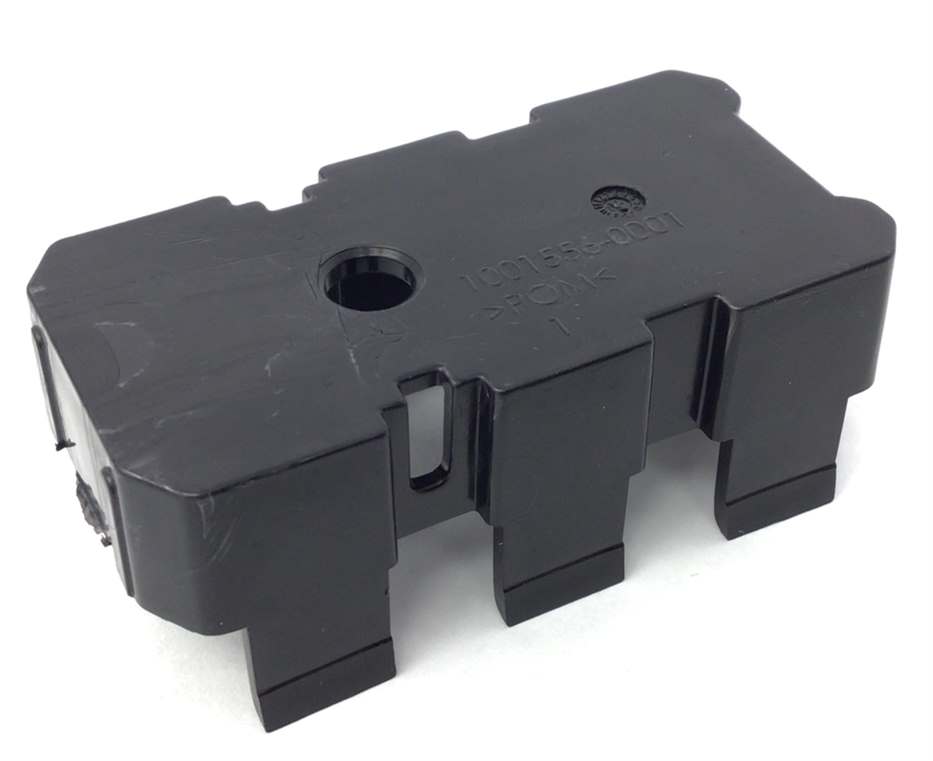

503036 | 1001556-0001 | SP-007 | BUSHING: SEAT POST, LOWER | No |
Compatibility List |
$8.20 / Each
|
|
|
|
500338 | 0017-00100-0253 | SP-012 | Retaining Ring | No |
Compatibility List |
$5.71 / Each
|
|
|
|
503058 | 1001646-0001 | SP-015 | RING: RETAINING, 6MM, EXTERNAL | No |
Compatibility List |
$5.47 / Each
|
|
|
503369 | 1004863-0001 | SP-016 | SEAT: UPRIGHT | No |
Compatibility List |
$99.20 / Each
|
|
|
500566 | 0017-00101-1796 | UF-017 | Hardware: Mounting Screw 19 MM | No |
Compatibility List |
$5.93 / Each
|
|
|
500622 | 0017-00101-1940 | UF-102 | Hardware: Screw 14MM | No |
Compatibility List |
$5.71 / Each
|
|
|
|
503031 | 1001523-5800 | US-001 | WELDMENT: MONOCOLUMN, UPRIGHT, PURPLE ROBUST | No |
Compatibility List |
$317.28 / Each
|
|
|
503046 | 1001606-2400 | US-002 | SHROUD: BOTTOM, RIGHT, CHARCOAL GREY | Yes |
Compatibility List |
$11.57 / Each
|
|
|
503047 | 1001607-2400 | US-007 | SHROUD ASSEMBLY: BOTTOM, LEFT, CHARCOAL GREY | Yes |
Compatibility List |
$11.57 / Each
|
|
|
503048 | 1001608-2400 | US-008 | SHROUD: REAR, CHARCOAL GREY | Yes |
Compatibility List |
$25.00 / Each
|
|
|
|
503050 | 1001610-0700 | US-010 | PAD: UPRIGHT TRAY, BLACK | No |
Compatibility List |
$15.63 / Each
|
|
|
|
503045 | 1001605-2400 | US-012 | SHROUD ASSEMBLY: TOP, CHARCOAL GREY | No |
Compatibility List |
$34.80 / Each
|
|
|
503029 | 1001517-0001 | WD-009 | POWER SUPPLY: 12 VDC, 3A | No |
Compatibility List |
$79.00 / Each
|
|
|
|
503124 | 1002258-0002 | WDB-001 | CABLE: CONSOLE TO BASE, POWER, 1300MM | No |
Compatibility List |
$75.40 / Each
|
|
|
503345 | 1004560-0001 | WDD-003 | CABLE: LIFEPULSE ELECTRODES | No |
Compatibility List |
$10.17 / Each
|
|
|
503298 | 1003838-0003 | WT-002 | CABLE: LIFEPULSE TO ELECTRODE UPRIGHT BIKE | Yes |
Compatibility List |
$16.74 / Each
|
|
|
|
504450 | 121E-00001-0023 | WT-003 | FERRITE: SUPPRESSION, CORE CASE | No |
Compatibility List |
$15.20 / Each
|
|
|
|
503119 | 1002239-0002 | WT-005 | CABLE: CONSOLE TO BASE, SIGNAL, 1300MM | No |
Compatibility List |
$54.40 / Each
|
|
|
|
514479 | AK70-00092-0004 | WT-007 | CABLE ASSY: CAT5E, V2, 63.5 INCH | No |
Compatibility List |
$18.62 / Each
|
|
|
503267 | 1003521-0001 | WT-008 | CABLE: POWER, RCB TO PANEL, 5A, UPRIGHT BIKE | Yes |
Compatibility List |
$58.63 / Each
|
|
|
1004125 | 0017-00003-0685 | Sealed Lead Rechrgeable Battery | No |
Compatibility List |
$56.39 / Each
Out Of Stock |
||
|
1000183 | 0819-0012 | Tectrix Self Powered Elliptical Battery | No |
Compatibility List |
$91.19 / Each
|
||
|
1001960 | 0017-00003-0685 | Lead Rechargeable Battery | No |
Compatibility List |
$29.99 / Each
Out Of Stock |
||
|
012794 | 0017-00101-1796 | Life Fitness Elliptical Screw (New) | No |
Compatibility List |
$5.00 / Each
|
||
|
1012463 | 0017-00104-0469 | Pedal Mounting Washer (Used) | No |
Compatibility List |
$4.00 / Each
|
||
|
1012192 | 0017-00101-1796 | Stepper Screw (New) | No |
Compatibility List |
$5.00 / Each
|
Catalog #: 500740
MPN: 0017-00101-2150
SCREW: M8 X 1.25 6G6H X 20, UHS, HXW, CS, ST, ZB
$5.61 / each
Catalog #: 503054
MPN: 1001629-2400
SHROUD: ACTIVITY ZONE, TOP FEATURED, CHARCOAL GREY
$11.35 / each
Catalog #: 500707
MPN: 0017-00101-2087
SCREW: M8 X 1.25 6G6G X 10, HXS, BUT, CS, ST, ZB
$5.43 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
