Life Fitness - Signature Multi Adjustable Bench

Repair Parts for Life Fitness Signature Multi Adjustable Bench SMAB

Brand: Life Fitness

Category: Commercial Strength Equipment

Type: Strength Systems

Model Name: Signature Multi Adjustable Bench

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price

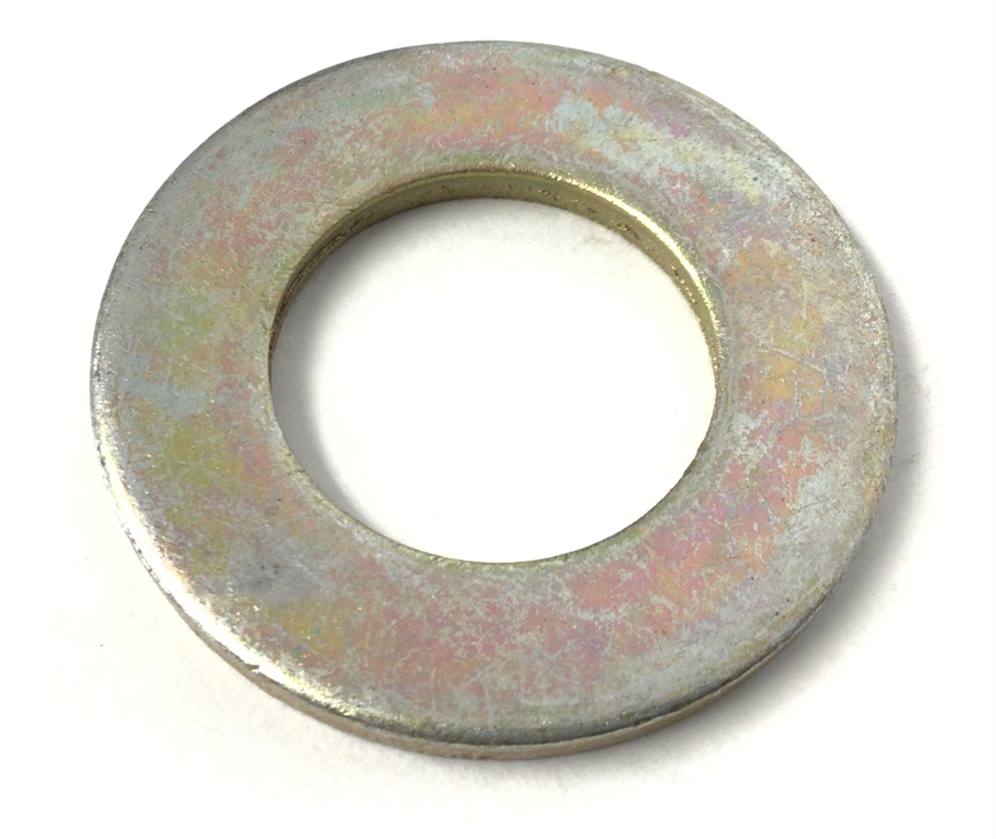

1 506171 3102513 1 Hardware: Flat Washer 3/4" ID No Model Compatibility List $2.12 / Each

2
2 506172 3102514 2 Hardware: Flat Washer 3/8" ID No Model Compatibility List $1.57 / Each

2
2 506199 3104901 2 Bearing 3/4" ID 1" OD Yes Model Compatibility List $22.99 / Each

1
1 506220 3114407 1 Hardware: Flat Washer No Model Compatibility List $1.57 / Each

2
6 506331 3232405 6 Retaining Ring .352" D No Model Compatibility List $1.57 / Each

1
5 506393 3237403 5 Plug 1" Hole No Model Compatibility List $1.57 / Each

1
2 506486 3251202 2 Hardware: Screw 25MM No Model Compatibility List $1.57 / Each

2
2 506528 3256205 2 Hardware: Screw 40MM No Model Compatibility List $6.87 / Each

2
1 506531 3256211 1 Hardware: Screw 70MM No Model Compatibility List $9.82 / Each

2

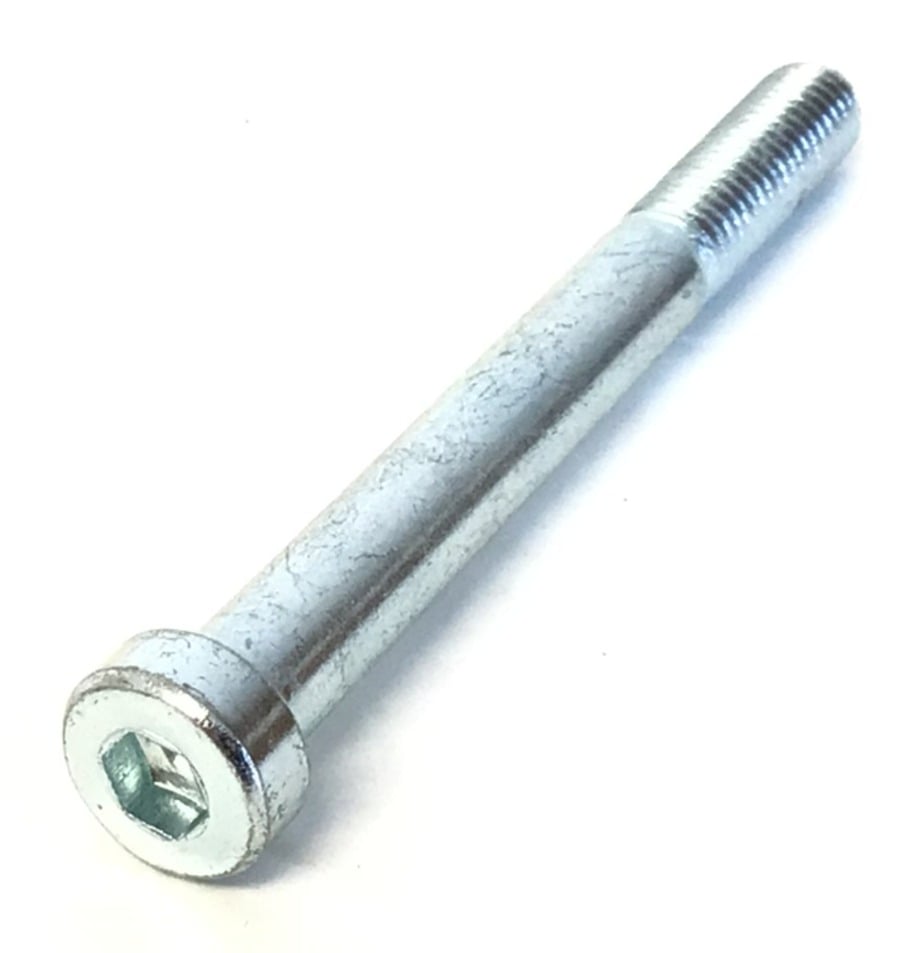

1 506534 3256216 1 Hardware: Screw 95MM No Model Compatibility List $4.86 / Each

2
3 507400 7094101 3 NLA: LABEL, SERIAL NUMBER No Model Compatibility List $0.00 / Each
Out Of Stock 		1
2 507628 7340201 2 Cover Foot - Straight No Model Compatibility List $11.45 / Each

9
3 507644 7351401 3 Knob Tulip Style No Model Compatibility List $8.15 / Each

1
2 507645 7351501 2 Pull Pin Spring No Model Compatibility List $1.57 / Each

2,12,13,14
7 508754 7656301 7 Rubber Wheel No Model Compatibility List $14.18 / Each

8
1 508759 7662801 1 Grip Ring 1.25" No Model Compatibility List $8.15 / Each

11
1 508761 7662901 1 Grip Cap No Model Compatibility List $14.75 / Each

9,11
8 508775 7705302 8 Wheel Axle No Model Compatibility List $4.86 / Each

8
1 509145 7800401 1 Large Cap No Model Compatibility List $42.76 / Each

9
1 509147 7800501 1 Small Cap No Model Compatibility List $16.17 / Each

9
1 509164 7810801 1 Rubber Foot Pad No Model Compatibility List $9.80 / Each

9,12,13,14
2 509172 7813899 2 Pad, 10 X 16 Tapered Convex Custom No Model Compatibility List $185.25 / Each

12,13,14
3 509173 7814099 3 Pad, 24 X 11 Flat Custom No Model Compatibility List $231.47 / Each

12,13,14
9 509177 7821701 9 Short Guard No Model Compatibility List $41.12 / Each

9,3
3 509194 7865201 3 Label Life Fitness Logo No Model Compatibility List $13.10 / Each

1
1 509316 8032599 1 Pad, 8 X 11 Concave Lumbar, Custom No Model Compatibility List $157.98 / Each

4,5,6,12,13,14
2 509331 8039501 2 Label Warning Triangle 10-0099-067 BNR No Model Compatibility List $1.52 / Each

1
3 509374 8087201 3 Plastic Bushing Slip Tube No Model Compatibility List $9.80 / Each

8,9,3
1 509530 8137701 1 Warning Label - Multi-Language Horizontal No Model Compatibility List $26.29 / Each

1
1 509532 8140101 1 Pivot Shaft SMAB No Model Compatibility List $9.42 / Each

8
1 509533 8140201 1 Hardware: Spacer No Model Compatibility List $6.51 / Each

2,3,4,5,6
3 509594 8179999 3 Weldment, SMAB, Seat Custom No Model Compatibility List $179.10 / Each

3,12,13,14
8 509595 8181001 8 Bal Bearing SMAB No Model Compatibility List $11.45 / Each

1
7 509596 8181301 7 Shaft No Model Compatibility List $16.40 / Each

1
9 509597 8181401 9 Seat Front Pivot Shaft SMAB No Model Compatibility List $8.15 / Each

8,12,13,14
1 509598 8181599 1 Assembly, SMAB, Frame Custom No Model Compatibility List $0.00 / Each
Out Of Stock 		3
1 509650 8244299 1 Assembly, SMAB, Seat Adjuster Custom No Model Compatibility List $179.10 / Each

12,13,14
1 509651 8245801 1 Grip No Model Compatibility List $6.28 / Each

11
1 509809 8353901 1 PTD ASSY, SMAB, HANDLE- White No Model Compatibility List $67.48 / Each

11
1 509823 8373199 1 WLDMT, SMAB, BASE -CUS No Model Compatibility List $464.13 / Each

3
1 510045 8577199 1 WLDMT, SMAB, STABILIZER -CUS No Model Compatibility List $199.00 / Each

1
4 510046 8577299 4 PTD ASSY, SMAB, STABILIZER -CUS No Model Compatibility List $281.06 / Each

1
2 511233 9184499 2 ASSY, SMAB, BACK PAD SPRT -CUS No Model Compatibility List $379.74 / Each

4,5,6,12,13,14
5 511234 9185701 5 WLDMT, SMAB, BACK SPRT, INNER TUBE No Model Compatibility List $103.10 / Each

3,4,5,6
1 517135 LEA3239102 1 Hardware: Screw No Model Compatibility List $1.52 / Each

2
2 517136 LEA3242002 2 Hardware: Hex Nut 10MM D No Model Compatibility List $1.57 / Each

2
2 517139 LEA3247701 2 Hardware: Screw No Model Compatibility List $1.57 / Each

2
2 517149 LEA3256202 2 Hardware: Screw 25MM No Model Compatibility List $3.53 / Each

2
6 517150 LEA3256204 6 Hardware: Screw 35MM No Model Compatibility List $10.81 / Each

2
3 517161 LEA7002501 3 Warning Label Horizontal No Model Compatibility List $3.08 / Each

1
2 517162 LEA7351302 2 Pull pIn No Model Compatibility List $30.33 / Each

12,13,14
1 517194 LEA7763001 1 Foot No Model Compatibility List $161.00 / Each

9
2 20000181 7351501 2 1 SPRING; PULL PIN LARGE No Model Compatibility List $3.22 / Each

14
