LIFE Styler - 1500

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
124504 109383 49 CIRCUIT BREAKER No Model Compatibility List $24.42 / Each

4,5,6
113842 100081 113842 60 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8
119946 124433 119946 . PULSE/CLOTHES CLIP Yes Model Compatibility List $79.20 / Each

2,12,13,14
012082 101287 012082 43 5/16" NYLON LOCK NUT Yes Model Compatibility List $0.22 / Each

2
120213 012133 37 3/8" PUSH NUT No Model Compatibility List $0.70 / Each

2
012149 100136 012149 51 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
012179 100462 012179 85 U-NUT No Model Compatibility List $4.42 / Each

2
124882 124801 124882 26 WALKING BELT ASSEMBLY No Model Compatibility List $95.29 / Each

15
013162 101030 013162 12 M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

2
013206 100358 013206 24 REAR ROLLER BOLT 1/4"-20X3" Yes Model Compatibility List $4.51 / Each

2,8
121927 013275 13 FRAME PIVOT BOLT No Model Compatibility List $0.40 / Each

2,8,3
013300 100149 013300 61 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
124505 013511 53 MOTOR HOOD SCREW No Model Compatibility List $0.68 / Each

2,9
124502 013522 . SHORT SIDE RAIL BOLT No Model Compatibility List $2.05 / Each

2,9
100339 013581 40 IDLER ARM BOLT No Model Compatibility List $1.36 / Each

2,8,3
137290 118667 137290 . WHEEL SPACER Yes Model Compatibility List $1.88 / Each

2,3,4,5,6,8
102276 014041 42 IDLER ARM WASHER No Model Compatibility List $0.12 / Each

2,8,3
014063 100042 014063 14 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
100561 014086 . M10 WASHER No Model Compatibility List $0.36 / Each

2
014132 100263 014132 11 IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

2,8
124496 014153 33 FLAT WASHER, 3/8" No Model Compatibility List $0.33 / Each

2
014157 100141 014157 62 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

2
016028 118356 016028 . ADHESIVE CLIP No Model Compatibility List $2.23 / Each

2
110964 016055 28 WIRE CLIP,FAN No Model Compatibility List $1.44 / Each

2,8,4,5,6
185582 104353 185582 80 CHOKE Yes Model Compatibility List $76.47 / Each

1
102842 045010 . 3/16" HEX KEY No Model Compatibility List $0.85 / Each

9
124821 046246 . OWNERS MANUAL No Model Compatibility List $4.60 / Each

1
031229a KV5-DWY-57F 031229a 031229 Power Cord Yes Model Compatibility List $32.99 / Each

5,6
115569 1014321 115569 65 1 Motor Speed Sensor Reed Switch (Used Only) Yes Model Compatibility List $16.49 / Each
Out Of Stock
4
052014 1014640 052014 # 2 TRANSPORT WHEEL,.38X2.97 (Used) Yes Model Compatibility List $6.59 / Each

8,9
019084 1015857 019084 # 2 Power Power Cord Entry Strain Relief Grommet (Incline) Yes Model Compatibility List $3.29 / Each

4,6
171905 1015858 171905 # 1 Wireless Pulse Heart Rate Receiver Board + Wire (Used) Yes Model Compatibility List $49.50 / Each

7

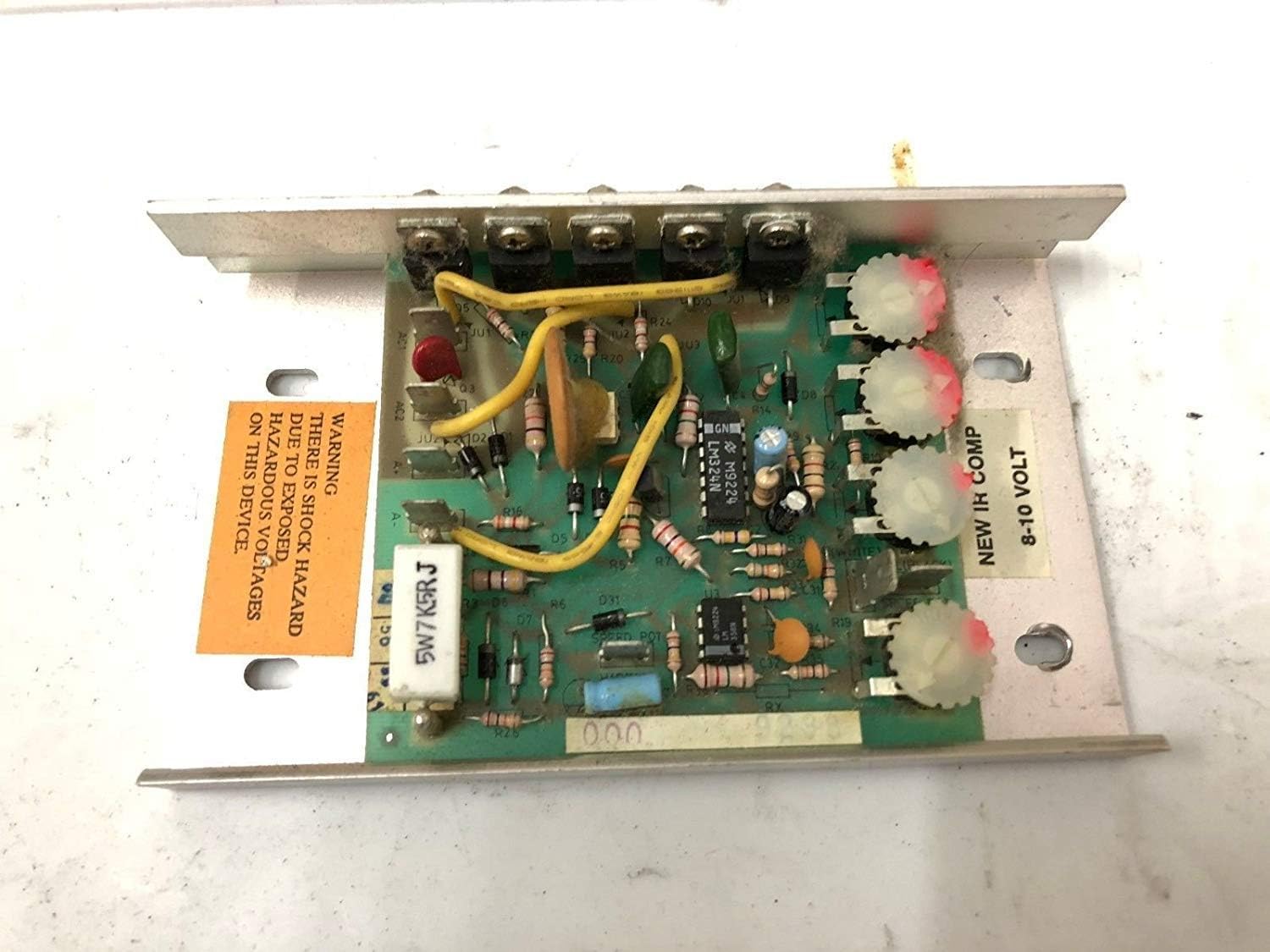

137856 1002945-R 137856 # 1 MC-60 CONTROLLER - Refurb Only Yes Model Compatibility List $108.90 / Each

7
122871 1000101-R 122871 # 1 MC-40 Controller Version (Older Version) - Used Yes Model Compatibility List $86.90 / Each

7
124669 1000884 124669 # 1 Hardwired Power Cord (Used Yes Model Compatibility List $16.49 / Each

6
133553 1018282 133553 # 1 MC-60 CONTROLLER - Refurb Only Yes Model Compatibility List $119.90 / Each

7
070084 1018987 070084 0 1 Rear Roller (Used Only) Yes Model Compatibility List $86.90 / Each

8
013500 1019798 013500 0 1 Button Screw 5/16-18X1.5 No Model Compatibility List $4.99 / Each
Out Of Stock
2
View Drawing
