LIFE Styler - FLEX

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price

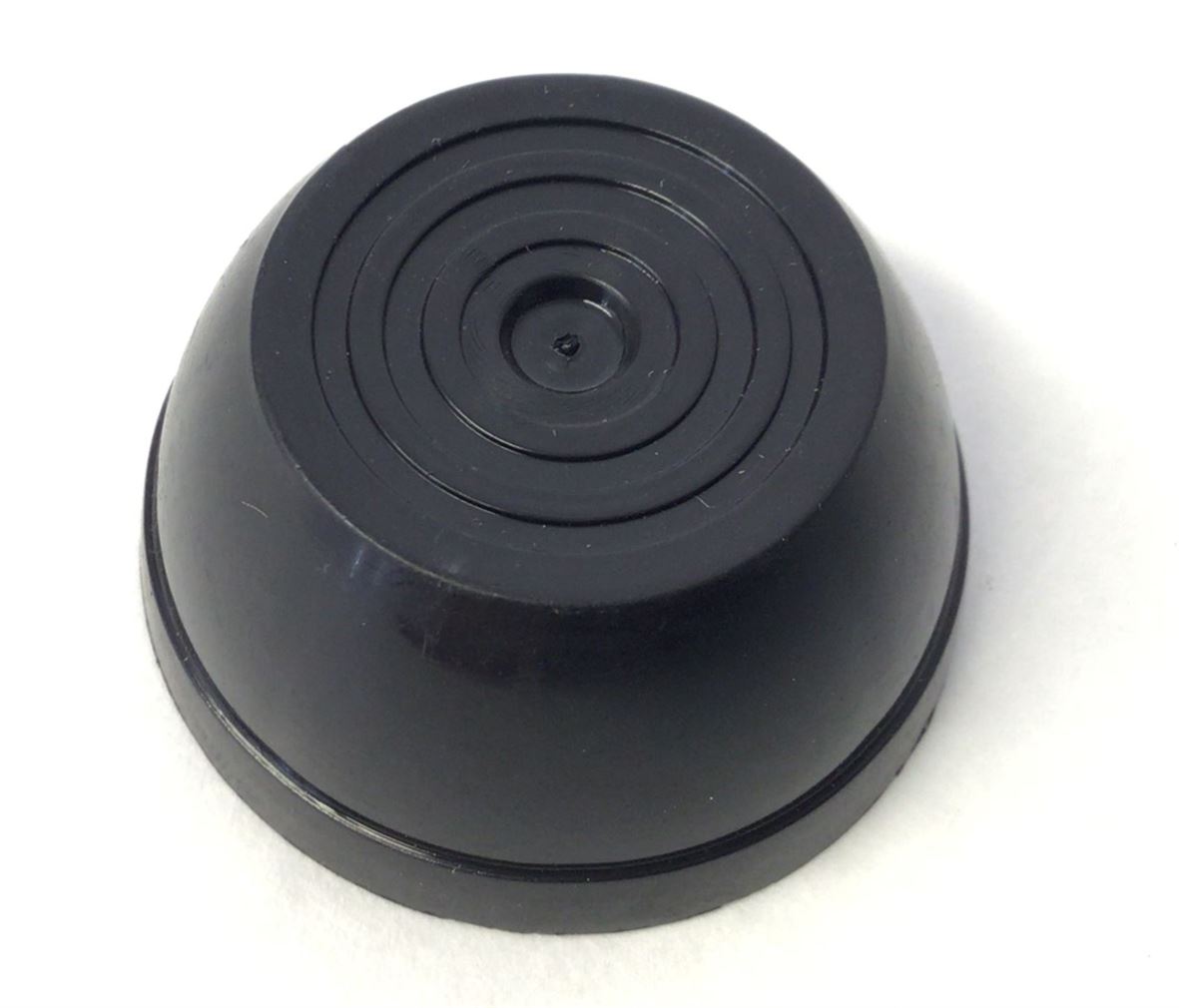

100151 118654 100151 38 5/8" AXLECAP No Model Compatibility List $1.75 / Each

7,8,9
208378 117166 208378 6 FOAM PAD, 3" X 5 1/2" No Model Compatibility List $28.78 / Each

3,12
103833 101902 103833 41 POST CAP No Model Compatibility List $4.69 / Each

9,12,13,14
122920 120001 13 1/4" X 5/8" SCREW No Model Compatibility List $0.37 / Each

2
122917 120002 18 1/2" X 4" BOLT No Model Compatibility List $4.22 / Each

2
110001 120003 53 3/8" X 2" WHEEL BOLT No Model Compatibility List $1.95 / Each

2,8
103140 012041 19 INCLINE LEG NUT No Model Compatibility List $2.44 / Each

2,10
012149 100136 012149 28 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
013244 102307 013244 22 ISOLATOR BOLT No Model Compatibility List $1.58 / Each

2,3
013399 117633 013399 29 FRAME PIVOT BOLT Yes Model Compatibility List $1.65 / Each

2,8,3
014126 100283 014126 12 REAR ROLLER WASHER No Model Compatibility List $1.10 / Each

2,8
014129 102826 014129 11 1/4" WASHER No Model Compatibility List $1.10 / Each

2
121656 142412 42 LOCK KNOB No Model Compatibility List $11.33 / Each

1
015044 100432 015044 46 COTTER PIN No Model Compatibility List $1.98 / Each

12,13,14
View Drawing
