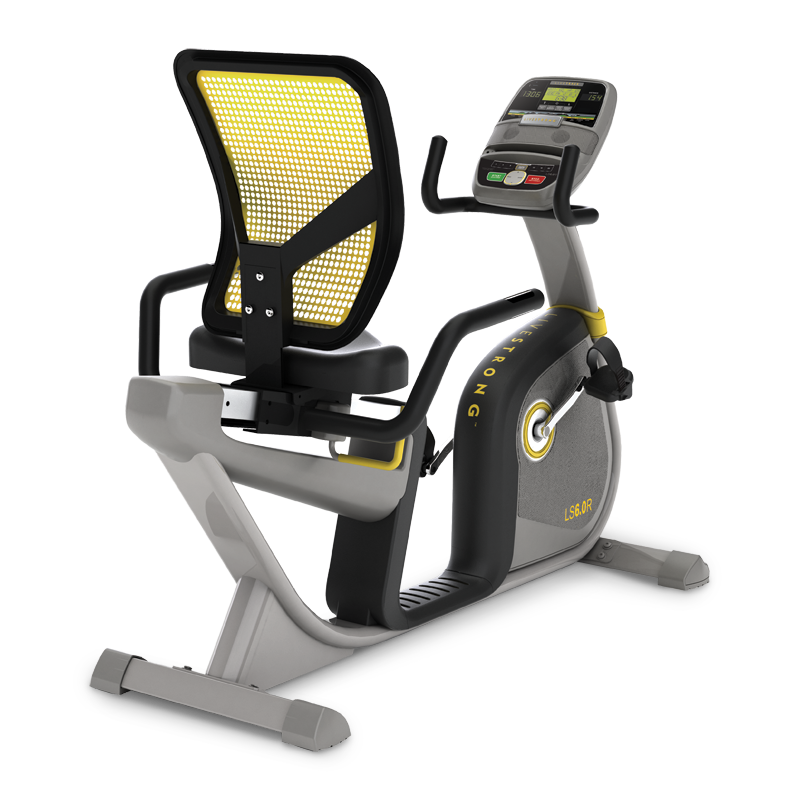

Livestrong - LS6.0R - 2012

Repair Parts for Livestrong LS6.0R RB007-2KM,RB004

Brand: Livestrong

Category: Recumbent

Type: Stationary Bikes

Model Name: LS6.0R

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
2 701156 004074-A4 24 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
5 704969 027029-00 56 Pulse Sensor Set No Model Compatibility List $28.73 / Each

12,13,14
7 704971 027301-00 74 Cap No Model Compatibility List $1.77 / Each

9
7 704972 027308-00 76 C Clip No Model Compatibility List $1.90 / Each

2
1 707671 1000094179 11 Washer;Curve;22.0x8.5x1.2t No Model Compatibility List $0.34 / Each

2
7 707672 1000094180 7 Washer;Spring;15.4x8.2x2t No Model Compatibility List $2.00 / Each

2
1 707673 1000094184 10 Nut;Anti Loose;M8x1.25x8t No Model Compatibility List $2.00 / Each

2
5 707674 1000094188 58 Bolt;Inner Hex;M10x35L No Model Compatibility List $2.00 / Each

2
2 707675 1000094210 27 Screw Cover No Model Compatibility List $2.00 / Each

2,9
8 707676 1000094211 87 Washer;Nylon;6.0x19.1.5t No Model Compatibility List $1.85 / Each

2
8 707677 1000094212 86 Washer;Flat;13.0x6.5x1.0T No Model Compatibility List $1.85 / Each

2
9 707678 1000094215 90 Fixing Bracket;Magnet No Model Compatibility List $22.41 / Each

2,8,3,4,5,6
7 707679 1000094216 79 Nut;Anti Loose;M6x1x6T No Model Compatibility List $1.85 / Each

2
6 707680 1000094217 67 Bolt;Hex;M8x25L No Model Compatibility List $2.00 / Each

2
6 707682 1000094221 68 Washer;Plastic;10.0x24x0.4t No Model Compatibility List $2.00 / Each

2,9
3 707683 1000094224 34 Nut;Anti Loose;M10x1.5x10t No Model Compatibility List $2.00 / Each

2
7 707684 1000094231 78 Nut;Hex;M6x1.0x6t No Model Compatibility List $1.85 / Each

2
2 707685 1000094233 28 Nut;Anti Loose;3/8x26UNFx6.5t No Model Compatibility List $1.90 / Each

2
7 707686 1000094237 77 Bolt;Hex;M6x65L No Model Compatibility List $1.85 / Each

2
9 707687 1000094238 91 Bolt;Hex;M8x52L No Model Compatibility List $2.00 / Each

2
6 707688 1000094240 66 Bushing No Model Compatibility List $1.77 / Each

8
8 707689 1000094241 89 Cover;Plastic No Model Compatibility List $1.77 / Each

9
2 707690 1000094279 20 Bolt;Hex;M6x1.0x15L No Model Compatibility List $2.00 / Each

2
2 707691 1000094280 21 Nut;Anti Loose;M6x1.0x6t No Model Compatibility List $2.00 / Each

2
9 707692 1000094310 92 Nut;Anti Loose;M8x1.25x8t No Model Compatibility List $1.85 / Each

2
9 707712 1000094406 93 Screw;Cross;4.2x1.4x15L No Model Compatibility List $1.85 / Each

2
1 707914 1000096875 17 Bolt;M8x1.25x70L No Model Compatibility List $1.79 / Each

2
1 707915 1000096885 19 C-Ring S-17 (1T) No Model Compatibility List $1.90 / Each

1
2 707916 1000096900 22 Bolt;M8x1.25x25 No Model Compatibility List $2.00 / Each

2
6 707917 1000096911 61 Washer;Flat;23.0x17.2x1.5t No Model Compatibility List $2.00 / Each

2
5 707918 1000096913 57 Washer;Wave;22.0x17x0.3t No Model Compatibility List $2.00 / Each

2,4,5,6
1 707919 1000096940 13 Washer;Flat;16.0x8.5x1.2t No Model Compatibility List $2.00 / Each

2
1 707920 1000096951 14 Allen Bolt;M8x1.25x15L No Model Compatibility List $1.85 / Each

2
5 707921 1000096954 59 Magnet No Model Compatibility List $2.00 / Each

8
2 707922 1000096964 23 Bolt Cap No Model Compatibility List $4.00 / Each

2,9
3 707923 1000096988 32 Spring;2.2x14x65L Yes Model Compatibility List $2.00 / Each

2
A 710286 1000208383 A13 Belt;Multi Groove No Model Compatibility List $57.49 / Each

15
8 710297 1000208645 84 Spring;1.0x55L No Model Compatibility List $1.85 / Each

2
7 710298 1000208685 73 Nut;M8x1.25x6t No Model Compatibility List $2.00 / Each

2
4 710317 1000209264 45 Cap No Model Compatibility List $1.77 / Each

9
1 711413 1000220739 108 Rear Stabilizer End Cap;Left No Model Compatibility List $12.30 / Each

9
3 711419 1000220753 39 Power Adaptor;12V/2A No Model Compatibility List $57.49 / Each

4,5,6
1 711420 1000220754 101 Bolt;4.2x15L No Model Compatibility List $2.00 / Each

2
1 711421 1000220755 103 Bolt;4.0x1.41x15L No Model Compatibility List $2.00 / Each

2
9 711422 1000220756 95 D118*D88 pin No Model Compatibility List $4.00 / Each

12,13,14
9 711430 1000220767 99 Leveler No Model Compatibility List $9.57 / Each

3
1 711431 1000220769 107 Front Stabilizer End Cap;Left No Model Compatibility List $23.53 / Each

9
6 711436 1000220779 64 Boot;Console Mast No Model Compatibility List $24.21 / Each

7
1 711437 1000220781 114 Bolt;M8x1.25x50L No Model Compatibility List $10.01 / Each

2
1 711438 1000220785 105 Crank;Left Yes Model Compatibility List $57.49 / Each

8
9 711442 1000220789 96 D118*D88 pin (yellow) No Model Compatibility List $4.00 / Each

12,13,14
3 711443 1000220790 35 Spacer Ring No Model Compatibility List $2.00 / Each

2,3,4,5,6
1 711445 1000220797 100 Pin;Side Cover Connecting;6.0x26.5x7.7 No Model Compatibility List $2.00 / Each

9,12,13,14
1 711446 1000220798 15 Crank;Right Yes Model Compatibility List $57.49 / Each

8
4 711448 1000220800 4 Front Stabilizer End Cap;Right No Model Compatibility List $23.53 / Each

9
2 711449 1000220802 29 Rear Stabilizer End Cap;Right No Model Compatibility List $12.30 / Each

9
5 711455 1000220811 52B Console Cable;Lower No Model Compatibility List $9.93 / Each

7,4,5,6
6 711460 1000220823 65 Motor No Model Compatibility List $110.97 / Each
Out Of Stock 		10
6 711465 1000220829 69 Washer;Flat;30.0x8.5x2.0t No Model Compatibility List $2.00 / Each

2
1 711467 1000220832 102 Bolt;3.0x10L No Model Compatibility List $2.00 / Each

2
5 711468 1000220833 54 Headphone Cable No Model Compatibility List $12.56 / Each

4,5,6
9 711471 1000220838 94 Buffer No Model Compatibility List $1.90 / Each

1
9 711472 1000220839 9 Bolt;M8x1.25x20L No Model Compatibility List $4.00 / Each

2
1 711475 1000220844 16 Pedal;Right No Model Compatibility List $28.73 / Each

8,9
711477 1000220855 1 Main Frame Set No Model Compatibility List $775.89 / Each

3
1 711479 1000220858 109 Rear Side Cover;Vertical;Left No Model Compatibility List $40.22 / Each

9
1 711480 1000220859 113 Cap;Cable No Model Compatibility List $1.90 / Each

9,4,5,6
6 711490 1000220876 6 Seat Slide Frame No Model Compatibility List $139.75 / Each

3,12,13,14
4 711491 1000220878 42 Seat Pad No Model Compatibility List $69.29 / Each

12,13,14
4 711492 1000220879 43 Front Side Cover;Upper No Model Compatibility List $49.61 / Each

9
4 711493 1000220880 44 Cover;Middle Frame No Model Compatibility List $34.79 / Each

9,3
4 711494 1000220882 46 Hand Pulse Cable;Upper No Model Compatibility List $9.57 / Each

4,5,6,12,13,14
4 711495 1000220883 47 Hand Pulse Cable;Lower No Model Compatibility List $9.57 / Each

4,5,6,12,13,14
5 711496 1000220885 50 Cable;Power Adapter Plug No Model Compatibility List $9.57 / Each
Out Of Stock 		4,5,6
5 711497 1000220886 51 Bushing No Model Compatibility List $13.62 / Each

8
5 711498 1000220887 52A Console Cable;Upper No Model Compatibility List $9.57 / Each

7,4,5,6
5 711499 1000220888 53 Speed Sensor Cable No Model Compatibility List $9.57 / Each

4,5,6
6 711501 1000220892 63 End Cap;Handelbar No Model Compatibility List $3.82 / Each

9
1 711505 1000220896 106 Pedal;Left No Model Compatibility List $28.73 / Each

8,9
8 711506 1000220900 83 Protective Cover;Small No Model Compatibility List $3.82 / Each

9
9 711507 1000220905 97 Water Bottle Holder No Model Compatibility List $9.57 / Each

1
9 711508 1000220906 98 Bolt;M5x0.8x15L No Model Compatibility List $2.00 / Each

2
1 711510 1000220908 12 Rear Side Cover;Horizontal;Right No Model Compatibility List $52.91 / Each

9
3 711512 1000220911 37 Front Side Cover;Right No Model Compatibility List $57.49 / Each

9
4 711513 1000220913 40 Rear Side Cover;Vertical;Right No Model Compatibility List $40.22 / Each

9
1 711514 1000220914 111 Rear Side Cover;Horizontal;Left No Model Compatibility List $52.91 / Each

9
1 711516 1000220916 110 Front Side Cover;Left No Model Compatibility List $57.49 / Each

9
6 711523 1000220932 62 Foam No Model Compatibility List $8.87 / Each

1
7 711524 1000220933 72 Chain Cover;Right No Model Compatibility List $53.17 / Each

9
1 711525 1000220934 115 Foam No Model Compatibility List $10.58 / Each

1
A 711526 1000220935 A02 Console Mast Set No Model Compatibility List $238.42 / Each

7
A 711527 1000220936 A06-1 Handlebar Set;Right No Model Compatibility List $73.14 / Each

11
A 711528 1000220938 A12 Crank Axle Set No Model Compatibility List $101.04 / Each
Out Of Stock 		8
A 711529 1000220940 A08 Stabilizer Set;Rear No Model Compatibility List $121.91 / Each

1
7 711530 1000220942 71 Chain Cover;Left No Model Compatibility List $53.17 / Each

9
1 711531 1000220945 104 Bolt;M8x15L No Model Compatibility List $2.00 / Each

2
1 711532 1000220947 118 Hand Pulse Cable No Model Compatibility List $1.90 / Each

4,5,6,12,13,14
7 711533 1000220948 70 Back Pad Fixing Plate;Small No Model Compatibility List $9.57 / Each

3,4,5,6,12,13,14
A 711534 1000220949 A01 Console Set No Model Compatibility List $670.75 / Each

7
A 711535 1000220951 A04 Seat Post Adjustment Set No Model Compatibility List $329.81 / Each

12,13,14
A 711536 1000220952 A06-2 Handlebar Set;Left No Model Compatibility List $72.46 / Each

11
A 711537 1000220953 A07 Stabilizer Set;Front No Model Compatibility List $122.07 / Each

1
4 711538 1000220956 49 Hand Pulse Cable;Curly No Model Compatibility List $12.43 / Each

4,5,6,12,13,14
8 711539 1000220958 8 Bolt;M8x1.25x35L No Model Compatibility List $10.01 / Each

2
3 711540 1000220961 30 Bolt;M8x1.25x15L No Model Compatibility List $4.00 / Each

2
A 711541 1000220964 A10 Flywheel Set No Model Compatibility List $191.62 / Each
Out Of Stock 		8
A 711542 1000220965 A11 Idler Set No Model Compatibility List $31.88 / Each

8
N 711911 1000223624 Not Shown Hardware Pack No Model Compatibility List $56.97 / Each

4,5,6
711940 1000223991 Not Shown Owner's Manual No Model Compatibility List $0.00 / Each
Out Of Stock 		1
7 711973 1000224604 75 fixing piece of seat No Model Compatibility List $25.12 / Each
Out Of Stock 		12,13,14
Back Pad 711974 1000234140 38 Back Pad No Model Compatibility List $280.67 / Each

12
1 711975 1000224647 117 Tension Cable No Model Compatibility List $12.17 / Each

4,5,6
711976 1000224648 Not Shown Bike guide No Model Compatibility List $18.25 / Each

1
1 712330 1000228455 119 yellow sticker on frame;320*95mm No Model Compatibility List $5.30 / Each

3
1 712337 1000228481 120 LIVESTRONG logo on frame;440*31mm No Model Compatibility List $5.72 / Each

3
1 712338 1000228482 121 Livestrong Logo;Side Cover No Model Compatibility List $5.72 / Each

9
1 713463 1000303640 122 left pedal strap No Model Compatibility List $9.57 / Each

8,9
1 713464 1000303642 123 right pedal strap No Model Compatibility List $9.57 / Each

8,9
729052 Order Parts Separately A16 Frame Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729205 Part of Kit A01 60 computer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729206 Part of Kit A02 5 handlebar pole welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729208 Part of Kit A04 88 seat tube welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
729212 Part of Kit A06-1 48 Handlebar Welding;Right No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729213 Part of Kit A06-2 112 Handlebar Welding;Left No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729214 Part of Kit A07 3 Front Stabilizer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729215 Part of Kit A08 2 Rear Stabilizer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729217 Part of Kit A10 26 flywheel set No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729218 Part of Kit A11 33 idle wheel fixing piece No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729219 Part of Kit A12 55 crank axle welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729220 Part of Kit A13 25 flywheel set No Model Compatibility List $0.00 / Each
Out Of Stock 		8
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
