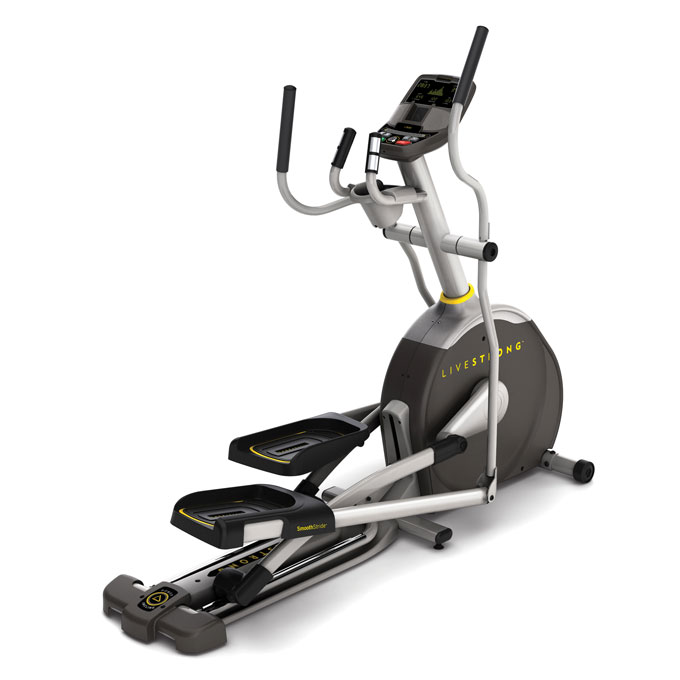

Livestrong - LS9.9E - 2010

Repair Parts for Livestrong LS9.9E EP527

Brand: Livestrong

Category: Traditional

Type: Elliptical

Model Name: LS9.9E

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Switch
  • Motor
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
C 700318 000940-A C08 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
G 700323 000960-AA G09 End Cap;Upper Vertical Handlebar Yes Model Compatibility List $3.89 / Each

9,11
P 700570 001679-00 P17 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
701013 003326-00 P20 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
R 701042 003413-00 R02 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
R 701209 004165-00 R06 Drive Belt;Poly-V;490-J8 Yes Model Compatibility List $54.73 / Each

15,10
M 701294 004359-00 M33 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

2
H 701300 004364-00 H06 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
Z 701316 004372-00 Z33 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
Z 701446 004488-AC Z04 Screw;Hex Socket;Round;M8x1.25Px55L No Model Compatibility List $1.79 / Each

2
E 701506 004541-AC E13 Screw;Hex Socket;Round;M8x1.25Px45L;Chromed No Model Compatibility List $3.64 / Each

7,2,12,13,14
B 701561 004592-00 B20 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

2
701597 004621-00 S03 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
Z 701613 004632-00 Z16 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
R 701650 004691-A R07 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
D 701681 004714-AB D12 Screw;Hex Socket;BH;M6x1.0Px15L;Zinc No Model Compatibility List $1.59 / Each

2
L 701698 004723-00 L05 Screw;Oval;Hex Socket;M8x1.25Px3/4L No Model Compatibility List $2.00 / Each

2
Z 701706 004727-00 Z01 Screw;Hex Socket;BH;M8x1.25Px30L No Model Compatibility List $1.59 / Each

2
Z 701744 004767-AB Z23 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.57 / Each

2
Z 701749 004773-00 Z09 Screw;Hex Socket;BH;M8x1.25Px35L No Model Compatibility List $1.59 / Each

2
P 701847 004864-00 P29 Screw;4x12L No Model Compatibility List $2.00 / Each

2
J 701848 004865-00 J03 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
B 701864 004887-00 B22 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

2
R 701874 004901-00 R08 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

2
Z 701897 004926-00 Z11 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2

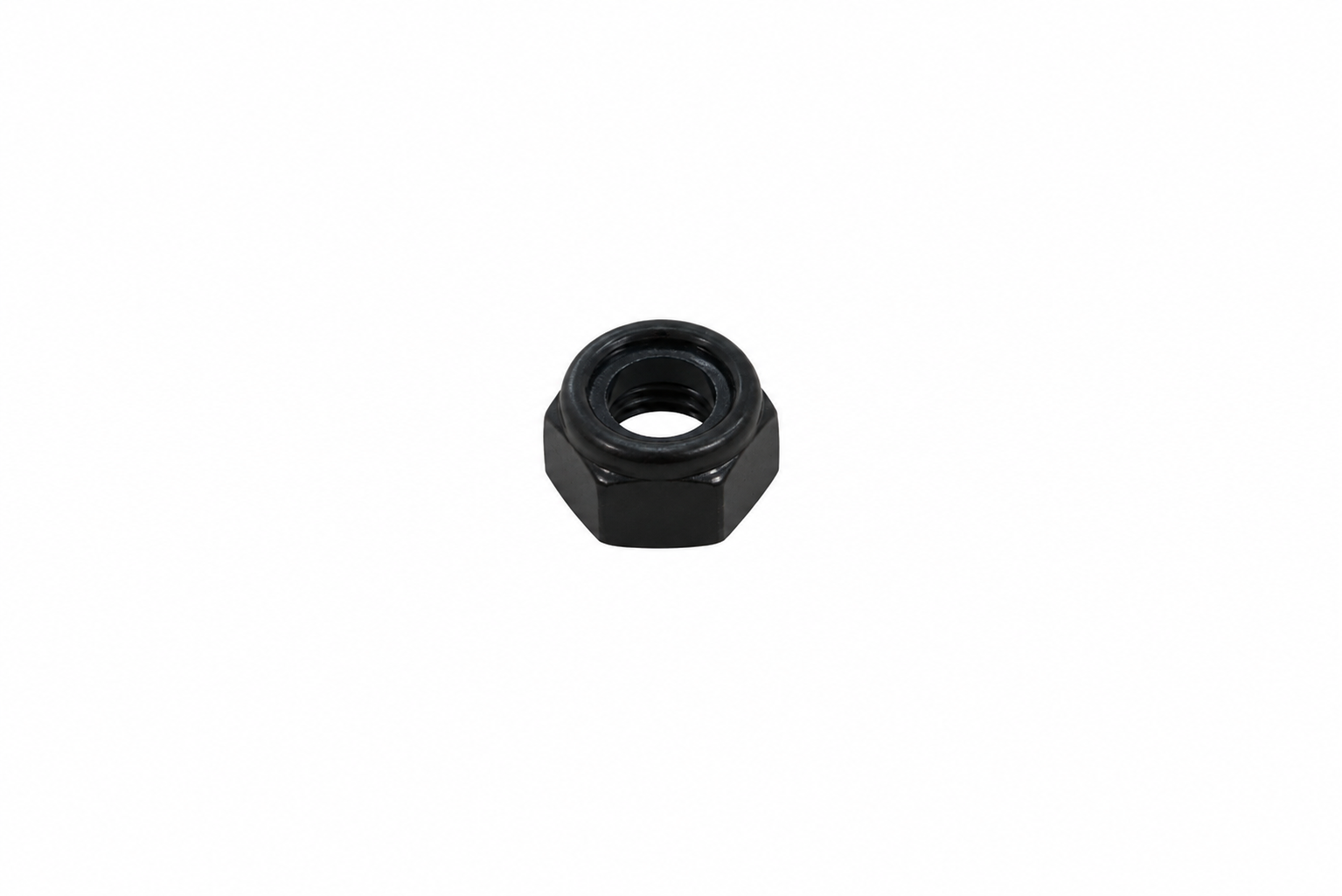

Z 701899 004926-AE Z26 NUT;NLK;M8X1.25P;;BZN;; No Model Compatibility List $2.57 / Each

2
R 701904 004931-00 R09 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
Z 701964 005005-00 Z24 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Z 702005 005043-00 Z30 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
L 702076 005109-00 L04 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Z 702086 005118-00 Z25 Washer;Flat;8.4x17.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702107 005136-A Z20 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
Z 702135 005163-00 Z03 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
B 702160 005196-00 B12 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
Z 702161 005198-00 Z27 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
Q 702217 005330-00 Q27 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
F 702237 005362-00 F11 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

2
R 702241 005366-00 R13 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
R 702829 011173-00 R15 Nut;Hex;M25x1.5P;Black No Model Compatibility List $4.00 / Each

2,4,5,6
P 703918 019353-A P15 Connecting Cable;Socket/Breaker No Model Compatibility List $1.51 / Each

4,5,6
R 703950 019906-CX R04 Generator Set;10.5Kg No Model Compatibility List $259.56 / Each

8
Z 703965 020014-00 Z17 Screw;Phillip;BH;M4x0.7Px15L;Ni;Gap No Model Compatibility List $2.00 / Each

2
B 704016 020105-AC B16 Screw;Hex Socket;Round;M10x1.5Px15L;Adhe No Model Compatibility List $2.57 / Each

2
P 704072 020184-00 P12 Screw;Phillip;BH;Tapped;3x12L;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
E 704076 020190-A E11 Screw;Phillip;BH;Tapped;4x0.7Px10L No Model Compatibility List $1.85 / Each

2
Z 704210 020482-00 Z21 Washer;Flat;16.0X25.0X1.5T No Model Compatibility List $1.59 / Each

2
Q 704273 022177-A Q17 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

2,9,3,4,5,6
Z 705323 040839-00 Z10 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.59 / Each

2
R 705485 049287-00 R17 Washer;Flat;12.5x20.0x2.0t; No Model Compatibility List $2.00 / Each

2
R 706235 060369-A R10 Nut;Hex;M14X1.5PX8L No Model Compatibility List $0.96 / Each

2
R 706236 060370-A R12 Washer;Spring;14.2x24x1.0T No Model Compatibility List $2.00 / Each

2
K 706426 062257-A K03 Screw;;M10X1.5PX14L;;HS;CRMO;;;SP No Model Compatibility List $3.64 / Each

2
P 706549 063270-A P05 Circuit Breaker;3A/125V Yes Model Compatibility List $27.30 / Each

4,5,6
F 706705 064736-AA F10 End-Cap;Guide Rail;PP;BL;EP136-B26B Yes Model Compatibility List $8.97 / Each

9
D 707760 1000094876 D15 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $6.42 / Each

3,4,5,6,9
P 707812 1000095751 P02 Pulse Sensor Set Yes Model Compatibility List $38.32 / Each

12,13,14
P 707911 1000096854 P21 Power Cord;USA;16AWG;Long2M No Model Compatibility List $57.49 / Each

4,5,6
M 708120 1000099802 M31 Motor Control Board;AC;100V~240V;H102S101 Yes Model Compatibility List $383.27 / Each

4,5,6,7,10
Q 708156 1000100823 Q10 Bushing;Plastic;Round;BL Yes Model Compatibility List $6.49 / Each

8,9
A 708158 1000100832 AE1 Pedal Arm Set;Left;EP525-1US No Model Compatibility List $252.49 / Each

8,9,3
Q 708159 1000100845 Q07 Roller Wheel Cover;Left Yes Model Compatibility List $12.99 / Each

8,9
Q 708160 1000100846 Q09 End Cap;Pedal Arm No Model Compatibility List $2.47 / Each

8,9,3
Q 708161 1000100847 Q05 Cover;Pedal Arm Yes Model Compatibility List $9.09 / Each

3,8,9
A 708162 1000100848 AE2 Pedal Arm Set;Right;Semi-Assy;EP525-1US No Model Compatibility List $252.49 / Each

8,9,3
Q 708163 1000100851 Q08 Roller Wheel Cover;Right Yes Model Compatibility List $12.93 / Each

8,9
A 708164 1000100853 AG3 Upper Handlebar Set;Left No Model Compatibility List $23.63 / Each

11
A 708165 1000100860 AG1 Lower Handlebar Set;Left No Model Compatibility List $63.54 / Each

11
A 708166 1000100868 AG2 Lower Handlebar Set;Right No Model Compatibility List $63.54 / Each

11
L 708167 1000100884 L01 Stabilizer Set;Semi-Assy;EP525-1US No Model Compatibility List $58.03 / Each

1
A 708189 1000101013 AC1 Console Mast Set;Semi-Assy;EP527-1US No Model Compatibility List $251.50 / Each

7
A 708190 1000101022 AF1 Frame Set; queen;Semi-Assy;EP527-1US No Model Compatibility List $163.12 / Each

3
A 708191 1000101024 AK1 Linkage Set;Elevation Motor No Model Compatibility List $23.79 / Each

3,10
A 708193 1000101047 AN1 Console Set;EP527-1US No Model Compatibility List $958.20 / Each

7
Q 708194 1000101053 Q03 Upper Side Cover;Left No Model Compatibility List $26.86 / Each

9
Q 708195 1000101055 Q04 Upper Side Cover;Right No Model Compatibility List $26.86 / Each

9
Q 708196 1000101056 Q18 Boot;Console Mast Yes Model Compatibility List $6.42 / Each

7
Q 708197 1000101057 Q16 Cover;Stabilizer;Middle;ABS;MM330;EP527- No Model Compatibility List $42.98 / Each

9
M 708244 1000101466 M30 Elevation Motor;AC;110V; JM14-028 175mm;99;JM14 Yes Model Compatibility List $256.78 / Each

4,5,6,10
P 708253 1000101534 P09 Speed Sensor Wire Yes Model Compatibility List $12.99 / Each

4
N 708260 1000101659 N79 ECB Motor Wire;CKM254301-8P+CKM254301-9 Yes Model Compatibility List $15.59 / Each

4,5,6,10
P 708261 1000101660 P16 Power Socket Set No Model Compatibility List $6.68 / Each

4,5,6
P 708262 1000101661 P13 Power Wire;Control Board;700L;16AWG;Black No Model Compatibility List $3.82 / Each

7,4,5,6
P 708263 1000101662 P14 Power Wire;Control Board;700L;16AWG;White No Model Compatibility List $3.82 / Each

7,4,5,6
P 708277 1000101769 P10 Console Cable;1400mm;CKM254301-8Px2 No Model Compatibility List $57.49 / Each

7,4,5,6
Q 708365 1000102272 Q25 Rear Frame Cover;ABS;MM330;EP527-1US No Model Compatibility List $65.34 / Each

9,3
G 708419 1000102774 G11 Screw;Settle;M4x0.7Px8L No Model Compatibility List $2.00 / Each

2
Q 708421 1000102778 Q13 Crank Cover;Large;MM330;EP525-1US No Model Compatibility List $14.56 / Each

8,9
Q 708422 1000102779 Q14 Crank Cover;Small;mold;MM330;EP525-1 No Model Compatibility List $1.77 / Each

8,9
V 708423 1000102780 V06 DecorateSticker;Crank Cover;EP525 No Model Compatibility List $3.54 / Each

8,9
V 708432 1000102801 V15 Manual;Assembly;ENG;EP525-1US No Model Compatibility List $9.57 / Each

3
H 708433 1000102806 H05 Swivel Axle;Link Arm No Model Compatibility List $8.01 / Each

8,3
Q 708435 1000102841 Q01 Side Cover;Left No Model Compatibility List $134.21 / Each

9
Q 708436 1000102842 Q02 Side Cover;Right No Model Compatibility List $134.21 / Each

9
Q 708438 1000102848 Q19 Rear Stabilizer Cover; Back No Model Compatibility List $20.44 / Each

9,4,5,6
Q 708508 1000103023 Q15 End Cap;Pedal Arm Yes Model Compatibility List $6.49 / Each

3,8,9
V 708524 1000103095 V03 Stabilizer Set;Rear;Label ;EP527 No Model Compatibility List $8.87 / Each

1
V 708525 1000103096 V04 Rear Frame;Rear;Label ;EP527 No Model Compatibility List $8.87 / Each

3
A 708526 1000103097 AZ1 Hardware Pack No Model Compatibility List $93.76 / Each

4,5,6
V 708535 1000103212 V13 Decoration Sticker;Pedal;EP525 No Model Compatibility List $3.54 / Each

8,9
A 708570 1000103569 AG4 Upper Vertical Handlebar Set; Right;EP525-1US No Model Compatibility List $23.63 / Each

11
R 708696 1000104894 R05 Bearing;Ball;6005ZZ;25X47X12T;;SL;;; No Model Compatibility List $11.49 / Each

8
Z 708772 1000105761 Z34 Washer;Outside Sawtooth;Lock;8.4x15.0 No Model Compatibility List $2.00 / Each

2
E 708785 1000106037 E08 Crank Pin Sleeve Set No Model Compatibility List $57.49 / Each

8,3,12,13,14
D 708798 1000106070 D06 Fixing Plate;Leveler No Model Compatibility List $8.87 / Each

3
V 708947 1000107516 V24 Elliptical Guide No Model Compatibility List $6.68 / Each

1
R 708995 1000108119 R01 Pedal Axle Set No Model Compatibility List $142.84 / Each

8,9
E 709055 1000108777 E15 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

2
R 709201 1000110978 R18 Nut;HXF;levogyrate;M14x1.5Px10L;G10;NKL;Reverse Threaded No Model Compatibility List $2.00 / Each

7,2,12,13,14
709913 1000204497 Q12 Pedal;Right;PP;-;EP544-1US; No Model Compatibility List $45.29 / Each

8,9
Q 709942 1000204918 Q11 Pedal;Left No Model Compatibility List $45.42 / Each

8,9
R 710011 1000205914 R18 Nut;HXF;M14X1.5P;G4.8;BZN;; No Model Compatibility List $1.85 / Each

2
R 710012 1000205915 R10 Nut;HXF;M14X1.5P;G4.8;WZN;; No Model Compatibility List $2.00 / Each

2
A 710375 1000209800 AJ1 Crank Set No Model Compatibility List $208.29 / Each

8
Q 710722 1000212646 Q06 MOVING WHEEL SET;-;S-EP534;-; Yes Model Compatibility List $189.00 / Each

8
A 710723 1000212680 AD2 Guide Rail Set;Left No Model Compatibility List $191.46 / Each

9
A 710724 1000212681 AD1 Guide Rail Set;Right No Model Compatibility List $191.46 / Each

9
S 710763 1000213379 S01 Resistance Motor Yes Model Compatibility List $180.67 / Each

10
H 713201 1000300189 H07 Bearing;Dry;-;-;Sheng Ge Ban No Model Compatibility List $6.68 / Each

8
A 713854 1000308924 AH1 Link Arm Set;Semi-Assy;left;;;S-EP543;; No Model Compatibility List $344.94 / Each

3
A 713855 1000308926 AH2 Link Arm Set;Semi-Assy;right;;;S-EP543;; No Model Compatibility List $344.94 / Each

3
D 720052 1000368347 D09 Accent Plate Set;Semi-Assy;;;;EP595-1US; No Model Compatibility List $70.25 / Each

3,4,5,6
S 725184 102450 S02 Steel Cable;ECB;160L No Model Compatibility List $9.75 / Each

4,5,6
Screw; Hex Socket; BH; M8x1.25Px15L 725507 072210 E10 Screw; Hex Socket; BH; M8x1.25Px15L No Model Compatibility List $1.59 / Each

2
Screw;Hex Socket;BH;M8x1.25Px20L 725508 072211 E14 Screw;Hex Socket;BH;M8x1.25Px20L No Model Compatibility List $1.59 / Each

2
Crank Puller;30mm 725742 075513 KIT Crank Puller;30mm No Model Compatibility List $57.49 / Each

8
Bushing;Move Wheel;BLACK;EP188 725754 075972 L02 Bushing;Move Wheel;BLACK;EP188 No Model Compatibility List $6.68 / Each

8,4,5,6
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

8
Washer;Wavy;17.2X22.5X0.3T 726975 086331 Z15 Washer;Wavy;17.2X22.5X0.3T No Model Compatibility List $1.59 / Each

2,4,5,6
Cover;Lower Vertical Handlebar Rotating Axle 728346 094112 B35 Cover;Lower Vertical Handlebar Rotating Axle Yes Model Compatibility List $7.99 / Each

8,9
Bottle Holder;ABS;MM330;EP209 728905 098782 C11 Bottle Holder;ABS;MM330;EP209 No Model Compatibility List $34.16 / Each

1
D 000089 1000094876 D15 1 Leveling Foot Leveler Yes Model Compatibility List $19.99 / Each

1
P 1001381 003326-00 P20 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
R 1003253 004165-00 R06 1 Belt Drive 8 Ribbed Yes Model Compatibility List $32.99 / Each

23
Motor Resistance (Used) 1028444 1000101530 M40 Motor Resistance (Used) No Model Compatibility List $89.00 / Each

28
R 1006814 011173-00 R15 1 Black Hex Nut M25x1.5 No Model Compatibility List $12.99 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
