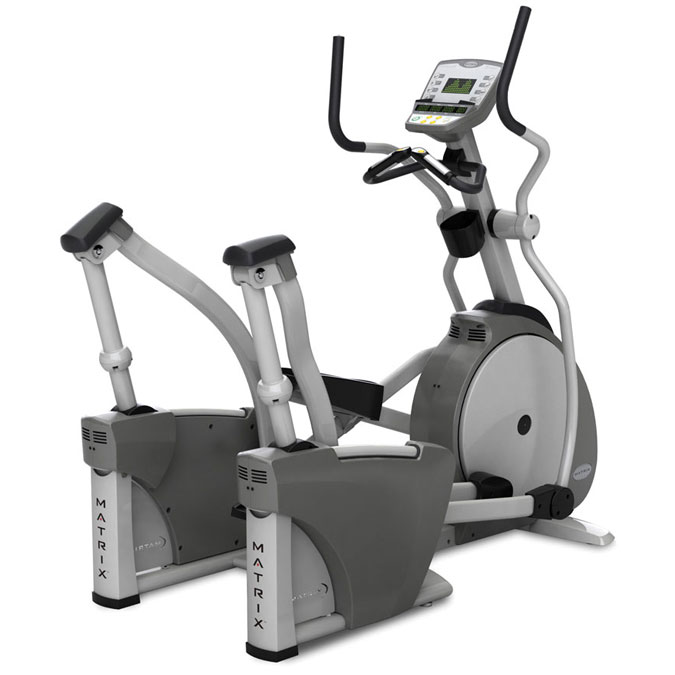

Matrix Commercial - A3x-01-G4 - 2009

Repair Parts for Matrix Commercial A3x-01-G4 EP99

Brand: Matrix Commercial

Category: Ascent

Type: Elliptical

Model Name: A3x-01-G4

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Cover/trim
  • Brake
  • Covers
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700016 000028-D B36 Transport Wheel;Nylon;100;BL;;EP23 Yes Model Compatibility List $25.14 / Each

8
Q 700056 000220-CA Q03 Boot;Console Mast Yes Model Compatibility List $17.99 / Each

7
Q 700069 000249-DA Q13 Boot;Arm Rest;Left Yes Model Compatibility List $3.64 / Each

3
Q 700070 000250-DA Q14 Boot;Arm Rest;Right Yes Model Compatibility List $3.64 / Each

3
Q 700071 000251-DA Q15 Boot;Swivel Axle Yes Model Compatibility List $3.35 / Each

8
Q 700072 000252-CA Q16 Cover;Handlebar Yes Model Compatibility List $3.64 / Each

9,11
Q 700087 000330-CA Q11 Boot;Link Arm;Right No Model Compatibility List $1.79 / Each

3
Q 700088 000331-CA Q12 Boot;Link Arm;Left Yes Model Compatibility List $1.79 / Each

3
B 700143 000512-DB B38 Leveler;Foot Pad;No Swivel;CB32 Yes Model Compatibility List $12.99 / Each

3,9,12,13,14
N 700212 000688-A N29 Foam Tape;Double Sided;20x30Hx4t No Model Compatibility List $1.66 / Each

1
N 700313 000932-E N05 Cap;C-Safe;Black;CB32 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.66 / Each

9,4,5,6
Q 700571 001681-A Q26 Fix Pillar;PP;TM81 No Model Compatibility List $1.90 / Each

1
N 700924 002782-C Not Shown Power Cord;External(USA);3000,14AWG;110V(non-nema) Yes Model Compatibility List $72.98 / Each

4,5,6
N 700925 002787-C Not Shown Power Cord;External(USA);3000,14AWG;110V(nema) No Model Compatibility List $72.98 / Each

4,5,6
P 701035 003393-A P19 Ferrite Core;FH1500B;TM87 K1 RH12.5x12.5x8 No Model Compatibility List $3.64 / Each

1
P 701042 003413-00 P18 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
G 701093 003716-00 G58 Washer;WW;30.2X39.2X0.3T;;; No Model Compatibility List $0.88 / Each

2
B 701104 003836-C B35 Roller Axle;F;SS41;EP23 No Model Compatibility List $8.42 / Each

8
E 701160 004078-A2 E52 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
G 701162 004079-A3 G53 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

8
E 701163 004080-00 E50 Ball Bearing;6203ZZ;17X40X12T;;TPI;;; Yes Model Compatibility List $11.18 / Each

8
E 701177 004103-00 E47 Needle Bearing;HK2020 No Model Compatibility List $19.50 / Each

8
P 701300 004364-00 P41 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
N 701303 004365-00 N50 Screw;Phillip;BH;M5x0.8Px50L;;Zn-BL No Model Compatibility List $1.79 / Each

2
Z 701312 004370-00 Z03 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $2.00 / Each

2
C 701320 004375-00 C54 Screw;Phillip;BH;M5x0.8Px15L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

2
Q 701321 004375-AC Q53 Screw;Phillip;BH;Stainess;M5x0.8Px15L;BE No Model Compatibility List $1.79 / Each

2
S 701351 004400-00 S58 Screw;Phillip;BH;M5x0.8Px6L;Black;;Zn-BL No Model Compatibility List $1.79 / Each

2,4,5,6
S 701395 004450-00 S60 Screw;Hex Socket;Round;M5x0.8Px6L;;Zn-BL No Model Compatibility List $0.23 / Each

2
Q 701397 004451-AD Q56 Screw;Round Hex Socket;M5x0.8Px20L No Model Compatibility List $1.66 / Each

2
P 701400 004453-00 P46 Screw;SH;M5X0.8PX25L;;HS;;BZN;; No Model Compatibility List $1.66 / Each

2
S 701408 004462-00 S51 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
S 701414 004464-00 S52 Screw;Round;Hex;M6X10;Zn-BL No Model Compatibility List $1.79 / Each

2
H 701428 004477-00 H50 Screw;Hex Socket;Round;M8x1.25Px10L No Model Compatibility List $1.66 / Each

2
Z 701430 004479-00 Z01 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

2
Z 701446 004488-AC Z05 Screw;Hex Socket;Round;M8x1.25Px55L No Model Compatibility List $1.79 / Each

2
J 701449 004493-00 J36 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

2
H 701474 004522-AC H71 Screw;SH;M10X1.5PX25L;;HS;;;;BP No Model Compatibility List $1.33 / Each

2
Z 701490 004533-AB Z04 Screw;Hex Socket;Round;M8x1.25Px65L Yes Model Compatibility List $1.79 / Each

2
Z 701504 004539-AC Z34 Screw;Round;Hex Socket;M8X1.25PX25L Yes Model Compatibility List $3.64 / Each

2
H 701522 004555-AB H65 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
S 701561 004592-00 S55 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

2
P 701583 004615-00 P57 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

2
P 701605 004627-00 P47 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

2
G 701626 004647-00 G12 Screw;Phillip;Round;3x12L No Model Compatibility List $1.79 / Each

2
P 701628 004649-00 P56 Screw;Phillip;Round;3x6L;Black;Gap;;Zn- No Model Compatibility List $1.66 / Each

2,4,5,6
S 701647 004685-A S02 Bolt;Eye Hook;1/4"-20UNCx105L;;Zn-BL No Model Compatibility List $3.64 / Each

2
C 701661 004697-AD C57 Screw;Flat Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
J 701673 004706-A J33 Screw;TH;M6X1.0PX16L;;HS;;BZN;; No Model Compatibility List $1.66 / Each

2
701699 004724-00 E63 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
E 701863 004885-00 E54 Nut;Hex;M10x1.5P No Model Compatibility List $2.00 / Each

2
P 701866 004889-00 P44 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
H 701885 004911-00 H51 Nut;Hex;M16x2.0Px7.0L;Zn Pl Yes Model Compatibility List $5.99 / Each

2
Z 701897 004926-00 Z07 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
S 701904 004931-00 S59 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
S 701908 004934-00 S56 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
E 701924 004957-00 E62 Nut;Lock;M25X1.5P;SS41;BAN Yes Model Compatibility List $3.64 / Each

2
R 701926 004961-A R48 Nut;Hex;M30x1.5Px8T No Model Compatibility List $6.73 / Each

2
J 701930 004967-AB J30 Nut;Hex;Flange;M16x1.5P;Carburizing Yes Model Compatibility List $1.79 / Each

2
B 701943 004978-00 B86 Insert Nut;Hex;NHS-1015-4.0(M10x1.5P) No Model Compatibility List $1.66 / Each

2
C 701944 004979-00 C61 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.79 / Each

2
H 701945 004980-A H53 Insert Nut;Hex;NHS-580-3.0(M5X0.8P) Yes Model Compatibility List $1.79 / Each

2
C 701947 004983-A C08 Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) No Model Compatibility List $1.79 / Each

2
R 701955 004991-00 R16 Key;Round;Dual-End;6X6X20L No Model Compatibility List $2.37 / Each

9
G 701964 005005-00 G56 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
S 701975 005013-00 S50 Washer;Spring;6.0x10.0x1.5t No Model Compatibility List $2.00 / Each

2
E 701987 005025-00 E61 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
B 701990 005028-00 B94 Washer;Flat;20.2x35.0x2.0T;Black Zinc No Model Compatibility List $1.66 / Each

2,4,5,6
E 701993 005032-00 E45 Washer;Flat;20.2x35.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
S 702046 005075-00 S53 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 702089 005121-00 R50 Washer;Flat;30.3X45.0X1.2T;SPGC No Model Compatibility List $3.64 / Each

2
Q 702113 005140-A Q51 Washer;Flat;5.5x10.0x1.2T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
P 702145 005177-00 P45 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $2.00 / Each

2
S 702154 005190-B S54 Washer;Teflon;10.5x25x1.5T No Model Compatibility List $4.00 / Each

2
E 702178 005220-00 E58 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
E 702186 005229-00 E46 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

2,4,5,6
J 702196 005245-A J31 Washer;Lock;16.2x31.5x1.5T No Model Compatibility List $1.79 / Each

2
T 702230 005355-00 T08 C-Clip;Internal;R-55 Yes Model Compatibility List $3.64 / Each

2
E 702231 005356-00 E51 C-Clip;Internal;R-47 No Model Compatibility List $2.00 / Each

2
T 702242 005367-00 T04 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
J 702289 005487-D J07 Spring;Compress Yes Model Compatibility List $9.10 / Each

2
V 702416 006675-C V05 Decal;Aperture;TV Rack Yes Model Compatibility List $21.48 / Each

7,3,4,5,6
P 702449 007489-00 P17 Fix Plate;Speed Sensor Yes Model Compatibility List $7.72 / Each

3
702484 007970-B Q27 Connecting Plate;Side Cover;2 Hole No Model Compatibility List $1.79 / Each

9,3
702491 008042-F C06 Connecting Plate;Console Mast Yes Model Compatibility List $20.88 / Each

7,3
J 702591 008866-A J29 Screw;Special;Round;4.0x1.34Px12L(Hi-Lo No Model Compatibility List $1.66 / Each

2
R 702603 008916-B R43 Nut;Hex;S45C;ZN;; No Model Compatibility List $11.60 / Each

2
Z 702632 009081-C Z08 Rod End Bearing Sleeve;SS41;EP68-Z30C; No Model Compatibility List $3.64 / Each

8,9,3
E 703580 015555-AA E42 Connecting Plate;Pedal Arm;3 Hole Yes Model Compatibility List $35.80 / Each

8,9,3
G 703593 015609-AB G08 End Cap;Swivel Base Yes Model Compatibility List $111.33 / Each

9,3
B 703603 015642-AA B12 Connecting Tube Cover; Black No Model Compatibility List $66.61 / Each

9,3,4,5,6
B 703853 018653-A B84 Screw;SH;M8X1.25PX22.5L-8L;CRMO;BAN; No Model Compatibility List $1.79 / Each

2
B 704175 020425-00 B91 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $2.00 / Each

2
H 704222 020641-00 H74 Clip;Internal;C-Shaped;R-52; No Model Compatibility List $1.79 / Each

2
V 704977 027982-B V07 Decal;Side Cover;EP68-US;EP68 No Model Compatibility List $25.30 / Each

7,9,3
W 704978 028272-CR W25 Membrane Keypad;Left;Plane 4Key;CB64 No Model Compatibility List $9.10 / Each

9,12,13,14
N 704981 028501-BR N15 Signal Wire;1;140L;(XAP-10V-1)x2;CB61; No Model Compatibility List $13.39 / Each

4,5,6
N 704982 028502-BR N16 Signal Wire;2;105L;(XAP-08V-1)x2;CB61; No Model Compatibility List $10.35 / Each

4,5,6
N 704983 028503-BR N17 Signal Wire;3;130L;(XAP-05V-1)x2;CB61; No Model Compatibility List $11.86 / Each

4,5,6
N 704984 028504-BR N18 Signal Wire;4;50L;(XAP-05V-1)x2;CB61; No Model Compatibility List $8.42 / Each

4,5,6
W 705038 032524-CR W26 Membrane Keypad;Right;Plane 4Key;CB64 No Model Compatibility List $9.10 / Each

9,12,13,14
G 705068 034585-CR G14 Pulse SensorWire;820L;(TKP H66031P-06); Yes Model Compatibility List $29.02 / Each

4,5,6,12,13,14
Y 705069 034586-BR Y25 Quickl Key Wire;200L;(TKP H6630P-06+TKP Yes Model Compatibility List $13.78 / Each

9,4,5,6
N 705117 037811-B N27 LED Apertures Board No Model Compatibility List $3.35 / Each

1
Q 705163 038449-A Q45 Clip;Tapped Hole;FE;M5;YZN No Model Compatibility List $9.10 / Each

2
Q 705700 055204-A Q52 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
W 705748 056004-A W35 Pulse Sensor Wire;300L No Model Compatibility List $17.94 / Each

4,5,6,12,13,14
W 705752 056008-A W37 Ground Wire;Pulse Grip;100L;(KST FDFNYD2-250-1 HSG No Model Compatibility List $3.35 / Each

4,5,6,12,13,14,11
W 705753 056009-A W36 Power Wire;Heart Rate Board;220L;(TKP 2510A-3P Yes Model Compatibility List $16.54 / Each

4,5,6,12,13,14
P 705777 056225-A P65 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $8.42 / Each

4,5,6
W 706073 058863-A W27 Membrane Keypad;Down;Plane 6Key;EP72 No Model Compatibility List $17.55 / Each

9,12,13,14
706131 059368-00 JM01 Generator;242;200W 600rpm/2A;JM07 Yes Model Compatibility List $807.77 / Each

8
706176 059890-A W39 Ribbon Cable Cord;K5A RP 28.5x6.5x12;Jia Zhen;EP68 No Model Compatibility List $1.66 / Each

4,5,6
P 706251 060608-AB P43 Screw;Umbrella Cross;M5x0.8Px55L;nickel No Model Compatibility List $1.66 / Each

2
Q 706366 061489-AA Q44 Pedal Pad;Rubber(Black);EP76 Yes Model Compatibility List $36.79 / Each

8,9,4,5,6,12,13,14
H 706420 062233-00 H61 Bearing;Needle;8505LLU;Huei Yuan No Model Compatibility List $17.52 / Each

8
H 706425 062256-B H37 Ring 1;STK41(Zn Plate);EP72-H37 No Model Compatibility List $8.42 / Each

3
H 706426 062257-A H38 Screw;;M10X1.5PX14L;;HS;CRMO;;;SP No Model Compatibility List $3.64 / Each

2
H 706427 062258-B H39 Ring 2;STK41(Zn Plate);EP72-H39 No Model Compatibility List $9.10 / Each

3
H 706428 062259-A H40 Adjusting Arm Axle 1;S45C;EP72-H40 Yes Model Compatibility List $12.69 / Each

8,3
H 706429 062260-A H41 Adjusting Arm Axle 2;S45C;EP72-H41 Yes Model Compatibility List $11.60 / Each

8,3
H 706430 062261-C H62 Axle Fix Ring 1;SS41;EP72-H62 No Model Compatibility List $9.10 / Each

8
Q 706431 062264-AA Q04 Pedal;Left;PA-746 Black;EP72 Yes Model Compatibility List $39.65 / Each

8,9,4,5,6
Q 706432 062265-AA Q05 Pedal;Right;PA-746 Black;EP72 Yes Model Compatibility List $39.65 / Each

8,9,4,5,6
Q 706438 062271-AA Q36 Pivot Arm Lower Cover;Outside;PA-746(BL);EP72-Q36A; Yes Model Compatibility List $8.42 / Each

8,9,3
Q 706439 062272-AA Q37 Pivot Arm Lower Cover;Inside;PA-746(BL);EP72-Q37A; No Model Compatibility List $9.93 / Each

8,9,3
Q 706440 062274-AA Q39 Foot Pad;Black;EP72 No Model Compatibility List $16.74 / Each

9,3,4,5,6,12,13,14
A 706487 062709-CA AH4 Protected Pad;Swivel Rack;PU;Black;PU-Se Yes Model Compatibility List $56.84 / Each

4,5,6,12,13,14
H 706488 062710-00 H64 Pin;Spring;SSPR5-12L; No Model Compatibility List $3.35 / Each

2,12,13,14
P 706525 063033-A P07 Speed Sensor Wire;350L;(Hall+JST 2.5-3PIN);EP7 Yes Model Compatibility List $19.97 / Each

4
P 706526 063035-A P02 Elevation Motor Wire;1760;MOLEX(050-84-2062);EP Yes Model Compatibility List $81.43 / Each

4,5,6,10
P 706527 063037-A P10 ECB Load Wire;400L;(3.96-4P+HL20P-02);EP Yes Model Compatibility List $8.42 / Each

4,5,6
P 706528 063039-A P53 TV Power Wire;Lower;1600L;(TKP H6630R1-04) Yes Model Compatibility List $17.97 / Each

4,5,6
P 706529 063042-B P01 Console Cable;Digital;1350L;(AMP 8P8C RJ45)x Yes Model Compatibility List $21.29 / Each

7,4,5,6
P 706530 063045-AA P09 AC Power Socket Wire;EP72; No Model Compatibility List $119.81 / Each

4,5,6
P 706754 065248-A P05 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

4,5,6
Q 706755 065383-AA Q28 Pedal Cap;NY(BL);EP76-Q28 Yes Model Compatibility List $4.26 / Each

8,9
Q 706756 065384-BA Q43 Link Arm Cap;PP(Black);EP72 Yes Model Compatibility List $3.64 / Each

9,3,4,5,6

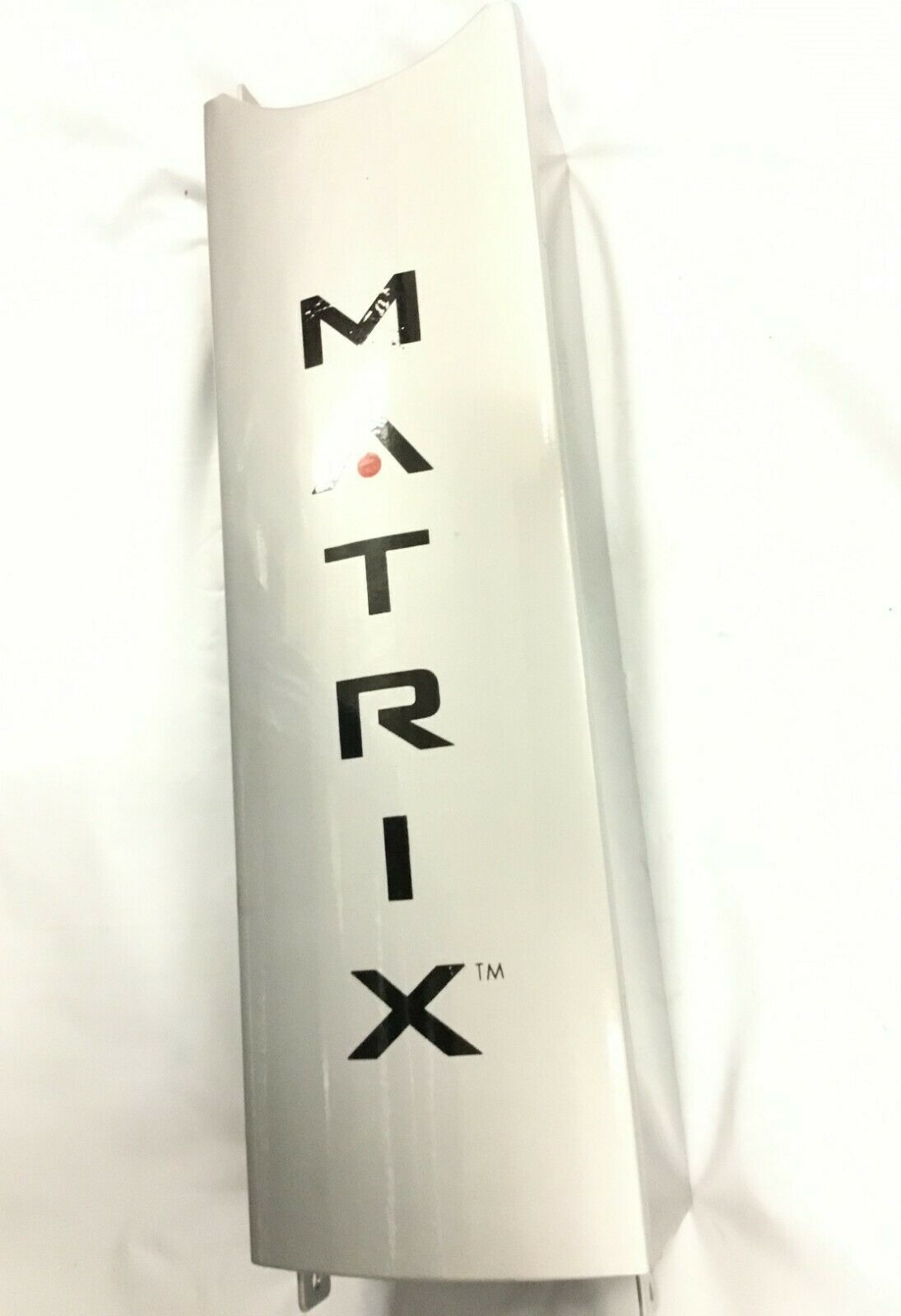

B 706805 065746-AA B56 Front Right Decorative Cover;EP72-US Yes Model Compatibility List $107.38 / Each

9
Q 706828 065956-AC Q54 Screw;Oval;M5X0.8PX15L;;PH;SSTSUS304;BAN No Model Compatibility List $1.79 / Each

2
Q 706847 066181-BA Q41 Rear Cover Trim;Right;Rubber;NBR(BL);EP72-Q41B; Yes Model Compatibility List $14.61 / Each

9
Q 706848 066182-BA Q42 Rear Cover Trim;Left;Rubber;NBR(BL);EP72-Q41B; No Model Compatibility List $14.61 / Each

9
P 706861 066346-A P34 Cable Clamp;PC-0914 KSS No Model Compatibility List $3.35 / Each

4,5,6
S 706865 066413-B S03 Anti-Sweat Cover;ECB No Model Compatibility List $12.27 / Each

9
H 706948 067369-BA H66 End Cover;EP72-H66B; No Model Compatibility List $3.35 / Each

9
707033 068630-AA N52 O Type Ring;9.0x5.0x2.0t; No Model Compatibility List $1.01 / Each

1
N 707034 068631-A N53 Screw;Phillip;BH;Big;M3x0.5Px4L;; No Model Compatibility List $1.66 / Each

2
P 707043 068878-A P11 UCB Ground Wire;70L;5+250Feet;TM97; No Model Compatibility List $3.35 / Each

9,3,4,5,6
Z 709055 1000108777 Z06 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

2
710795 1000213710 H52 BEARING;SRE;2201-2RS;M16X2.0PX91L;EP84-H No Model Compatibility List $111.70 / Each

8
2 710938 1000215492 29 Elevation Motor Set;400LB,1/9HP DC12V Yes Model Compatibility List $730.05 / Each

4,5,6,10
2 718315 1000350493 28 Idler Set;;;Integrated;EP304; Yes Model Compatibility List $54.73 / Each

8
Filter Board 725319 069859 AP1 Filter Board Yes Model Compatibility List $55.95 / Each

1
Ferrite; Cord;FH0650B;CB32-P16A 725322 069904 P63 Ferrite; Cord;FH0650B;CB32-P16A No Model Compatibility List $3.35 / Each

4,5,6
Power Wire; Filter Board; 700L;(JST FDFNYD1-250-1)x4;EP 725323 069905 P24 Power Wire; Filter Board; 700L;(JST FDFNYD1-250-1)x4;EP No Model Compatibility List $11.67 / Each

4,5,6
Washer;Flat; M10.5X25.0PX1.5T;;BZN 725337 070073 E55 Washer;Flat; M10.5X25.0PX1.5T;;BZN No Model Compatibility List $0.55 / Each

2
Ring;SS41;EP72-H29B 725428 071105 H29 Ring;SS41;EP72-H29B No Model Compatibility List $3.64 / Each

1
Bearing;Tapered Roller;2205-JVH(NSK.IJK) 725438 071236 H75 Bearing;Tapered Roller;2205-JVH(NSK.IJK) No Model Compatibility List $182.44 / Each

8
O Type Ring;30.0x35.0x2.5t; 725439 071237 E64 O Type Ring;30.0x35.0x2.5t; No Model Compatibility List $1.79 / Each

1
TV Cable Wire;1600L;(FM-0086-NBG7)x2;EP7 726178 0000080626 P06 TV Cable Wire;1600L;(FM-0086-NBG7)x2;EP7 No Model Compatibility List $12.27 / Each

4,5,6
726211 080717 Not Shown Daisy Chain / TV Power Wire Set;EP72-US - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $51.22 / Each

4,5,6
726223 080783 C08 Water Bottle Holder No Model Compatibility List $22.57 / Each

1
726245 080941 Q40 Swing Arm Cover No Model Compatibility List $3.35 / Each

9,3
Rear frame logo plate LH 726325 0000081322 B57 Rear frame logo plate LH No Model Compatibility List $109.72 / Each

3
726412 081707 R51 Washer;Star;1.5 Zinc No Model Compatibility List $3.35 / Each

2
726418 081719 H47 Snug Bushing;S45C(Zn Plate);EP72-H47A; No Model Compatibility List $10.84 / Each

8,3
726419 081720 H48 Snug Bushing Fix Plate;S45C(BED); No Model Compatibility List $3.35 / Each

8,3
726420 081721 H49 Screw;Hex Socket;Round;M8x1.25Px110L;Adh No Model Compatibility List $3.35 / Each

2
726422 081745 Q53 Screw;Umbrella Cross;M5x0.8Px8L;Stainless No Model Compatibility List $1.66 / Each

2
726562 082875 D60 Screw;BH;M3X0.5PX20L;;PH;;BZN;; No Model Compatibility List $1.79 / Each

2
Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 726625 0000083655 167 Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 Yes Model Compatibility List $425.88 / Each

12,13,14
726655 083864 162 Faceplate,Console Plastic(PAINT);EP68-US No Model Compatibility List $130.49 / Each

7,9,3,4,5,6
Console Back Cover 726656 0000083865 178 Console Back Cover No Model Compatibility List $135.36 / Each

4,5,6,7,9
726657 083866 N06 CONSOLE LOWER COVER(PAINT);WH/GD+PU No Model Compatibility List $0.00 / Each
Out Of Stock 		7,9
726658 083867 N24 CONSOLE LOWER COVER(PAINT);WH/GD;+PU; No Model Compatibility List $23.63 / Each

7,9
726668 0000083902 182 Bottle Holder;Console Back Yes Model Compatibility List $137.88 / Each

4,5,6,7
Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL 726738 084533 G21 Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL No Model Compatibility List $1.79 / Each

2
726811 085166 P42 Screw;Phillip;BH;M5x0.8Px10L;Ni;Gap; No Model Compatibility List $1.66 / Each

2
726954 086216 AB4 Main Frame;EP76 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Belt;POLY-V;Generator;330-J8-FG;;Carlisle 726958 0000086230 R09 Belt;POLY-V;Generator;330-J8-FG;;Carlisle Yes Model Compatibility List $54.73 / Each

8,15
Ground Wire;Console;Pulse Extended;220(5.0 OT+KST M 726965 0000086264 P04 Ground Wire;Console;Pulse Extended;220(5.0 OT+KST M No Model Compatibility List $3.64 / Each

4,5,6,7,9,12,13,14
726986 086513 B58 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $0.44 / Each

2
727040 086846 T03 Bearing;Ball;60066LUZ(30x55x13t);TPI No Model Compatibility List $27.40 / Each

8
Drive Belt;POLY-V;430-J14;Carlisle;;Rubber;Net 727081 0000087105 R11 Drive Belt;POLY-V;430-J14;Carlisle;;Rubber;Net No Model Compatibility List $54.73 / Each

10,15
727207 087749 51 Rotational Housing Assembly;MX-E5XC-F;US;E No Model Compatibility List $259.69 / Each

3
727212 0000087829 19 Side Cover Set;Right;MX-E5XC-F;US;EP81 Yes Model Compatibility List $150.00 / Each

9
727243 088065 8 Link Arm Set;Right;MX-A5X-F;US;EP84 No Model Compatibility List $880.46 / Each

3
727244 088066 9 Link Arm Set;Left;MX-A5X-F;US;EP No Model Compatibility List $888.06 / Each

3
727245 088068 10 Swing Arm Set;Right;MX-A5X-F;US;EP8 No Model Compatibility List $1080.01 / Each

3
727246 0000088071 12 Lower Pivot Arm Set;Right;MX-A5X-F;US;EP84 Yes Model Compatibility List $199.00 / Each

3,8
727247 088072 13 Lower Pivot Arm Set;Left;MX-A5X-F;US;EP84 No Model Compatibility List $676.86 / Each

8,3
727248 088076 26 Generator Set;MX-I5X-F;US;EP87 No Model Compatibility List $638.79 / Each

8
Drive Axle Set 727249 0000088082 24 Drive Axle Set No Model Compatibility List $579.98 / Each

8,10
Pulley Axle Set;MX-A5X-F;EP84 727250 0000088083 25 Pulley Axle Set;MX-A5X-F;EP84 No Model Compatibility List $489.19 / Each

8
727251 088086 18 Side Cover Set;Left;;MX-A5X-F;;US;EP84 No Model Compatibility List $226.43 / Each

9
Pedal Arm Set;Right;MX-A5X-F;US;EP84 727252 0000088090 2 Pedal Arm Set;Right;MX-A5X-F;US;EP84 No Model Compatibility List $647.11 / Each

3,8,9
Pedal Arm Set;Left;MX-A5X-F;US;EP84 727253 0000088091 3 Pedal Arm Set;Left;MX-A5X-F;US;EP84 No Model Compatibility List $647.11 / Each

3,8,9
727461 089455 B93 Leveler;Foot pad;Rubber;EP72-B93; No Model Compatibility List $10.19 / Each

9,3,12,13,14
727464 089475 E16 Ring;;;;SS41;25.1x44.65;EP72 No Model Compatibility List $12.58 / Each

1
727532 089822 E53 Screw;Hex Socket;Round;M10x1.5Px100L No Model Compatibility List $1.79 / Each

2
727534 089835 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock 		1
727715 090567 N08 Overlay;Reading Rack;PC-8B35(BL);EP74-N0 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
727736 090660 21 Rear Side Cover Set;Right;MX-A5X-F;US;EP No Model Compatibility List $418.44 / Each

9
727737 090661 22 Rear Side Cover Set;Left;MX-A5X-F;US;EP8 No Model Compatibility List $412.96 / Each

9
727739 090668 31 Stabilizer Set;Right;MX-A5X-F;US;EP84 No Model Compatibility List $379.13 / Each

1
727740 090669 32 Stabilizer Set;Left ;MX-A5X-F;US;EP84 No Model Compatibility List $379.13 / Each

1
Control Board;Quick Key 727748 0000090779 N24 Control Board;Quick Key Yes Model Compatibility List $9.99 / Each

7,9
727781 090936 161 Fix Plate;Reading Rack;SPHC 2.0t(BED); No Model Compatibility List $1.66 / Each

3,4,5,6
Reading Rack;PA-746(Black) 727837 0000091243 N04 Reading Rack;PA-746(Black) No Model Compatibility List $27.38 / Each

4,5,6
727943 092131 W28 CTRL Board;MATRIX;Coating Drawing;037756 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
727944 092132 W29 Display Board;*Typ;Coating Drawing;03775 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
727945 092133 W30 CTRL Board;Program;Coating Drawing;03775 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
727952 092174 Q29 Disc Cap;ABS PA746;BL;A5X-03;US;EP79 No Model Compatibility List $6.16 / Each

9
727963 092266 5 Handlebar Set;Right;A5X-03;US;EP79 No Model Compatibility List $456.53 / Each

11
727965 092268 6 Handlebar Set;Left;A5X-03;US;EP79 No Model Compatibility List $456.53 / Each

11
727967 092271 40 Crank Set;A5X-03;US;EP79 No Model Compatibility List $365.01 / Each

8
Crank Sleeve Set 727969 0000092274 42 Crank Sleeve Set Yes Model Compatibility List $193.70 / Each

3,8
727970 0000092280 41 Round Disk;A5X-03;US;EP79 Yes Model Compatibility List $229.00 / Each

1
727980 092368 150 Overlay;Console;Upper;Eng;PET;0.2t;H3x-0 No Model Compatibility List $64.40 / Each

7
727985 092373 N71 Overlay;Console;Middle;English;A3x-01; No Model Compatibility List $12.27 / Each

7
727986 092374 N72 Overlay;Console;D;English;A3x-01;US No Model Compatibility List $18.77 / Each

7
727989 092387 1 Console Mast Set;A3X-01;US;EP99 No Model Compatibility List $1294.28 / Each

7
727990 092389 7 Handlebar Set;F;EP301;-;EN; No Model Compatibility List $469.48 / Each

11
727992 092399 17 Console Set No Model Compatibility List $1.30 / Each

7
727993 092400 W01 Control Board;Console;H001S003;Coating;A No Model Compatibility List $0.00 / Each
Out Of Stock 		7
727995 092404 15 E-PORT Fix Plate Set;A3X-01;US;EP99 No Model Compatibility List $162.94 / Each

3
727996 092406 27 Lower Control Board Set;A3X-01;US;EP99 No Model Compatibility List $1.30 / Each

7
727997 092411 Not Shown Assembly Manual;ENG;A3X-01;US;EP99 No Model Compatibility List $24.65 / Each

3
728083 093092 20 Crank Cover Set;PP;BL;MX-E5XC-F;US;EP81 No Model Compatibility List $12.71 / Each

8,9
728102 093137 23 Anti Sweat Cover Set;MX-A5X-F;US;EP84 No Model Compatibility List $71.19 / Each

9
728132 093219 AB1 RIGHT MAIN FRAME SET No Model Compatibility List $589.11 / Each

3
728167 093376 B60 Screw;Hex Socket;M8X15;Zn-BL No Model Compatibility List $1.66 / Each

2
Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad 728172 093382 Z21 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.66 / Each

2
728203 093607 AJ5 Velcro Location;A5X-03;US;EP79 No Model Compatibility List $13.65 / Each

1
728204 093608 AJ6 Velcro Location;A5X-03;US;EP79 No Model Compatibility List $6.53 / Each

1
728239 093767 T12 Idler Outer Ring;SS41;A5X-03;US;EP79 No Model Compatibility List $34.74 / Each

8
728258 093820 57 Pulse Sensor Set No Model Compatibility List $211.35 / Each

12,13,14
728349 094143 Q30 Crank Cover;Right;Round Disk No Model Compatibility List $12.35 / Each

8,9
728369 094396 J10 Fix Plate;Disc;BL;A5X-03;US;EP7 No Model Compatibility List $107.41 / Each

3
729118 Part of Kit 1 AC1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729120 Part of Kit 10 AH7 Lower Handlebar Set;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729123 Part of Kit 11 AH8 Upper Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729124 Part of Kit 12 AH9 Lower Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729125 Part of Kit 13 AH10 Link Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729129 Part of Kit 15 Q19 Link Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729136 Part of Kit 18 Q01 Axle,TRANSIMISSION;42CRMO;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729137 Part of Kit 19 Q02 Crank Sleeve;Pedal Arm;-;-;ADC12; No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3,4,5,6
729138 Part of Kit 2 AE1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729140 Part of Kit 20 Q10 BEARING;BALL;6003ZZ;17X35X10T;;TPI;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729141 Part of Kit 21 Q32 Axle;Transmission;42CRMO;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729144 Part of Kit 22 Q34 Generator;-;8.0KG EP537-1US;-;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729145 Part of Kit 23 Q35 Console;-;EP546B-1US;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729146 Part of Kit 24 R41 Grip;Sensor;U;ABS/PA746;BL;R8000; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729147 Part of Kit 25 R47 Seat Sliding Frame;R1xLS No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
729149 Part of Kit 27 S05 Seat Stopper Wheel Axle No Model Compatibility List $0.00 / Each
Out Of Stock 		8,12,13,14
729150 Part of Kit 28 T11 Seat Roller Adjustment Plate No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,12,13,14
729151 Part of Kit 29 JM16 Pulse Sensor Plastic No Model Compatibility List $0.00 / Each
Out Of Stock 		9,12,13,14
729152 Part of Kit 3 AE2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729157 Part of Kit 31 AB2 Logo Plate No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729158 Part of Kit 32 AB3 Cup Holder No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729165 Part of Kit 4 AH11 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729169 Part of Kit 40 AJ4 Crank;BL;A5X-03;US;EP79 No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729170 Part of Kit 41 Q25 Disc;SL/GY;A5X-03;US;EP79 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729171 Part of Kit 42 E15 Crank Sleeve Axle;S45C;EP72-E14C; No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
729172 Part of Kit 5 AG7 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729180 Part of Kit 51 G07 Painting;Swivel Base;SL/GY;TWO COAT&PAIN No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729188 Part of Kit 57 N202 Overlay Set;QUICK KEY;L;EP301;EN; No Model Compatibility List $0.00 / Each
Out Of Stock 		9
729191 Part of Kit 6 AG8 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729194 Part of Kit 7 AG4 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729197 Part of Kit 8 AH1 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729201 Part of Kit 9 AH2 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
Holder Bottle (Used) 1003986 0000080783 0 1 Holder Bottle (Used) No Model Compatibility List $15.99 / Each

1
E 1028452 004080-00 E50 Bearing Sealed Yes Model Compatibility List $24.99 / Each

1
HR Board Receiver (Used) 1029469 0000083655 HR Board Receiver 1 HR Board Receiver (Used) Yes Model Compatibility List $40.00 / Each

7
Right Lower Pivot Arm Set (Used) 1007178 0000088071 0 1 Right Lower Pivot Arm Set (Used) Yes Model Compatibility List $218.99 / Each

1
Rear Decorate Cover (Used) 1007183 072165 0 1 Rear Decorate Cover (Used) No Model Compatibility List $109.00 / Each

18
Rotation Housing Assembly & Boot Swivel Axle (Used) 1007184 0000087749 0 1 Rotation Housing Assembly & Boot Swivel Axle (Used) Yes Model Compatibility List $91.99 / Each

1
ECB Magnetic Brake Generator Set (Used) 1007194 0000088076 0 1 ECB Magnetic Brake Generator Set (Used) No Model Compatibility List $209.99 / Each

1

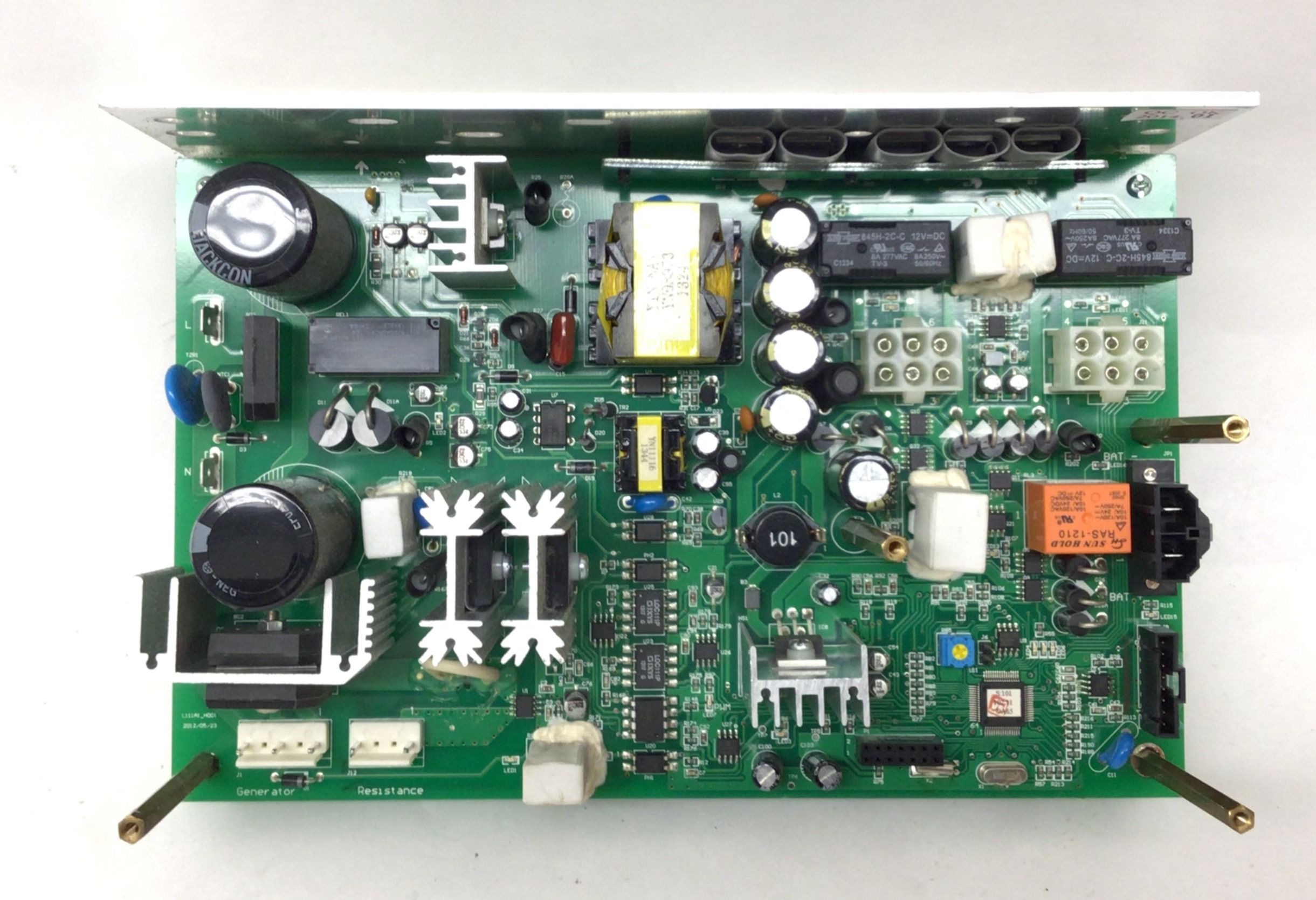

Lower Motor Controller Board 1007196-R 0000092406 0 1 Lower Motor Controller Board No Model Compatibility List $482.99 / Each

48
Anti-Sweat Cover Set (Used) 1007197 0000093137 0 1 Anti-Sweat Cover Set (Used) No Model Compatibility List $40.99 / Each

18
Front Swing Arm Rest Cover (Used) 1007210 0000080941 0 1 Front Swing Arm Rest Cover (Used) No Model Compatibility List $11.99 / Each

18
Crank Boot Cover Set (Used) 1007214 0000093092 0 1 Crank Boot Cover Set (Used) No Model Compatibility List $12.99 / Each

18
Entertainment Port Set (Used) 1007253 0000092404 0 1 Entertainment Port Set (Used) No Model Compatibility List $66.99 / Each

1
Lower Motor Control Board Controller 1009196-R 0000090779 0 1 Lower Motor Control Board Controller Yes Model Compatibility List $399.00 / Each

48
J 1003984 059368-00 JM01 Magnetic Brake Generator Yes Model Compatibility List $244.99 / Each

36
Filter Board Set 1003980 069859 Filter Board Set Yes Model Compatibility List $27.99 / Each

7
Console Cup Holder Accessory Tray 1003982 0000083902 Console Cup Holder Accessory Tray Yes Model Compatibility List $54.99 / Each
1
Q 1036645 007970-B Q27 PLATE CONNECTING COVER FRONT Yes Model Compatibility List $5.00 / Each

1
H 1036667 062260-A H41 Swing Arm Axle Yes Model Compatibility List $5.00 / Each

1
Rear frame logo plate LH 1036646 065747-AA Rear frame logo plate LH Yes Model Compatibility List $29.00 / Each

9,44
UPPER ADJ ARM SET 1036658 0000088073 UPPER ADJ ARM SET Yes Model Compatibility List $89.00 / Each

1
Adjustable leveling foot 1036654 0000089455 Adjustable leveling foot Yes Model Compatibility List $5.99 / Each

1
DISC CAP, ABS PA746, BL, A5X-03, US, EP79 1036657 0000092174 DISC CAP, ABS PA746, BL, A5X-03, US, EP79 Yes Model Compatibility List $5.00 / Each

1
Rod end bearing. 1036653 1000213710 & 004911-00 Rod end bearing. Yes Model Compatibility List $19.99 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
