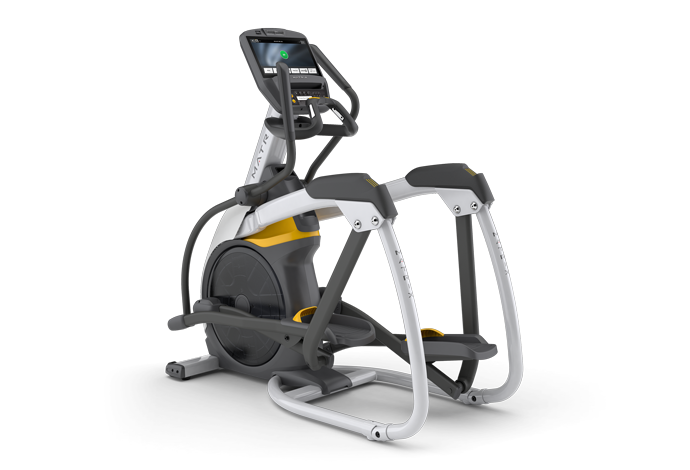

Matrix Commercial - A7xi-03 - 2016

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000041-AA 700024 000041-AA L01 Transport Wheel Yes Model Compatibility List $7.00 / Each

8
000859-00 700282 000859-00 B77 Hole Plug;Nylon66;HP-8;Black No Model Compatibility List $1.28 / Each

4,5,6
000880-B 700292 000880-B P46 Rubber Pad;Motor;Anti-Shake No Model Compatibility List $1.38 / Each

10,12,13,14
001677-A 700569 001677-A P31 Cable Fix Button;KSS/UC-3 No Model Compatibility List $1.28 / Each

4,5,6
002664-B 700888 002664-B P06 Lower Console Wire Harness; 1000L Yes Model Compatibility List $7.00 / Each

7,4,5,6
002782-C 700924 002782-C Not Shown Power Cord;External(USA);3000,14AWG;110V(non-nema) Yes Model Compatibility List $56.14 / Each

4,5,6
002787-C 700925 002787-C Not Shown Power Cord;External(USA);3000,14AWG;110V(nema) No Model Compatibility List $56.14 / Each

4,5,6
003553-D 701064 003553-D P32 Power Electric Resistance;Contain Wire;4 400W10,650(3.96-4P WH Yes Model Compatibility List $114.34 / Each

4,5,6,10
004075-A3 701158 004075-A3 G27 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $7.36 / Each

8
004077-A2 701159 004077-A2 H60 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004080-00 701163 004080-00 E50 Ball Bearing;6203ZZ;17X40X12T;;TPI;;; No Model Compatibility List $8.60 / Each

8
004081-A2 701165 004081-A2 H43 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $12.22 / Each

8
004381-00 701328 004381-00 Q64 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $1.54 / Each

2
004385-00 701332 004385-00 P70 Screw;BH;M5X0.8PX12L;;PH;;BAN;; No Model Compatibility List $1.38 / Each

2
004389-00 701343 004389-00 Q50 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $1.54 / Each

2
004448-Z 701393 004448-Z Q60 Screw;Round;Hex Socket;M5x0.8Px10L No Model Compatibility List $1.38 / Each

2
004454-00 701401 004454-00 S61 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.38 / Each

2
004472-00 701423 004472-00 B71 Screw;Hex Socket;Round;M6x1.0Px16L;Adher No Model Compatibility List $1.28 / Each

2
004481-00 701433 004481-00 Z18 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $1.54 / Each

2
004493-00 701449 004493-00 J58 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.38 / Each

2
004518-AD 701467 004518-AD J53 Screw;Hex Socket;Round;M10X1.5PX75L;(35L);HS;;;; No Model Compatibility List $6.70 / Each

2
004539-AC 701504 004539-AC B45 Screw;Round;Hex Socket;M8X1.25PX25L No Model Compatibility List $2.80 / Each

2
004539-AD 701505 004539-AD Z16 Screw;Round;Hex Socket;M8X1.25PX25L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004542-AC 701508 004542-AC H62 Screw;Hex Socket;Round;M10x1.5Px110L;Adh No Model Compatibility List $6.48 / Each

2
004555-AB 701522 004555-AB H56 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $3.08 / Each

2
004885-00 701863 004885-00 Z22 Nut;Hex;M10x1.5P No Model Compatibility List $1.54 / Each

2
004889-00 701866 004889-00 P62 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
004891-00 701869 004891-00 S57 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $1.54 / Each

2
004911-00 701885 004911-00 H55 Nut;Hex;M16x2.0Px7.0L;Zn Pl Yes Model Compatibility List $1.28 / Each

2
004935-00 701909 004935-00 B76 Nut;Nylon;M6X1.0P No Model Compatibility List $1.54 / Each

2
004957-00 701924 004957-00 E62 Nut;Lock;M25X1.5P;SS41;BAN Yes Model Compatibility List $2.80 / Each

2
004961-A 701926 004961-A R24 Nut;Hex;M30x1.5Px8T No Model Compatibility List $5.18 / Each

2
004980-A 701945 004980-A H61 Insert Nut;Hex;NHS-580-3.0(M5X0.8P) No Model Compatibility List $1.38 / Each

2
004983-A 701947 004983-A C31 Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) No Model Compatibility List $1.38 / Each

2
005005-00 701964 005005-00 Z14 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.22 / Each

2
005025-00 701987 005025-00 E61 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005042-00 702004 005042-00 L51 Washer;Flat;8.2X30.0X2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005066-A 702036 005066-A C33 Washer;Flat;8.2x20.0x3.0T No Model Compatibility List $1.42 / Each

2
005067-00 702037 005067-00 S56 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.22 / Each

2,4,5,6
005078-00 702050 005078-00 S63 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005121-00 702089 005121-00 R22 Washer;Flat;30.3X45.0X1.2T;SPGC No Model Compatibility List $2.80 / Each

2
005189-00 702153 005189-00 S51 Washer;Teflon;10.5x25x1.0T No Model Compatibility List $1.54 / Each

2
005220-00 702178 005220-00 L52 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005352-00 702227 005352-00 G28 C-Clip;Internal;R-35 No Model Compatibility List $1.54 / Each

2
005354-00 702229 005354-00 H52 C-Clip;Internal;R-42 No Model Compatibility List $1.38 / Each

2
005356-00 702231 005356-00 H42 C-Clip;Internal;R-47 No Model Compatibility List $1.54 / Each

2
005357-00 702232 005357-00 R05 C-Clip;Internal;R-62 No Model Compatibility List $2.58 / Each

2
005366-00 702241 005366-00 R07 C-Clip;External;S-25 No Model Compatibility List $1.22 / Each

2
005367-00 702242 005367-00 R26 C-Clip;External;S-30 No Model Compatibility List $3.08 / Each

2
005487-D 702289 005487-D J60 Spring;Compress Yes Model Compatibility List $7.00 / Each

2
005844-B 702304 005844-B Q58 Fix Buckle Base;PVC;GM01 No Model Compatibility List $1.38 / Each

3
005845-B 702306 005845-B Q57 Fix Buckle Base;Nylon;GM01 No Model Compatibility List $1.38 / Each

3
006078-00 702325 006078-00 V12 Decal;Grounding;TM08 No Model Compatibility List $1.46 / Each

7,3
008866-A 702591 008866-A Q59 Screw;Special;Round;4.0x1.34Px12L(Hi-Lo No Model Compatibility List $1.28 / Each

2
020069-00 703990 020069-00 L50 Screw;SH;M8X1.25PX12L;HS;BP;G12.9; No Model Compatibility List $1.38 / Each

2
020478-00 704203 020478-00 Z12 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
020487-ZA 704215 020487-ZA S65 Washer;Flat;10.5x18x2.5T No Model Compatibility List $1.54 / Each

2
028555-00 704991 028555-00 Q61 Screw;BH;M5X0.8PX12L;;PH;;BAN;;BP No Model Compatibility List $1.38 / Each

2
035695-AB 705077 035695-AB N33 Screw;BH;M4X0.7PX30L;;PH;;BAN;; No Model Compatibility List $1.38 / Each

2
038449-A 705163 038449-A Q51 Clip;Tapped Hole;FE;M5;YZN No Model Compatibility List $7.00 / Each

2
056006-A 705750 056006-A P08 Grip Pulse Extension Wire;1000(5.0 OWzP) No Model Compatibility List $7.00 / Each

4,5,6,12,13,14,11
062621-A 706478 062621-A P43 Nut;Wing;1/4"-20UNC;SS41;BZN;; No Model Compatibility List $1.28 / Each

2
062710-00 706488 062710-00 G30 Pin;Spring;SSPR5-12L; No Model Compatibility List $2.58 / Each

2,12,13,14
064626-00 706696 064626-00 B47 Screw;Hex Socket;Round;M8x1.25Px15L;Adhe No Model Compatibility List $1.54 / Each

2
065248-A 706754 065248-A P17 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $2.80 / Each

4,5,6
065383-AA 706755 065383-AA Q28 Pedal Cap;NY(BL);EP76-Q28 Yes Model Compatibility List $3.28 / Each

8,9
1000102724 708412 1000102724 H57 Screw;Hex Socket;Round;M10x1.5Px90L-35L; No Model Compatibility List $2.80 / Each

2
1000200519 709473 1000200519 H35 Rod End Bearing;2201-2RS;12X32X14;-; Yes Model Compatibility List $94.44 / Each

8,9,3
1000201331 709557 1000201331 Kit Service tool kit No Model Compatibility List $496.52 / Each

1
1000206772 710097 1000206772 P26 Pulse Connection Wire;900(TKP H6630R1-06+TKP H2 No Model Compatibility List $52.58 / Each

4,5,6,12,13,14
1000206778 710101 1000206778 P02 Ground Wire;100(99470BS42+KST FLDNY2-250- No Model Compatibility List $2.58 / Each

4,5,6
1000206784 710104 1000206784 P45 Power Switch Set;600+600(KST FLFNYD1-250 Yes Model Compatibility List $21.04 / Each

4,5,6
1000206785 710105 1000206785 P12 Motor Connect Wire;950(MOLEX050841060+MO No Model Compatibility List $27.22 / Each

4,5,6,10
1000206786 710106 1000206786 P25 TV Signal Connect Wire;2600(FM-0086-NBG7 Yes Model Compatibility List $22.08 / Each

4,5,6
1000206952 710149 1000206952 G35 Foam;Arm REST;PU;426C/80393; No Model Compatibility List $60.22 / Each

3
1000206967 710152 1000206967 H64 Washer;Flat;;PTFE;20.2x40.0x2.0T;;;; No Model Compatibility List $6.48 / Each

2
1000207054 710162 1000207054 R17 Belt;POLY-V;-;1206 J8;FLEXONIC; Yes Model Compatibility List $70.18 / Each

15
1000209243 710312 1000209243 P16 Net Connect Wire;2600(3205645600+TKP H66 No Model Compatibility List $42.82 / Each

4,5,6
1000209855 710384 1000209855 Q36 Hook;Incline Arm Cover;ABS/PA746;SL/GY/80547; Yes Model Compatibility List $2.80 / Each

9,3,10
1000209856 710385 1000209856 H65 Nut;CUSTOM;M10X1.5P;S45C;CHM; Yes Model Compatibility List $7.00 / Each

2
1000209857 710386 1000209857 P21 Console Wire;1200(MOLEX,50-57-9408x2);EP Yes Model Compatibility List $70.18 / Each

7,4,5,6
1000209858 710387 1000209858 P07 Battery Power CONNECT Wire;200(KST FLDNY No Model Compatibility List $18.64 / Each

4,5,6
1000210480 710470 1000210480 N20 Grip;Sensor;U;ABS/PA746;80393;EP304; Yes Model Compatibility List $17.94 / Each

11
1000210481 710471 1000210481 N21 Grip;Sensor;D;ABS/PA746;80393;EP304; Yes Model Compatibility List $7.34 / Each
Out Of Stock
11
1000210482 710472 1000210482 J05 Location Plate;Disk;SPCC 1.0T;BED;EP304; No Model Compatibility List $2.58 / Each

3
1000210483 710473 1000210483 J06 Foam;;Single Side;25x25x1.0T;EP304; No Model Compatibility List $1.28 / Each

1
1000210484 710474 1000210484 Q19 Bracket;Water Bottle Holder;TPR;426C;80393;EP30 No Model Compatibility List $1.28 / Each

2,3,4,5,6
1000210494 710479 1000210494 Q05 Console Mast Boot;Rear;PA746;80393;EP304; No Model Compatibility List $38.14 / Each

7
710488 1000210588 G38 Screw;BH;M3X0.5PX6L;MT;PH;SSTSUS304;BZN; No Model Compatibility List $1.28 / Each

2
1000211111 710585 1000211111 Q63 Screw;SH;M5X0.8PX12L;-;HS;SSTSUS304;BED; No Model Compatibility List $1.28 / Each

2
1000212320 710677 1000212320 34 Elevation Roller Set;-;EP306;-; No Model Compatibility List $48.36 / Each

8,10
1000215396 710931 1000215396 Q13 Plastic Cover;LARGE;ABS PA746;mpp/80435; Yes Model Compatibility List $2.80 / Each

9
1000215716 710988 1000215716 H08 Axle;SS41;EP304; Yes Model Compatibility List $10.84 / Each

8
1000215738 710998 1000215738 Z15 Cap;Nut;S45C;EP304; Yes Model Compatibility List $7.00 / Each

2,9
1000215790 711009 1000215790 G36 Screw;BH;FLG;M3X0.5PX4L;-;PH;-;BZN; No Model Compatibility List $1.28 / Each

2
1000215874 711016 1000215874 17 Disc Set;-;EP308;-; No Model Compatibility List $218.94 / Each

1
1000216245 711067 1000216245 S54 Pin;Hairpin;Cotter No Model Compatibility List $1.38 / Each

12,13,14
711115 1000216774 Not Shown Assembly Tool;Flexonic Belt No Model Compatibility List $0.00 / Each
Out Of Stock
15,3
1000217256 711179 1000217256 S03 Lower Control Board;Generator;-;H001;S001;EP30 No Model Compatibility List $701.98 / Each

7,8
1000219678 711312 1000219678 S50 Pin;Motor;SS41;10x48L;EP306; No Model Compatibility List $6.48 / Each

10,12,13,14
1000220174 711340 1000220174 S02 Elevation Motor;DC;12V;400LBS; No Model Compatibility List $561.58 / Each

4,5,6,10
1000221213 711548 1000221213 P40 Fixing Plate;Battery;MATRIX SL/G No Model Compatibility List $23.40 / Each

3
1000228041 712268 1000228041 Not Shown TV POWER;2600(SCD-554DCS103BB1G H6630P1- No Model Compatibility List $12.98 / Each

4,5,6
713486 1000304310 Not Shown Documentation;Manual;Assembly;;English;E No Model Compatibility List $7.78 / Each

3
1000314760 714445 1000314760 Not Shown Carton Set;;;;;EP304;; No Model Compatibility List $116.98 / Each

1
1000338327 716642 1000338327 1 console mast set;;;MATRIX Purple;EP304D; No Model Compatibility List $553.78 / Each

7
1000338338 716643 1000338338 15 Adjustment Arm Set;;;MATRIX Purple;EP304 No Model Compatibility List $253.48 / Each

3
716646 1000338352 11 Connection Tube;;right;MATRIX Purple;EP3 No Model Compatibility List $0.00 / Each
Out Of Stock
3
716647 1000338354 12 Connection Tube;;left;MATRIX Purple;EP30 No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000339505 716790 1000339505 29 Transmission set+Tools;;;E-3X/5X/7X-03-F No Model Compatibility List $189.52 / Each

1
1000347355 717761 1000347355 33 Crank Sleeve Set;;;;EP304B;; No Model Compatibility List $107.88 / Each

8,3
1000350493 718315 1000350493 U01 Idler Set;;;Integrated;EP304; Yes Model Compatibility List $42.10 / Each

8
719059 1000355398 1 console mast set;;;American Beauty Red;E No Model Compatibility List $506.98 / Each

7
1000368807 720122 1000368807 Not Shown Service Hardware Kit;;;;E1x; No Model Compatibility List $102.68 / Each

1
1000384823 721627 1000384823 Q49 Screw;Round Head;M5x0.8Px12L;;Phillip;St No Model Compatibility List $1.38 / Each

2
1000412379 723729 1000412379 P05 Filter Board Set;;;L178A1 H001;;;EP304B; Yes Model Compatibility List $44.18 / Each

1
1000414494 724048 1000414494 Q55 Cover;Filter;;PC 510;BL/Black C;;EP304B; Yes Model Compatibility List $5.18 / Each

9,4,5,6
069904 725322 069904 P63 Ferrite; Cord;FH0650B;CB32-P16A No Model Compatibility List $2.58 / Each

4,5,6
0000081761 726427 0000081761 B56 Leveler;Foot Pad;50X18 Yes Model Compatibility List $9.00 / Each

3,9,12,13,14
726550 082736 Z82 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.28 / Each

2
726554 082795 Z61 Spacing Ring;Bearing;SS41; No Model Compatibility List $2.80 / Each

8,4,5,6
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $1.54 / Each

2
726610 083463 C38 Screw;TH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $1.28 / Each

2
726627 083692 P63 Washer;TOOTH;M5.3X10X0.6;Nickel No Model Compatibility List $1.28 / Each

2
726716 084267 P19 Battery;Sealed;Lead Acid;WP12-12;S7700;U No Model Compatibility List $191.12 / Each

4,5,6
726825 085361 C34 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.38 / Each

2
726939 086127 H38 Nut;HEX;M10X1.5P;10 No Model Compatibility List $2.80 / Each

2
726955 086225 G15 Screw;BH;M3X0.5PX15L;;PH;;BAN;; No Model Compatibility List $1.28 / Each

2
726986 086513 B58 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $0.34 / Each

2
727383 088934 H63 Screw;SH;M10X1.5PX45L-25L;;HS;;;;BP;P-T No Model Compatibility List $1.28 / Each

2
727439 089223 G22 Ring;SS41;4.5x3.2x3.05;Cr Plate;TM502; No Model Compatibility List $1.28 / Each

3
727464 089475 E16 Ring;;;;SS41;25.1x44.65;EP72 No Model Compatibility List $9.68 / Each

1
727501 089635 30 Pulley Axle Set;S70;US;EP78 No Model Compatibility List $140.32 / Each

8
0000089783 727526 0000089783 S01 Generator Set JM07-004 Yes Model Compatibility List $293.30 / Each

8
727532 089822 E53 Screw;Hex Socket;Round;M10x1.5Px100L No Model Compatibility List $1.38 / Each

2
727534 089835 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
0000090466 727694 0000090466 U05 Bearing;Ball;6206LUZ(CN);30X62X16T;;TP Yes Model Compatibility List $26.16 / Each

8
0000092274 727969 0000092274 42 Crank Sleeve Set Yes Model Compatibility List $149.00 / Each

3,8
728039 092805 H41 Bearing;Tapered Roller;(PEER 2204-2RS) No Model Compatibility List $37.88 / Each

8
728045 092813 R21 Bearing;Ball;6306LUZ(C3);;;TPI;;; No Model Compatibility List $37.48 / Each

8
728059 092949 P42 Screw;SS41;BED;A5X-03;US;EP79 No Model Compatibility List $2.58 / Each

2
728132 093219 AB1 RIGHT MAIN FRAME SET No Model Compatibility List $453.16 / Each

3
728236 093717 S62 Washer;Ribbed;Lock;10.5X16X1TX1.6H;BED No Model Compatibility List $1.28 / Each

2
728251 093786 Not Shown TOOL; BELT INSTALLATION8-RIB;SPHC 2.0t; No Model Compatibility List $14.02 / Each

15
728278 093983 P61 Screw;BH;M5X0.8PX65L;;PH;;NKL; No Model Compatibility List $2.58 / Each

2
094297 728359 094297 H10 Pedal;PP;Black;EP217 No Model Compatibility List $34.06 / Each

8,9,4,5,6
728447 094907 AB1 Main Frame Set;MATRIX SL/GY/BP-920S; No Model Compatibility List $3.00 / Each

3
728449 094927 E09 Axle;Link Arm;B;SS41;EP304; No Model Compatibility List $13.48 / Each

8,3
0000094929 728450 0000094929 J11 Cap;Stabilizer;Left-Front;ABS/PA757;P804 Yes Model Compatibility List $9.26 / Each

9
728451 094930 31 Elevation Roller Frame Set;EP306 No Model Compatibility List $264.66 / Each

8,3,10
728456 094938 1 Console Mast Set;EP304; No Model Compatibility List $1.00 / Each

7
728458 094951 52 Swivel Axle Set;DA Arm;EP304; No Model Compatibility List $181.54 / Each

8,3
728459 094958 G29 Bearing;Needle;HK2518-RS No Model Compatibility List $34.48 / Each

8
728460 094964 5 Dual Action Handlebar Set;Right;EP304; No Model Compatibility List $237.88 / Each

4,5,6,11
728464 094977 6 Dual Action Handlebar Set;Left;EP304; No Model Compatibility List $237.88 / Each

4,5,6,11
728465 094984 2 Pedal Arm Set;Right;EP304; No Model Compatibility List $321.46 / Each

8,9,3
728468 094991 3 Pedal Arm Set;Left;EP304; No Model Compatibility List $297.64 / Each

8,9,3
728473 095011 AH4 CON TUBE SET;;R;painting;BP-920S;MATRIX/ No Model Compatibility List $585.78 / Each

3
728475 095026 H34 Connection Plate;Incline Arm;SPHC 4.0T;EP304; No Model Compatibility List $2.58 / Each

3,10
0000095028 728476 0000095028 13 Swing Arm Set;EP304; Yes Model Compatibility List $290.78 / Each

3
728477 095035 Q12 COVER;SWING ARM;ABS/PA746;DG/80435; No Model Compatibility List $2.58 / Each

9,3
728478 095036 H07 Shaft;Swing Arm;SS41;EP304; No Model Compatibility List $11.70 / Each

3
0000095043 728479 0000095043 15 Vertical Stabilizer Arm Set;EP304; No Model Compatibility List $299.60 / Each

3
728481 095048 H51 Bearing;Needle;HK2016 No Model Compatibility List $17.70 / Each

8
728482 095050 H23 Swivel Shaft A;SCM440;EP304; No Model Compatibility List $9.44 / Each

3
728483 095051 H24 Swivel Shaft B;SCM440;EP304; No Model Compatibility List $10.38 / Each

3
728485 095060 12 LEFT CONNECTION ARM SET;;left;;;EP308; No Model Compatibility List $0.00 / Each
Out Of Stock
3
728486 095066 Q10 Boot;Crank;ABS/PA746;DG/80435; No Model Compatibility List $6.48 / Each

8
728487 095068 26 Side Cover Set;Left;EP304; No Model Compatibility List $93.44 / Each

9
728489 095071 27 Side Cover Set;Right;EP304; No Model Compatibility List $87.98 / Each

9
728493 095075 Q06 Cover;Handlebar;Right;ABS/PA746;DG/80435; No Model Compatibility List $20.44 / Each

9,11
728494 095076 Q07 Cover;Handlebar;Left;ABS/PA746;DG/80435; No Model Compatibility List $20.44 / Each

9,11
728495 095077 Q08 Water Bottle Holder;ABS/PA746;DG/80435; No Model Compatibility List $22.86 / Each

1
0000095095 728496 0000095095 G34 End Cap;Tube;60;EP304 Yes Model Compatibility List $4.58 / Each

3,9
728497 095097 G33 Tube Cap;FK01004(38.1) No Model Compatibility List $1.28 / Each

9,3
0000095100 728498 0000095100 J12 Cap;Stabilizer;Right-Front;ABS/PA757;P80 Yes Model Compatibility List $7.26 / Each

9
728499 095103 Q09 End Cap,ROUND Plate;ABS/PA746;SL/GY/8054 No Model Compatibility List $7.00 / Each

9,3
0000095106 728500 0000095106 J56 Fix Plate;Disc;PAINTING;BL;EP304; Yes Model Compatibility List $118.88 / Each

3
0000095121 728504 0000095121 32 Crank Set;EP304; Yes Model Compatibility List $210.58 / Each

8
728510 095148 AQ19 Arm Cover;BIG;PU;426C/80393;EP308; No Model Compatibility List $160.04 / Each

9,3
728511 095152 Q17 Pedal Plastic;Left;PP-3015;DG/80435;EP308; No Model Compatibility List $26.20 / Each

8,9
728512 095161 N25 Gauge;Pulse;LU;ABS/PA746+SUS304;80393; No Model Compatibility List $22.74 / Each

12,13,14
728513 095162 N27 Gauge;Pulse;LL;ABS/PA746+SUS304;80393; No Model Compatibility List $16.18 / Each

12,13,14
728514 095163 Q20 Adorn Cover;Pedal;R;PP;137C/80395;EP308; No Model Compatibility List $6.48 / Each

8,9
728515 095164 10 Link Arm Set;Left;EP308; No Model Compatibility List $603.40 / Each

3
728516 095165 Q21 Adorn Cover;Pedal;L;PP;137C/80395;EP308; No Model Compatibility List $6.48 / Each

8,9
0000095171 728518 0000095171 Q16 Pedal Plastic;Right;PP-3015;DG/80435;EP308; Yes Model Compatibility List $26.20 / Each

8,9
728519 095174 Q22 Outside Cover;Handlebar;ABS/PA746;DG/804 No Model Compatibility List $9.90 / Each

9,11
728520 095175 Q23 Inside Cover;Handlebar;ABS/PA746;DG/8043 No Model Compatibility List $6.48 / Each

9,11
728521 095178 Q24 Outside Cover;Swing Arm;ABS/PA746;DG/804 No Model Compatibility List $9.76 / Each

9,3
728522 095179 Q25 Inside Cover;Swing Arm;ABS//PA746;DG/804 No Model Compatibility List $13.80 / Each

9,3
728523 095180 Q33 Spacer;ABS/PA746;BLACK;EP304; No Model Compatibility List $2.58 / Each

2,3,4,5,6
728524 095182 Q27 Stabilizer Cover;Middle;ABS/PA746;DG/80435;EP No Model Compatibility List $20.80 / Each

9
728525 095183 B29 ADJ. Block;Roller;SS41;EP306; No Model Compatibility List $22.62 / Each

8
728526 095184 B35 Spacer;SS41;8.2X14X4.0;SS41;EP306 No Model Compatibility List $2.58 / Each

2,3,4,5,6
728527 095185 B46 Screw;SH;M6X1.0PX80L;;BED; No Model Compatibility List $2.58 / Each

2
728528 095194 N31 Quick Key;Right,ABS/PA746;137C/80395;EP308 No Model Compatibility List $2.58 / Each

9
728529 095195 B24 Screw;Shoulder;SCM435;M12;BZN;EP306 No Model Compatibility List $6.48 / Each

2
728530 095200 Q38 Cushion;Pedal;Right;NBR;426C;80393; No Model Compatibility List $42.20 / Each

8,9,3
728531 095201 Q18 Cover;Console Mast;EP304; No Model Compatibility List $19.66 / Each

7,9
728532 095203 N24 Gauge;Pulse;RU;ABS/PA746+SUS304;80393 No Model Compatibility List $22.74 / Each

12,13,14
728533 095207 N30 Quick Key;Left;ABS/PA746;137C/80395;EP308 No Model Compatibility List $2.58 / Each

9
728534 095209 Q39 Cushion;Pedal;Left;NBR;426C;80393; No Model Compatibility List $42.20 / Each

8,9,3
728535 095210 35 Quick Key Cover Set;EP308; No Model Compatibility List $75.82 / Each

9
728538 095216 B26 Wheel;Adjustable;32;EP306; No Model Compatibility List $10.60 / Each

8
728545 095254 P48 Power Wire;450(KST FLDNY1-250-1x2+KST FD No Model Compatibility List $13.66 / Each

4,5,6
728551 095297 Q32 End Cap;Link Arm;ABS/PA746;SL/GY/80547;EP No Model Compatibility List $2.58 / Each

9,3
728552 095299 B25 Block;Roller Guide;SS41;EP306; No Model Compatibility List $2.58 / Each

8
728554 095304 N26 Gauge;Pulse;RL;ABS/PA746+SUS304;80393 No Model Compatibility List $16.18 / Each

12,13,14
728555 095306 7 Stationary Handlebar Set;EP308; No Model Compatibility List $878.70 / Each

11
728556 095309 9 Link Arm Set;Right;EP308; No Model Compatibility List $603.40 / Each

3
728557 095314 Q04 Cover;F;Painting;MATRIX SL/GY/BP-920S;EP No Model Compatibility List $203.12 / Each

9
728558 095315 Q37 Pad;Water Bottle Holder;TPR;426C;80393;EP308 No Model Compatibility List $6.70 / Each

12,13,14
728560 095322 Not Shown Bracket;Console;ABS/PA746;DG/80435;EP603 No Model Compatibility List $20.26 / Each

7,2,3,4,5,6
728602 095596 B75 FIXING PLATE;E-PORT;SPHC 1.6T;EP304; No Model Compatibility List $2.58 / Each

3
728604 095600 C35 End Protect Cap;EP-1216; No Model Compatibility List $1.28 / Each

9
0000095638 728614 0000095638 J15 Foot Pad;Adjustable;M12X58H;12.9;EP304; Yes Model Compatibility List $26.04 / Each

3,9,12,13,14
729016 Order Kit 12 AH3 pedal arm set;;R;painting;DM515 matte;;E No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
729052 Order Parts Separately 41 Frame Assembly No Model Compatibility List $0.00 / Each
Out Of Stock
3
729118 Part of Kit 1 AC1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729120 Part of Kit 10 AH1 Lower Handlebar Set;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729125 Part of Kit 13 AH8 Link Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729129 Part of Kit 15 AH11 Link Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729135 Part of Kit 17 Q03 Transmission Axle;42CrMo;EP217 No Model Compatibility List $0.00 / Each
Out Of Stock
8
729138 Part of Kit 2 AE2 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
7
729148 Part of Kit 26 Q02 Roller;PU;Black;EP525 No Model Compatibility List $0.00 / Each
Out Of Stock
8,4,5,6
729149 Part of Kit 27 Q01 Seat Stopper Wheel Axle No Model Compatibility List $0.00 / Each
Out Of Stock
8,12,13,14
729151 Part of Kit 29 R23 Pulse Sensor Plastic No Model Compatibility List $0.00 / Each
Out Of Stock
9,12,13,14
729152 Part of Kit 3 AE1 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
729156 Part of Kit 30 R06 AC Generator;480RPM;350W;50.6VA; No Model Compatibility List $0.00 / Each
Out Of Stock
8,4,5,6
729157 Part of Kit 31 AB3 Logo Plate No Model Compatibility List $0.00 / Each
Out Of Stock
3
729158 Part of Kit 32 AJ1 Cup Holder No Model Compatibility List $0.00 / Each
Out Of Stock
1
729159 Part of Kit 33 E15 Entertainment Port No Model Compatibility List $0.00 / Each
Out Of Stock
1
729161 Part of Kit 35 Q26 Plastic Cover;Quick Key;ABS/PA746;137C/ No Model Compatibility List $0.00 / Each
Out Of Stock
9
729172 Part of Kit 5 AG2 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729181 Part of Kit 52 AG6 Swivel Set;DA ARM;PAINTING;BL;EP304; No Model Compatibility List $0.00 / Each
Out Of Stock
3
729191 Part of Kit 6 AG1 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729194 Part of Kit 7 AG21 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3,10
729201 Part of Kit 9 AH2 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729809 ZMS4006025 Not Shown Incline Motor Replacement Instructions No Model Compatibility List $1.28 / Each

4,5,6,10
View Drawing
