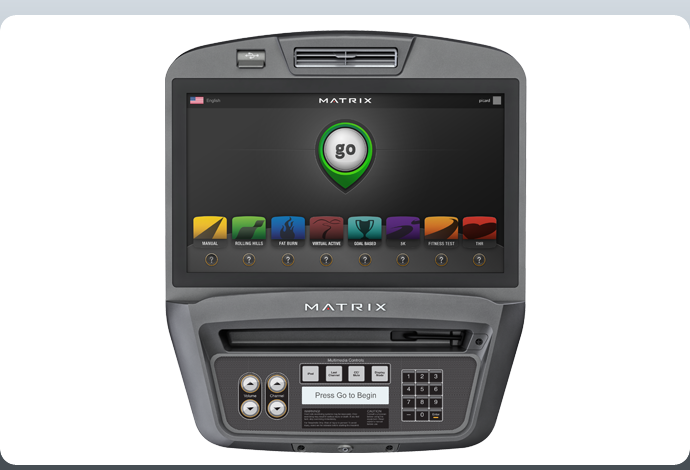

Repair Parts for Matrix Commercial ALB7xi EP617
| Brand | Matrix Commercial |
|---|---|
| Type | Elliptical |
| Category | Ascent |
| Model Number | EP617 |
| Model Name | ALB7xi |
| Version | 2015 |
Model Numbers: EP617, EP614
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
000349 | 1000412356 | # | 1 | Service Set, Power Internal Service KITS SET | No |
Compatibility List |
$77.99 / Each
|
|
1002428 | 1000217256 | 0 | 1 | Lower Control Board | No |
Compatibility List |
$699.00 / Each
|
|
733182 | 0000094938 | 1 | Console Mast Set, EP304 | No |
Compatibility List |
$613.58 / Each
|
|
|
733185 | 0000094984 | 2 | Pedal Arm Set, Right, EP304 | No |
Compatibility List |
$170.28 / Each
|
|
|
712384 | 1000228659 | 3 | Overlay Set, Touch panel, 15.6 Inch, EP614 | No |
Compatibility List |
Out Of Stock |
|
|
733186 | 0000094991 | 3 | Pedal Arm Set, Left, EP304 | Yes |
Compatibility List |
$168.98 / Each
|
|
|
730747 | 1000443389 | 05 | Heart Sensor Set, Grip, right, EP304B | No |
Compatibility List |
$49.99 / Each
|
|
|
730748 | 1000443390 | 06 | Heart Sensor Set, Grip, left, EP304B | No |
Compatibility List |
$54.00 / Each
|
|
|
723628 | 1000410717 | 7 | PCB, Second hand, T7xi(TM521) | No |
Compatibility List |
$3.90 / Each
|
|
|
728469 | 0000094996 | 9 | Link Arm Set, Right, EP304 | Yes |
Compatibility List |
$513.08 / Each
|
|
|
733190 | 0000095309 | 9 | Link Arm Set, Right, EP308 | No |
Compatibility List |
$340.58 / Each
|
|
|
733184 | 0000095164 | 10 | Link Arm Set, Left, EP308 | No |
Compatibility List |
$340.58 / Each
|
|
|
730380 | 0000095217 | 11 | Connection Tube, right, EP308 | No |
Compatibility List |
$393.88 / Each
|
|
|
730381 | 0000095060 | 12 | LEFT CONNECTION ARM SET, left, EP308 | No |
Compatibility List |
$469.28 / Each
|
|
|
728476 | 0000095028 | 13 | Swing Arm Set, EP304 | Yes |
Compatibility List |
$220.01 / Each
|
|
|
728479 | 0000095043 | 15 | Vertical Stabilizer Arm Set, EP304 | Yes |
Compatibility List |
$389.48 / Each
|
|
|
711016 | 1000215874 | 17 | Disc Set, , EP308, | Yes |
Compatibility List |
$129.00 / Each
|
|
|
730264 | 0000095068 | 26 | Side Cover Set, Left, EP304 | No |
Compatibility List |
$93.44 / Each
|
|
|
730265 | 0000095071 | 27 | Side Cover Set, Right, EP304 | No |
Compatibility List |
$87.98 / Each
|
|
|
718315 | 1000350493 | 28 | Idler Set, Integrated, EP304 | Yes |
Compatibility List |
$27.28 / Each
|
|
|
716790 | 1000339505 | 29 | Transmission set Tools, E 3X/5X/7X 03 F | No |
Compatibility List |
$246.38 / Each
|
|
|
730267 | 0000094930 | 31 | Elevation Roller Frame Set, EP306 | No |
Compatibility List |
$264.66 / Each
|
|
|
728504 | 0000095121 | 32 | Crank Set, EP304 | No |
Compatibility List |
$273.75 / Each
|
|
|
710677 | 1000212320 | 34 | Elevation Roller Set, , EP306, | No |
Compatibility List |
$62.87 / Each
|
|
|
730268 | 0000095212 | 41 | INCLINE ARM COVER, EP308 | No |
Compatibility List |
$154.68 / Each
|
|
|
727969 | 0000092274 | 42 | Crank Sleeve Set | Yes |
Compatibility List |
$193.70 / Each
|
|
|
700569 | 001677-A | 55 | Cable Fix Button, KSS/UC 3 | No |
Compatibility List |
$1.02 / Each
|
|
|
705163 | 038449-A | 84 | Clip, Tapped Hole, FE, M5, YZN | No |
Compatibility List |
$3.88 / Each
|
|
|
700313 | 000932-E | 181 | Cap, C Safe, Black, CB32 D/C, NO REPL: Part will show as orderable until stock is depleted. | No |
Compatibility List |
$1.68 / Each
|
|
|
713199 | 1000300157 | AG6 | Swivel Seat,AISI 1018,Black Annodized,Ar | No |
Compatibility List |
$28.70 / Each
|
|
|
734104 | 0000095004 | AH1 | L LINK ARM, PAINTING, T75#100909NVP, EP304 | No |
Compatibility List |
$259.98 / Each
|
|
|
712091 | 1000226590 | AN8 | Documentation, Overlay, TV, English, PET/A18 | No |
Compatibility List |
$36.48 / Each
|
|
|
713302 | 1000300861 | AN15 | cover Extrawork, console, back, Print, PR, EP | No |
Compatibility List |
$47.29 / Each
|
|
|
730620 | 1000226522 | AN16 | Extrawork, USB Cover, Printing, TM521 | No |
Compatibility List |
$6.48 / Each
|
|
|
712379 | 1000228651 | AN36 | BOOK RACK, , PR, , EP614 | No |
Compatibility List |
$27.01 / Each
|
|
|
730274 | 1000412359 | AP15 | Hub group, Power supply, EP304B | No |
Compatibility List |
$33.78 / Each
|
|
|
1036184 | 0000095148 | AQ19 | Arm rest | No |
Compatibility List |
$46.19 / Each
Out Of Stock |
|
|
701945 | 004980-A | B21 | Insert Nut, Hex, NHS 580 3.0(M5X0.8P) | Yes |
Compatibility List |
$1.02 / Each
|
|
|
730275 | 0000095195 | B24 | Screw, Shoulder, SCM435, M12, BZN, EP306 | No |
Compatibility List |
$5.18 / Each
|
|
|
730276 | 0000095299 | B25 | Block, Roller Guide, SS41, EP306 | No |
Compatibility List |
$3.88 / Each
|
|
|
1036207 | 0000095216 | B26 | WHEEL ADJUST POM #32 EP306 | No |
Compatibility List |
$7.78 / Each
|
|
|
730277 | 0000095183 | B29 | ADJ. Block, Roller, SS41, EP306 | No |
Compatibility List |
$22.62 / Each
|
|
|
730278 | 0000095184 | B35 | Spacer, SS41, 8.2X14X4.0, SS41, EP306 | No |
Compatibility List |
$6.48 / Each
|
|
|
701944 | 004979-00 | B39 | Insert Nut, Hex, NHS 8125 3.0(M8x1.25P) | No |
Compatibility List |
$1.68 / Each
|
|
|
730279 | 0000095185 | B46 | Screw, SH, M6X1.0PX80L, BED | No |
Compatibility List |
$2.58 / Each
|
|
|
726427 | 0000081761 | B56 | Leveler, Foot Pad, 50X18 | No |
Compatibility List |
$11.70 / Each
|
|
|
701893 | 004925-00 | B57 | Nut, Nylon, M6x1.0P, Zinc | Yes |
Compatibility List |
$1.54 / Each
|
|
|
711266 | 1000219208 | B72 | Buffer Wheel, POM, Black, 26x19L, EP306 | No |
Compatibility List |
$5.18 / Each
|
|
|
711267 | 1000219209 | B73 | SPRING, CMP, SWP, 2.0x15.8x14L, SWP | No |
Compatibility List |
$3.88 / Each
|
|
|
702027 | 005059-00 | B74 | WASHER, Flat, 12.5x19.0x1.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
730093 | 0000086127 | B88 | Nut, HEX, M10X1.5P, 10 | No |
Compatibility List |
$2.32 / Each
|
|
|
731244 | 0000095322 | C22 | Bracket, Console, ABS/PA746, DG/80435, EP603 | Yes |
Compatibility List |
$24.26 / Each
|
|
|
730282 | 0000085361 | C34 | Screw, Hex Socket, Round, M8x1.25Px20.0L, Ad | No |
Compatibility List |
$1.66 / Each
|
|
|
730283 | 0000095600 | C35 | End Protect Cap, EP 1216 | No |
Compatibility List |
$1.68 / Each
|
|
|
702231 | 005356-00 | D12 | C Clip, Internal, R 47 | No |
Compatibility List |
$3.88 / Each
|
|
|
701401 | 004454-00 | D23 | Screw, Round, Hex Socket, M5X0.8PX15L | No |
Compatibility List |
$3.88 / Each
|
|
|
702306 | 005845-B | D40 | Fix Buckle Base, Nylon, GM01 | No |
Compatibility List |
$1.79 / Each
|
|
|
702304 | 005844-B | D41 | Fix Buckle Base, PVC, GM01 | No |
Compatibility List |
$1.79 / Each
|
|
|
730285 | 0000094927 | E09 | Axle, Link Arm, B, SS41, EP304 | No |
Compatibility List |
$9.08 / Each
|
|
|
730286 | 0000081718 | E14 | Crank Sleeve Axle, S45C, EP72 E14C | No |
Compatibility List |
$8.98 / Each
|
|
|
730287 | 0000089475 | E16 | Ring, SS41, 25.1x44.65, EP72 | No |
Compatibility List |
$9.68 / Each
|
|
|
701159 | 004077-A2 | E17 | Ball Bearing, 6004ZZ, 20X42X12T, SKF | No |
Compatibility List |
$19.48 / Each
|
|
|
701164 | 004080-A2 | E50 | BEARING, BALL, 6203ZZ, #17X#40X12T, TPI | No |
Compatibility List |
$6.73 / Each
|
|
|
701328 | 004381-00 | E60 | Screw, Oval Head, M5x0.8Px25L | No |
Compatibility List |
$3.88 / Each
|
|
|
701332 | 004385-00 | E60 | Screw, BH, M5X0.8PX12L, PH, BAN | No |
Compatibility List |
$3.88 / Each
|
|
|
710098 | 1000206773 | G14 | Pulse Senson Wire, 900(TKP H6630R1 06 TKP | Yes |
Compatibility List |
$75.45 / Each
|
|
|
701157 | 004075-A2 | G27 | BEARING, BALL, 6202ZZ, #15X#35X11T, TPI | No |
Compatibility List |
$11.68 / Each
|
|
|
730288 | 0000094958 | G29 | Bearing, Needle, HK2518 RS | No |
Compatibility List |
$20.78 / Each
|
|
|
730289 | 0000095097 | G33 | Tube Cap, FK01004(38.1) | No |
Compatibility List |
$1.68 / Each
|
|
|
728496 | 0000095095 | G34 | End Cap, Tube, 60, EP304 | Yes |
Compatibility List |
$6.48 / Each
|
|
|
710149 | 1000206952 | G35 | Foam, Arm REST, PU, 426C/80393 | No |
Compatibility List |
$78.29 / Each
|
|
|
711009 | 1000215790 | G36 | Screw, BH, FLG, M3X0.5PX4L, , PH, , BZN | No |
Compatibility List |
$1.66 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702004 | 005042-00 | H06 | Washer, Flat, 8.2X30.0X2.0T, Black Zinc | No |
Compatibility List |
$0.62 / Each
|
|
|
730292 | 0000095036 | H07 | Shaft, Swing Arm, SS41, EP304 | No |
Compatibility List |
$7.78 / Each
|
|
|
710988 | 1000215716 | H08 | Axle, SS41, EP304 | Yes |
Compatibility List |
$14.09 / Each
|
|
|
704215 | 020487-ZA | H21 | Washer, Flat, 10.5x18x2.5T | No |
Compatibility List |
$3.88 / Each
|
|
|
730293 | 0000095050 | H23 | Swivel Shaft A, SCM440, EP304 | No |
Compatibility List |
$7.78 / Each
|
|
|
730294 | 0000095051 | H24 | Swivel Shaft B, SCM440, EP304 | No |
Compatibility List |
$7.78 / Each
|
|
|
1036246 | 0000095026 | H34 | CON. Plate, CON. ARM SPHC 4.0T EP304 | Yes |
Compatibility List |
$3.00 / Each
|
|
|
709473 | 1000200519 | H35 | Rod End Bearing, 2201 2RS, 12X32X14, | Yes |
Compatibility List |
$58.48 / Each
|
|
|
711151 | 1000217119 | H40 | Ring, QUICK KEY, SS41, , , EP304 | No |
Compatibility List |
$3.35 / Each
|
|
|
728039 | 0000092805 | H41 | Bearing, Tapered Roller, (PEER 2204 2RS) | No |
Compatibility List |
$20.78 / Each
|
|
|
730296 | 0000082795 | H45 | Spacing Ring, Bearing, SS41 | No |
Compatibility List |
$5.18 / Each
|
|
|
701885 | 004911-00 | H51 | Nut, Hex, M16x2.0Px7.0L, Zn Pl | Yes |
Compatibility List |
$1.02 / Each
|
|
|
730297 | 0000095048 | H51 | Bearing, Needle, HK2016 | No |
Compatibility List |
$11.68 / Each
|
|
|
708412 | 1000102724 | H57 | Screw, Hex Socket, Round, M10x1.5Px90L 35L | No |
Compatibility List |
$3.64 / Each
|
|
|
714291 | 1000313183 | H58 | Screw, Socket Head, M10X1.5PX30L, Hex Sock | No |
Compatibility List |
$2.18 / Each
|
|
|
714292 | 1000313184 | H62 | Screw, Socket Head, M10X1.5PX110L(30L), He | No |
Compatibility List |
$2.32 / Each
|
|
|
714293 | 1000313185 | H63 | Screw, Socket Head, M10X1.5PX45L(25L), Hex | No |
Compatibility List |
$2.32 / Each
|
|
|
706488 | 062710-00 | H64 | Pin, Spring, SSPR5 12L | No |
Compatibility List |
$1.02 / Each
|
|
|
712197 | 1000227460 | H64 | WASHER, FLT, Diam.21.2XDiam.40.0X2.0T, NYL | No |
Compatibility List |
$2.32 / Each
|
|
|
710385 | 1000209856 | H65 | Nut, CUSTOM, M10X1.5P, S45C, CHM | Yes |
Compatibility List |
$9.10 / Each
|
|
|
710998 | 1000215738 | H66 | Cap, Nut, S45C, EP304 | Yes |
Compatibility List |
$9.10 / Each
|
|
|
702050 | 005078-00 | I23 | Washer, Flat, 5.3x10x1.0T, Black Zinc | No |
Compatibility List |
$0.48 / Each
|
|
|
701863 | 004885-00 | J03 | Nut, Hex, M10x1.5P | No |
Compatibility List |
$2.00 / Each
|
|
|
702037 | 005067-00 | J04 | Washer, Flat, 10.2X15.0X1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
710472 | 1000210482 | J05 | Location Plate, Disk, SPCC 1.0T, BED, EP304 | No |
Compatibility List |
$3.35 / Each
|
|
|
710473 | 1000210483 | J06 | Foam, Single Side, 25x25x1.0T, EP304 | No |
Compatibility List |
$1.66 / Each
|
|
|
702289 | 005487-D | J07 | Spring, Compress | Yes |
Compatibility List |
$9.10 / Each
|
|
|
728450 | 0000094929 | J11 | Cap, Stabilizer, Left Front, ABS/PA757, P804 | Yes |
Compatibility List |
$12.98 / Each
|
|
|
728498 | 0000095100 | J12 | Cap, Stabilizer, Right Front, ABS/PA757, P80 | Yes |
Compatibility List |
$6.48 / Each
|
|
|
728614 | 0000095638 | J15 | Foot Pad, Adjustable, M12X58H, 12.9, EP304 | Yes |
Compatibility List |
$33.85 / Each
|
|
|
703990 | 020069-00 | J16 | Screw, SH, M8X1.25PX12L, HS, BP, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
700024 | 000041-AA | J19 | Transport Wheel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701465 | 004518-00 | J53 | Screw, SH, M10X1.5PX75L, HS, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
728500 | 0000095106 | J56 | Fix Plate, Disc, PAINTING, BL, EP304 | Yes |
Compatibility List |
$154.54 / Each
|
|
|
730298 | 0000089835 | J57 | Washer, Ribbed lock, 8.5x12.8x0.8tx1.3h | No |
Compatibility List |
$3.88 / Each
|
|
|
702418 | 006714-C | JM55 | DECAL, GENERATOR, GRAY, JOHNSON, JM55 | No |
Compatibility List |
$1.68 / Each
|
|
|
730244 | 0000094434 | Kit | Ear Phone Board Set | No |
Compatibility List |
Out Of Stock |
|
|
716617 | 1000337843 | Kit 05 | Arm Rest set, right, EP617 | No |
Compatibility List |
$148.69 / Each
|
|
|
716621 | 1000337864 | Kit 06 | Arm Rest set, left, EP617 | No |
Compatibility List |
$148.69 / Each
|
|
|
704203 | 020478-00 | L09 | Washer, Flat, 10.2x20.0x2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
020069-00 | 020069-00 | L50 | 1 | SCREW, SH, M8X1.25PX12L, HS, BP, G12.9 | Yes |
Compatibility List |
$6.99 / Each
Out Of Stock |
|
712182 | 1000227226 | M16 | Washer, Flat, ?X10.5x?X25.0x1.0T, Nylon S2M | No |
Compatibility List |
$1.68 / Each
|
|
|
702036 | 005066-A | M26 | Washer, Flat, 8.2x20.0x3.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
709794 | 1000203251 | M60 | Plastic Base, WH, CHF 11E | No |
Compatibility List |
$1.68 / Each
|
|
|
701343 | 004389-00 | N08 | Screw, Phillip, BH, M5x0.8Px16L, BED | No |
Compatibility List |
$2.00 / Each
|
|
|
727076 | 0000087056 | N13 | Vent, Fan, ABS/PA 746, Pantone:877C, TM501 | No |
Compatibility List |
$29.99 / Each
|
|
|
712380 | 1000228653 | N18 | Cover, IPOD JACK, ABS/PA746, Gray/80435, E | No |
Compatibility List |
$1.66 / Each
|
|
|
730623 | 1000365263 | N18 | Cover, IPOD JACK, ABS PA746, Gray/80435, E | No |
Compatibility List |
$2.32 / Each
|
|
|
701595 | 004620-AF | N20 | Screw, Umbrella Cross Tapped, 4x12L, Gap | No |
Compatibility List |
$2.00 / Each
|
|
|
710470 | 1000210480 | N20 | Grip, Sensor, U, ABS/PA746, 80393, EP304 | No |
Compatibility List |
$23.32 / Each
|
|
|
1036196 | 1000210480 | N20 | GRIP SENSOR U | No |
Compatibility List |
$9.99 / Each
|
|
|
710471 | 1000210481 | N21 | Grip, Sensor, D, ABS/PA746, 80393, EP304 | No |
Compatibility List |
$9.54 / Each
|
|
|
730626 | 1000216152 | N22 | Fan ADJ Plate, SUS304, 0.3t, T9000 | No |
Compatibility List |
$2.58 / Each
|
|
|
712079 | 1000226524 | N27 | Torsional Spring, , USB, SUS304, TM521 | No |
Compatibility List |
$3.35 / Each
|
|
|
730624 | 1000226525 | N28 | Fixing Plate, USB, SECC, 1.0t, T 7xi C | No |
Compatibility List |
$1.28 / Each
|
|
|
713433 | 1000303128 | N29 | Foam, , 48x5x3.0t, Black, , TM524 | No |
Compatibility List |
$1.66 / Each
|
|
|
713771 | 1000307911 | N31 | Controller, Touch Sensor, EXC208056TAG | No |
Compatibility List |
$506.97 / Each
|
|
|
716927 | 1000340317 | N33 | Screw, Button Head, M4X0.7PX30L, Machine Th | No |
Compatibility List |
$1.66 / Each
|
|
|
726928 | 0000086064 | N33 | Cover, Console, Right, ABS/PA 746, BL, TM501 | No |
Compatibility List |
$3.35 / Each
|
|
|
716928 | 1000340318 | N34 | Screw, Button Head, M4x0.7Px16L, Machine Th | No |
Compatibility List |
$1.66 / Each
|
|
|
726929 | 0000086065 | N34 | Cover, Console, Left, ABS/PA 746, BL, TM501 | Yes |
Compatibility List |
$3.35 / Each
|
|
|
702589 | 008864-A | N50 | Screw, Special, Round, 2.9x1.06Px7L(Hi Lo) | No |
Compatibility List |
$1.02 / Each
|
|
|
712377 | 1000228648 | N51 | Face Plate Cover, PC510, Gray/80435, 15.6 | No |
Compatibility List |
$93.57 / Each
Out Of Stock |
|
|
730627 | 0000089506 | N53 | TV Earphone Wire Cover, ABS/PA746, 80435 | No |
Compatibility List |
$2.32 / Each
|
|
|
727351 | 0000088743 | N81 | Screw, TRH, M3x.5Px6L, MT, PH, CST, ZNC, F T | No |
Compatibility List |
$1.79 / Each
|
|
|
712866 | 1000231078 | N82 | SCREW, BH, ?X5X1.6PX12L(HI LO), PH, BZN | No |
Compatibility List |
$1.02 / Each
|
|
|
712391 | 1000228688 | N85 | SCREW, BH, M5X0.8PX12L, PH, BAN | No |
Compatibility List |
$1.66 / Each
|
|
|
702591 | 008866-A | N152 | Screw, Special, Round, 4.0x1.34Px12L(Hi Lo | Yes |
Compatibility List |
$1.66 / Each
|
|
|
702131 | 005157-A | N153 | Washer, Flat, 4.3x12.0x1.0T, Black Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
730622 | 0000095641 | N155 | SCREW, RND, #X4.0X1.34PX8L(HI LO), PH, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
730778 | 1000313991 | N159 | Screw, Button Head, M3X0.5PX4L, Phillip, W | No |
Compatibility List |
$1.28 / Each
|
|
|
728026 | 0000092696 | N202 | Fixing Plate, Fan, 0.8t, T5x 02 | No |
Compatibility List |
$9.10 / Each
|
|
|
728600 | 0000095575 | N203 | Tape, Foam, One Sided, 50x15x1.5T | No |
Compatibility List |
$1.66 / Each
|
|
|
712268 | 1000228041 | Not Shown | TV POWER, 2600(SCD 554DCS103BB1G H6630P1 | No |
Compatibility List |
$16.87 / Each
|
|
|
716629 | 1000337906 | Not Shown | Manual, Assembly, English, EP617 | No |
Compatibility List |
$16.87 / Each
|
|
|
719421 | 1000361164 | Not Shown | RFID SET, Semi Assy, EP614D | No |
Compatibility List |
$1.30 / Each
|
|
|
729777 | ZMS4004742 | Not Shown | Silicon Plug, 0.25"0.125"0.75" Black | No |
Compatibility List |
$2.29 / Each
|
|
|
|
729809 | ZMS4006025 | Not Shown | Incline Motor Replacement Instructions | No |
Compatibility List |
$1.66 / Each
|
|
|
733202 | 1000426784 | Not Shown | Anti Sweat Cover Set, MCB, A, A5x(EP308) | No |
Compatibility List |
$5.18 / Each
|
|
|
733381 | 0000093006 | Not Shown | Cover, IPOD Fixing, ABS/PA746, 80435, MX E5X | No |
Compatibility List |
$7.16 / Each
|
|
|
710101 | 1000206778 | P02 | Ground Wire, 100(99470BS42 KST FLDNY2 250 | No |
Compatibility List |
$3.88 / Each
|
|
|
723729 | 1000412379 | P05 | Filter Board Set, L178A1 H001, EP304B | Yes |
Compatibility List |
$53.28 / Each
|
|
|
730305 | 0000080692 | P06 | Generator Wire, 550L, JST VHR 5 MOLEX 4202 | No |
Compatibility List |
$10.14 / Each
|
|
|
710387 | 1000209858 | P07 | Battery Power CONNECT Wire, 200(KST FLDNY | No |
Compatibility List |
$24.23 / Each
|
|
|
705750 | 056006-A | P08 | Grip Pulse Extension Wire, 1000(5.0 OWzP) | No |
Compatibility List |
$9.10 / Each
|
|
|
710386 | 1000209857 | P09 | Console Wire, 1200(MOLEX,50 57 9408x2), EP | Yes |
Compatibility List |
$91.23 / Each
|
|
|
710105 | 1000206785 | P12 | Motor Connect Wire, 950(MOLEX050841060 MO | No |
Compatibility List |
$35.39 / Each
|
|
|
733205 | 1000443292 | P16 | Cat6 Network Signal Wire, 2600(KINSUN320 | No |
Compatibility List |
$33.78 / Each
|
|
|
706754 | 065248-A | P17 | TV Coax Adaptor, Female, F A028 NBX7 C | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701866 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701032 | 003383-A | P20 | Ferrite Choke, FH0900B 2, Lian Ci, TM38 | No |
Compatibility List |
$3.88 / Each
|
|
|
710106 | 1000206786 | P25 | TV Signal Connect Wire, 2600(FM 0086 NBG7 | Yes |
Compatibility List |
$28.70 / Each
|
|
|
730311 | 0000093219 | P30 | Jacket, PVC, A5X 03 F, US, EP79 | No |
Compatibility List |
$1.68 / Each
|
|
|
701064 | 003553-D | P32 | Power Electric Resistance, Contain Wire, 4 400W10,650(3.96 4P WH | Yes |
Compatibility List |
$148.64 / Each
|
|
|
701392 | 004448-00 | P33 | Screw, SH, M5X0.8PX10L, HS, BZN | No |
Compatibility List |
$1.02 / Each
|
|
|
700393 | 001220-00 | P35 | TIE STRAP ADHESIVE, KSS UC 1.5/PD02UC | No |
Compatibility List |
$1.66 / Each
|
|
|
706478 | 062621-A | P36 | Nut, Wing, 1/4" 20UNC, SS41, BZN | No |
Compatibility List |
$1.66 / Each
|
|
|
704994 | 028629-00 | P38 | SCREW, BH, M3X0.5PX10L, PH, BZN | No |
Compatibility List |
$1.66 / Each
|
|
|
1036232 | 1000228041 | P41 | TV POWER | No |
Compatibility List |
$4.80 / Each
|
|
|
732615 | 0000092949 | P42 | Screw, SS41, BED, A5X 03, US, EP79 | No |
Compatibility List |
$2.58 / Each
|
|
|
730134 | 0000083692 | P45 | Washer, TOOTH, M5.3X10X0.6, Nickel | No |
Compatibility List |
$1.02 / Each
|
|
|
700292 | 000880-B | P46 | Rubber Pad, Motor, Anti Shake | No |
Compatibility List |
$1.79 / Each
|
|
|
733206 | 0000095254 | P48 | Power Wire, 450(KST FLDNY1 250 1x2 KST FD | No |
Compatibility List |
$13.66 / Each
|
|
|
713425 | 1000302620 | P50 | Covering Board, MCB, SECC, 1.0T, EP306 | No |
Compatibility List |
$11.80 / Each
|
|
|
730316 | 0000093983 | P61 | Screw, BH, M5X0.8PX65L, PH, NKL | No |
Compatibility List |
$6.48 / Each
|
|
|
725322 | 069904 | P63 | Ferrite, Cord, FH0650B, CB32 P16A | No |
Compatibility List |
$3.88 / Each
|
|
|
711119 | 1000216859 | P71 | COLLECT TIE, COLLECT TIE, PUSH MOUNT, KSS P | No |
Compatibility List |
$1.66 / Each
|
|
|
710999 | 1000215739 | Q03 | DISC, ABS/PA746, 94220, EP304 | No |
Compatibility List |
$64.19 / Each
|
|
|
710479 | 1000210494 | Q05 | Console Mast Boot, Rear, PA746, 80393, EP304 | No |
Compatibility List |
$49.58 / Each
|
|
|
1036194 | 1000210494 | Q05 | COVER, Down ABS/PA746 137C/80395 EP304 | No |
Compatibility List |
$14.99 / Each
|
|
|
730319 | 0000095075 | Q06 | Cover, Handlebar, Right, ABS/PA746, DG/80435 | Yes |
Compatibility List |
$20.44 / Each
|
|
|
730320 | 0000095076 | Q07 | Cover, Handlebar, Left, ABS/PA746, DG/80435 | Yes |
Compatibility List |
$20.44 / Each
|
|
|
730321 | 0000095077 | Q08 | Water Bottle Holder, ABS/PA746, DG/80435 | Yes |
Compatibility List |
$22.86 / Each
|
|
|
728499 | 0000095103 | Q09 | End Cap,ROUND Plate, ABS/PA746, SL/GY/8054 | No |
Compatibility List |
$15.00 / Each
|
|
|
730375 | 0000095066 | Q10 | Boot, Crank, ABS/PA746, DG/80435 | No |
Compatibility List |
Out Of Stock |
|
|
730323 | 0000095035 | Q12 | COVER, SWING ARM, ABS/PA746, DG/80435 | No |
Compatibility List |
$2.32 / Each
|
|
|
710931 | 1000215396 | Q13 | Plastic Cover, LARGE, ABS PA746, mpp/80435 | Yes |
Compatibility List |
$6.00 / Each
|
|
|
728518 | 0000095171 | Q16 | Pedal Plastic, Right, PP 3015, DG/80435, EP308 | Yes |
Compatibility List |
$34.06 / Each
|
|
|
730324 | 0000095152 | Q17 | Pedal Plastic, Left, PP 3015, DG/80435, EP308 | No |
Compatibility List |
$29.00 / Each
|
|
|
710474 | 1000210484 | Q19 | Bracket, Water Bottle Holder, TPR, 426C, 80393, EP30 | No |
Compatibility List |
$1.66 / Each
|
|
|
728519 | 0000095174 | Q22 | Outside Cover, Handlebar, ABS/PA746, DG/804 | No |
Compatibility List |
$20.00 / Each
|
|
|
730326 | 0000095175 | Q23 | Inside Cover, Handlebar, ABS/PA746, DG/8043 | Yes |
Compatibility List |
$18.00 / Each
|
|
|
730327 | 0000095178 | Q24 | Outside Cover, Swing Arm, ABS/PA746, DG/804 | Yes |
Compatibility List |
$18.00 / Each
|
|
|
730328 | 0000095179 | Q25 | Inside Cover, Swing Arm, ABS//PA746, DG/804 | Yes |
Compatibility List |
$18.00 / Each
|
|
|
730329 | 0000095182 | Q27 | Stabilizer Cover, Middle, ABS/PA746, DG/80435, EP | No |
Compatibility List |
$12.98 / Each
|
|
|
706755 | 065383-AA | Q28 | Pedal Cap, NY(BL), EP76 Q28 | Yes |
Compatibility List |
$4.26 / Each
|
|
|
730330 | 0000095180 | Q33 | Spacer, ABS/PA746, BLACK, EP304 | Yes |
Compatibility List |
$3.88 / Each
|
|
|
710384 | 1000209855 | Q36 | Hook, Incline Arm Cover, ABS/PA746, SL/GY/80547 | Yes |
Compatibility List |
$3.64 / Each
|
|
|
730331 | 0000095315 | Q37 | Pad, Water Bottle Holder, TPR, 426C, 80393, EP308 | Yes |
Compatibility List |
$9.00 / Each
|
|
|
730332 | 0000095209 | Q39 | Cushion, Pedal, Left, NBR, 426C, 80393 | No |
Compatibility List |
$28.58 / Each
|
|
|
724048 | 1000414494 | Q55 | Cover, Filter, PC 510, BL/Black C, EP304B | Yes |
Compatibility List |
$6.73 / Each
|
|
|
730334 | 1000427083 | Q56 | Power cover, ABS/PA757, Gray/80435, EP30 | No |
Compatibility List |
$2.32 / Each
|
|
|
704991 | 028555-00 | Q61 | Screw, BH, M5X0.8PX12L, PH, BAN, BP | No |
Compatibility List |
$1.79 / Each
|
|
|
711152 | 1000217120 | Q65 | Washer, FLT, 5X10X1.0T, SST, BAN | No |
Compatibility List |
$1.66 / Each
|
|
|
726888 | 085797 | Q66 | Screw, BH, M5X0.8PX20L, PH, BAN | No |
Compatibility List |
$1.66 / Each
|
|
|
726257 | 081059 | Q70 | Screw, FH, M3X10L, SM, PH, POT | No |
Compatibility List |
$1.66 / Each
|
|
|
716627 | 1000337901 | Q71 | Cover, Arm Rest, back, ABS/PA756S, Gray/6046 | No |
Compatibility List |
$5.90 / Each
|
|
|
716628 | 1000337904 | Q72 | Cover, Arm Rest, front, ABS/PA756S, Gray/604 | No |
Compatibility List |
$5.90 / Each
|
|
|
701209 | 004165-00 | R06 | Drive Belt, Poly V, 490 J8 | Yes |
Compatibility List |
$32.99 / Each
|
|
|
701869 | 004891-00 | R06 | Nut, Hex, 3/8 26UNCX9H | No |
Compatibility List |
$3.88 / Each
|
|
|
701433 | 004481-00 | R08 | Screw, Hex Socket, Round, M8x1.25Px45L | No |
Compatibility List |
$3.88 / Each
|
|
|
701924 | 004957-00 | R09 | Nut, Lock, M25X1.5P, SS41, BAN | Yes |
Compatibility List |
$2.32 / Each
|
|
|
702242 | 005367-00 | R11 | C Clip, External, S 30 | No |
Compatibility List |
$4.00 / Each
|
|
|
710162 | 1000207054 | R17 | Belt, POLY V, , 1206 J8, FLEXONIC | Yes |
Compatibility List |
$72.78 / Each
|
|
|
730339 | 0000092813 | R21 | Bearing, Ball, 6306LUZ(C3), TPI | No |
Compatibility List |
$37.48 / Each
|
|
|
730159 | 0000086513 | R35 | Screw, Hex Socket, Round, M10x1.5Px40L | No |
Compatibility List |
$1.02 / Each
|
|
|
730164 | 0000082736 | R60 | Washer, Flat, 8.2X16.0X2.0T, BZN | No |
Compatibility List |
$1.02 / Each
|
|
|
727526 | 0000089783 | S01 | Generator Set JM07 004 | Yes |
Compatibility List |
$381.29 / Each
|
|
|
1002227 | 0000089783 | S01 | Generator Brake Set | Yes |
Compatibility List |
$92.19 / Each
|
|
|
730340 | 012819-00 | S01 | Generator, 210 CE EP MX/600SERIES400W, J | No |
Compatibility List |
$240.48 / Each
|
|
|
711340 | 1000220174 | S02 | Elevation Motor, DC, 12V, 400LBS | Yes |
Compatibility List |
$249.00 / Each
|
|
|
711179 | 1000217256 | S03 | Lower Control Board, Generator, , H001, S001, EP30 | No |
Compatibility List |
$935.98 / Each
|
|
|
711312 | 1000219678 | S50 | Pin, Motor, SS41, 10x48L, EP306 | No |
Compatibility List |
$8.42 / Each
|
|
|
711067 | 1000216245 | S54 | Pin, Hairpin, Cotter | No |
Compatibility List |
$1.79 / Each
|
|
|
730341 | 0000093717 | S62 | Washer, Ribbed, Lock, 10.5X16X1TX1.6H, BED | No |
Compatibility List |
$1.28 / Each
|
|
|
701160 | 004078-A2 | T09 | Ball Bearing, 6005ZZ, Z25XZ47X12T, TPI | No |
Compatibility List |
$19.14 / Each
|
|
|
702241 | 005366-00 | T11 | C Clip, External, S 25 | No |
Compatibility List |
$5.18 / Each
|
|
|
701165 | 004081-A2 | U03 | Ball Bearing, 6204ZZ, 20x47x14t, TPI | Yes |
Compatibility List |
$6.48 / Each
|
|
|
702227 | 005352-00 | U04 | C Clip, Internal, R 35 | No |
Compatibility List |
$2.58 / Each
|
|
|
727694 | 0000090466 | U05 | Bearing, Ball, 6206LUZ(CN), 30X62X16T, TP | Yes |
Compatibility List |
$16.88 / Each
|
|
|
702232 | 005357-00 | U06 | C Clip, Internal, R 62 | No |
Compatibility List |
$2.32 / Each
|
|
|
702229 | 005354-00 | U09 | C Clip, Internal, R 42 | No |
Compatibility List |
$1.02 / Each
|
|
|
701449 | 004493-00 | U21 | Screw, Hex Socket, Round, M8x1.25Px16L | No |
Compatibility List |
$1.02 / Each
|
|
|
702325 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
702365 | 006541-A | V18 | DECAL, HANDLEBAR, RIGHT, RED WORD/WHITE BAS | No |
Compatibility List |
$1.02 / Each
|
|
|
712072 | 1000226494 | W04 | Control Board, USB, Extra work, H001, TM52 | No |
Compatibility List |
$23.63 / Each
|
|
|
712092 | 1000226591 | W05 | Key, TV, 20key, Picard | No |
Compatibility List |
$127.74 / Each
|
|
|
727017 | 0000086684 | W13 | Speaker Set, AK 402808BC 3T 280 XAP 02, TM | Yes |
Compatibility List |
$17.65 / Each
|
|
|
719804 | 1000365782 | W24 | Earphone board set, EP91 | No |
Compatibility List |
$29.17 / Each
Out Of Stock |
|
|
712430 | 1000228814 | W27 | HEART RATE RECEIVER BOARD, SALUTRON 8600 | No |
Compatibility List |
$182.49 / Each
|
|
|
730633 | 0000089112 | W28 | Spacer, Support, MEA 05, PINGOOD | No |
Compatibility List |
$1.28 / Each
|
|
|
730634 | 0000089113 | W29 | Fix Plate, SPHC, 1.6t, BED, T5x 02 | No |
Compatibility List |
$6.48 / Each
|
|
|
713909 | 1000309511 | W31 | VA Module, S001, USB2.0, EP614 | No |
Compatibility List |
$337.97 / Each
|
|
|
725318 | 069851 | W33 | Console TV Cable Extended Wire, 250L(FM 0086 N | Yes |
Compatibility List |
$10.14 / Each
|
|
|
714780 | 1000318254 | W35 | Console GND, (KST,FDFNYD5 250 KST,F | No |
Compatibility List |
$8.42 / Each
|
|
|
714458 | 1000315068 | W36 | Console GND, 200(KST,FDFNYD2 250 1 | No |
Compatibility List |
$8.42 / Each
|
|
|
712429 | 1000228813 | W45 | Wire, Inverter, 100(JST PAP 02V S ACES,872 | No |
Compatibility List |
$10.11 / Each
|
|
|
712428 | 1000228812 | W47 | TUNER CONTROL WIRE, 250, (JST,XAP 06V 1 US | No |
Compatibility List |
$15.18 / Each
|
|
|
714457 | 1000315067 | W48 | H/P, 350(TKP,2510A 06 TKP,H6630R1 0 | No |
Compatibility List |
$16.87 / Each
|
|
|
713870 | 1000309034 | W49 | Head Phone Board, 300L(TKP H20Y1 08 | No |
Compatibility List |
$33.77 / Each
|
|
|
714785 | 1000318272 | W52 | Connect Board, C SAFE, H002, EP614 | No |
Compatibility List |
$42.22 / Each
|
|
|
714781 | 1000318255 | W53 | Exchange Board, Console, U115A4/H001, E | Yes |
Compatibility List |
$50.67 / Each
|
|
|
706354 | 061339-B | W56 | Fan, DC12V/0.3A PMB1297PYB3 AY, EP70 | Yes |
Compatibility List |
$58.99 / Each
|
|
|
712382 | 1000228655 | W61 | CONNECT, TV KEY, 400(H6630R1 08 H6630R1 10 | No |
Compatibility List |
$15.18 / Each
|
|
|
712381 | 1000228654 | W62 | CONNECT, USB, 150(JST,XAP 06V 1)X2, EP614 | No |
Compatibility List |
$8.42 / Each
|
|
|
713419 | 1000302343 | W63 | Connect, 150(TKP,H20J2 15 JST,XAP 08V | No |
Compatibility List |
$11.80 / Each
|
|
|
712431 | 1000228815 | W66 | Pulse CON, 300mm, (2510A 03 XAP 03) | No |
Compatibility List |
$8.42 / Each
|
|
|
710102 | 1000206779 | W67 | Console Cable, 250(MOLEX,50 57 9408 MOLEX | No |
Compatibility List |
$56.58 / Each
|
|
|
712433 | 1000228817 | W68 | Wire, Ipod, 500(JAM RJW20 18MP TKP,H20J2 1 | No |
Compatibility List |
$33.77 / Each
|
|
|
710313 | 1000209244 | W69 | NET WIRE, 400(TKP H6630R1 08,AMP 569532) | No |
Compatibility List |
$32.08 / Each
|
|
|
712427 | 1000228811 | W79 | Tuner Signal Wire, 200, (TKP,H20J2 6 Mini | No |
Compatibility List |
$18.56 / Each
|
|
|
717796 | 1000347710 | W79 | Tuner Signal Wire, 200(TKP,H20J2 6 | No |
Compatibility List |
$31.02 / Each
|
|
|
718757 | 1000353342 | W81 | Ipod Extend Wire, 300(MF1512S0017 JA | No |
Compatibility List |
$72.98 / Each
|
|
|
712519 | 1000229325 | W83 | LCM Wire, 170, (HRS DF13 30DS 1.25CX2) | No |
Compatibility List |
$20.25 / Each
|
|
|
712520 | 1000229327 | W85 | USB Ground Wire, 50, (GEM,99471BS 2 GEM,99 | No |
Compatibility List |
$15.18 / Each
|
|
|
716641 | 1000338307 | W88 | WiFi, EWM W135H01E, Adventech | No |
Compatibility List |
$163.90 / Each
|
|
|
713325 | 1000301559 | W89 | Touch Switch, ADV1700021122 01, EP61 | No |
Compatibility List |
$21.94 / Each
|
|
|
713591 | 1000305367 | W90 | GND, 150, (GEM,99492BS 2 KST,FDFNYD2 | No |
Compatibility List |
$8.42 / Each
|
|
|
712376 | 1000228647 | W92 | Control Board, INVERTER, TDK TBD584NR 1 | No |
Compatibility List |
$337.97 / Each
|
|
|
712383 | 1000228657 | W93 | TFT LCD Set, 15.6 inch, EP614 | No |
Compatibility List |
$1.30 / Each
|
|
|
712386 | 1000228662 | W97 | WIFI Aerial, Left, IVX0035 A225BX, EP6 | No |
Compatibility List |
$33.77 / Each
|
|
|
712387 | 1000228663 | W98 | WIFI Aerial, Right, IVX0035 A405WX, EP | No |
Compatibility List |
$33.77 / Each
|
|
|
713672 | 1000306357 | W100 | Fixed chipset, CF, EP614 | No |
Compatibility List |
$42.22 / Each
|
|
|
712385 | 1000228660 | W101 | LVDS Wire, 15.6 inch, EP614 | No |
Compatibility List |
$92.92 / Each
|
|
|
712425 | 1000228809 | W104 | Fan, 12VDC, 0.2A, AFB0512HHB | No |
Compatibility List |
$92.92 / Each
|
|
|
722510 | 1000393224 | W106 | TV Stick Set, US / KITS SBOM, EP620 | No |
Compatibility List |
$392.05 / Each
|
|
|
712881 | 1000231182 | W107 | Nut, Hex, 3/8 Inch 32UNEF 2B,2.4T | No |
Compatibility List |
$1.66 / Each
|
|
|
719170 | 1000356656 | W108 | Fixing Plate, TV Tuner, Zinc Plate, TM52 | No |
Compatibility List |
$3.35 / Each
|
|
|
721130 | 1000380801 | W110 | Memory Card, TS8GCF220I, 8GB, Transcend | No |
Compatibility List |
$1,137.08 / Each
|
|
|
706696 | 064626-00 | Z03 | Screw, Hex Socket, Round, M8x1.25Px15L, Adhe | No |
Compatibility List |
$2.00 / Each
|
|
|
701504 | 004539-AC | Z11 | Screw, Round, Hex Socket, M8X1.25PX25L | Yes |
Compatibility List |
$2.32 / Each
|
|
|
701505 | 004539-AD | Z11 | Screw, Round, Hex Socket, M8X1.25PX25L, Chromed | No |
Compatibility List |
$2.68 / Each
|
|
|
730343 | 0000083458 | Z17 | Washer, Lock, 8.2x13.5x2.0t | No |
Compatibility List |
$1.70 / Each
|
|
|
705696 | 055200-AB | Z19 | Screw, Hex, M10X1.5PX25L, HE, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
730344 | 0000089822 | Z21 | Screw, Hex Socket, Round, M10x1.5Px100L | No |
Compatibility List |
$1.68 / Each
|
|
|
731246 | 0000087672 | Z36 | Screw, Hex Socket, Round, M5x0.8Px8L | No |
Compatibility List |
$1.68 / Each
|
|
|
710585 | 1000211111 | Z41 | Screw, SH, M5X0.8PX12L, , HS, SSTSUS304, BED | No |
Compatibility List |
$1.66 / Each
|
|
|
1036182 | 0000095163 | Adorn Cover, Pedal, R | Yes |
Compatibility List |
$5.80 / Each
Out Of Stock |
||
|
1036208 | 0000095165 | Adorn Cover, Pedal, L, PP | No |
Compatibility List |
$2.39 / Each
|
||
|
1036195 | 0000095200 | CUSHION, PEDAL, R, NBR | No |
Compatibility List |
$11.99 / Each
|
||
|
1036209 | 0000095297 | ENDCAP LINK ARM ABS/PA746 SL/GY/80547 EP | Yes |
Compatibility List |
$18.00 / Each
|
||
|
1036197 | 1000217256 | Control Board Generator H001 S005 ERP S | No |
Compatibility List |
$299.00 / Each
Out Of Stock |
||
|
1036205 | 1000427598 | Front Cover | No |
Compatibility List |
$116.99 / Each
|
||
|
1038484 | 0000084267 | Sealed lead acid 12V battery (Used) | No |
Compatibility List |
$11.40 / Each
Out Of Stock |
Catalog #: 700313
MPN: 000932-E
Cap, C Safe, Black, CB32 D/C, NO REPL: Part will show as orderable until stock is depleted.
$1.68 / each
Catalog #: 020069-00
MPN: 020069-00
SCREW, SH, M8X1.25PX12L, HS, BP, G12.9
$6.99 / each
Catalog #: 712377
MPN: 1000228648
Face Plate Cover, PC510, Gray/80435, 15.6
$93.57 / each
Catalog #: 701064
MPN: 003553-D
Power Electric Resistance, Contain Wire, 4 400W10,650(3.96 4P WH
$148.64 / each
Catalog #: 1036197
MPN: 1000217256
Control Board Generator H001 S005 ERP S
$299.00 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
