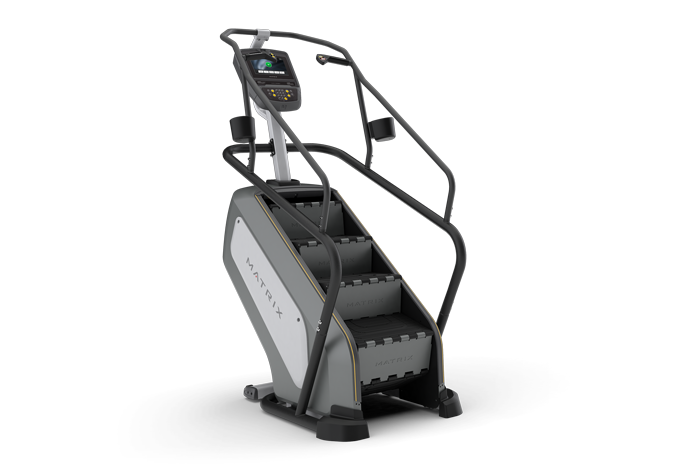

Matrix Commercial - C3xe - 2016

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000041-AA 700024 000041-AA B75 Transport Wheel Yes Model Compatibility List $7.00 / Each

8
002787-C 700925 002787-C Not Shown Power Cord;External(USA);3000,14AWG;110V(nema) No Model Compatibility List $56.14 / Each

4,5,6
003625-00 701085 003625-00 R53 Optical Disc;105x22 No Model Compatibility List $2.58 / Each

8
003722-00 701095 003722-00 R52 Screw;BH;M3X0.5PX6L;;PH;;WZN;ROHS;SP No Model Compatibility List $1.28 / Each

2
004071-00 701153 004071-00 E07 Bearing;Ball;608ZZ;TPI No Model Compatibility List $7.00 / Each

8
004077-A2 701159 004077-A2 R21 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004319-00 701259 004319-00 P26 Screw;Phillip;Round;M3x0.5Px6L; No Model Compatibility List $1.28 / Each

2
004334-00 701271 004334-00 P53 ROUND PHILLIP SCREW M3X12L No Model Compatibility List $1.28 / Each

2
004350-00 701281 004350-00 G37 Screw;Phillip;BH;M3x0.5Px6L No Model Compatibility List $1.54 / Each

2
004359-00 701294 004359-00 Q52 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.38 / Each

2
004369-AD 701309 004369-AD R61 Screw;BH;M5X0.8PX15L;;PH;;BZN;; No Model Compatibility List $1.54 / Each

2
004385-00 701332 004385-00 B91 Screw;BH;M5X0.8PX12L;;PH;;BAN;; No Model Compatibility List $1.38 / Each

2
701392 004448-00 P35 Screw;SH;M5X0.8PX10L;;HS;;BZN;; No Model Compatibility List $0.00 / Each
Out Of Stock
2
004458-00 701404 004458-00 R58 Screw;Hex Socket;Round;M5x0.8Px12L;BED; No Model Compatibility List $1.28 / Each

2
004465-00 701415 004465-00 R30 Screw;Hex Socket;Round;M6x1.0Px12L;;Zn-B Yes Model Compatibility List $1.38 / Each

2
004469-00 701420 004469-00 R36 SCREW;SH;M6X1.0PX6L;;HS;;;; No Model Compatibility List $1.28 / Each

2
004477-00 701428 004477-00 R31 Screw;Hex Socket;Round;M8x1.25Px10L No Model Compatibility List $1.28 / Each

2
004483-00 701440 004483-00 Z21 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.38 / Each

2
004515-00 701462 004515-00 R35 Screw;SH;M10X1.5PX30L;;HS;;BZN;; No Model Compatibility List $2.58 / Each

2
004550-A 701517 004550-A B38 Screw;SH;M8X1.25PX95L;;HS;;;; No Model Compatibility List $1.38 / Each

2
004627-00 701605 004627-00 P29 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $1.54 / Each

2
004677-00 701643 004677-00 R65 Bolt;Eye Hook;1/4"-20UNCX50L(25L);ZN-BL No Model Compatibility List $7.70 / Each

2
004844-00 701823 004844-00 B86 Set Screw;M6X1.0PX16.0L No Model Compatibility List $1.28 / Each

2
004860-00 701843 004860-00 P54 Screw;Phillip;Large Oval Head;M4X0.7PX8L No Model Compatibility List $1.38 / Each

2
004882-00 701860 004882-00 R34 Nut;Hex;M5X0.8P No Model Compatibility List $1.54 / Each

2
004884-00 701862 004884-00 B39 Nut;Hex;M8X1.25P No Model Compatibility List $1.38 / Each

2
004889-00 701866 004889-00 P45 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
004924-00 701891 004924-00 R62 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
004933-00 701907 004933-00 B88 Nut;Nylon;1/4"'-20UNC;BED No Model Compatibility List $1.38 / Each

2
004983-A 701947 004983-A C11 Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) No Model Compatibility List $1.38 / Each

2
004984-A 701948 004984-A B45 Insert Nut;Hex;NKHS-580-2.5(M5x0.8P) No Model Compatibility List $1.28 / Each

2
701954 004990-00 R18 Key;Round;Dual End;6X6X16L No Model Compatibility List $1.28 / Each

9
005010-00 701972 005010-00 R37 Washer;Spring;10.75x17.2x2.16t No Model Compatibility List $1.54 / Each

2
005042-00 702004 005042-00 R33 Washer;Flat;8.2X30.0X2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005066-A 702036 005066-A B51 Washer;Flat;8.2x20.0x3.0T No Model Compatibility List $1.42 / Each

2
005102-00 702070 005102-00 B89 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
005145-A 702118 005145-A B85 Washer;Flat;8.2x19.0x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005155-A 702128 005155-A R66 Washer;Flat;6.2x12.0x2.0T;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
005220-00 702178 005220-00 B78 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005354-00 702229 005354-00 R60 C-Clip;Internal;R-42 No Model Compatibility List $1.38 / Each

2
005366-00 702241 005366-00 R17 C-Clip;External;S-25 No Model Compatibility List $1.22 / Each

2
005373-00 702247 005373-00 E08 Clamp;E-Shaped;E-6; No Model Compatibility List $1.38 / Each

4,5,6
005811-00 702299 005811-00 R57 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.16 / Each

2,4,5,6
020060-00 703984 020060-00 R50 Screw;SH;M5X0.8PX45L-20L ;;HS;;;;P-T No Model Compatibility List $1.38 / Each

2
020069-00 703990 020069-00 B76 Screw;SH;M8X1.25PX12L;HS;BP;G12.9; No Model Compatibility List $1.38 / Each

2
020101-00 704011 020101-00 B65 Screw;Hex Socket;Round;M8x1.25Px55L;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
020478-00 704203 020478-00 R47 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
029526-A 705020 029526-A P33 SCREW;BH;?X3X19L;SM;PH;;;;POT No Model Compatibility List $1.42 / Each

2
035695-AB 705077 035695-AB R40 Screw;BH;M4X0.7PX30L;;PH;;BAN;; No Model Compatibility List $1.38 / Each

2
038449-A 705163 038449-A Q24 Clip;Tapped Hole;FE;M5;YZN No Model Compatibility List $7.00 / Each

2
063002-A 706521 063002-A P06 TV Cable Wire;Down;1750L;(FM-0086-NBG7)x No Model Compatibility List $22.58 / Each

4,5,6
065248-A 706754 065248-A P17 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $2.80 / Each

4,5,6
067629-00 706965 067629-00 R29 Inner axis ferrule;12.0;12x5.5x15.75L No Model Compatibility List $1.28 / Each

1
1000100780 708154 1000100780 B87 Screw;Hex Socket;BH;M6x1.0Px16L;Cr Plate No Model Compatibility List $1.28 / Each

2,3
1000106666 708858 1000106666 B55 Nut;HX;M8X1.25P;SS41;BAN;; No Model Compatibility List $1.38 / Each

2
1000108777 709055 1000108777 E09 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $1.54 / Each

2
1000201167 709540 1000201167 P01 Console Cable Communication Wire;2000(MOLEX,50-70-9408x Yes Model Compatibility List $70.18 / Each

7,4,5,6
1000203482 709816 1000203482 B12 Guide Rail;Transmission;-;SS41;ANTIRUST No Model Compatibility List $49.40 / Each

9
1000203521 709818 1000203521 R04 Sprocket;Transmission;-;16T; No Model Compatibility List $24.12 / Each

1
1000203526 709821 1000203526 R05 Pulley;Poly-V;ANTIRUST OIL;SS41J1055;RO No Model Compatibility List $30.14 / Each

8
709822 1000203619 AB1 Frame Welding Set;Frame;-;PAINTING;-; No Model Compatibility List $2.00 / Each

3
1000203645 709824 1000203645 P16 E-Port Fix Plate Set;US;CS17 No Model Compatibility List $86.32 / Each

3
1000203693 709828 1000203693 R06 Axle,TRANSIMISSION;S45C;NKL;Transmission No Model Compatibility List $28.70 / Each

8
1000203697 709829 1000203697 E04 Axle, Central;S45C;CHM;PEDAL;Short; No Model Compatibility List $8.92 / Each

8,9
1000203749 709833 1000203749 C20 Plastic Sleeve;Console MAST;PVC;80393 No Model Compatibility List $8.44 / Each

7,9,3
1000203752 709834 1000203752 Q25 Pin Set; No Model Compatibility List $10.18 / Each

12,13,14
1000203753 709835 1000203753 E20 Pedal Step;Upper No Model Compatibility List $32.12 / Each

8,9
1000203754 709836 1000203754 E21 Pedal Step;Lower No Model Compatibility List $54.18 / Each

8,9
1000203757 709837 1000203757 Q11 Plastic Cover;Transmission No Model Compatibility List $62.26 / Each

9
1000203794 709844 1000203794 AR2 Sprocket Set;Bottom;PAINTING;-;BL No Model Compatibility List $275.28 / Each

1
1000203797 709845 1000203797 B07 Ring;Guide Rail No Model Compatibility List $2.58 / Each

9
1000203799 709846 1000203799 B22 Guide Rail;Transmission;-;SS41;ANTIRUST No Model Compatibility List $56.18 / Each

9
1000203803 709847 1000203803 B62 Safety plate;left;CS17 No Model Compatibility List $2.58 / Each

9,3
1000203804 709848 1000203804 B61 Safety plate;right;CS17 No Model Compatibility List $2.58 / Each

9,3
1000203821 709850 1000203821 Q23 Pin;CS17;SR-07C-N2B BL;PINGOOD;CS17 No Model Compatibility List $1.38 / Each

12,13,14
1000203934 709856 1000203934 R41 Bracket;Actuator;-;SPHC;BED;CS17; No Model Compatibility List $16.06 / Each

2,3,4,5,6
1000206793 710109 1000206793 R39 Fan;DC FAN;12V;0.1A;FAAN; No Model Compatibility List $26.92 / Each

8,4,5,6
1000206794 710110 1000206794 P04 Wire;ECB LOAD;1650(JST,VHR-4N+TKP HL20P- No Model Compatibility List $28.88 / Each

7,4,5,6,12,13,14
1000207235 710186 1000207235 P27 Wire;PULSE CON;OTHER;BLACK;750L;TKP H66 No Model Compatibility List $42.62 / Each

4,5,6,12,13,14
1000207236 710187 1000207236 G18 Wire;HR Sensor;Left;950(TKP H6630R1-06+TKP No Model Compatibility List $28.38 / Each

7,4,5,6,12,13,14
1000207951 710251 1000207951 P10 Fixing Plate;Fan;LCB;SPHC;WZN;CS17; No Model Compatibility List $6.48 / Each

8,3
1000207952 710252 1000207952 R54 Screw;SH;M5X0.8PX60L(TREAD 23L);MT;HS;G1 No Model Compatibility List $2.58 / Each

2
1000209252 710315 1000209252 2 Console Mast Set;SA;;CS17;;; No Model Compatibility List $370.36 / Each

7
1000209259 710316 1000209259 12 Drive Axle Set;SA;;CS17;;; No Model Compatibility List $2.00 / Each

8,10
1000209818 710377 1000209818 R46 Ring;SS41;WZN;-; No Model Compatibility List $6.48 / Each

1
1000209821 710378 1000209821 Q14 Side Rail;R;CS17; No Model Compatibility List $42.16 / Each

9
1000209863 710388 1000209863 P13 Speed Feedback Set Extended Wire;1350L(JST No Model Compatibility List $31.20 / Each

9,4,5,6
1000209864 710389 1000209864 P09 AC Power Socket Wire;CS17; No Model Compatibility List $38.18 / Each

4,5,6
1000209865 710390 1000209865 P24 Power Wire;190L;(KST FDFNYD1-250-1)x4;CS No Model Compatibility List $15.62 / Each

4,5,6
1000210490 710477 1000210490 P19 Power Extend Wire;DC BRAKE,COOLING No Model Compatibility List $31.58 / Each

8,9,4,5,6
1000210491 710478 1000210491 P31 Wire;Proximity Sensor Set;OTHER;BLACK;OT No Model Compatibility List $55.52 / Each

4,5,6
1000211361 710623 1000211361 C12 Connect BLOCK;HANDRail;-;PAINTING;-;MATR No Model Compatibility List $99.66 / Each

9,3
1000211384 710624 1000211384 22 Flywheel Set;CS17 No Model Compatibility List $226.86 / Each

8
1000211385 710625 1000211385 Q12 Plastic Cover;U;MARIX Cover;80435 No Model Compatibility List $15.10 / Each

9
1000211386 710626 1000211386 Q13 Side Rail;L;;CS17; No Model Compatibility List $42.16 / Each

9
1000211930 710662 1000211930 C07 Ornament;TV-MOUNT;PAINTING;MATRIX/SL/ No Model Compatibility List $13.98 / Each

2,4,5,6
1000212092 710664 1000212092 Z22 Screw;SH;M8X1.25PX35L;MT;HS;SST;-; No Model Compatibility List $1.28 / Each

2
1000212335 710682 1000212335 G19 Wire;HR Sensor;Right;950(TKP H6630R1-06 TK No Model Compatibility List $28.38 / Each

7,4,5,6,12,13,14
1000212516 710707 1000212516 21 Pulley Set;-;CS17;-; No Model Compatibility List $161.18 / Each

8
710733 1000212922 AR1 SPROKET SET;FRONT;CS17; No Model Compatibility List $373.44 / Each

1
710734 1000212923 11 SPROKET SET;REAR;CS17; No Model Compatibility List $220.42 / Each

1
1000215689 710978 1000215689 R56 Bracket;Sensor;Transmission Set;SPCC;WZN No Model Compatibility List $2.58 / Each

2,3,4,5,6
1000217419 711193 1000217419 R22 Electro Magnet;20VDC/1.2A;CS17; No Model Compatibility List $133.88 / Each

8,4,5,6
1000217580 711201 1000217580 R43 Belt;Poly-V;FIBERGLASS;390PJ10-FG; No Model Compatibility List $56.14 / Each

15
1000217581 711202 1000217581 R14 AXLE;IDLER;S45C;WZN;CS17; No Model Compatibility List $13.02 / Each

8
1000217719 711209 1000217719 23 Idler Set;Transmission;CS17;-; No Model Compatibility List $47.54 / Each

8
1000218699 711260 1000218699 R23 Belt;Poly-V;FLEXONIC BELT;948J8; No Model Compatibility List $70.18 / Each

15
1000219788 711313 1000219788 G12 Elastomer;Hand Rail;NBR;BLACK;CS17; No Model Compatibility List $3.88 / Each

9,4,5,6
1000221249 711551 1000221249 Z24 Washer;FLT;8.0X16.0X1.0T;SST;-;; No Model Compatibility List $1.28 / Each

2
1000221250 711552 1000221250 R24 CHAIN;SEALED;DRIVE;40-82L 1 C/L; No Model Compatibility List $126.34 / Each

10
1000221258 711554 1000221258 Z32 Washer;ARC;8.2X19.0X1.5T;SST; No Model Compatibility List $1.38 / Each

2
711698 1000222543 V12 Warning Label;MAINTANCE;COATED;CS17; No Model Compatibility List $1.80 / Each

1
1000226252 712063 1000226252 Z25 Screw;SH;M8X1.25PX16L;MT;HS;SST;-; No Model Compatibility List $1.38 / Each

2
1000226844 712136 1000226844 B90 Rubber Pad;PIB;NBR(BL);CS17; No Model Compatibility List $1.28 / Each

12,13,14
1000226890 712144 1000226890 R48 SCREW;SH;M5X0.8PX8L;MT;HS;G12.9;BZN; No Model Compatibility List $1.28 / Each

2
1000229018 712470 1000229018 E05 Axle, Central;SCM440;CHM;PEDAL;Long; No Model Compatibility List $42.10 / Each

8,9
1000229060 712479 1000229060 E10 Snap Ring;X STYLE;CS17; No Model Compatibility List $1.38 / Each

2
1000229851 712609 1000229851 AB12 Frame set;-;right;CS21 No Model Compatibility List $259.98 / Each

3
1000229854 712610 1000229854 AB13 Frame set;-;left;CS21 No Model Compatibility List $259.98 / Each

3
1000229865 712611 1000229865 AG15 Arm Rest set;-;L;painting;CS21;F75A2-DH0 No Model Compatibility List $181.98 / Each

3
1000229878 712612 1000229878 V11 Warning Label;Operate;-;PVC;-;CS21 No Model Compatibility List $2.58 / Each

1
1000229894 712614 1000229894 G10 Connect Plate,Kettle Rack,ABS 746,BL/Bla No Model Compatibility List $4.20 / Each

3,4,5,6
1000229897 712615 1000229897 Q31 End Cap;-;left;ABS/709;BL/Black C;CS21 No Model Compatibility List $25.98 / Each

9,4,5,6
1000229898 712616 1000229898 Q32 End Cap;-;right;ABS/709;BL/Black C;CS21 No Model Compatibility List $25.98 / Each

9,4,5,6
1000229900 712617 1000229900 R25 CHAIN;TRANSMISSION;-;40-24L/K(P25.4)-192 No Model Compatibility List $168.98 / Each

1
1000229943 712622 1000229943 7 shield set;-;left;CS21 No Model Compatibility List $561.58 / Each

3
1000229944 712623 1000229944 8 shield set;-;right;CS21 No Model Compatibility List $519.98 / Each

3
1000230371 712719 1000230371 R27 BEARING;PLB;LCP204-LLU;20(NKB); No Model Compatibility List $38.12 / Each

8
1000231078 712866 1000231078 Q51 SCREW;BH;?X5X1.6PX12L(HI-LO);PH;BZN; No Model Compatibility List $1.28 / Each

2
1000231858 712976 1000231858 R32 WASHER;FLT;#X8.2X#X23.0X1.5T;BZN; No Model Compatibility List $1.28 / Each

2
1000303525 713455 1000303525 P51 Sensor Set;;;;;;;1350L(KFPS,XE-SP50NE1T No Model Compatibility List $140.38 / Each

1
1000309599 713915 1000309599 P52 Fixing Plate;Sensor;;Zinc Plate;1.5T;;CS No Model Compatibility List $1.28 / Each

3
1000309603 713917 1000309603 Q41 Fixing Bracket;U Shape;;POM+GF;BL/Black No Model Compatibility List $2.58 / Each

2,3,4,5,6
1000309606 713918 1000309606 Q43 Fixing Plate;LOW ROW;;painting;;Black4;C No Model Compatibility List $6.48 / Each

3,4,5,6
1000309609 713920 1000309609 Q20 Repair Cover-Extrawork;;left;Print;;CS23 No Model Compatibility List $99.98 / Each

9
1000309612 713921 1000309612 Q21 Repair Cover-Extrawork;;right;Print;;CS2 No Model Compatibility List $99.98 / Each

9
713922 1000309614 Q05 shield set;Frame;up;;CS23;; No Model Compatibility List $65.98 / Each

3
713923 1000309616 Q06 Decorate Cover;;front;ABS/PA756S;Gray/80 No Model Compatibility List $46.78 / Each

9
713924 1000309617 Q07 Cover;;front;ABS/PA756S;Gray/80435;;CS23 No Model Compatibility List $35.08 / Each

9
1000328462 715806 1000328462 AG16 Arm Rest set;;R;painting;F75 D2 DH042;Rh No Model Compatibility List $158.58 / Each

3
1000336916 716491 1000336916 P02 Controller Set;Sensor;;ECB/H001;IO/H002; No Model Compatibility List $499.00 / Each

7,8
1000349102 717960 1000349102 Q18 shield set;;;Service kits;CS17/CS22;; No Model Compatibility List $1.00 / Each

3
1000350050 718277 1000350050 Q18 Cover Plate;;;PP;BL/Black C;;CS24; No Model Compatibility List $45.48 / Each

9,3,4,5,6
1000350726 718392 1000350726 R36 Supt Base;TRANSMISSION;;painting;;Flat B No Model Compatibility List $9.08 / Each

3
1000351694 718571 1000351694 B56 Spacer;Rail;;;A; No Model Compatibility List $2.32 / Each

2,9,3,4,5,6
1000352533 718645 1000352533 E06 Space Ring;Pedal;;POM;BL/Black C;;CS23; No Model Compatibility List $1.10 / Each

8,9,4,5,6
1000354903 718983 1000354903 R45 Brake Set;;;;CS17; No Model Compatibility List $350.98 / Each

8
1000359148 719260 1000359148 3 Arm Rest set;;left up;;CS24; No Model Compatibility List $414.16 / Each

3
1000359150 719261 1000359150 13 Hand Grip Set;Quickly Key;left;;CS24; No Model Compatibility List $84.22 / Each

9,11
1000359159 719262 1000359159 G31 Overlay;Quick Key;Left;;;CS24; (Overlay ONLY; NO membrane) No Model Compatibility List $14.02 / Each

9
1000359163 719263 1000359163 4 Arm Rest set;;right up;;CS24; No Model Compatibility List $412.76 / Each

3
1000359164 719264 1000359164 14 Hand Grip Set;Quickly Key;right;;CS24; No Model Compatibility List $84.22 / Each

9,11
1000359165 719265 1000359165 G32 Overlay;Quick Key;Right;;;CS24; (Overlay ONLY; NO membrane) No Model Compatibility List $14.02 / Each

9
1000366087 719822 1000366087 14 Hand Grip Set;Quickly Key;Right/Left;;CS No Model Compatibility List $154.42 / Each

9,11
1000380282 721063 1000380282 AR10 Connect Axle;Brake;;SUS316;CS17; No Model Compatibility List $22.08 / Each

8
1000383493 721487 1000383493 T10 Terminal;100;JMT,J1730BS-2(With a plasti No Model Compatibility List $5.58 / Each

1
1000402662 723041 1000402662 P25 Photo Interrupter Set;;;;CS29; No Model Compatibility List $19.50 / Each

1
069859 725319 069859 AP1 Filter Board Yes Model Compatibility List $43.04 / Each

1
069904 725322 069904 P63 Ferrite; Cord;FH0650B;CB32-P16A No Model Compatibility List $2.58 / Each

4,5,6
070817 725395 070817 Z31 Screw;SH;M8X1.25PX20L;;HS;;CHM;; No Model Compatibility List $0.76 / Each

2
726204 080701 P54 Cable Clamp;KSS UC-04 No Model Compatibility List $31.82 / Each

4,5,6
726549 082734 P59 Washer;Senated;M5.3X10X0.6;Zinc Plate No Model Compatibility List $1.38 / Each

2,3
726562 082875 D60 Screw;BH;M3X0.5PX20L;;PH;;BZN;; No Model Compatibility List $1.38 / Each

2
726627 083692 P63 Washer;TOOTH;M5.3X10X0.6;Nickel No Model Compatibility List $1.28 / Each

2
726826 085362 E44 Screw;SH;M8X1.25PX20L;;HS;;BAN;; No Model Compatibility List $1.38 / Each

2
726939 086127 H38 Nut;HEX;M10X1.5P;10 No Model Compatibility List $2.80 / Each

2
086204 726951 086204 Not Shown Power Cord;Non NEMA;15 feet; 90 DEGREE No Model Compatibility List $58.96 / Each

3,4,5,6,9
0000086264 726965 0000086264 P04 Ground Wire;Console;Pulse Extended;220(5.0 OT+KST M No Model Compatibility List $2.80 / Each

4,5,6,7,9,12,13,14
086310 726974 086310 P44 Screw;BH;M5X0.8PX75L;CT;PH;;NKL;; No Model Compatibility List $2.58 / Each

2
0000088923 727375 0000088923 C11 Bottle Holder Set;Console Mast;ABS/PA746;BL Yes Model Compatibility List $11.94 / Each

7
727423 089111 P47 Tape;Dual Sided;20x30x3t;TM501; No Model Compatibility List $0.08 / Each

1
727503 089637 R02 Pulley;Poly-V;;;FC25;J8198;;S70 No Model Compatibility List $60.72 / Each

8
727534 089835 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
727716 090570 B37 SCREW;SET;M8X1.25PX20L;;;;BZN;; No Model Compatibility List $1.28 / Each

2
728132 093219 AB1 RIGHT MAIN FRAME SET No Model Compatibility List $453.16 / Each

3
728188 093508 P03 GND Wire;Filter;200(KST FLDNY2-250kz+GE No Model Compatibility List $2.58 / Each

4,5,6
728368 094371 V13 Decal;Warning;finger;A5x-03;US;EP79 No Model Compatibility List $1.28 / Each

7,3
728371 094425 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
728374 094431 P56 Fan;Cooling;FD128025LB;DC 12V/0.1A;T7000 No Model Compatibility List $70.18 / Each

8,4,5,6
0000094929 728450 0000094929 J11 Cap;Stabilizer;Left-Front;ABS/PA757;P804 Yes Model Compatibility List $9.26 / Each

9
0000095100 728498 0000095100 J12 Cap;Stabilizer;Right-Front;ABS/PA757;P80 Yes Model Compatibility List $7.26 / Each

9
0000095638 728614 0000095638 J15 Foot Pad;Adjustable;M12X58H;12.9;EP304; Yes Model Compatibility List $26.04 / Each

3,9,12,13,14
729013 Order Kit 10 AR1 Arm Rest set;;RU;painting;DM515 matte;;E No Model Compatibility List $0.00 / Each
Out Of Stock
3
729046 Order left hand grip set (13) G33 Membrane No Model Compatibility List $0.00 / Each
Out Of Stock
1
729060 Order right hand grip set (14) G35 Membrane No Model Compatibility List $0.00 / Each
Out Of Stock
1
729124 Part of Kit 12 AR3 Lower Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729125 Part of Kit 13 G22 Link Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729127 Part of Kit 14 G23 Crank Pin Sleeve;Aluminum Casting;EP525- No Model Compatibility List $0.00 / Each
Out Of Stock
8,3,12,13,14
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
7
729141 Part of Kit 21 R08 Axle;Transmission;42CRMO;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock
8
729144 Part of Kit 22 R12 Generator;-;8.0KG EP537-1US;-;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock
8
729152 Part of Kit 3 AG14 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
729165 Part of Kit 4 AG13 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
729172 Part of Kit 5 P14 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729194 Part of Kit 7 Q01 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3,10
729197 Part of Kit 8 Q02 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3,10
1000412356 000349 1000412356 # 1 Service Set;;;Power Internal - Service KITS SET; Yes Model Compatibility List $59.99 / Each

6
View Drawing
