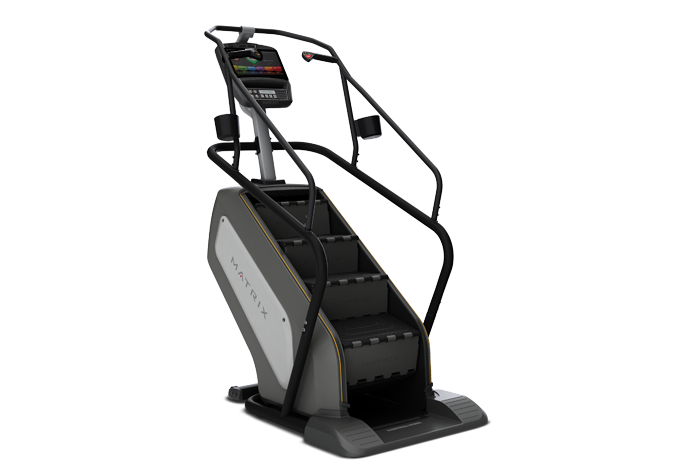

Matrix Commercial - C7xe-04 - 2014

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000041-AA 700024 000041-AA B75 Transport Wheel Yes Model Compatibility List $7.00 / Each

8
002787-C 700925 002787-C Not Shown Power Cord;External(USA);3000,14AWG;110V(nema) No Model Compatibility List $56.14 / Each

4,5,6
003383-A 701032 003383-A N94 Ferrite Choke;FH0900B-2;Lian Ci;TM38 No Model Compatibility List $7.00 / Each

1
003625-00 701085 003625-00 R53 Optical Disc;105x22 No Model Compatibility List $2.58 / Each

8
003722-00 701095 003722-00 R52 Screw;BH;M3X0.5PX6L;;PH;;WZN;ROHS;SP No Model Compatibility List $1.28 / Each

2
004071-00 701153 004071-00 E07 Bearing;Ball;608ZZ;TPI No Model Compatibility List $7.00 / Each

8
004077-A2 701159 004077-A2 R21 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004319-00 701259 004319-00 P26 Screw;Phillip;Round;M3x0.5Px6L; No Model Compatibility List $1.28 / Each

2
004321-00 701260 004321-00 N59 Screw;Round;PH;M4 x 0.7P x 10L No Model Compatibility List $1.54 / Each

2
004334-00 701271 004334-00 P53 ROUND PHILLIP SCREW M3X12L No Model Compatibility List $1.28 / Each

2
004350-00 701281 004350-00 Not Shown Screw;Phillip;BH;M3x0.5Px6L No Model Compatibility List $1.54 / Each

2
004355-00 701286 004355-00 Not Shown Screw;Oval;PH; M4X0.7PX10L No Model Compatibility List $1.54 / Each

2
004359-00 701294 004359-00 Q52 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.38 / Each

2
004369-AD 701309 004369-AD R61 Screw;BH;M5X0.8PX15L;;PH;;BZN;; No Model Compatibility List $1.54 / Each

2
004385-00 701332 004385-00 B91 Screw;BH;M5X0.8PX12L;;PH;;BAN;; No Model Compatibility List $1.38 / Each

2
004447-AC 701391 004447-AC P40 SCREW;SH;M5X0.8PX12L;CT;HS;;BAN;; No Model Compatibility List $1.28 / Each

2
701392 004448-00 P35 Screw;SH;M5X0.8PX10L;;HS;;BZN;; No Model Compatibility List $0.00 / Each
Out Of Stock
2
004458-00 701404 004458-00 R58 Screw;Hex Socket;Round;M5x0.8Px12L;BED; No Model Compatibility List $1.28 / Each

2
004465-00 701415 004465-00 R30 Screw;Hex Socket;Round;M6x1.0Px12L;;Zn-B Yes Model Compatibility List $1.38 / Each

2
004475-00 701426 004475-00 R31 SCREW;SH;M8X1.25PX15L;;HS;;BZN;; No Model Compatibility List $0.40 / Each

2
004483-00 701440 004483-00 Z21 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.38 / Each

2
004550-A 701517 004550-A B38 Screw;SH;M8X1.25PX95L;;HS;;;; No Model Compatibility List $1.38 / Each

2
004627-00 701605 004627-00 P29 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $1.54 / Each

2
004677-00 701643 004677-00 R65 Bolt;Eye Hook;1/4"-20UNCX50L(25L);ZN-BL No Model Compatibility List $7.70 / Each

2
004762-00 701737 004762-00 Not Shown Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $1.54 / Each

2
004844-00 701823 004844-00 B86 Set Screw;M6X1.0PX16.0L No Model Compatibility List $1.28 / Each

2
004860-00 701843 004860-00 P54 Screw;Phillip;Large Oval Head;M4X0.7PX8L No Model Compatibility List $1.38 / Each

2
004882-00 701860 004882-00 R34 Nut;Hex;M5X0.8P No Model Compatibility List $1.54 / Each

2
004884-00 701862 004884-00 B39 Nut;Hex;M8X1.25P No Model Compatibility List $1.38 / Each

2
004889-00 701866 004889-00 P45 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
004924-00 701891 004924-00 R62 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
004926-00 701897 004926-00 Not Shown Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004933-00 701907 004933-00 B88 Nut;Nylon;1/4"'-20UNC;BED No Model Compatibility List $1.38 / Each

2
004983-A 701947 004983-A C11 Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) No Model Compatibility List $1.38 / Each

2
004984-A 701948 004984-A B45 Insert Nut;Hex;NKHS-580-2.5(M5x0.8P) No Model Compatibility List $1.28 / Each

2
005005-00 701964 005005-00 Not Shown Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.22 / Each

2
005010-00 701972 005010-00 R37 Washer;Spring;10.75x17.2x2.16t No Model Compatibility List $1.54 / Each

2
005042-00 702004 005042-00 R33 Washer;Flat;8.2X30.0X2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005045-00 702008 005045-00 R32 Washer;Flat;8.2x22x3.0T No Model Compatibility List $1.54 / Each

2
005066-A 702036 005066-A B51 Washer;Flat;8.2x20.0x3.0T No Model Compatibility List $1.42 / Each

2
005094-00 702066 005094-00 Q62 Washer;Flat;3.2x8.0x1.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005102-00 702070 005102-00 B89 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
005145-A 702118 005145-A B85 Washer;Flat;8.2x19.0x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005155-A 702128 005155-A R66 Washer;Flat;6.2x12.0x2.0T;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
005157-A 702131 005157-A N153 Washer;Flat;4.3x12.0x1.0T;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
005220-00 702178 005220-00 B78 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005354-00 702229 005354-00 R60 C-Clip;Internal;R-42 No Model Compatibility List $1.38 / Each

2
005366-00 702241 005366-00 R17 C-Clip;External;S-25 No Model Compatibility List $1.22 / Each

2
005373-00 702247 005373-00 E08 Clamp;E-Shaped;E-6; No Model Compatibility List $1.38 / Each

4,5,6
005376-00 702249 005376-00 B83 Clamp;E-Shaped Ring;E-9 No Model Compatibility List $1.28 / Each

4,5,6
005811-00 702299 005811-00 R57 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.16 / Each

2,4,5,6
006078-00 702325 006078-00 V17 Decal;Grounding;TM08 No Model Compatibility List $1.46 / Each

7,3
008864-A 702589 008864-A N151 Screw;Special;Round;2.9x1.06Px7L(Hi-Lo) No Model Compatibility List $1.38 / Each

2
008865-B 702590 008865-B Q61 Screw;Special;Round;2.9x1.06Px12L(Hi-Lo No Model Compatibility List $1.38 / Each

2
008866-A 702591 008866-A N152 Screw;Special;Round;4.0x1.34Px12L(Hi-Lo No Model Compatibility List $1.28 / Each

2
010515-00 702795 010515-00 W19 Copper Pillar;M3x12L No Model Compatibility List $1.28 / Each

1
015267-AE 703550 015267-AE Not Shown Fixing Plate;Right TV No Model Compatibility List $13.74 / Each

3,4,5,6
018141-AE 703823 018141-AE Not Shown Fixing Plate;TV;Left No Model Compatibility List $12.88 / Each

3,4,5,6
020005-00 703962 020005-00 N95 Screw;Phillip;Round;M3x6L;;Zn-BL No Model Compatibility List $1.38 / Each

2
020060-00 703984 020060-00 R50 Screw;SH;M5X0.8PX45L-20L ;;HS;;;;P-T No Model Compatibility List $1.38 / Each

2
020069-00 703990 020069-00 B76 Screw;SH;M8X1.25PX12L;HS;BP;G12.9; No Model Compatibility List $1.38 / Each

2
020101-00 704011 020101-00 B65 Screw;Hex Socket;Round;M8x1.25Px55L;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
020478-00 704203 020478-00 R47 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
022311-A 704295 022311-A Not Shown Pin;Spring;M3X10L No Model Compatibility List $1.28 / Each

2,12,13,14
035695-AB 705077 035695-AB R40 Screw;BH;M4X0.7PX30L;;PH;;BAN;; No Model Compatibility List $1.38 / Each

2
038449-A 705163 038449-A Q24 Clip;Tapped Hole;FE;M5;YZN No Model Compatibility List $7.00 / Each

2
040774-A 705310 040774-A P21 Fixed Knob;KSS UC-0;CB110;CB110-N1 No Model Compatibility List $1.02 / Each

1
040816-A 705313 040816-A Q27 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $1.54 / Each

2
061339-B 706354 061339-B W56 Fan;DC12V/0.3A PMB1297PYB3-AY;EP70 No Model Compatibility List $90.22 / Each

8,4,5,6
063002-A 706521 063002-A P06 TV Cable Wire;Down;1750L;(FM-0086-NBG7)x No Model Compatibility List $22.58 / Each

4,5,6
065248-A 706754 065248-A P17 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $2.80 / Each

4,5,6
066570-00 706885 066570-00 B82 Nut;NLK;M4X0.7P;;BZN;; No Model Compatibility List $1.38 / Each

2
067629-00 706965 067629-00 R29 Inner axis ferrule;12.0;12x5.5x15.75L No Model Compatibility List $1.28 / Each

1
067774-A 706978 067774-A N35 Power Cord;FH33.3x8.25x16.4(FH0900B);TM95 No Model Compatibility List $6.48 / Each

4,5,6
1000100780 708154 1000100780 B87 Screw;Hex Socket;BH;M6x1.0Px16L;Cr Plate No Model Compatibility List $1.28 / Each

2,3
1000106666 708858 1000106666 B84 Nut;HX;M8X1.25P;SS41;BAN;; No Model Compatibility List $1.38 / Each

2
1000108690 709046 1000108690 B58 Wheel Lock No Model Compatibility List $9.78 / Each

8
1000108777 709055 1000108777 E09 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $1.54 / Each

2
1000201167 709540 1000201167 P01 Console Cable Communication Wire;2000(MOLEX,50-70-9408x Yes Model Compatibility List $70.18 / Each

7,4,5,6
1000201693 709609 1000201693 N96 Exchange connectorl; KST DWTSFSOLR; No Model Compatibility List $0.78 / Each

1
1000203482 709816 1000203482 B12 Guide Rail;Transmission;-;SS41;ANTIRUST No Model Compatibility List $49.40 / Each

9
1000203521 709818 1000203521 R04 Sprocket;Transmission;-;16T; No Model Compatibility List $24.12 / Each

1
1000203526 709821 1000203526 R05 Pulley;Poly-V;ANTIRUST OIL;SS41J1055;RO No Model Compatibility List $30.14 / Each

8
1000203645 709824 1000203645 P16 E-Port Fix Plate Set;US;CS17 No Model Compatibility List $86.32 / Each

3
1000203648 709826 1000203648 P18 Wire;SENSOR CON;1250(JST PAP-03V-S+HL 3T No Model Compatibility List $26.26 / Each

4,5,6
1000203688 709827 1000203688 R25 Sealed Chain;Transmission;192L No Model Compatibility List $353.14 / Each

1
1000203693 709828 1000203693 R06 Axle,TRANSIMISSION;S45C;NKL;Transmission No Model Compatibility List $28.70 / Each

8
1000203697 709829 1000203697 E04 Axle, Central;S45C;CHM;PEDAL;Short; No Model Compatibility List $8.92 / Each

8,9
1000203749 709833 1000203749 C20 Plastic Sleeve;Console MAST;PVC;80393 No Model Compatibility List $8.44 / Each

7,9,3
1000203752 709834 1000203752 Q25 Pin Set; No Model Compatibility List $10.18 / Each

12,13,14
1000203753 709835 1000203753 E21 Pedal Step;Upper No Model Compatibility List $32.12 / Each

8,9
1000203754 709836 1000203754 E20 Pedal Step;Lower No Model Compatibility List $54.18 / Each

8,9
1000203758 709838 1000203758 Q26 Nylon Washer;U-7 White;PINGOOD;CS17 No Model Compatibility List $1.28 / Each

2,12,13,14
1000203794 709844 1000203794 AR2 Sprocket Set;Bottom;PAINTING;-;BL No Model Compatibility List $275.28 / Each

1
1000203797 709845 1000203797 B07 Ring;Guide Rail No Model Compatibility List $2.58 / Each

9
1000203799 709846 1000203799 B22 Guide Rail;Transmission;-;SS41;ANTIRUST No Model Compatibility List $56.18 / Each

9
1000203803 709847 1000203803 B62 Safety plate;left;CS17 No Model Compatibility List $2.58 / Each

9,3
1000203804 709848 1000203804 B61 Safety plate;right;CS17 No Model Compatibility List $2.58 / Each

9,3
1000203821 709850 1000203821 Q23 Pin;CS17;SR-07C-N2B BL;PINGOOD;CS17 No Model Compatibility List $1.38 / Each

12,13,14
1000203934 709856 1000203934 R41 Bracket;Actuator;-;SPHC;BED;CS17; No Model Compatibility List $16.06 / Each

2,3,4,5,6
1000206777 710100 1000206777 P32 C Safe+TV Connect Wire;200(TKP H20J2-15x No Model Compatibility List $31.16 / Each

4,5,6
1000206779 710102 1000206779 W66 Console Cable;250(MOLEX,50-57-9408+MOLEX, No Model Compatibility List $43.52 / Each

7,4,5,6
1000206793 710109 1000206793 R39 Fan;DC FAN;12V;0.1A;FAAN; No Model Compatibility List $26.92 / Each

8,4,5,6
1000206794 710110 1000206794 P04 Wire;ECB LOAD;1650(JST,VHR-4N+TKP HL20P- No Model Compatibility List $28.88 / Each

7,4,5,6,12,13,14
710164 1000207104 P38 LI Battery;2200MA/H;EP606; No Model Compatibility List $0.00 / Each
Out Of Stock
1
1000207108 710166 1000207108 P36 Battery Con Wire;200(TKP H110-03S+TKP H6 No Model Compatibility List $10.88 / Each

4,5,6
1000207235 710186 1000207235 P27 Wire;PULSE CON;OTHER;BLACK;750L;TKP H66 No Model Compatibility List $42.62 / Each

4,5,6,12,13,14
1000207236 710187 1000207236 G18 Wire;HR Sensor;Left;950(TKP H6630R1-06+TKP No Model Compatibility List $28.38 / Each

7,4,5,6,12,13,14
1000207951 710251 1000207951 P10 Fixing Plate;Fan;LCB;SPHC;WZN;CS17; No Model Compatibility List $6.48 / Each

8,3
1000207952 710252 1000207952 R54 Screw;SH;M5X0.8PX60L(TREAD 23L);MT;HS;G1 No Model Compatibility List $2.58 / Each

2
1000208207 710268 1000208207 W18 Inverter Board Set;TM503;T7xe; No Model Compatibility List $169.44 / Each

1
1000208238 710276 1000208238 AN15 Cover;Console;Back;Printing;EP No Model Compatibility List $68.18 / Each

7,9,4,5,6
1000208248 710277 1000208248 AN4 Cover;Overlay;15 INCH;PR;OV;EP92F; No Model Compatibility List $106.66 / Each

9
1000208535 710289 1000208535 AN51 Heart Rate Board Set;SALUTRON 8600;EP93C; No Model Compatibility List $231.24 / Each

12,13,14
1000208780 710306 1000208780 B53 Axle, Central;SS41;WZN;TRANSPORT WHEEL; No Model Compatibility List $6.48 / Each

8
1000208781 710307 1000208781 N15 Plastic BASE;U;ABS/PA746;PA:60461;T7x-03 No Model Compatibility List $2.58 / Each

9,3
1000209252 710315 1000209252 2 Console Mast Set;SA;;CS17;;; No Model Compatibility List $370.36 / Each

7
1000209259 710316 1000209259 12 Drive Axle Set;SA;;CS17;;; No Model Compatibility List $2.00 / Each

8,10
1000209818 710377 1000209818 R46 Ring;SS41;WZN;-; No Model Compatibility List $6.48 / Each

1
1000209821 710378 1000209821 Q14 Side Rail;R;CS17; No Model Compatibility List $42.16 / Each

9
1000209863 710388 1000209863 P13 Speed Feedback Set Extended Wire;1350L(JST No Model Compatibility List $31.20 / Each

9,4,5,6
1000209864 710389 1000209864 P09 AC Power Socket Wire;CS17; No Model Compatibility List $38.18 / Each

4,5,6
1000209865 710390 1000209865 P24 Power Wire;190L;(KST FDFNYD1-250-1)x4;CS No Model Compatibility List $15.62 / Each

4,5,6
1000210489 710476 1000210489 Not Shown NETWORK SIGNAL EXTEND WIRE;900(TKP H6630 No Model Compatibility List $79.98 / Each

9,4,5,6
1000210490 710477 1000210490 P19 Power Extend Wire;DC BRAKE,COOLING No Model Compatibility List $31.58 / Each

8,9,4,5,6
1000210491 710478 1000210491 P31 Wire;Proximity Sensor Set;OTHER;BLACK;OT No Model Compatibility List $55.52 / Each

4,5,6
1000210553 710483 1000210553 N16 USB;EP90B No Model Compatibility List $11.08 / Each

1
1000211037 710569 1000211037 Not Shown WIRE;NETWORK SIGNAL;1000(TKP H6630R1-08+ No Model Compatibility List $41.36 / Each

4,5,6
1000211294 710607 1000211294 N98 Screw;FH;M3X0.5PX30L;-;PH;BZN; No Model Compatibility List $1.28 / Each

2
1000211361 710623 1000211361 C12 Connect BLOCK;HANDRail;-;PAINTING;-;MATR No Model Compatibility List $99.66 / Each

9,3
1000211384 710624 1000211384 22 Flywheel Set;CS17 No Model Compatibility List $226.86 / Each

8
1000211385 710625 1000211385 Q12 Plastic Cover;U;MARIX Cover;80435 No Model Compatibility List $15.10 / Each

9
1000211386 710626 1000211386 Q13 Side Rail;L;;CS17; No Model Compatibility List $42.16 / Each

9
1000211387 710627 1000211387 Q15 Fairing;L;ABS;;;;CS17;Dark Gray80435 No Model Compatibility List $2.58 / Each

1
1000211388 710628 1000211388 Q16 Fairing;R;ABS;-;;;CS17;Dark Gray80435 No Model Compatibility List $2.58 / Each

1
1000211919 710661 1000211919 P38 Battery;AAA;1.5V;ALKALINE;#4 No Model Compatibility List $7.26 / Each

1
1000211930 710662 1000211930 C07 Ornament;TV-MOUNT;PAINTING;MATRIX/SL/ No Model Compatibility List $13.98 / Each

2,4,5,6
1000212092 710664 1000212092 Z22 Screw;SH;M8X1.25PX35L;MT;HS;SST;-; No Model Compatibility List $1.28 / Each

2
1000212322 710678 1000212322 N25 Shim;Rubber;D;NBR;BLACK;TM507C; No Model Compatibility List $1.28 / Each

4,5,6
1000212335 710682 1000212335 G19 Wire;HR Sensor;Right;950(TKP H6630R1-06 TK No Model Compatibility List $28.38 / Each

7,4,5,6,12,13,14
1000212516 710707 1000212516 21 Pulley Set;-;CS17;-; No Model Compatibility List $161.18 / Each

8
710733 1000212922 10 SPROKET SET;FRONT;CS17; No Model Compatibility List $373.44 / Each

1
710734 1000212923 11 SPROKET SET;REAR;CS17; No Model Compatibility List $220.42 / Each

1
1000213059 710741 1000213059 1 Transport Wheel Set;SA;-;CS17;;; No Model Compatibility List $85.30 / Each

8
1000213364 710762 1000213364 6 LED Maintainance Light Set;CS17;SA No Model Compatibility List $37.24 / Each

1
1000215689 710978 1000215689 R56 Bracket;Sensor;Transmission Set;SPCC;WZN No Model Compatibility List $2.58 / Each

2,3,4,5,6
711020 1000215997 P39 LED MAINTAIN LIGHT;PROCESS;Diam.5.2x3mm; No Model Compatibility List $14.28 / Each

1
1000216152 711044 1000216152 N22 Fan ADJ Plate;SUS304;0.3t;T9000; No Model Compatibility List $2.58 / Each

8,3
1000216903 711124 1000216903 Q32 Control Zone Decal No Model Compatibility List $7.78 / Each

7,3
1000217094 711146 1000217094 W21 Wire;NET;550(TKP,H6630R1-08AMP 569532) No Model Compatibility List $2.58 / Each

4,5,6
1000217419 711193 1000217419 R22 Electro Magnet;20VDC/1.2A;CS17; No Model Compatibility List $133.88 / Each

8,4,5,6
1000217580 711201 1000217580 R43 Belt;Poly-V;FIBERGLASS;390PJ10-FG; No Model Compatibility List $56.14 / Each

15
1000217719 711209 1000217719 23 Idler Set;Transmission;CS17;-; No Model Compatibility List $47.54 / Each

8
1000218549 711254 1000218549 3 CONTROL BOARD SET;LMM REPLACE;EP92;NON V No Model Compatibility List $2.00 / Each

7,4,5,6
1000218699 711260 1000218699 R23 Belt;Poly-V;FLEXONIC BELT;948J8; No Model Compatibility List $70.18 / Each

15
1000221249 711551 1000221249 Z24 Washer;FLT;8.0X16.0X1.0T;SST;-;; No Model Compatibility List $1.28 / Each

2
1000221250 711552 1000221250 R24 CHAIN;SEALED;DRIVE;40-82L 1 C/L; No Model Compatibility List $126.34 / Each

10
1000221258 711554 1000221258 Z32 Washer;ARC;8.2X19.0X1.5T;SST; No Model Compatibility List $1.38 / Each

2
1000222542 711697 1000222542 V11 Warning Label;OPERATE;COATED;CS17; No Model Compatibility List $2.60 / Each

1
711698 1000222543 V12 Warning Label;MAINTANCE;COATED;CS17; No Model Compatibility List $1.80 / Each

1
1000224836 711996 1000224836 W69 CONSOLE GND WIRE;130+220(KST,FDFNYD2-250 No Model Compatibility List $7.00 / Each

7,4,5,6
1000226252 712063 1000226252 Z25 Screw;SH;M8X1.25PX16L;MT;HS;SST;-; No Model Compatibility List $1.38 / Each

2
1000226528 712082 1000226528 N27 Fixing Plate;TUNER;SECC;1.0t;TM521; No Model Compatibility List $6.48 / Each

3
712103 1000226686 21 Console Set;-;-;EKS;H001-0H;GUI1.6;OS3.2 No Model Compatibility List $0.00 / Each
Out Of Stock
7
1000226689 712104 1000226689 AN31 Overlay Set;TV;-;English;EP613 No Model Compatibility List $140.38 / Each

4,5,6
1000226844 712136 1000226844 B90 Rubber Pad;PIB;NBR(BL);CS17; No Model Compatibility List $1.28 / Each

12,13,14
1000226890 712144 1000226890 R48 SCREW;SH;M5X0.8PX8L;MT;HS;G12.9;BZN; No Model Compatibility List $1.28 / Each

2
1000227270 712189 1000227270 Not Shown E-PORT Wire;-;-;1000;(AMP,569532);CS20 No Model Compatibility List $39.98 / Each

4,5,6
1000228040 712267 1000228040 P48 TV Power;1700;(SCD-554DCS103BB1G+TKP H66 No Model Compatibility List $21.04 / Each

4,5,6
1000228042 712269 1000228042 Not Shown TV PWR EXT;900(H6630R1-04+DC 2.5x5.5 No Model Compatibility List $16.88 / Each

4,5,6
1000229018 712470 1000229018 E05 Axle, Central;SCM440;CHM;PEDAL;Long; No Model Compatibility List $42.10 / Each

8,9
1000229060 712479 1000229060 E10 Snap Ring;X STYLE;CS17; No Model Compatibility List $1.38 / Each

2
1000229467 712551 1000229467 W53 CONSOLE CONTROL BOARD;H001;COATING;EP611 No Model Compatibility List $25.26 / Each

7
1000229865 712611 1000229865 AG15 Arm Rest set;-;L;painting;CS21;F75A2-DH0 No Model Compatibility List $181.98 / Each

3
1000229894 712614 1000229894 G10 Connect Plate,Kettle Rack,ABS 746,BL/Bla No Model Compatibility List $4.20 / Each

3,4,5,6
1000230083 712660 1000230083 Not Shown OVERLAY SET;TV;EP612;-; No Model Compatibility List $140.38 / Each

4,5,6
1000230371 712719 1000230371 R27 BEARING;PLB;LCP204-LLU;20(NKB); No Model Compatibility List $38.12 / Each

8
1000230607 712778 1000230607 R35 SCREW;SH;M10X1.5PX35L;;HS;;BZN;; No Model Compatibility List $1.28 / Each

2
1000231078 712866 1000231078 Q51 SCREW;BH;?X5X1.6PX12L(HI-LO);PH;BZN; No Model Compatibility List $1.28 / Each

2
1000231080 712867 1000231080 W27 Wire;Ipod;550(JST XADR-16+PAP-06/-10);T7 No Model Compatibility List $25.26 / Each

4,5,6
1000231122 712870 1000231122 Not Shown E-PORT EXTENDED WIRE;350(##,3205615600 A No Model Compatibility List $12.98 / Each

9,4,5,6
1000231589 712940 1000231589 Not Shown SCREW;BH;M3X0.5PX6L;CT;PH;SST;BAN; No Model Compatibility List $1.28 / Each

2
1000232274 713008 1000232274 W47 GND;-;-;Yellow/Green1;I-POD;18AWG;200mm; No Model Compatibility List $6.48 / Each

1
1000232817 713051 1000232817 P03 USB Wire;-;-;500+550;(JST XAP-06V-1X2+KS No Model Compatibility List $10.38 / Each

4,5,6
1000233231 713135 1000233231 N46 FIXING PLATE;15 INCH;SPCC;0.8t;T-7xe-04- No Model Compatibility List $25.98 / Each

3
1000233262 713147 1000233262 1 Panel Board Set;15 inch;-;-;TFT LCD;EP61 No Model Compatibility List $1.00 / Each

7
1000301732 713334 1000301732 Q10 shield set;ASH TRAY;-;C-5X/7X-01-F;- No Model Compatibility List $39.30 / Each

3
1000303525 713455 1000303525 P51 Sensor Set;;;;;;;1350L(KFPS,XE-SP50NE1T No Model Compatibility List $140.38 / Each

1
1000309599 713915 1000309599 P52 Fixing Plate;Sensor;;Zinc Plate;1.5T;;CS No Model Compatibility List $1.28 / Each

3
1000309601 713916 1000309601 7 shield set;;left;;CS23;; No Model Compatibility List $192.38 / Each

3
1000309603 713917 1000309603 Q41 Fixing Bracket;U Shape;;POM+GF;BL/Black No Model Compatibility List $2.58 / Each

2,3,4,5,6
1000309606 713918 1000309606 Q43 Fixing Plate;LOW ROW;;painting;;Black4;C No Model Compatibility List $6.48 / Each

3,4,5,6
713919 1000309607 8 shield set;;right;;CS23;; No Model Compatibility List $196.28 / Each

3
1000309609 713920 1000309609 Q20 Repair Cover-Extrawork;;left;Print;;CS23 No Model Compatibility List $99.98 / Each

9
1000309612 713921 1000309612 Q21 Repair Cover-Extrawork;;right;Print;;CS2 No Model Compatibility List $99.98 / Each

9
713922 1000309614 Q05 shield set;Frame;up;;CS23;; No Model Compatibility List $65.98 / Each

3
713923 1000309616 Q06 Decorate Cover;;front;ABS/PA756S;Gray/80 No Model Compatibility List $46.78 / Each

9
713924 1000309617 Q07 Cover;;front;ABS/PA756S;Gray/80435;;CS23 No Model Compatibility List $35.08 / Each

9
1000309619 713925 1000309619 Q18 Cover Plate;;right;;;ABS;BL;CS23; No Model Compatibility List $77.98 / Each

9,3
1000309660 713928 1000309660 Q11 Fixing Plate;TRANSMISSION;;painting;;Fla No Model Compatibility List $31.18 / Each

3
1000313163 714287 1000313163 Not Shown Hardware Set;;;S-BOM;CS23;; No Model Compatibility List $20.78 / Each

1
1000323618 715314 1000323618 W20 Control Board Set;LMM;;;EP613;; No Model Compatibility List $1199.00 / Each

7
1000328462 715806 1000328462 AG16 Arm Rest set;;R;painting;F75 D2 DH042;Rh No Model Compatibility List $158.58 / Each

3
1000328463 715807 1000328463 AB2 Frame Set;;R;painting;F75 D2 DH042;Rhino No Model Compatibility List $223.58 / Each

3
1000328464 715808 1000328464 AB3 Frame Set;;L;painting;F75 D2 DH042;Rhino No Model Compatibility List $222.28 / Each

3
1000336787 716452 1000336787 2 console mast set;;;MATRIX Purple;CS23B; No Model Compatibility List $204.08 / Each

7
1000336874 716473 1000336874 7 Side Cover Set;;left;Purple;CS23B;; No Model Compatibility List $262.58 / Each

9
716474 1000336875 8 Side Cover Set;;right;Purple;CS23B;; No Model Compatibility List $265.18 / Each

9
1000336879 716477 1000336879 V21 Decal;Side Cover;;;;;;CS23B; No Model Compatibility List $6.48 / Each

7,9,3
1000336880 716478 1000336880 V22 LOGO Label;;;;;;;CS23B; No Model Compatibility List $6.48 / Each

1
1000336881 716479 1000336881 Q20 Service Set;Side Cover;left;;CS23B; No Model Compatibility List $79.28 / Each

9
1000336882 716480 1000336882 Q21 Service Set;Side Cover;right;;CS23B; No Model Compatibility List $79.28 / Each

9
1000336884 716481 1000336884 Q05 Cover;Frame;up;ABS-756S;Purple;;; No Model Compatibility List $42.88 / Each

9,3
1000336885 716482 1000336885 Q06 Decorate Cover;;front;ABS/PA756;Purple;; No Model Compatibility List $46.78 / Each

9
1000336886 716483 1000336886 Q07 Cover;;front;ABS/PA756;Purple;;CS23B; No Model Compatibility List $38.98 / Each

9
1000336890 716485 1000336890 C07 Accent Plate;TV-MOUNT;;painting;;MATRIX No Model Compatibility List $10.38 / Each

2,3,4,5,6
1000336891 716486 1000336891 C12 Handlebar Connect Block;;;painting;;MATR No Model Compatibility List $84.48 / Each

11
716490 1000336915 P63 Power;;;;;;660L;(TKP,H20J2-02);CS24 No Model Compatibility List $5.58 / Each

4,5,6
1000336916 716491 1000336916 P02 Controller Set;Sensor;;ECB/H001;IO/H002; No Model Compatibility List $499.00 / Each

7,8
1000336920 716492 1000336920 Not Shown Connect Board;I/O;DC;H002;;;CS24; No Model Compatibility List $28.06 / Each

4,5,6
1000336923 716493 1000336923 Q38 Bousing;Transmission;;ABS/PA757;BL/Black No Model Compatibility List $2.58 / Each

4,5,6
1000336924 716494 1000336924 Q39 Bousing;Receiver;;ABS/PA757;BL/Black C;; No Model Compatibility List $2.58 / Each

4,5,6
1000336925 716495 1000336925 Q36 Connect Board;;left;ABS PA-758;Limpid Bl No Model Compatibility List $6.48 / Each

1
1000336926 716496 1000336926 Q37 Connect Board;;right;ABS PA-758;Limpid B No Model Compatibility List $6.48 / Each

1
1000336928 716497 1000336928 9 TREAD SET;;back;;CS24;; No Model Compatibility List $210.58 / Each

4,5,6
1000336930 716498 1000336930 P08 Control Board;Transmit sensor;;H001;;;CS No Model Compatibility List $24.68 / Each

7
1000336933 716499 1000336933 P12 Control Board;Receive sensor;;H001;;;CS2 No Model Compatibility List $42.88 / Each

7
1000348689* 717934 1000348689* Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
1000350050 718277 1000350050 Q08 Cover Plate;;;PP;BL/Black C;;CS24; No Model Compatibility List $45.48 / Each

9,3,4,5,6
1000350726 718392 1000350726 R36 Supt Base;TRANSMISSION;;painting;;Flat B No Model Compatibility List $9.08 / Each

3
1000351694 718571 1000351694 B56 Spacer;Rail;;;A; No Model Compatibility List $2.32 / Each

2,9,3,4,5,6
1000352533 718645 1000352533 E06 Space Ring;Pedal;;POM;BL/Black C;;CS23; No Model Compatibility List $1.10 / Each

8,9,4,5,6
1000353342 718757 1000353342 W28 Ipod Extend Wire;;;;;;300(MF1512S0017+JA No Model Compatibility List $56.14 / Each

9,4,5,6
1000354903 718983 1000354903 R45 Brake Set;;;;CS17; No Model Compatibility List $350.98 / Each

8
719127 1000356178 Z31 Screw;Round Head;M8x1.25Px20-15L;Machine No Model Compatibility List $0.00 / Each
Out Of Stock
2,4,5,6
1000356740 719182 1000356740 W58 Quickly Key Wire;;;;;;;200+250(TKP,H254M No Model Compatibility List $14.28 / Each

9,4,5,6
1000356740* 719183 1000356740* Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
1000359148 719260 1000359148 3 Arm Rest set;;left up;;CS24; No Model Compatibility List $414.16 / Each

3
1000359150 719261 1000359150 13 Hand Grip Set;Quickly Key;left;;CS24; No Model Compatibility List $84.22 / Each

9,11
1000359159 719262 1000359159 G31 Overlay;Quick Key;Left;;;CS24; (Overlay ONLY; NO membrane) No Model Compatibility List $14.02 / Each

9
1000359163 719263 1000359163 4 Arm Rest set;;right up;;CS24; No Model Compatibility List $412.76 / Each

3
1000359164 719264 1000359164 14 Hand Grip Set;Quickly Key;right;;CS24; No Model Compatibility List $84.22 / Each

9,11
1000359165 719265 1000359165 G32 Overlay;Quick Key;Right;;;CS24; (Overlay ONLY; NO membrane) No Model Compatibility List $14.02 / Each

9
1000366087 719822 1000366087 13/14 Hand Grip Set;Quickly Key;Right/Left;;CS No Model Compatibility List $154.42 / Each

9,11
1000366515 719870 1000366515 W24 Earphone board set;;;;EP620; No Model Compatibility List $32.48 / Each

1
1000380282 721063 1000380282 AR10 Connect Axle;Brake;;SUS316;CS17; No Model Compatibility List $22.08 / Each

8
1000383493 721487 1000383493 T10 Terminal;100;JMT,J1730BS-2(With a plasti No Model Compatibility List $5.58 / Each

1
1000402662 723041 1000402662 P25 Photo Interrupter Set;;;;CS29; No Model Compatibility List $19.50 / Each

1
1000404540 723181 1000404540 W24/W58 Earphone board set;;;;Earphone board set No Model Compatibility List $51.98 / Each

1
1000425274 724734 1000425274 AW1 Tuner Module;;;REV 2.0;S20170417;;US for No Model Compatibility List $452.38 / Each

1
103403 725263 103403 B81 Rear Carriage Roller; Nylon+30%G;TM369 Yes Model Compatibility List $11.76 / Each

2,8
069851 725318 069851 W33 Console TV Cable Extended Wire;250L(FM-0086-N No Model Compatibility List $7.80 / Each

7,9,4,5,6
069859 725319 069859 AP1 Filter Board Yes Model Compatibility List $43.04 / Each

1
069904 725322 069904 P63 Ferrite; Cord;FH0650B;CB32-P16A No Model Compatibility List $2.58 / Each

4,5,6
726204 080701 P54 Cable Clamp;KSS UC-04 No Model Compatibility List $31.82 / Each

4,5,6
726227 080808 B79 Screw;BH;M4X0.7PX45L;;PH;;BZN;; No Model Compatibility List $1.28 / Each

2
726397 081594 W101 Pulse Wire;150(FDFNYD2-250-1+546BS-2);TM No Model Compatibility List $2.80 / Each

4,5,6,12,13,14
726549 082734 P59 Washer;Senated;M5.3X10X0.6;Zinc Plate No Model Compatibility List $1.38 / Each

2,3
726562 082875 D60 Screw;BH;M3X0.5PX20L;;PH;;BZN;; No Model Compatibility List $1.38 / Each

2
726594 083278 Z22 USB Cover;USB-03 No Model Compatibility List $1.46 / Each

9
726627 083692 P63 Washer;TOOTH;M5.3X10X0.6;Nickel No Model Compatibility List $1.28 / Each

2
726826 085362 E44 Screw;SH;M8X1.25PX20L;;HS;;BAN;; No Model Compatibility List $1.38 / Each

2
726832 085415 W33 LVDS Wire;15 Inch TFT LCD;410(HRS DF14H-20P+D No Model Compatibility List $21.22 / Each

7,4,5,6,12,13,14
085779 726885 085779 AM1 Elevator Motor;AC;110V/123mm;JM03;only Yes Model Compatibility List $272.98 / Each

4,5,6,10
726928 086064 N33 Cover;Console;Right;ABS/PA-746;BL;TM501; No Model Compatibility List $2.58 / Each

7,9
726929 086065 N34 Cover;Console;Left;ABS/PA-746;BL;TM501; No Model Compatibility List $2.58 / Each

7,9
726939 086127 H38 Nut;HEX;M10X1.5P;10 No Model Compatibility List $2.80 / Each

2
086204 726951 086204 Not Shown Power Cord;Non NEMA;15 feet; 90 DEGREE No Model Compatibility List $58.96 / Each

3,4,5,6,9
0000086264 726965 0000086264 P04 Ground Wire;Console;Pulse Extended;220(5.0 OT+KST M No Model Compatibility List $2.80 / Each

4,5,6,7,9,12,13,14
086310 726974 086310 P44 Screw;BH;M5X0.8PX75L;CT;PH;;NKL;; No Model Compatibility List $2.58 / Each

2
726993 086533 N47 Bracket;Isolation Board Cover;0.6t;TM503 No Model Compatibility List $6.48 / Each

2,9,3,4,5,6
727017 086684 W13 Speaker Set;AK-402808BC-3T+280+XAP-02;TM No Model Compatibility List $13.58 / Each

1
727041 086852 W38 Rubber Ring;GM-5 No Model Compatibility List $0.78 / Each

1
727076 087056 N13 Vent;Fan;ABS/PA-746;Pantone:877C;TM501; No Model Compatibility List $34.80 / Each

8
727194 087672 Z41 Screw;Hex Socket;Round;M5x0.8Px8L No Model Compatibility List $1.38 / Each

2
727213 087846 N49 Foam;Overlay;1;315.5x4.0x1.0t;Rubber/BL; No Model Compatibility List $1.28 / Each

1
727214 087847 V01 No Model Compatibility List $0.00 / Each
Out Of Stock
1
727215 087848 V09 No Model Compatibility List $0.00 / Each
Out Of Stock
1
727351 088743 N81 Screw;TRH;M3x.5Px6L;MT;PH;CST;ZNC;F-T No Model Compatibility List $1.38 / Each

2
727358 088790 N52 Anti-Slippery Pad;TPR+30%PP;BL;MX-E5XC-F No Model Compatibility List $7.00 / Each

12,13,14
727371 088888 N42 insulation Plate;INVETER;PC;8B35;3M-467; No Model Compatibility List $1.40 / Each

3
0000088923 727375 0000088923 C11 Bottle Holder Set;Console Mast;ABS/PA746;BL Yes Model Compatibility List $11.94 / Each

7
727421 089108 W34 Wire;Tuner Signal;JST PAP-12;T7x-01; No Model Compatibility List $23.92 / Each

4,5,6
727423 089111 P47 Tape;Dual Sided;20x30x3t;TM501; No Model Compatibility List $0.08 / Each

1
727442 089261 N18 Cover;IPOD Fixing;ABS/PA746;Deep Grey 80 No Model Compatibility List $2.80 / Each

9
727469 089486 N12 Bushing;KSS Moveable;KG-008;10M/Reel; No Model Compatibility List $18.18 / Each

8
727474 089506 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
727503 089637 R02 Pulley;Poly-V;;;FC25;J8198;;S70 No Model Compatibility List $60.72 / Each

8
727514 089691 W02 TV Control Board Set;TM503;T7xe; No Model Compatibility List $307.82 / Each

7,4,5,6
727534 089835 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
727543 089849 W45 Wire;Hand Pulse Sensor;350L(2510A-06,TKP No Model Compatibility List $16.08 / Each

4,5,6,12,13,14
727716 090570 B37 SCREW;SET;M8X1.25PX20L;;;;BZN;; No Model Compatibility List $1.28 / Each

2
727795 091027 W25 LCM Wire;130L(H6630R1-18)x2 No Model Compatibility List $20.04 / Each

4,5,6
727796 091028 W30 TV Key Wire;160L(H6630R1-14)x2 No Model Compatibility List $6.48 / Each

9,4,5,6
727858 091621 N41 Fix Plate;Tuner;MX-E7X-C;US;EP91 No Model Compatibility List $12.80 / Each

3
727961 092217 W75 Heart Rate Power Wire;250L(2510A-03+XAP- No Model Compatibility List $7.02 / Each

4,5,6,12,13,14
728026 092696 N202 Fixing Plate;Fan;0.8t;T5x-02; No Model Compatibility List $7.00 / Each

8,3
728043 092811 B80 Screw;Round;Hex Socket;M8X1.25PX50L(Yrw29 No Model Compatibility List $2.80 / Each

2
728132 093219 AB1 RIGHT MAIN FRAME SET No Model Compatibility List $453.16 / Each

3
728166 093369 B69 Screw;SH;M8x1.0Px35L;;HS;;BZN; No Model Compatibility List $1.28 / Each

2
728188 093508 P03 GND Wire;Filter;200(KST FLDNY2-250kz+GE No Model Compatibility List $2.58 / Each

4,5,6
728368 094371 V13 Decal;Warning;finger;A5x-03;US;EP79 No Model Compatibility List $1.28 / Each

7,3
728371 094425 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
728374 094431 P56 Fan;Cooling;FD128025LB;DC 12V/0.1A;T7000 No Model Compatibility List $70.18 / Each

8,4,5,6
0000094929 728450 0000094929 J11 Cap;Stabilizer;Left-Front;ABS/PA757;P804 Yes Model Compatibility List $9.26 / Each

9
0000095100 728498 0000095100 J12 Cap;Stabilizer;Right-Front;ABS/PA757;P80 Yes Model Compatibility List $7.26 / Each

9
728542 095231 W04 Control Board;USB;H001;U105A5;EP603; No Model Compatibility List $21.76 / Each

7
728544 095247 W52 C-Safe;E LEAD;3P00DMJE001-0A;EP92F; No Model Compatibility List $80.64 / Each

1
728600 095575 N203 Tape;Foam;One-Sided;50x15x1.5T; No Model Compatibility List $1.28 / Each

1
728616 095641 N157 SCREW;RND;#X4.0X1.34PX8L(HI-LO);PH;BZN; No Model Compatibility List $1.28 / Each

2
729046 Order left hand grip set (13) G33 Membrane No Model Compatibility List $0.00 / Each
Out Of Stock
1
729060 Order right hand grip set (14) G35 Membrane No Model Compatibility List $0.00 / Each
Out Of Stock
1
729118 Part of Kit 1 AB6 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729120 Part of Kit 10 AR1 Lower Handlebar Set;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729123 Part of Kit 11 AR2 Upper Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729124 Part of Kit 12 R18 Lower Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729125 Part of Kit 13 G22 Link Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729127 Part of Kit 14 G23 Crank Pin Sleeve;Aluminum Casting;EP525- No Model Compatibility List $0.00 / Each
Out Of Stock
8,3,12,13,14
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
7
729152 Part of Kit 3 AG14 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
729165 Part of Kit 4 AG13 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
729172 Part of Kit 5 P16 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729191 Part of Kit 6 P39 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729194 Part of Kit 7 Q01 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3,10
729197 Part of Kit 8 Q02 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3,10
729201 Part of Kit 9 Q09 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
1000412356 000349 1000412356 # 1 Service Set;;;Power Internal - Service KITS SET; Yes Model Compatibility List $59.99 / Each

6
View Drawing
