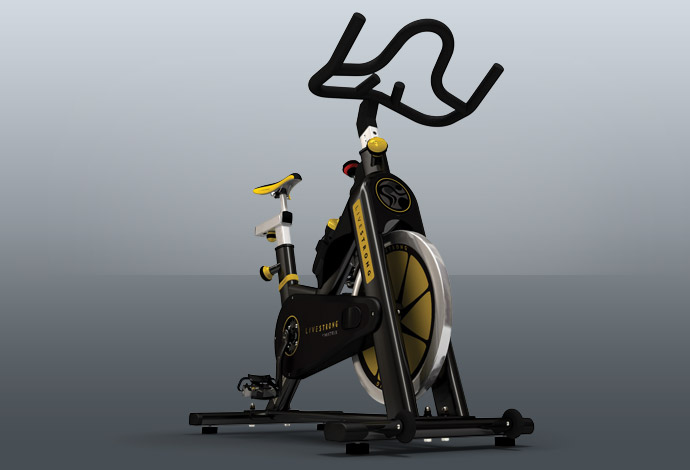

Matrix Commercial - E-Series LS - 2010

Repair Parts for Matrix Commercial E-Series LS TAHB,LAEB

Brand: Matrix Commercial

Category: Indoor Cycle

Type: Stationary Bikes

Model Name: E-Series LS

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
0 701155 004073-A3 02 40 H L Ball Bearing;6001ZZ;12x28x8T No Model Compatibility List $9.57 / Each

8
0 701159 004077-A2 02 40 C 2RS Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
N 701402 004456-00 Not Shown Screw;Round;Hex Socket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
N 701617 004636-AC Not Shown Screw;Umbrella Cross Tapped;4x15L No Model Compatibility List $1.66 / Each

2
N 702253 005382-00 Not Shown Wrench;Open;13x15 No Model Compatibility List $5.90 / Each

2
N 704110 020256-AD NOT SHOWN Screw;BH;M5X0.8PX10L;;HS;;CHM;; No Model Compatibility List $0.70 / Each

2
729265 ZMD4001580 N/A Wireless Computer-ICG Bikes No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
729266 ZMD4001581 N/A Mount Kit + Transmitter-Spin Bike No Model Compatibility List $0.00 / Each
Out Of Stock 		2,12,13,14
0 729407 ZMS3000260 02 20 04 Tomahawk-Rubber Stop Insert E-S Series No Model Compatibility List $33.77 / Each

1
0 729408 ZMS3000261 02 10 A Tomahawk-Insert Sleeve E-S Series No Model Compatibility List $65.60 / Each

3
0 729410 ZMS3000263 02 40 C S 08 Tomahawk-Crank Mounting Bolts No Model Compatibility List $13.52 / Each

2,8
0 729411 ZMS3000265 02 40 CRMO L E 08 Tomahawk-Left Crank for E Series No Model Compatibility List $182.34 / Each

8
0 729412 ZMS3000266 02 40 CRMO R E 08 Tomahawk-Right Crank for E Series No Model Compatibility List $182.34 / Each

8
0 729415 ZMS3000269 02 40 H Tomahawk-Flywheel Axle E-S Series No Model Compatibility List $51.04 / Each

8
0 729416 ZMS3000274 02 40 BE Tomahawk-Contitech Belt 1397/550L E-S Se No Model Compatibility List $138.53 / Each

15
0 729422 ZMS3000282 02 50 06 Tomahawk-Retainer for Brake Pad-E Series No Model Compatibility List $47.42 / Each

8,12,13,14
0 729423 ZMS3000283 02 50 03 A Tomahawk-Upper Brake Assembly E Series No Model Compatibility List $58.37 / Each

8,3
0 729424 ZMS3000284 02 50 05 Tomahawk-Lower Brake Assembly E-Series No Model Compatibility List $58.37 / Each

8,3
0 729425 ZMS3000285 02 50 A Tomahawk-Brake Adjustment and Emergency No Model Compatibility List $51.04 / Each

8
0 729426 ZMS3000286 02 99 02 Tomahawk-Plastic Sweat Guard E-Series No Model Compatibility List $189.12 / Each

9,3
729427 ZMS3000291 02 42 01 E 08 Tomahawk-Inner Chain Guard-E Series No Model Compatibility List $109.41 / Each

9,3
0 729430 ZMS3000294 02 42 03 E 10 Tomahawk-Left Cover for Flywheel hub of No Model Compatibility List $94.85 / Each

8,9
0 729431 ZMS3000295 02 42 04 Tomahawk-Plastic Pop Out Cover for Chain No Model Compatibility List $18.28 / Each

9,12,13,14
0 729432 ZMS3000298 02 10 B LS Tomahawk-Pop Pin Adjustment Knob for Ver No Model Compatibility List $45.60 / Each

12,13,14
0 729433 ZMS3000308 02 20 02 Tomahawk-Insert Sleeve E-Series No Model Compatibility List $36.48 / Each

3
0 729434 ZMS3000310 02 11 02 E 08 Tomahawk-Rear Stabilizer E Series No Model Compatibility List $218.82 / Each

1
0 729436 ZMS3000314 02 11 06 Tomahawk-Black Plastic End Cap-E Series No Model Compatibility List $36.48 / Each

9,4,5,6
0 729437 ZMS3000316 02 11 A Tomahawk-Transport Wheel E/S Series No Model Compatibility List $27.35 / Each

8
0 729438 ZMS3000317 02 11 05 B Tomahawk-Leveling Rubber Foot E/S Series No Model Compatibility List $51.04 / Each

9,3
0 729439 ZMS3000318 02 99 10 Tomahawk-Protection Plate for Front Stab No Model Compatibility List $109.41 / Each

3
0 729440 ZMS3000319 02 99 11 Tomahawk-Protection Plate for Rear Stabi No Model Compatibility List $109.41 / Each

3
0 729441 ZMS3000320 02 11 B Tomahawk-Stabilizer Mounting Kit E/S Ser No Model Compatibility List $43.81 / Each

2
0 729442 ZMS3000321 02 11 E Tomahawk-PVC Gasket No Model Compatibility List $9.10 / Each

1
0 729445 ZMS3000328 01 40 A 3 Tomahawk-Toe Strap No Model Compatibility List $18.23 / Each

1
0 729446 ZMS3000373 02 50 04 Tomahawk- Brake Pads, E & S Series No Model Compatibility List $60.22 / Each

8,12,13,14
0 729450 ZMS3000399 02 21 01 AL Tomahawk-E Series Bike Saddle Support No Model Compatibility List $651.72 / Each

3
0 729452 ZMS3000404 02 50 03 B Tomahawk-E-S-X Brake Adjustment Drum No Model Compatibility List $42.48 / Each

8
0 729453 ZMS3000405 02 30 01 AL Tomahawk-E Series Handlebar Aluminum No Model Compatibility List $793.42 / Each

11
0 729454 ZMS3000410 01 21 AK Tomahawk-Saddle mounting Bracket for E-S No Model Compatibility List $41.96 / Each

2,3,4,5,6
0 729458 ZMS4000107 02 40 BPG Tomahawk-Pulley Rear No Model Compatibility List $387.89 / Each

8
0 729459 ZMS4000108 02 40 BPK Tomahawk-Pulley front incl. ring No Model Compatibility List $255.71 / Each

8
0 729460 ZMS4000109 02 40 90 Tomahawk-Pulley tighten bolts No Model Compatibility List $44.12 / Each

2,8
0 729461 ZMS4000110 02 40 02 Tomahawk-Chain/belt tensioning assembly No Model Compatibility List $44.12 / Each

15,3
0 729463 ZMS4000115 02 99 03 Tomahawk-Allen bolt M4X15 with washer fo No Model Compatibility List $8.42 / Each

2
0 729464 ZMS4000118 02 11 01 E Tomahawk-Front Stabilizer No Model Compatibility List $396.86 / Each

1
0 729479 ZMS4000294 02 10 E Tomahawk-Retrofit Kit No Model Compatibility List $72.98 / Each

1
0 729485 ZMS4000434 02 21 E LS LIVESTRONG-E-SERIES SADDLE No Model Compatibility List $220.45 / Each

1
0 729487 ZMS4000437 02 99 02 10 HB E&S-Series Dual Water Bottle Holder & Bracket - Handlebar No Model Compatibility List $91.23 / Each

2,3,4,5,6,11
0 729489 ZMS4000442 02 42 02 E 08 LIVESTRONG-E-SER. OUTER CHAIN GUARD No Model Compatibility List $308.59 / Each

9,3
0 729492 ZMS4000448 02 99 50 E LS 10 LIVESTRONG-E-SERIES DECAL SET No Model Compatibility List $244.89 / Each

7,3
N 729531 ZMS4001213 Not Shown Screw;Flat;Handlebar;M8x10L;Stainless No Model Compatibility List $4.86 / Each

2,11
N 729537 ZMS4001255 Not Shown Battery, AA for console No Model Compatibility List $4.50 / Each

7
N 729538 ZMS4001256 Not Shown Battery, AAA for transmitter No Model Compatibility List $4.16 / Each

1
N 729544 ZMS4001527 Not Shown Decal for Flywheel-E Serie No Model Compatibility List $50.67 / Each

7,8,3
N 729739 ZMS4004413 Not Shown IC5 Ant+ Console & Bike Transmitter Kit No Model Compatibility List $511.03 / Each

7
N 729752 ZMS4004666 Not Shown BRICK MAGNET 15 x 10 x 5MM IC5/7 CAM PUL No Model Compatibility List $16.41 / Each

8
N 729802 ZMS4005526 Not Shown M5-0.8 x 16mm DIN 7985 Pan Head Phillips No Model Compatibility List $2.18 / Each

1
N 729803 ZMS4005528 Not Shown M5-0.8 x 50mm DIN 7985 Phillips Pan Head No Model Compatibility List $3.64 / Each

1
0 729806 ZMS4005733 01 40 A2 COMBI PEDAL SET, SPD COMPATIBLE No Model Compatibility List $292.01 / Each

8,9
0 729871 ZMS4006852 02 40 C MD20 08 BOTTOM BRACKET KIT No Model Compatibility List $148.69 / Each

2,3,4,5,6
View Drawing
