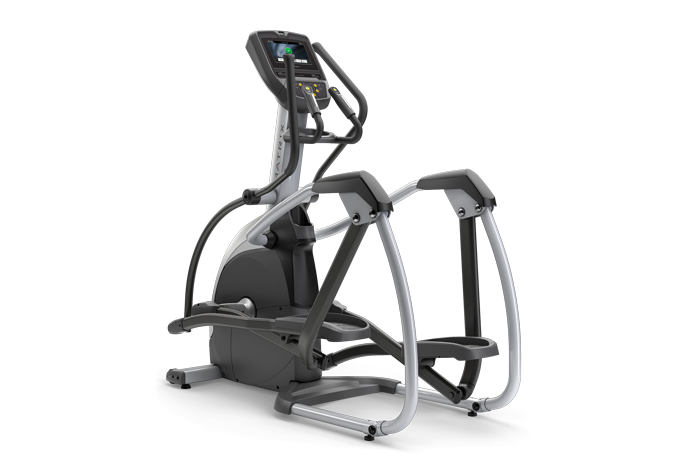

Matrix Commercial - E1xe-02 - 2017

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000041-AA 700024 000041-AA L01 Transport Wheel Yes Model Compatibility List $7.00 / Each

8
001129-B 700359 001129-B E23 End Cap;Front Stabilizer No Model Compatibility List $1.46 / Each

9
002137-E 700750 002137-E Not Shown Power Cord;3000;3000;16AWG No Model Compatibility List $42.10 / Each

4,5,6
003553-D 701064 003553-D P32 Power Electric Resistance;Contain Wire;4 400W10,650(3.96-4P WH Yes Model Compatibility List $114.34 / Each

4,5,6,10
004385-AD 701335 004385-AD B33 Screw;Button Head;M5x0.8Px12L;Cutting;Ph No Model Compatibility List $1.28 / Each

2
701340 004387-AE Z33 SCREW;BH;M5X0.8PX10L;;PH;SSTSUS304;BAN;; No Model Compatibility List $0.00 / Each
Out Of Stock
2
701392 004448-00 Q60 Screw;SH;M5X0.8PX10L;;HS;;BZN;; No Model Compatibility List $0.00 / Each
Out Of Stock
2
004453-00 701400 004453-00 P54 Screw;SH;M5X0.8PX25L;;HS;;BZN;; No Model Compatibility List $1.28 / Each

2
004454-00 701401 004454-00 S61 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.38 / Each

2
004493-00 701449 004493-00 Z03 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.38 / Each

2
004518-00 701465 004518-00 Z04 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $2.80 / Each

2
004538-AC 701502 004538-AC Z10 Screw;Socket Head;M8x1.25Px20L;;Hex Sock No Model Compatibility List $2.58 / Each

2
004556-AB 701524 004556-AB Z35 Screw;Hex Socket;Round;M12x1.75Px25L;Cr; No Model Compatibility List $1.38 / Each

2
004623-00 701599 004623-00 Q41 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $1.54 / Each

2
004626-00 701602 004626-00 B42 Screw;Phillip;BH;Tapped;4x10L;BED; No Model Compatibility List $1.54 / Each

2
004653-00 701631 004653-00 Q40 Screw;Round;PH;Tapped;4X12L No Model Compatibility List $1.54 / Each

2
004891-00 701869 004891-00 S57 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $1.54 / Each

2
004911-00 701885 004911-00 H14 Nut;Hex;M16x2.0Px7.0L;Zn Pl Yes Model Compatibility List $1.28 / Each

2
004957-00 701924 004957-00 E18 Nut;Lock;M25X1.5P;SS41;BAN Yes Model Compatibility List $2.80 / Each

2
005025-00 701987 005025-00 E17 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005042-00 702004 005042-00 B38 Washer;Flat;8.2X30.0X2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005043-7 702006 005043-7 Z28 Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro No Model Compatibility List $1.28 / Each

7,2,12,13,14
005062-00 702030 005062-00 H33 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.22 / Each

7,2,12,13,14
005067-00 702037 005067-00 J07 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.22 / Each

2,4,5,6
005078-00 702050 005078-00 S63 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005106-00 702074 005106-00 S56 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.22 / Each

2,4,5,6
005220-00 702178 005220-00 L52 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005367-00 702242 005367-00 R13 C-Clip;External;S-30 No Model Compatibility List $3.08 / Each

2
005844-B 702304 005844-B Q33 Fix Buckle Base;PVC;GM01 No Model Compatibility List $1.38 / Each

3
005845-B 702306 005845-B Q32 Fix Buckle Base;Nylon;GM01 No Model Compatibility List $1.38 / Each

3
020069-00 703990 020069-00 B37 Screw;SH;M8X1.25PX12L;HS;BP;G12.9; No Model Compatibility List $1.38 / Each

2
020487-ZA 704215 020487-ZA S65 Washer;Flat;10.5x18x2.5T No Model Compatibility List $1.54 / Each

2
020634-00 704220 020634-00 B29 Tinnerman Nut;M5 No Model Compatibility List $1.54 / Each

2
028275-AA 704979 028275-AA B56 Adjustable Leveler Yes Model Compatibility List $1.46 / Each

3
056006-A 705750 056006-A P08 Grip Pulse Extension Wire;1000(5.0 OWzP) No Model Compatibility List $7.00 / Each

4,5,6,12,13,14,11
065248-A 706754 065248-A P17 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $2.80 / Each

4,5,6
065712-A 706800 065712-A P70 Screw;;Umbrella Cross;M5x0.8Px25L; No Model Compatibility List $1.42 / Each

2
1000096289 707842 1000096289 H32 Screw;SH;M10x110L-15L;-;HS;-;CHM;BP;G12. No Model Compatibility List $4.54 / Each

2
1000102866 708450 1000102866 H56 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.66 / Each

2
1000104691 708662 1000104691 H26 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $2.80 / Each

2
1000104695 708666 1000104695 H60 Screw;RND;M10x1.5Px85L;HS;G8.8;CHM;BP No Model Compatibility List $1.98 / Each

2
708862 1000106765 Q42 Screw;BH;#p3x10L;TC;PH;-;BZN;POT;-; No Model Compatibility List $0.00 / Each
Out Of Stock
2
1000203752 709834 1000203752 Q25 Pin Set; No Model Compatibility List $10.18 / Each

12,13,14
1000206625 710068 1000206625 Z05 NUT;-;M10X1.5P;G10;BAN;; No Model Compatibility List $1.22 / Each

2
1000207054 710162 1000207054 R17 Belt;POLY-V;-;1206 J8;FLEXONIC; Yes Model Compatibility List $70.18 / Each

15
1000209856 710385 1000209856 H65 Nut;CUSTOM;M10X1.5P;S45C;CHM; Yes Model Compatibility List $7.00 / Each

2
1000215738 710998 1000215738 H66 Cap;Nut;S45C;EP304; Yes Model Compatibility List $7.00 / Each

2,9
1000227460 712197 1000227460 H64 WASHER;FLT;Diam.21.2XDiam.40.0X2.0T;NYL+ No Model Compatibility List $2.58 / Each

2
1000231572 712934 1000231572 Z23 SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; No Model Compatibility List $1.54 / Each

2
1000232960 713082 1000232960 S02 Control Board;Generator;;H001;ErP-S100;; Yes Model Compatibility List $421.18 / Each

7,8
713167 1000233513 P71 Wire Tie;Releasible;KSS HV-250SBK;250L;N No Model Compatibility List $0.00 / Each
Out Of Stock
2,4,5,6
1000304372 713491 1000304372 Z13 Washer;Sawtooth;Diam.8.5XDiam.18.0X2.0T; No Model Compatibility List $1.28 / Each

2
1000304478 713519 1000304478 Z07 Screw;Button Head;M5x0.8Px12L;-;Phillip; No Model Compatibility List $1.38 / Each

2
1000313185 714293 1000313185 H63 Screw;Socket Head;M10X1.5PX45L(25L);;Hex No Model Compatibility List $2.80 / Each

2
1000345612 717503 1000345612 E14 Decorate Cover;Pedal;left;PP;137C;;EP589 No Model Compatibility List $4.54 / Each

8,9
1000345613 717504 1000345613 E15 Decorate Cover;Pedal;right;PP;137C;;EP58 No Model Compatibility List $4.90 / Each

8,9
1000347104 717725 1000347104 AC1 Console Mast-Extrawork;;;Screen print;;E No Model Compatibility List $111.78 / Each

7
1000347213 717731 1000347213 Q22 Kettle Rack;;;ABS/PA757;GRAY;;EP591; No Model Compatibility List $9.08 / Each

4,5,6
1000347261 717732 1000347261 E11 Cover;Pedal Arm;Inner;ABS/PA757;GRAY;;EP No Model Compatibility List $4.54 / Each

8,9,3
1000347262 717733 1000347262 E12 Cover;Pedal Arm;Outer;ABS/PA757;GRAY;;EP No Model Compatibility List $4.54 / Each

8,9,3
1000347279 717734 1000347279 AH5 link arm set;;L;painting;T75#100909NVP;; No Model Compatibility List $77.98 / Each

3
1000347280 717735 1000347280 AH6 link arm set;;R;painting;T75#100909NVP;; No Model Compatibility List $77.98 / Each

3
1000347281 717736 1000347281 AH81 BEARING SET;;;??;;EP591;; No Model Compatibility List $60.36 / Each

8
1000347284 717737 1000347284 Q15 Cover;Link Arm;Inner;ABS/PA757;GRAY;;EP5 No Model Compatibility List $2.58 / Each

9,3
1000347285 717738 1000347285 Q16 Cover;Link Arm;Outer;ABS/PA757;GRAY;;EP5 No Model Compatibility List $4.54 / Each

9,3
1000347289 717740 1000347289 AH3 CON TUBE SET;;R;painting;BP-920S;MATRIX/ No Model Compatibility List $61.08 / Each

3
1000347296 717741 1000347296 Q21 Cover;Arm Rest;back;ABS/PA757;Q520-7-3;; No Model Compatibility List $18.18 / Each

9,3,4,5,6
717742 1000347297 AH31 Swing Arm Set;;;;EP591;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000347316 717745 1000347316 AJ1 Crank Set;;;painting;BP-920S;MATRIX/SL/G No Model Compatibility List $129.98 / Each

8
1000347326 717748 1000347326 Q03 Cover;Accent;front;ABS/PA757;;;EP591;604 No Model Compatibility List $33.78 / Each

9,4,5,6
1000347327 717749 1000347327 Q04 Cover;Accent;back;ABS/PA757;Q520-7-3;;EP No Model Compatibility List $25.98 / Each

9,4,5,6
1000347328 717750 1000347328 Q08 Cover Plate;Fixing;back;ABS/PA757;GRAY;; No Model Compatibility List $2.58 / Each

9,3,4,5,6
1000347329 717751 1000347329 Q34 Boot;Connect Tube;right;TPE;Q520-7-3;;EP No Model Compatibility List $4.54 / Each

3
1000347331 717752 1000347331 Q35 Boot;Connect Tube;right;TPE;Q520-7-3;2;E No Model Compatibility List $2.58 / Each

3
1000347332 717753 1000347332 Q07 Decorte Cover;Frame;down;ABS/PA757;GRAY; No Model Compatibility List $23.38 / Each

9,3
1000347413 717766 1000347413 AE3 Connect Base Set;Semi-Assy;;;;EP591;; No Model Compatibility List $83.18 / Each

3
1000347422 717770 1000347422 P07 Connect;;;;;;1050L;TKP-10P+(TKP-3P)X2+11 No Model Compatibility List $20.78 / Each

1
1000348228 717879 1000348228 Q36 Boot;Connect Tube;left;TPE;Q520-7-3;;EP5 No Model Compatibility List $4.54 / Each

3
1000348230 717881 1000348230 Q37 Boot;Connect Tube;left;TPE;Q520-7-3;2;EP No Model Compatibility List $2.58 / Each

3
717889 1000348335 R03 Bearing;Ball;6206LUZ(C3);Diam.30XDiam.62 No Model Compatibility List $20.78 / Each

8
1000348524 717901 1000348524 AR11 Pulley Axle Set;;;;;EP591;; No Model Compatibility List $103.98 / Each

8
1000350493 718315 1000350493 AT4 Idler Set;;;Integrated;EP304; Yes Model Compatibility List $42.10 / Each

8
1000352800 718666 1000352800 J08 Cover;Crank;Outer;ABS/PA757;SL/GY;;EP591 No Model Compatibility List $10.38 / Each

8,9
1000352869 718692 1000352869 AH4 CON TUBE SET;;L;painting;BP-920S;MATRIX/ No Model Compatibility List $61.08 / Each

3
1000359128 719257 1000359128 P48 TV Power;;;;;;2100mm;DC025M+H6630R1-06; No Model Compatibility List $18.18 / Each

4,5,6
1000359129 719258 1000359129 P16 Network Signal;;;;;;1900mm;QS3205615600+ No Model Compatibility List $20.78 / Each

1
1000360687 719364 1000360687 P46 Filter GND;;;;;14AWG;360mm;KST250+Diam.5 No Model Compatibility List $4.54 / Each

1
1000360688 719365 1000360688 P45 PWR Switch Set;;;;;;600+120mm;KST 250x2+ No Model Compatibility List $25.98 / Each

4,5,6
1000362102 719501 1000362102 Q27 Decorate Sleeve;Hand Pulse;;PVC;BL/Black No Model Compatibility List $1.68 / Each

3,4,5,6,12,13,14
720436 1000372827 Not Shown Hardware Set;;;;EP591; No Model Compatibility List $0.00 / Each
Out Of Stock
1
1000374546 720665 1000374546 G04 Pulley Cover;Base;;;Q520-7-3;;EP591; No Model Compatibility List $5.18 / Each

8,9,3
1000380814 721131 1000380814 P28 Filter PWR;;;;;;250mm;;KST-FLDNY1-250x2+ No Model Compatibility List $7.78 / Each

1
1000381368 721249 1000381368 Q17 Foot Pad;Pedal;left;SBR;BL/Black C; No Model Compatibility List $57.18 / Each

8,9,3,4,5,6,12,13,14
721250 1000381369 Q18 Foot Pad;Pedal;right;SBR;BL/Black C; No Model Compatibility List $44.18 / Each

8,9,3,4,5,6,12,13,14
721505 1000383537 J05 Screw;Button Head;M10X1.5PX15L;;Hex Sock No Model Compatibility List $0.00 / Each
Out Of Stock
2
721506 1000383538 Z30 Screw;Button Head;M4X0.7PX8L;;Phillip;St No Model Compatibility List $0.00 / Each
Out Of Stock
2
721620 1000384763 Not Shown Manual;Assembly/Manipulate;;English;;EP5 No Model Compatibility List $0.00 / Each
Out Of Stock
3
721922 1000386600 2 Side Cover Set;Semi-Assy;right up;;;EP59 No Model Compatibility List $71.48 / Each

9
721923 1000386601 1 Side Cover Set;Semi-Assy;left up;;;EP591 No Model Compatibility List $71.48 / Each

9
1000386602 721924 1000386602 3 Side Cover Set;Semi-Assy;left down;;;EP5 No Model Compatibility List $55.88 / Each

9
1000386603 721925 1000386603 4 Side Cover Set;Semi-Assy;right down;;;EP No Model Compatibility List $57.18 / Each

9
1000386604 721926 1000386604 AG11 Arm Rest Set;Semi-Assy;left;;;EP591;; No Model Compatibility List $81.88 / Each

3
1000386605 721927 1000386605 AG21 Arm Rest Set;Semi-Assy;right;;;EP591;; No Model Compatibility List $81.88 / Each

3
1000386606 721928 1000386606 AE11 Pedal Arm set;Semi-Assy;left;;;EP591;; No Model Compatibility List $77.98 / Each

8,9,3
1000386607 721929 1000386607 AE21 Pedal Arm set;Semi-Assy;right;;;EP591;; No Model Compatibility List $77.98 / Each

8,9,3
721937 1000386696 P15 Signal cable set Wire;;;;;;;; No Model Compatibility List $10.38 / Each

4,5,6
1000386697 721938 1000386697 P01 Console Wire Set;;;;;;1300mm;MOLEX,50-57 No Model Compatibility List $20.78 / Each

7,4,5,6
722183 1000388691 C20 Screw;Button Head;F4x12L;Sheet Metal Thr No Model Compatibility List $0.00 / Each
Out Of Stock
7,2,3,12,13,14
722306 1000390875 C23 Screw;Round Head;M3x0.5Px30L;;Phillip;St No Model Compatibility List $0.00 / Each
Out Of Stock
2
1000391118 722338 1000391118 C21 Screw;Round Head;M3x0.5Px12L;Machine Thr No Model Compatibility List $1.28 / Each

7,2,4,5,6,12,13,14
722389 1000391682 P27 Battery Set;;;;;1015 16AWG;350;;E1-F No Model Compatibility List $0.00 / Each
Out Of Stock
1
722594 1000395015 AQ7 Hand Pulse Grip Set;;left;;;;EP591; No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14,11
722595 1000395040 AQ8 Hand Pulse Grip Set;;right;;;;EP591;SBOM No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14,11
722617 1000395972 AR5 Transmission set+Tools;;;;;;EP591;SBOM No Model Compatibility List $105.28 / Each

1
1000396391 722631 1000396391 Not Shown Adapter;;100-240V;;;12V/5A;FY1205000 No Model Compatibility List $77.98 / Each

1
1000399195 722867 1000399195 5 Hand Pulse Grip Set;Semi-Assy;left;;;;EP No Model Compatibility List $38.98 / Each

12,13,14,11
1000399197 722868 1000399197 6 Hand Pulse Grip Set;Semi-Assy;right;;;;E No Model Compatibility List $38.98 / Each

12,13,14,11
1000399216 722869 1000399216 7 Link Arm Set;Semi-Assy;left;;;;EP591;Ser No Model Compatibility List $168.98 / Each

3
1000399217 722870 1000399217 8 Link Arm Set;Semi-Assy;right;;;;EP591;Se No Model Compatibility List $157.28 / Each

3
723004 1000402407 AH41 Adjustable Arm Set;;;;;;EP710; No Model Compatibility List $114.38 / Each

3
723498 1000407124 J03 Screw;Socket Head;M10x1.5Px70L-35L;Machi No Model Compatibility List $3.88 / Each

2,4,5,6
723632 1000410967 Q13 Pedal;;left;PP;80435 (injected);;EP710; No Model Compatibility List $14.28 / Each

8,9
723633 1000410970 Q14 Pedal;;right;PP;80435 (injected);;EP710; No Model Compatibility List $14.28 / Each

8,9
1000412379 723729 1000412379 P05 Filter Board Set;;;L178A1 H001;;;EP304B; Yes Model Compatibility List $44.18 / Each

1
726198 080692 44 Generator Wire;550L;JST VHR-5+MOLEX 4202 No Model Compatibility List $10.14 / Each

7,8,4,5,6,12,13,14
726986 086513 B58 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $0.34 / Each

2
727057 086948 F33 WASHER;FLT;Diam.10.5XDiam.28.0X2.0T;SPHC No Model Compatibility List $1.54 / Each

2
727194 087672 Z41 Screw;Hex Socket;Round;M5x0.8Px8L No Model Compatibility List $1.38 / Each

2
0000089783 727526 0000089783 S01 Generator Set JM07-004 Yes Model Compatibility List $293.30 / Each

8
727788 090959 S20 Nut;Hex;M10x1.5P;Cr Plate; No Model Compatibility List $1.28 / Each

2,3
728178 093400 H31 Screw;FH;M5x0.8Px15L;;PH;;BAN;CT No Model Compatibility List $1.12 / Each

2
728236 093717 S62 Washer;Ribbed;Lock;10.5X16X1TX1.6H;BED No Model Compatibility List $1.28 / Each

2
094297 728359 094297 H10 Pedal;PP;Black;EP217 No Model Compatibility List $34.06 / Each

8,9,4,5,6
728448 094924 P13 KSS HC-0R No Model Compatibility List $1.46 / Each

1
0000094929 728450 0000094929 J11 Cap;Stabilizer;Left-Front;ABS/PA757;P804 Yes Model Compatibility List $9.26 / Each

9
728477 095035 Q12 COVER;SWING ARM;ABS/PA746;DG/80435; No Model Compatibility List $2.58 / Each

9,3
728482 095050 H23 Swivel Shaft A;SCM440;EP304; No Model Compatibility List $9.44 / Each

3
728483 095051 H24 Swivel Shaft B;SCM440;EP304; No Model Compatibility List $10.38 / Each

3
728497 095097 G33 Tube Cap;FK01004(38.1) No Model Compatibility List $1.28 / Each

9,3
0000095100 728498 0000095100 J12 Cap;Stabilizer;Right-Front;ABS/PA757;P80 Yes Model Compatibility List $7.26 / Each

9
728560 095322 Not Shown Bracket;Console;ABS/PA746;DG/80435;EP603 No Model Compatibility List $20.26 / Each

7,2,3,4,5,6
0000095638 728614 0000095638 J15 Foot Pad;Adjustable;M12X58H;12.9;EP304; Yes Model Compatibility List $26.04 / Each

3,9,12,13,14
729899 ZMS4008362 P20 Battery, Rechargeable; 12V 1.2AH NP1.2-1 No Model Compatibility List $0.00 / Each
Out Of Stock
1
View Drawing
