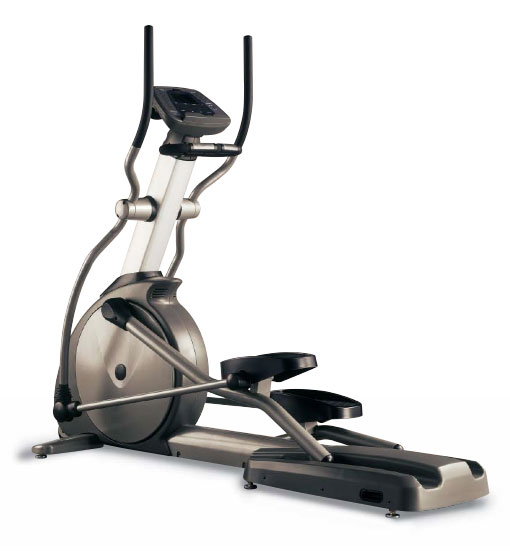

Matrix Commercial - E5-G1 - 2002-2004

Repair Parts for Matrix Commercial E5-G1 MEP23

Brand: Matrix Commercial

Category: Traditional

Type: Elliptical

Model Name: E5-G1

Version: 2002-2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - R45 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
B 700016 000028-D B36 Transport Wheel;Nylon;100;BL;;EP23 Yes Model Compatibility List $25.14 / Each

8
Q 700043 000193-E Q03 Cap;TV Rack;;PVC;;;;EP23 No Model Compatibility List $3.64 / Each

9,4,5,6
Q 700044 000194-D Q04 Boot;Console Mast;Right No Model Compatibility List $8.42 / Each

7
Q 700045 000195-D Q05 Boot;Console Mast;Left No Model Compatibility List $8.42 / Each

7
Q 700046 000196-G Q06 Cap;Console Mast;R;ABS;;BL;;EP23 No Model Compatibility List $8.42 / Each

7,9
Q 700047 000197-H Q07 Cap;Console Mast;L;ABS;;;;EP23 ABS No Model Compatibility List $8.42 / Each

7,9
Q 700048 000198-F Q08 Boot;Console Mast;Down No Model Compatibility List $16.22 / Each

7
Q 700075 000279-B Q15 Fix Plate;E-PORT No Model Compatibility List $9.10 / Each

3
Q 700081 000307-D Q11 Cover;Frame;R;ABS;;;;EP23 ABS No Model Compatibility List $193.62 / Each

9,3
G 700206 000661-B G18 Foam Grip;Arm Rest;31x3tx483L;BL;JHT No Model Compatibility List $22.33 / Each

3,11
E 700215 000694-A E46 Foam Tape No Model Compatibility List $1.66 / Each

1
P 700285 000868-A P13 End Protect Cap;EP-1113;Black Yes Model Compatibility List $1.66 / Each

9,4,5,6
E 700303 000911-B E17 Cap;Tube;;ABS;;;;EP07 No Model Compatibility List $3.35 / Each

9,3
Grip;Handlebar;;PP;;BL;;EP22 700310 000928-A B49 Grip;Handlebar;;PP;;BL;;EP22 No Model Compatibility List $1.72 / Each

11
End Cap;Pulse Grips;Outer 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

9,12,13,14,11
C 700377 001167-A C34 CONSOLE MAST UPPER SLEEVE PVC BLACK No Model Compatibility List $3.35 / Each

7,3,4,5,6
Boot;Console Mast;PVC;BL;EP23B 700378 001169-AA Q14 Boot;Console Mast;PVC;BL;EP23B No Model Compatibility List $58.40 / Each

7
C 700391 001194-C C50 Washer;Console Mast;Rubber(Hardness305 No Model Compatibility List $3.35 / Each

7,2
F 700443 001395-B F03 Rubber Pad;Guide Rail;Rubber;EP23 No Model Compatibility List $18.41 / Each

9,12,13,14
Q 700453 001408-E Q19 End Cap;Crank Disc;Round Yes Model Compatibility List $6.24 / Each

8,9
E 700469 001447-C E28 Pedal Pad;Right;Rubber;BL;EP23 Yes Model Compatibility List $91.23 / Each

8,9,12,13,14
E 700470 001448-C E29 Pedal Pad;Left;Rubber;FL;EP23 No Model Compatibility List $91.23 / Each

8,9,12,13,14
E 700490 001502-D E42 Brush;PP;EP23 No Model Compatibility List $8.42 / Each

1
C 700530 001537-EA C22 TV BACK COVER TV No Model Compatibility List $14.72 / Each

9,4,5,6
Q 700541 001569-D Q23 Sleeve;Arm Rest;PVC;BL;EP23 No Model Compatibility List $9.10 / Each

3
P 700570 001679-00 P11 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
P 700699 001937-A P20 E-PORT Circuit Board Set;Contain PCB Board No Model Compatibility List $11.18 / Each

7,4,5,6
P 700714 002016-D P02 Console Cable;1550 (XAP-07V-1+H6657P-2+H6657R1-8) No Model Compatibility List $84.47 / Each

7,4,5,6
P 700786 002315-D P21 Sensor Wire;Pulse Grip;L;700 (H6657R1-2+ 700 (H6657R1-2+110XF) No Model Compatibility List $8.42 / Each

4,5,6,12,13,14,11
P 700788 002317-D P07 Pulse Grip Wire 700 (H6657R1-2+110 F Socket) No Model Compatibility List $9.10 / Each

4,5,6,12,13,14,11
P 700882 002640-D P03 E-Port Power Connecting Wire, 1550(XAP-02V-1+H6657P-2) No Model Compatibility List $10.04 / Each

4,5,6
Connect Wire;Electron Control Set;200(3.96-5P) 700883 002641-H P05 Connect Wire;Electron Control Set;200(3.96-5P) No Model Compatibility List $9.33 / Each

7,4,5,6
Power Exchange Wire;900(XAP-02V-1+H6657R1- 700885 002643-D P19 Power Exchange Wire;900(XAP-02V-1+H6657R1- No Model Compatibility List $8.42 / Each

4,5,6
Earphone Extended Line;185(3.5 Three-D E 700890 002668-E P26 Earphone Extended Line;185(3.5 Three-D E No Model Compatibility List $26.68 / Each

7,9,12,13,14
P 700892 002670-B P18 Earphone Wire;TV;850 No Model Compatibility List $26.88 / Each

4,5,6
P 700904 002711-G P04 TV Signal Wire;E-PORT;1550(RG-6)X2 With 1550(RG-6)X2 W/ADAPTERX No Model Compatibility List $15.81 / Each

4,5,6
P 700908 002717-C P23 TV PWR Wire;TV Rack;600(H6657R1-2+JPN St 600(H6657R1-2+ezP[c-) No Model Compatibility List $8.42 / Each

4,5,6
P 700909 002718-C P24 TV Signal Wire;TV Rack;600(5C-2V)X2;EP23 600(5C-2V)X2 No Model Compatibility List $14.79 / Each

4,5,6
N 700944 002897-F N40 Manipulate Overlay;MX U5/R5/E5(USA)(vf[); MX U5/R5/E5(U.S.A.) No Model Compatibility List $47.32 / Each

1
N 700997 003196-C N51 Membrane Switch;Right;MATRIX U5/R5/E5;ES No Model Compatibility List $13.88 / Each

4,5,6
N 700998 003198-A N53 Membrane Switch;Left;MATRIX U5/R5/E5;ES No Model Compatibility List $13.88 / Each

4,5,6
Membrane Switch;Down;MATRIX U5/R5/E5;MKS/ES 701002 003203-B N54 Membrane Switch;Down;MATRIX U5/R5/E5;MKS/ES No Model Compatibility List $15.00 / Each

4,5,6
Ferrite Choke;FH0900B-2;Lian Ci;TM38 701032 003383-A P20 Ferrite Choke;FH0900B-2;Lian Ci;TM38 No Model Compatibility List $9.10 / Each

1
P 701064 003553-D P06 Power Electric Resistance;Contain Wire;4 400W10,650(3.96-4P WH Yes Model Compatibility List $148.64 / Each

4,5,6,10
701073 003569-A P14 Middle Connect Transform;F Type;F-A005(-N No Model Compatibility List $3.35 / Each

1
B 701104 003836-C B35 Roller Axle;F;SS41;EP23 No Model Compatibility List $8.42 / Each

8
701113 003882-F R04 Poly-V Pulley;253.5;PP+20% Fiber;EP23 FC20 No Model Compatibility List $0.00 / Each
Out Of Stock 		8
701116 003886-B R03 235POLY-V PULLEY EP23-R03A No Model Compatibility List $0.00 / Each
Out Of Stock 		8
R 701117 003886-C R03 Pulley;Poly-V;PP+20%;235; EP23-R03C No Model Compatibility List $53.04 / Each

8
E 701137 004011-B E10 Pedal;Left;ABS;BL;EP23 No Model Compatibility List $78.31 / Each

8,9
E 701154 004072-A2 E35 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
R 701162 004079-A3 R08 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

8
T 701168 004084-00 T04 Ball Bearing No Model Compatibility List $32.63 / Each

8
H 701191 004134-00 H08 Bearing;Lower Link Arm End;PHS 16(M16x2) PHS 16(M16X2) Yes Model Compatibility List $63.73 / Each

8,9,3
R 701212 004172-00 R09 Drive Belt;Poly-V;480-J8 No Model Compatibility List $54.73 / Each

15,10
R 701223 004192-00 R11 Drive Belt;Poly-V;430-J12 No Model Compatibility List $54.73 / Each

15,10
N 701275 004339-00 N25 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
C 701286 004355-00 C51 Screw;Oval;PH; M4X0.7PX10L No Model Compatibility List $2.00 / Each

2
701302 004364-AD B45 Screw;Phillip;BH;M5x0.8Px12L;Black; No Model Compatibility List $2.00 / Each

2,4,5,6
Screw;Phillip;BH;M5x0.8Px8L; 701304 004366-00 D18 Screw;Phillip;BH;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
E 701305 004366-AB E36 Screw;Phillip;BH;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
F 701316 004372-00 F02 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
Screw;Umbrella Cross;M5x0.8Px12L 701333 004385-AB T09 Screw;Umbrella Cross;M5x0.8Px12L No Model Compatibility List $1.79 / Each

2
S 701350 004398-00 S55 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $1.79 / Each

2
J 701370 004420-00 J05 Screw;FH;M5X0.8PX15L;;PH;;BAN;; No Model Compatibility List $1.79 / Each

2
S 701390 004447-AB S13 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
Z 701406 004460-00 Z10 Screw;Round;Hex Socket;M6X1.0PX20L No Model Compatibility List $1.66 / Each

2
C 701430 004479-00 C25 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

2
701433 004481-00 S18 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
E 701446 004488-AC E22 Screw;Hex Socket;Round;M8x1.25Px55L No Model Compatibility List $1.79 / Each

2
Z 701462 004515-00 Z09 Screw;SH;M10X1.5PX30L;;HS;;BZN;; No Model Compatibility List $3.35 / Each

2
E 701463 004516-00 E37 Screw;Round Hex Socket;M10x1.5Px60L;Cr P No Model Compatibility List $3.64 / Each

2
C 701466 004518-AB C20 ROUND HEX SOCKET SCREW M10X1.5PX75L No Model Compatibility List $8.42 / Each

2
Screw;Hex Socket;Round;M10X1.5PX75L;(35L);HS;;;; 701467 004518-AD J53 Screw;Hex Socket;Round;M10X1.5PX75L;(35L);HS;;;; No Model Compatibility List $8.71 / Each

2
C 701481 004527-AC C26 Screw;Round;Hex Socket;M8x1.25Px35L No Model Compatibility List $1.79 / Each

2
G 701483 004529-00 G12 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $1.79 / Each

2
C 701490 004533-AB C23 Screw;Hex Socket;Round;M8x1.25Px65L Yes Model Compatibility List $1.79 / Each

2
B 701532 004564-00 B44 Screw;Hex Socket;Round;M8x1.25Px15L; No Model Compatibility List $1.66 / Each

2
Screw;Plain Hex Socket;M8x1.25Px45L 701539 004568-00 T07 Screw;Plain Hex Socket;M8x1.25Px45L No Model Compatibility List $1.66 / Each

2
701542 004570-00 T07 Screw;Hex Socket;M8X1.25PX50L No Model Compatibility List $1.66 / Each

2
J 701548 004575-AC J09 Screw;Hex Socket;Sink;M8X1.25PX10L No Model Compatibility List $1.66 / Each

2
E 701555 004583-A E40 Screw;Plain Hex Socket;M5x0.8Px12L No Model Compatibility List $1.66 / Each

2
B 701569 004602-A B50 Screw;Hex;M10X1.5PX55L No Model Compatibility List $3.35 / Each

2
Q 701585 004616-00 Q27 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

2
B 701586 004617-00 B43 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701607 004628-00 C24 Screw;Oval Tapping;Phillip;5x15L No Model Compatibility List $1.59 / Each

2,12,13,14
Screw;BH;5X15L;TC;PH;;BZN;;POT 701609 004628-AC Z02 Screw;BH;5X15L;TC;PH;;BZN;;POT No Model Compatibility List $1.66 / Each

2
C 701612 004631-00 C22 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

2
Screw;Umbrella Cross Tapped;4x15L 701617 004636-AC L06 Screw;Umbrella Cross Tapped;4x15L No Model Compatibility List $1.66 / Each

2
E 701658 004695-AB E34 Screw;Hex Socket;Flat;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
Screw;Flat Hex Socket;M8x1.25Px15L;BED; 701671 004704-A Z41 Screw;Flat Hex Socket;M8x1.25Px15L;BED; No Model Compatibility List $1.66 / Each

2
E 701687 004718-00 E46 Screw;Oval;Hex Socket;M8X1.25PX10L No Model Compatibility List $1.85 / Each

2
L 701700 004724-AC L03 Screw;Hex Socket;BH;M8x1.25Px15L;Cr No Model Compatibility List $2.00 / Each

2
C 701745 004768-00 C32 Screw;Oval;Hex Socket;BH;M8X1.25PX15L No Model Compatibility List $1.79 / Each

2
n 701788 004802-00 not shown Screw;Hex Socket;BH;CrMo;M5x0.8Px10L No Model Compatibility List $3.35 / Each

2
E 701841 004859-00 E48 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Screw;Self Tapping;4x10L 701848 004865-00 P07 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
N 701858 004880-00 N27 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
T 701862 004884-00 T11 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

2
T 701863 004885-00 T10 Nut;Hex;M10x1.5P No Model Compatibility List $2.00 / Each

2
S 701870 004892-00 S10 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
E 701878 004905-00 E45 Nut;Hex;M14x1.5Px7H No Model Compatibility List $8.42 / Each

2
H 701885 004911-00 H11 Nut;Hex;M16x2.0Px7.0L;Zn Pl Yes Model Compatibility List $5.99 / Each

2
T 701897 004926-00 T08 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
S 701907 004933-00 S51 Nut;Nylon;1/4"'-20UNC;BED No Model Compatibility List $1.79 / Each

2
G 701912 004941-00 G16 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
E 701914 004943-00 E38 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
701925 004959-B C27 Nut;Hex;Snug;M33x2.0Px15T No Model Compatibility List $9.83 / Each

2
R 701926 004961-A R48 Nut;Hex;M30x1.5Px8T No Model Compatibility List $6.73 / Each

2
J 701930 004967-AB J06 Nut;Hex;Flange;M16x1.5P;Carburizing Yes Model Compatibility List $1.79 / Each

2
S 701931 004968-00 S50 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
R 701952 004988-00 R40 Key;Round;Dual-End;6x6x14L No Model Compatibility List $1.90 / Each

9
R 701955 004991-00 R16 Key;Round;Dual-End;6X6X20L No Model Compatibility List $2.37 / Each

9
C 701965 005005-AC C52 Washer;Split;8.2X15.4X2.0T;;BZN; No Model Compatibility List $1.79 / Each

2
Washer;Flat;5.3x10x1.0T;Black Zinc 702050 005078-00 I23 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
S 702070 005102-00 S54 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
E 702082 005116-00 E31 Washer;Flat;25.5X38.0X2.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
T 702088 005120-00 T05 Washer;Flat;20.2x30.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
E 702104 005133-B E39 Washer;Flat;15.2X20.0X3.0T;Zn Plate; No Model Compatibility List $1.66 / Each

2,3
E 702109 005138-A E47 Washer;Flat;10.2x25x1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Washer;Flat;5.0X10.0X1.0T;Stainless 702127 005154-A H002 Washer;Flat;5.0X10.0X1.0T;Stainless No Model Compatibility List $1.79 / Each

2
Washer;Flat;10.2x38.0x1.0T;Stainless 702134 005161-00 E51 Washer;Flat;10.2x38.0x1.0T;Stainless No Model Compatibility List $1.79 / Each

2
C 702136 005165-00 C33 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

2
G 702139 005169-AC G14 Washer;Arc;8.4x20.0x1.5T;Black Zinc No Model Compatibility List $1.66 / Each

2,4,5,6
Washer;Teflon;10.2x38.0x1.0T 702174 005216-B E19 Washer;Teflon;10.2x38.0x1.0T No Model Compatibility List $9.10 / Each

2
E 702185 005228-00 E41 Washer;Wavy;25.5x34.0x2.0T;Nylon No Model Compatibility List $2.00 / Each

2,4,5,6
E 702186 005229-00 E44 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

2,4,5,6
J 702196 005245-A J08 Washer;Lock;16.2x31.5x1.5T No Model Compatibility List $1.79 / Each

2
E 702201 005258-D E49 Washer;Wheel;;WZN; No Model Compatibility List $1.66 / Each

2,8
Q 702217 005330-00 Q21 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
G 702230 005355-00 G11 C-Clip;Internal;R-55 Yes Model Compatibility List $3.64 / Each

2
E 702241 005366-00 E32 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
R 702242 005367-00 R17 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
J 702289 005487-D J07 Spring;Compress Yes Model Compatibility List $9.10 / Each

2
Z 702296 005499-00 Z12 Insert Nail;1/8'X7.5L(4-1); No Model Compatibility List $1.66 / Each

1
Q 702304 005844-B Q26 Fix Buckle Base;PVC;GM01 No Model Compatibility List $1.79 / Each

3
Q 702306 005845-B Q25 Fix Buckle Base;Nylon;GM01 No Model Compatibility List $1.79 / Each

3
702314 005983-C V04 Decal;Matrix Logo No Model Compatibility List $20.38 / Each

7,3
702357 006415-A V14 Sticker;Instruction;White Back Black Word No Model Compatibility List $1.66 / Each

4,5,6
702424 006822-A not shown Assembly Manual No Model Compatibility List $247.83 / Each

3
702439 006918-D not shown Manual;Assembly;ENG;EP23B; SL4.0B No Model Compatibility List $8.42 / Each

3
702469 007768-B S53 Fix Plate;Eye Bolt No Model Compatibility List $1.66 / Each

2,3
N 702471 007806-D N22 Contact Plate;Pulse Sensor No Model Compatibility List $3.82 / Each

3,4,5,6,12,13,14
Q 702483 007964-00 Q22 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702493 008046-D R44 Ring;Center Tube;SS41 No Model Compatibility List $9.10 / Each

3
C 702494 008047-A C17 Ring;Console Mast;;SS41;5.0t;;;;EP23 No Model Compatibility List $3.35 / Each

7
B 702503 008214-C B47 Fix Plate;LCB;;SPC;2.0t;;;EP23 No Model Compatibility List $3.35 / Each

3
702594 008872-C R45 RING AXLE;EP23-E5X-06 No Model Compatibility List $0.00 / Each
Out Of Stock 		8
R 702603 008916-B R43 Nut;Hex;S45C;ZN;; No Model Compatibility List $11.60 / Each

2
C 702604 008934-K C06 Axle;Arm Rest;SCM21/SCM415;EP23-C06K-02; No Model Compatibility List $76.96 / Each

8,3
E 702613 008991-B E26 Axle;Crank Pin;;SCM21;25x34L;Carbon;;;E SS41 No Model Compatibility List $9.10 / Each

8,12,13,14
702615 009002-B T01 Axle;Idler;;SS41;20x32.4L;;;;EP23 No Model Compatibility List $3.35 / Each

8
H 702623 009051-G H05 Swivel Axle;Link Arm;;SCM21;30x35.5L;An SCM21 No Model Compatibility List $9.10 / Each

8,3
H 702624 009052-C H04 Axle;Rod End Bearing;;SS41;16x20.6L;Anti No Model Compatibility List $3.64 / Each

8,9,3
Bushing;A;CU;EP23B SS41 702626 009064-A E18 Bushing;A;CU;EP23B SS41 No Model Compatibility List $1.79 / Each

8
Bushing;;B;CU;;;;EP23B D/C, NO REPL: Part will show as orderable until stock is depleted. 702627 009065-B H07 Bushing;;B;CU;;;;EP23B D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.79 / Each

8
E 702742 009471-A E27 Bushing;;;CU;38;;;EP23 POWDER METALLURGY No Model Compatibility List $3.64 / Each

8,3
702746 009484-A H14 Bushing;;;CU;42;;;EP23 FE POWDER METALLURGY No Model Compatibility List $1.66 / Each

8,3
G 702767 009589-A G19 End Cap;Handlebar;Steel No Model Compatibility List $1.79 / Each

9,11
K 702799 010687-00 Kit EP23 ROUND DISK DISASSEMBLY MACHINE No Model Compatibility List $42.82 / Each

3,4,5,6
A 702902 013182-ZL AG2 LEFT HANDLEBAR SET MX-E5(EP23) No Model Compatibility List $210.11 / Each

11
A 702903 013182-ZR AG1 RIGHT HANDLEBAR SET MX-E5(EP23) No Model Compatibility List $210.11 / Each

11
A 702904 013184-ZL AE2 LEFT PEDAL ARM SET MX-E5(EP23) No Model Compatibility List $504.37 / Each

8,9,3
A 702905 013184-ZR AE1 RIGHT PEDAL ARM SET MX-E5(EP23) No Model Compatibility List $504.37 / Each

8,9,3
N 703333 013561-BE N04 Upper Control Board No Model Compatibility List $627.98 / Each

7
S 703351 013663-CD S09 CONTROLLER SET(JE30) MATRIX BIKE Yes Model Compatibility List $591.47 / Each

7,8
703407 014294-B AV5 Semi-Assy;CB32 Generater Label Rendering No Model Compatibility List $0.00 / Each
Out Of Stock 		9
703418 014475-B AV1 Semi-Assy;EP23 Label Rendering;A;EP23-1; EP49-1US(418) No Model Compatibility List $0.00 / Each
Out Of Stock 		9
A 703419 014484-B AR6 Semi-Assy;Center Axle Sleeve Set;A;EP23 MX-E5(EP23-AR6A) No Model Compatibility List $193.88 / Each

8,3
A 703420 014485-A AR7 Semi-Assy;Center Axle Sleeve Set;B;EP23 MX-E5(EP23-AR7A) No Model Compatibility List $222.98 / Each

8,3
Hardware Pack 703424 014517-L not shown Hardware Pack No Model Compatibility List $32.14 / Each

4,5,6
703433 014550-AB AC3 Semi-Assy;TV Supt Rack Set;1US(SHA;EP23B EP23B-1US(SHARP NEW 13 No Model Compatibility List $255.53 / Each

4,5,6
703434 014558-A AR5 Semi-Assy;TM91EP23Transmission;US;EP23 EP36B-1US No Model Compatibility List $0.00 / Each
Out Of Stock 		1
C 703550 015267-AE C21 Fixing Plate;Right TV No Model Compatibility List $17.86 / Each

3,4,5,6
A 703563 015417-A AC1 CONSOLE MASTWELDING PICTURE(PAINT) MX-E5 No Model Compatibility List $289.09 / Each

7
Console Mast Set 703564 015417-AB AC1 Console Mast Set No Model Compatibility List $289.09 / Each

7
A 703567 015459-AB AE3 Pedal Set, Right;EP23 MX-E5(SILVER GRAY COLOR) No Model Compatibility List $225.60 / Each

8,9
Crank Set 703571 015524-AA AJ1 Crank Set No Model Compatibility List $273.75 / Each

8
A 703581 015566-A AE5 Crank Pin Housing Set;EP23 No Model Compatibility List $182.49 / Each

8,12,13,14
H 703583 015589-AB H12 Connecting Plate; No Model Compatibility List $11.67 / Each

3
Connecting Plate; 703584 015589-AG H12 Connecting Plate; No Model Compatibility List $8.42 / Each

3
C 703588 015590-AA C12 Fix Plate;Arm Rest No Model Compatibility List $12.87 / Each

3
703590 015606-A AB2 FRONT COVER ARC FIXING PLATE(PAINT) EP23-1(MX-E5)CHAMPAGNE No Model Compatibility List $119.24 / Each

9,3,4,5,6
Painting;Cover Fix Plate;BL;;F;;EP23 703591 015606-AB AB2 Painting;Cover Fix Plate;BL;;F;;EP23 No Model Compatibility List $71.68 / Each

9,3
G 703594 015609-AC G08 Swivel Base Sleeve Cap;SL/GY No Model Compatibility List $41.08 / Each

9,3
L 703597 015616-A L02 Stabilizer Decorate Cover;E MX-E5(EP23-L02) No Model Compatibility List $220.95 / Each

9
Main Tube Protect Cover;SL/GY;; 703598 015619-AC Q24 Main Tube Protect Cover;SL/GY;; No Model Compatibility List $118.38 / Each

9,3
Console Mast Sleeve;SL/GY;;;;EP 703601 015637-AC C07 Console Mast Sleeve;SL/GY;;;;EP No Model Compatibility List $370.53 / Each

7,3
703728 015910-AB C07 Extrawork;Console Mast Sleeve;;Anodizing POSITIVE POLE No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
703732 015922-AA AC2 Extrawork;Arm Rest;PVC Dipping;;;EP23 PVC(EP23-AC2) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
703812 017999-A P30 Semi-Assy;EP23 Wire Set;;TV No Model Compatibility List $36.50 / Each

4,5,6
703815 018070-B not shown Hardware Bag;EP23-1;EP23 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
C 703823 018141-AE C20 Fixing Plate;TV;Left No Model Compatibility List $16.74 / Each

3,4,5,6
J 703824 018287-A J04 Painting;Disc;;;;;EP23 EP23-J04A D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $326.61 / Each

1
L 703825 018290-A L01 Painting;Stabilizer Decorate Cover;;;;;E MX-E5(EP23-L01) No Model Compatibility List $220.95 / Each

9
703826 018291-AA B40 Painting;Main Tube Protect Cover;;;;;EP2 MX-E5(EP23-B40) No Model Compatibility List $162.55 / Each

9,3
703860 018731-AD not shown CONSOLE CONTROL BOARD;H007S100 MX-U5 H006 S206 No Model Compatibility List $0.00 / Each
Out Of Stock 		7
E 703978 020045-00 E16 Screw;Phillip;Sink;M5x0.8Px12L;;Zn-BL No Model Compatibility List $2.00 / Each

2
704170 020404-00 C27 SNUG NUT M33X2.0PX15T No Model Compatibility List $0.00 / Each
Out Of Stock 		2
704205 020479*A E33 Washer;Flat;10.2x22.0x2.0t; 10.2X22X2.0T No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Washer;Flat;10.2x22.0x2.0T;Chromed 704206 020479-A E33 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Pin;Spring;M3X10L 704295 022311-A Not Shown Pin;Spring;M3X10L No Model Compatibility List $1.66 / Each

2,12,13,14
Swivel Base Set 704382 023631-Z G07 Swivel Base Set No Model Compatibility List $194.09 / Each

3
Handlebar Set;Left 704383 023632-ZL AG2 Handlebar Set;Left No Model Compatibility List $219.02 / Each

11
Handlebar Set;Front 704384 023632-ZM AC2 Handlebar Set;Front No Model Compatibility List $322.95 / Each

11
Pedal Arm Set;Left 704385 023634-ZL AE2 Pedal Arm Set;Left No Model Compatibility List $480.77 / Each

8,9,3
Pedal Arm Set;Right 704386 023634-ZR AE1 Pedal Arm Set;Right No Model Compatibility List $480.77 / Each

8,9,3
E 704387 023636-Z E08 Roller Set - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $127.74 / Each

8
Cover Set;Left 704388 023637-ZL Q02 Cover Set;Left No Model Compatibility List $193.18 / Each

9
Cover Set;Right 704389 023637-ZR Q01 Cover Set;Right No Model Compatibility List $178.88 / Each

9
A 704390 023638-Z AT1 Tension Wheel Set No Model Compatibility List $121.89 / Each

8
A 704391 023639-Z AC3 TV Bracket Set;With Cables No Model Compatibility List $265.77 / Each

2,3,4,5,6
704392 023639-Z1 AC3 TV BRACKET SET W/CABLES MX-E5x(EP23B)SHARP NEW 13"(SILVER GRAY) No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
G 704393 023640-Z G07 Swivel Housing Set No Model Compatibility List $392.11 / Each

1
704394 023641-Z AN2 Pulse Sensor Set No Model Compatibility List $91.23 / Each

12,13,14
Q 704395 023642-ZL Q02 Side Cover Set;Left No Model Compatibility List $136.24 / Each

9
Q 704396 023642-ZR Q01 Side Cover Set;Right No Model Compatibility List $136.24 / Each

9
704618 024474-A not shown Crank Puller Tool, EP23-1 (E5) No Model Compatibility List $0.00 / Each
Out Of Stock 		8
704681 025111-A AB1 FRAME WELDING PICTURE(PAINT) MX-E5 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
705147 038208-A V05 Sticker;Serial No.;;AL;ES;Silver;;CB32 6R No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Q 705700 055204-A Q20 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
E 725256 103296 E43 Bushing No Model Compatibility List $9.57 / Each

8
E 725257 103297 E23 Bushing;Copper No Model Compatibility List $28.42 / Each

8
726322 081319 Q25 Crank arm cover No Model Compatibility List $513.84 / Each

8,9,3
Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 726625 0000083655 167 Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 Yes Model Compatibility List $425.88 / Each

12,13,14
726668 0000083902 182 Bottle Holder;Console Back Yes Model Compatibility List $137.88 / Each

4,5,6,7
726671 084024 Q06 Painting;Console Mast Cap;CN/GY+PU;R;; No Model Compatibility List $77.09 / Each

7,9
726672 084025 Q07 Painting;Console Mast Cap;CN/GY+PU;L;; No Model Compatibility List $77.09 / Each

7,9
726673 084026 Q11 Painting;End Cap;CN/GY+PU;;;;EP23 No Model Compatibility List $253.47 / Each

9
727207 087749 51 Rotational Housing Assembly;MX-E5XC-F;US;E No Model Compatibility List $259.69 / Each

3
Generator Set JM07-004 727526 0000089783 S01 Generator Set JM07-004 Yes Model Compatibility List $381.29 / Each

8
727859 091636 Not Shown Stainless Steel Guide Rail Covers No Model Compatibility List $189.23 / Each

9
729086 Part of AH1 H10 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Generator 1001194 0000089783 0 1 Generator Yes Model Compatibility List $299.00 / Each

1
HR Board Receiver (Used) 1029469 0000083655 HR Board Receiver 1 HR Board Receiver (Used) Yes Model Compatibility List $40.00 / Each

7
Console Cup Holder Accessory Tray 1003982 0000083902 Console Cup Holder Accessory Tray Yes Model Compatibility List $54.99 / Each
1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
