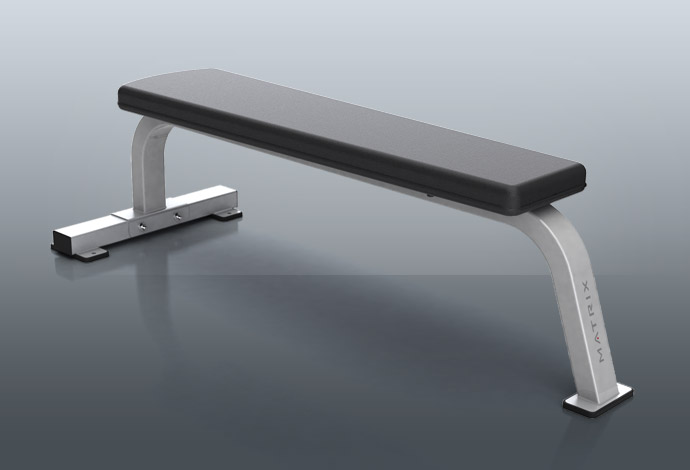

Matrix Commercial - G1-FW151 - 2010

Repair Parts for Matrix Commercial G1-FW151 FW151

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G1-FW151

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Z 701522 004555-AB Z03 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
C 701660 004696-AB C05 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701914 004943-00 Z04 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
Z 704206 020479-A Z02 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 705367 048970-BA B05 Foot Pad;Rubber;GM151 No Model Compatibility List $8.42 / Each

9,3,12,13,14
C 705389 049043-AA C03 Cap;S50.0x75.0;2.0t.3.0t tube No Model Compatibility List $3.35 / Each

9,3
Z 705467 049258-AB Z01 Screw;SH;M10X1.5PX100L;;HS;;CHM; No Model Compatibility List $3.35 / Each

2
V 706157 059631-B V02 Warning Sticker;GM162-KM No Model Compatibility List $9.10 / Each

1
C 706373 061531-AA C04 Leveler;Foot Pad;FW151 No Model Compatibility List $14.56 / Each

9,3,12,13,14
N 706378 061633-A Not Shown Hardware;FW151 No Model Compatibility List $31.30 / Each

1
706843 066162-BA J01 Back Pad;BlackFW151-J01B-00 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
706844 066162-BB J01 Back Pad;redFW151-J01B-00 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
V 709155 1000110518 V01 Sticker;LOGO;PVC;FW151D-KM No Model Compatibility List $8.42 / Each

1
709163 1000110582 J01 Back Pad;Mist Blue;FW151D-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
709183 1000110775 Not Shown Manual;Assembly;FW151D-KM No Model Compatibility List $15.47 / Each

3
A 709528 1000201031 AC1 Stabilizer Frame Set;Painting;GY;FW151 No Model Compatibility List $146.69 / Each

3
709601 1000201597 J01 Back Pad;No Leather;-;HARDNESS:40 5 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
709656 1000201908 AB1 Main Frame; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Logo Label;;;PET;;; 709765 1000202765 V01 Logo Label;;;PET;;; No Model Compatibility List $24.65 / Each

1
710411 1000210164 AC1 BaseFrameSet;Painting;GY;FW151 No Model Compatibility List $187.62 / Each

3
710412 1000210165 AB1 Frame Set;Painting;GY;FW151 No Model Compatibility List $424.22 / Each

3
728977 N/A 4 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7
View Drawing
