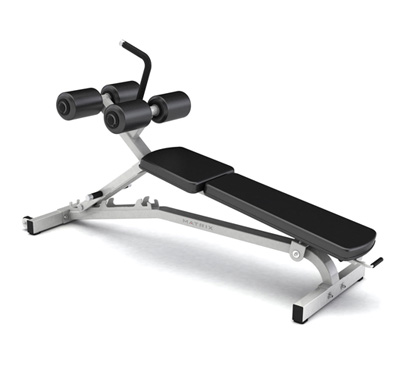

Matrix Commercial - G1-FW152 - 2010

Repair Parts for Matrix Commercial G1-FW152 FW152

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G1-FW152

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700028 000091-C C23 Wheel;;;Nylon;;;;TM06 No Model Compatibility List $0.00 / Each
Out Of Stock 		8
T 700448 001402-A T17 End Cap;Round No Model Compatibility List $1.79 / Each

9
T 700518 001522-B T18 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
T 700520 001525-B T29 Rubber Pad;Stopper No Model Compatibility List $1.79 / Each

12,13,14
Z 701473 004522-AB Z01 Screw;Round;Hex Socket;M10X1.5PX25L No Model Compatibility List $1.79 / Each

2
C 701660 004696-AB C22 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
T 701672 004705-A T20 Screw;TH;M5X0.8PX10L;;HS;;CHM;; No Model Compatibility List $1.66 / Each

2
T 701836 004855-AC T16 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
C 701898 004926-AC C26 Nut;Self Locking;M8x1.25P;Cr;Nylon Insert No Model Compatibility List $2.00 / Each

2
Z 701914 004943-00 Z04 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
C 702085 005117-AB C25 Washer;Flat;8.2x16.0x2.0T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
T 702117 005144-AC T22 Washer;Flat;10.2X35.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
H 702159 005195-00 H14 Washer;Teflon;25.5X38.0X1.0T No Model Compatibility List $4.00 / Each

2
T 702702 009339-C T12 Fix Ring;Round Pad;GM03 No Model Compatibility List $14.12 / Each

12,13,14
T 702721 009371-E T23 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11

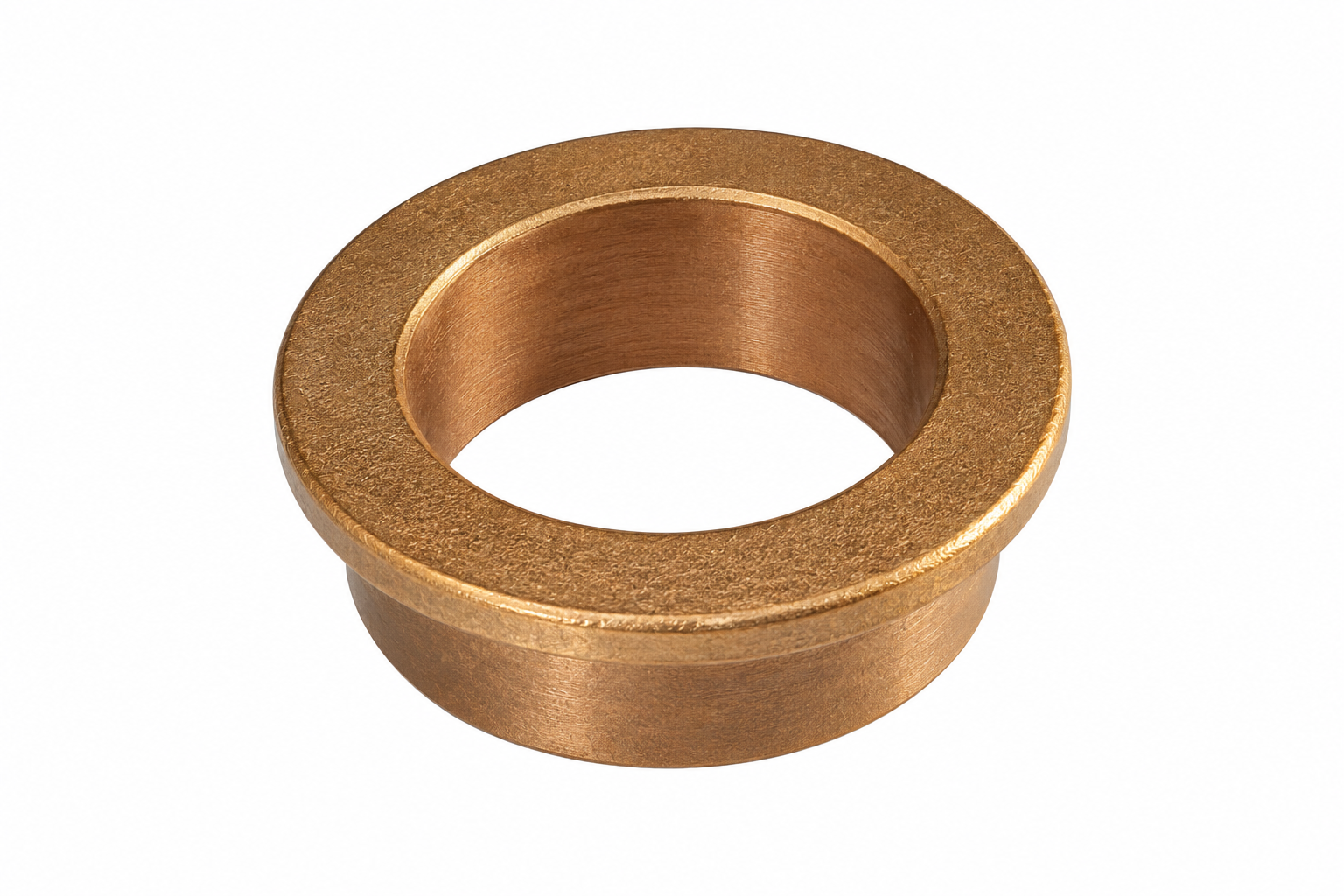

C 702745 009481-B C28 Bushing;Pedal Arm;31x25x11 No Model Compatibility List $3.64 / Each

8,9,3
T 703897 019118-AA T13 Cover;Round Pad;Left;GM03 No Model Compatibility List $3.35 / Each

9,12,13,14
T 703898 019119-AA T14 Cover;Round Pad;Right;GM03 No Model Compatibility List $3.64 / Each

9,12,13,14
Z 704007 020098-AD Z02 Screw;Hex Socket;Round;M10x1.5Px70L;Cr; No Model Compatibility List $9.10 / Each

2
Z 704206 020479-A Z03 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
T 704223 020643-A T15 Clamp;External C-Shaped;S-50;BED; No Model Compatibility List $1.79 / Each

4,5,6
T 704284 022231-A T19 Pad Frame Stabilizer No Model Compatibility List $1.79 / Each

3,12,13,14
C 705369 048973-AA C21 Pad Frame Stabilizer No Model Compatibility List $3.35 / Each

3,12,13,14
T 705373 048987-AA T26 Foam;10.5x5.0tx90L;GM153 No Model Compatibility List $1.66 / Each

1
T 705389 049043-AA T27 Cap;S50.0x75.0;2.0t.3.0t tube No Model Compatibility List $3.35 / Each

9,3
T 705533 050250-A T11 Sleeve;Round Pad;60X4.0TX170L;GM152 No Model Compatibility List $3.35 / Each

3,12,13,14
V 706157 059631-B V04 Warning Sticker;GM162-KM No Model Compatibility List $9.10 / Each

1
H 706442 062323-A H05 Mandrel;ADJ;FW152 No Model Compatibility List $26.16 / Each

1
H 706443 062324-A H07 ADJ Axle;FW152 No Model Compatibility List $33.41 / Each

8
H 706444 062325-B H08 Stopper tube;PVC;FW152 No Model Compatibility List $14.66 / Each

3
H 706445 062326-A H11 Axle;6MM;Q235;FW152 No Model Compatibility List $15.68 / Each

8
H 706472 062612-AA H06 Foam;FW152 No Model Compatibility List $8.42 / Each

1
T 706688 064466-BA T25 Foam;Grip;25.4X5TX450L;FW152 No Model Compatibility List $8.42 / Each

11
H 706986 067941-C H12 Cap;25x50x3.0T;GM20 No Model Compatibility List $1.79 / Each

9
707801 1000095606 AT1 Chair Frame;Painting;FW152 No Model Compatibility List $675.97 / Each

3
707802 1000095611 Not Shown Hardware;Semi-Assy;FW152B-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
H 708710 1000105038 H09 Pin;Spring;5x30L;OXIDIZE No Model Compatibility List $3.64 / Each

2,12,13,14
C 709005 1000108187 C24 Screw;RND;M8x1.25Px45L-20L;MT;HS;CHM No Model Compatibility List $3.64 / Each

2
V 709155 1000110518 V06 Sticker;LOGO;PVC;FW151D-KM No Model Compatibility List $8.42 / Each

1
709167 1000110613 Not Shown Manual;Assembly;FW152D-KM No Model Compatibility List $14.87 / Each

3
709168 1000110617 V01 Serial No. Sticker;FW152D-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
1 709767 1000203014 1 Roller Frame Set;SA;;FW152D-KM;;; No Model Compatibility List $336.62 / Each

8,3
709768 1000203015 2 Base Frame Set;SA;;FW152D-KM;;; No Model Compatibility List $743.18 / Each

3
3 709769 1000203016 3 Stabilizer Set;SA;B;FW152D-KM;;; No Model Compatibility List $259.30 / Each

1
709770 1000203017 4 Adjustment Frame Set;FW152B-KM No Model Compatibility List $623.66 / Each

3
729052 Order Parts Separately 5 Frame Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729118 Part of Kit 1 AC1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AC2 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AC3 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 AH1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729261 See Pad Matrix J09 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
