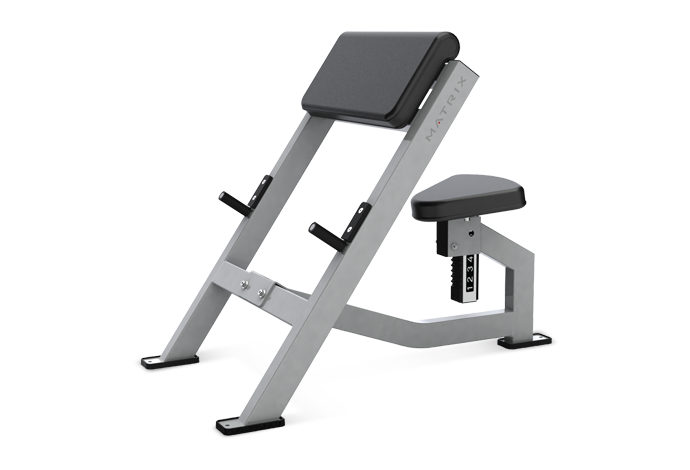

Matrix Commercial - G1-FW155 - 2010

Repair Parts for Matrix Commercial G1-FW155 FW155

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G1-FW155

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
T 701366 004416-AB T05 Screw;FH;M5X0.8PX20L;;PH;;CHM;; No Model Compatibility List $1.79 / Each

2
Z 701465 004518-00 Z01 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
Z 701522 004555-AB Z02 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
B 701530 004562-00 B10 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
B 701660 004696-AB B05 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
H 701898 004926-AC H10 Nut;Self Locking;M8x1.25P;Cr;Nylon Insert No Model Compatibility List $2.00 / Each

2
Z 701914 004943-00 Z04 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
Z 704038 020126-C Z03 Screw;Set;M8X1.25PX20L;;;;CHM;;BP;STOP No Model Compatibility List $1.66 / Each

2
Z 704206 020479-A Z05 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
H 705362 048949-DA H18 Cover;PVC;GM153 No Model Compatibility List $3.35 / Each

9
H 705373 048987-AA H13 Foam;10.5x5.0tx90L;GM153 No Model Compatibility List $1.66 / Each

1
B 705389 049043-AA B11 Cap;S50.0x75.0;2.0t.3.0t tube No Model Compatibility List $3.35 / Each

9,3
H 705417 049112-B H22 Screw;Stopper;GM153 No Model Compatibility List $1.66 / Each

2
T 705423 049130-AA T06 Cover;Square Tube;50X50 ;GM153 No Model Compatibility List $1.66 / Each

9,3
H 705464 049255-B H21 Screw;;M6;;;;CHM;;STOPPER No Model Compatibility List $1.66 / Each

2
H 705479 049278-CB H08 Screw;;;;;20CRMO;CHM;;SP No Model Compatibility List $11.54 / Each

2
H 705492 049298-B H06 Spring;;;SWP;ZNC;LEFT;GM153 No Model Compatibility List $3.35 / Each

2
H 705493 049299-B H07 Spring;;;SWP;ZNC;RIGHT;GM153 No Model Compatibility List $3.35 / Each

2
T 705518 049871-B T03 Wave Board;GM151 No Model Compatibility List $9.41 / Each

4,5,6
T 705519 049872-C T04 back board;GM151 No Model Compatibility List $8.42 / Each

4,5,6
H 705534 050254-B H12 Grip;20#;GM153 No Model Compatibility List $3.35 / Each

11
H 705554 050391-A H09 Pin;Spring;5X16L;OXIDIZE; No Model Compatibility List $3.35 / Each

2,12,13,14
H 705701 055205-AB H11 Washer;Flat;12.5X20.0X1.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 706157 059631-B V01 Warning Sticker;GM162-KM No Model Compatibility List $9.10 / Each

1
V 706162 059653-B V02 Indication Decal;Seat Pad;GM162-KM No Model Compatibility List $8.42 / Each

7,3,12,13,14
V 706163 059654-B V05 Decal;Back Pad Adjustable;GM151 No Model Compatibility List $8.42 / Each

7,3,4,5,6,12,13,14
B 706373 061531-AA B08 Leveler;Foot Pad;FW151 No Model Compatibility List $14.56 / Each

9,3,12,13,14
B 706409 061883-AA B13 Rubber Sleeve;PU Cover;PU;FW164-KM No Model Compatibility List $8.42 / Each

9,3
N 706413 062099-A Not Shown Hardware;FW155 No Model Compatibility List $52.13 / Each

1
B 706451 062380-AA B09 Rubber Pad;FW160 No Model Compatibility List $37.52 / Each

12,13,14
B 708657 1000104684 B06 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
V 709155 1000110518 V10 Sticker;LOGO;PVC;FW151D-KM No Model Compatibility List $8.42 / Each

1
709196 1000110819 Not Shown Manual;Assembly;FW155D-KM No Model Compatibility List $14.87 / Each

3
709620 1000201734 6 Main Frame Set;;FW155D-KM;SERVE PARTS;;; No Model Compatibility List $743.29 / Each

3
709621 1000201735 5 Base Frame Set;SA;;FW155D-KM;SERVE PARTS No Model Compatibility List $379.83 / Each

3
4 709622 1000201737 4 Seat Post Set;SA;;FW155D-KM;SERVE PARTS;;; No Model Compatibility List $455.36 / Each

12,13,14
3 709623 1000201738 3 Seat Adjustment Set;SA;;FW155D-KM;SERVE PARTS;;; No Model Compatibility List $236.18 / Each

12,13,14
Logo Label;;;PET;;; 709765 1000202765 V01 Logo Label;;;PET;;; No Model Compatibility List $24.65 / Each

1
710414 1000210167 1 Main Frame Set;-;-;PAINTING;-;BLACK;F No Model Compatibility List $699.19 / Each

3,4,5,6
710415 1000210168 4 Base Frame Set-;PAINTING;-;BLACK;FW155E; No Model Compatibility List $312.83 / Each

3,4,5,6
729118 Part of Kit 1 AB2 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729152 Part of Kit 3 AH2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 AT1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729172 Part of Kit 5 AC1 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 AB1 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729261 See Pad Matrix J02 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
