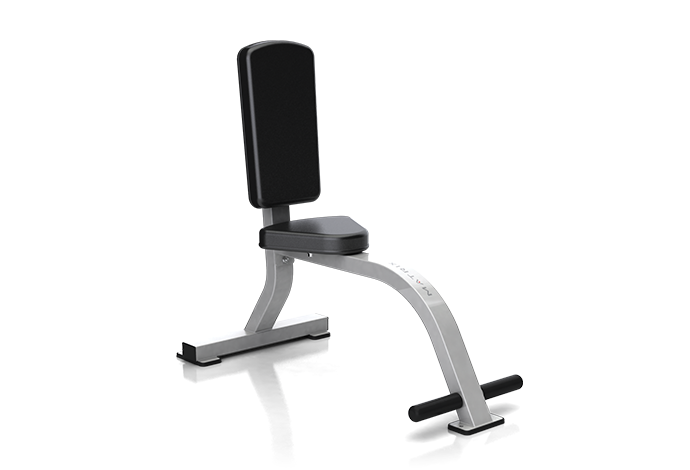

Matrix Commercial - G1-FW156 - 2010

Repair Parts for Matrix Commercial G1-FW156 FW156

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G1-FW156

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700226 000737-D B09 Foam;Foot pad No Model Compatibility List $9.10 / Each

9,3,12,13,14
B 700307 000925-B B08 End Cap;M38.1x3.0T No Model Compatibility List $1.79 / Each

9
Z 701522 004555-AB Z04 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
B 701660 004696-AB B07 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701914 004943-00 Z02 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
Z 704007 020098-AD Z03 Screw;Hex Socket;Round;M10x1.5Px70L;Cr; No Model Compatibility List $9.10 / Each

2
Z 704206 020479-A Z01 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 705388 049041-AA C04 Tube End Cap;S50.0x75.0x3.0t;GM151 No Model Compatibility List $3.35 / Each

9,3

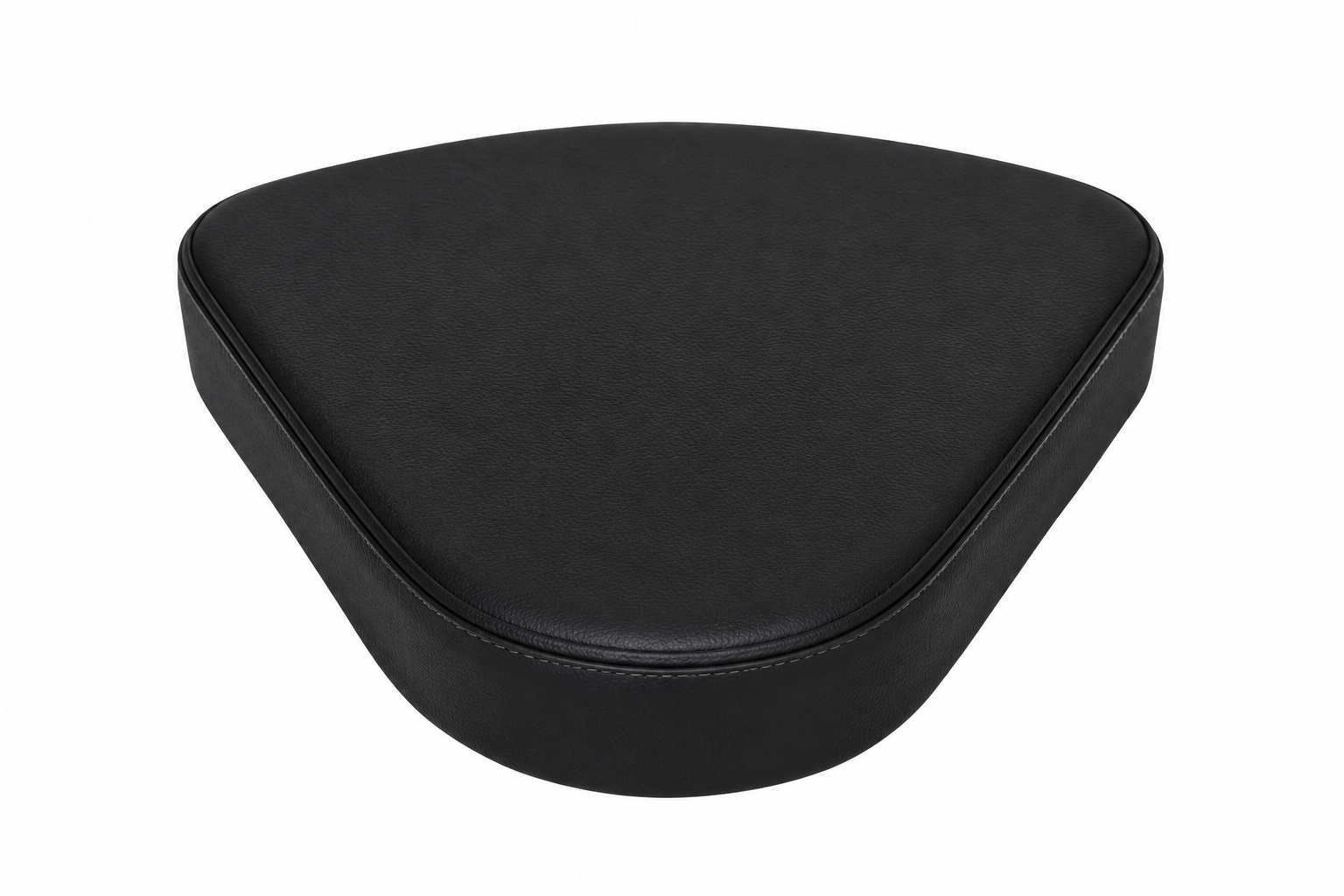

705646 053303-AA J01 Seat Pad BLACK No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
705647 053303-AB J01 Seat Pad CABERNET No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14

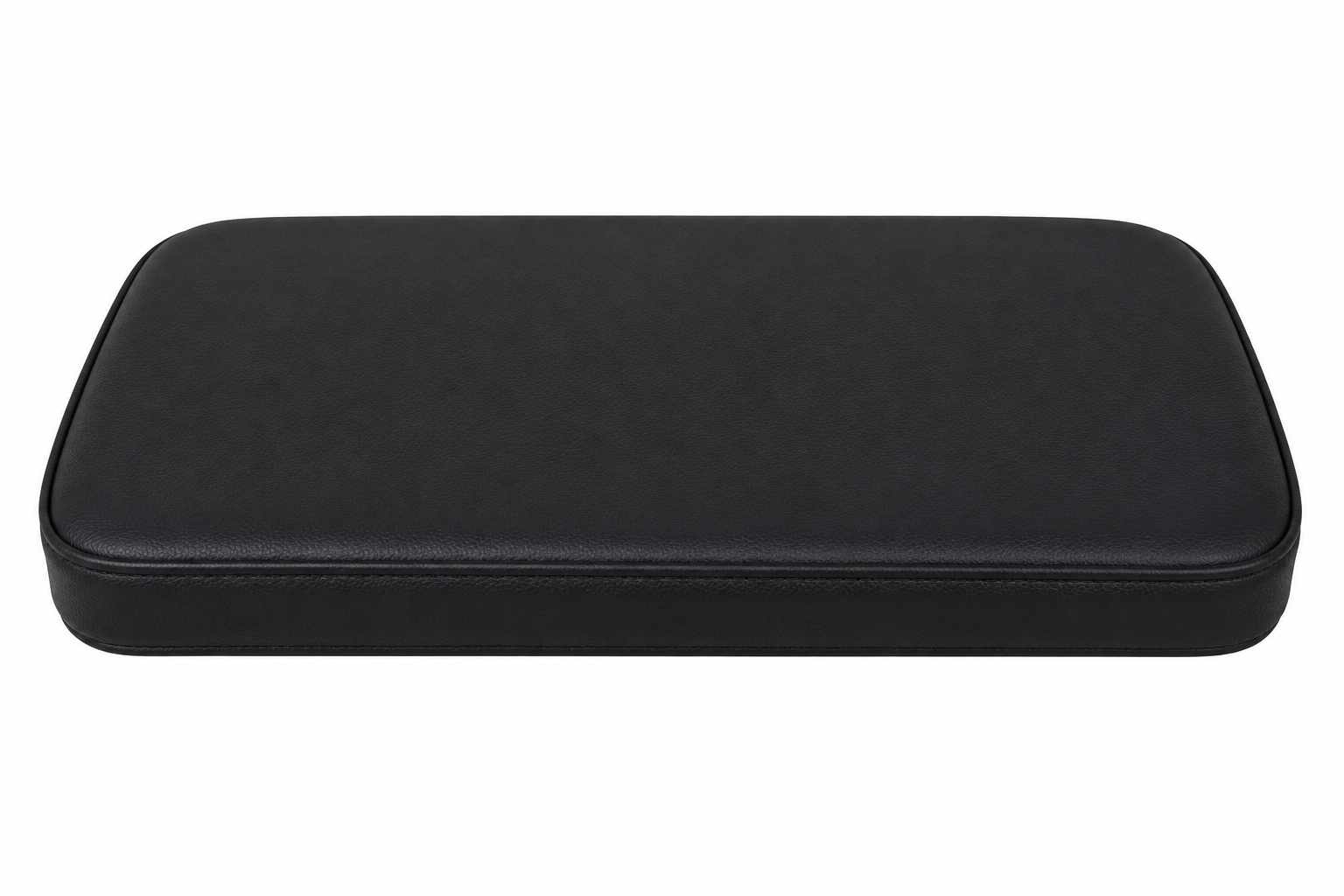

705651 053313-AA J02 Back Pad;;Black;;GM153;GM153-J02A BLACK No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
705652 053313-AB J02 Back Pad;;Cabernet;;GM153;GM153-J02A RED No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
V 706157 059631-B V01 Warning Sticker;GM162-KM No Model Compatibility List $9.10 / Each

1
N 706376 061631-A Not Shown Hardware Set;FW156 No Model Compatibility List $31.30 / Each

1
706945 067339-A Not Shown Assembly Manual No Model Compatibility List $16.64 / Each

3
V 709155 1000110518 V10 Sticker;LOGO;PVC;FW151D-KM No Model Compatibility List $8.42 / Each

1
709164 1000110586 J01 Seat Pad;Mist Blue;FW153D-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
709165 1000110589 J02 Back Pad;Mist Blue;FW156D-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
709169 1000110631 V02 Product Bar Code Sticker;FW156D-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
709617 1000201731 AB1 Frame Set;Welding;FW156-KM No Model Compatibility List $306.57 / Each

3
709618 1000201732 AC1 Base Set;Welding;FW156-KM No Model Compatibility List $348.22 / Each

3
709619 1000201733 1 Foot Pad Set;SA;;FW156D-KM;SERVE PARTS; No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,12,13,14
729118 Part of Kit 1 B06 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
View Drawing
