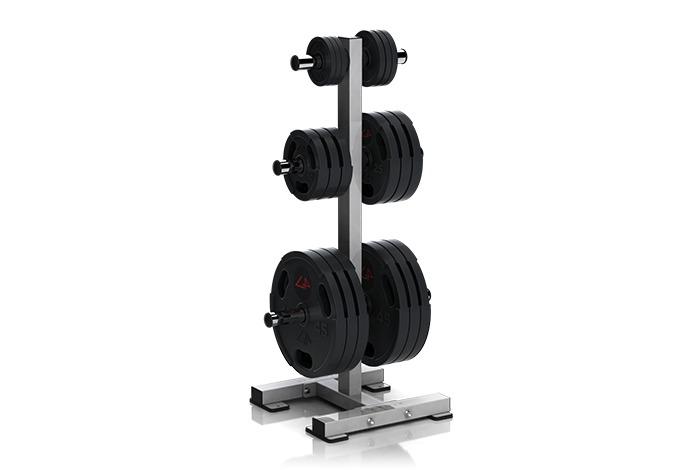

Replacement Parts for Matrix Commercial G1-FW157 Benches/Racks

Matrix Commercial - G1-FW157 - 2010

Repair Parts for Matrix Commercial G1-FW157 FW157

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW157

Model Name: G1-FW157

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16791.0-base.pdf

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Fastener Related
Frame Components
Circuit Boards
Plastic Parts
Seats
Posts
Pins
Other

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
701660	004696-AB	C07	Screw;Hex Socket;8X1.25X20L;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,12,13,14
701820	004842-00	Z07	Set Screw;M6x1.0Px8L(Bed)	No	Model Compatibility List	$1.79 / Each	2
701914	004943-00	Z03	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each	2,3
704027	020115-AE	Z01	Screw;SH;M10X1.5PX95-20L ;;HS;;CHM;;P-T	No	Model Compatibility List	$9.28 / Each	2
704206	020479-A	Z02	Washer;Flat;10.2x22.0x2.0T;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,12,13,14
705393	049049-AA	B09	Cap;50x75x2t;	No	Model Compatibility List	$3.35 / Each	9
706157	059631-B	V01	Warning Sticker;GM162-KM	No	Model Compatibility List	$9.10 / Each	1
709155	1000110518	V02	Sticker;LOGO;PVC;FW151D-KM	No	Model Compatibility List	$8.42 / Each	1
709170	1000110640	Not Shown	Manual;Assembly;FW157D-KM	No	Model Compatibility List	$15.47 / Each	3
709657	1000201909	1	Foot Pad Set;SA;A;FW151D-KM;SERVICE PAR	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3,12,13,14
709771	1000203019	AB1	Main Frame Set;Painting;FW157	No	Model Compatibility List	$506.30 / Each	3
709772	1000203020	AC1	Base Frame Set;Painting;FW157	No	Model Compatibility List	$146.20 / Each	3
725975	078726	B10	Storage Horn Cover;#48;PVC;FW161	No	Model Compatibility List	$1.66 / Each	9
726181	080657	B11	Pad Plate;PU;FW157	No	Model Compatibility List	$15.57 / Each	3,12,13,14
726259	081077	B05	Hook1;Cr Plate;Extrawork;FW157	No	Model Compatibility List	$304.38 / Each	3
726260	081079	B06	Hook2;Cr Plate;Extrawork;FW157	No	Model Compatibility List	$318.58 / Each	3
726261	081081	B07	Hook3;Cr Plate;Extrawork;FW157	No	Model Compatibility List	$326.79 / Each	3
729118	Part of Kit 1	C06	Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
