Replacement Parts for Matrix Commercial G1-FW159 Benches/Racks

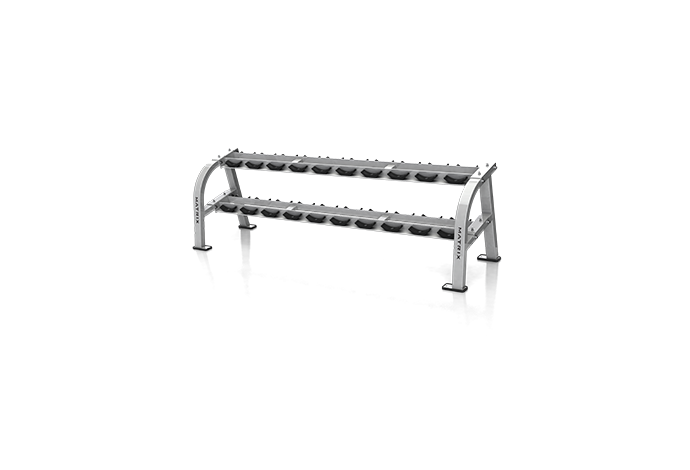

Matrix Commercial - G1-FW159 - 2010

Repair Parts for Matrix Commercial G1-FW159 FW159

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW159

Model Name: G1-FW159

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16793.0-base.pdf

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Fastener Related
Frame Components
Circuit Boards
Plastic Parts
Seats
Posts
Pins
Other

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700249	000776-A	G05	Elastomer;E5-09B;FW91	No	Model Compatibility List	$9.52 / Each	1
701545	004573-AE	G04	Screw;Hex Socket;Sink;M10x1.5Px25L	No	Model Compatibility List	$3.64 / Each	2
701660	004696-AB	D06	Screw;Hex Socket;8X1.25X20L;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,12,13,14
701914	004943-00	Z01	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each	2,3
704007	020098-AD	Z03	Screw;Hex Socket;Round;M10x1.5Px70L;Cr;	No	Model Compatibility List	$9.10 / Each	2
704025	020115-A	Z04	Screw;SH;M10X1.5PX95;;HS;;CHM;;	No	Model Compatibility List	$8.42 / Each	2
704206	020479-A	Z02	Washer;Flat;10.2x22.0x2.0T;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,12,13,14
705367	048970-BA	D05	Foot Pad;Rubber;GM151	No	Model Compatibility List	$8.42 / Each	9,3,12,13,14
705389	049043-AA	D07	Cap;S50.0x75.0;2.0t.3.0t tube	No	Model Compatibility List	$3.35 / Each	9,3
706157	059631-B	V06	Warning Sticker;GM162-KM	No	Model Compatibility List	$9.10 / Each	1
706377	061632-A	Not Shown	Hardware;FW159-KM	No	Model Compatibility List	$156.52 / Each	1
709155	1000110518	V04	Sticker;LOGO;PVC;FW151D-KM	No	Model Compatibility List	$8.42 / Each	1
709172	1000110662	Not Shown	Manual;Assembly;FW159D-KM	No	Model Compatibility List	$15.47 / Each	3
709533	1000201048	AD1	Frame;Leg;Right;FW159D-KM;SERVICE PARTS;;;	No	Model Compatibility List	$469.59 / Each	3
709534	1000201049	AD2	Frame;Leg;Left;R;FW159D-KM;SERVICE PARTS;;;	No	Model Compatibility List	$500.37 / Each	3
709535	1000201051	AG1	Main Connecting Frame Set;SA;;FW159D-KM;SE	No	Model Compatibility List	$736.66 / Each	3
728977	N/A	5	Console Mast,Old version (4 holes on front)	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
