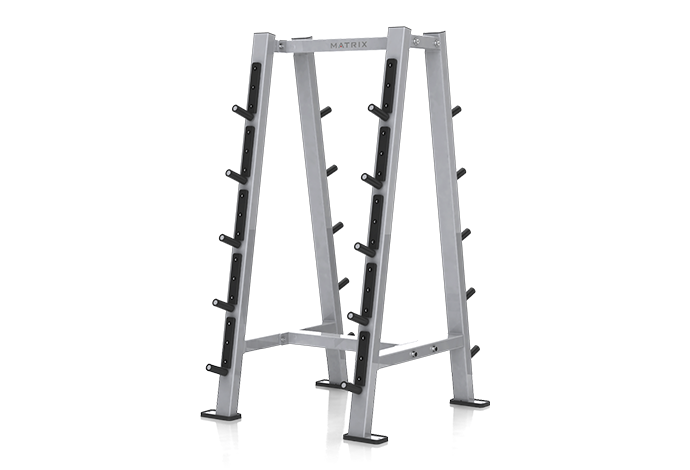

Replacement Parts for Matrix Commercial G1-FW160 Benches/Racks

Matrix Commercial - G1-FW160 - 2010

Repair Parts for Matrix Commercial G1-FW160 FW160

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW160

Model Name: G1-FW160

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16794.0-base.pdf

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Fastener Related
Frame Components
Circuit Boards
Plastic Parts
Seats
Posts
Pins
Other

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
701530	004562-00	B12	Bolt;Deck;M8x1.25Px35L	Yes	Model Compatibility List	$5.85 / Each	2
701660	004696-AB	B07	Screw;Hex Socket;8X1.25X20L;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,12,13,14
701914	004943-00	Z01	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each	2,3
704025	020115-A	Z03	Screw;SH;M10X1.5PX95;;HS;;CHM;;	No	Model Compatibility List	$8.42 / Each	2
704206	020479-A	Z02	Washer;Flat;10.2x22.0x2.0T;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,12,13,14
705367	048970-BA	B06	Foot Pad;Rubber;GM151	No	Model Compatibility List	$8.42 / Each	9,3,12,13,14
705389	049043-AA	B09	Cap;S50.0x75.0;2.0t.3.0t tube	No	Model Compatibility List	$3.35 / Each	9,3
706157	059631-B	V06	Warning Sticker;GM162-KM	No	Model Compatibility List	$9.10 / Each	1
706409	061883-AA	B10	Rubber Sleeve;PU Cover;PU;FW164-KM	No	Model Compatibility List	$8.42 / Each	9,3
706451	062380-AA	B11	Rubber Pad;FW160	No	Model Compatibility List	$37.52 / Each	12,13,14
706496	062819-A	Not Shown	Hardware Set;FW160;	No	Model Compatibility List	$135.59 / Each	1
708657	1000104684	B08	RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8)	No	Model Compatibility List	$3.35 / Each	1
709155	1000110518	V03	Sticker;LOGO;PVC;FW151D-KM	No	Model Compatibility List	$8.42 / Each	1
709173	1000110673	Not Shown	Manual;Assembly;FW160D-KM	No	Model Compatibility List	$15.47 / Each	3
709529	1000201042	AB1	Frame Welding Set;Painting;FW160	No	Model Compatibility List	$1199.35 / Each	3
709530	1000201045	AG1	Frame Connecting Tube Set;Painting;FW160	No	Model Compatibility List	$202.70 / Each	3
728977	N/A	3	Console Mast,Old version (4 holes on front)	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
