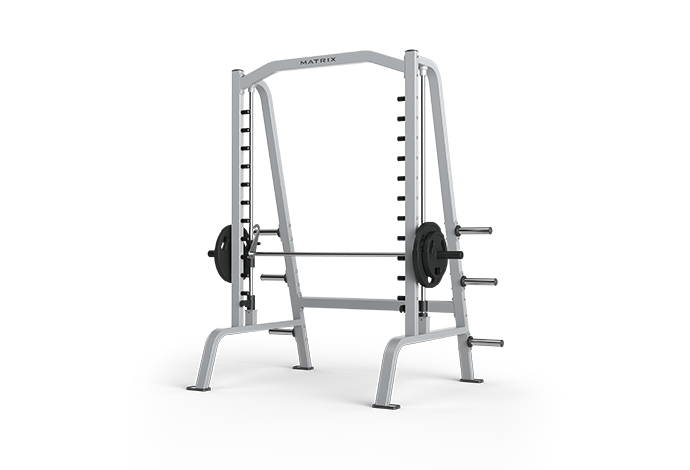

Matrix Commercial - G1-FW161 - 2010

Repair Parts for Matrix Commercial G1-FW161 G1FW161,FW161

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G1-FW161

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Z 700235 000754-CA Z20 Elastomer;Rubber;BL;FW62 No Model Compatibility List $9.10 / Each

1
N 700253 000783-AA N06 Stopper Pad;Rubber;FW62 No Model Compatibility List $1.66 / Each

12,13,14
M 700685 001791-AA M16 Fix Block;Weight Lifting Connecting Sleeve;POM; No Model Compatibility List $3.64 / Each

3,10
M 701162 004079-A3 M12 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

8
N 701188 004127-A N05 Bearing;Dry;LFF-3020;;;;;; No Model Compatibility List $9.10 / Each

8
Z 701490 004533-AB Z02 Screw;Hex Socket;Round;M8x1.25Px65L Yes Model Compatibility List $1.79 / Each

2
B 701660 004696-AB B17 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701898 004926-AC Z04 Nut;Self Locking;M8x1.25P;Cr;Nylon Insert No Model Compatibility List $2.00 / Each

2
Z 701914 004943-00 Z15 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
Z 701968 005007-00 Z09 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 702085 005117-AB Z06 Washer;Flat;8.2x16.0x2.0T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Z 702102 005132-00 Z08 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
M 702199 005253-A M15 Washer;Swivel No Model Compatibility List $3.35 / Each

2
Z 704027 020115-AE Z03 Screw;SH;M10X1.5PX95-20L ;;HS;;CHM;;P-T No Model Compatibility List $9.28 / Each

2
Z 704034 020123-AC Z05 Screw;Hex Socket;Round;M12x1.75Px20L;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
Z 704206 020479-A Z07 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
M 705311 040778-BA M18 Outside Tube;POM;FW62 No Model Compatibility List $208.65 / Each

3
B 705367 048970-BA B15 Foot Pad;Rubber;GM151 No Model Compatibility List $8.42 / Each

9,3,12,13,14
B 705426 049134-BA B16 Upright Frame Top End Cap No Model Compatibility List $1.66 / Each

9,3
V 706157 059631-B V02 Warning Sticker;GM162-KM No Model Compatibility List $9.10 / Each

1
N 706381 061702-A Not Shown Hardware;Semi-Assy;FW161-KM No Model Compatibility List $146.12 / Each

1
706382 061703-AA AB1 Frame Set;R;Painting;FW161-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
706383 061704-AA AB2 BaseFrameSet;L;Painting;FW161-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
706384 061732-A B12 Guide Rail;15Cr;FW161 No Model Compatibility List $730.29 / Each

9
B 706385 061739-BA B13 Rubber Sleeve;PU Cover;PU;FW161 No Model Compatibility List $13.47 / Each

9,3
M 706386 061741-A M19 Boot;Stoped;Rubber;BL;FW161 No Model Compatibility List $8.42 / Each

1
M 706832 066008-A M17 Connect Cover;POM;FW161 No Model Compatibility List $322.14 / Each

9
Z 708082 1000099212 Z01 Screw;SH;M6x1.0Px15L;-;HS;-;CHM;-;-; No Model Compatibility List $0.86 / Each

2
M 708486 1000102912 M14 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
M 708487 1000102913 M13 Circlip;Internal C Type;R-47;BED No Model Compatibility List $1.79 / Each

2
M 708488 1000102914 M10 Circlip;Internal C Type;R-55;BED No Model Compatibility List $1.79 / Each

2
Z 709080 1000109126 Z21 Sung Base;Guide Rod;;painting;;;FW62KM-G No Model Compatibility List $40.53 / Each

3
V 709155 1000110518 V01 Sticker;LOGO;PVC;FW151D-KM No Model Compatibility List $8.42 / Each

1
709174 1000110684 Not Shown Manual;Assembly;FW161D-KM No Model Compatibility List $15.47 / Each

3
709175 1000110686 V03 Product Bar Code Sticker;FW161D-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
709562 1000201358 AB1 Frame Set;Left;Welding;FW161 No Model Compatibility List $1.30 / Each

3
709563 1000201359 AB2 Frame Set;Right;Welding;FW161 No Model Compatibility List $1213.21 / Each

3
A 709564 1000201361 AG1 Lower Frame Connecting Set;D;Welding;FW161-KM No Model Compatibility List $227.19 / Each

3
A 709565 1000201362 AG2 Upper Frame Connecting Set;U;Welding;FW161-KM No Model Compatibility List $125.03 / Each

3
2 709566 1000201363 2 Hook Frame Set;Left;SA;R;FW161D-KM ; SERVICE PART;;; No Model Compatibility List $128.13 / Each

3
3 709567 1000201364 3 Hook Frame Set;Right;FW161D-KM ; SERVICE PART;;; No Model Compatibility List $128.13 / Each

3
709568 1000201365 7 Storage Horn Set;Semi-Assy;;;;FW161D;;SB No Model Compatibility List $0.00 / Each
Out Of Stock 		1
4 709569 1000201366 4 Guide Rod Sleeve Set;Left;FW161D-KM ; SER No Model Compatibility List $566.12 / Each

3
5 709570 1000201367 5 Guide Rod Sleeve Set;Right;FW161D-KM ; SER No Model Compatibility List $566.12 / Each

3
A 709571 1000201368 AM3 WEIGHT LIFTING ROD;SA;;FW161D-KM ;S No Model Compatibility List $258.54 / Each

3,10
Logo Label;;;PET;;; 709765 1000202765 V01 Logo Label;;;PET;;; No Model Compatibility List $24.65 / Each

1
Screw;SH;M10x15L;-;HS;-;CHM;BP;G8.8; 709852 1000203852 Z01 Screw;SH;M10x15L;-;HS;-;CHM;BP;G8.8; No Model Compatibility List $3.69 / Each

2
710416 1000210169 2 FRAME WELDING SET;-;-;PAINTING;-;BLACK;F No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
710417 1000210170 AG2 DISASSEMBLY CONNECT SET;-;-;PAINTING;-;B No Model Compatibility List $0.00 / Each
Out Of Stock 		3
710489 1000210607 1 FRAME WELDING SET;-;R;PAINTING;-;BLACK;F No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
710490 1000210608 AG1 DISASSEMBLY CONNECT SET;-;D;PAINTING;-;B No Model Compatibility List $0.00 / Each
Out Of Stock 		3
M 716149 1000333566 M11 Bearing;Linear;KS30-PP;;INA; No Model Compatibility List $250.04 / Each

8
725420 071085 AN1 Stopper Set;Weight lifting mast set ;R;B No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
725421 071086 AN2 Stopper Set;Weight lifting mast set ;L;B No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
725422 071087 AM2 Slipping Sleeve Set ;L;Painting;Black;FW No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
725423 071089 AM1 Slipping sleeve set ;R;Painting;Black;FW No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
Storage Horn Cover;#48;PVC;FW161 725975 078726 B10 Storage Horn Cover;#48;PVC;FW161 No Model Compatibility List $1.66 / Each

9
Storage Horn;CR Plate 726170 080575 AB4 Storage Horn;CR Plate No Model Compatibility List $186.55 / Each

3
Storage Horn Rubber Ring;Rubber;FW161 726258 081064 B11 Storage Horn Rubber Ring;Rubber;FW161 No Model Compatibility List $23.19 / Each

1
728977 N/A 1 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729138 Part of Kit 2 AN1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AN2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 AM1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729172 Part of Kit 5 AM2 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
