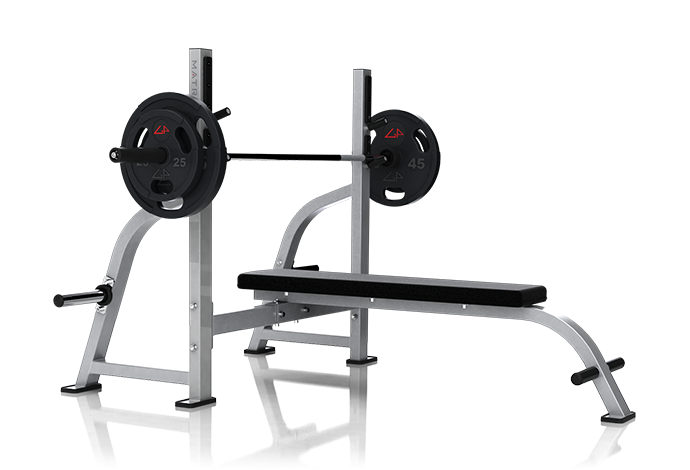

Matrix Commercial - G1-FW163 - 2010

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000737-D 700226 000737-D B11 Foam;Foot pad No Model Compatibility List $7.00 / Each

9,3,12,13,14
000925-B 700307 000925-B B23 End Cap;M38.1x3.0T No Model Compatibility List $1.38 / Each

9
004555-AB 701522 004555-AB Z06 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $3.08 / Each

2
004696-AB 701660 004696-AB B19 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004943-00 701914 004943-00 Z04 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
005388-00 702256 005388-00 Z02 Wrench;13/17mm;150L No Model Compatibility List $3.08 / Each

2
005426-A 702271 005426-A Z01 Wrench;Hex;L-Type;M8x120L No Model Compatibility List $2.84 / Each

2
020115-AE 704027 020115-AE Z03 Screw;SH;M10X1.5PX95-20L ;;HS;;CHM;;P-T No Model Compatibility List $7.14 / Each

2
020479-A 704206 020479-A Z05 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
049043-AA 705389 049043-AA B16 Cap;S50.0x75.0;2.0t.3.0t tube No Model Compatibility List $2.58 / Each

9,3
059631-B 706157 059631-B V08 Warning Sticker;GM162-KM No Model Compatibility List $7.00 / Each

1
706843 066162-BA J01 Back Pad;BlackFW151-J01B-00 No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
706844 066162-BB J01 Back Pad;redFW151-J01B-00 No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
1000095209 707785 1000095209 Not Shown Hard Ware Kit Set;FW163B-KM No Model Compatibility List $142.42 / Each

1
1000104684 708657 1000104684 B18 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $2.58 / Each

1
1000110518 709155 1000110518 V04 Sticker;LOGO;PVC;FW151D-KM No Model Compatibility List $6.48 / Each

1
709163 1000110582 J01 Back Pad;Mist Blue;FW151D-KM No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
709178 1000110742 Not Shown Manual;Assembly;FW163D-KM No Model Compatibility List $11.90 / Each

3
709635 1000201819 AB1 Main Frame Set;Middle;Welding;FW163B No Model Compatibility List $370.24 / Each

3
709636 1000201820 AB2 Upright Frame;Left;FW163B No Model Compatibility List $432.92 / Each

3
709637 1000201821 AB4 Upright Frame;Right;Painting;FW163B No Model Compatibility List $445.28 / Each

3
709638 1000201822 1 Foot Pad Set;SA;D;FW163D-KM;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock
9,3,12,13,14
1000201824 709639 1000201824 3 RUBBER SET;SA;D;FW163D-KM;-;-; No Model Compatibility List $19.48 / Each

1
1000201825 709640 1000201825 2 RUBBER SET;SA;U;FW163D-KM;-;-; No Model Compatibility List $32.48 / Each

1
709641 1000201826 AG1 Frame Connecting Set;Painting;FW163B No Model Compatibility List $169.72 / Each

3
078726 725975 078726 B10 Storage Horn Cover;#48;PVC;FW161 No Model Compatibility List $1.28 / Each

9
080575 726170 080575 AB4 Storage Horn;CR Plate No Model Compatibility List $143.50 / Each

3
081064 726258 081064 B11 Storage Horn Rubber Ring;Rubber;FW161 No Model Compatibility List $17.84 / Each

1
095451 728590 095451 B21 Rubber Sleeve;PU Cannula;PU;FW163B-KM No Model Compatibility List $15.48 / Each

3
991668-AC 728949 991668-AC B17 Screw;FH;M8X1.25PX30L;;HS;;CHM;; No Model Compatibility List $2.80 / Each

2
729118 Part of Kit 1 B12 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729138 Part of Kit 2 B15 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
7
729152 Part of Kit 3 B14 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
View Drawing
